Week 11:- 2D Detailing Challenge 2

AIM:

1. Create 2D Drawing for each Clamp Units with all child parts and also create Child pard drawing for the same for the Fixture assembly created in challenge 8.

2. Create 2D Drawing for each Pin Units drawings with all child parts and also create Child pard drawing for the same for the Fixture assembly created in challenge 8.

CLAMP UNIT DETAILING:

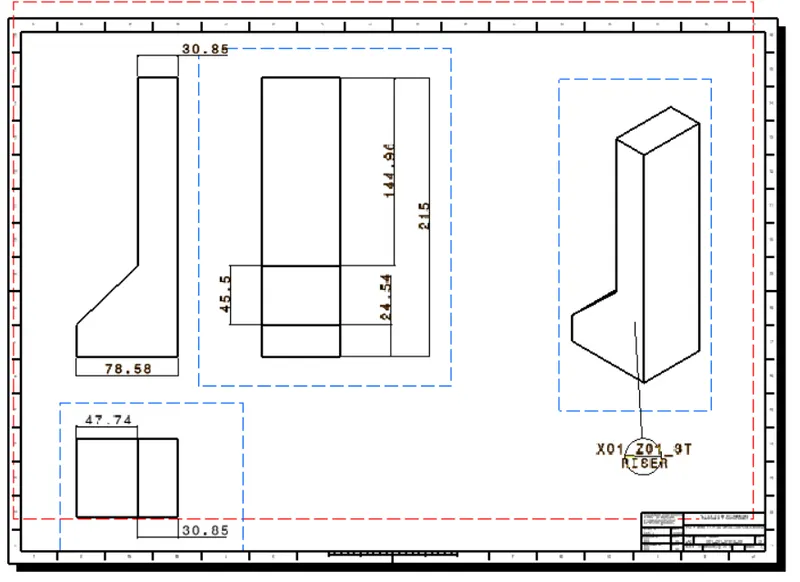

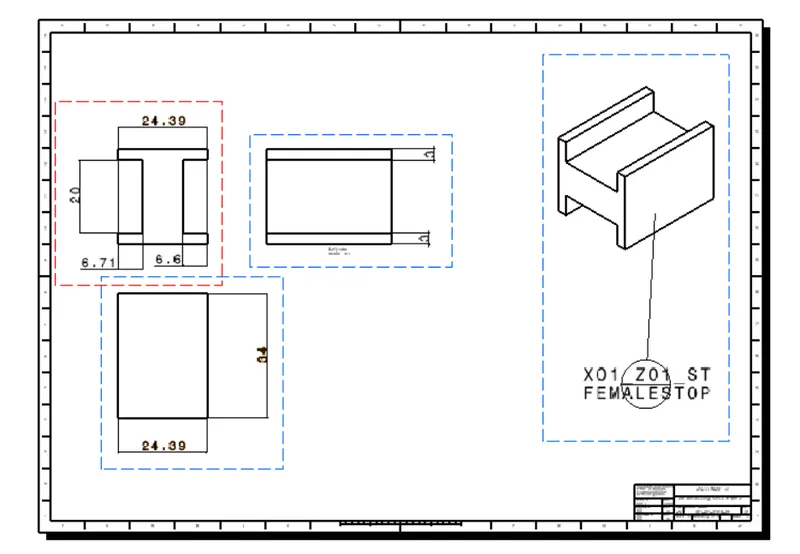

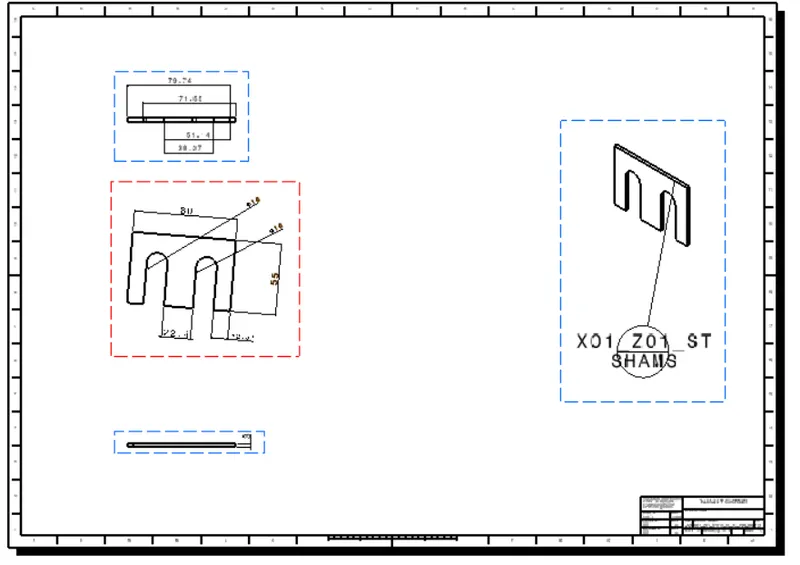

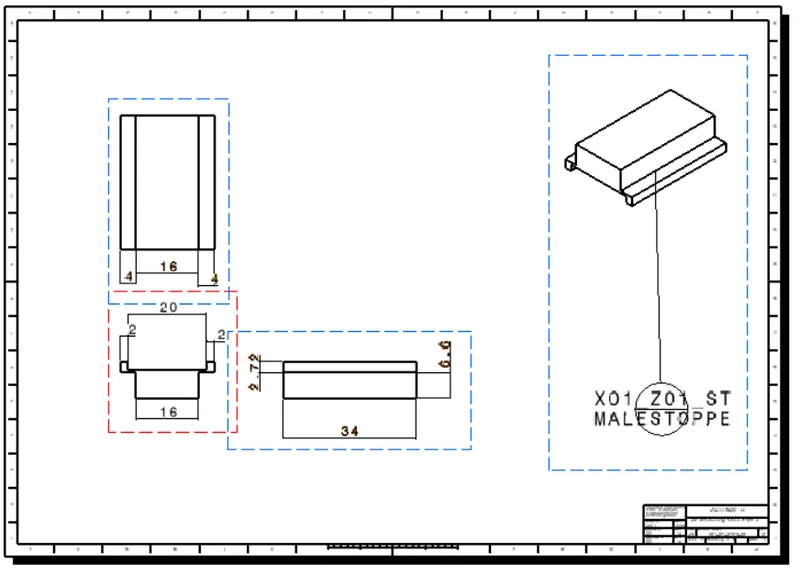

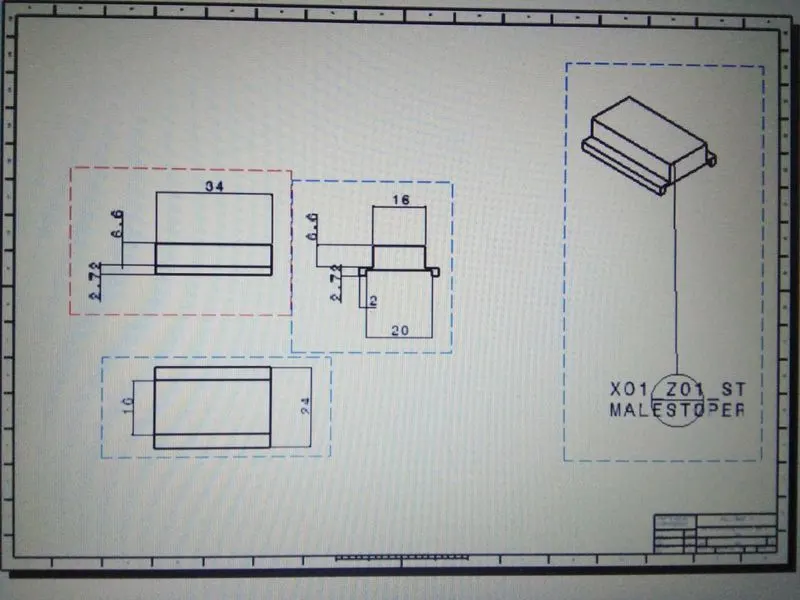

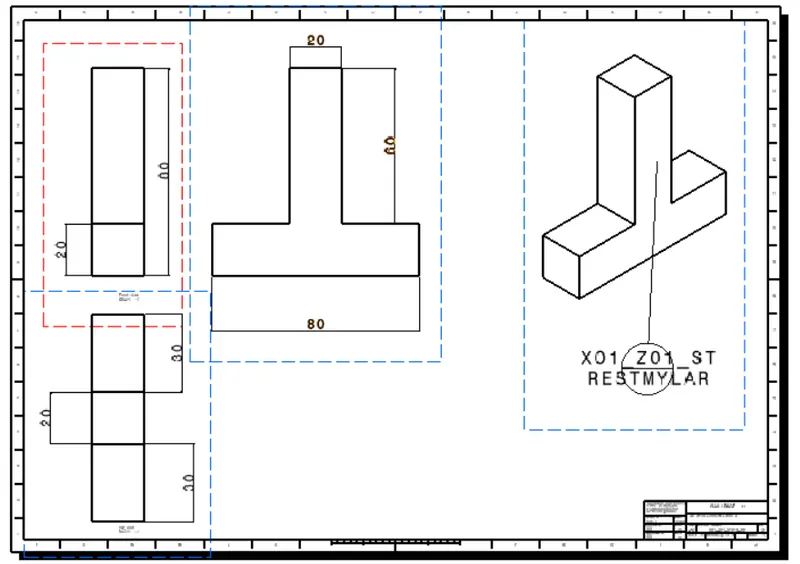

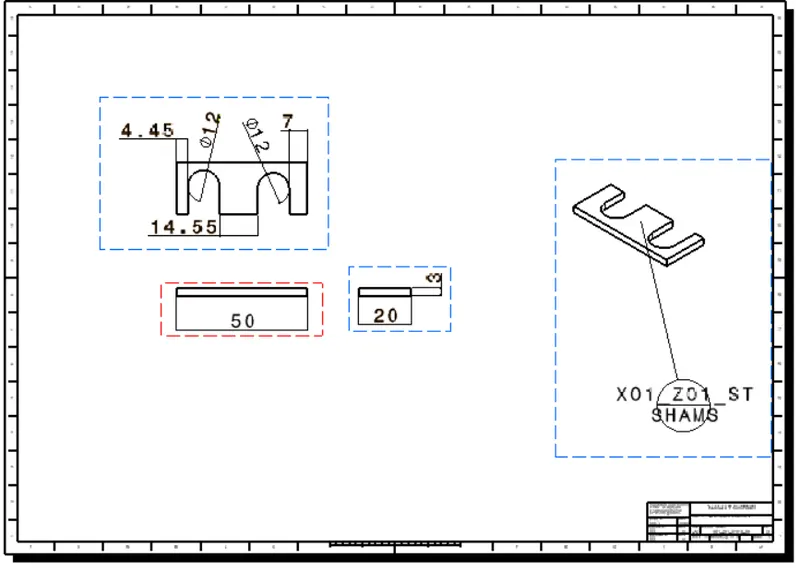

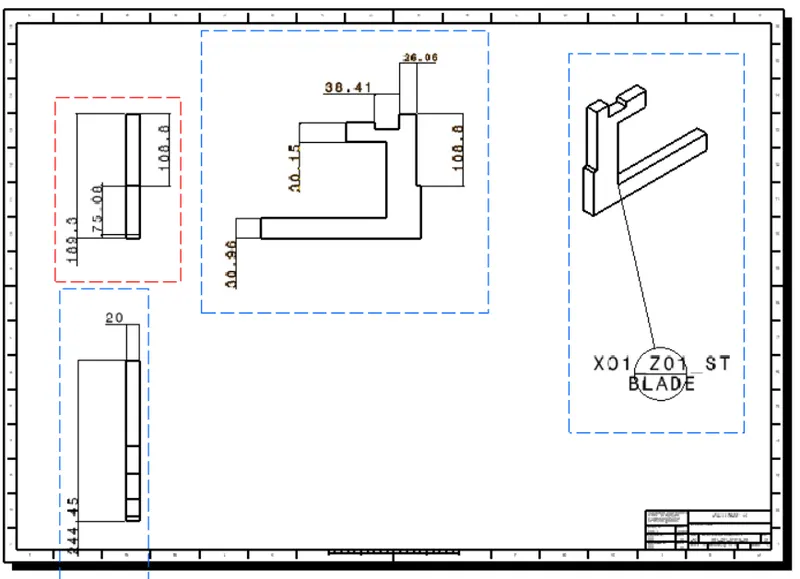

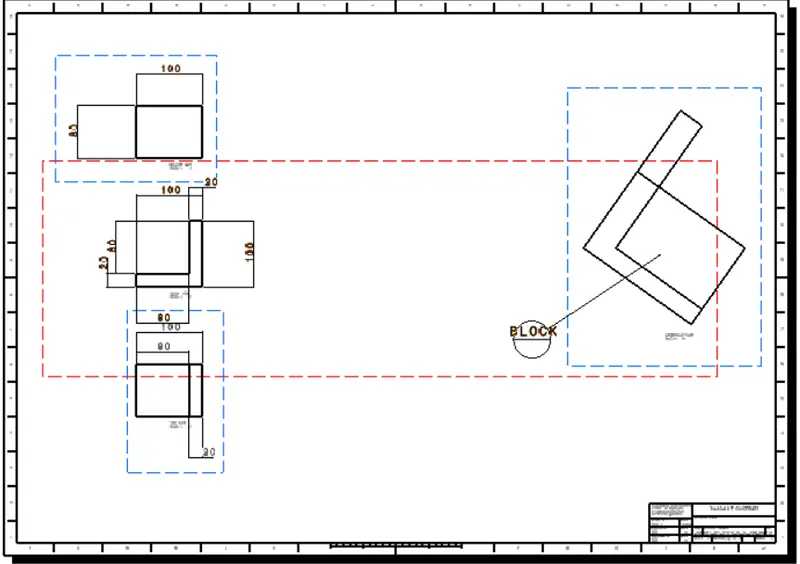

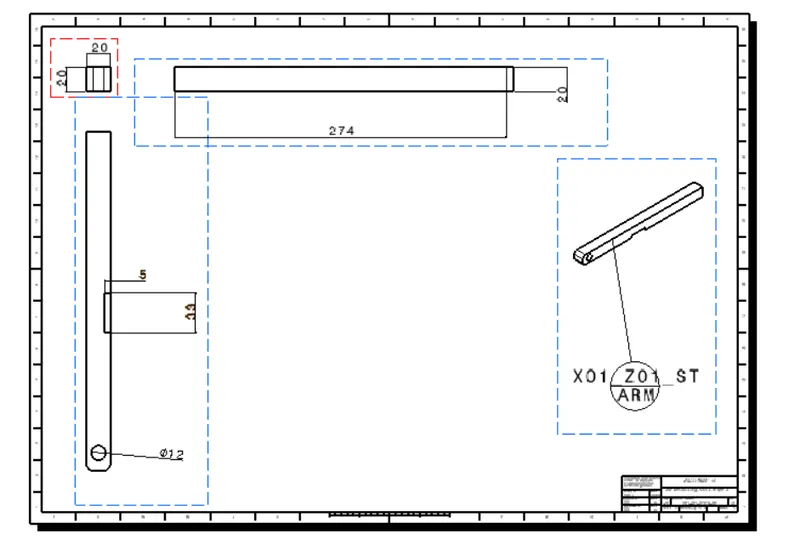

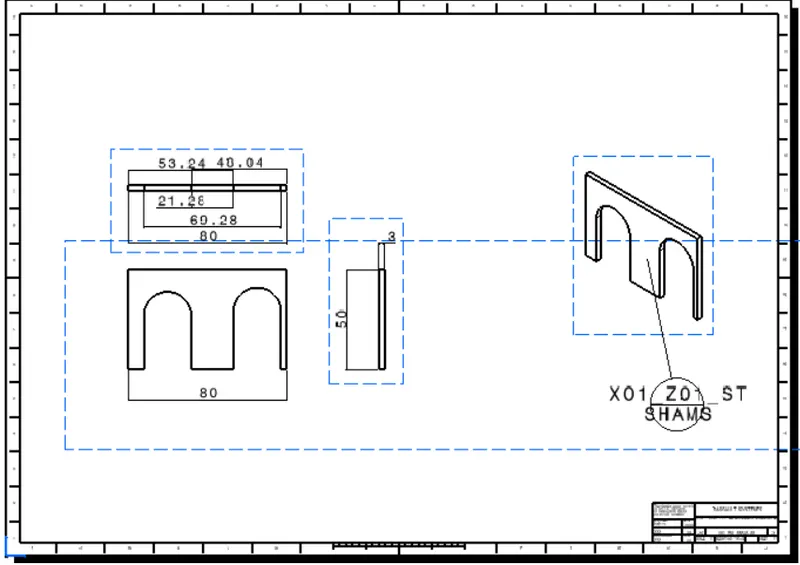

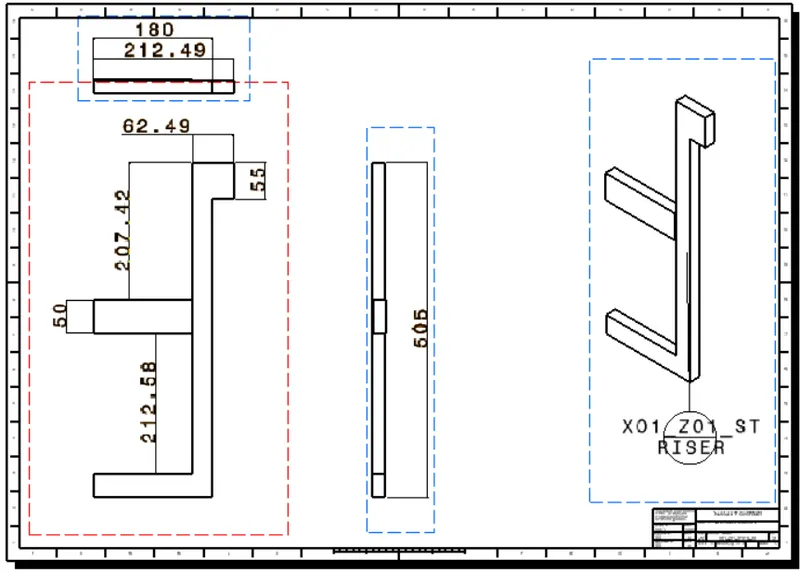

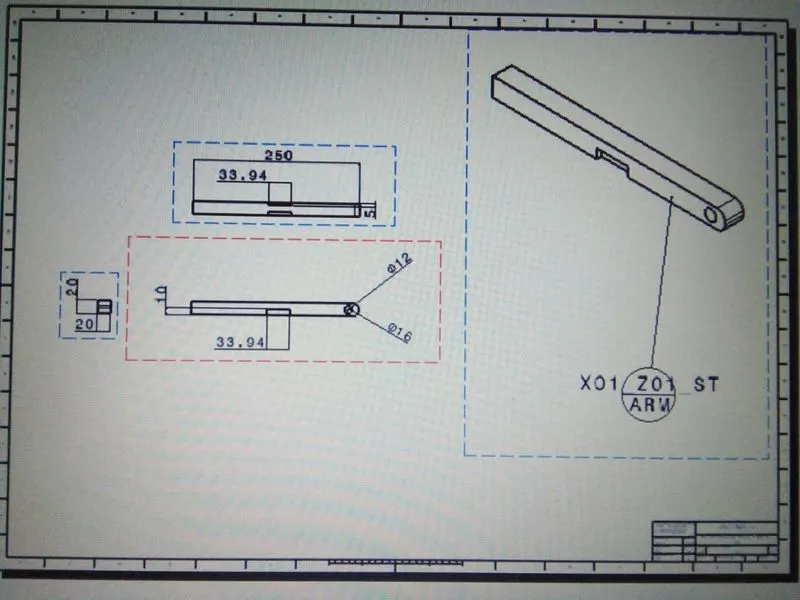

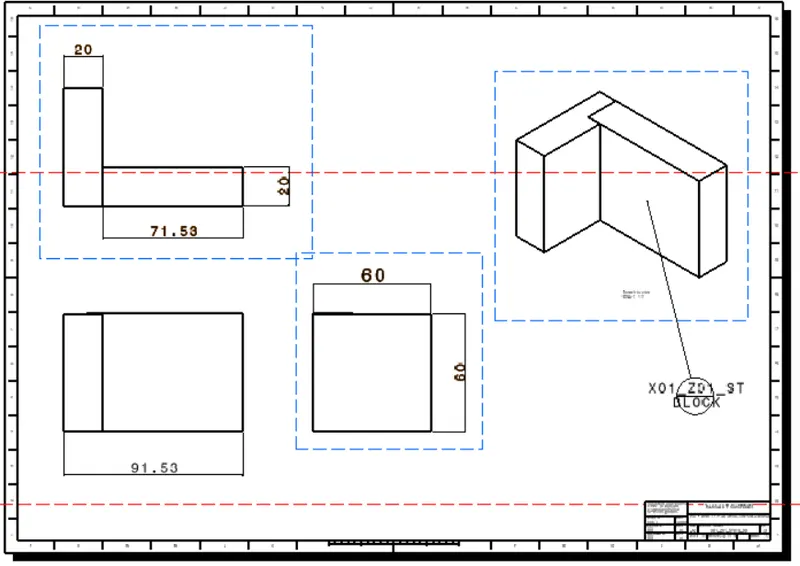

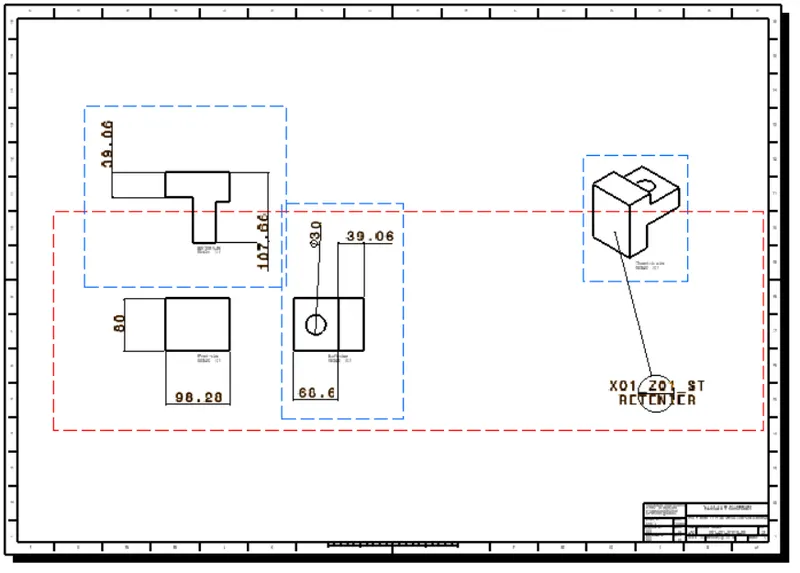

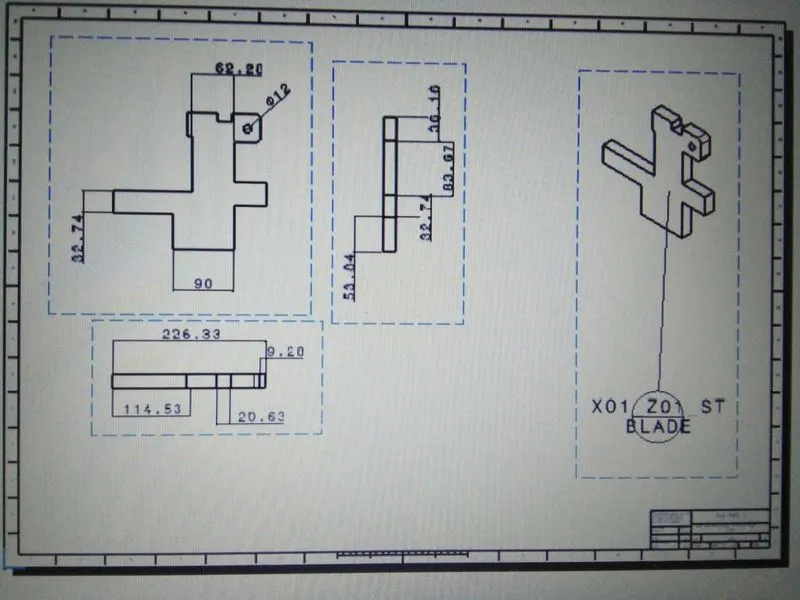

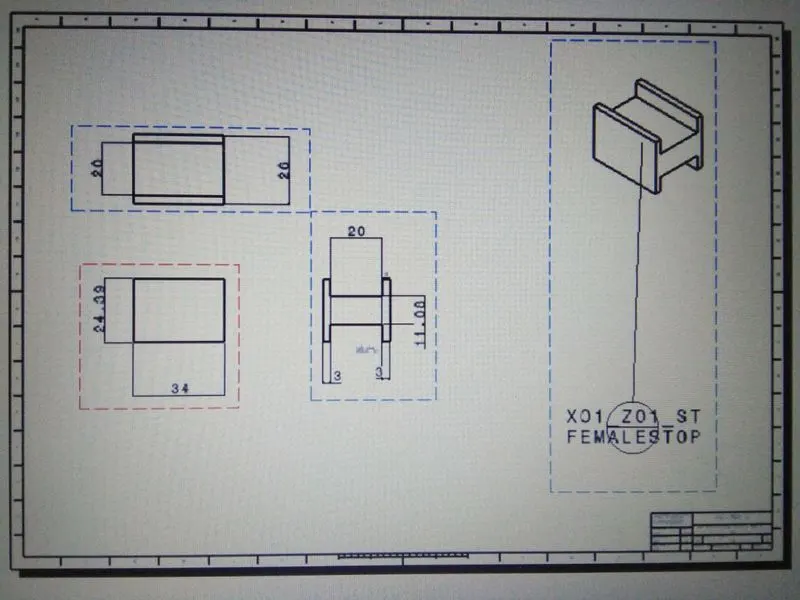

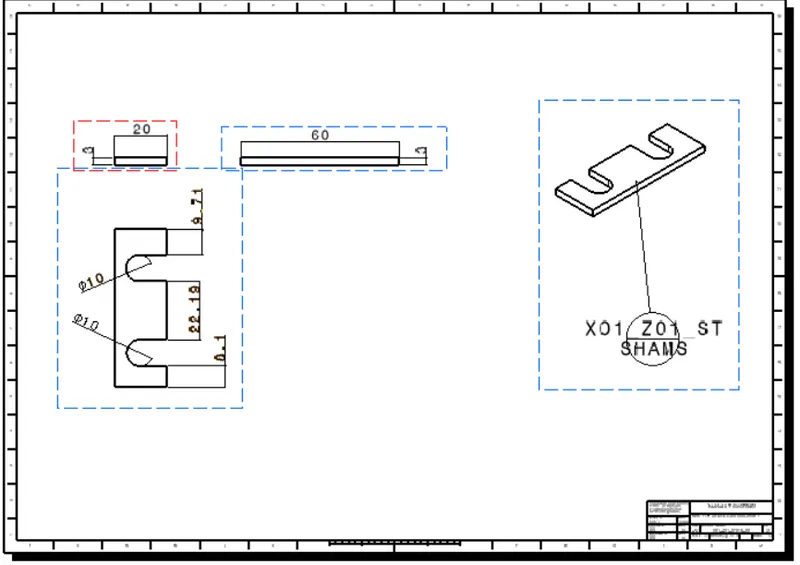

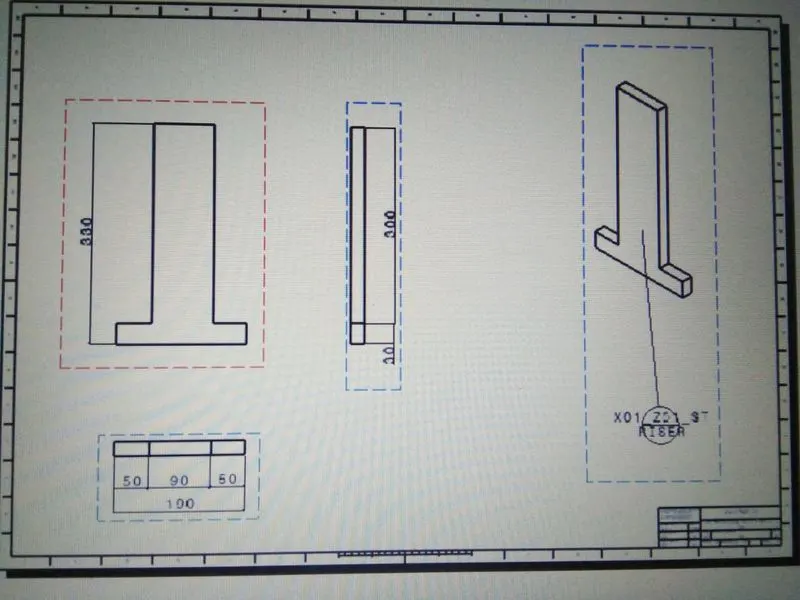

• Here we are detailing each and every part of unit.

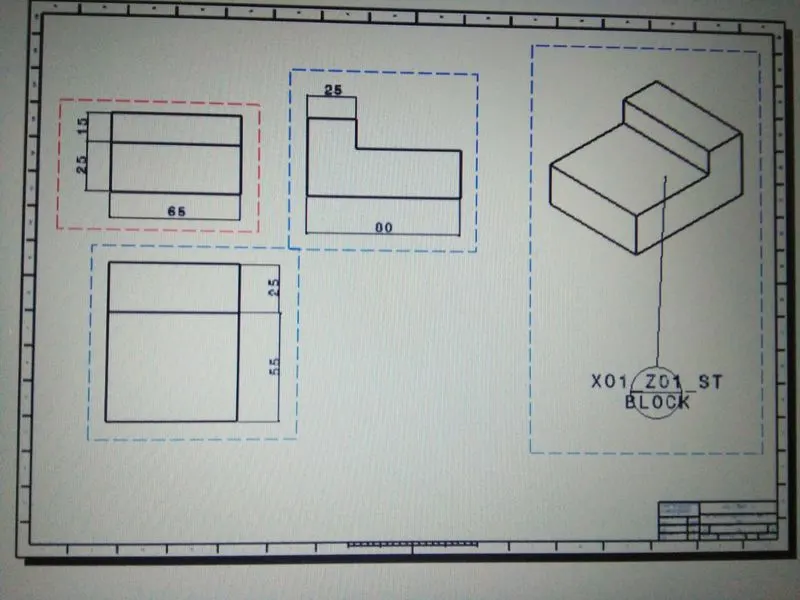

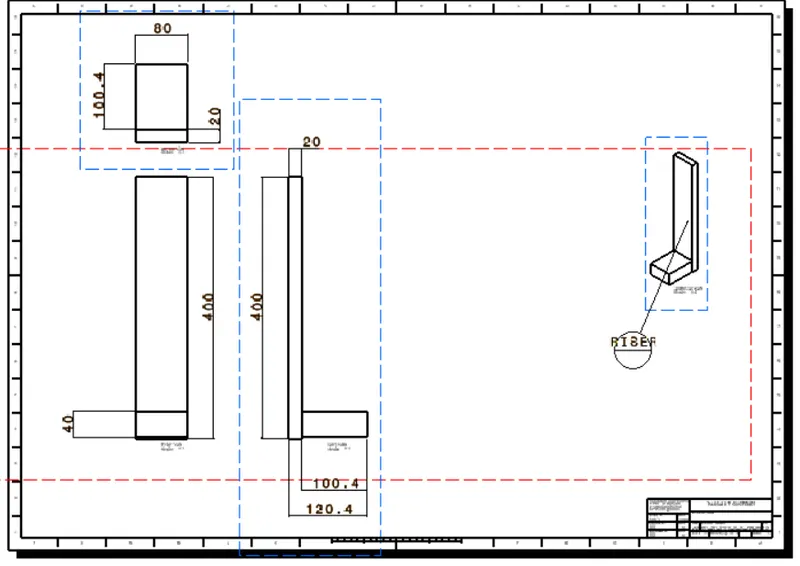

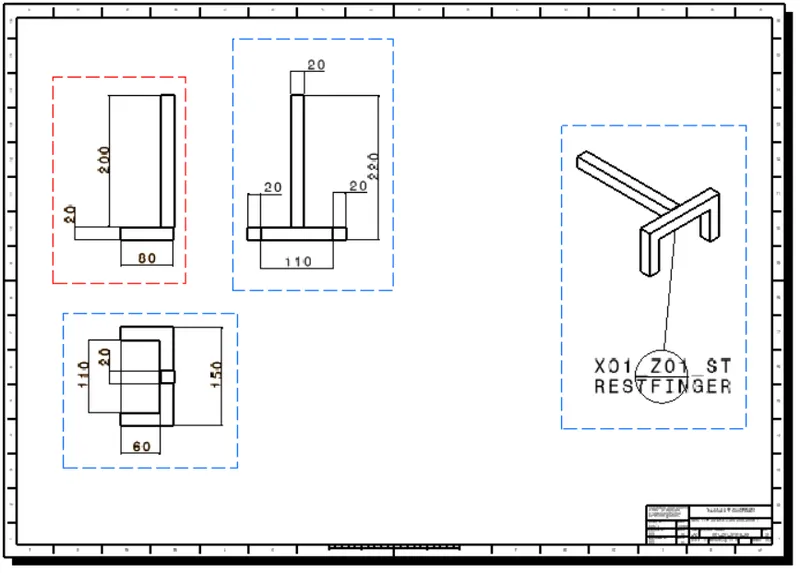

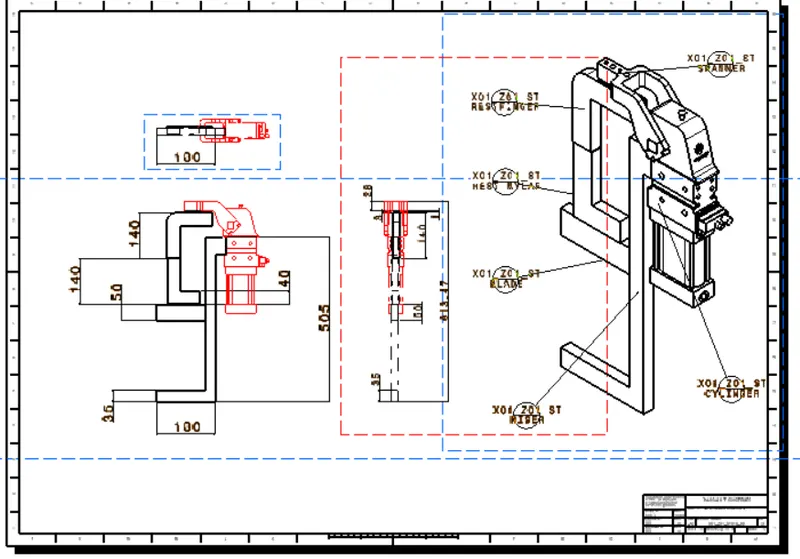

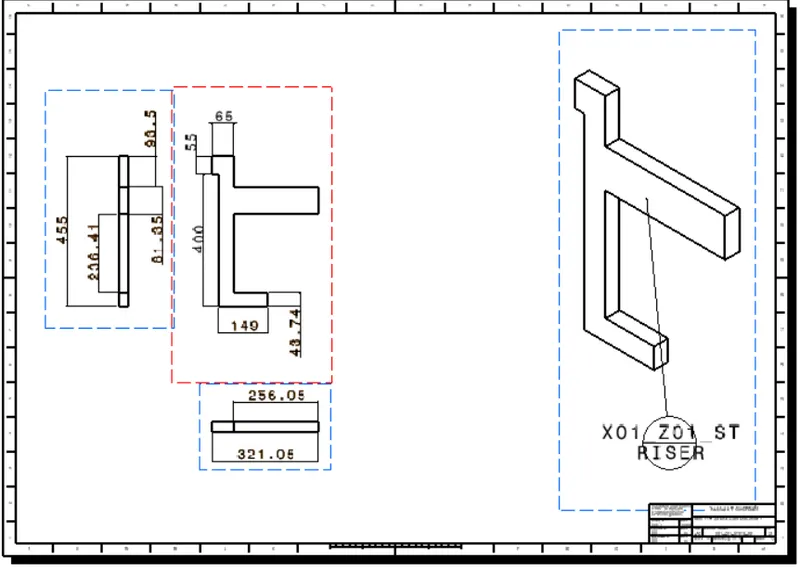

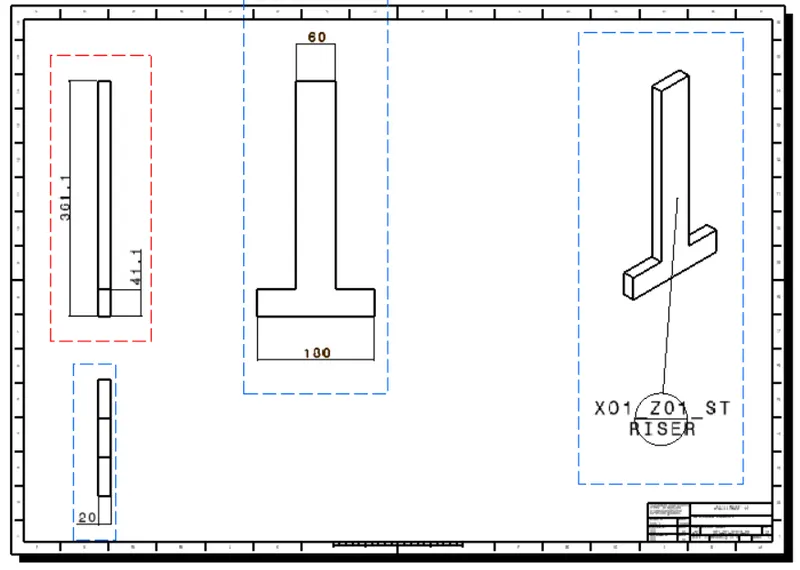

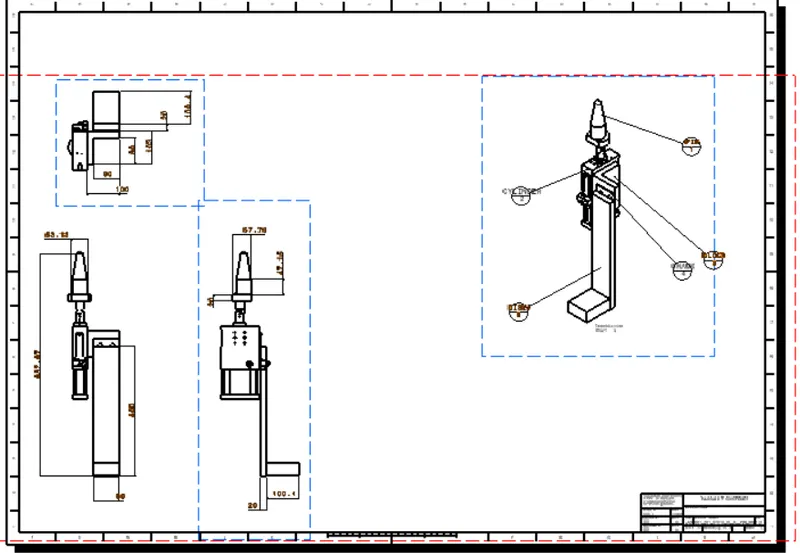

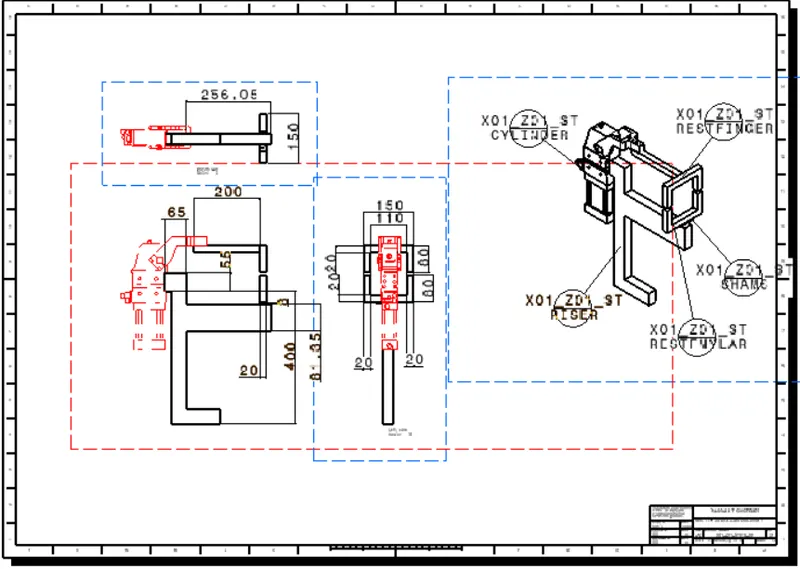

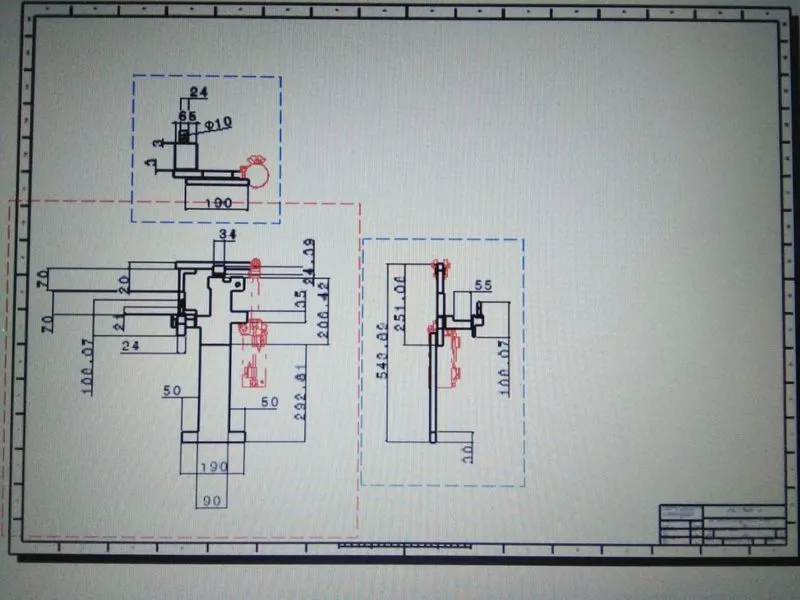

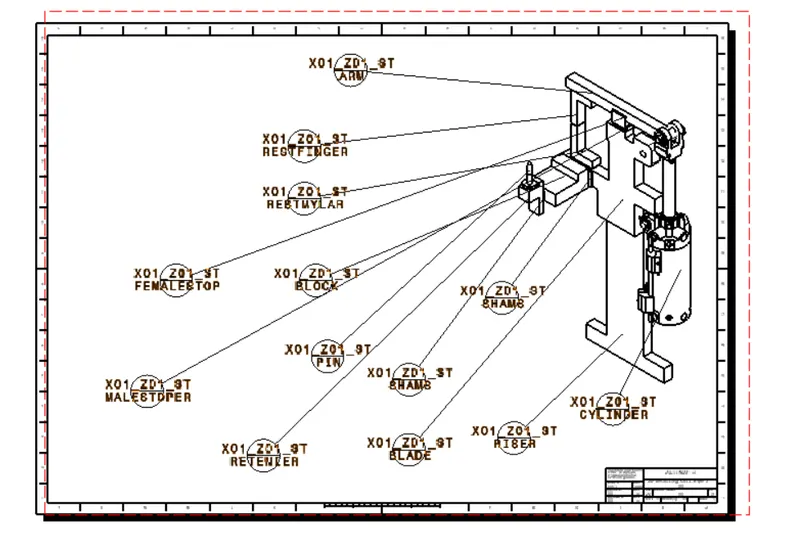

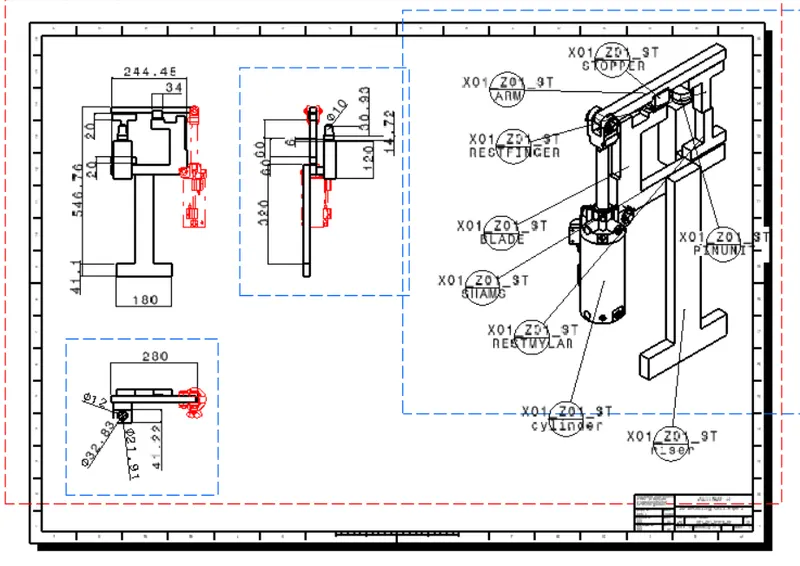

• The first sheet shows an orthographic and isometric view which basically describes space requirement and parts that is used in this clamp unit.

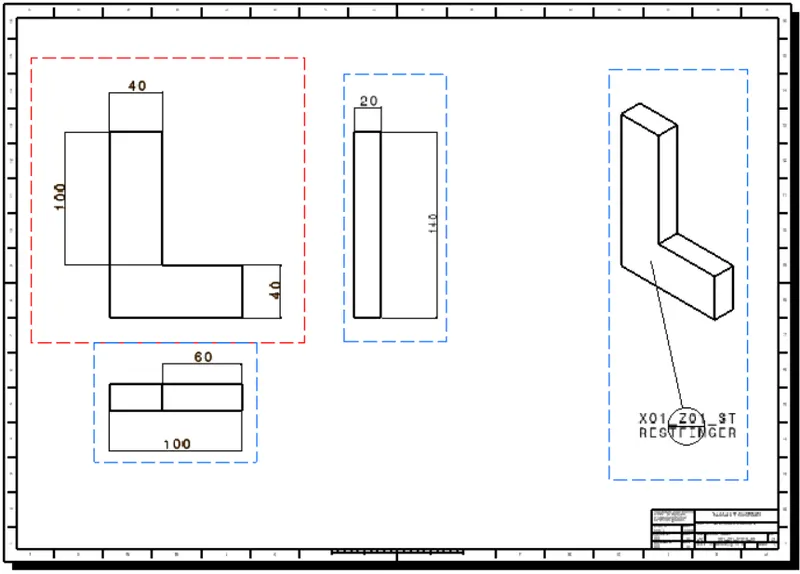

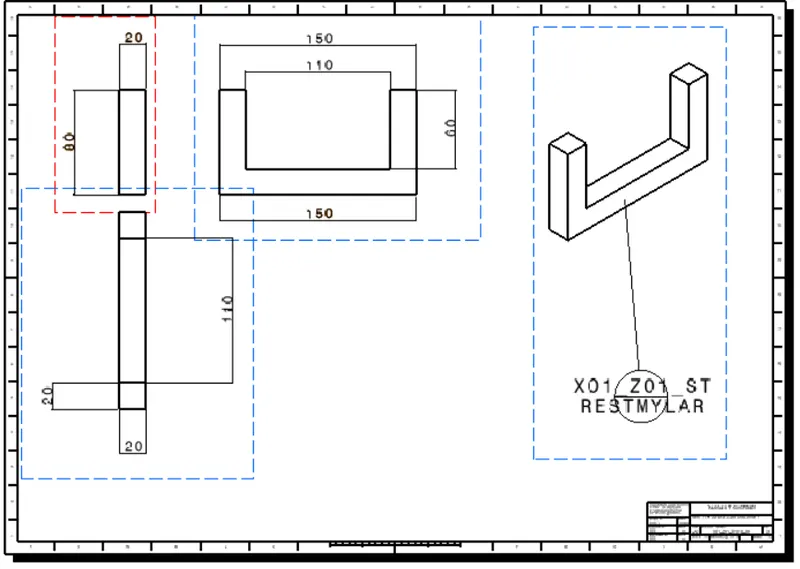

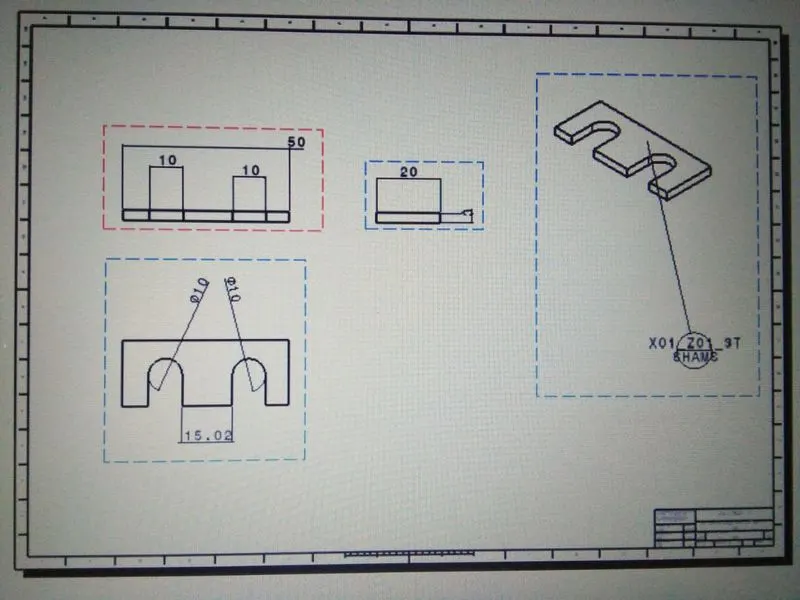

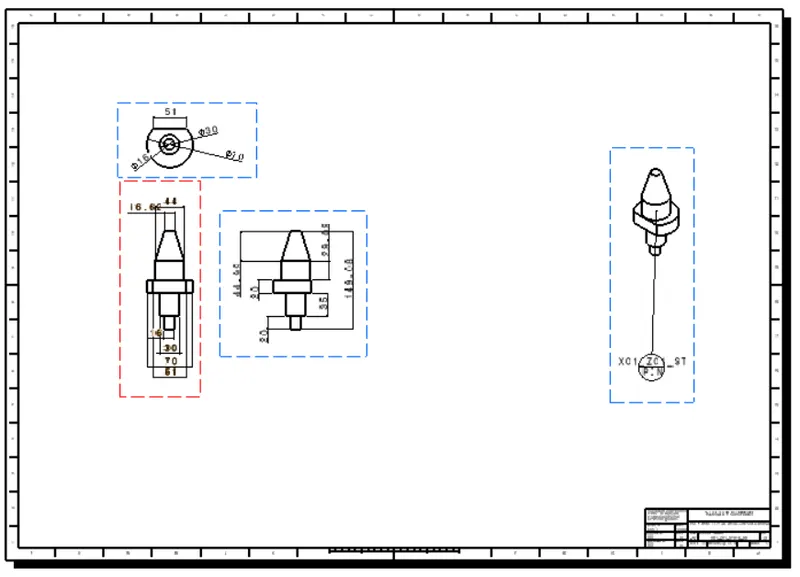

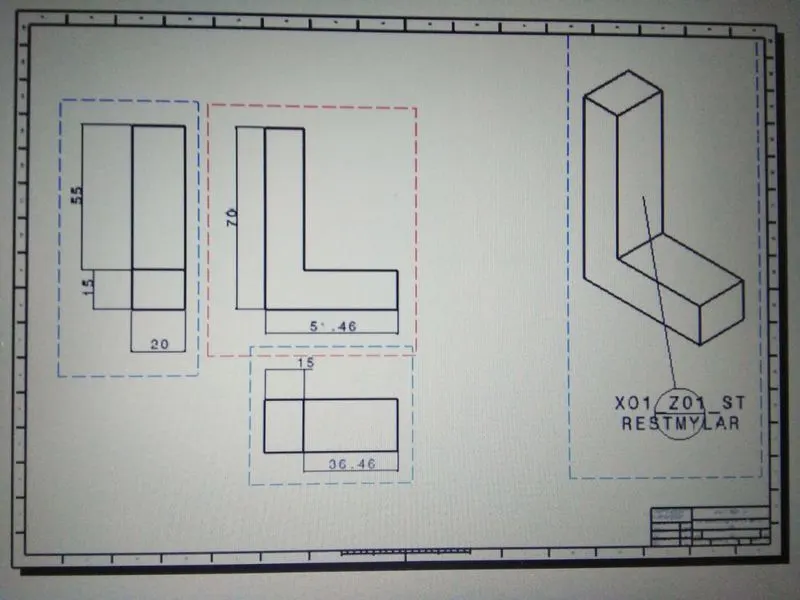

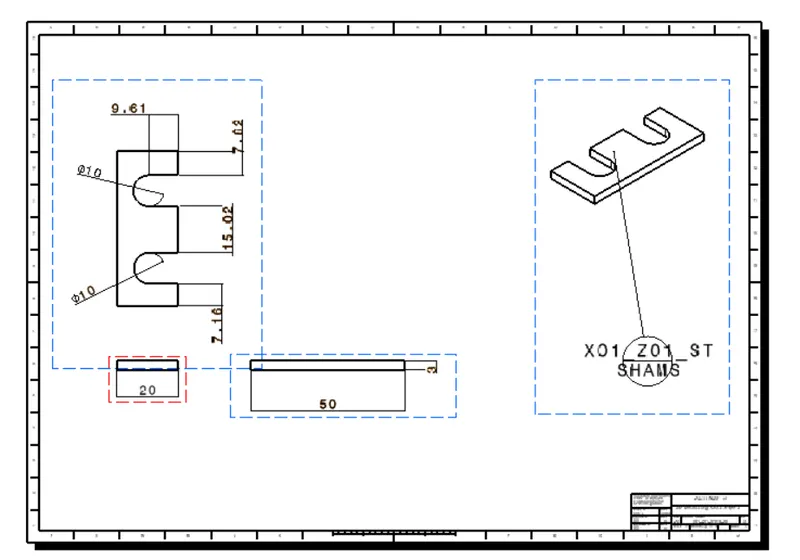

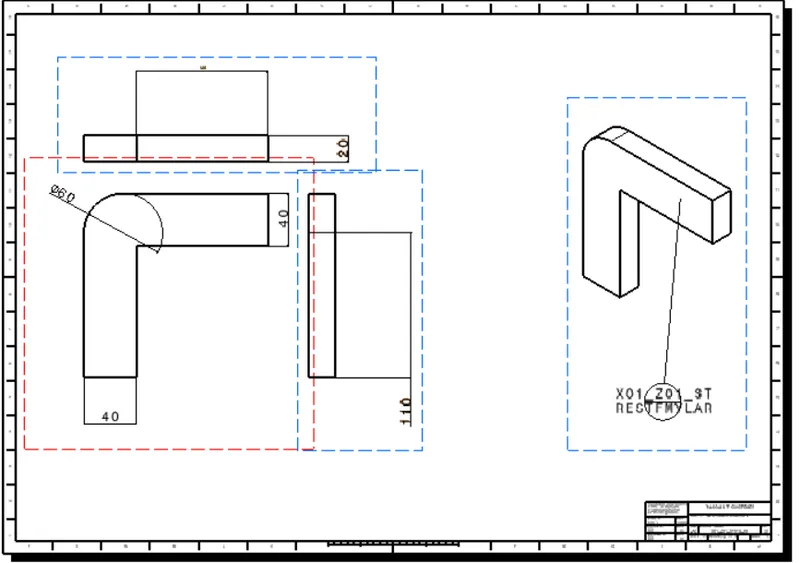

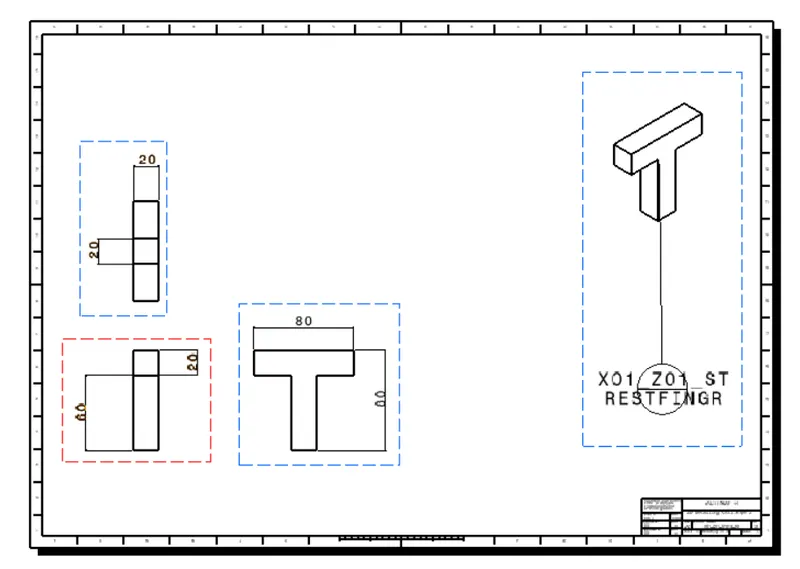

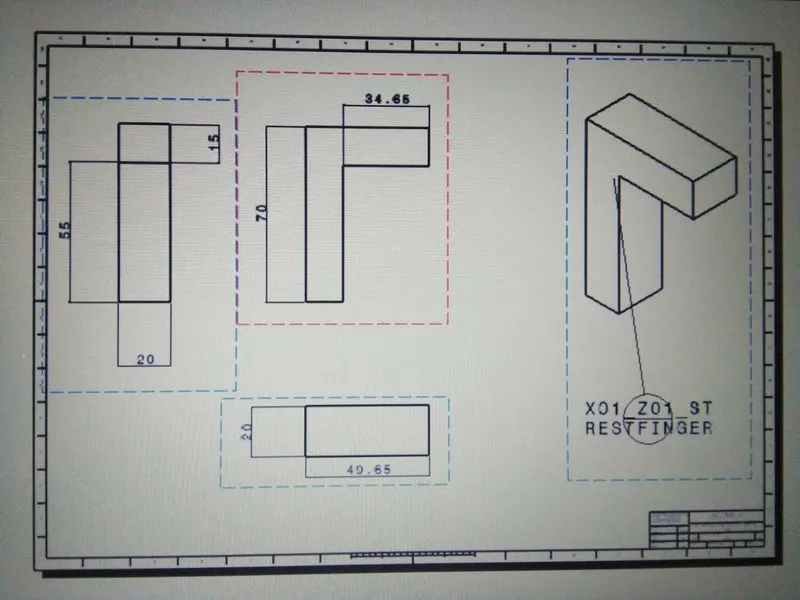

• Mention a note if the part requires some special treatment like in clamp mylar and rest mylar.(shown in image)
• Fill all title box as per respective data so that is easier for production line and designer.

Here I show drawing of different clamp unit that I used my project;

XO1_Z01_ST010_00_05_SWEVEL_PIN_CLAMP_UNIT

XO1_Z01_ST010_00_05_SWEVEL_CLAMP_UNIT.1

XO1_Z01_ST010_00_05_CLAMP_UNIT.1

XO1_Z01_ST010_00_05_CLAMP_UNIT.2

PIN UNITS DETAILING:

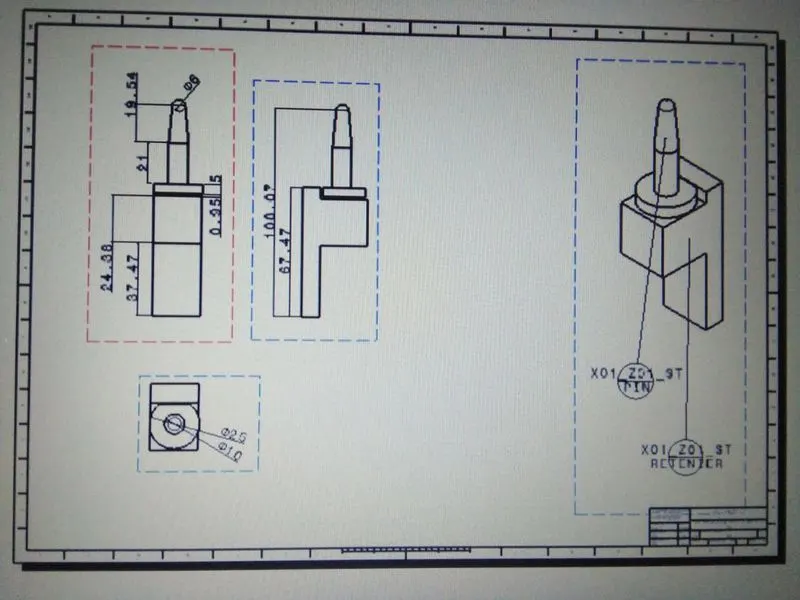

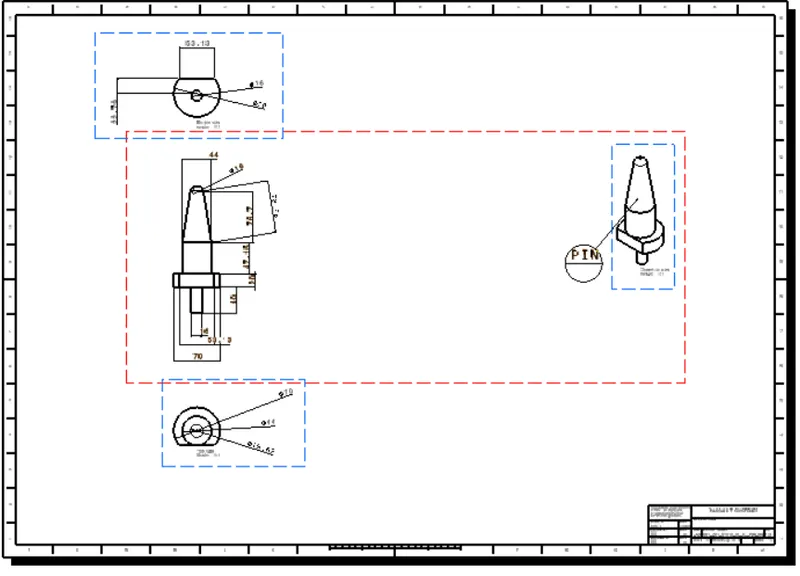

• Here we are detailing each and every part of the unit.

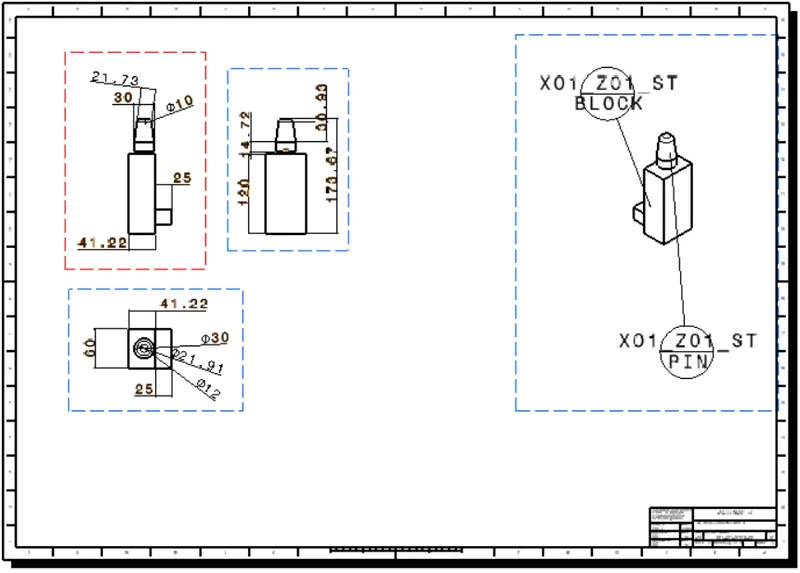

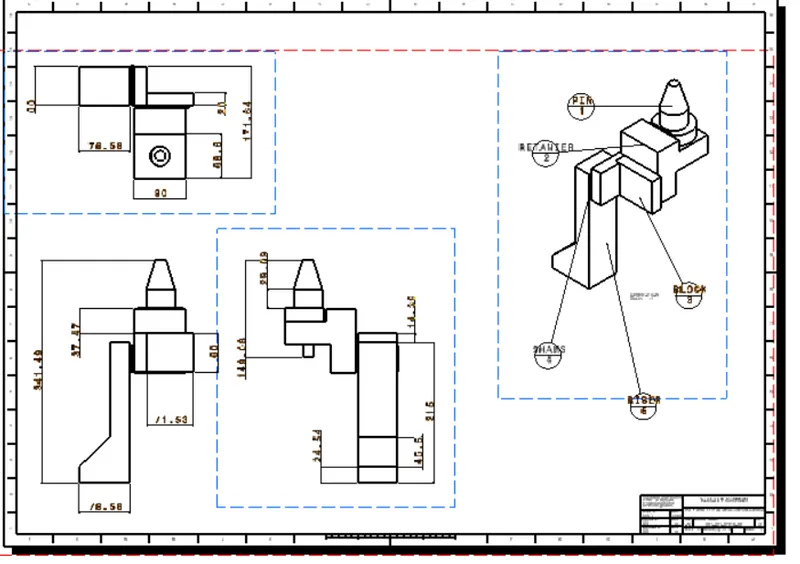

• The first sheet shows an orthographic and isometric view which basically describes space requirement and parts that is used in this clamp unit.
• Mention a note if the part requires some special treatment like in clamp mylar and rest mylar. (shown in image)
• Fill all title box as per respective data so that is easier for production line and designer.

Here I show drawing of different pin unit that I used my project;

XO1_Z01_ST010_00_05_PIN_UNIT_1

XO1_Z01_ST010_00_05_PIN_UNIT_2
