Week 11:- 2D Detailing Challenge 2
AIM
1. Create 2D Drawing for each Clamp Units with all child parts and also create Child pard drawing for the same for the Fixture assembly created in challenge 8.
2. Create 2D Drawing for each Pin Units drawings with all child parts and also create Child pard drawing for the same for the Fixture assembly created in challenge 8.
INTRODUCTION
The fixture design after the 3D finishing process has to be done with 2D finishing before it is sent for manufacturing. All the dimensions of the fixture units and their child parts have to clearly mentioned in the drawing sheets.The detailing can be changed as per the requirement of the customer and comapany standards. GD&T must be used in order to reduce the cost of manufacturing.
All the views must be clearly visible and provided with dimensions in the drawing sheets.
In this project we have used two power clamp and two swivel type clamp units as shown below.

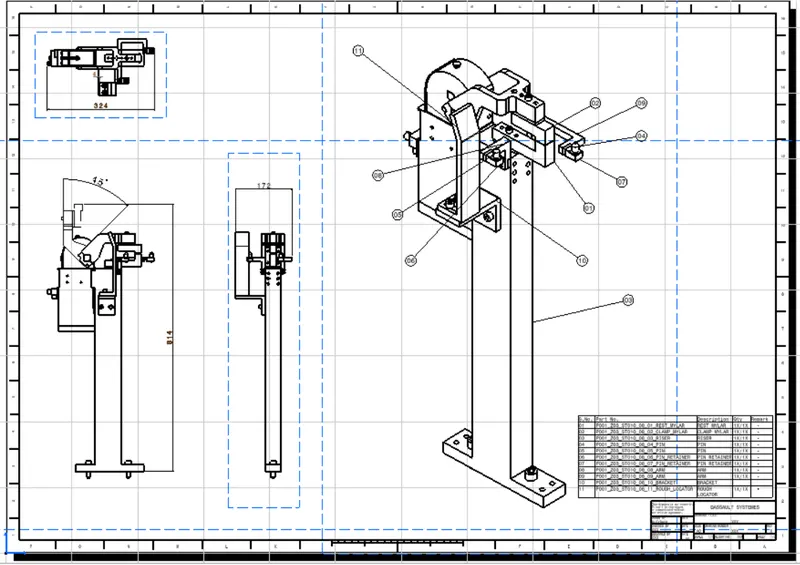

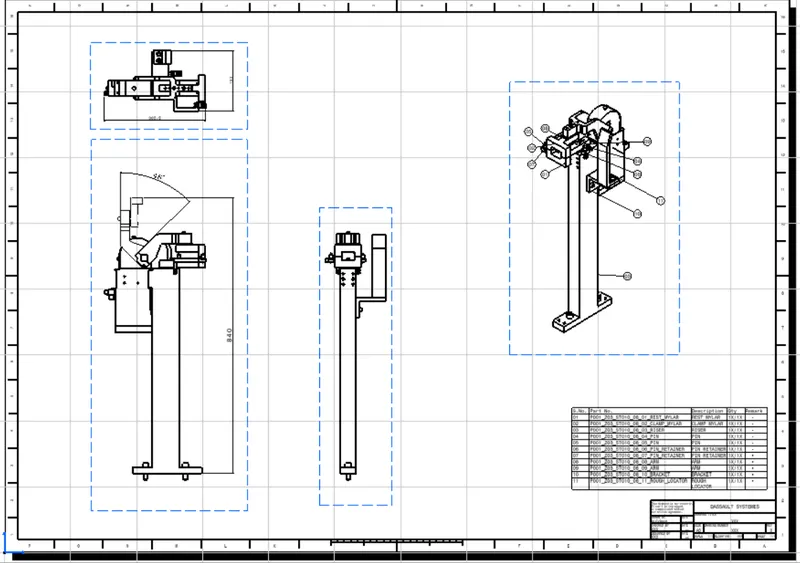

POWER CLAMP UNIT- 1
Rest Mylar
Clamp Mylar

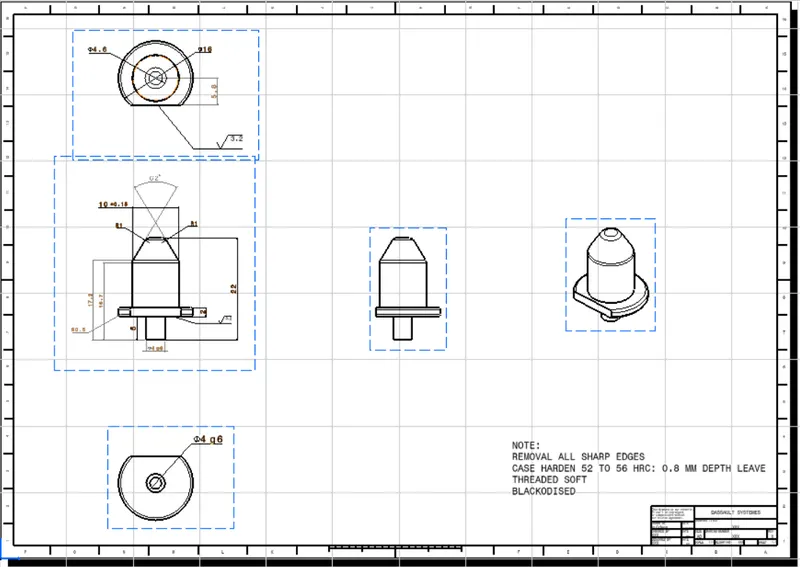

Pin

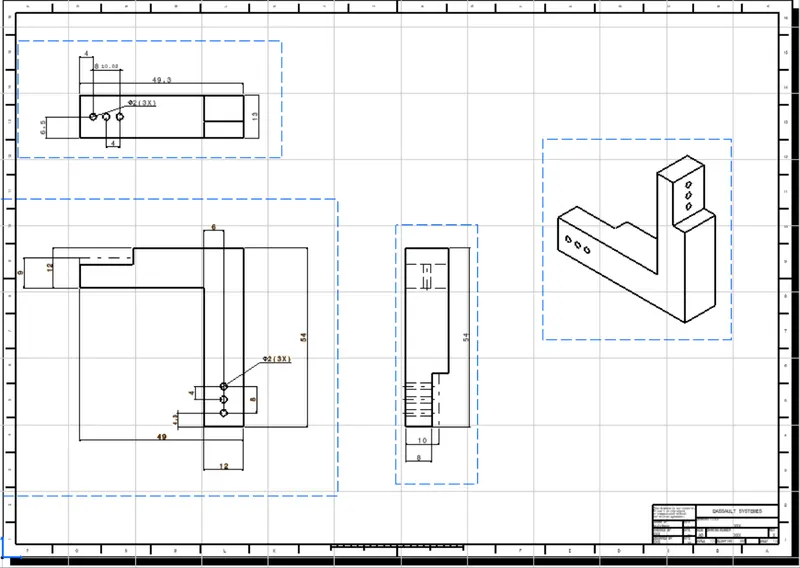

Pin Retainer

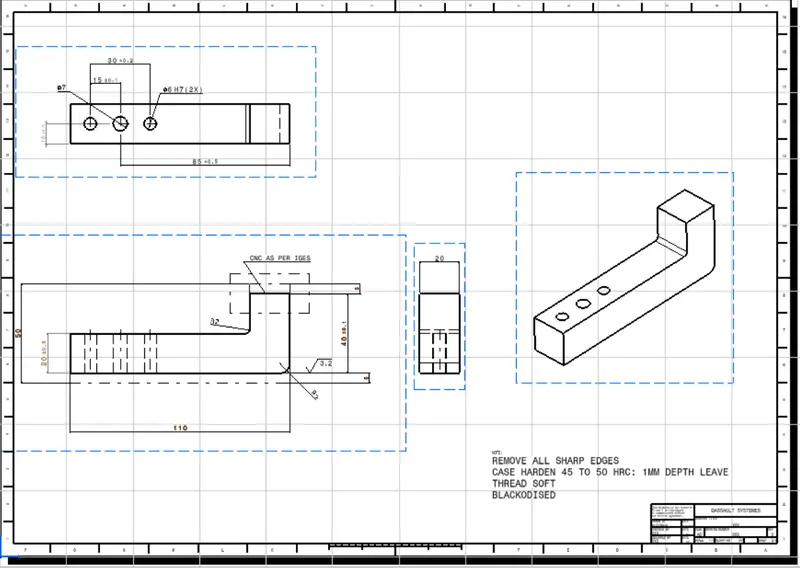

Arm

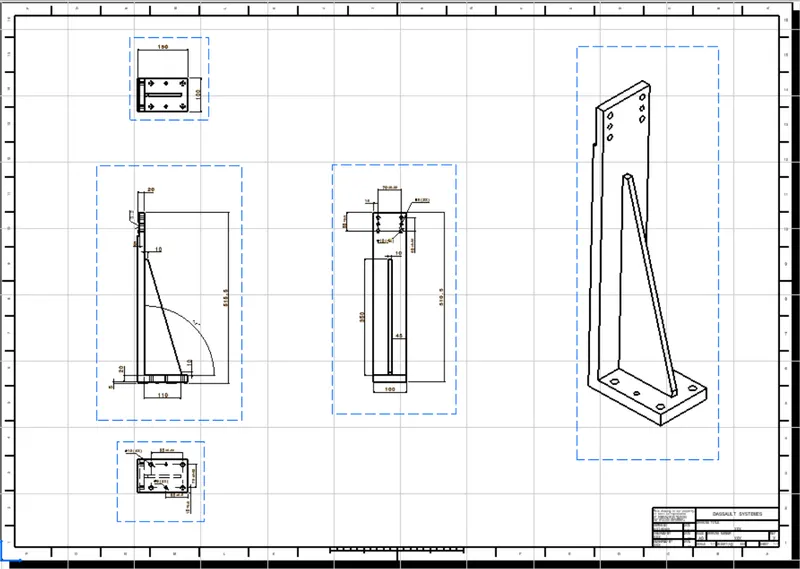

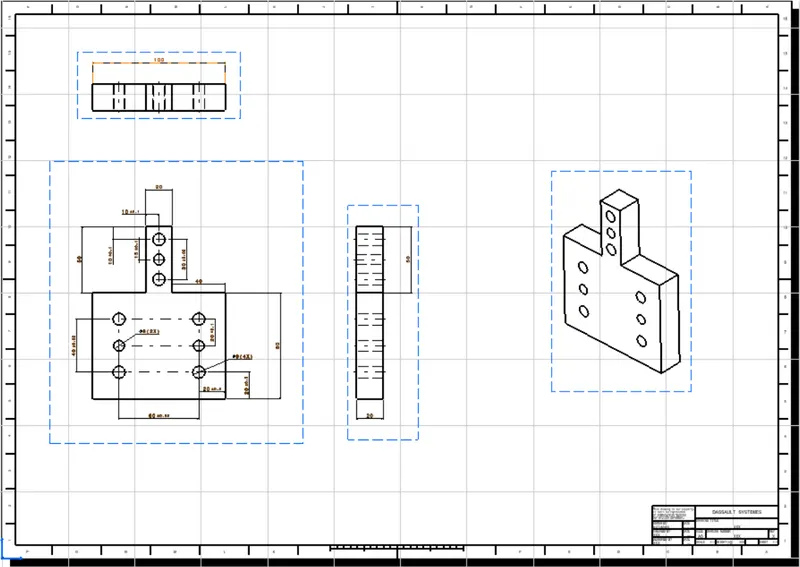

Bracket
Rough Locator

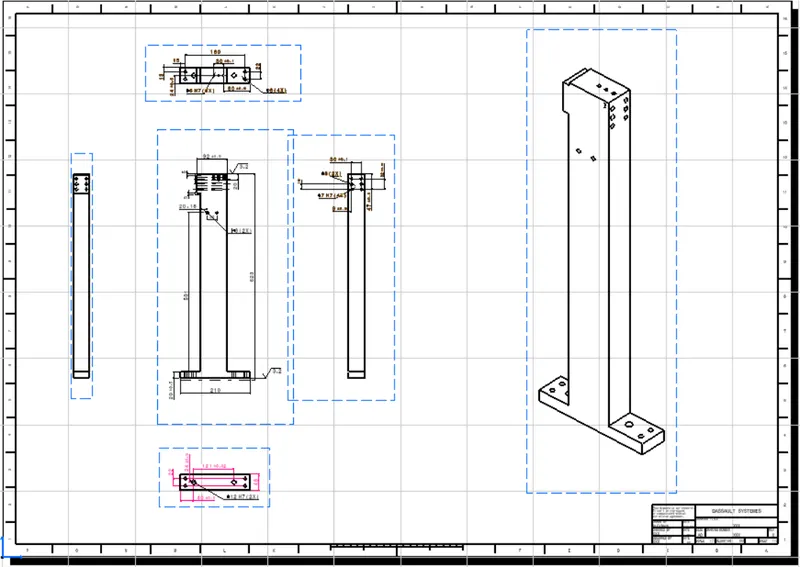

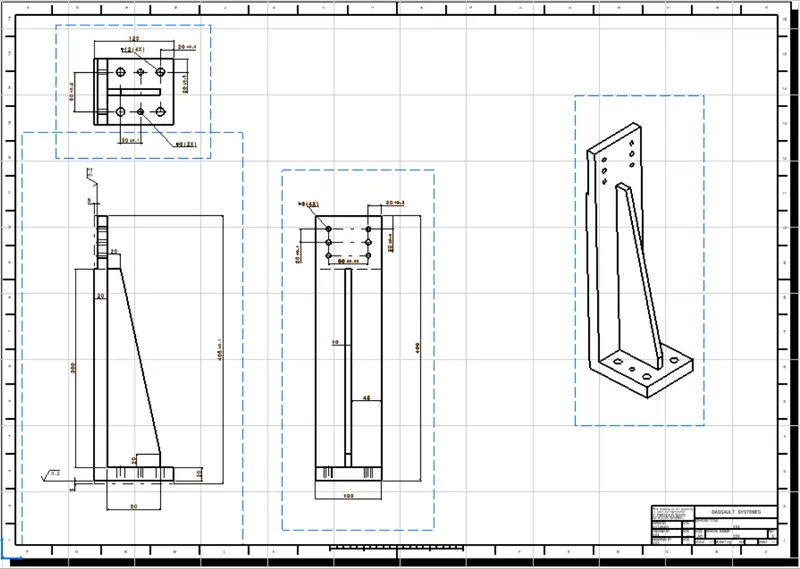

Riser
POWER CLAMP UNIT- 2
Rest Mylar
Clamp Mylar
Pin
Pin Retainer
Arm

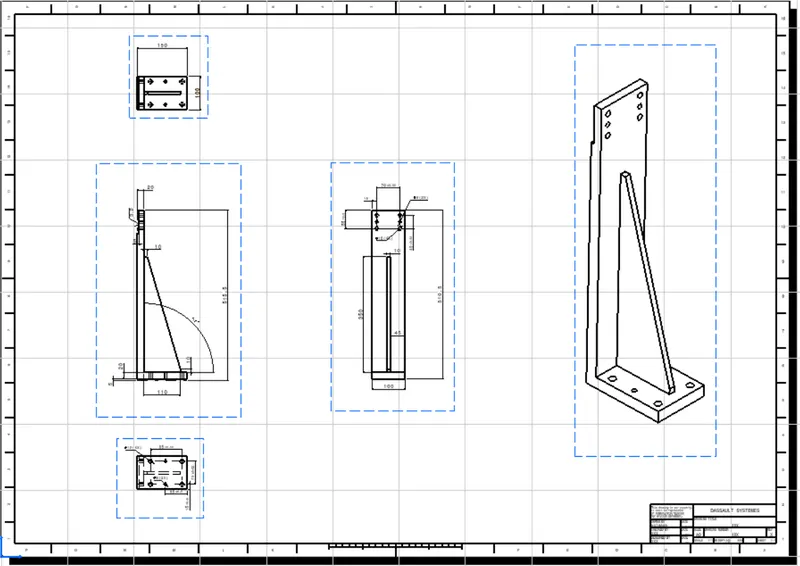

Bracket
Rough Locator
Riser

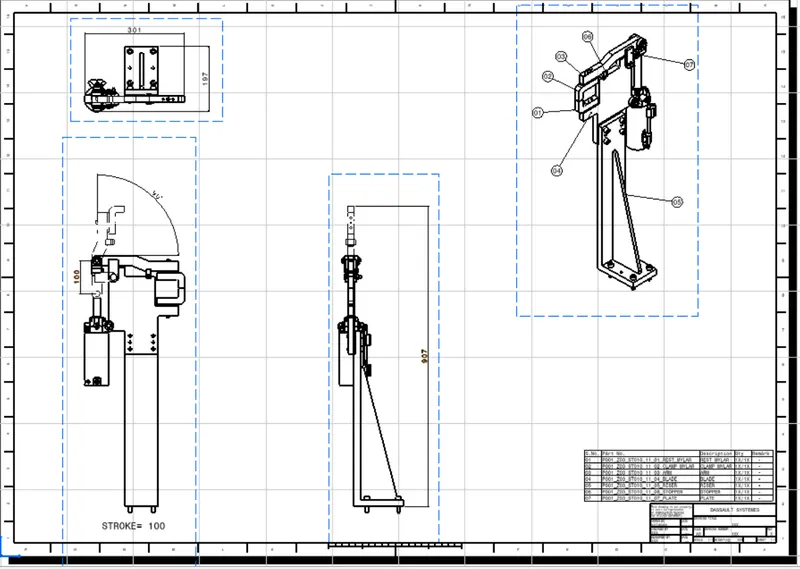

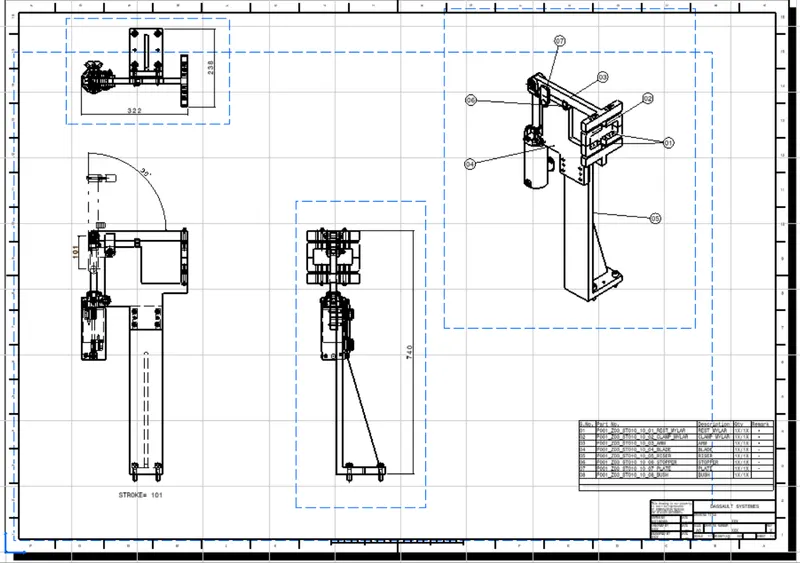

SWIVEL CLAMP UNIT- 1
Rest Mylar
Clamp Mylar
Arm
Blade
Riser
Bush & Plate
Stopper
SWIVEL CLAMP UNIT- 2
Rest Mylar
Clamp Mylar
Arm
Blade
Riser
Bush & Plate
Stopper
In this project we have used one retractable pin unit and two different types of fixed pin units as shown below.

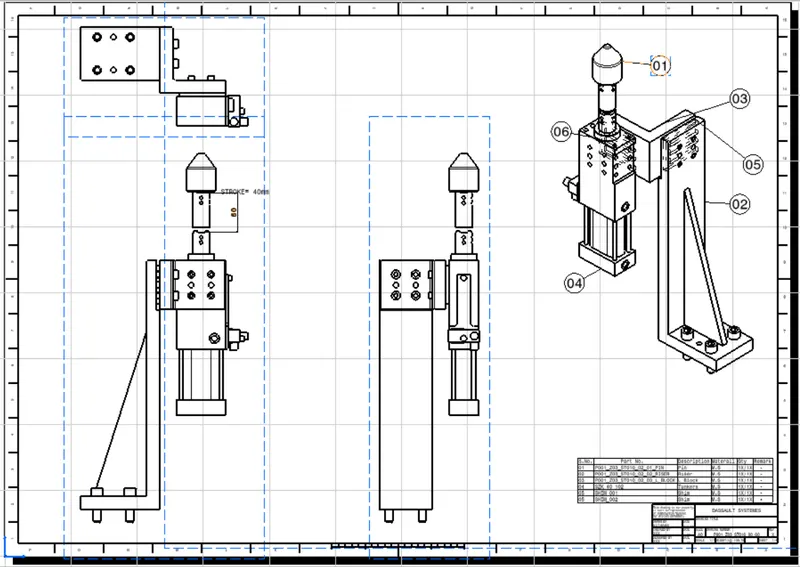

RETRACTABLE PIN UNIT

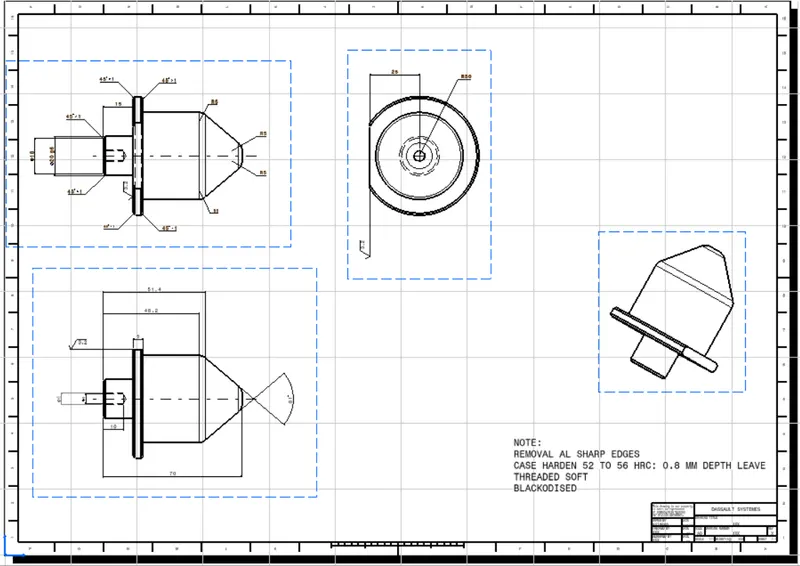

Pin

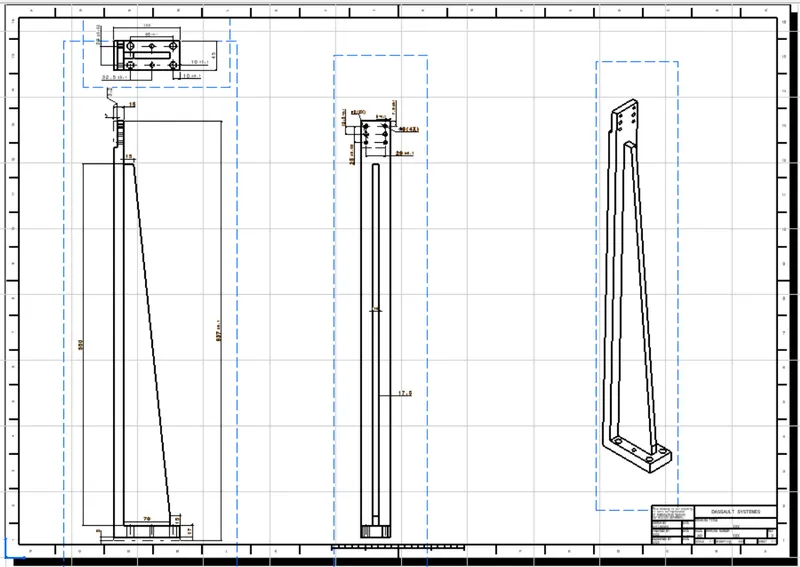

Riser

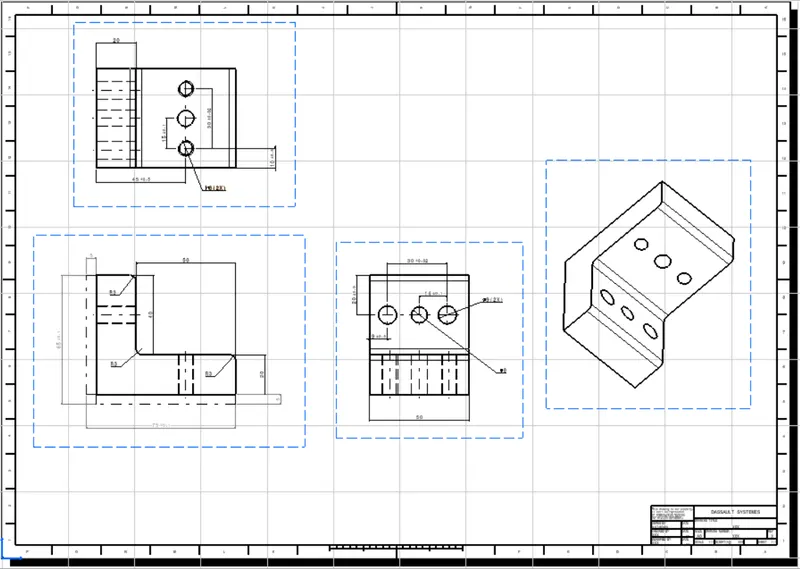

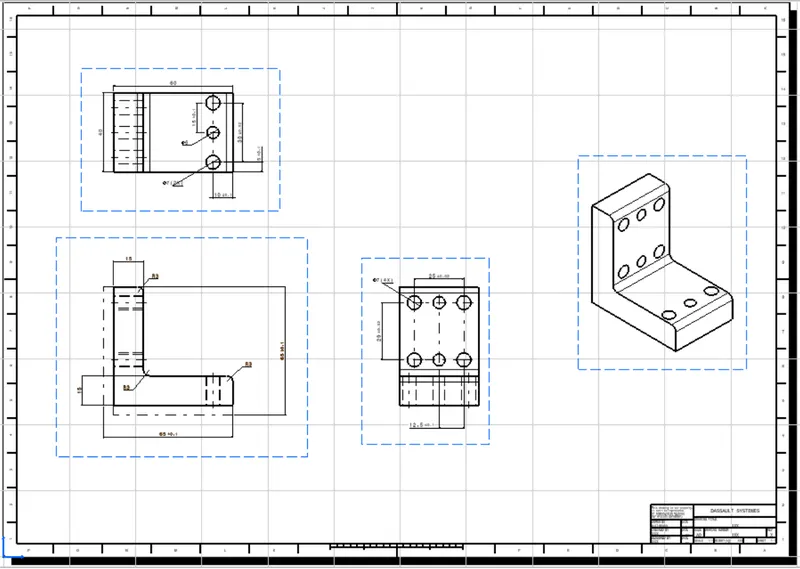

L Block

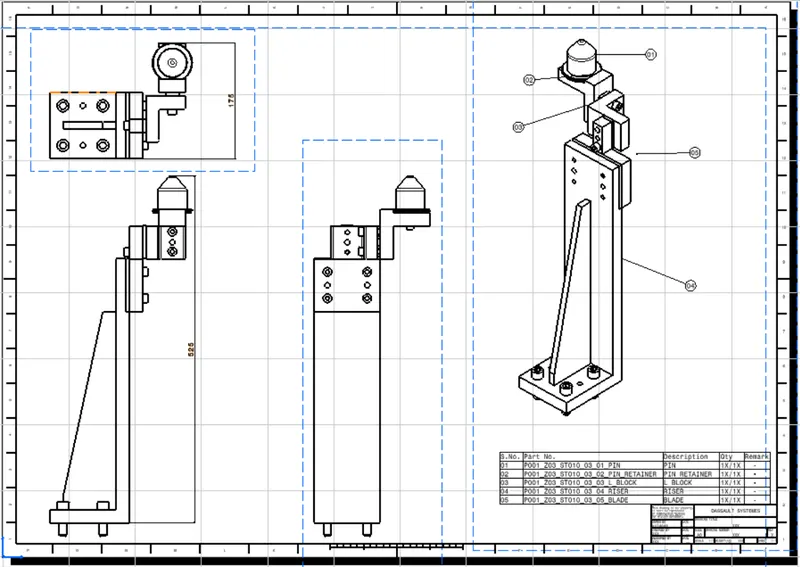

FIXED PIN UNIT- 1

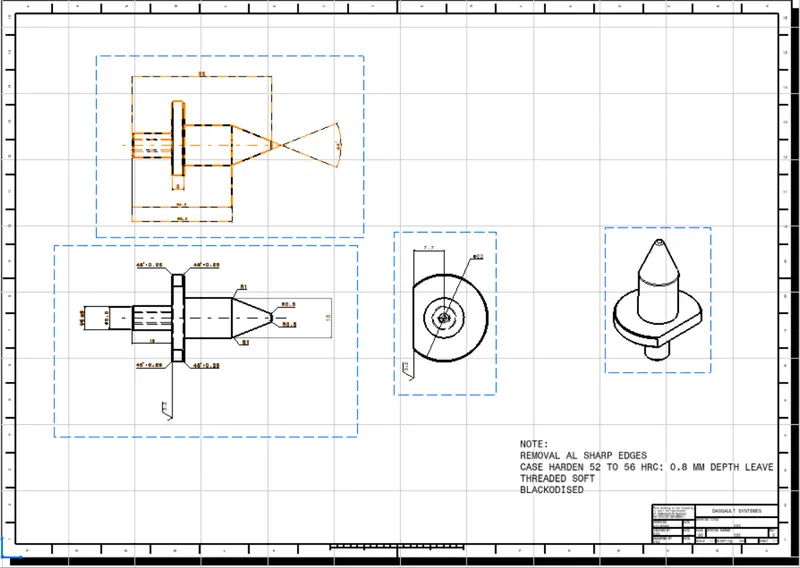

Pin
Pin Retainer

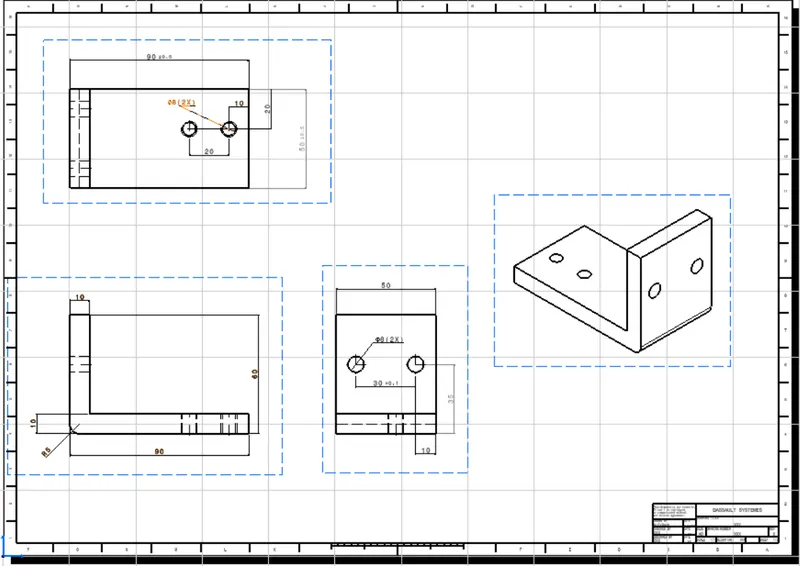

L Block

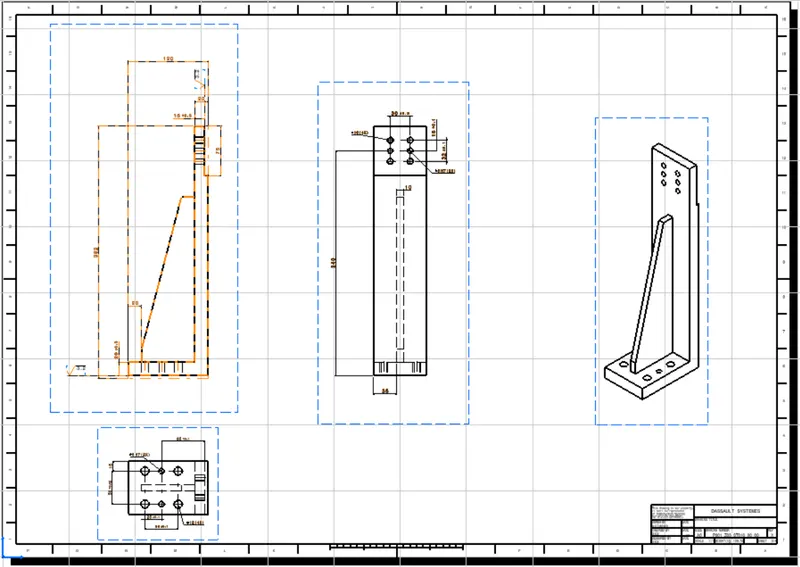

Riser
Blade

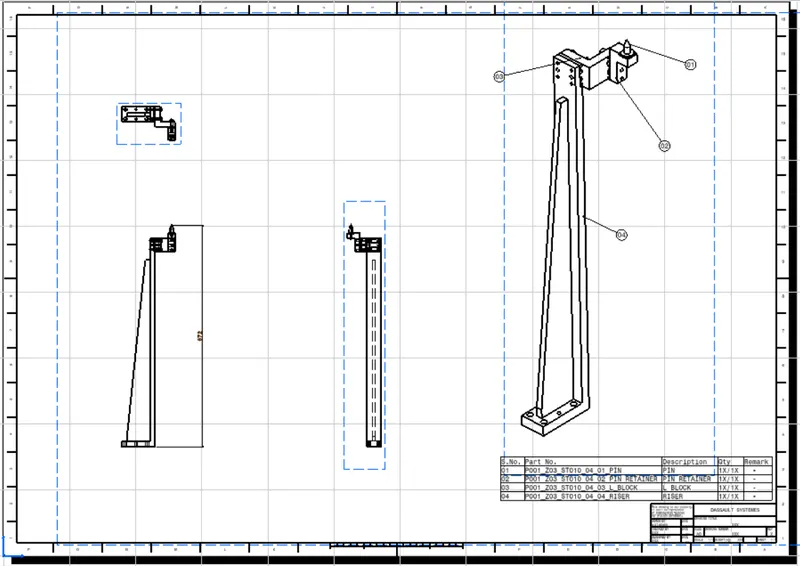

FIXED PIN UNIT- 2
Pin
Pin Retainer
L Block
Riser
