Week 10 Challenge

1 Based on the analysis design RC column and beam.

AIM

To design the RC Column and beam based on the analysis of structure.

PROCEDURE

• To open the model of Rc frame building.

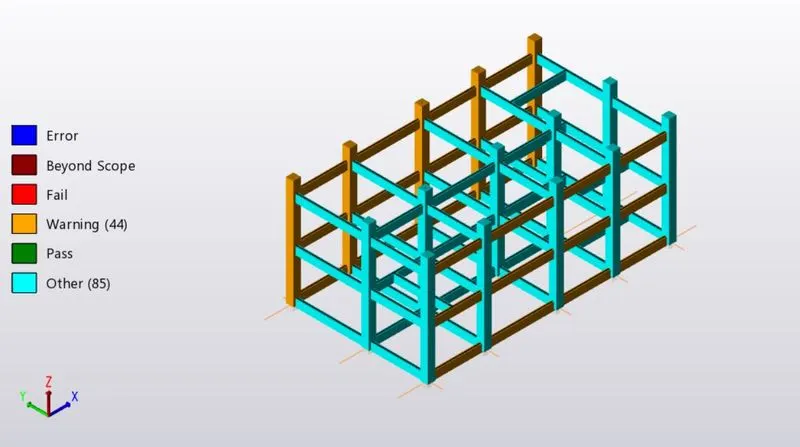

• Now we consider the model to process of Analysing the whole frame, then to finding the Failure of elements will occur.
• Then, to correct the particular column and beam as per design standards.

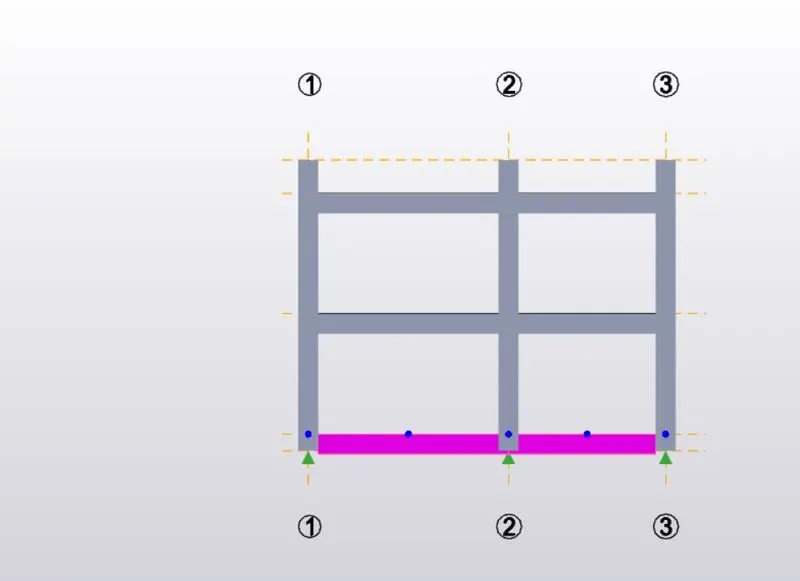

• First go to One Frame view, then to check all properties of materials, elements and coordination, modification factor. etc..,

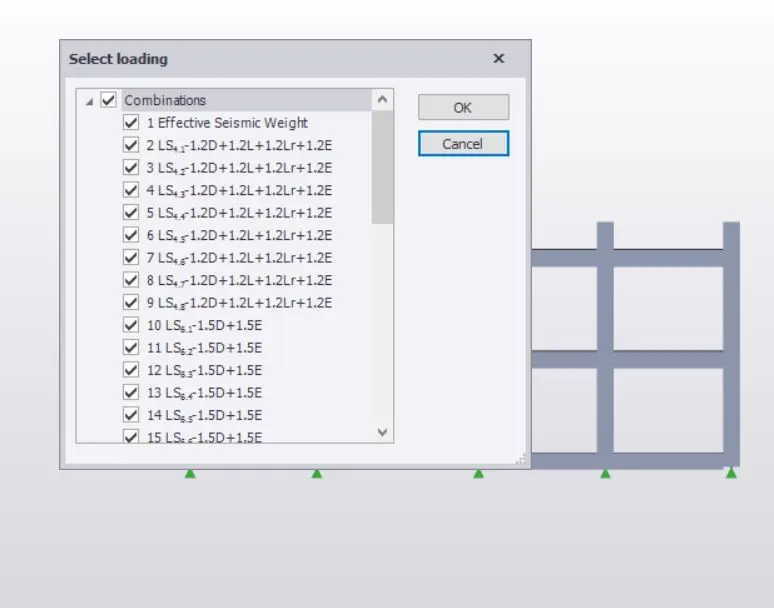

• After the to check all load cases as well as all load combinations also, at before get to be analyzed.
• Go to Analyze, Choose first order linear > click ok.

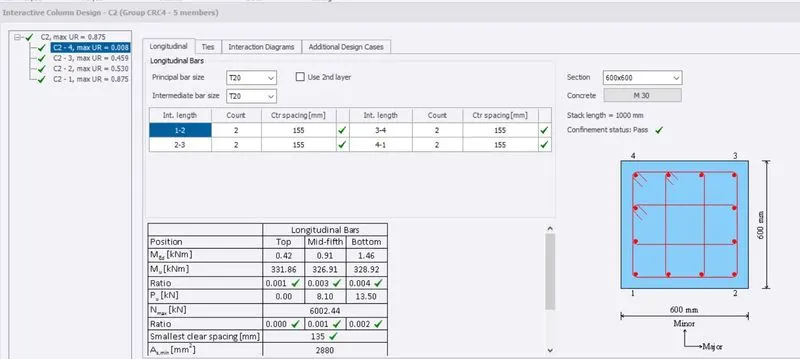

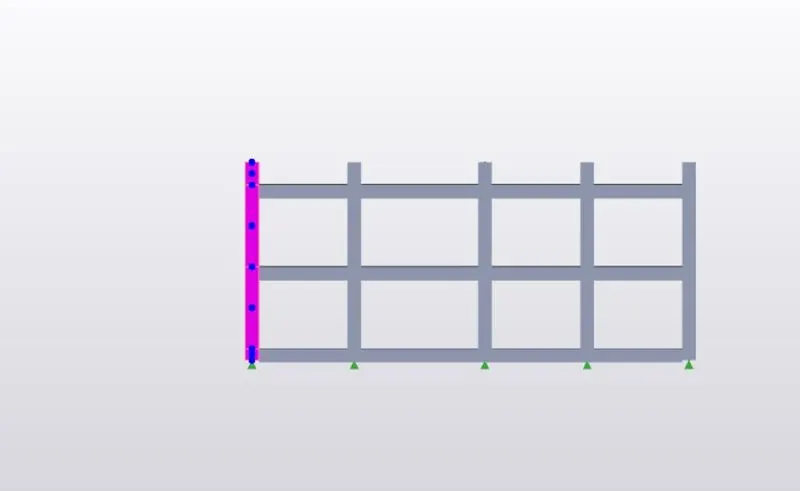

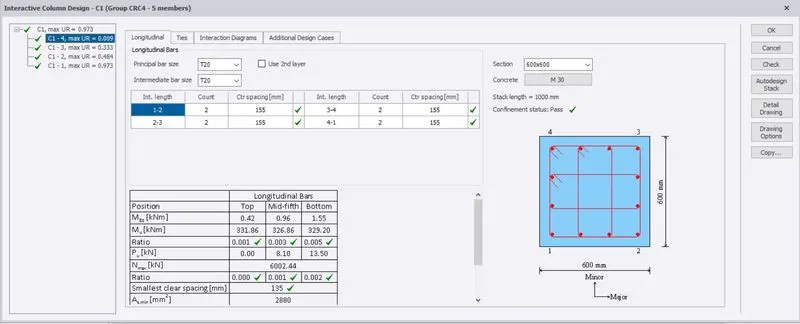

• To select the column and have been check the Column properties, detailing and capacity of structure.

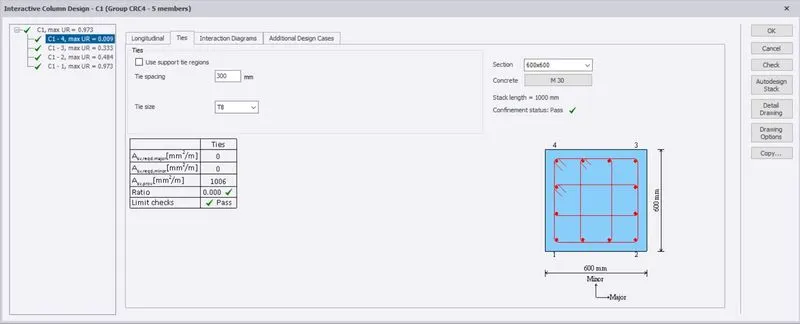

• Similarly we have been to check Ast value of that particular column, as well as to contibriute the value of Longitudal top and bottom reinforcement details and stirrups detailng.
• If may any failure will occur, we can able to do the changes of reinforcement bars, Size, Count. similarly have to consider the same at stirrups also.

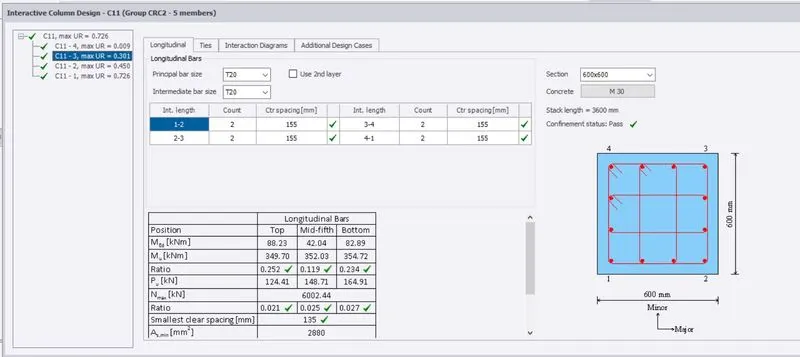

• At below we shown corrected column detailing without the failure.

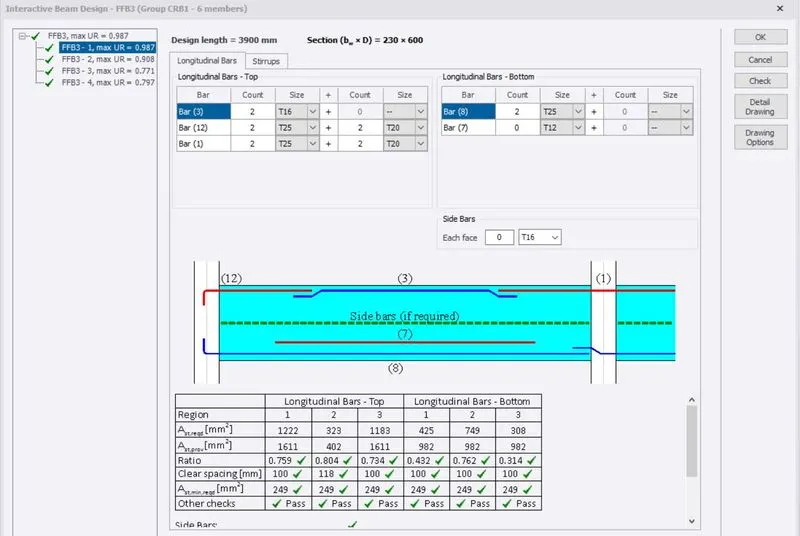

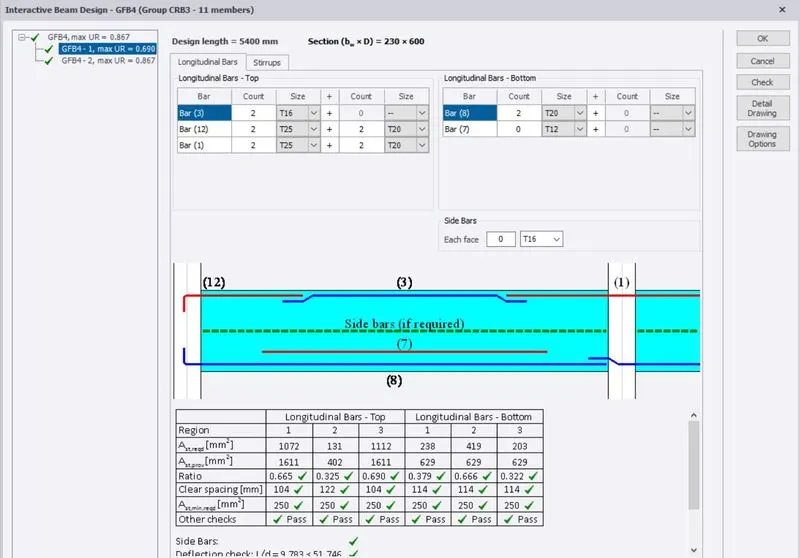

• Similarly, we analyze the beam and to design the beam at required properties of without in failure stage.

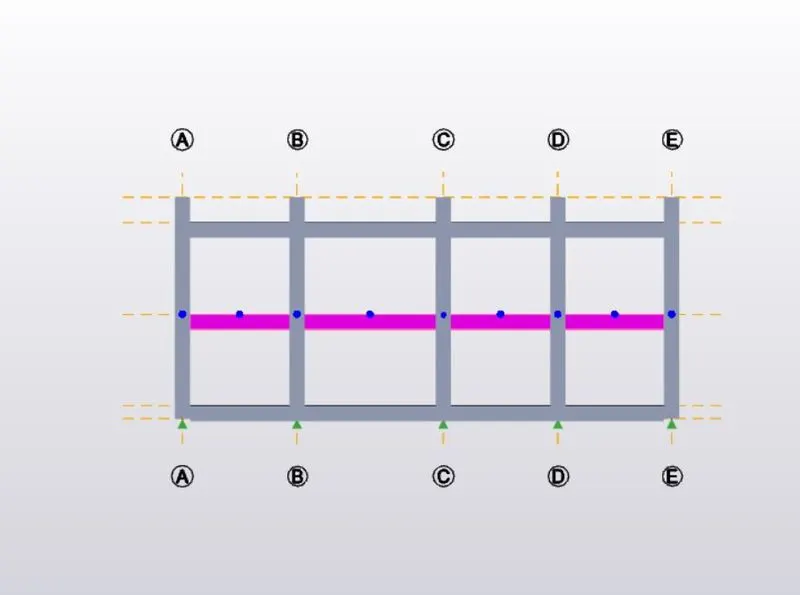

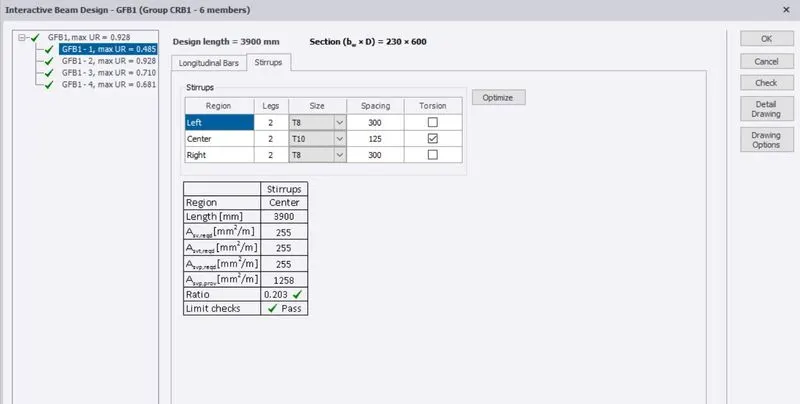

• Choose one frame, and select one beam to check that designing properties.
• If one beam could be perfect condition and then make copy to other column for getting linear results.

RESULTS

Successfully analyzed the Design of RC beam and column with using of Tekla software.
