Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

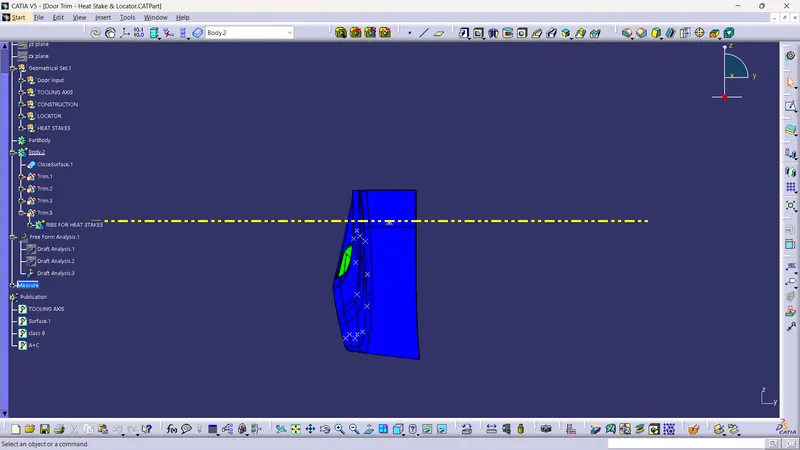

• Screenshots of the completed design in various orientations (Isometric, Front, Side, and Top View).

Draft anylasis -

For making tooling axis extract the surface, form point on it, make a line from that point by point-direction on y-axis.

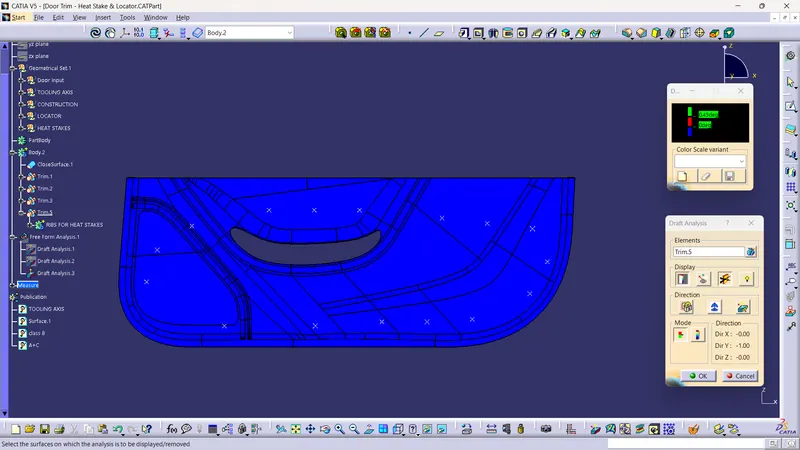

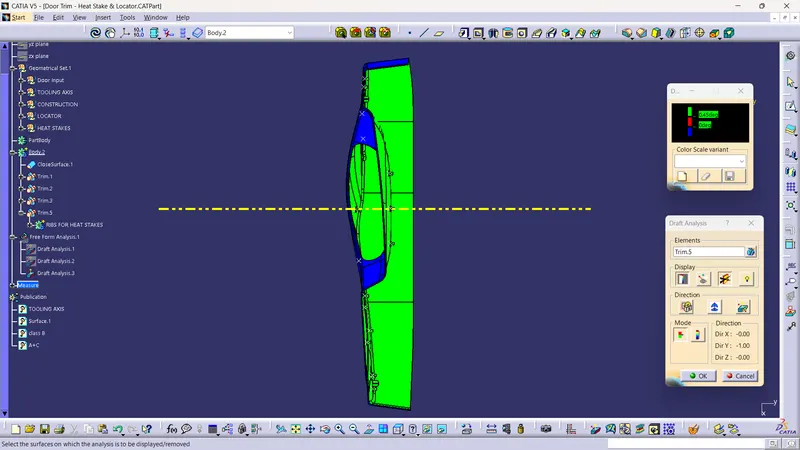

Check the draft anylasis in class A surface by placing compass in tooling axis and checking the colour as per angles.

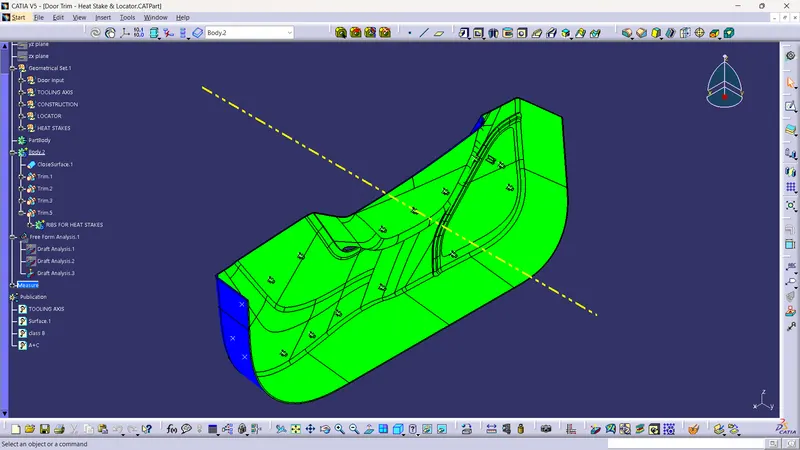

Checking the draft anylasis for closesurface and at last in final structure, at last the angle goes to 0.45 degree because draft in the heat stakes was 0.5 degree for both inner and outer surface.
