Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

Door Trim Lower with Engineering Features

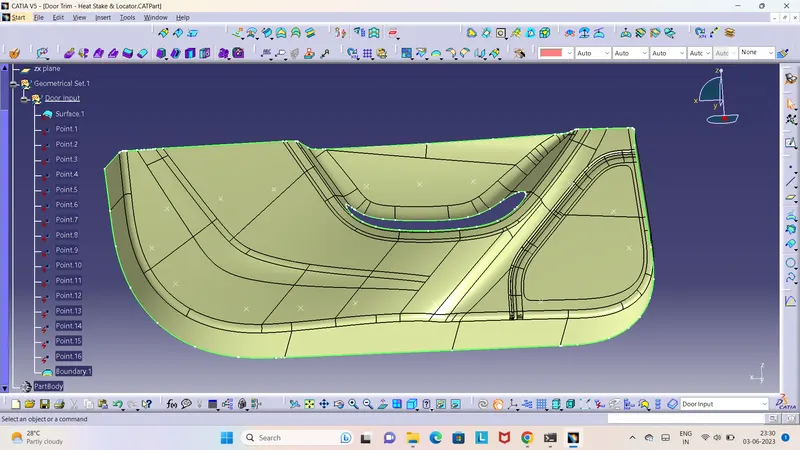

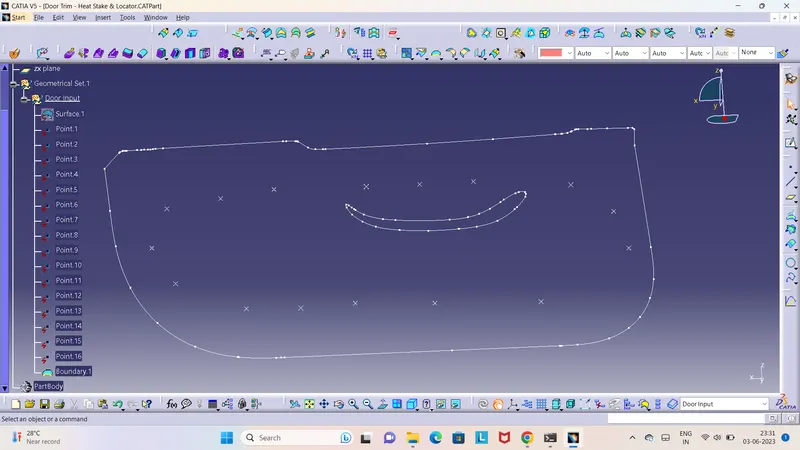

1. Given Class A Surface

Check for gaps between surfaces for that click on join and then preview.

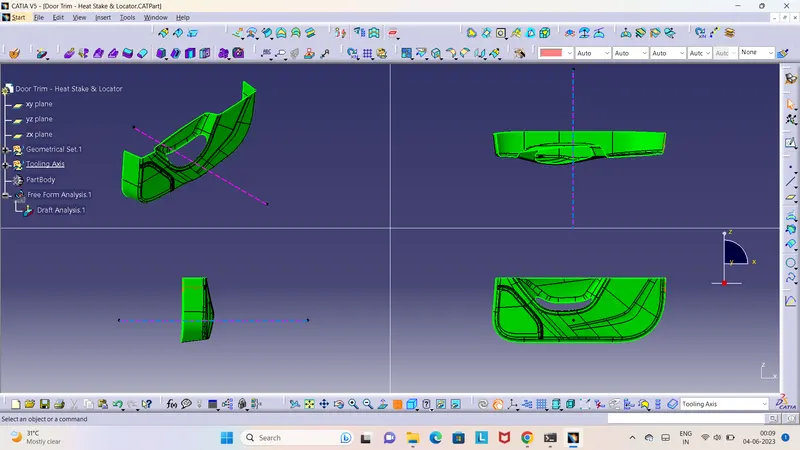

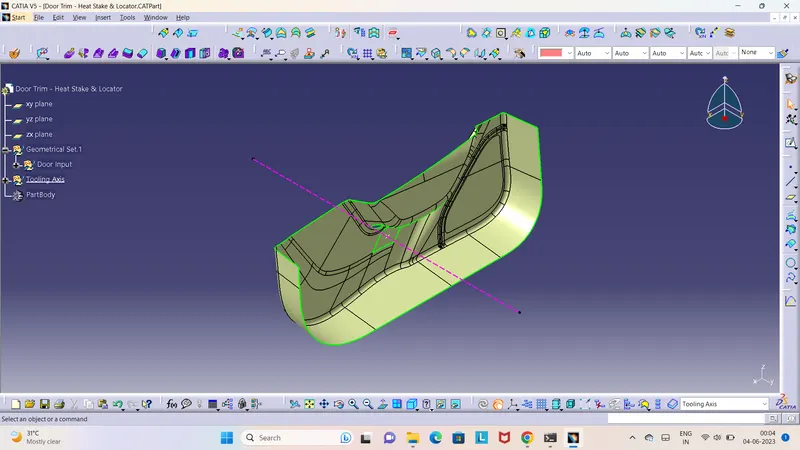

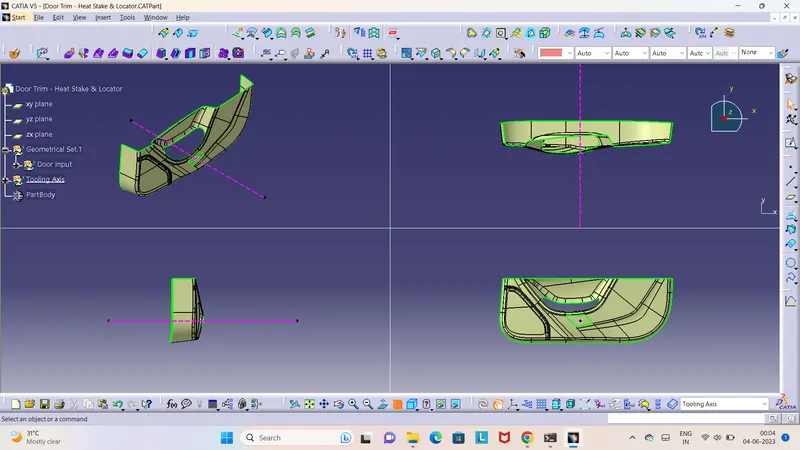

2. CREATING A TOOLING AXIS

The tooling axis is created for the component by bisecting two axis from the x and y planes.

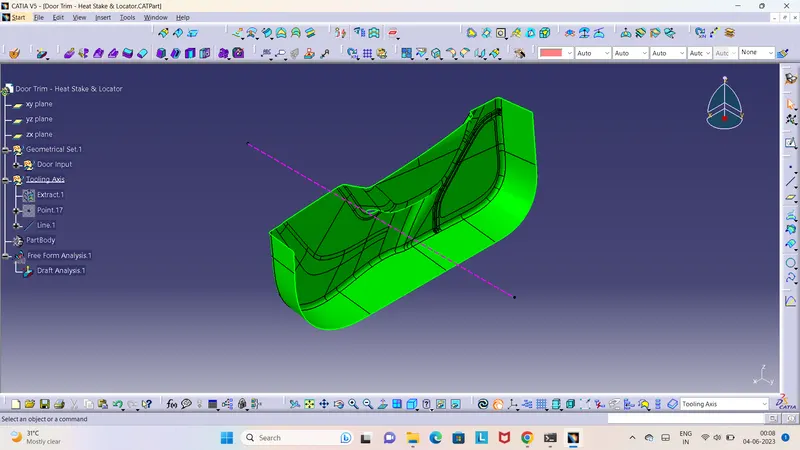

3. DRAFT ANALYSIS

The draft analysis is complete.

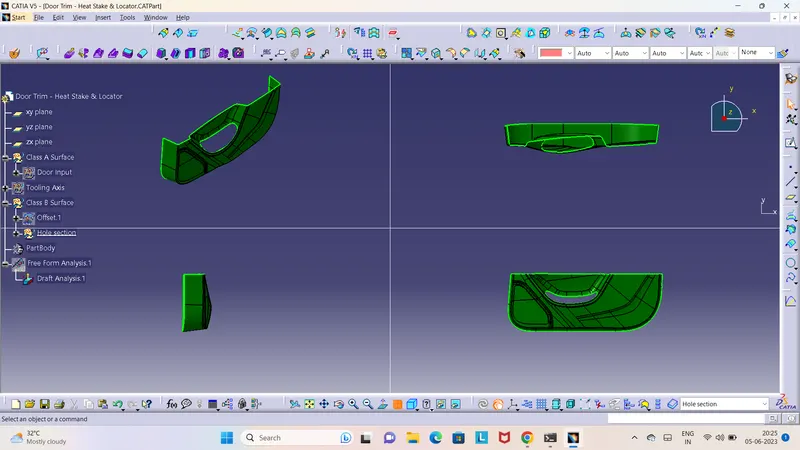

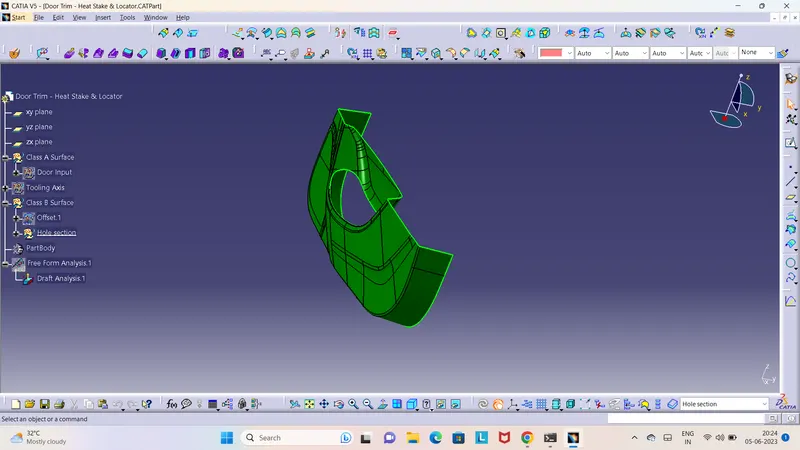

4. CREATING CLASS B SURFACE

To create the class B surface, offset the class A surface inside as per our thickness requirement of 2.5mm.

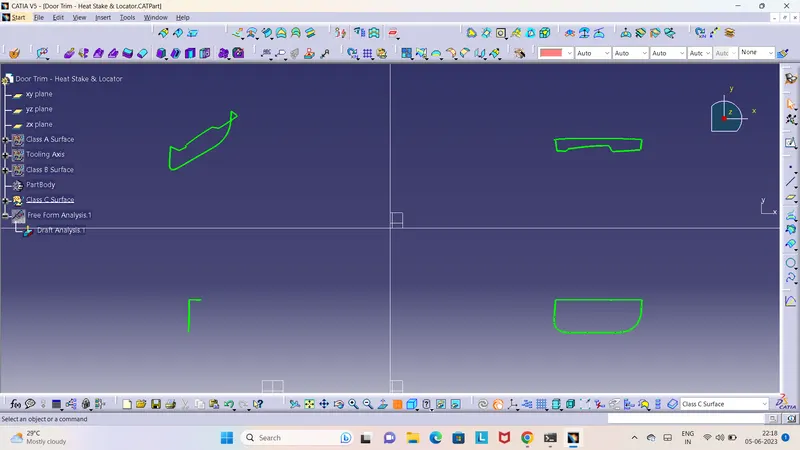

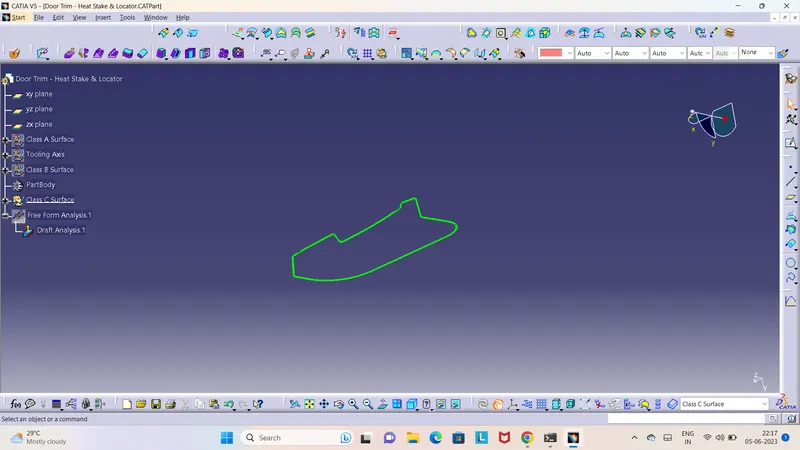

5. CREATING CLASS C SURFACE

By using the Class A surface Created the Class C surface Using the Tooling axis

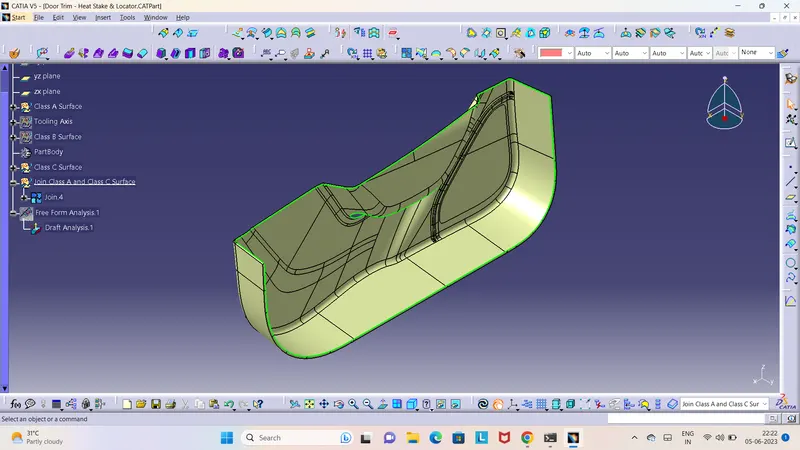

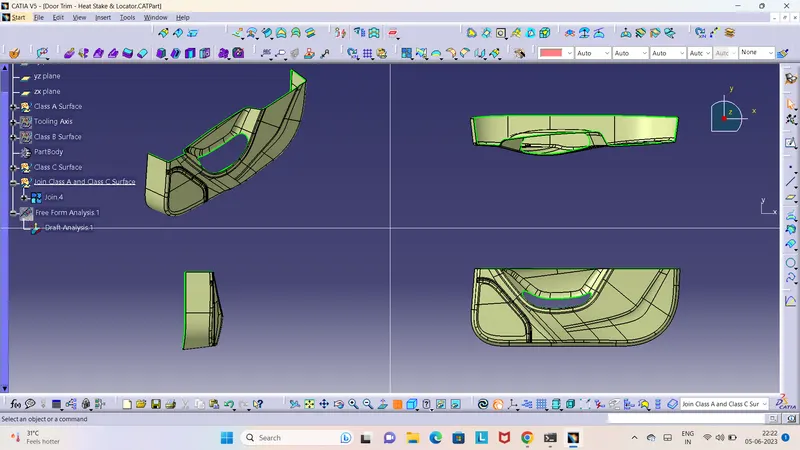

6. Joining Class A Surface with Class C Surface

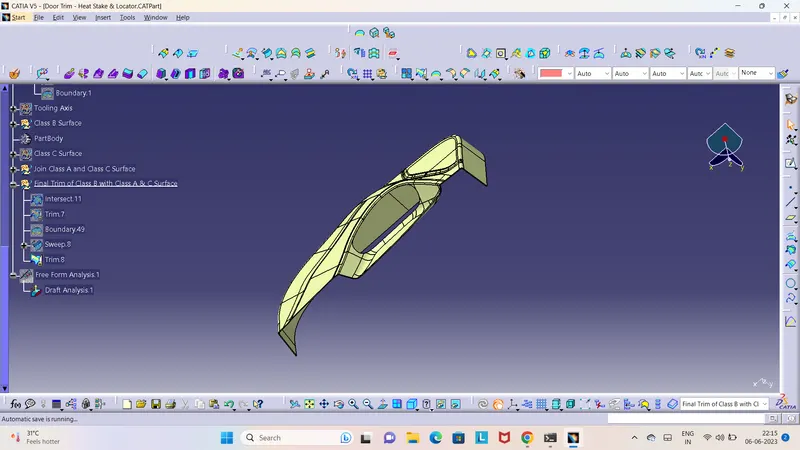

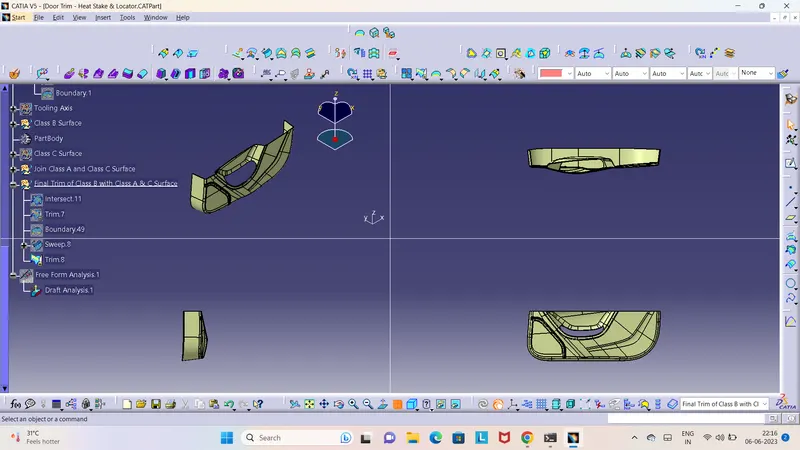

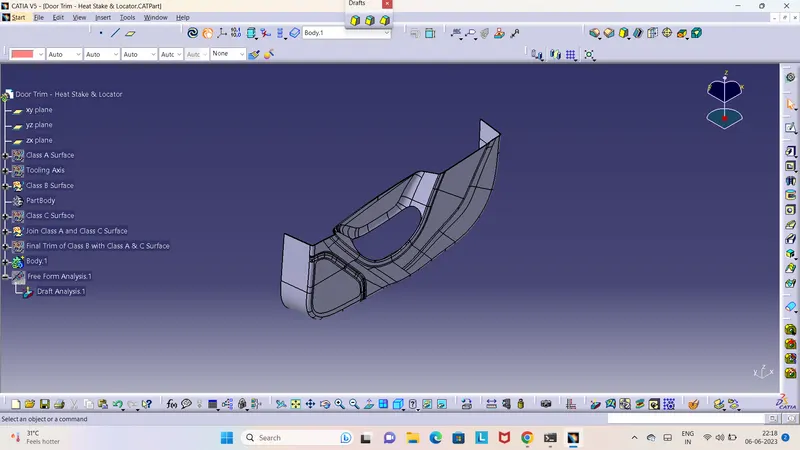

7. Final Trim of Class B with Class A and C Surface

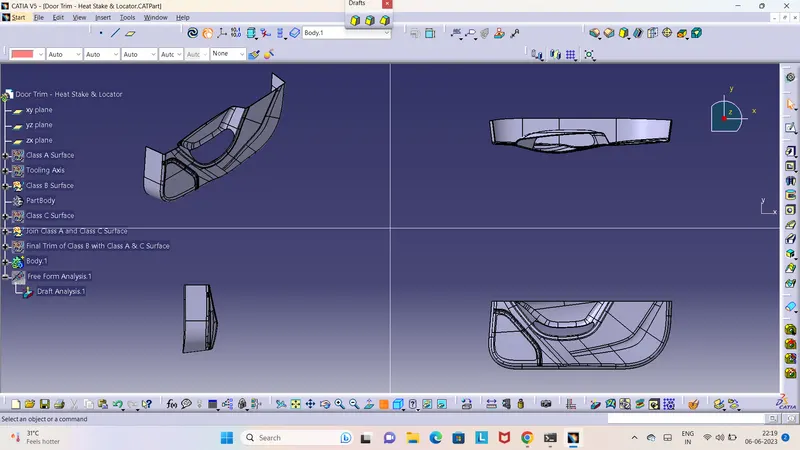

8. Given Closed Surface to the component door trim

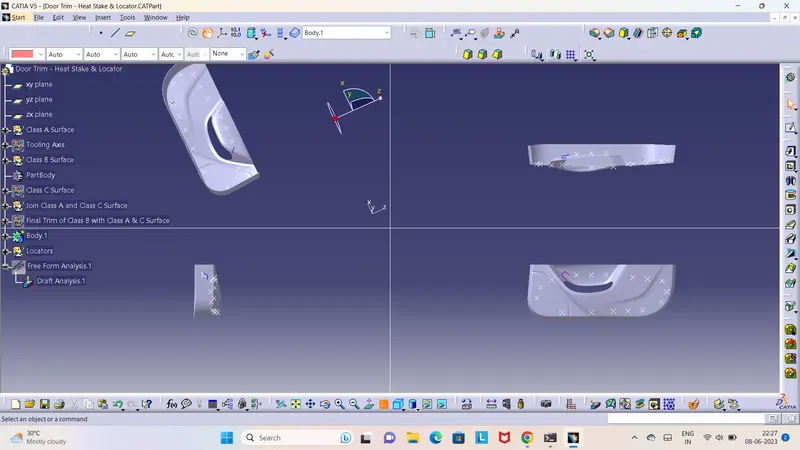

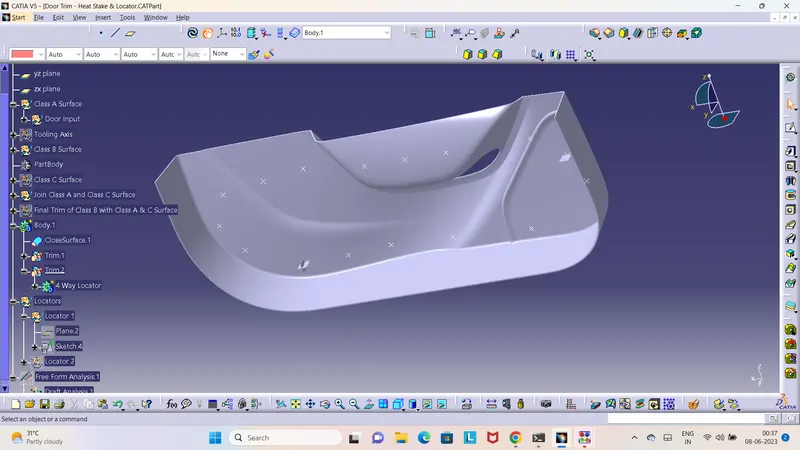

9. Creating the 4 Way Locator and 2 Way Locators.

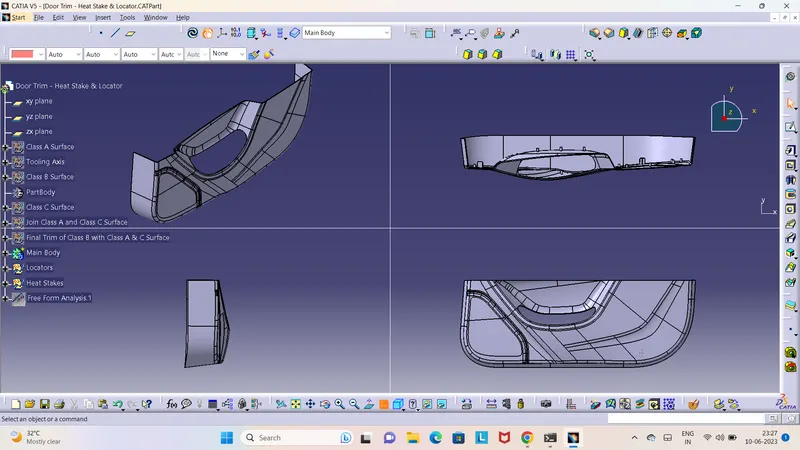

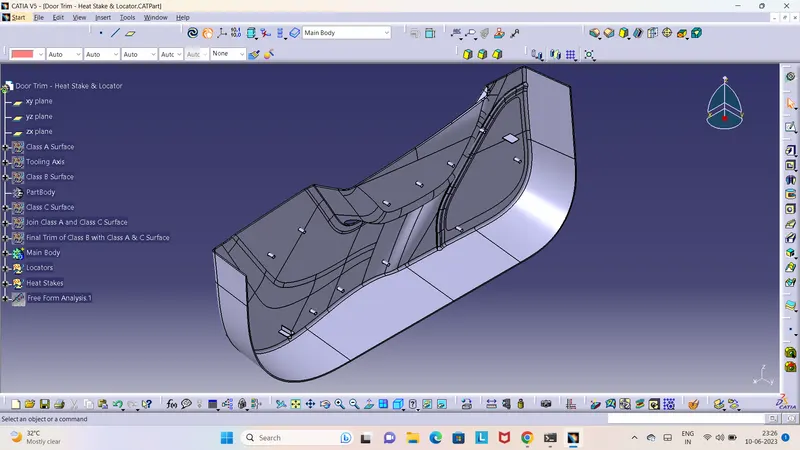

10. Creating the Heat Stakes.

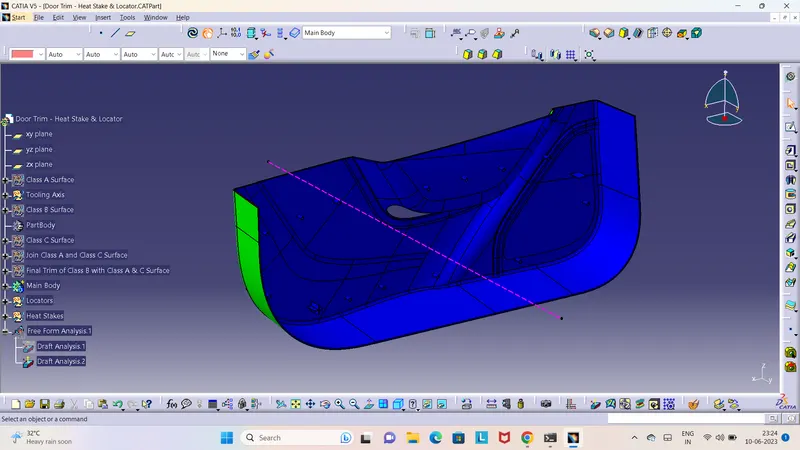

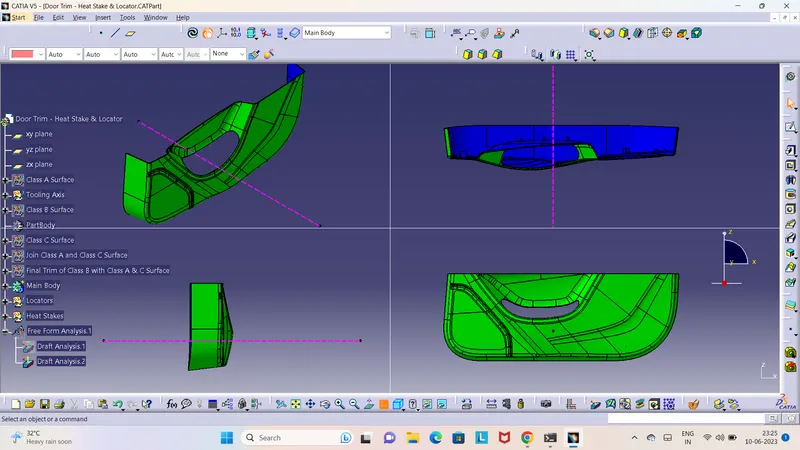

11. Final Draft Analysis.
