Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

Attachment Feature Creation (Ribs & Screw Boss)

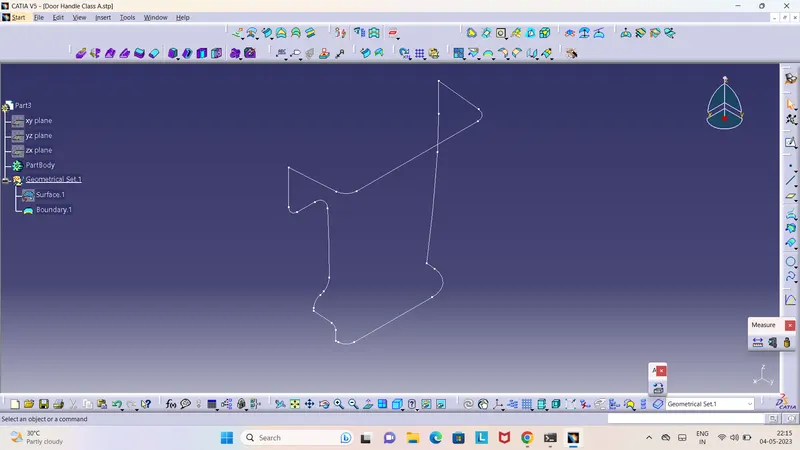

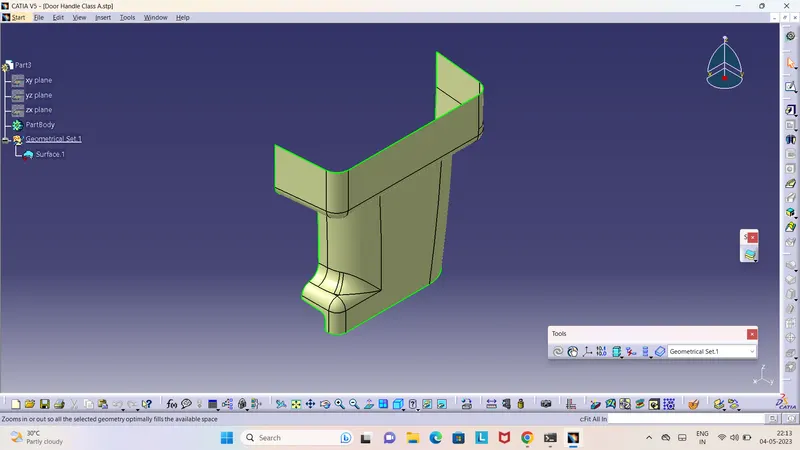

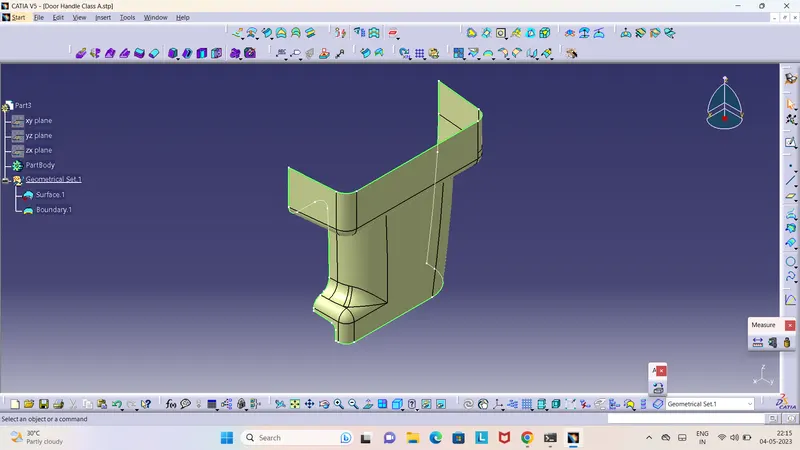

1. Given Class A Surface

Check for gaps between surfaces for that click on join and then preview.

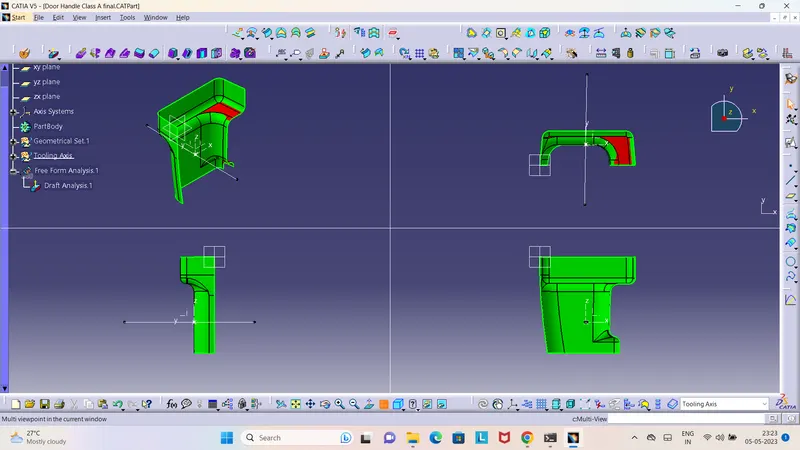

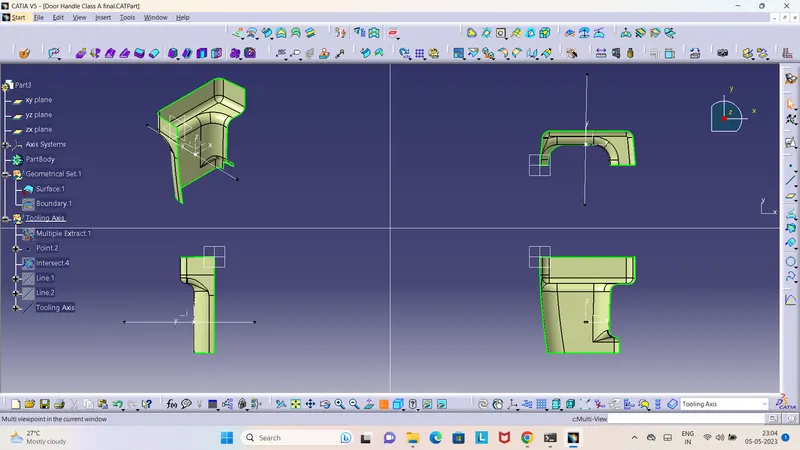

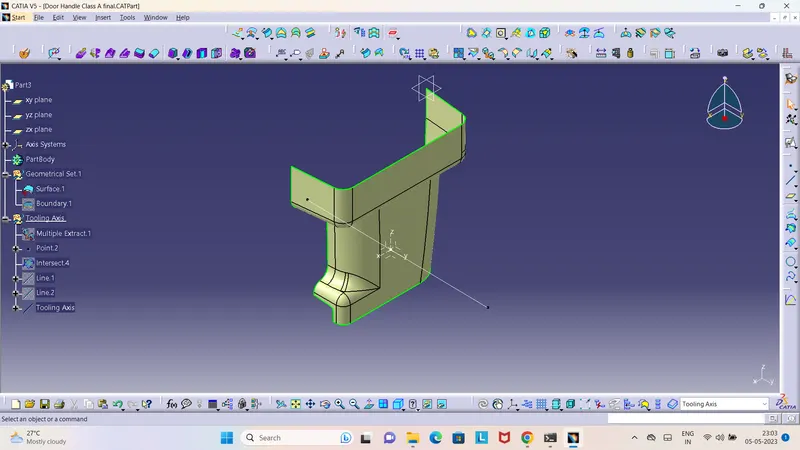

2. CREATING A TOOLING AXIS

The tooling axis is created for the component by bisecting two axis from the x and y planes.

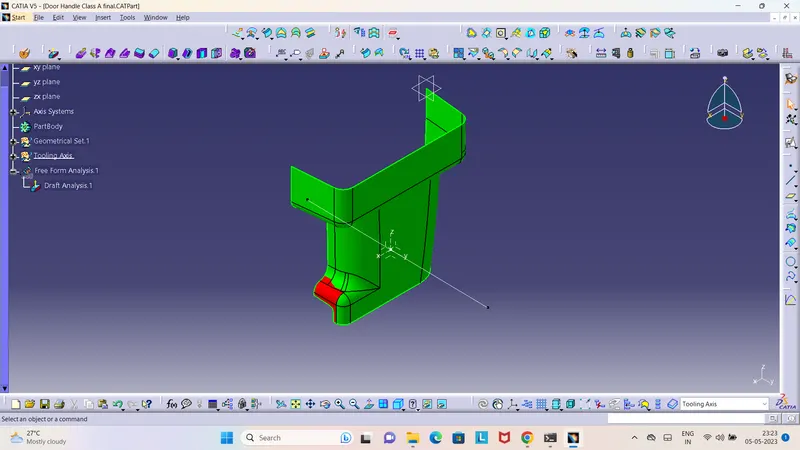

3. DRAFT ANALYSIS

The draft analysis is complete.

4. CREATING CLASS B SURFACE

The Class A surface Created the Class B surface

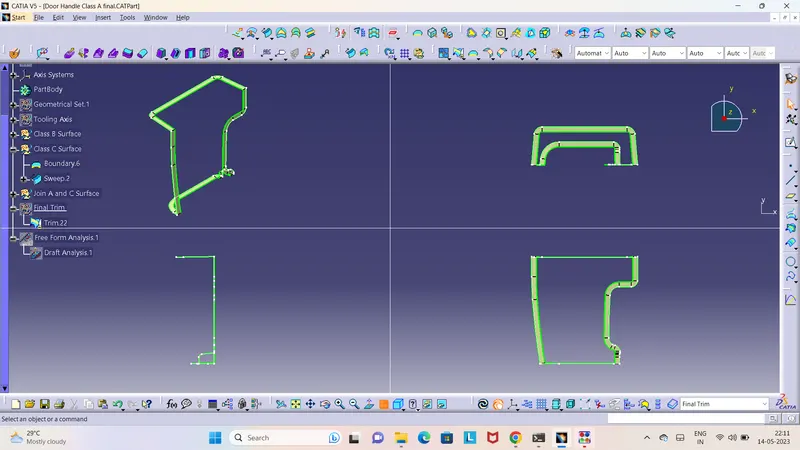

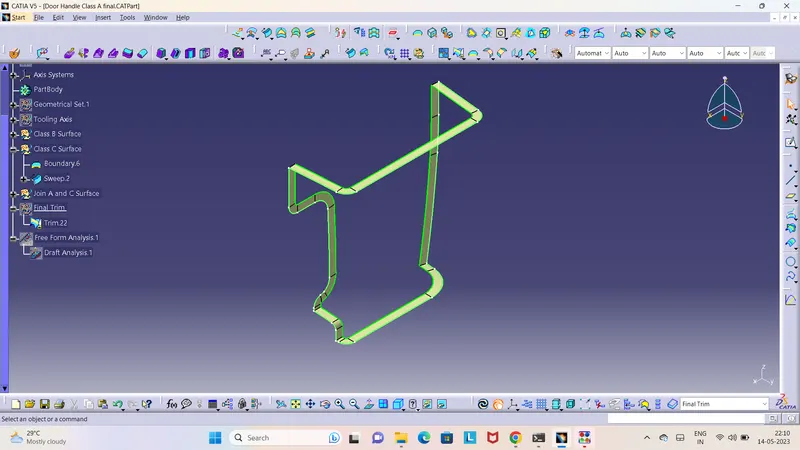

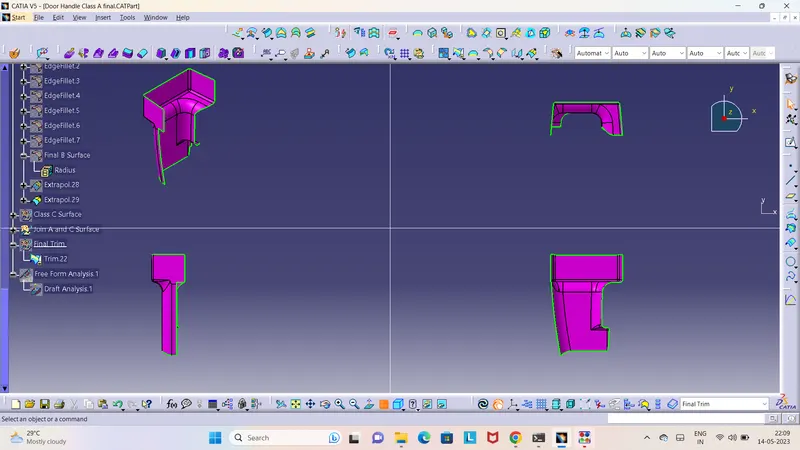

5. CREATING CLASS C SURFACE

The Class A surface Created the Class C surface

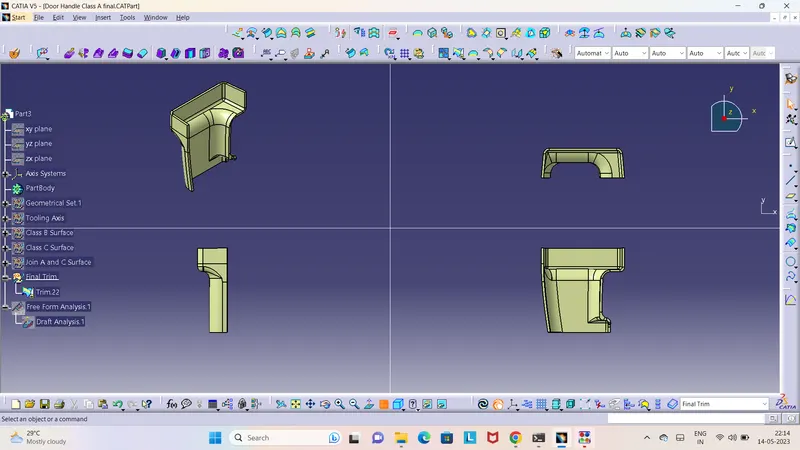

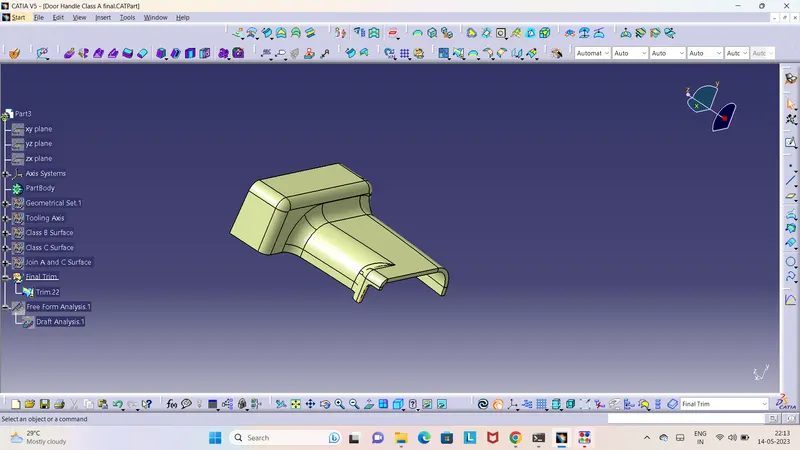

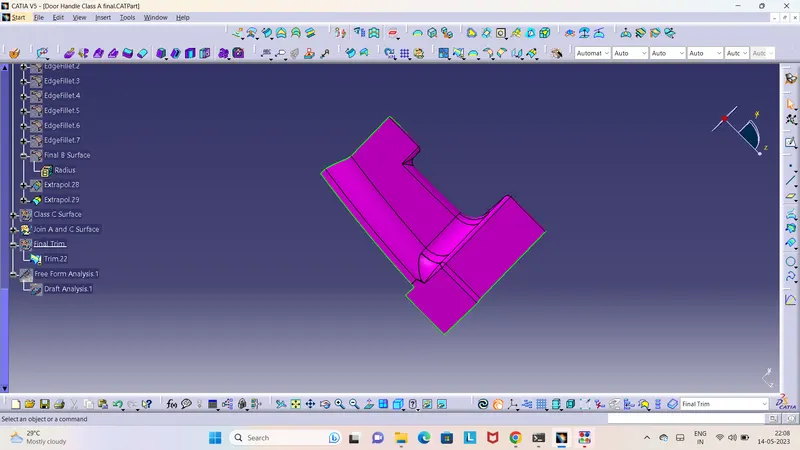

6. The Final Output of the Solid Object is Created

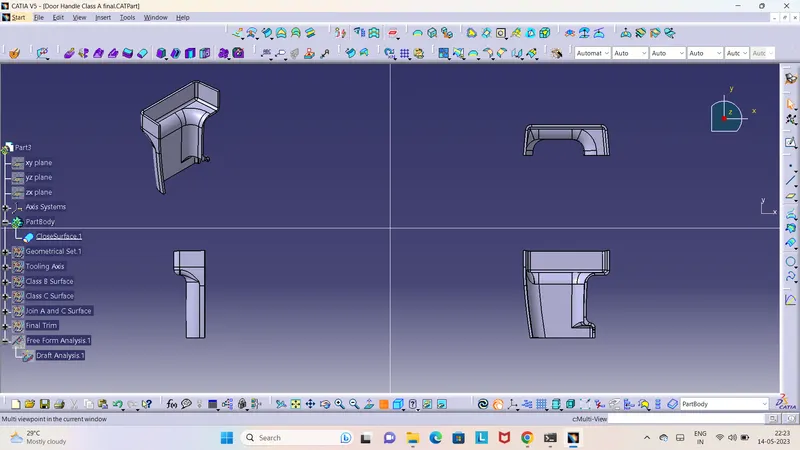

7. Creating of Closed body surface

Open part design workbench and using closed body surface create a solid of the component.

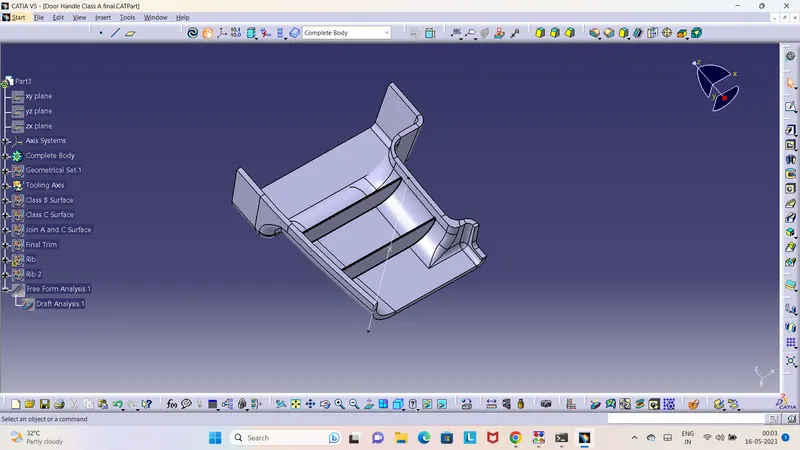

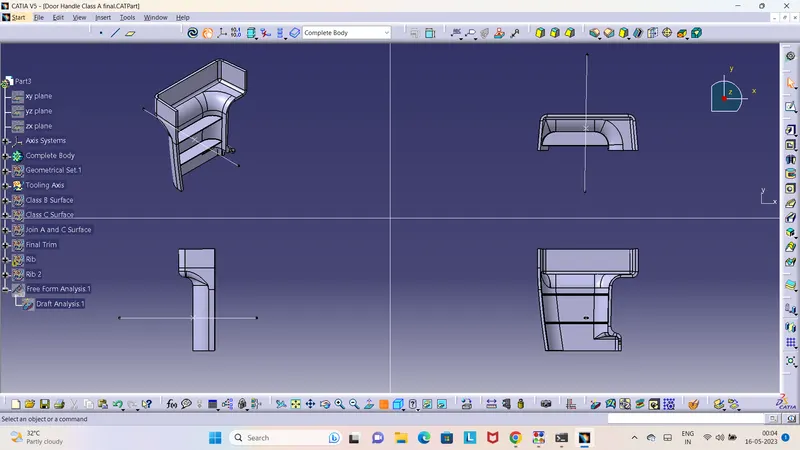

8. Creating RIB

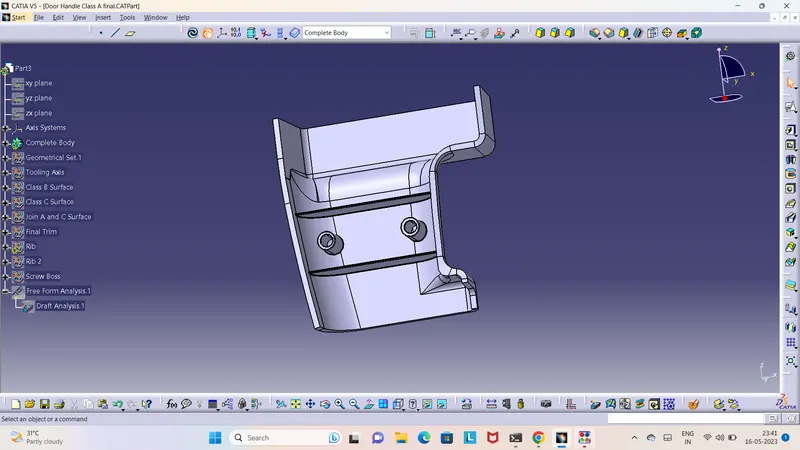

9. Creating Screw Boss

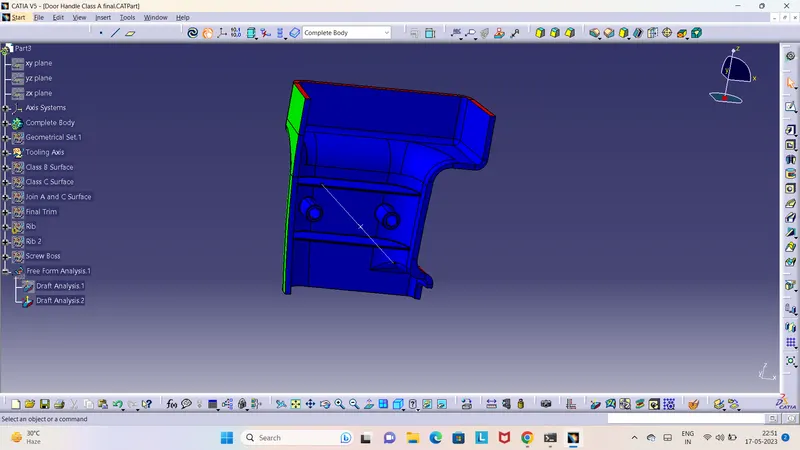

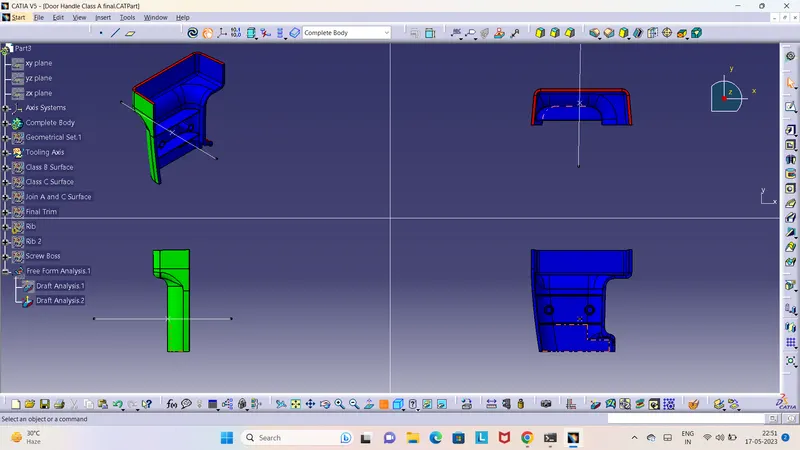

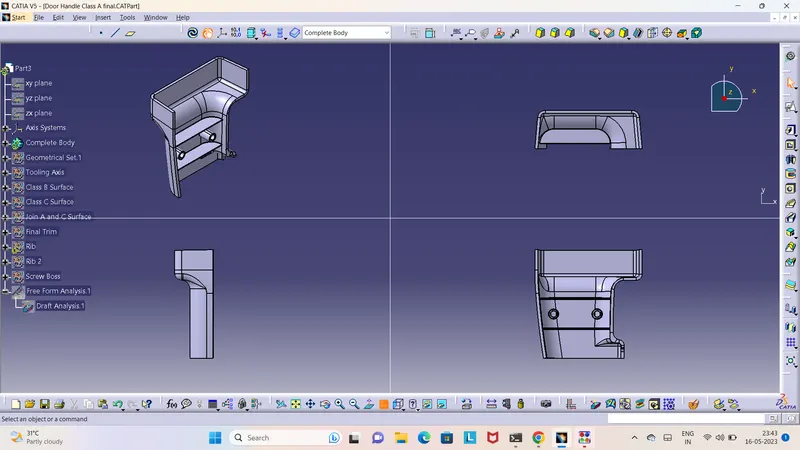

10. Final Draft Analysis
