Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

AIM- TO DESIGN B, C SURFACE AND ENGG FEATURES.( HEAT STAKE AND LOCATORS)

1) TOOLING AXIS CREATION-

TO CRATE TOOLING AXIS INTERTIA MEASURE CAN BE USED TO CREATE A POINT AT CENTER OF GRAVITY OF THE AA SURFACE. THEN CREATE A LINE THROUGH THAT POINT ALONG Y AXIS, SINCE PLENTY OF SURFACE ARE GOING CLEAR IN Y AXIS.

2) DRAFT ANALYSIS-

AFTER THE TOOLING AXIS CREATION TAKING DRAFT ANALYSIS TO CONFIRM ALL SIDES ARE CLEARING IN THE TOOLING AXIS DIRECTION.

HERE WE CAN SEE THAT THE ALL SIDES ARE CLEARING IN THE TOOLING DIRECTION.

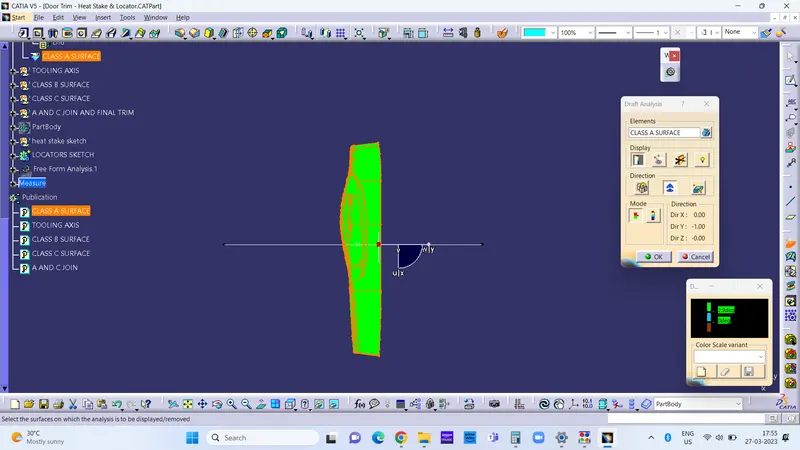

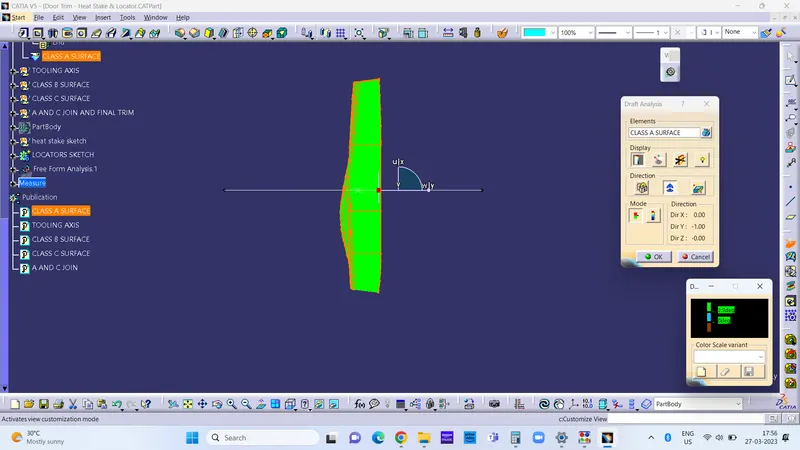

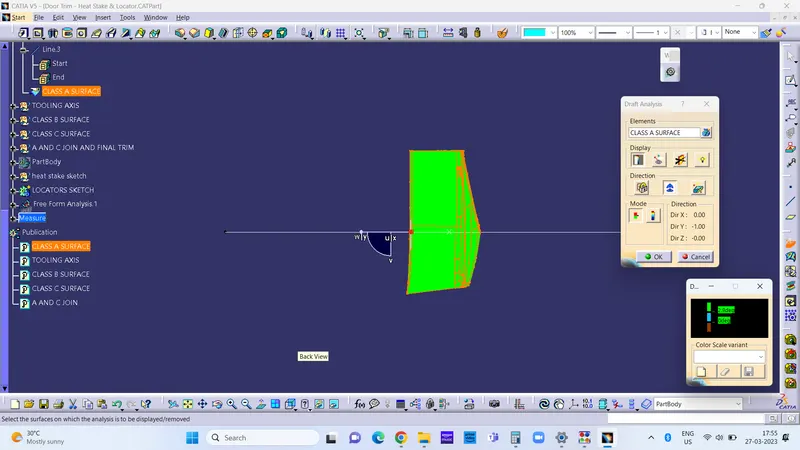

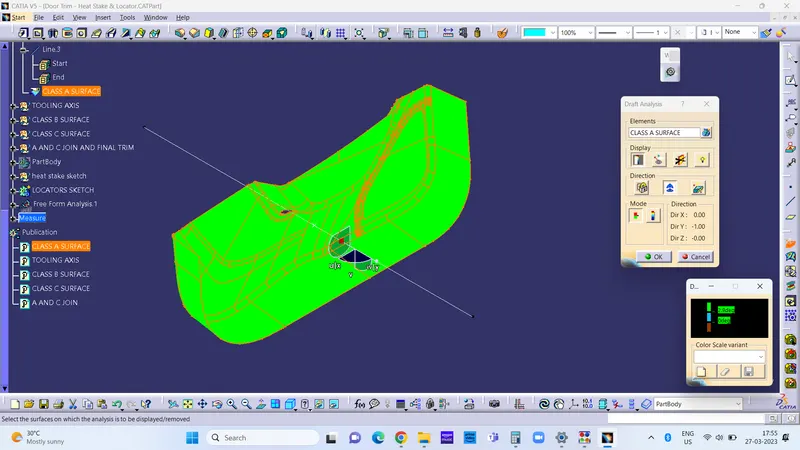

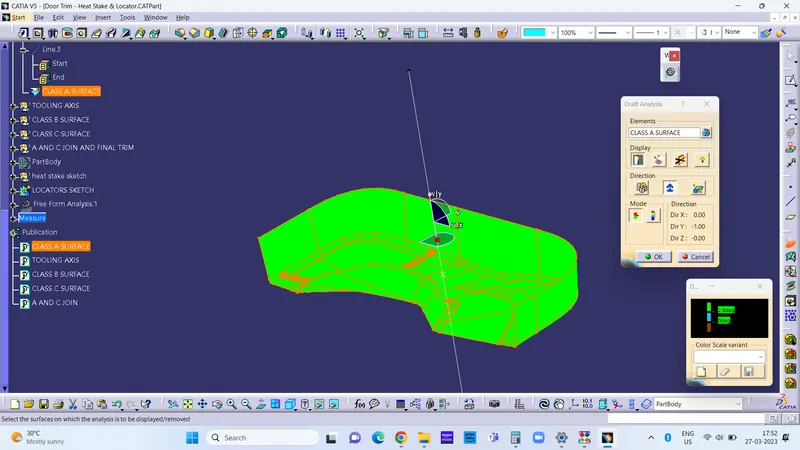

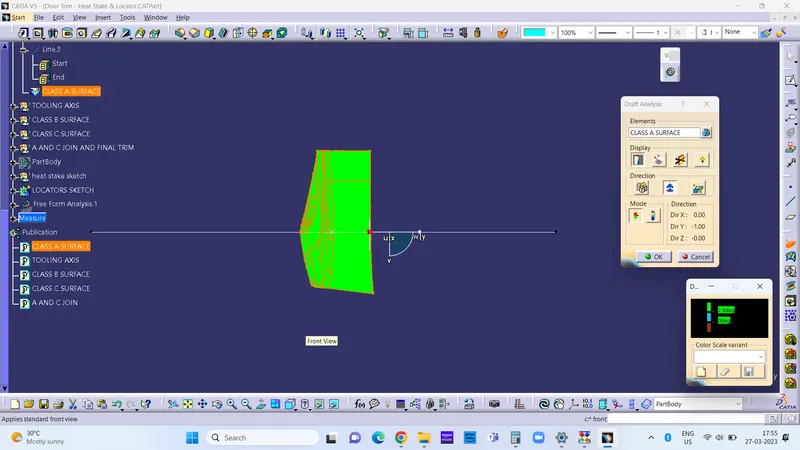

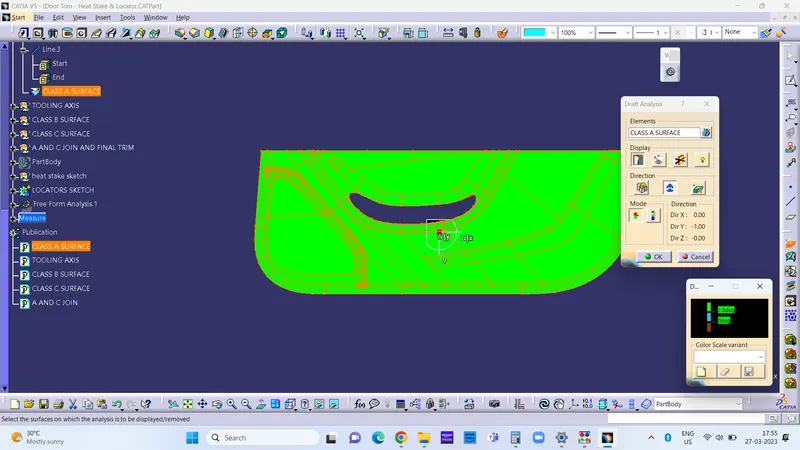

3) DRAFT ANALYSIS PICTURES FROM ALL VIEWS.

4) AFTER DRAFT ANALYSIS DESIGN OF B SURFACE.

FIRST OFFSET THE B SURFACE FOR REQUIRED THICKNESS. SINCE THERE ARE SOME PATCHES THAT DONT COME IN OFFSET SO WE HAVE TO CREATE IT.

TO CREATE THESE PACTHES HAVE TO REMOVE UNWANTED SURFACE TO CREATE IT COMPLETELY BY USING MULTIPLE EXRACT AND THE EXTRPOLATION. THEN THE TRIM THR INTERSECTED SURFACES.

REPEATING THE PROCESS ON EVERY PATCH.

5) AFTER B SURFACE DESIGN OF C SURFACE.

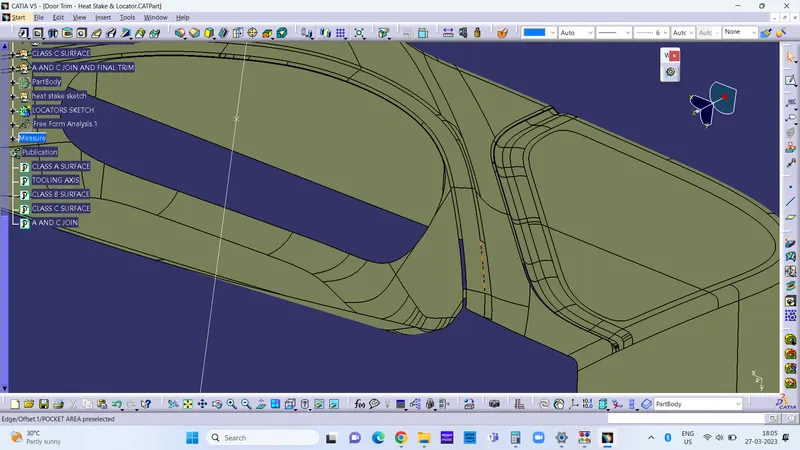

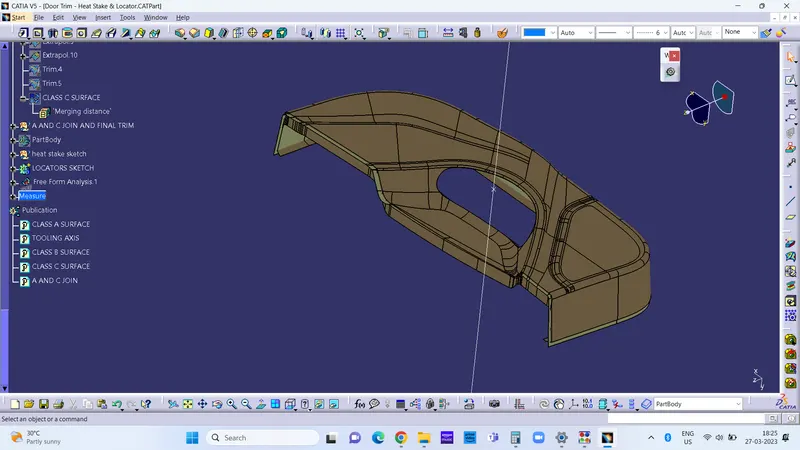

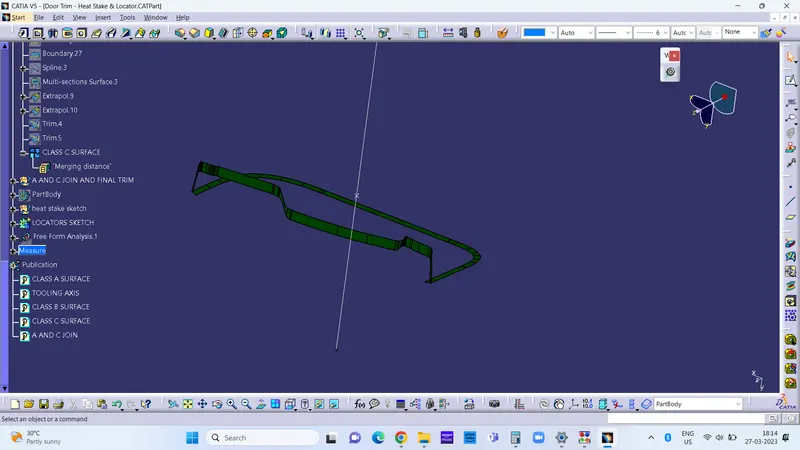

TO DESIGN C SURFACE WE HAVE USE SWEEP AND MULTI SECTION OPTIONS.SWEEP WITH REF SURFACE AND DRAFT DIRECTION.SWEEP WITH DRAFT DIRECTION IN SIDES WHICH ARE PARALLEL TO TOOLING AXIS AND SWEEP WITH REF SURFACE SIDES WHICH ARE PERPENDICULAR TO TOOLILNG AXIS. MULTI SECTION AT FILLET AREA.

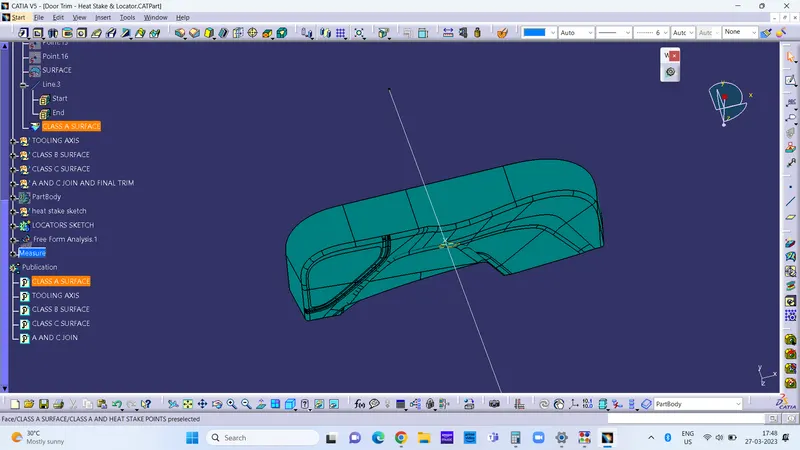

AFTER THHE C SURFACE DESIGN JOIN THE A AND C SURFACE TO TRIM IT WITH B SURFACE AFTER MAKING SURE ABOUT THE INTER SETION BETWEEN THE SURFACES. IF ANY PART IS NOT INTERSETING THEN TAKE THE EXTRAPOLATION IN THAT AREA THEN TRIM THE SURFACES.

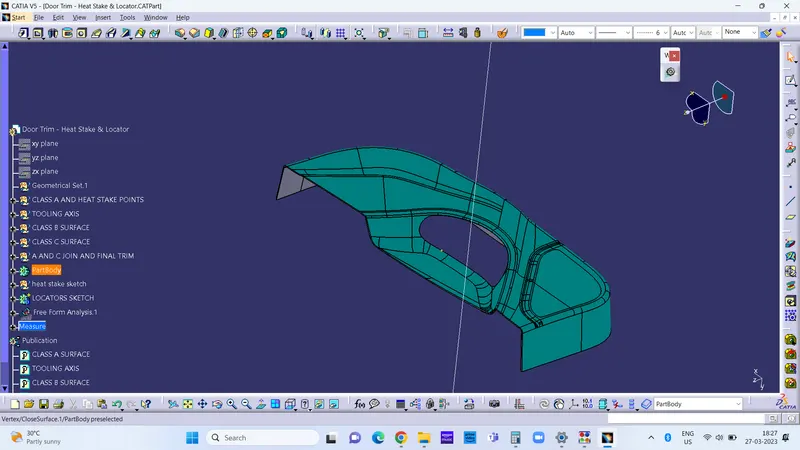

6) AFTER THAT CREATE THE SOLID USING CLOSE SURFACE COMMAND.

7) AFTER CREATING SOLID START DESIGN OF HEAT STAKE AND THE LOCATOR.

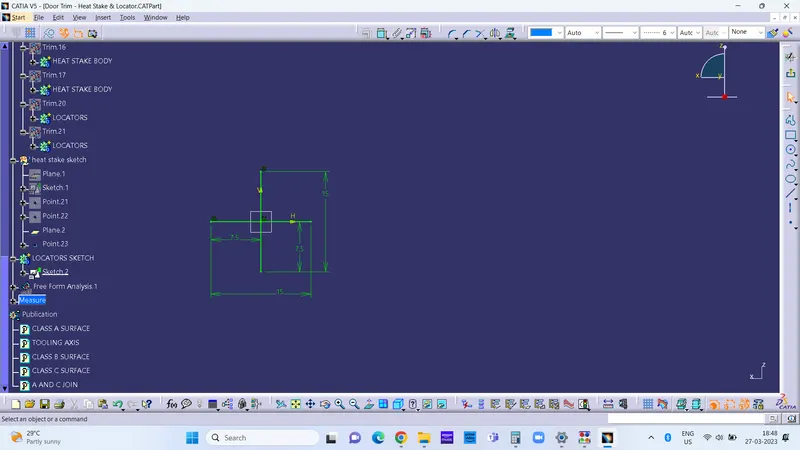

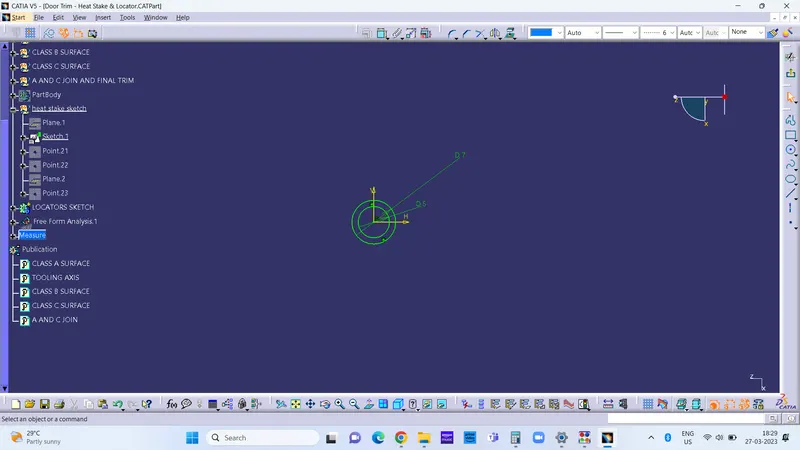

CREATING SKETCH AT GIVEN POINT

AND THEN CREATING PAD OF THE SKETCH FOR REQUIRED AMOUNT.

AND TRANSLATE IT AT ALL GIVEN POINTS USING TRANSNLATION BY CREATING REQUIRED AMOUNT OF COPIES.

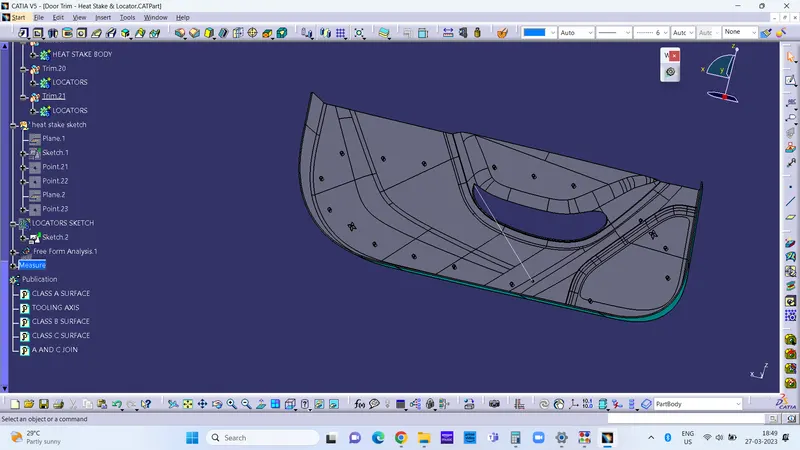

8)DESIGN LOCATORS AT GIVEN LOCATION BY CREATING A SKETCH AND PAD IT AND THEN MAKING COPY OF IT TRANSLATE IT TO REQUIRED LOCATION.

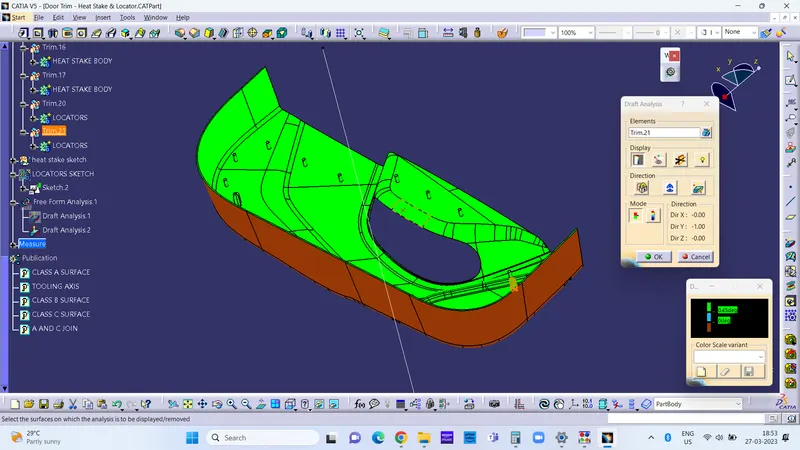

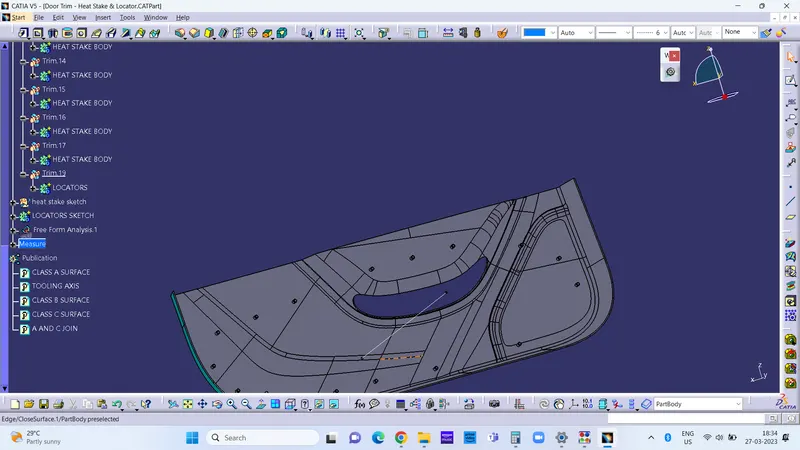

DRAFT ANALYSIS PICTURE OF COMPLETE DOOR TRIM LOWER.
