Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

ENGINEERING FEATURES:-

HEAT STAKES AND LOCATORS:-

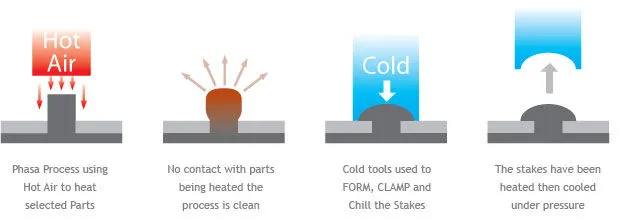

" HEAT STAKES "ARE ONE KIND OF PLASTIC WELDING USED TO FIX THE PARTS BY PLASTIC HEATING ON THE TOP THEN IT WILL STICK ONTO THE MATING PART(CONTRADICT PART)

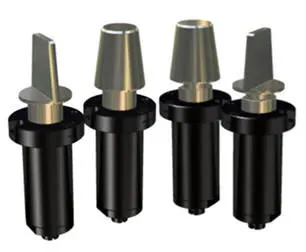

" LOCATORS " ARE USED TO ARREST THE DOF ( DEGREE OF FREEDOM ) OF THE MATING PART IT IS TWO TYPES 2-WAY LOCATORS AND 4-WAY LOCATORS.HERE WE USED 4 -WAY LOCATORS

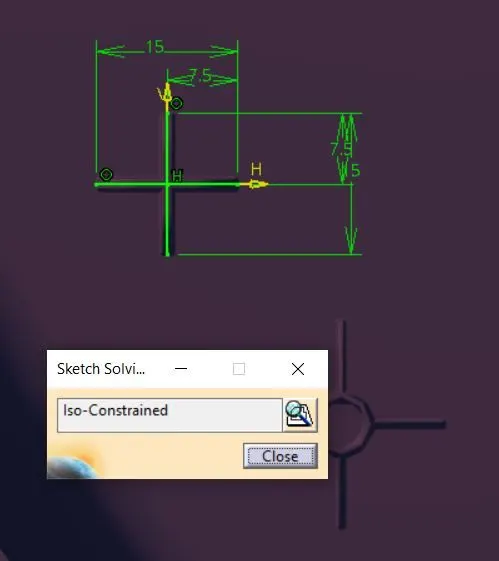

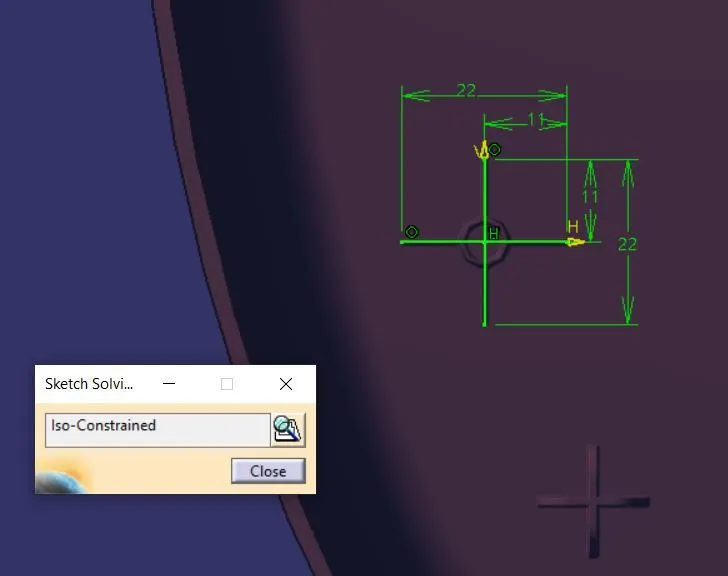

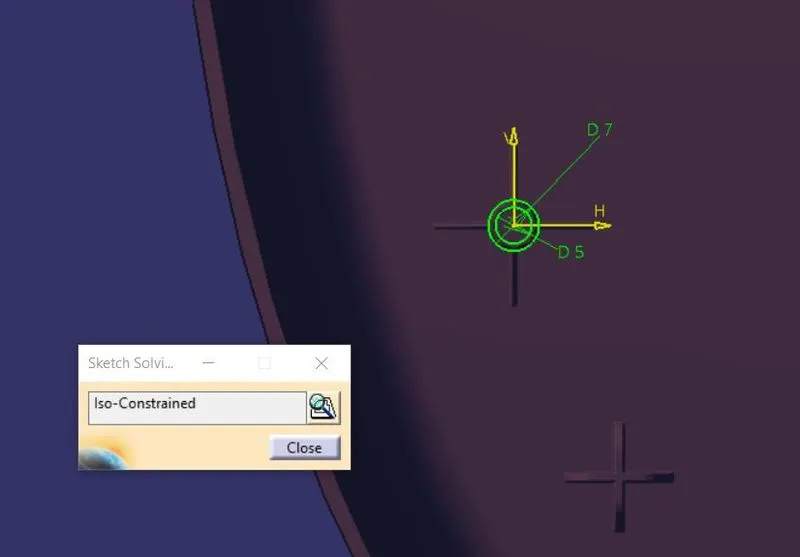

SKETCHES:

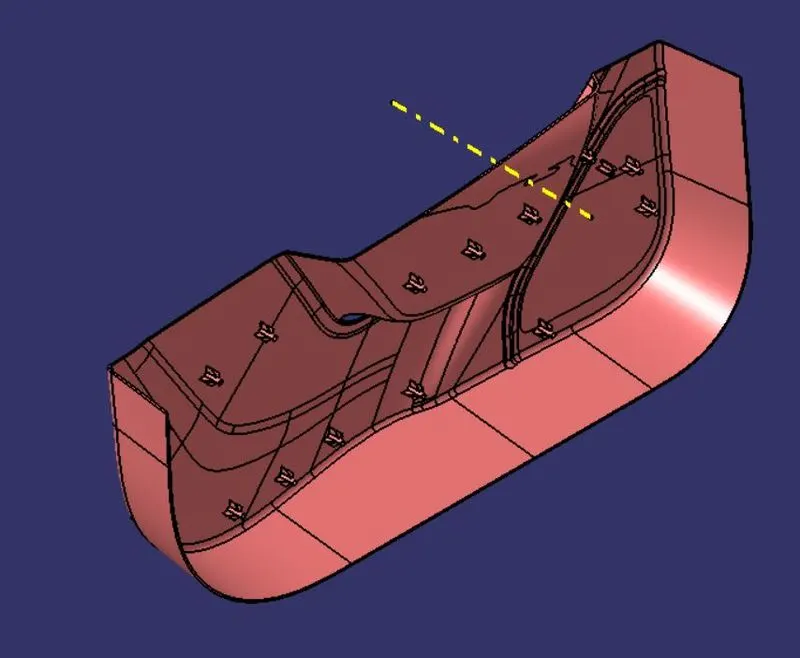

VIEWS:

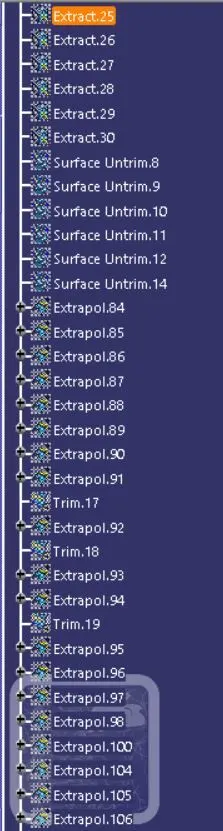

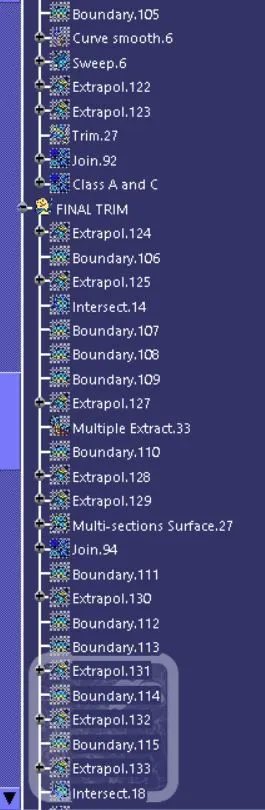

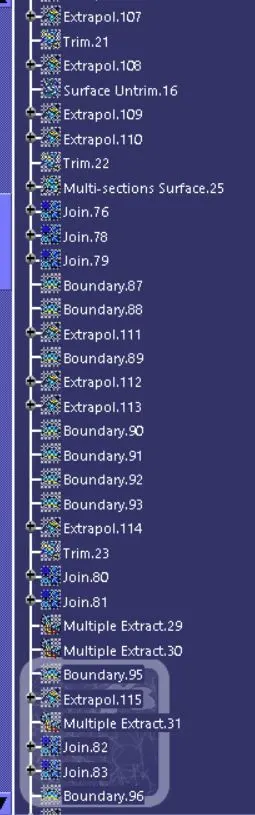

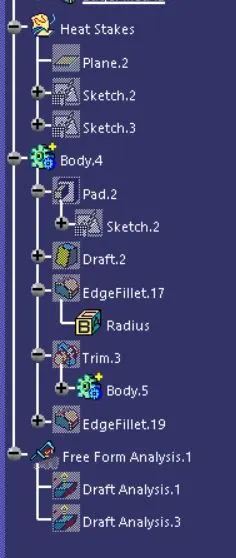

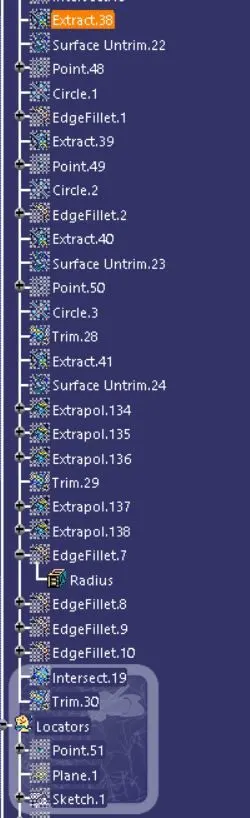

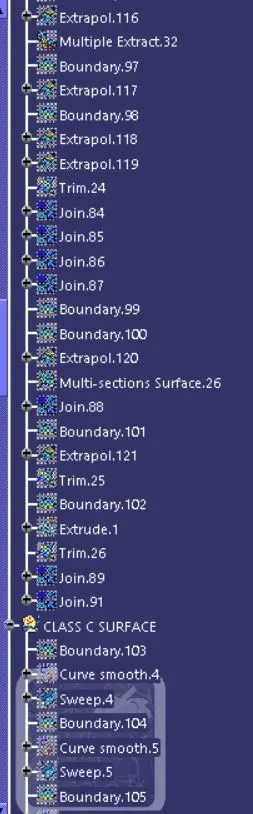

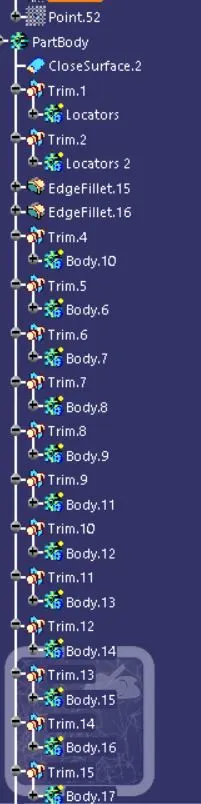

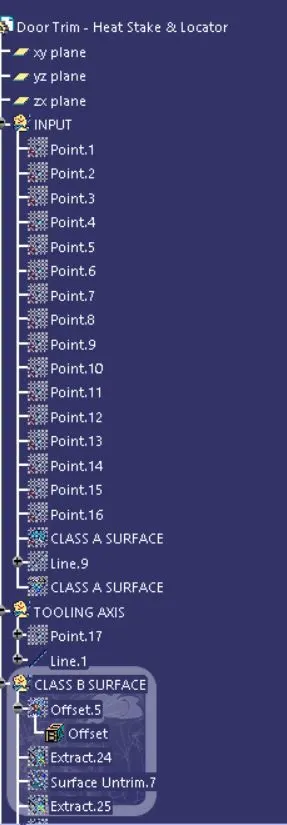

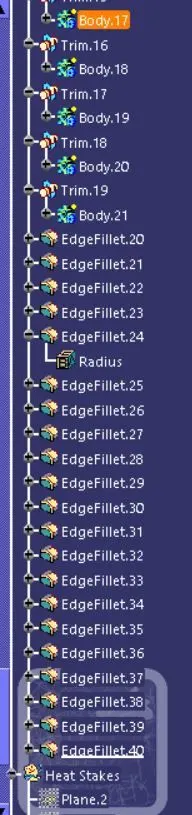

GEOMETRIC TREE:

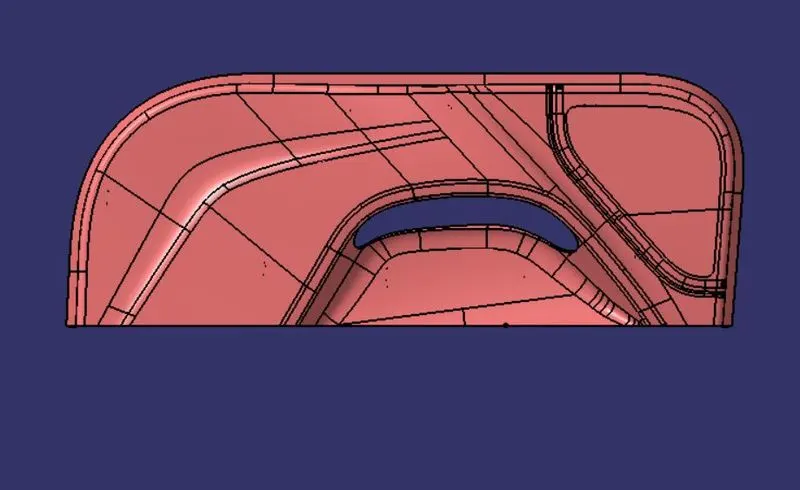

CLASS A SURFACE:

"CLASS A SURFACE" IS THE SURFACE WE CAN SEE EASILY IN THE VEHICLE IT ONLY HAS AESTHETIC DESIGN, HERE THERE IS NO ENGINEERING FEATURE PRESENT IN CLASS A SURFACE. HERE THE INPUT IS THE CLASS A SURFACE.

THE PLASTIC PRODUCT DESIGNER IS TO MAKE THE B SURFACE AND THE C SURFACE TO THE INPUT FOR THAT SOME PROCEDURE WE SHOULD FOLLOW.

STEPS THAT SHOULD BE FOLLOWED:

1. FIRSTLY WE SHOULD CREATE A TOOLING AXIS ( WHY MEANS? - WHEN THE MATERIAL IS MANUFACTURED USING THE INJECTION MOULDING IT SHOULD EASILY COME OUT WITHOUT ANY DEFECT IN THE MATERIAL FOR THAT HERE FIRSTLY WE CONSIDER THE TOOLING AXIS FOR THE MATERIAL TO GET THE BEST RESULT

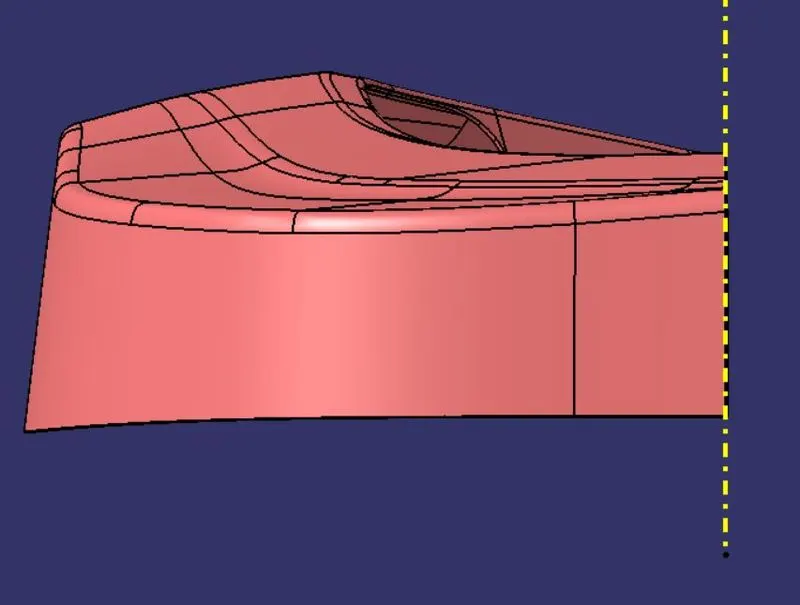

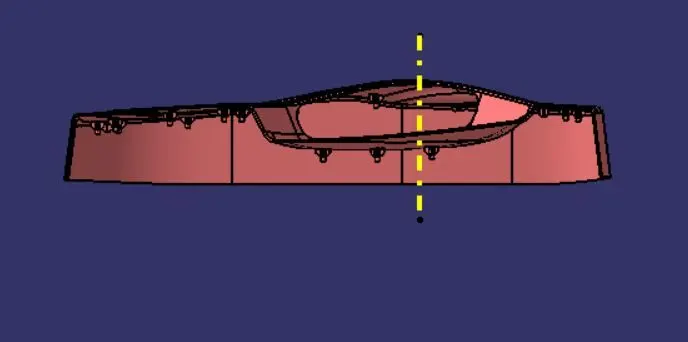

HOW TO CREATE THE TOOLING AXIS?

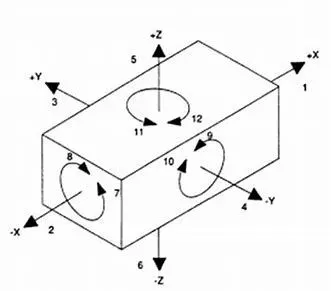

FIRST WE SHOULD LOOK INTO THE MATERIAL TO SEE IF THERE IS ANY GAP IS THERE (USING THE BOUNDARY COMMAND) AND THEN LOOK DOWN INTO THE THREE DIRECTIONS (X, Y, Z) FOR A BETTER OUTCOME FOR THE PRODUCT WHILE MANUFACTURING. WHILE LOOKING AT THE VIEW THE ENTIRE PORTION CAN EASILY BE VISIBLE WHEN CHOOSING A DIRECTION.

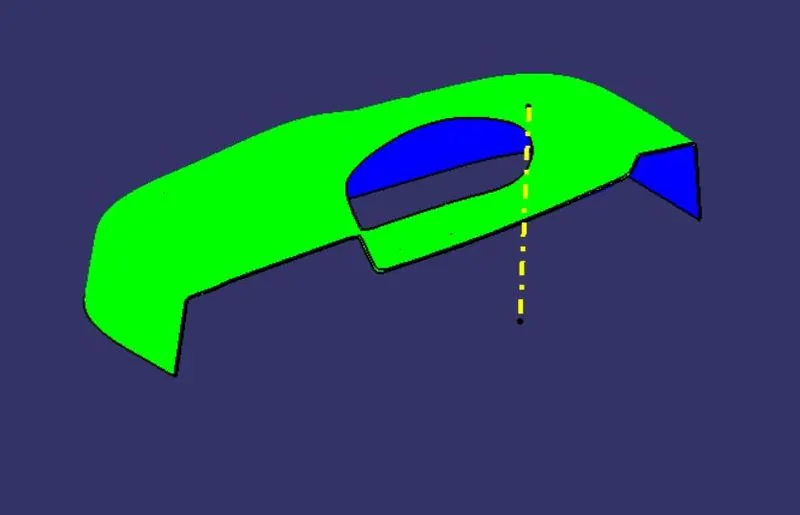

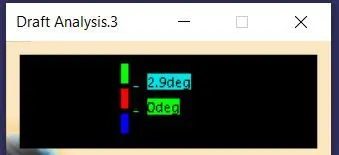

2. THEN DRAFT ANALYSIS.

THE DRAFT ANALYSIS IS THE CORE THING WHEN IT COMES TO THE MANUFACTURING PROCESS. IN MANUFACTURING 3 DEGREE DRAFT IS MAINTAINED FOR A PRODUCT TO COME EASILY WHILE MANUFACTURING.SO THE MATERIAL SHOULD BE ANALYZED WITH A DRAFT ANALYSIS FOR A BETTER RESULT

HOW TO DO DRAFT ANALYSIS?

FIRSTLY WE NEED TO CHANGE THE MATERIAL (CUSTOMIZED MATERIAL). THEN SELECT THE COMPASS OPTION THEN MOVE THE COMPASS TO ALIGN WITH THE TOOLING AXIS PROPERLY. THEN CHOOSE THE LOCK OPTION TO LOCK THE COMPASS THEN SELECT THE MATERIAL THEN THE DRAFT ANALYSIS IS CARRIED OUT WE NEED TO CHECK IT SHOULD BE CLEAR THE A SURFACE IS AND C SURFACE THE MUST BE SET 3 DEGREES IF THE DRAFT WOULD NOT CLEAR THEN WE ALTER THE VALUES UPTO 3 DEGREE FOR EG ( 2.8,2.9)
