Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

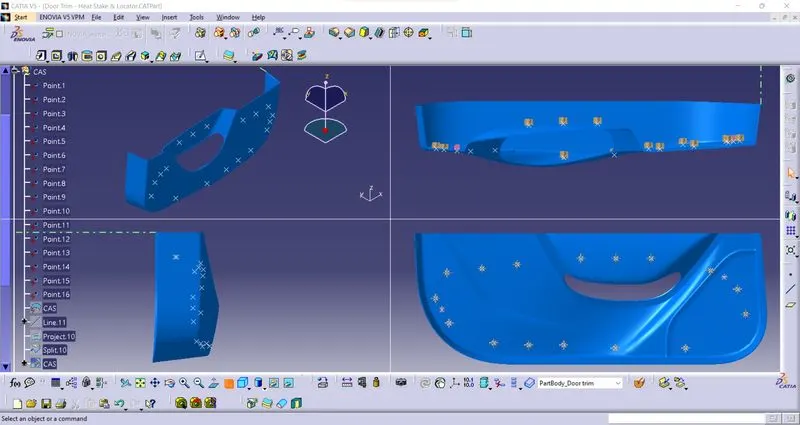

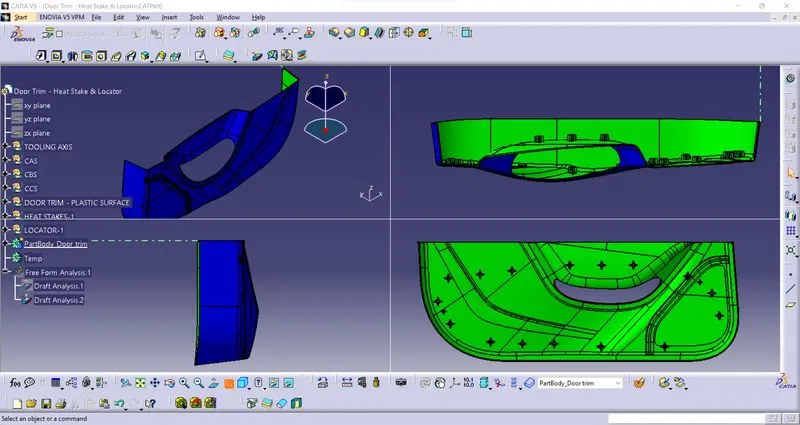

Draft analysis of the Door Applique model in standard views, Nominal standard views of the Door applique model, (with Heat stakes & locators) Heat Stakes & locators are designed as per design rules in the given location guidelines,
