Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

Objective: The main aim of this challenge is to create B-side features of the 'Door Trim', with the help of CATIA V5.

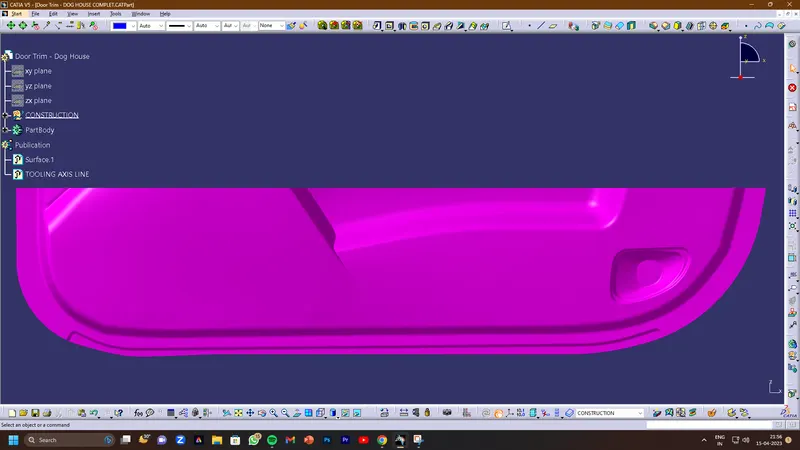

Overview: Created a 2.5mm solid part body of door trim with the help of class A surface, and created a B-side attachment feature 'Dog House' by considering the design parameters.

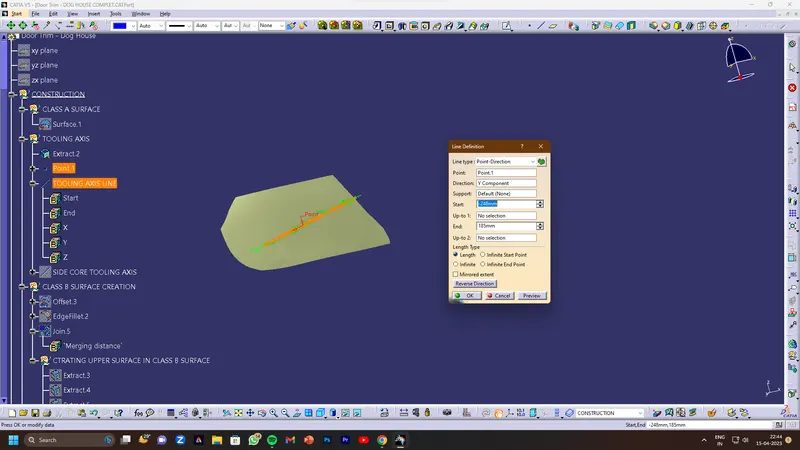

TOOLING AXIS:

1. EXTRACT THE SURFACE
2. CREATE A POINT
3. CREATE A LINE

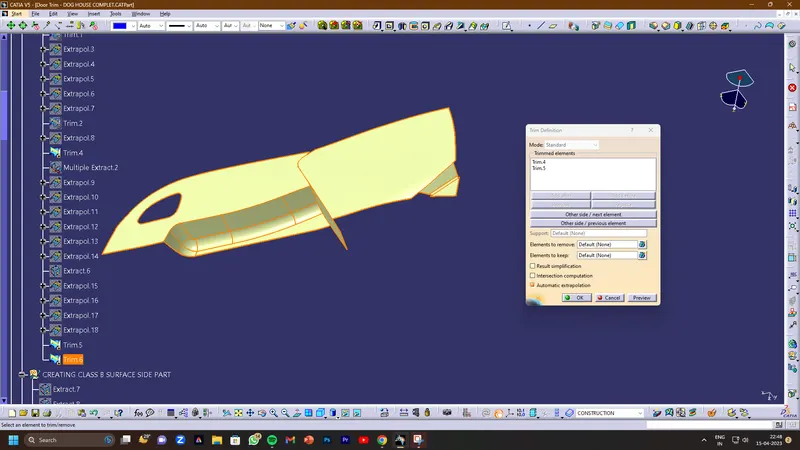

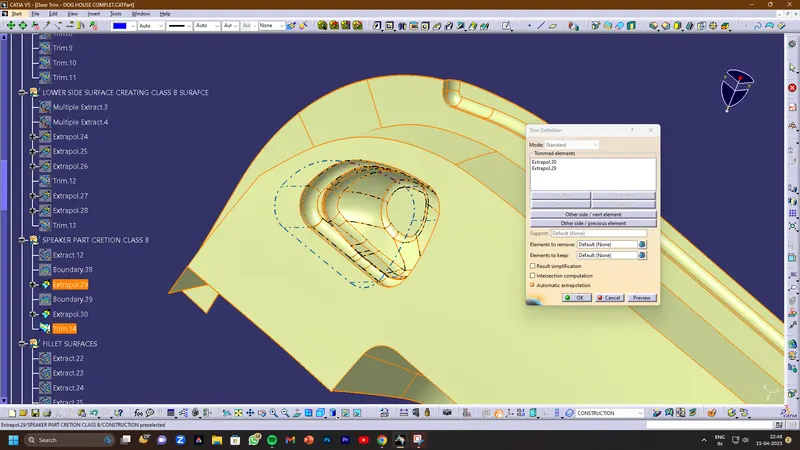

CLASS B SURFACE CREATION

1. OFFSET THE SURFACE BY 2.5MM
2. APPLY THE FILLET ON THE TOP SIDE

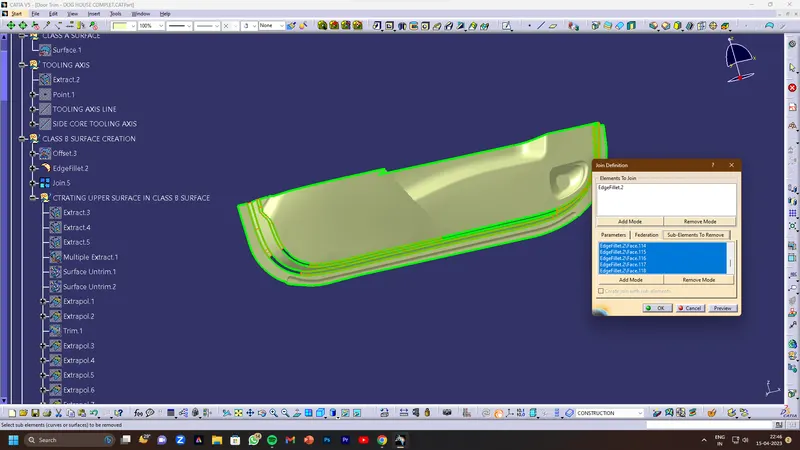

3. APPLY THE JOINT COMMAND AND REMOVE THE ALL UNUSED FILLET

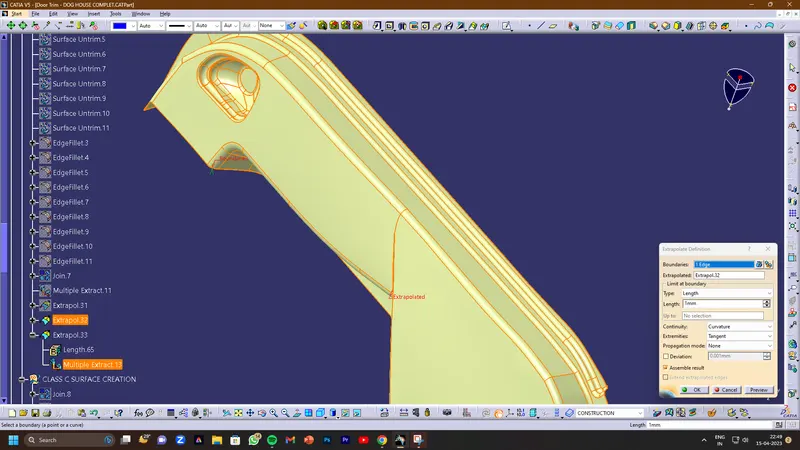

4. AND EXTRACT THE SURFACES AND UNTRIM THEM OR APPLY THE EXTROPOL COMMAND
5. APPLY THE THE FILLETS ON TRIM SURFACES

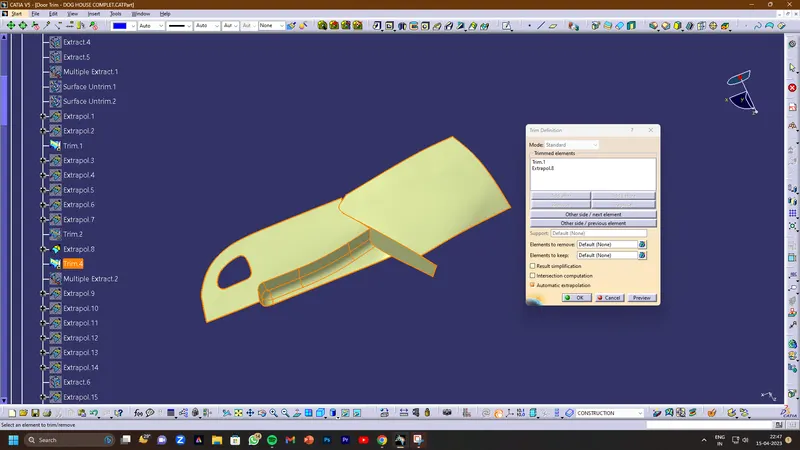

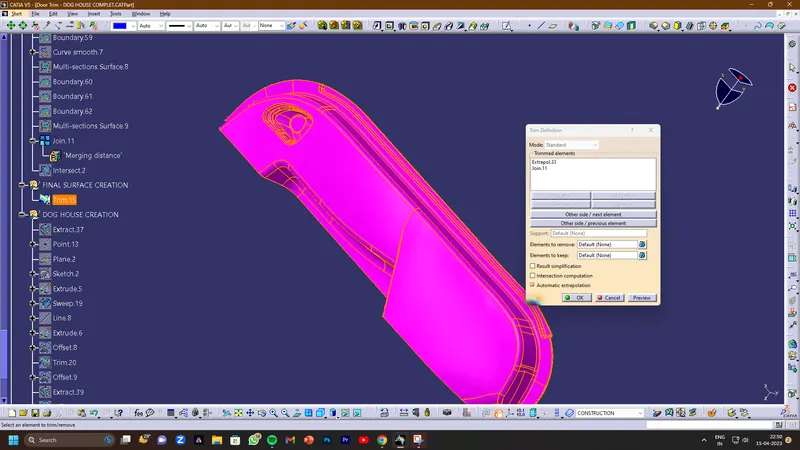

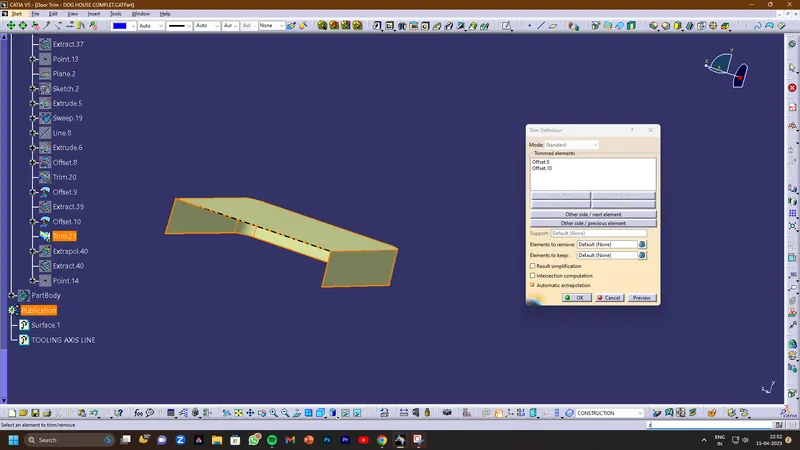

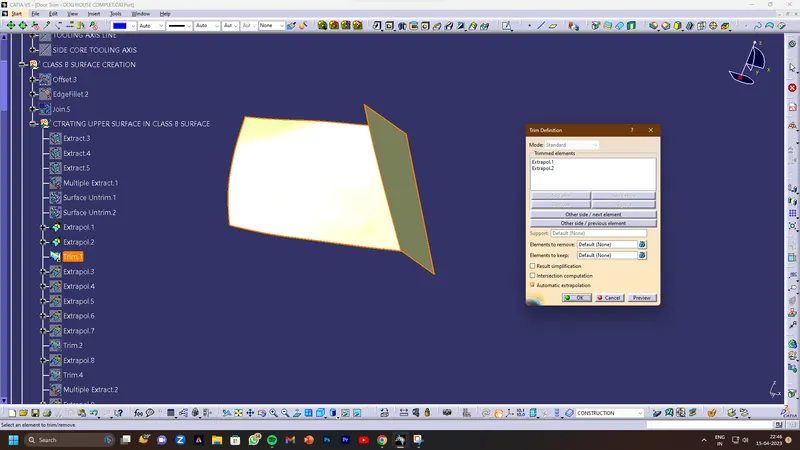

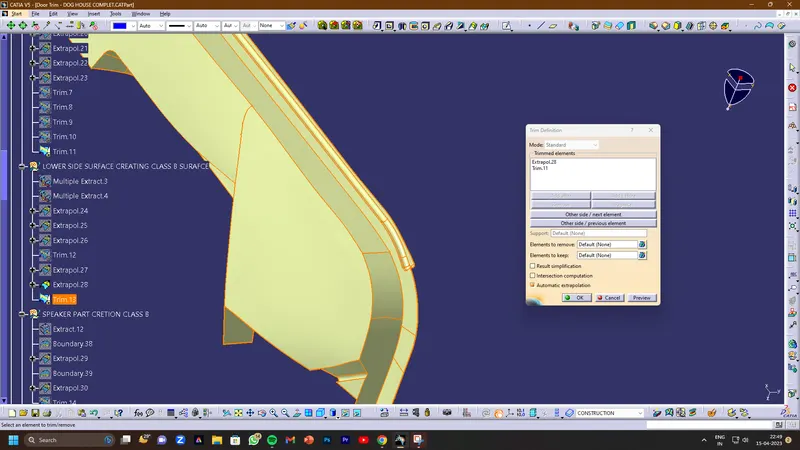

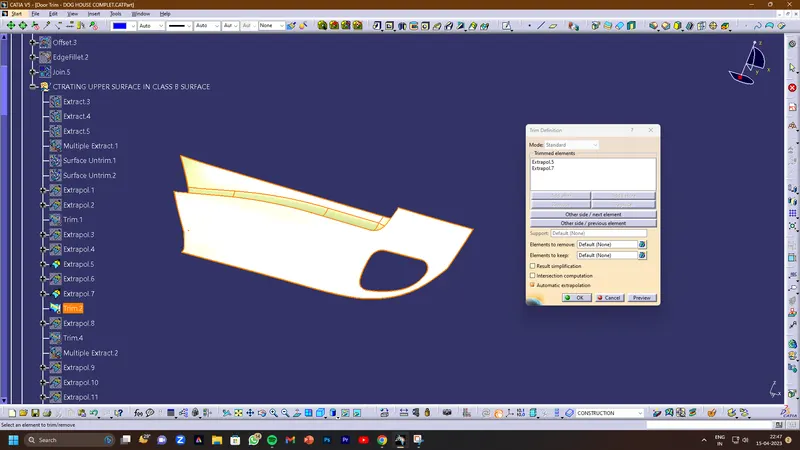

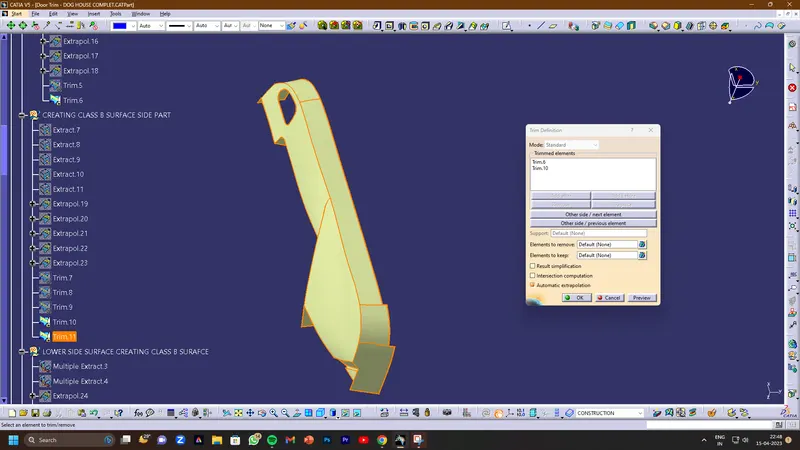

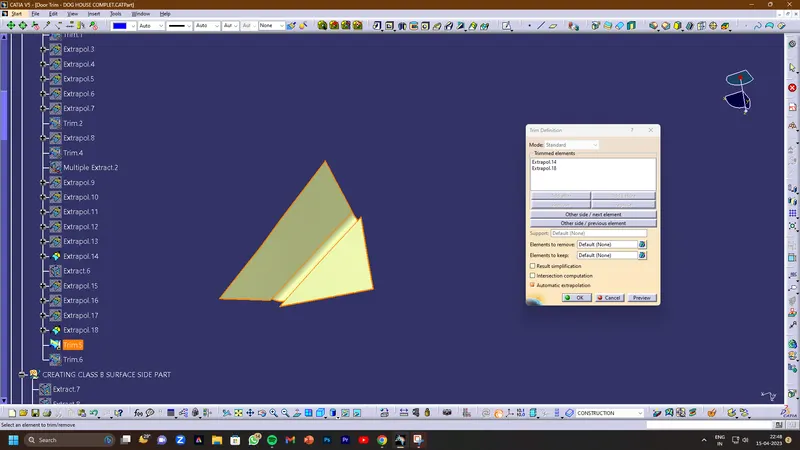

6. AT THE LAST TRIM THAT SURFACES

CREATING CLASS C SURFACES

1. JOIN THE SURFACES
2. APPLY THE SWEEP COMMAND

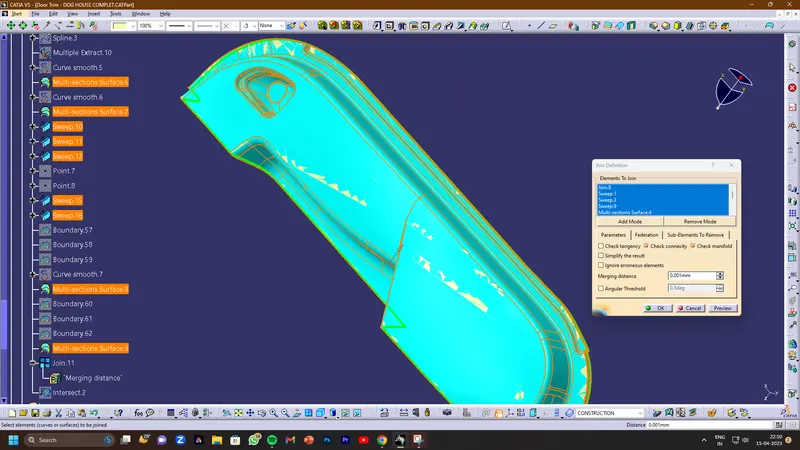

3. APPLY THE JOIN COMMAND
4. CHECK THE INTERSECTION POINT
5. AT LAST, I CHANGED THE PART BODY

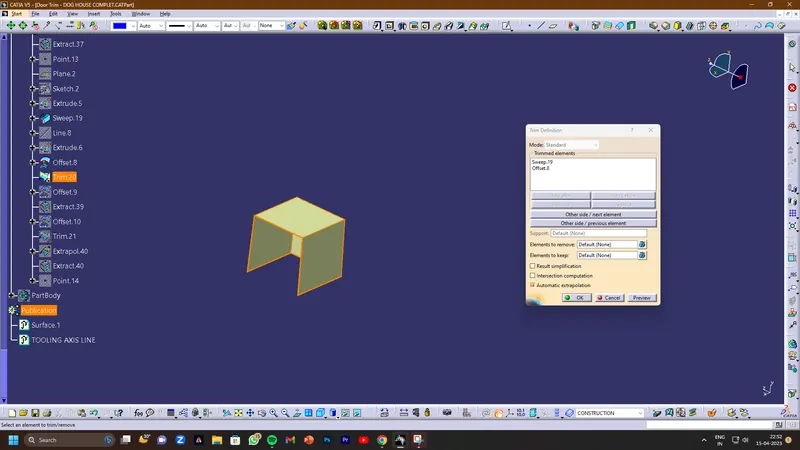

CREATING THE DOG HOUSE

1. EXTRACT THE SURFACE WHERE WE NWWD TO CREATE THE DOG HOUSE
2. CREATE THE POINT
3. CREATE THE PLANE

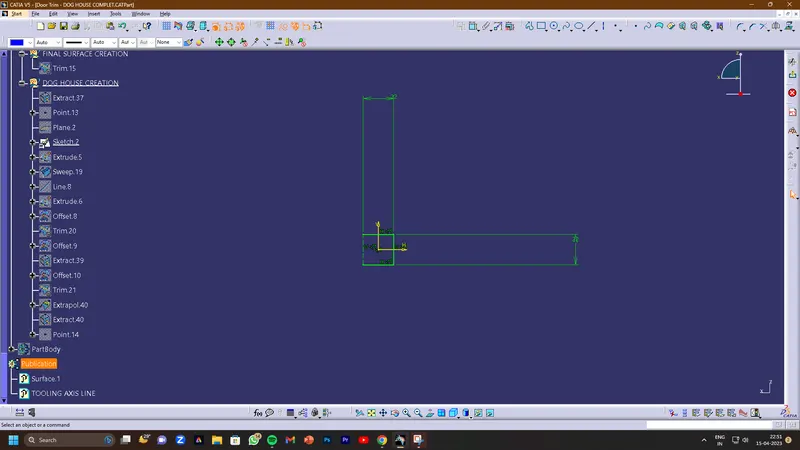

4. CREATE THE SKETCH

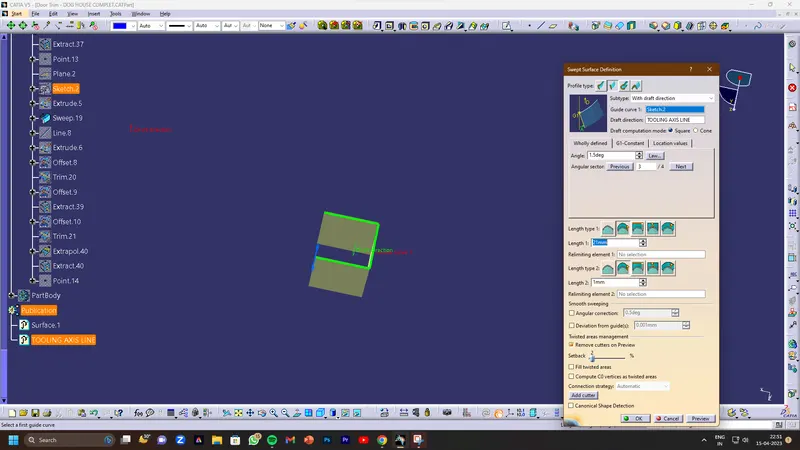

5. SWEEP THE SKTCH
6. APPLY THE THICK COMMAND
7. CREATE THE SIDE CORE TOOL AXIS

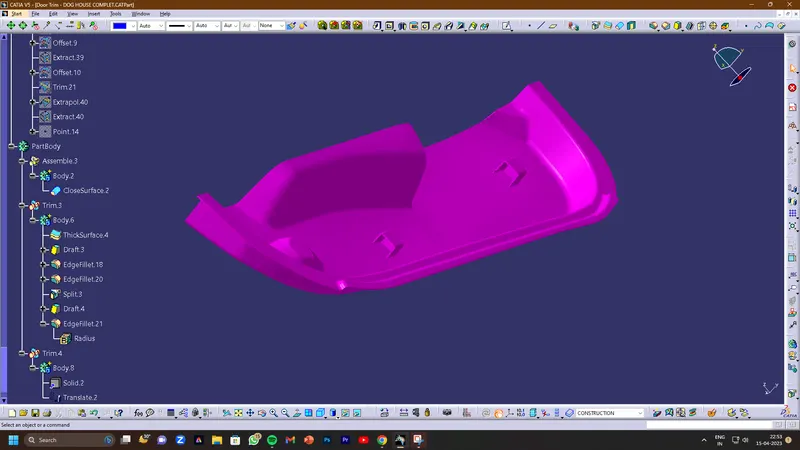

8. CREATE THE T SHAPE DOG HOUSE LOWER PART
9. AND SPLIT THE BOTH SURFACE
10. CREATE THE INNER DRAFT
11. GIVE FILLET VALVE
