Challenge 6 : Concept Modeling of Side Fender

AUTOMOTIVE WIRING HARNESS BACKDOOR Statement of assignment: Route the Wiring harness on Given car body and Prepare flatten view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required. Available connector…

Aim : Route the wiring harness on given V-16 engine and prepare flatten view in CATIA. Apply all packaging rules and industry best practices. Theory : The given V-16 engine consist of following electrical components to which harness routing is required. 8+8 fuel injectors on the engine cylinders for both sides of…

AIM:   To flatten the wire harness assembly completed in week 4 assignment and place the flattened view on a drawing sheet.   OBJECTIVE:   To flatten the wire harness assembly completed in week 4 assignment. To orient the wire bundle as shown in the layout.     To place the flattened view on a…

Aim: Route two electrical harnesses per the given layout and interconnect them as a single harness assembly check for bundle continuity, and bundle warnings, and then provide annotations for the final harness assembly. Objective: The objective of this project is to first route the two Harness A and Harness B as per the…

Aim:  1) To Route the following harness layout in the Electrical workbench. 2) Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Given: CAD data is given at below  DT06-4S DT06-6S DT06-2S DT06-08SA Connectors Layout Design: Steps to be followed: 1. Download connector…

Wiring harness routing & packaging Rules Week 3 Challenge Q1. Download the following clip cad data & define it as Electrical support using the Electrical Part Design Workbench. Define all the necessary properties. Hellarmann Tyton – 21160129 PROCESS :- Create two points one as entry and another as exit point.…

Wiring harness design in CATIA V5 - 3D modeling Week 2 Challlenge AIM:  Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip. Deutsch DT06 – 08SA…

.0 AIM Use the provided styling surface to come up with a back door design, use appropriate design methodologies, and provide the necessary reinforcements and embosses 2.0 INTRODUCTION 2.1 BACK DOOR Back door or tail gate  simply refers to the back of the car that can open and close.it covering the rear of the…

ROOF DESIGN OBJECTIVE : The objective of this project is to design a car roof with  essential flanges and reinforcements  like ditch area , front roof rail , bow roofs, central roof rail and rear roof rail for the the given styling surface Perform a curvature study on the roof and perform the calculations for the heat…

AIM: To design a  front fender of a car by following the given master section as per the design considerations of OEM. INTRODUCTION : Fender is the american english term for the part of an automobile, motorcycle or other vehicle body that frames a wheel well. Its primary propose is to prevent sand, rocks, mud,…

Title:- Design Fender- Wheel Arch. Objective:- In this challenge Calculate the Wheel Arc area and prove whether the car will pass the standards or Not. Given a part file of Wheel Arch:-               Introduction:- Wheel Arch-  It is a semicircular profile above the…

Aim: To find the section modulus of the hood and optimization to improve the overall section modulus.   Objective: Use the section from your Hood design and calculate the section modulus using the formula S= I/y.   Section Modulus: The section modulus (S) is the geometry property of the cross-section used for…

HOOD DESIGN- CHALLANGE Introduction:- The hood is the main component of a car at the front portion. It is used to decorate the vehicle & add a luxurious look. The bonnet's shape is made aerodynamic to minimize the air effect. Hood design consideration:- The hood of a car is considered the frontal BIW enclosure component.…

1. Write a one-pager about Under-Body Coating and its purpose, its types in detail, and its pros and cons.   Introduction Underbody protection is a protective coating applied to the underside of the vehicle to protect the delicate underbody from various external factors. It serves as a protective…

BENCHMARKING Benchmarking is the process of comparing a company's performance to that of a leading competitor in the industry to identify development opportunities. Businesses might uncover possibilities to improve their performance by analyzing the strategies and practices of high-performing enterprises. Through benchmarking,…

    Door trim lower panel-Final project Aim: In this project, we create the door trim panel Components that is (Lower subtract,Armrest, Bottle holder, map pocket) with the necessary input surfaces provided and generate the necessary B side features ( heat stakes, 4-way locators, Dog houses, push clips, Ribs,…

  SIR, PLEASE SUGGEST TO ME HOW TO SUBMIT THE ASSEMBLY FILE. I SUBMIT THE FILE IT IS RIGHT AND WRONG

AIM: To create A pillar Design with Master Section. Taken the Thickness of the component to be 2.5 mm from the master section PROCEDURE FOR DESIGNING A PILLAR COMPONENT : Class A surface: Class A surface is a Styling surface or aesthetic surface get it from the styling team. we will design the plastic component using…

Objective: The main aim of this challenge is to create a solid body of 'Door Trim Lower' with the help of the closed surface method by using the 'Generative shape design' workbench in CATIA V5. Performing the 'Draft Analysis' on the solid part body of the Door trim. Overview:Initially, we need to offset the given…

Objective: The main aim of this challenge is to create B-side features of the 'Door Trim', with the help of CATIA V5. Overview: Created a 2.5mm solid part body of door trim with the help of class A surface, and created a B-side attachment feature 'Dog House' by considering the design parameters. TOOLING AXIS: …

  DOOR HANDLE :- AIM: To Create the Door Handle Component from the given Class-A surface. To Create the tooling axis for the given Class-A Surface. To Attach B-side Features in the component. To perform the Draft analysis on the model.  PROCEDURE:-  1. CREATING TOOLING AXIS -  EXTRACT THE THAT SURFace…

REPORT ABOUT THE MODEL CONSTRUCTION AND HOW I CREATED THE CLASS A TO CLASS C  1FRIST I GET A GLASS SURFACE 2. CREATE THE TOOLING AXIS . ITH THE HELP OF PLANE SURFACE  3. OFFSET THE CLASS A SURFACE BY 3 MM 4. REMOVE ALL FILLETS WITH THE HELP OF THE JOIN COMMAND  5. STARTED TO CREATE THE CLASS B SURFACE …

TITTLE OF THE PROJECT= Concept Modeling of Seats               2. OBJECTIVE = THIS PROJECT MAIN OBJECT IS THAT BASICALY STUDENTS CAN LEARN AUTOMOBILE INTERIOR PARTS DEIGNER AND INCREASE THEIR THINKING POWER, INCREASE THE BUILDING TECHNIQUES AND SURFACE LAYOUT, PATCHES CUT OUT…

TITTEL OF THE PROJECT = Concept Modelling of Steering Wheel OBJECTIVE = in this project main objective is that 1, understand the component design                                                 …

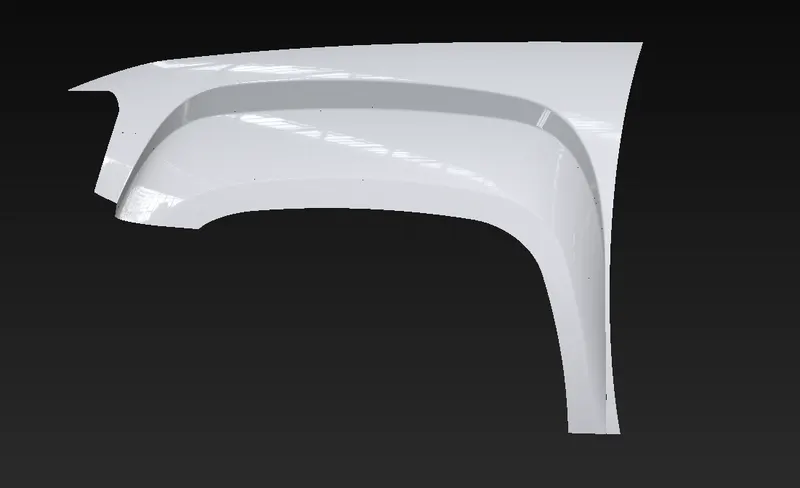

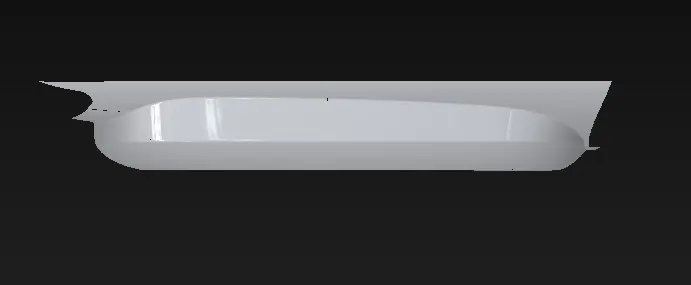

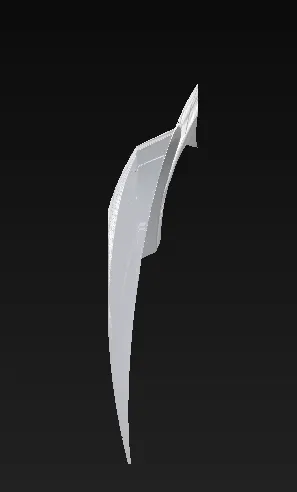

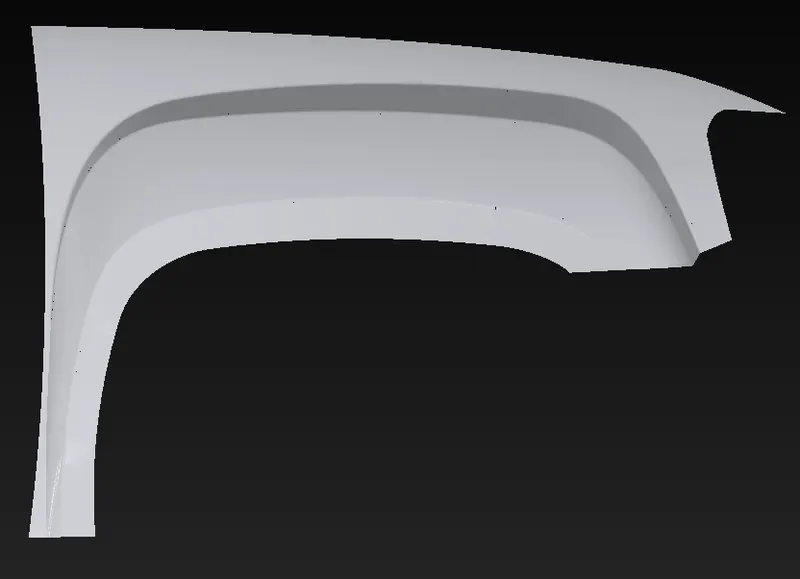

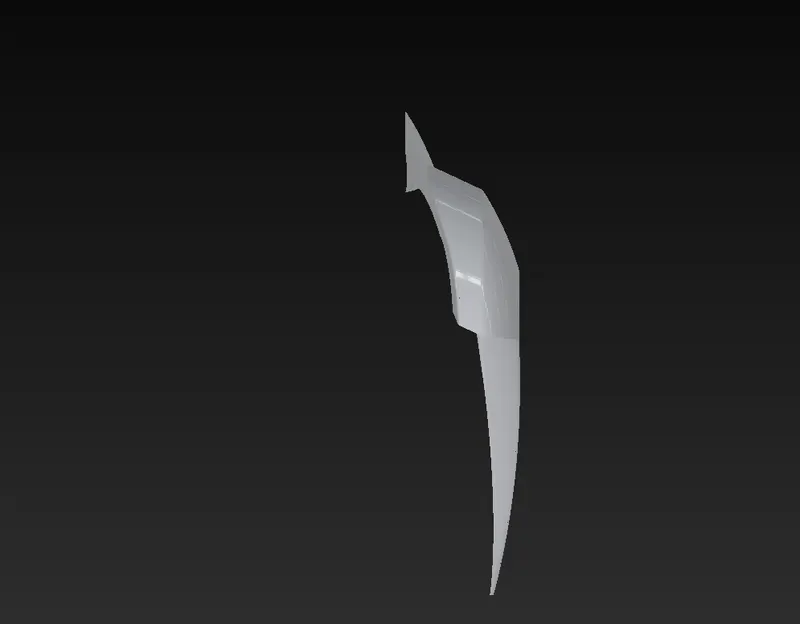

TITTLE = Concept Modeling of Side Fender OBJECTIVE= In this project we can learn how to make a car fender or surface modeling. INTRODUCTION = In this project we learn how can we make any model through the use of our imagination and creative mind . This week we did lots of things like how to make a project…

TITTLE = Concept Modeling of Car Bumper OBJECTIVE = THE MAIN OBJECTIVE OF THIS LESSON IS HOW CAN WE MAKE A BETTER MODEL AND GOOD CONTINUITY MODLING AND FIND THE RIGHT WAY OF MODELING. INTRODUCTION= IN THIS WEEK WE LEARN CAS MODELING  AND WE SAW WHAT IS CAS MODELING AND HOW IT IS USED  THIS WEEK…

TOPIC = Concept Modelling of Alloy Wheel SOME TOPICS WE COVERED IN THIS WEEK. 1. INTRODUCTION TO CONCEPT MODELING (CAS MODELING). 2. DIMENSIONS OVERLAY CANVAS FOR DESIGN. 3. BUILDING WITH CURVES AND SURFACE TOOLS. 4. MODELING APPROACHES AND SURFACE DISTRIBUTION. 5. WORKING ACCURATELY. #. OBJECTIVES  THE MAIN…
