Week 10 - Challenge 2- Attachment Feature Creation (Dog House)
DOOR TRIM & DOG HOUSE FEATURE:
Thickness of the component is 2.5mm.

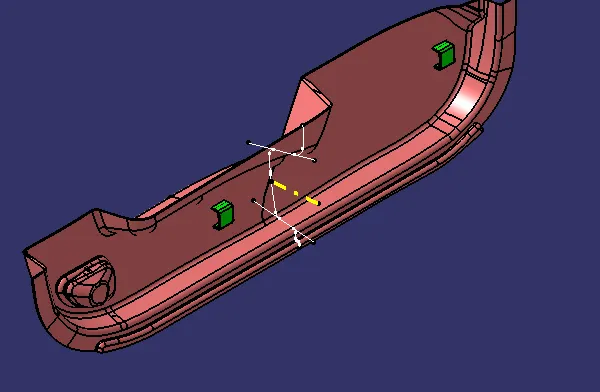

Tooling Axis:

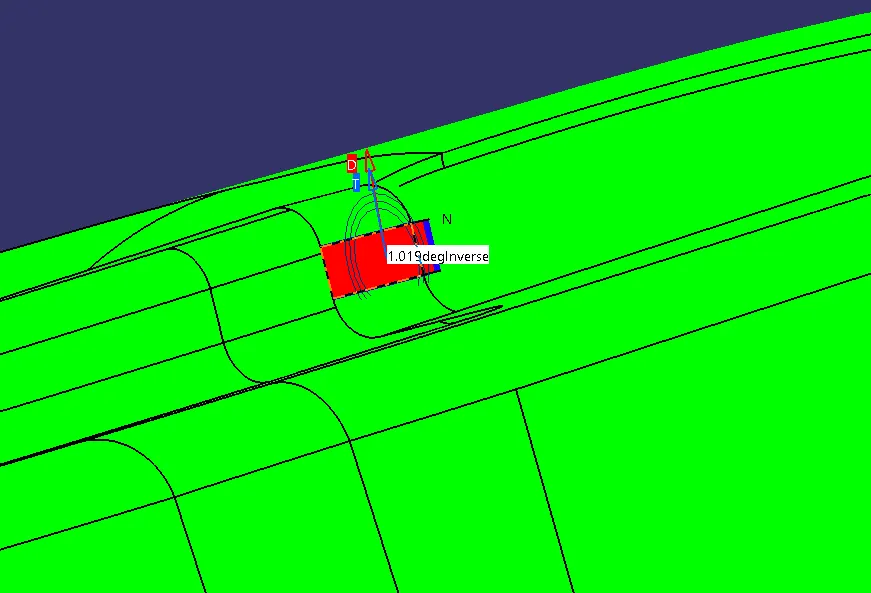

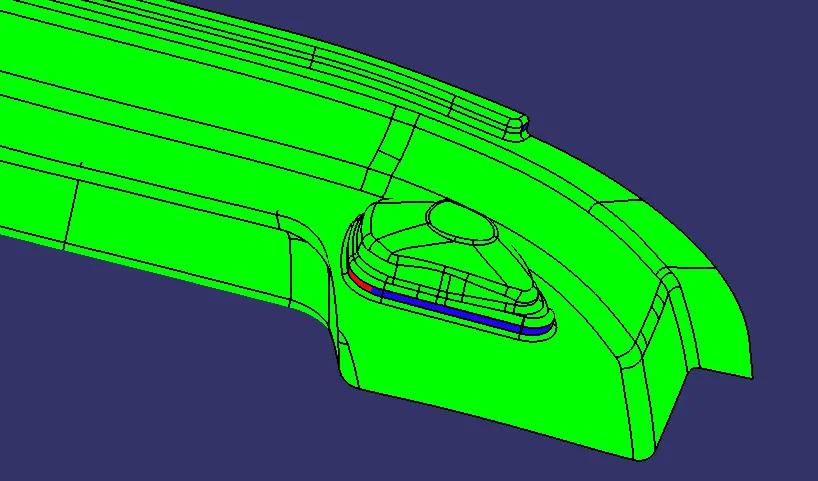

Tooling is created by bisecting the lines created using the intersection with class A surface as shown in the image below.

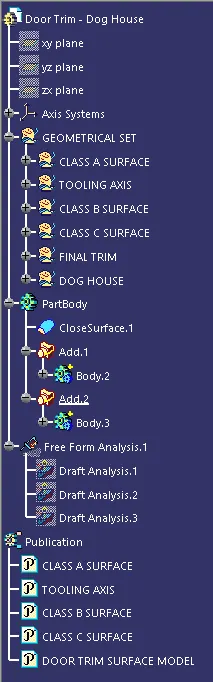

Design tree structure of the complete Door trim with dog house:

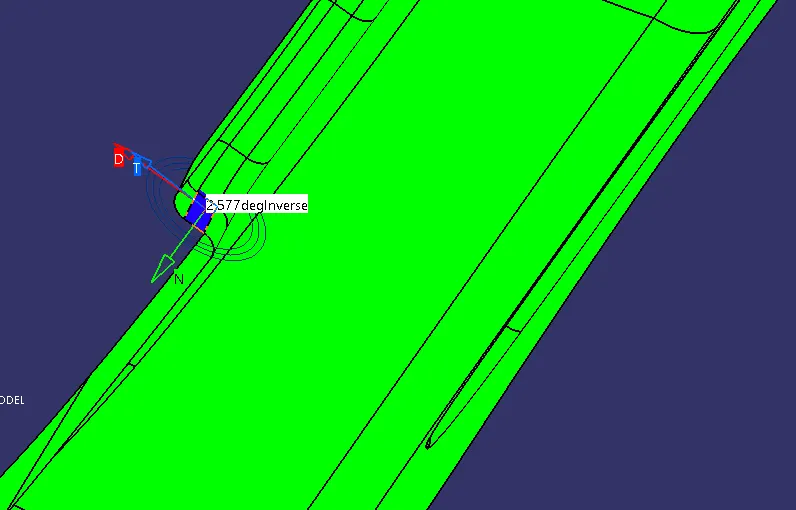

Draft analysis colour coding:

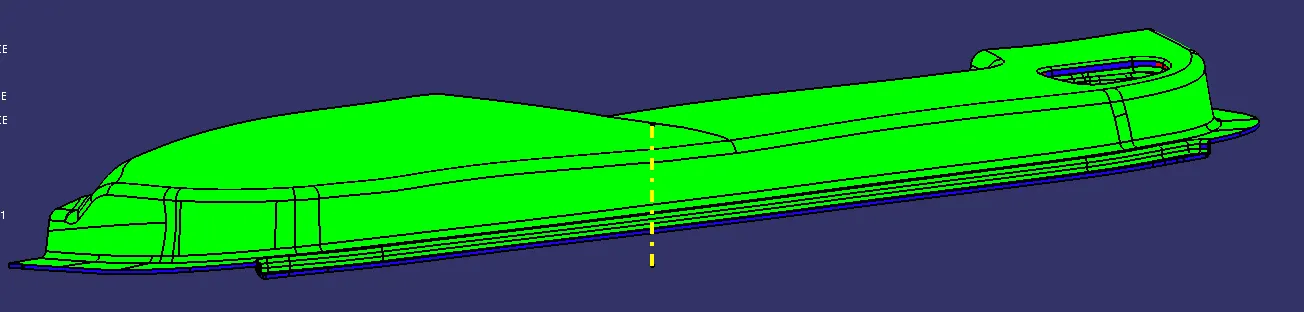

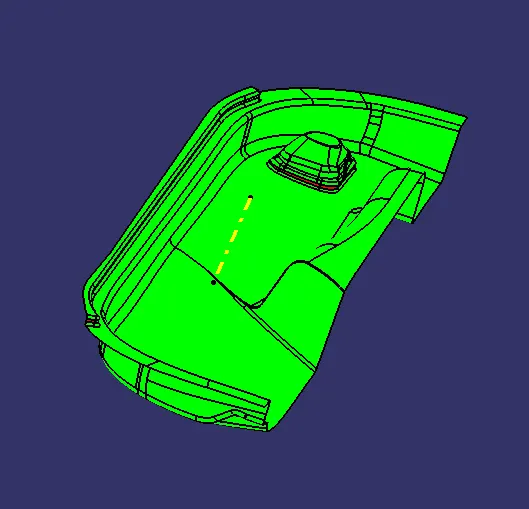

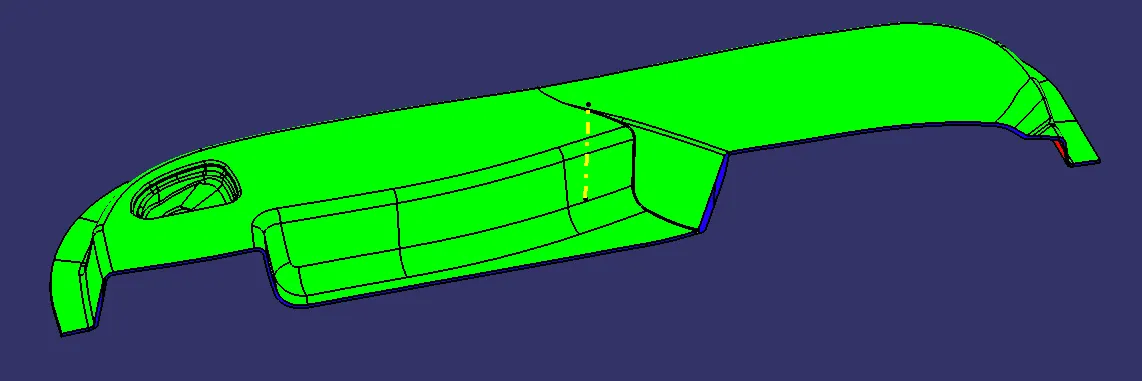

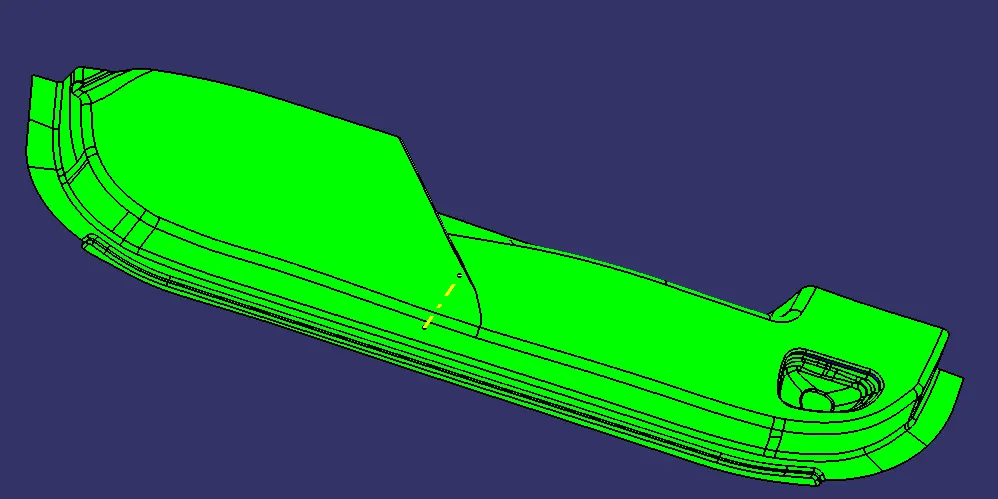

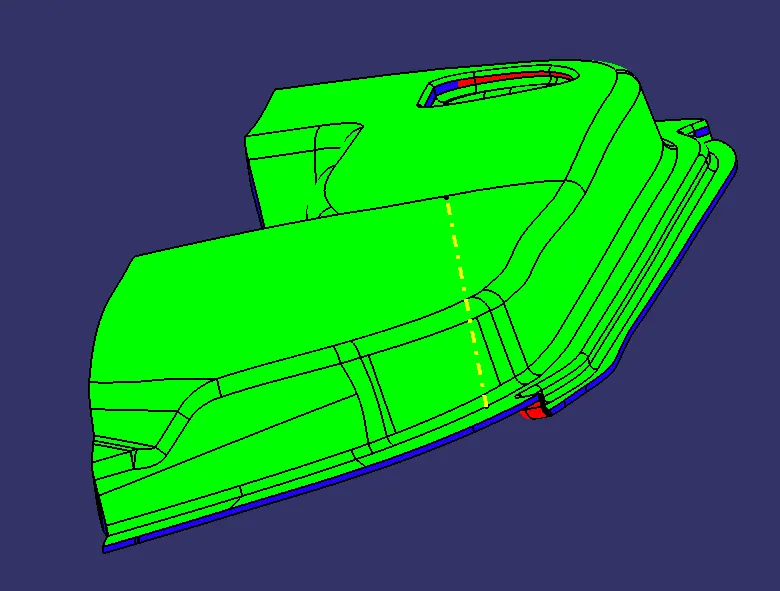

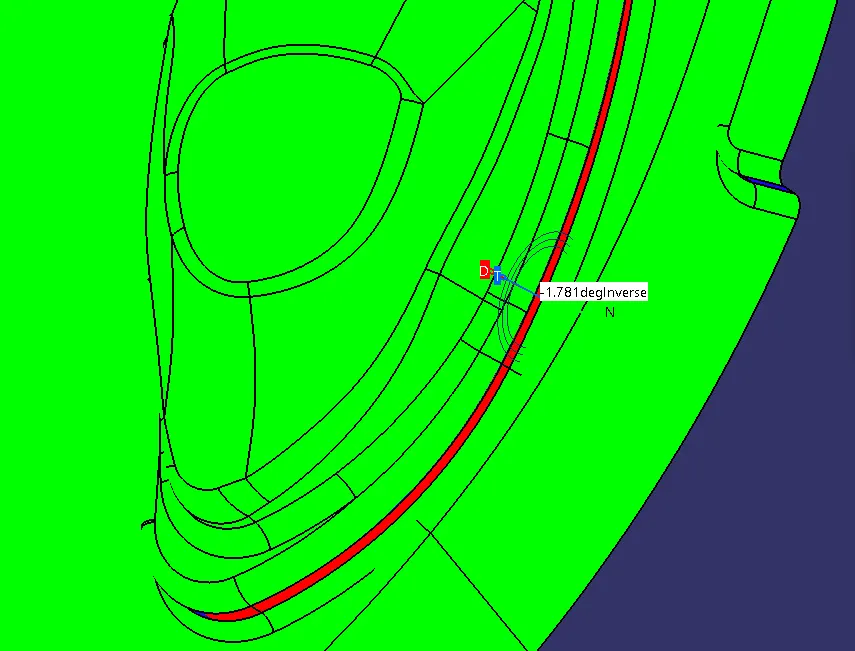

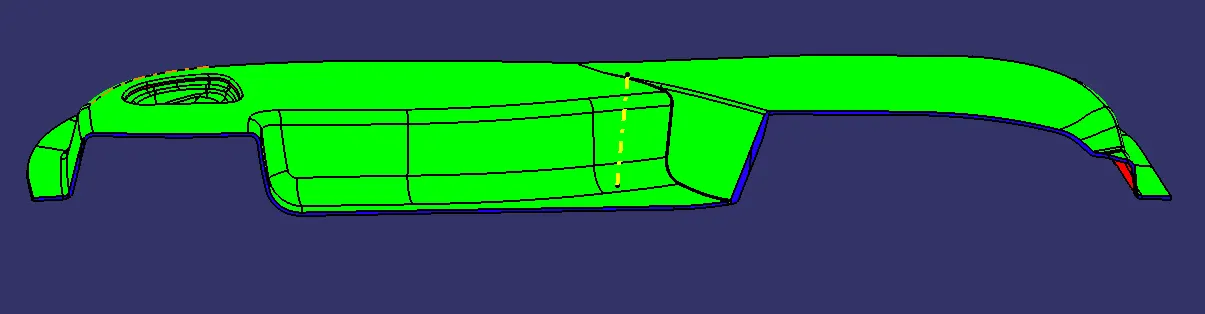

Draft analysis of the class A surface:

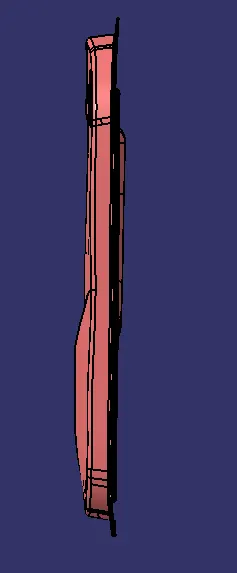

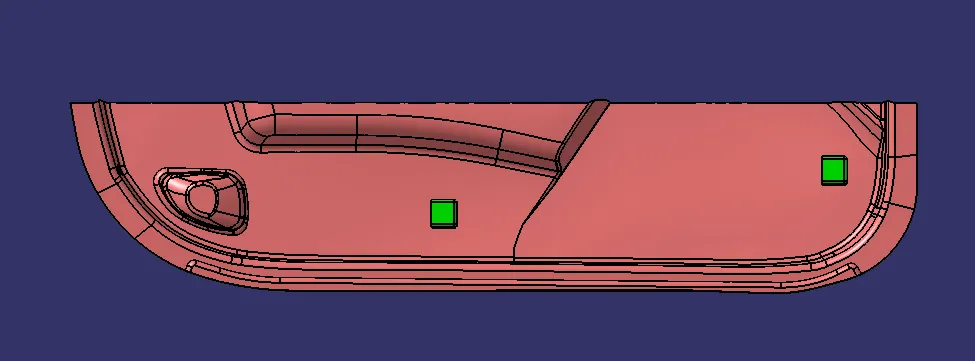

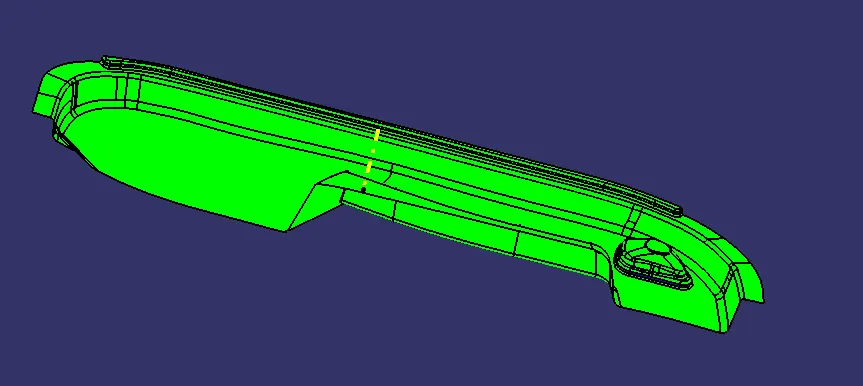

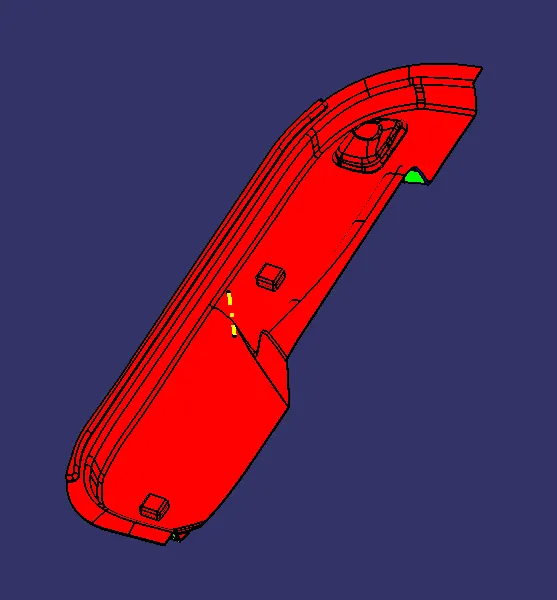

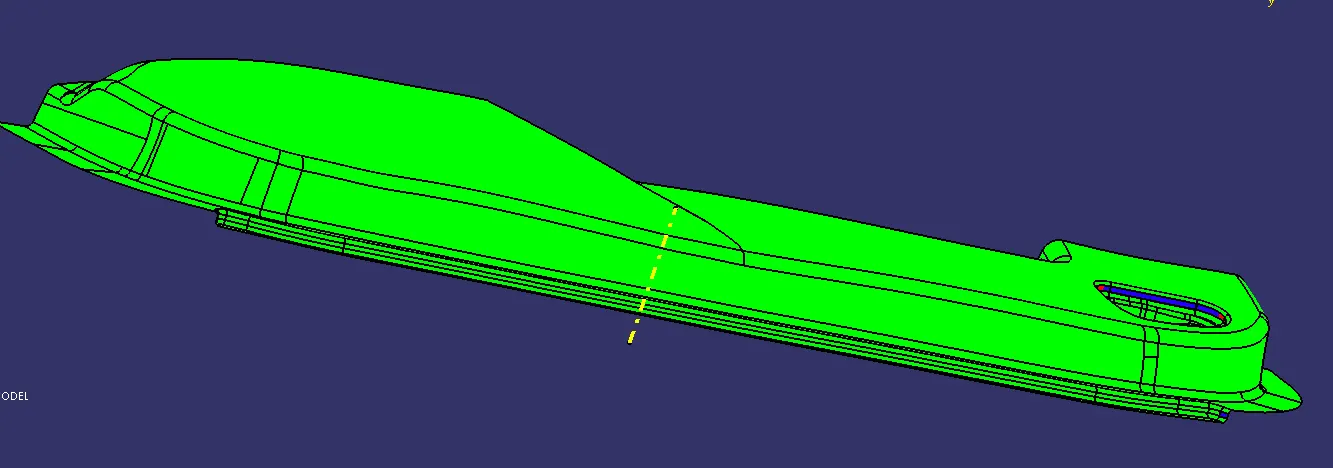

Draft analysis of the final Door trim plastic model:

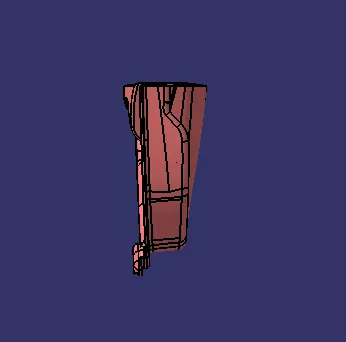

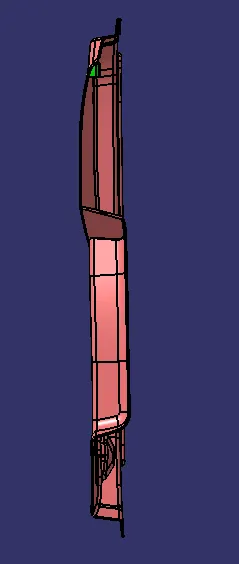

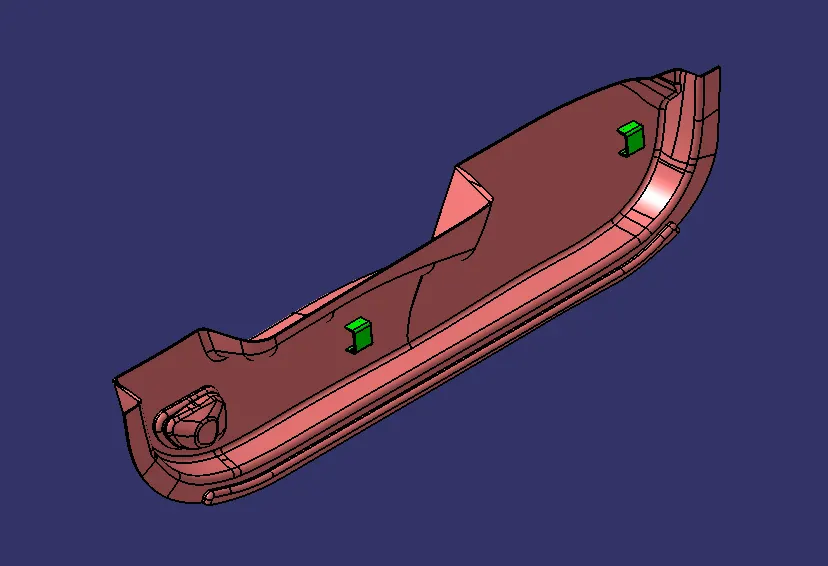

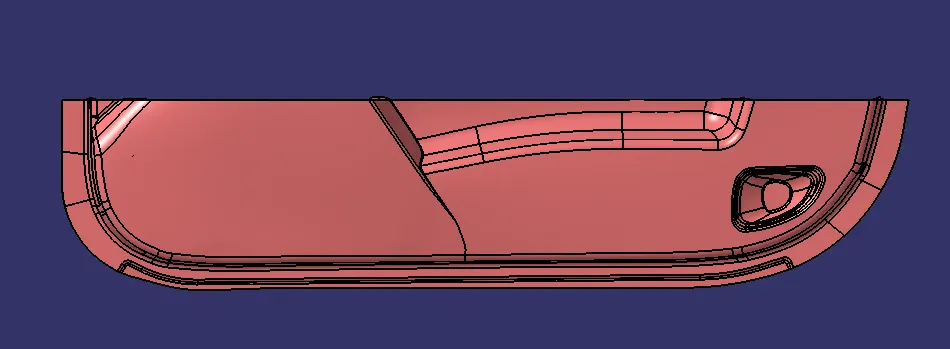

Door trim images in different orientations:

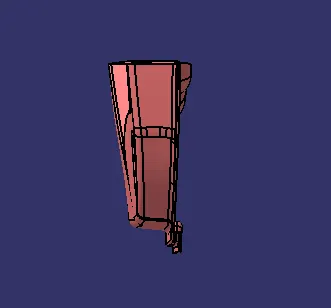

ISOMETRIC VIEW
FRONT AND BACK VIEW
TOP AND BOTTOM VIEW
LEFT SIDE VIEW
RIGHT SIDE VIEW
