Week 10 - Challenge 2- Attachment Feature Creation (Dog House)
WEEK 10 ENGINEERING FEATURE DOG HOUSE DESIGN
- CONVERTED SOLID BODY FROM CLASS A SURFACE
- CREATED SKETCH OF DOGHOUSE AND EXTRUDED AS SURFACE FOR 10 MM
- THICKEN IT FOR 2 MM
- CREATED SIDE CORE AXIS
- GIVEN DRAFT OF 0.5 DEGREE TO INNER WALLS OF DOGHOUSE IN DIRECTION OF SIDE CORE AXIS
- GIVEN DRAFT OF 0.5 DEGREE TO OUTER WALL IN MAIN TOOLING AXIS DIRECTION
- GIVEN FILLETS OF 1 MM REDIUS
- COPIED FINAL DOG HOUSE AND TRANSLATED TO ANOTHER LOCATION USING POINT TO POINT TRANSETION
- ASSEMBLED ALL THE BODIES TOGETHER USING BOOLEAN OPERATION.
DRAFT ANALYSIS
- PERFORMED DRAFT ANALYSIS ON CLASS SURFACE ON DUMMY TOOLING AXIS
- MODIFIED IT AS PER REQUIRED ANGLES IN ORDER TO ACHIEVE 3 DEGREE OF DRAFT ON ALL WALLS
- PERFORMED ANOTHER DRAFT ANALYSIS ON FINAL PART WITH ENGINEERING FEATURE
- CONCIDERED DRAFT ANGLE OF 0.45 AS DOGHOUS HAVING DRAFT ANGLE OF 0.5 DEGREE

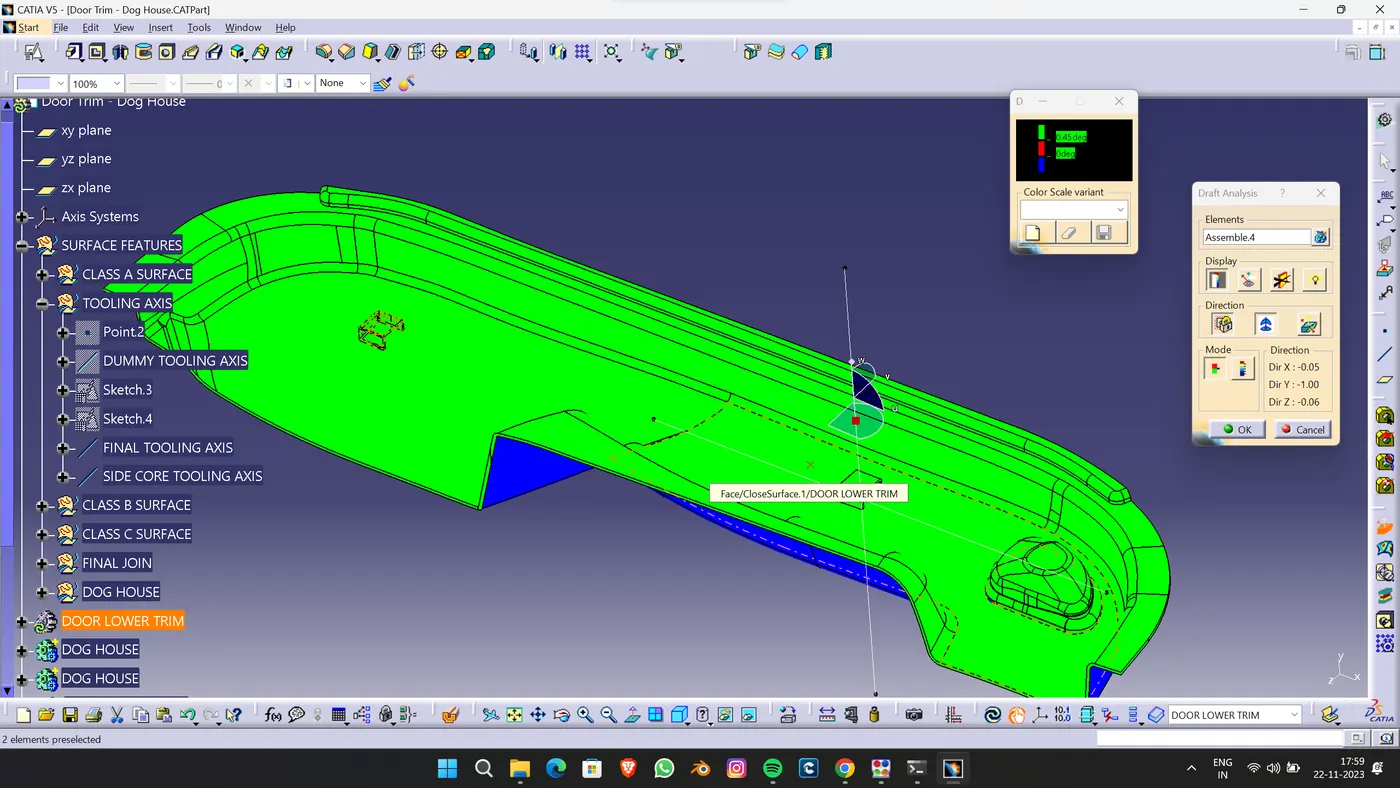

DRAFT ANALYSIS IN DIRECTION OF TOOLING AXIS

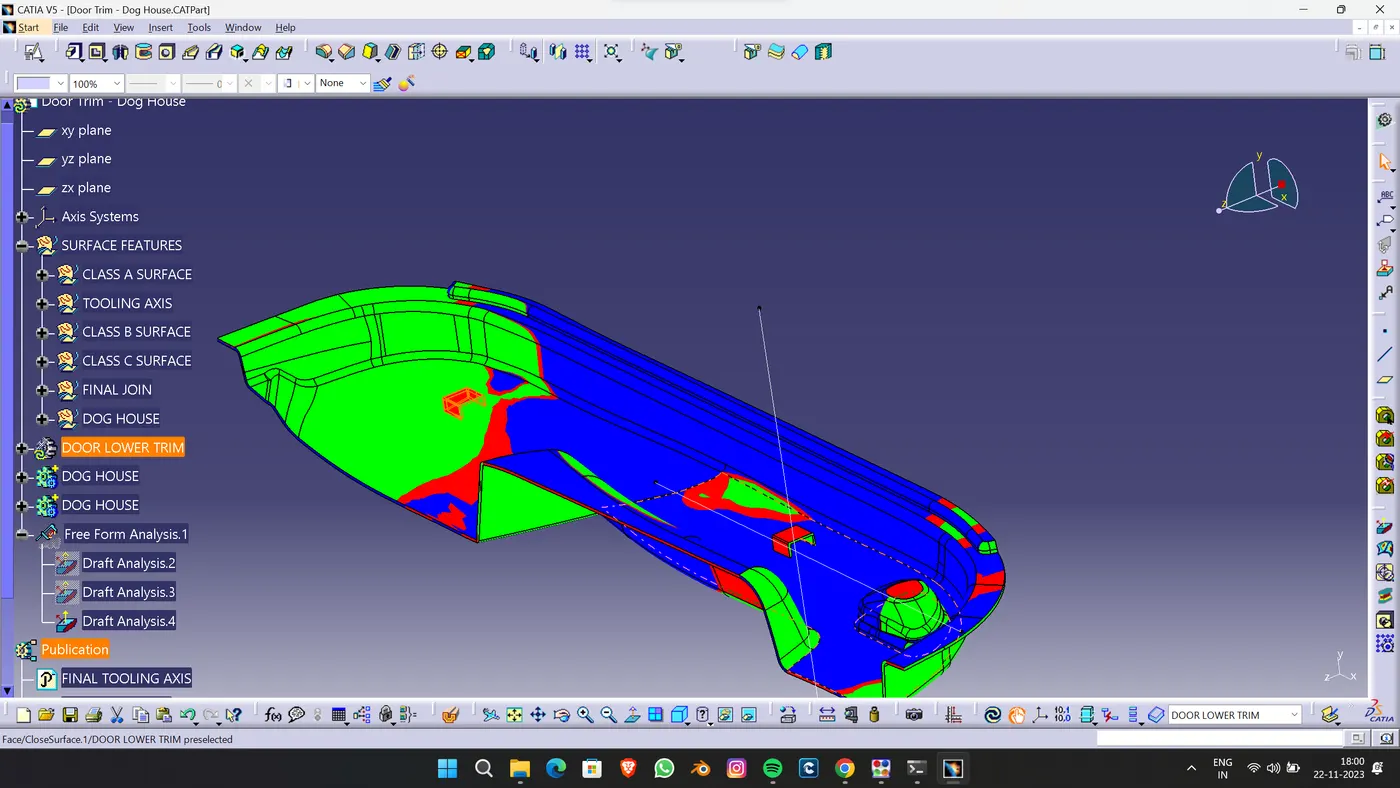

SIDE CORE DRAFT ANALYSIS

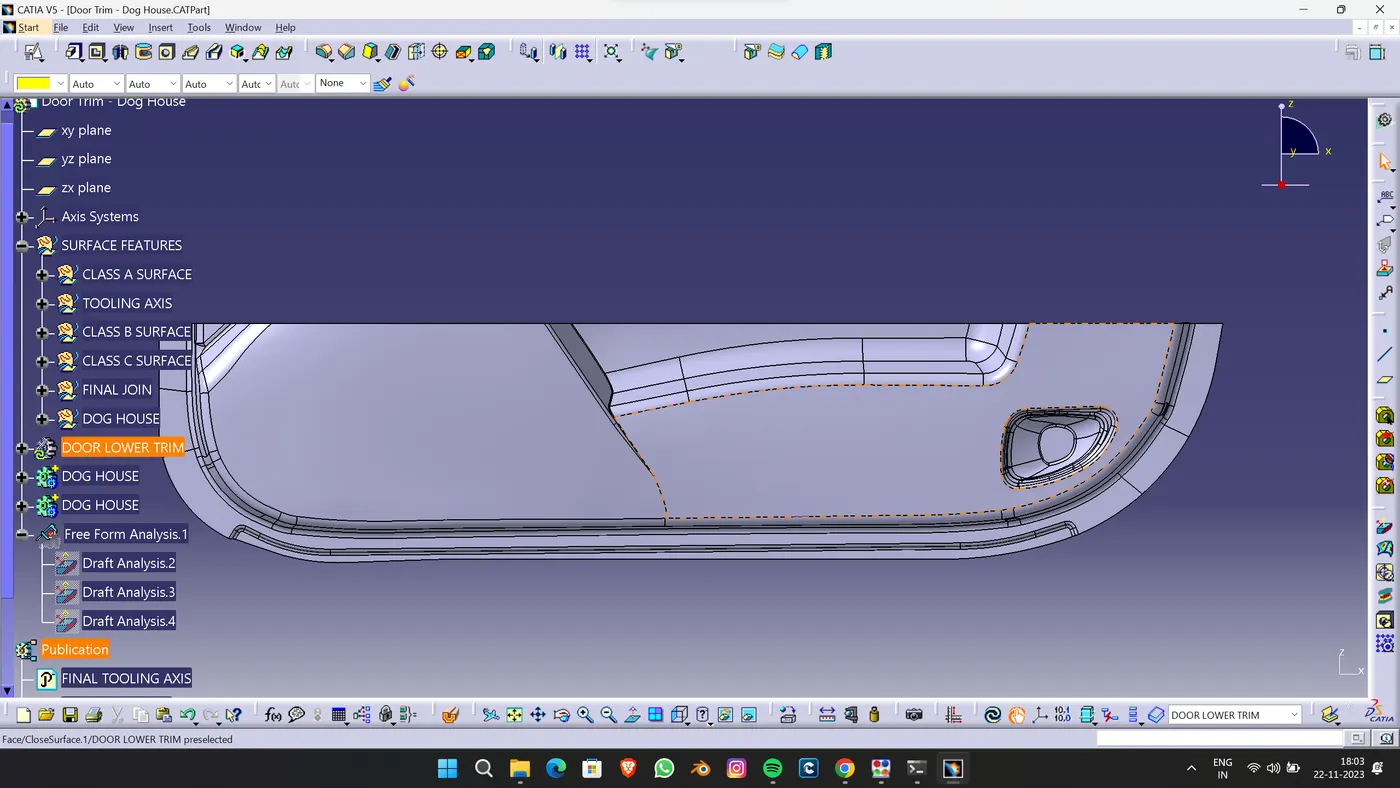

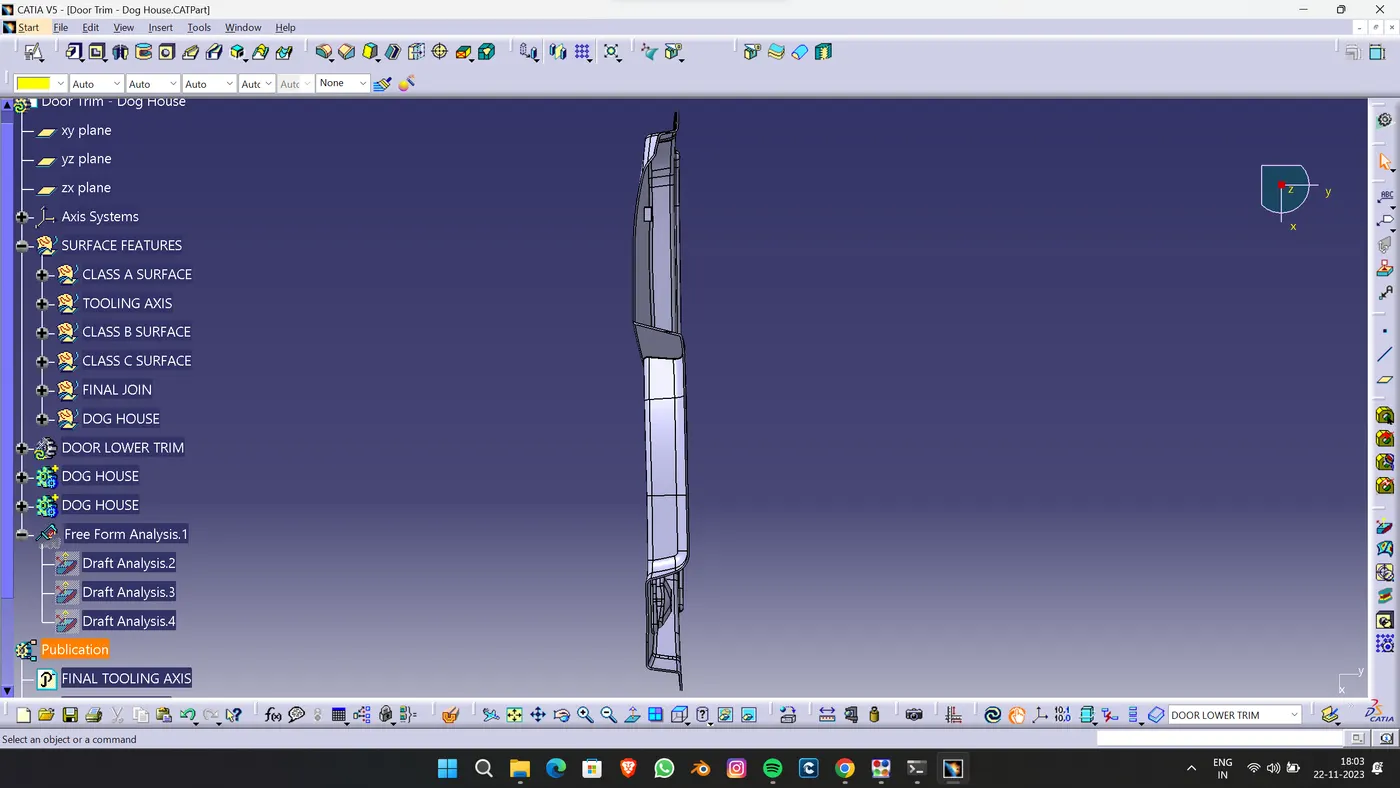

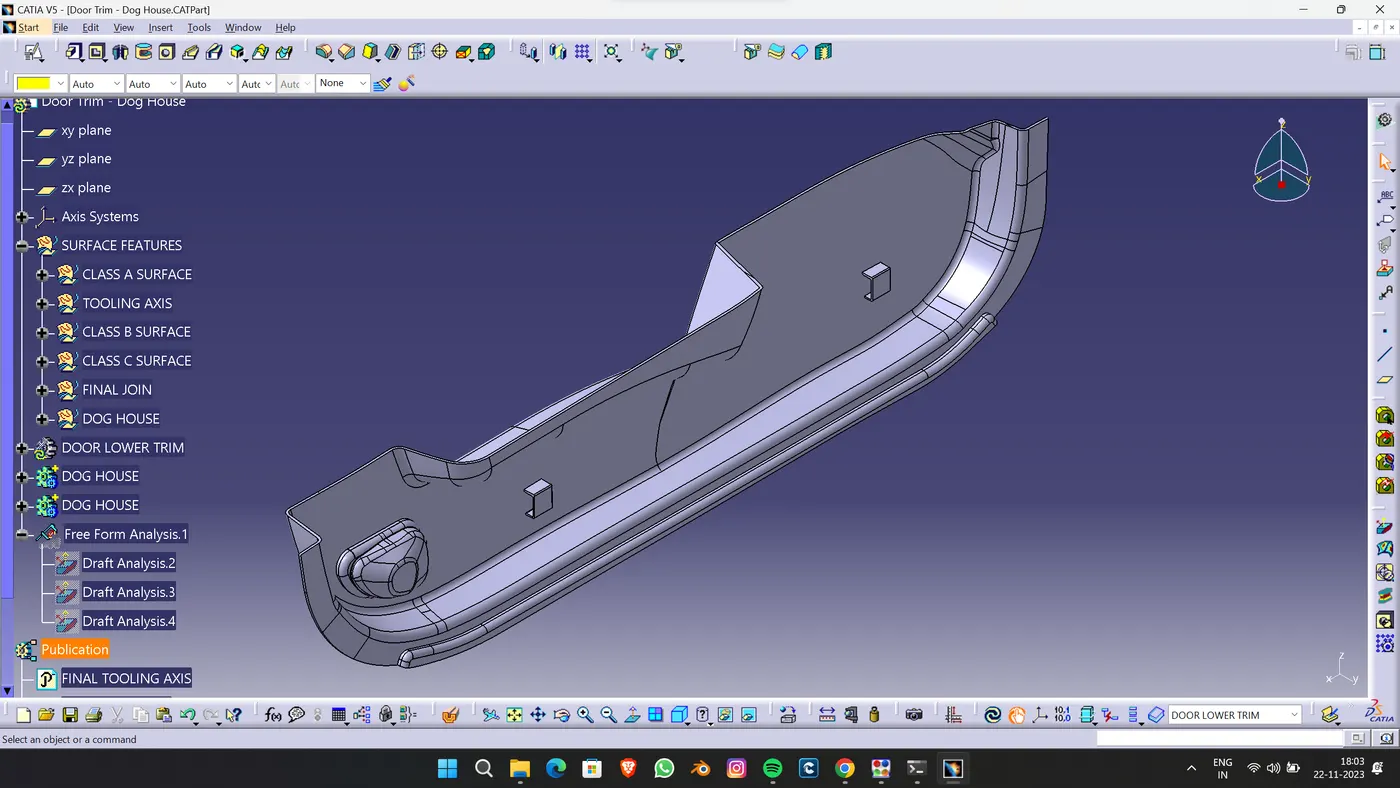

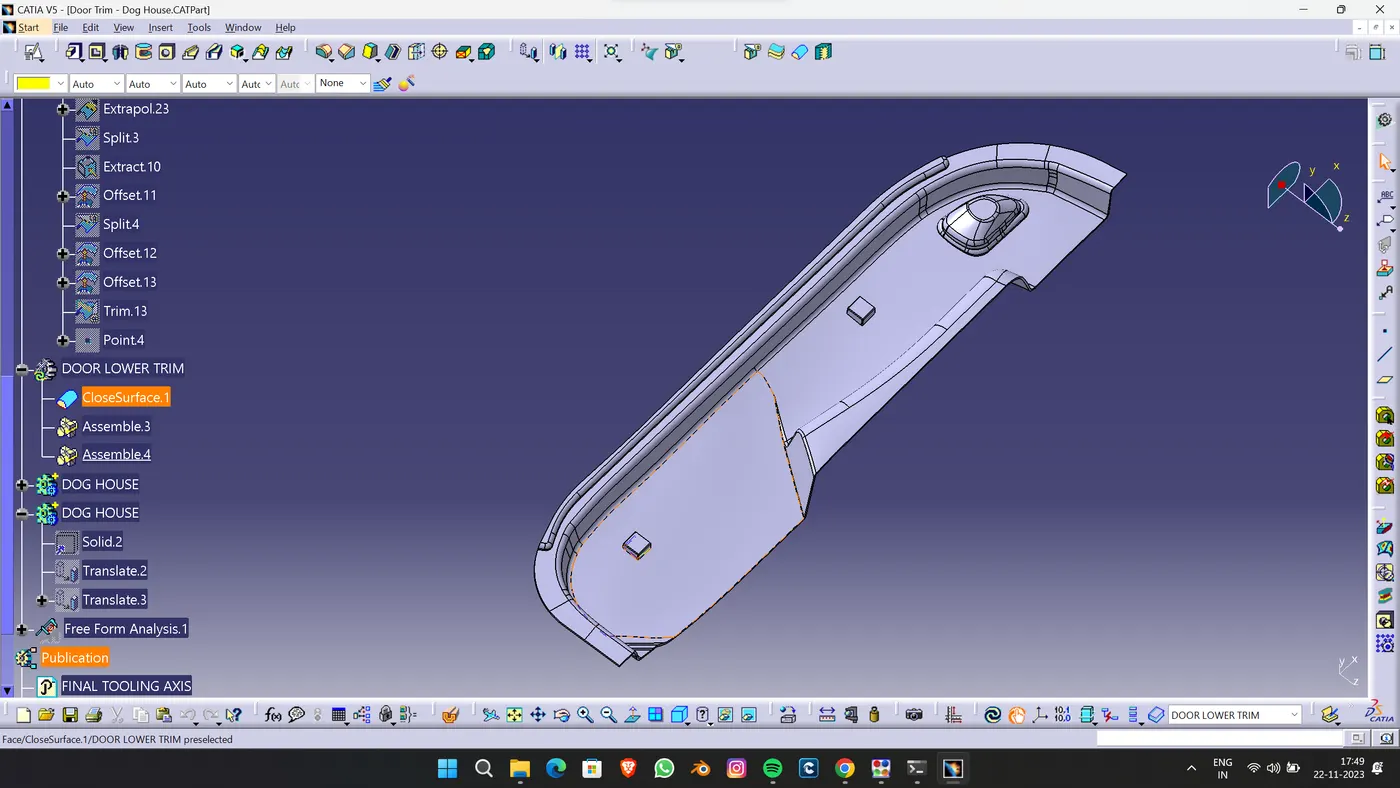

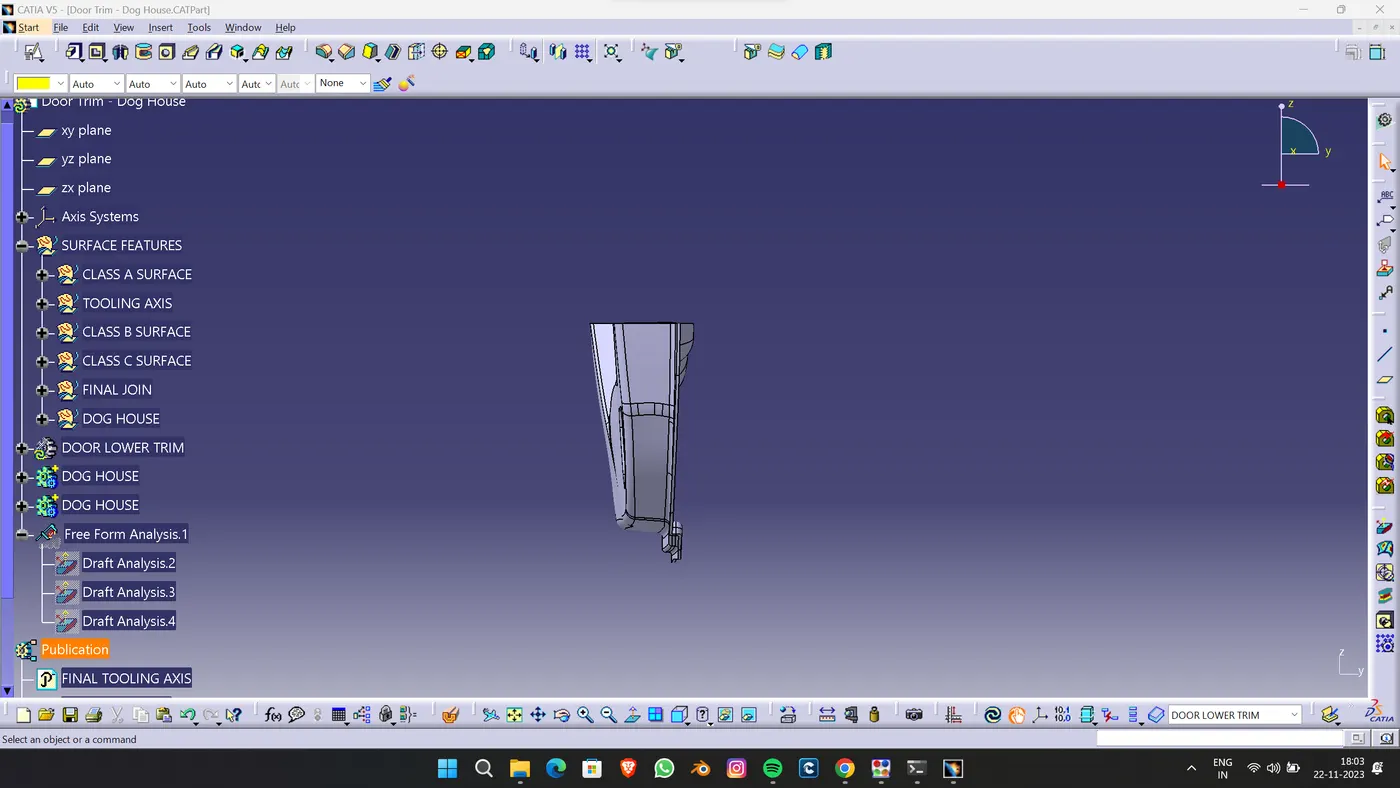

DIFFERENT VIEW OF FINAL PRODUCT
