Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

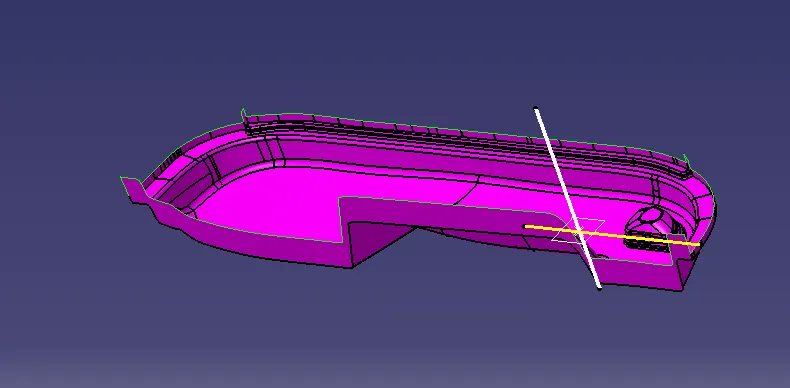

CREATING TOOLING AXIS.

• First, we create a plane on the surface. Then draw two lines based on the projection of class A or using the intersection of the point’s method.

• Now Using the normal-to-surface method, we have to create Tooling axis.

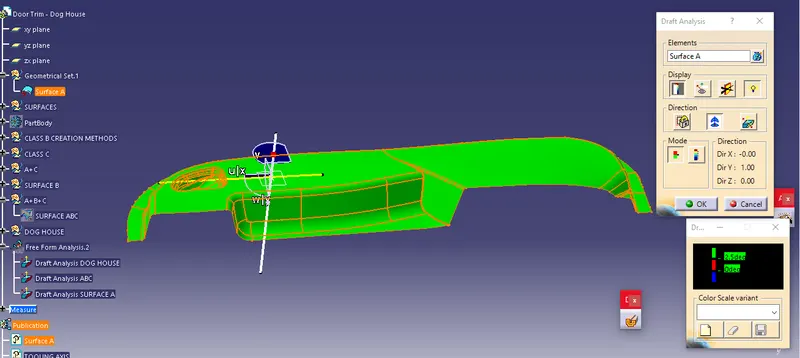

DRAFT ANALYSIS FOR SURFACE A

• After creating the Tooling axis, I checked for the draft analysis by clicking insert-->Analysis-->Draft analysis.

CREATING CLASS B AND CLASS C SURFACES.

• Then I created the Class B surface, Using the following commands.
• • Offset.
  • Trim.
  • Multi-surface.
  • Boundary.
  • Split.
  • Join.
  • Untrim.
  • Extract.
  • Multi-Extract.

• Then I created the Class C surface, Using the following commands.
  • Sweep.
  • Boundary.
  • Smooth- Surface.
  • Multi-Extract.

• After creating the Class B and Class C Surface, I Joined the Surface A and Surface C and Trimmed them with Surface B.
  • Join A+C.
  • Trim A+C-B.

• After creating the Closed Surface, I checked for the closed surface.

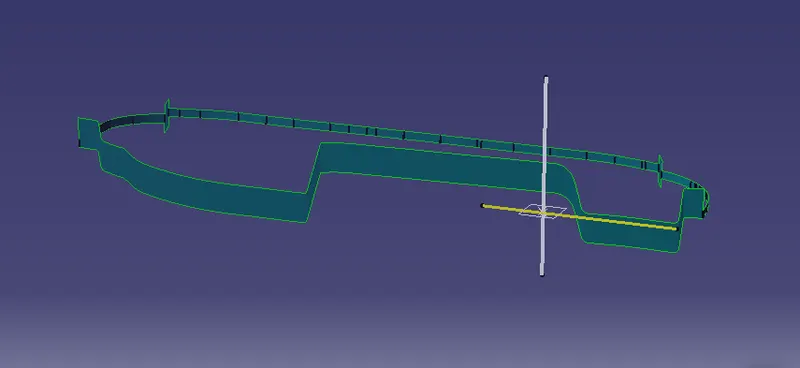

SURFACE C

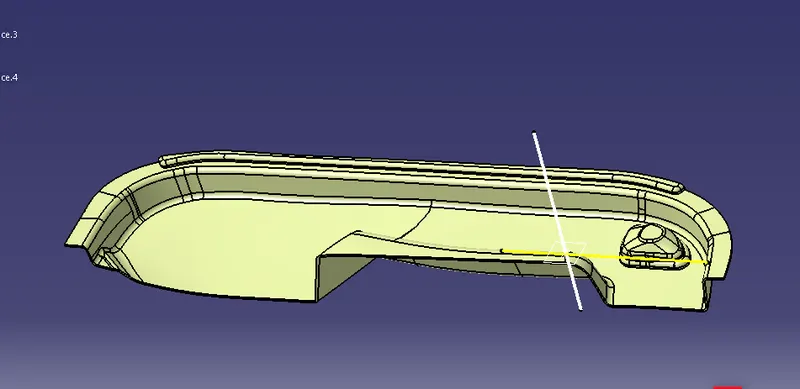

SURFACE A+C

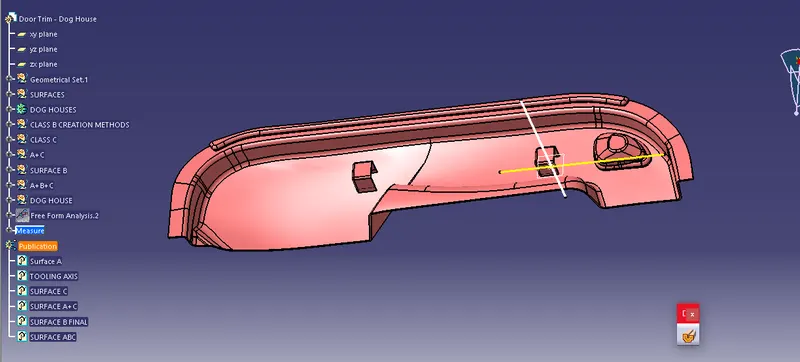

SURFACE A+B +C

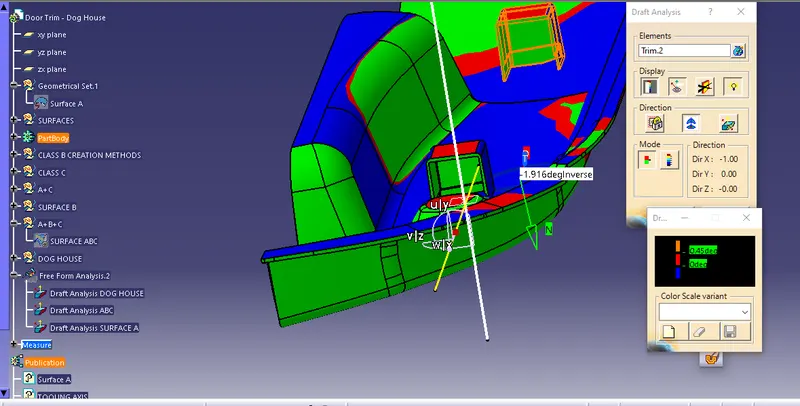

DRAFT ANALYSIS FOR DOG HOUSE

• After creating the closed surface, I checked for the draft analysis by clicking insert-->Analysis-->Draft analysis.
• And My Closed surface passed the draft analysis test.
• Here we created another line to check the draft analysis of the dog house.

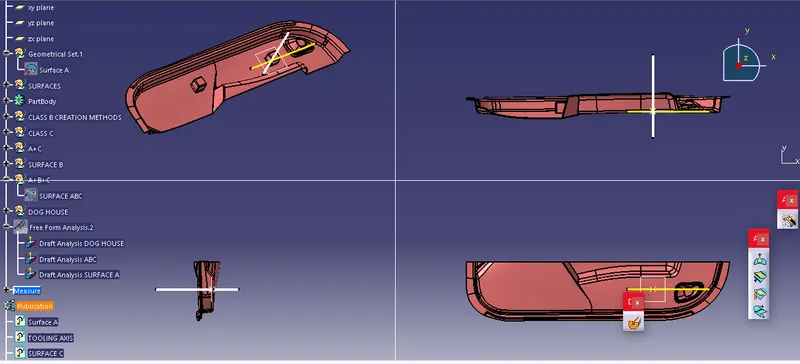

FRONT, TOP AND SIDE VIEWS.

ISOMETRIC VIEWS
