Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

Create the Dog House for the Door Trim considering the design rules mentioned in the video. Consider the thickness of the part to be 2.5 mm.

• For the given input Surface Class A, B & C are created.

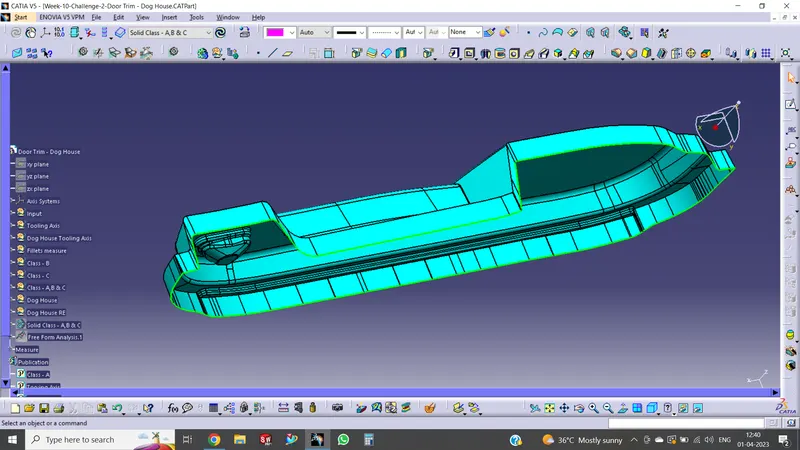

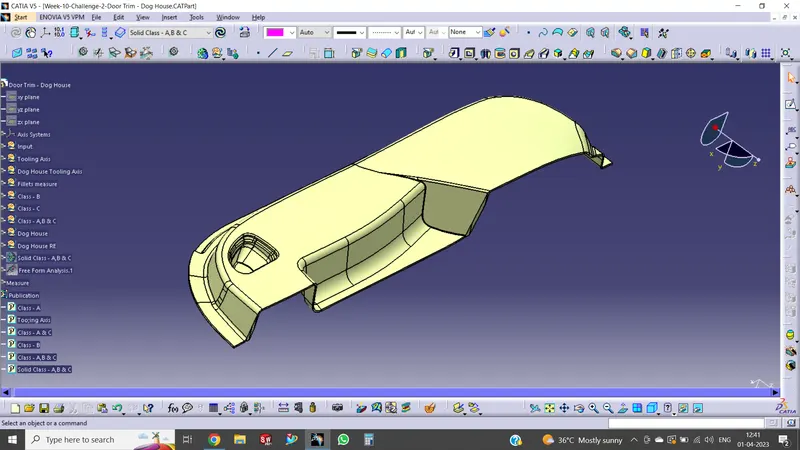

• After creating a closed surface, a solid body is generated.
• Class A & C

• Class A & C with Class B

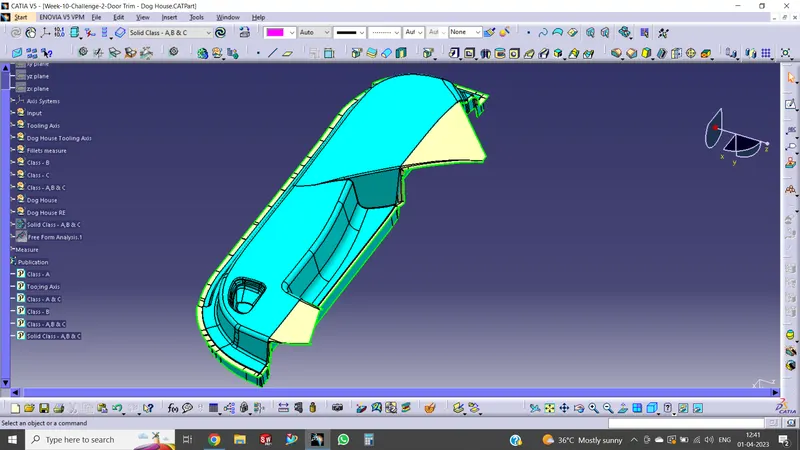

• Class A, B & C.

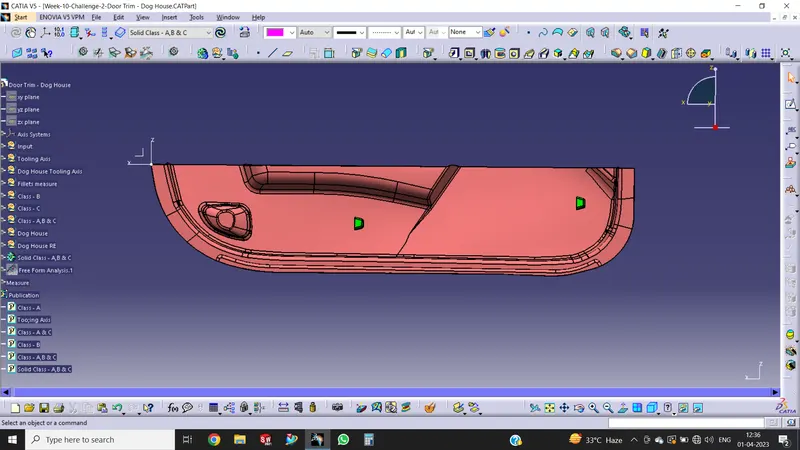

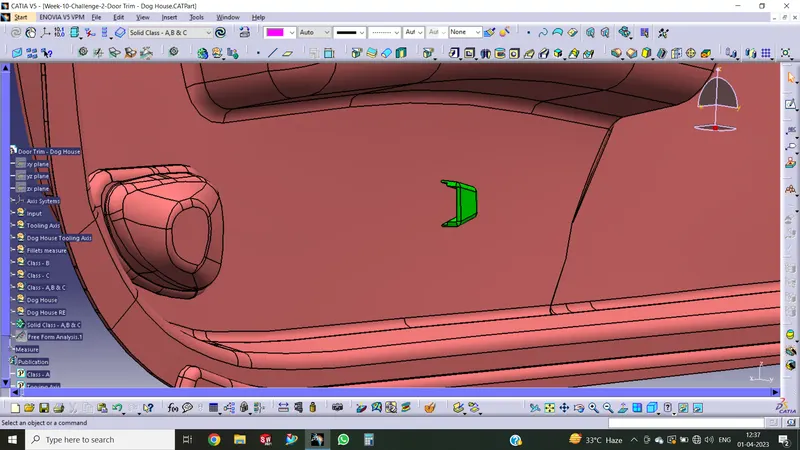

• After doing that, Dog House was created as per the design rules & mentioned in the video.

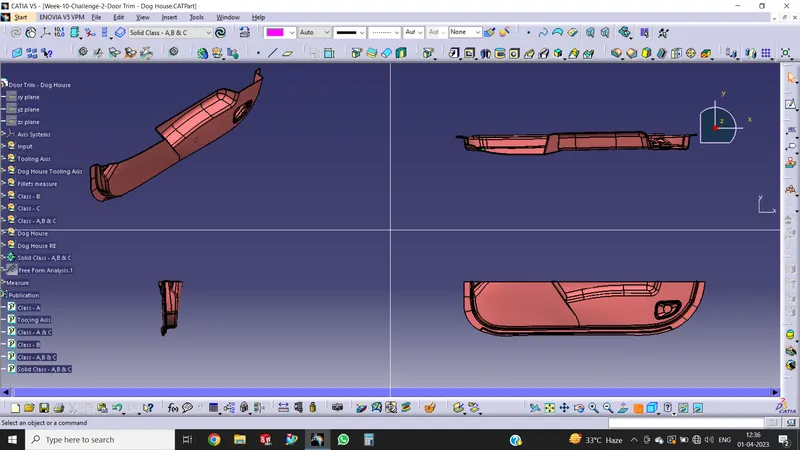

• Finally, the design is created and presented.
