Week 10 - Challenge 2- Attachment Feature Creation (Dog House)
Create the Dog House for the Door Trim considering the design rules mentioned in the video.
Consider the thickness of the part to be 2.5 mm.
General Guidelines for Dog House:
- Doghouse wall thickness at the intersection of the part wall ( C ) should be 40% or less than the main wall stock ( T ).
- "C" is where the doghouse contacts the backside of the surface
- The height of ( B ) should be between 3.0 – 6.0 mm
Tooling axis: The direction in which the mold or core and cavity opens is the tooling axis.

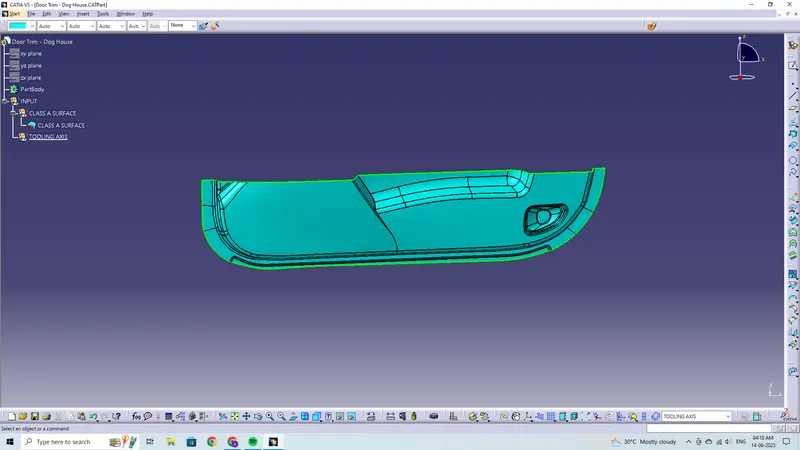

Step-1:

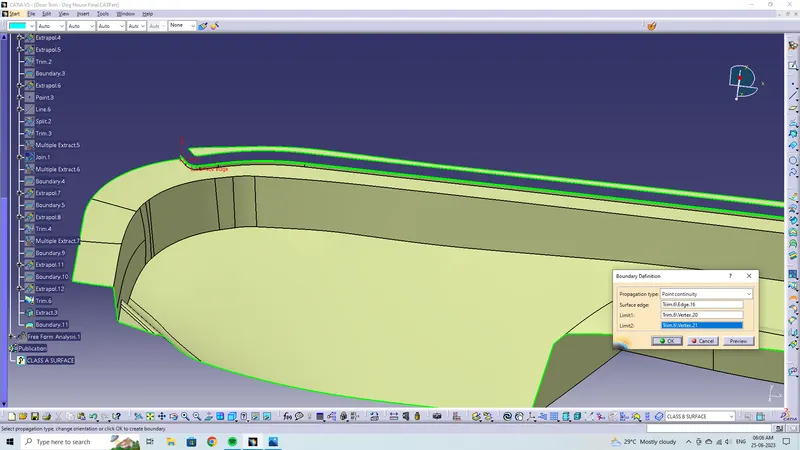

Connectivity of Class-A surface:

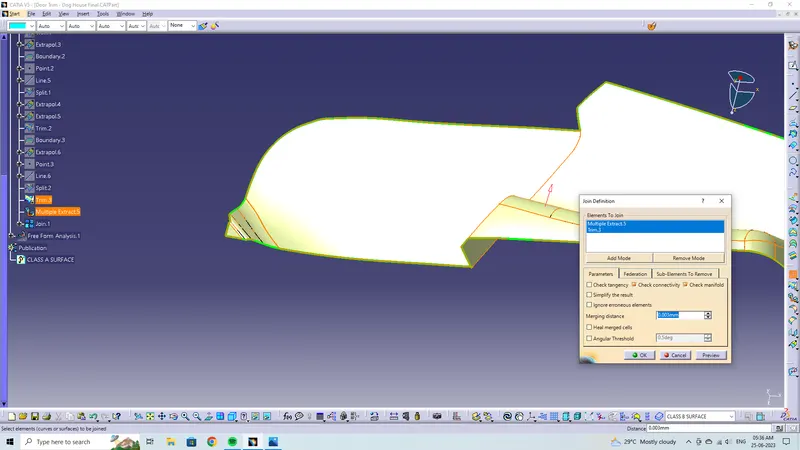

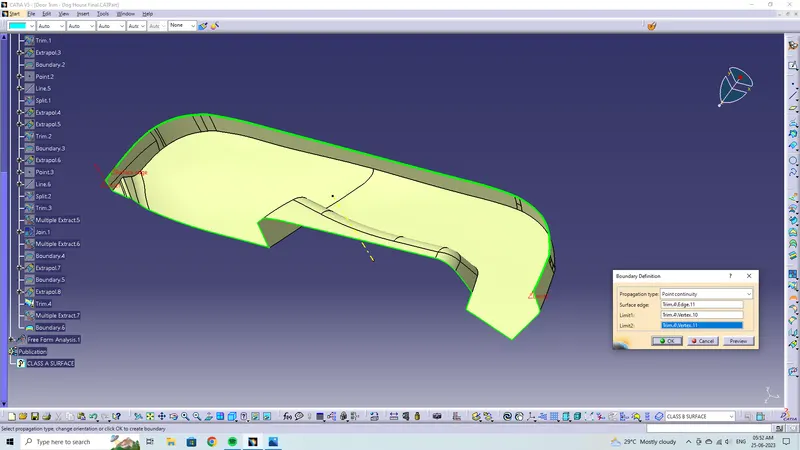

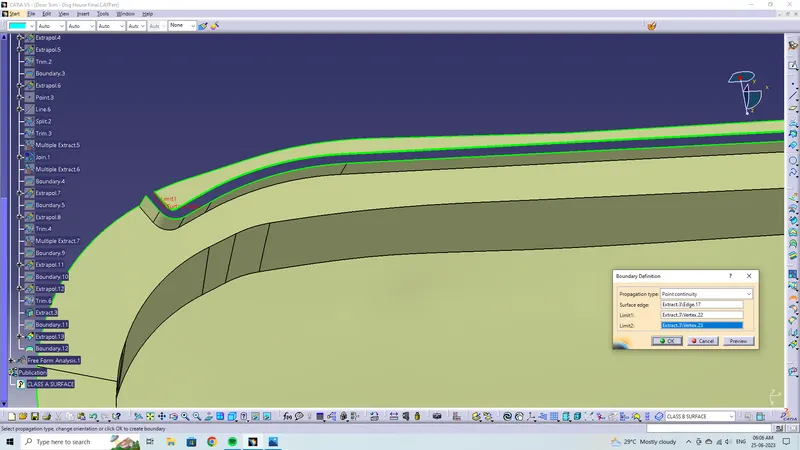

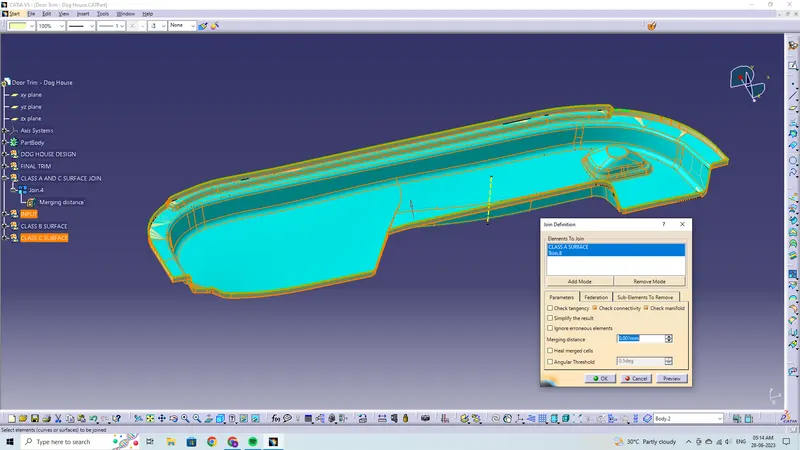

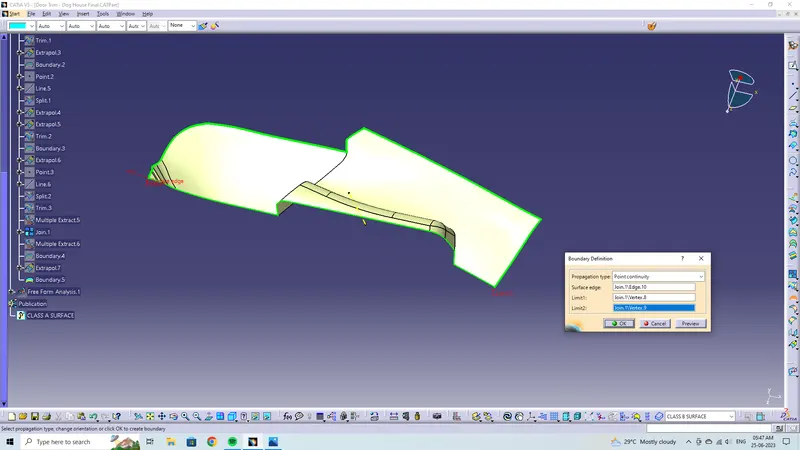

Creating boundaries or just utilising the join option will allow you to check the surface's connectedness while making any openings visible.
Step-2:

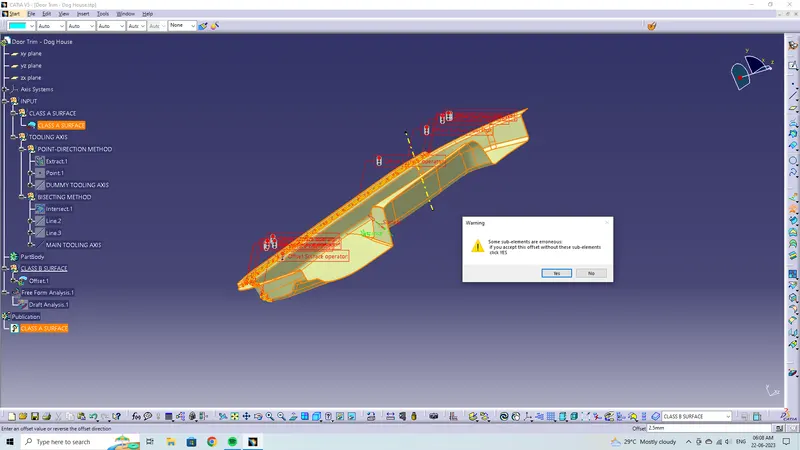

Find the ideal tooling axis by conducting a visual analysis.

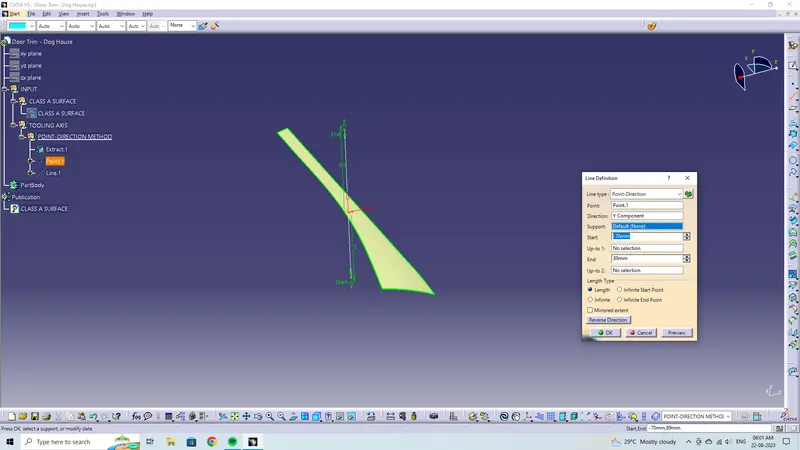

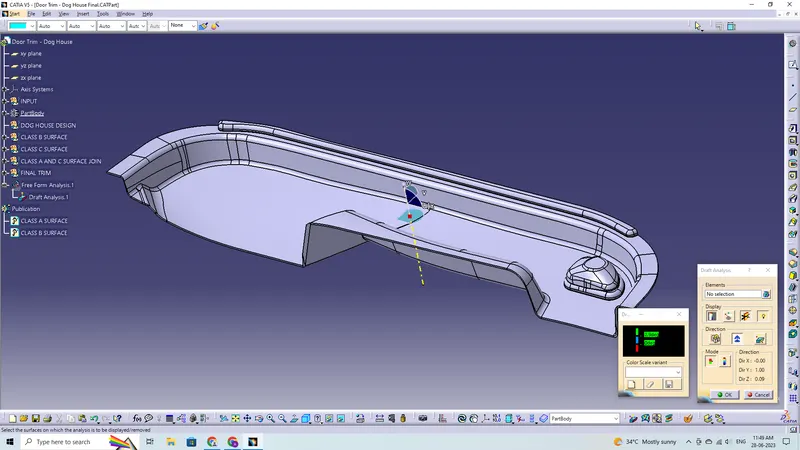

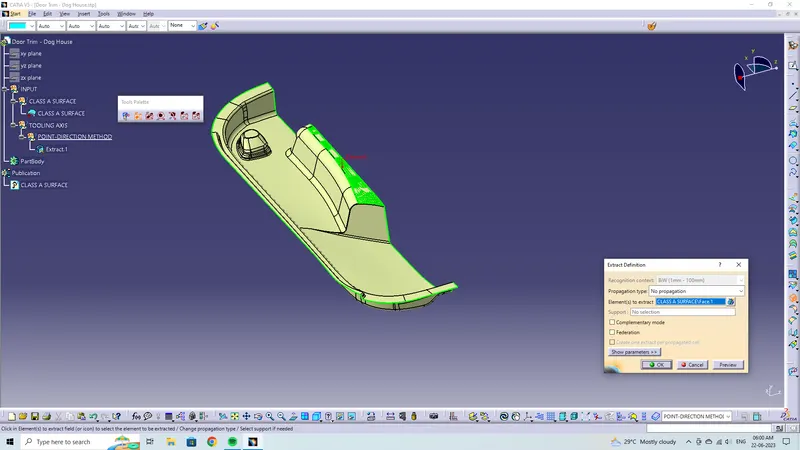

The Point-direction command will immediately construct a Dummy tooling axis.
Checking for possibilities (clearances) in all axis directions and determining the problem-creation parts of the component or model.

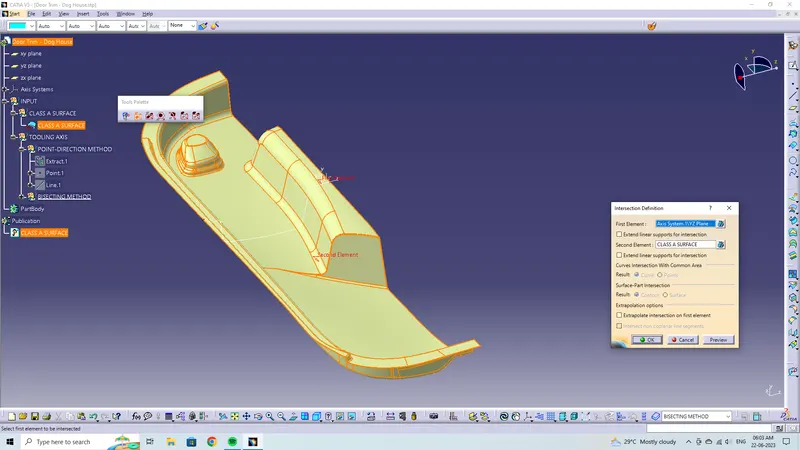

Creating an intersection along an axis on a plane with the model and building two lines that make contact with the walls will be used to check the clearance along all of the axis directions. The line that cuts through this intersection will be the tooling axis.

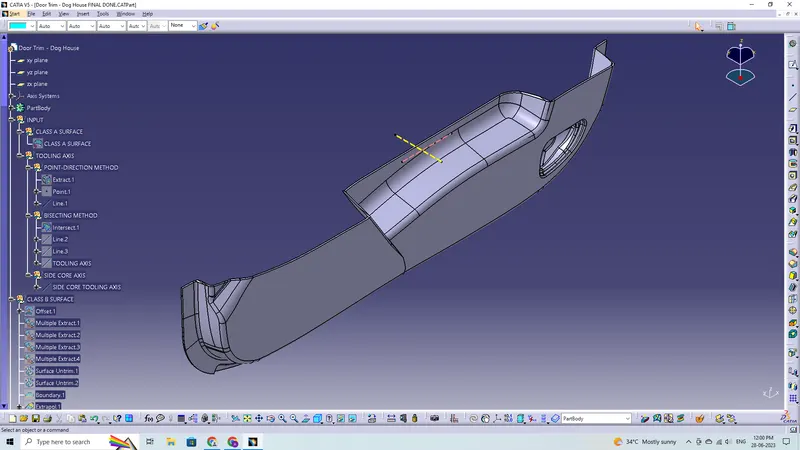

Tooling Axis Creation:

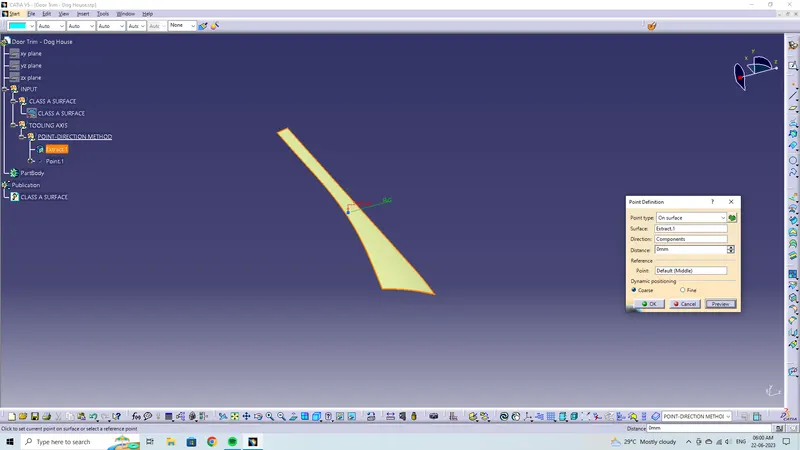

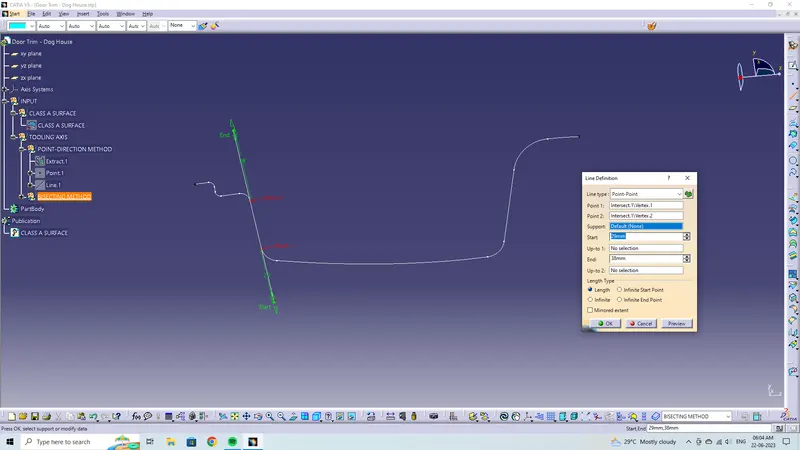

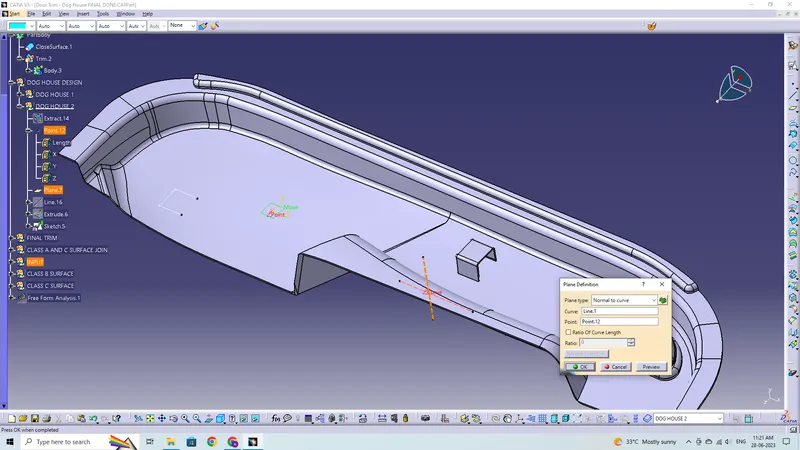

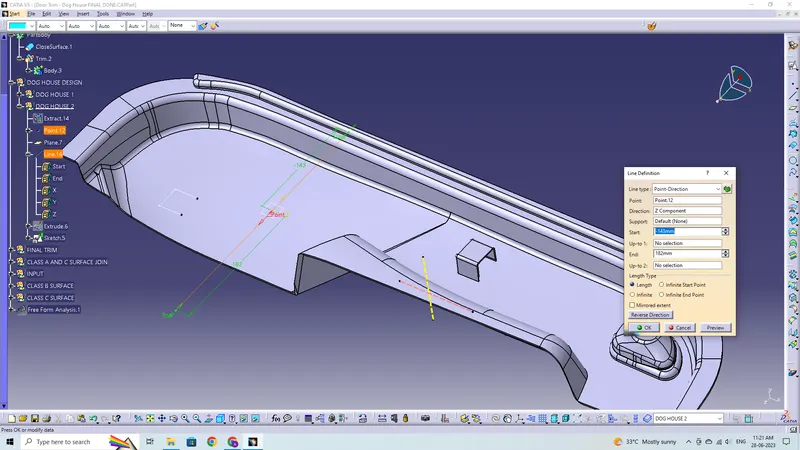

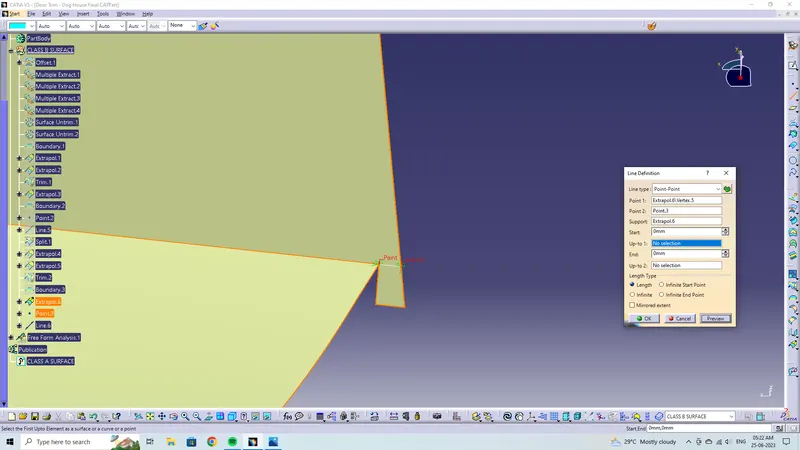

A line-direction type of line passing from a point through the direction of Y-component will be treated as the tooling axis.
Tooling Axis Creation:

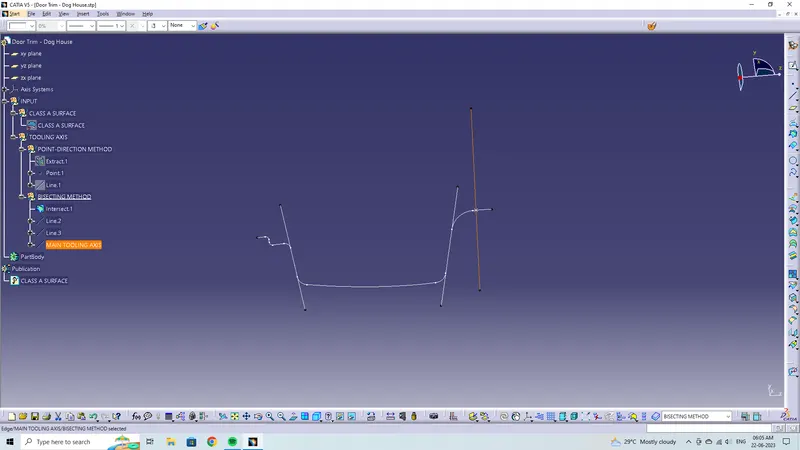

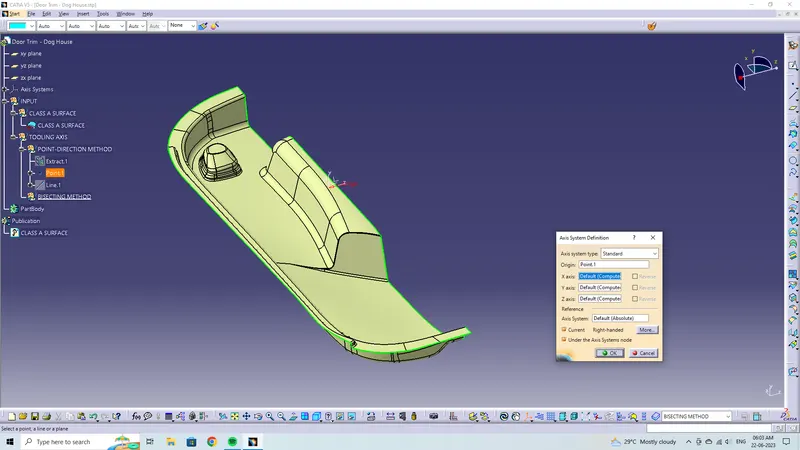

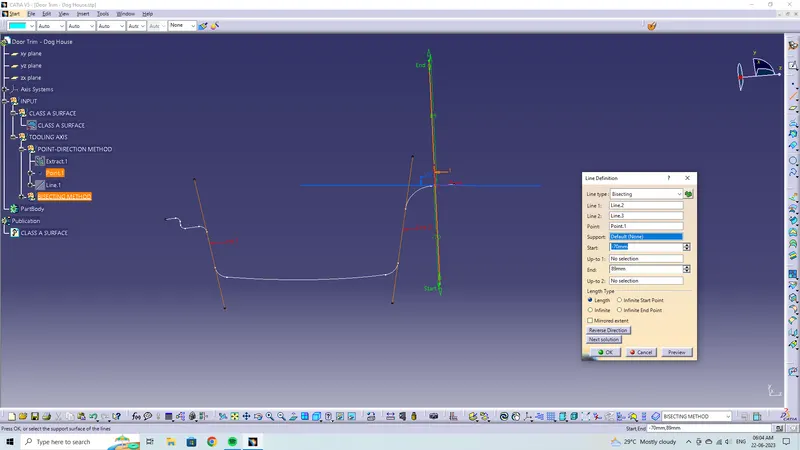

A bisecting type of line created with two lines through the direction of Y-component will be treated as the tooling axis.
Draft Analysis for Class-A Surface:

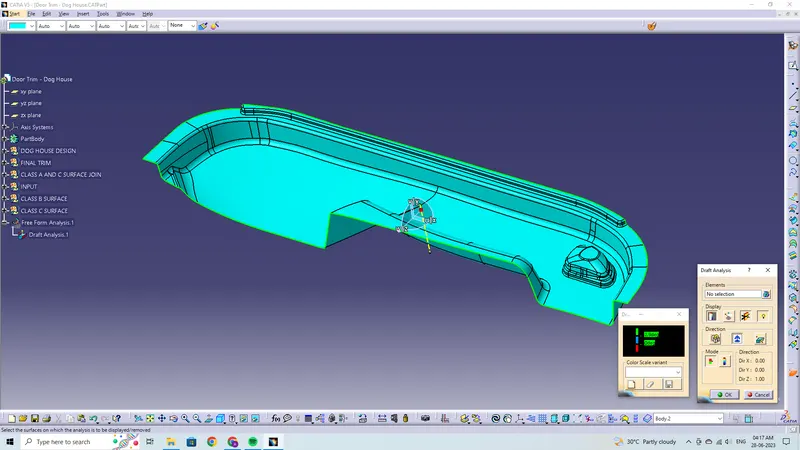

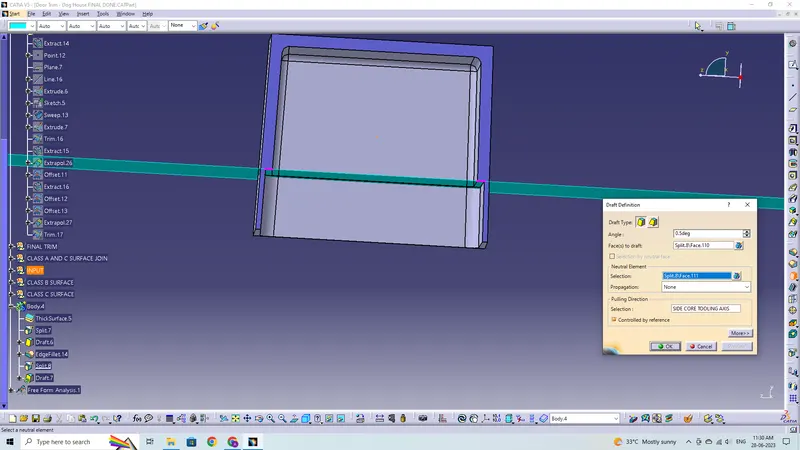

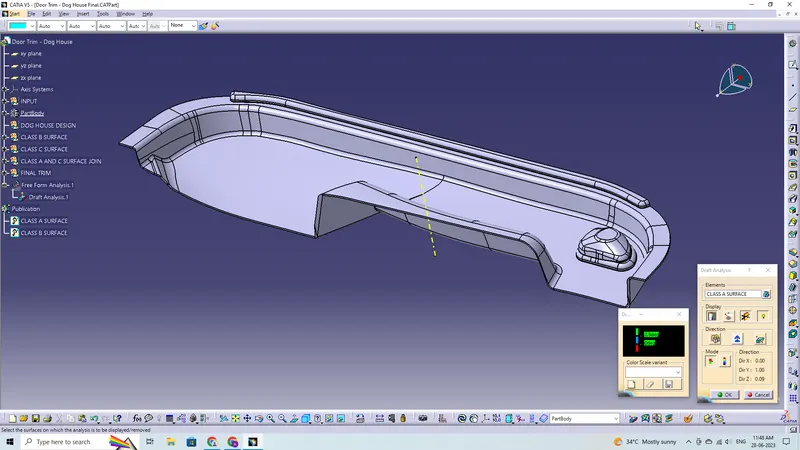

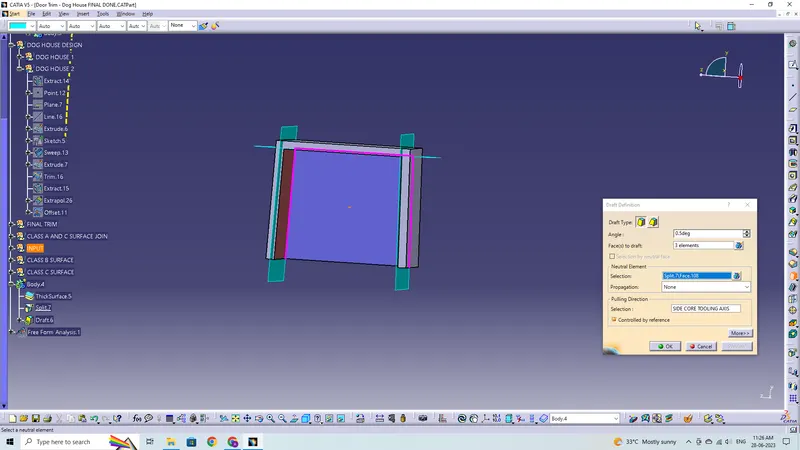

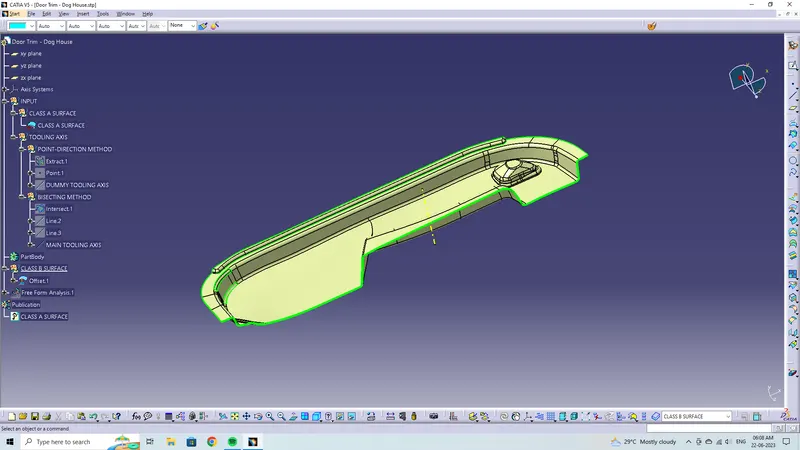

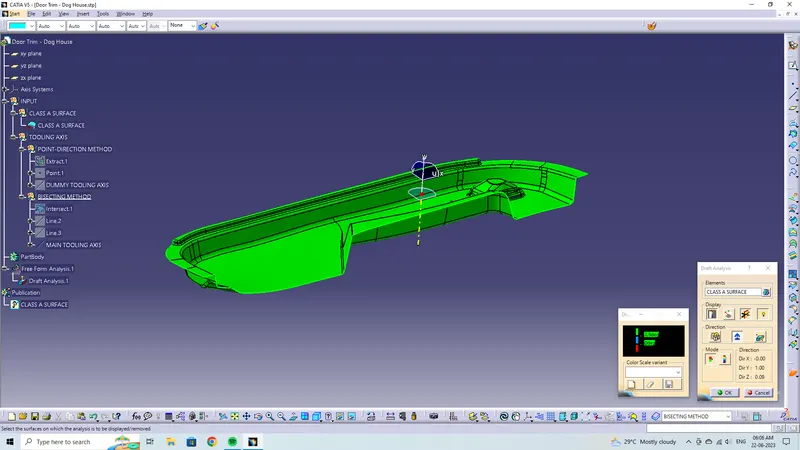

After choosing the tooling axis, draft analysis is carried out to see if the minimum draft (3 degrees) is being maintained.
Compass is used to define the draft direction.
If the minimum draft 3 degree is provided the whole component changes in to green colour.

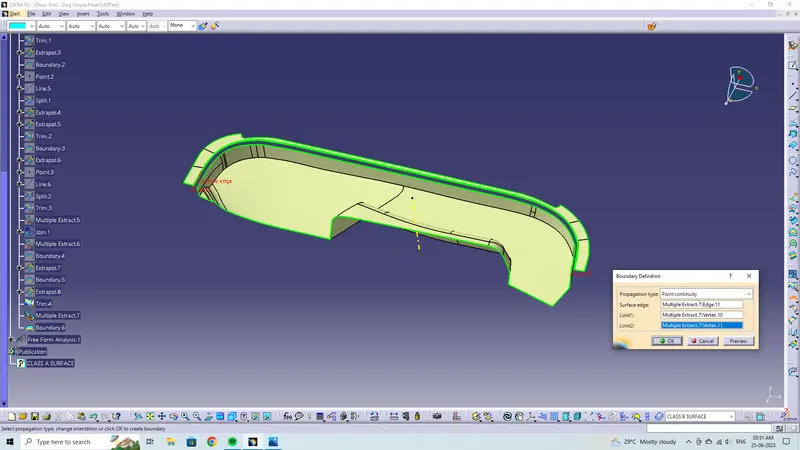

Class-B Surface:

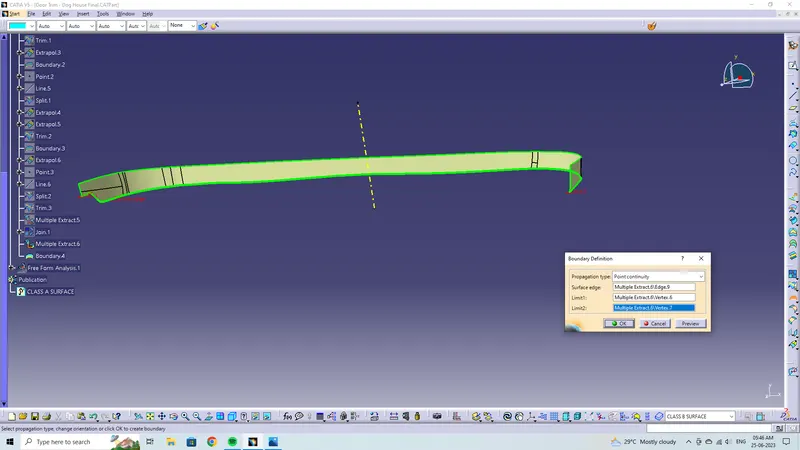

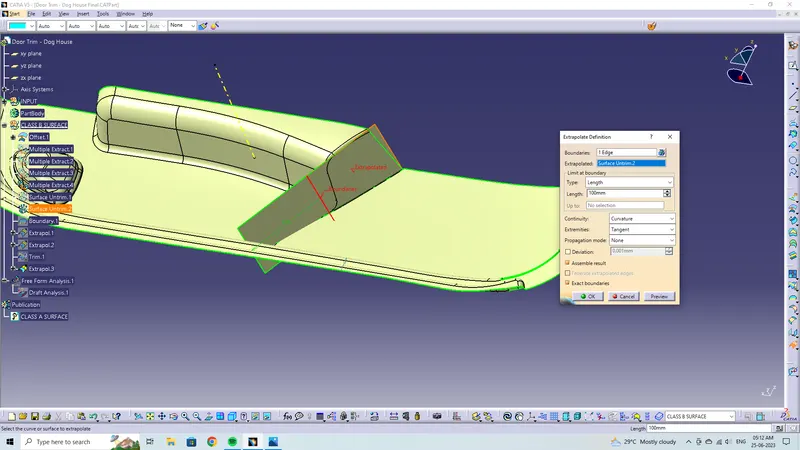

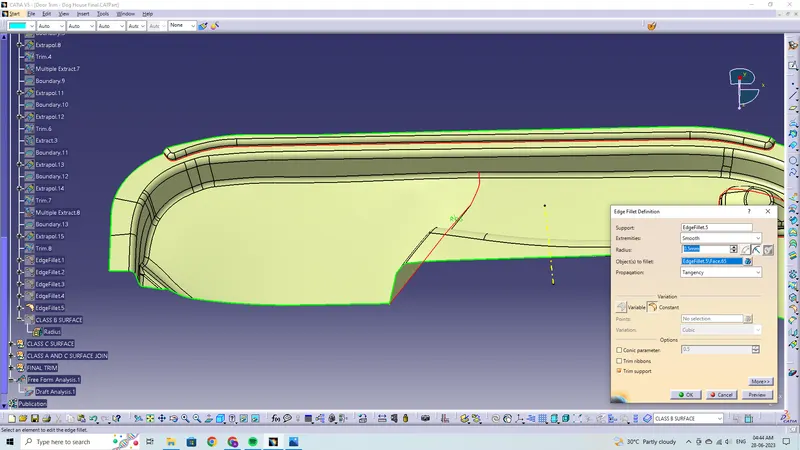

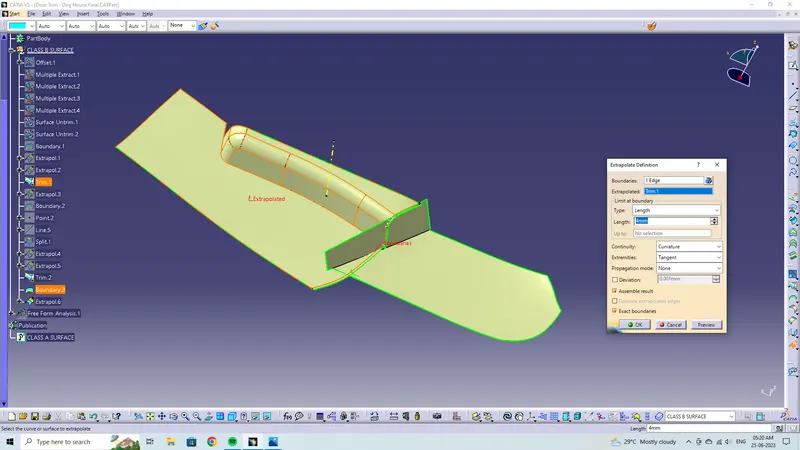

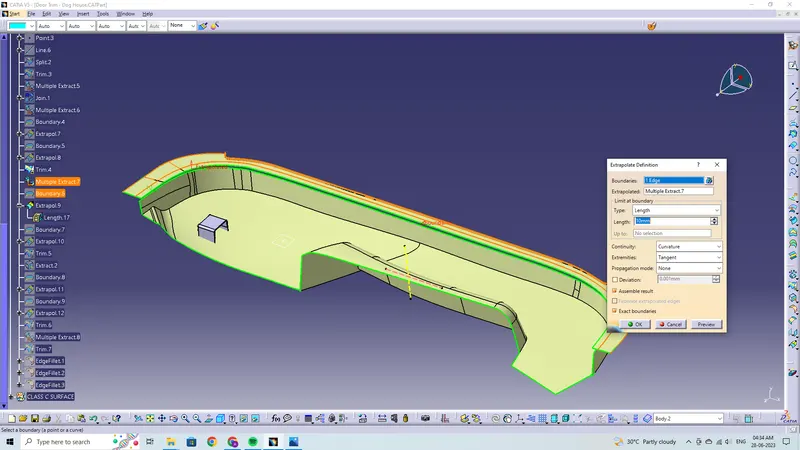

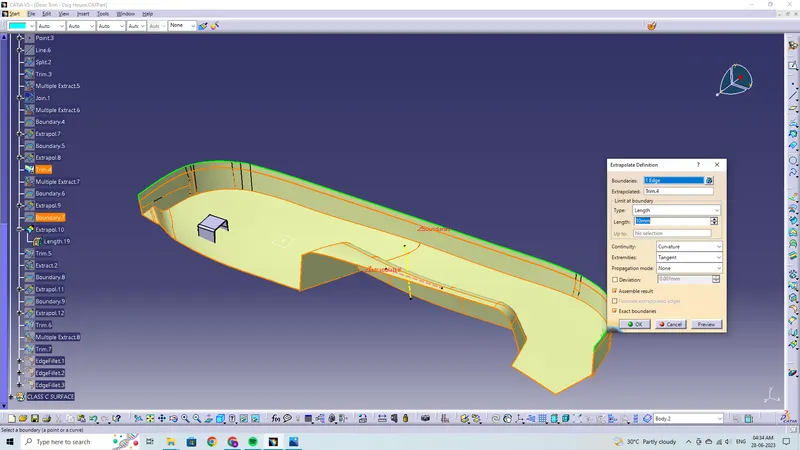

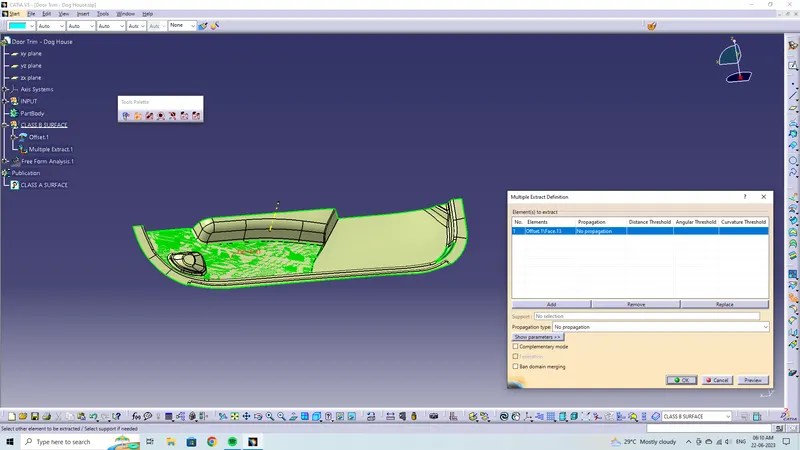

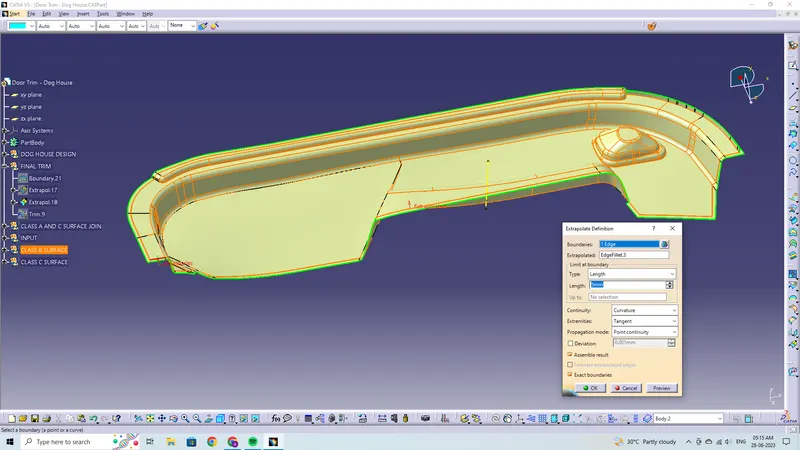

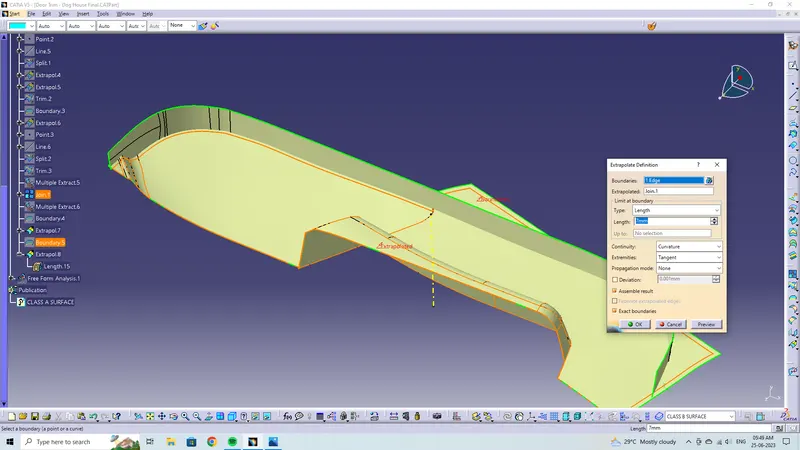

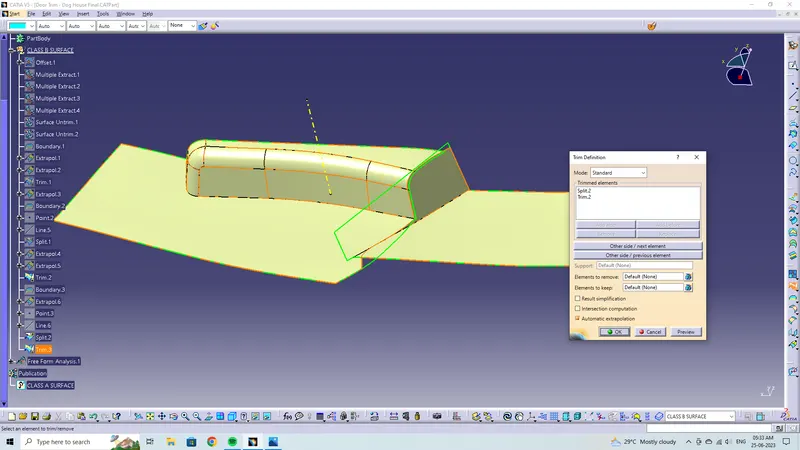

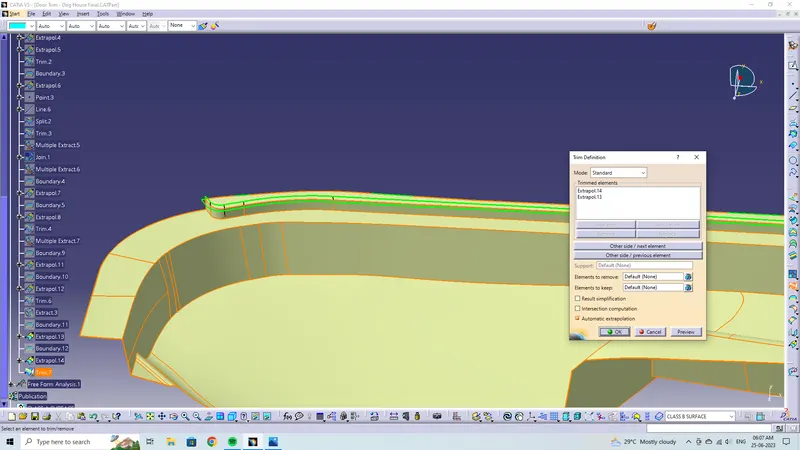

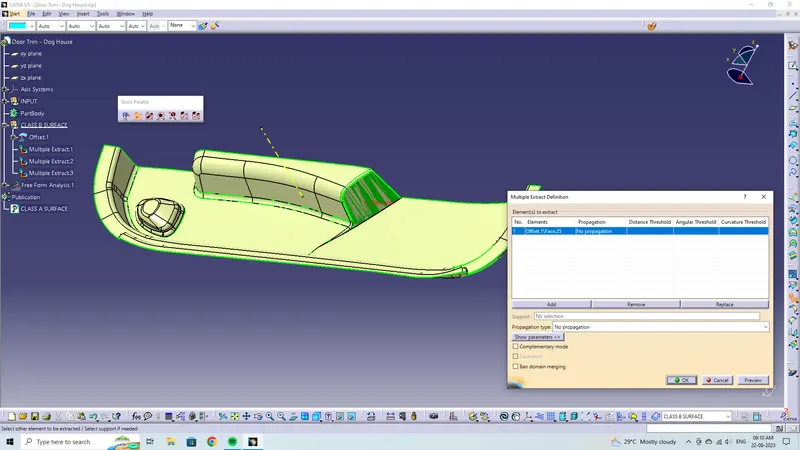

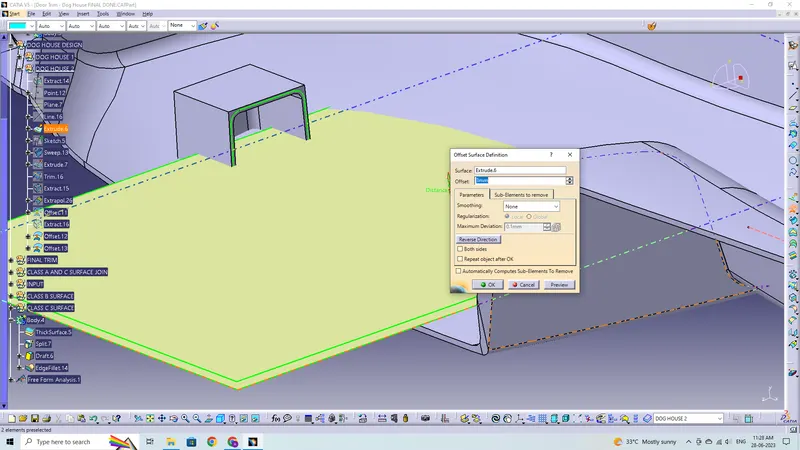

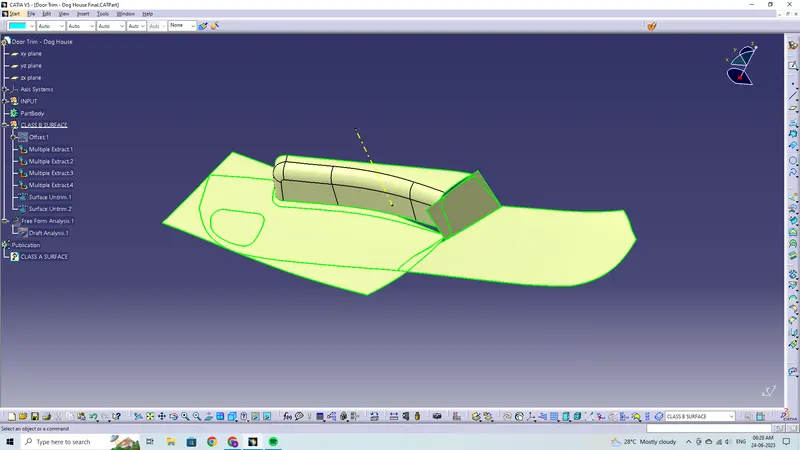

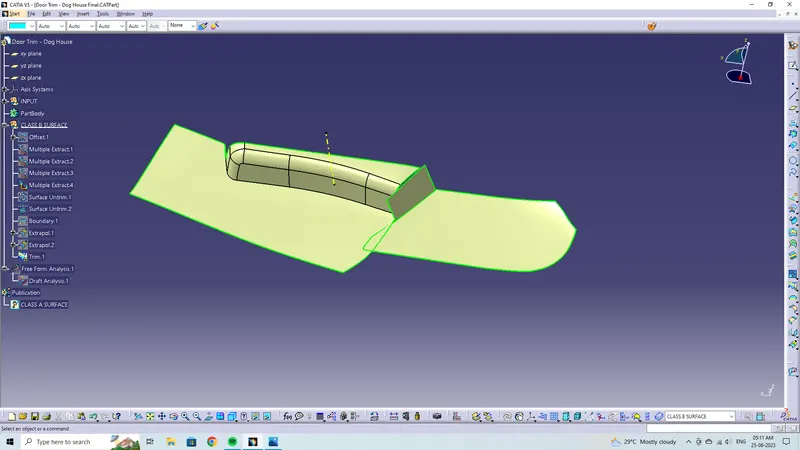

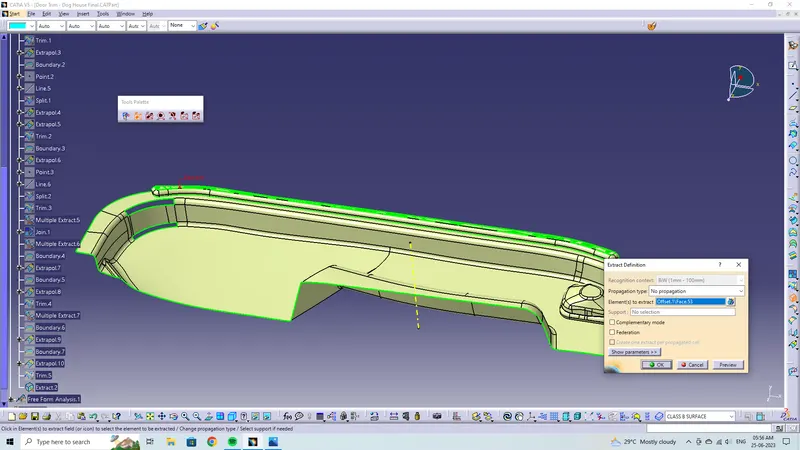

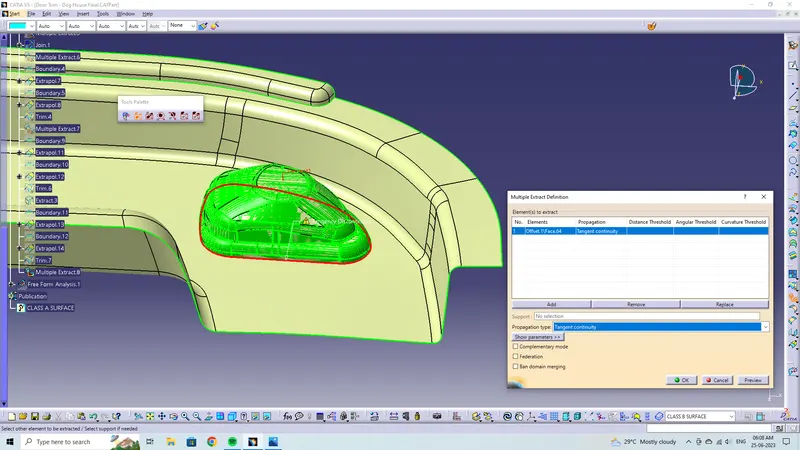

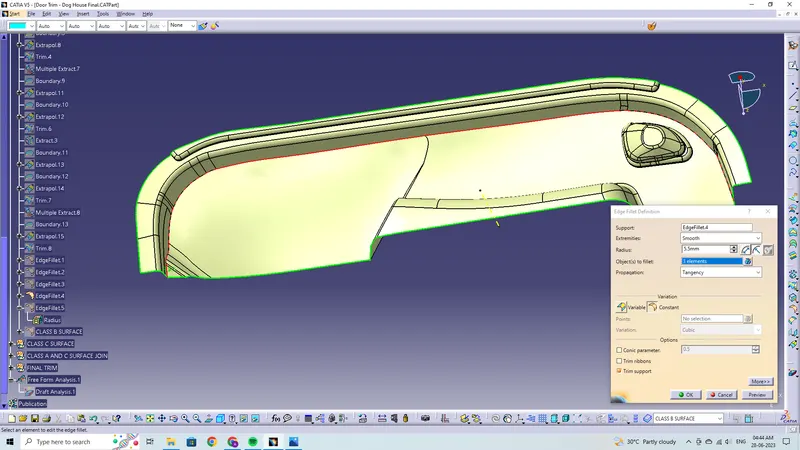

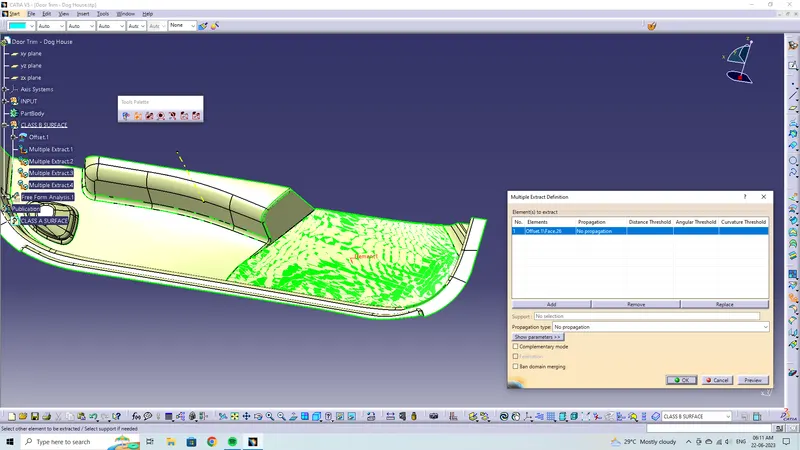

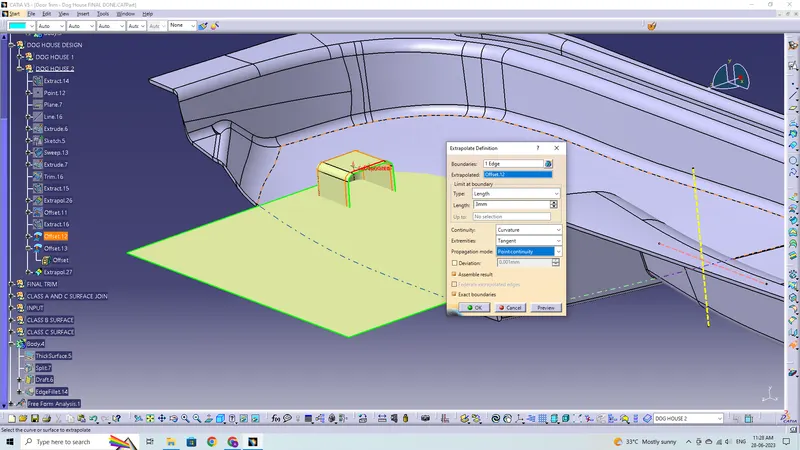

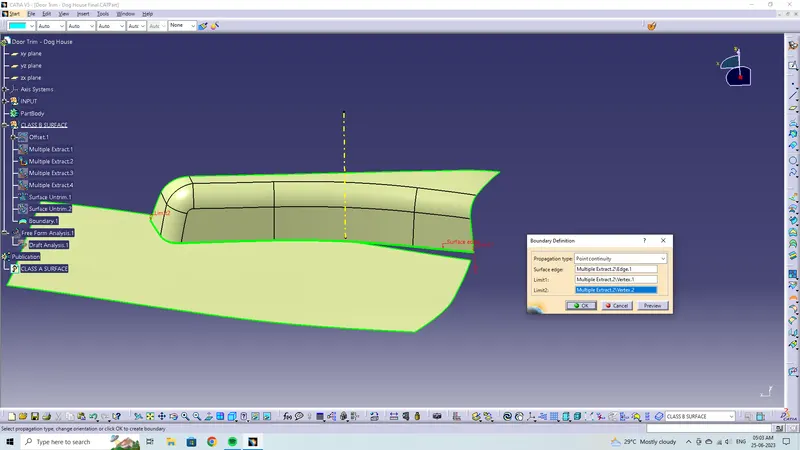

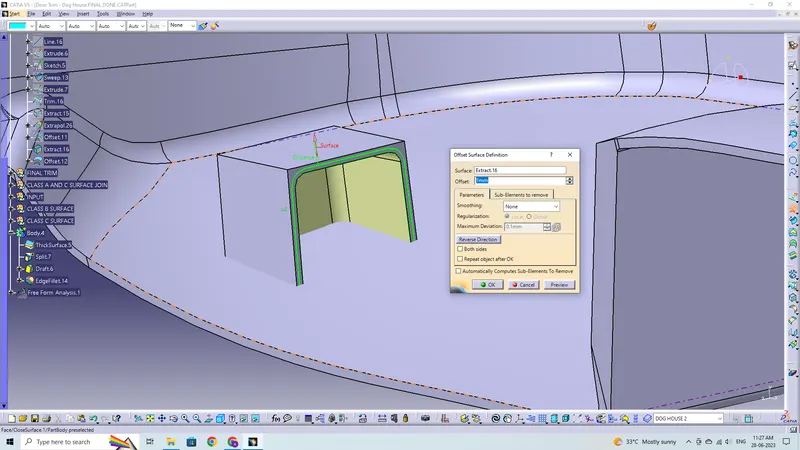

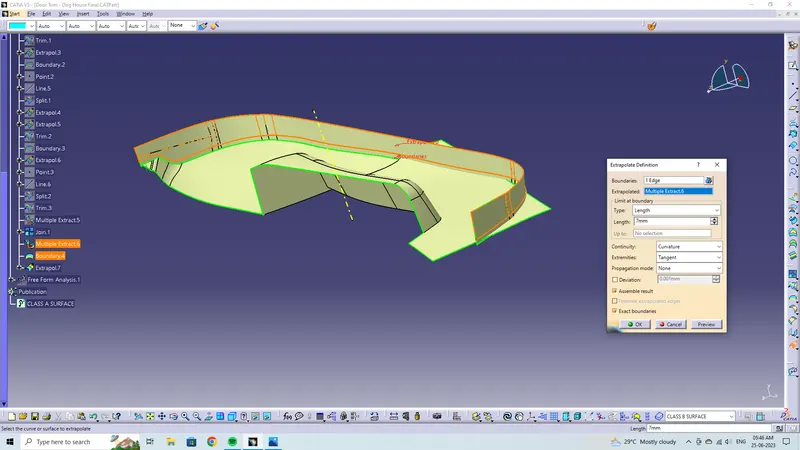

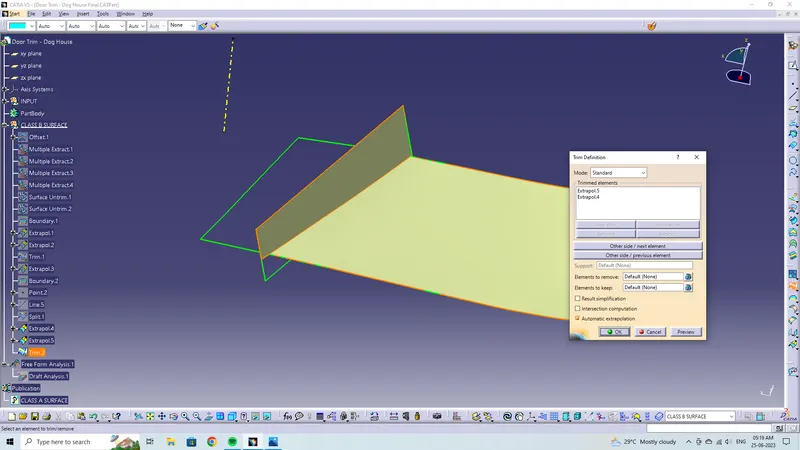

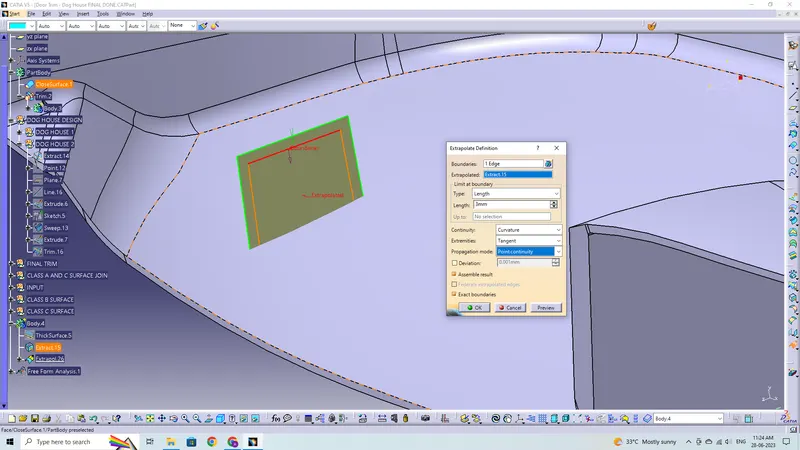

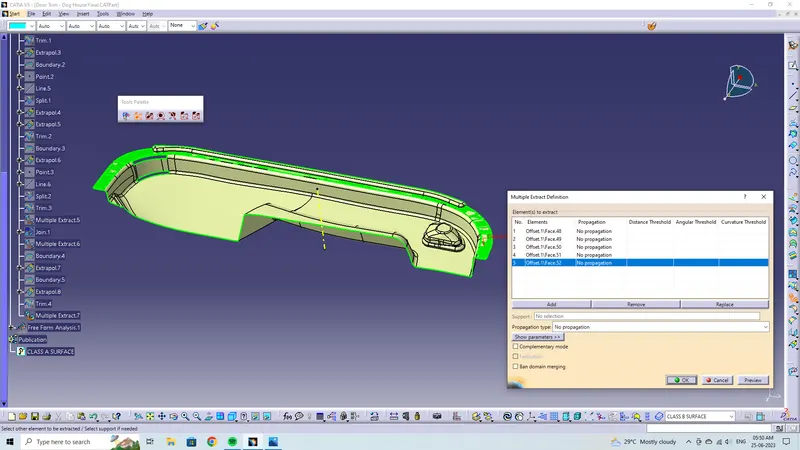

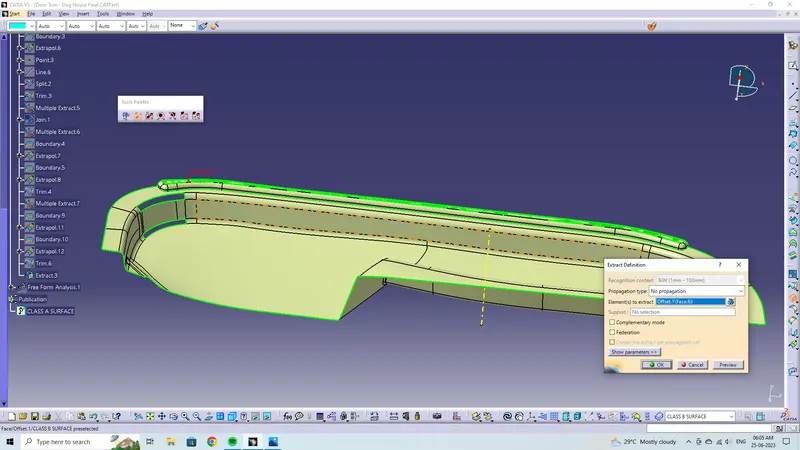

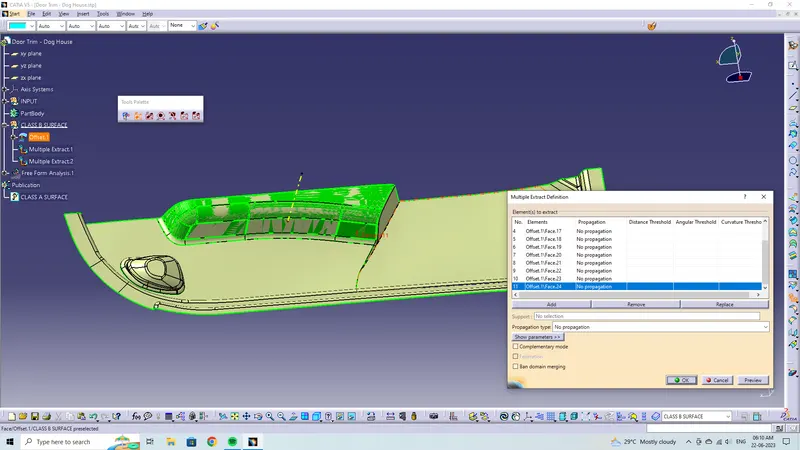

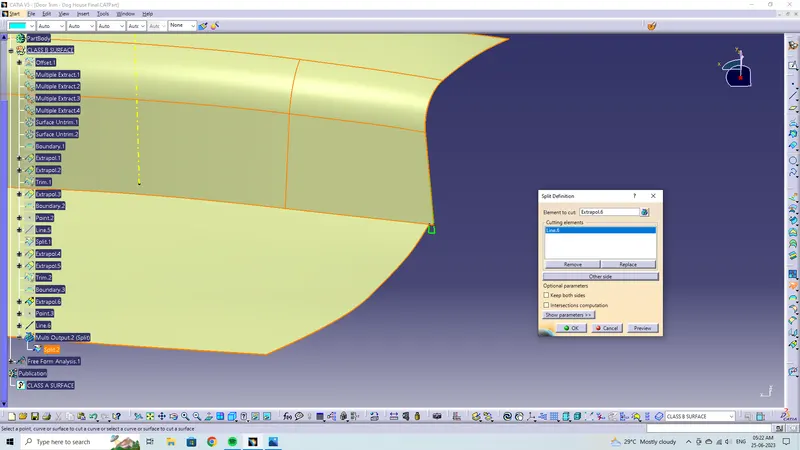

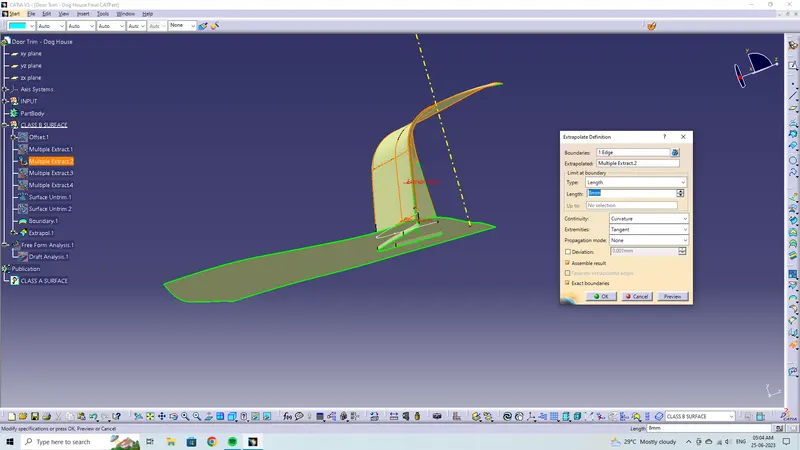

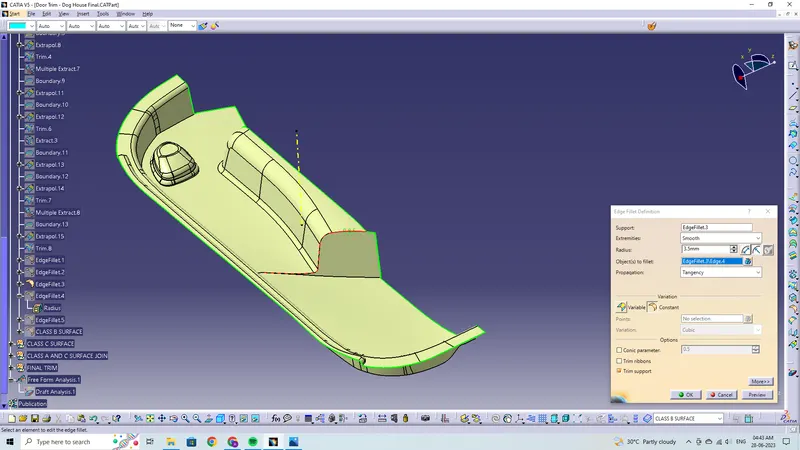

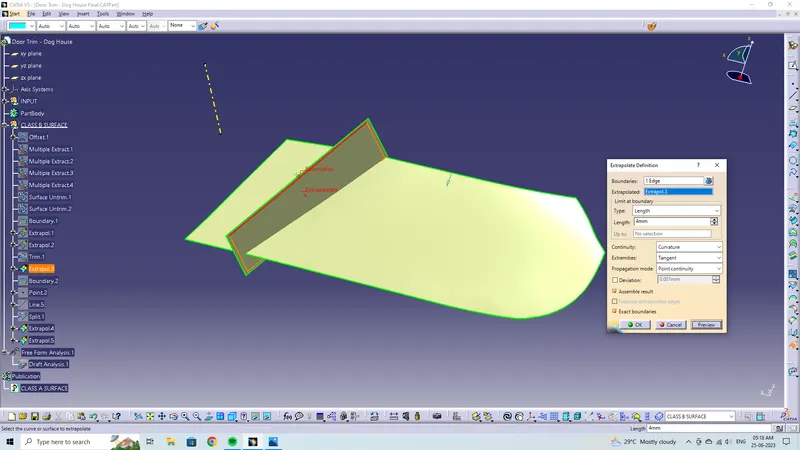

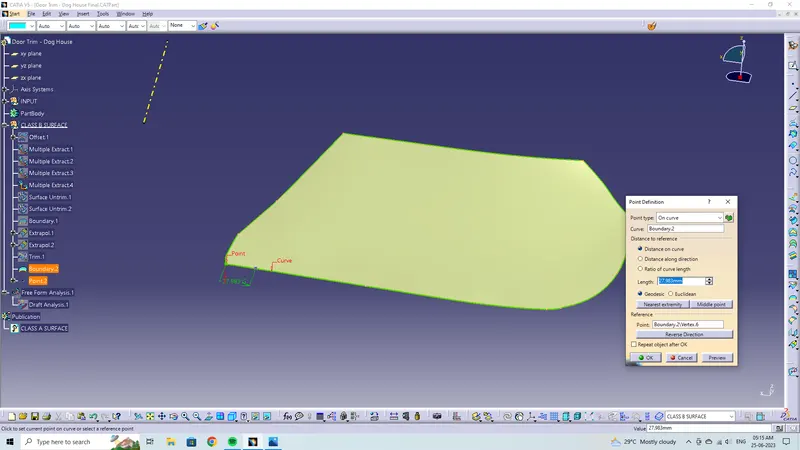

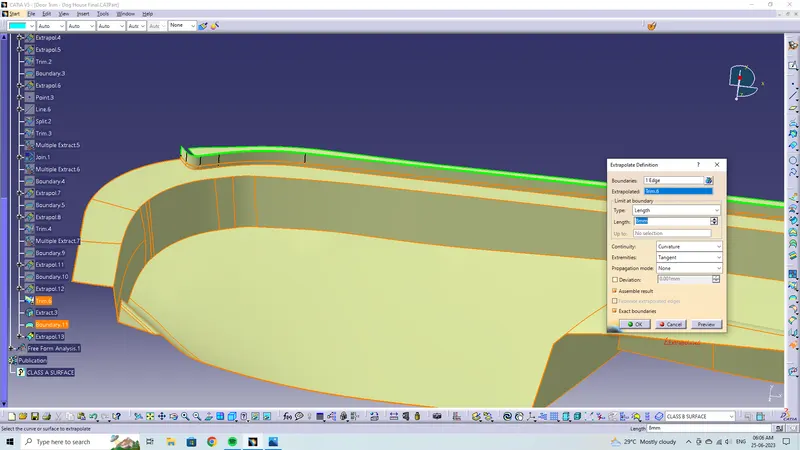

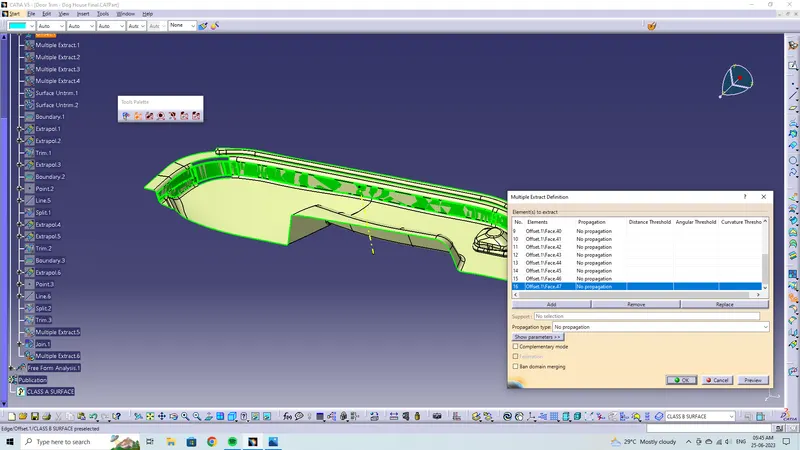

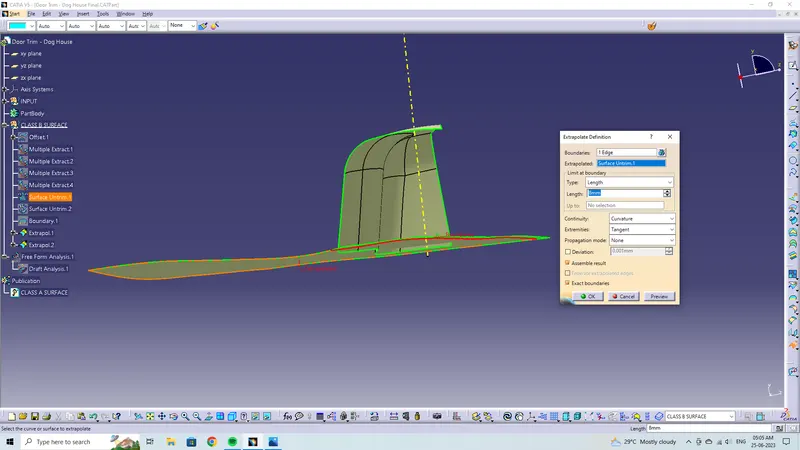

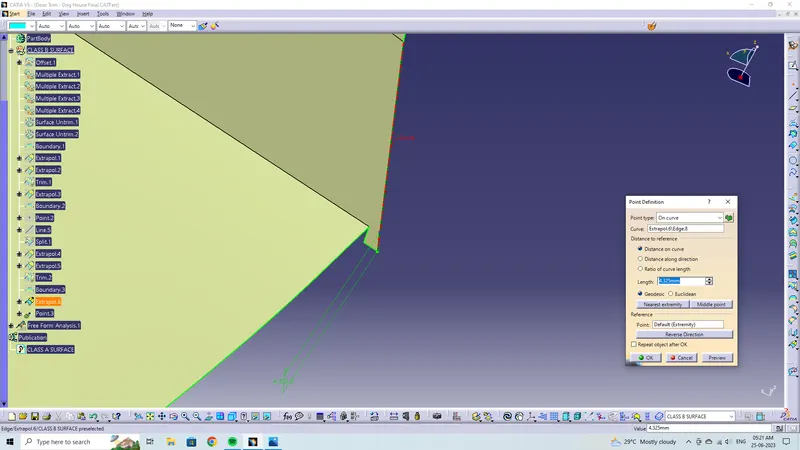

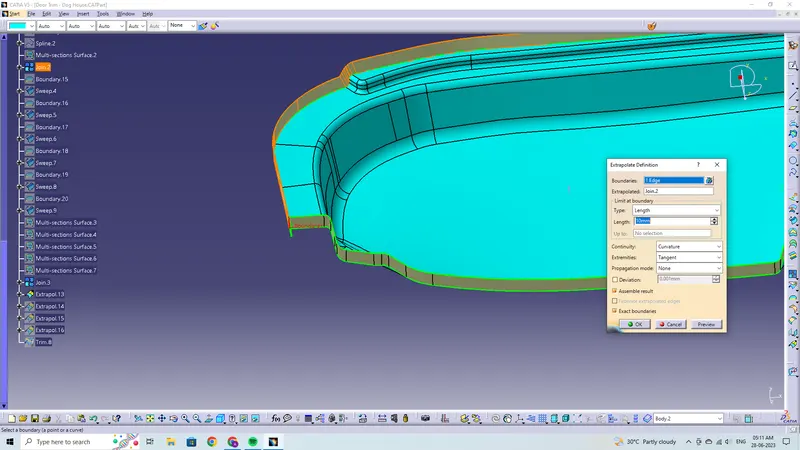

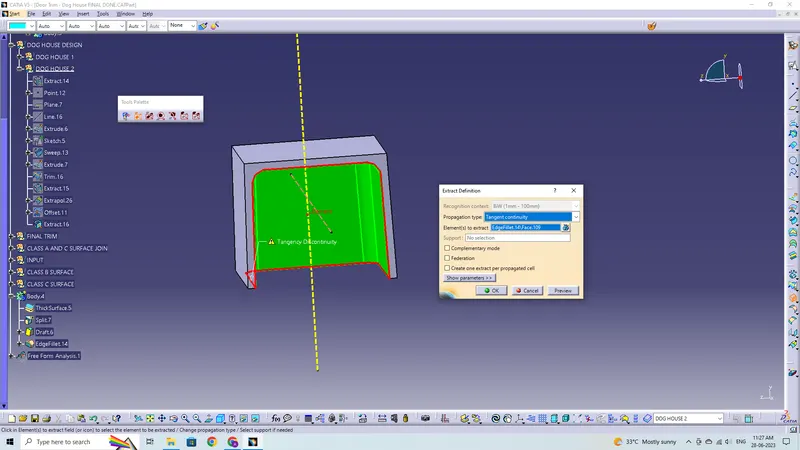

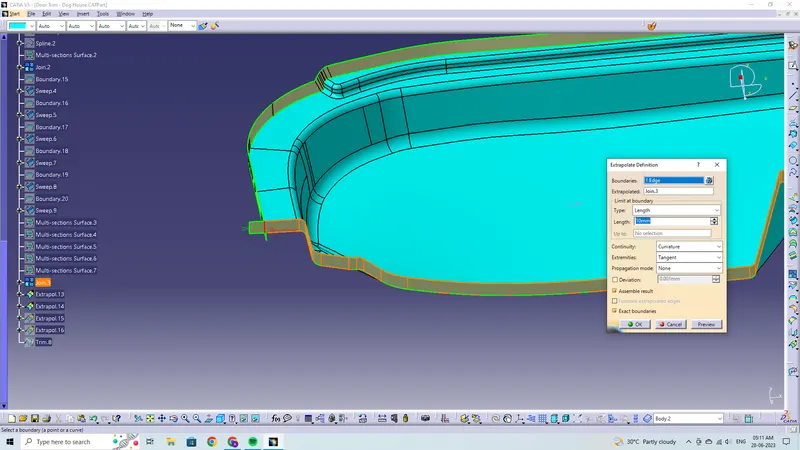

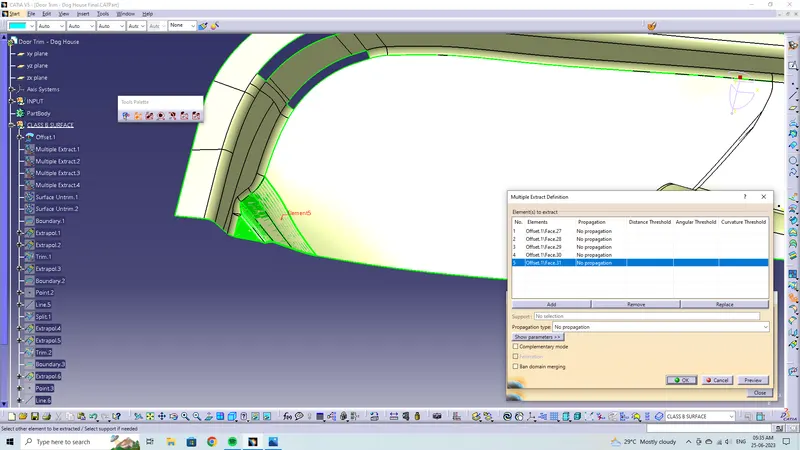

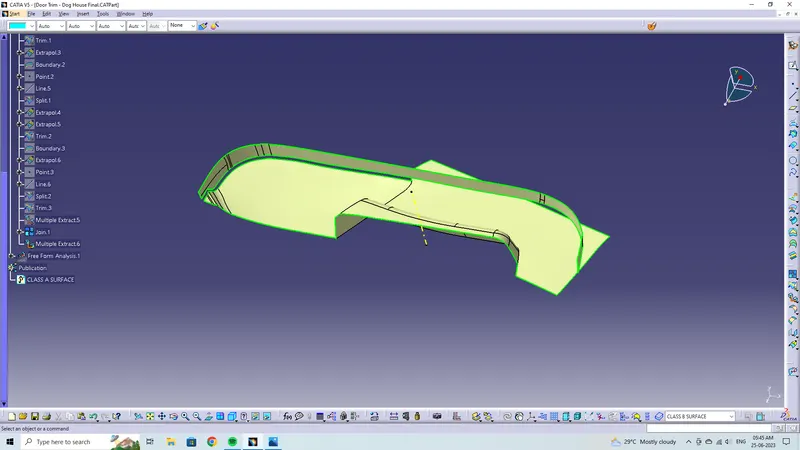

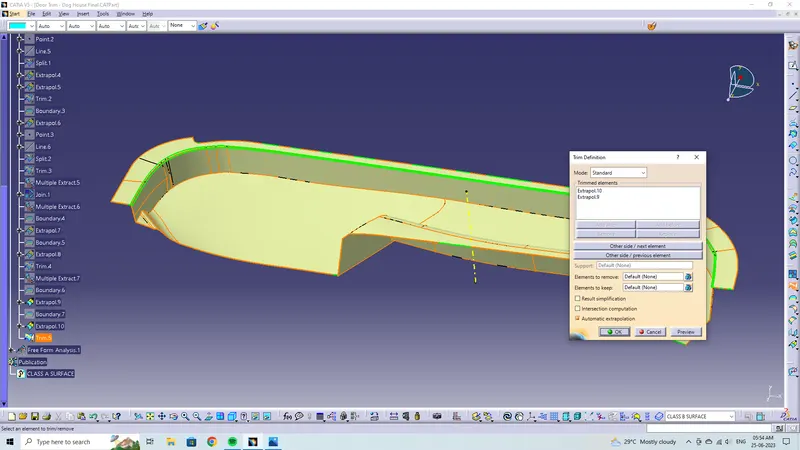

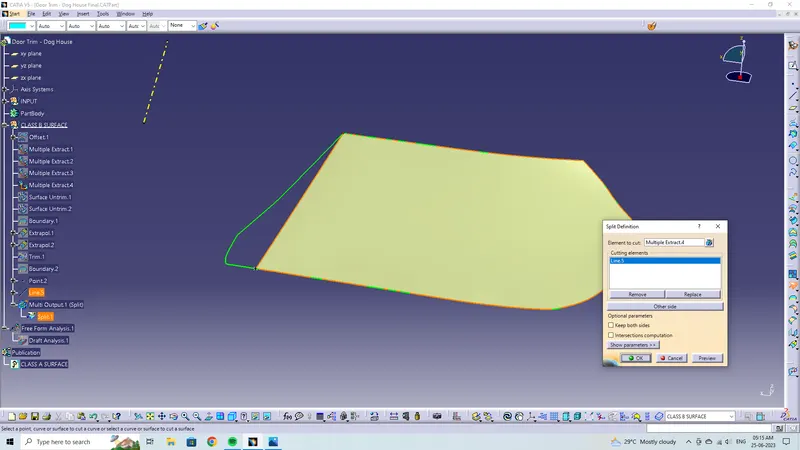

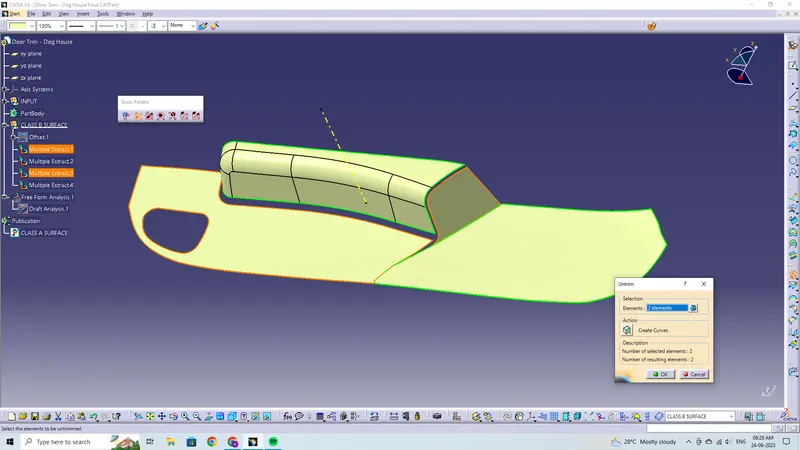

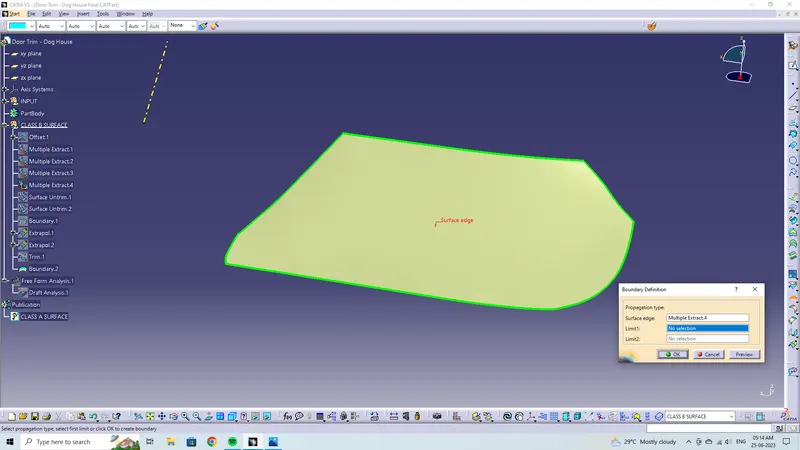

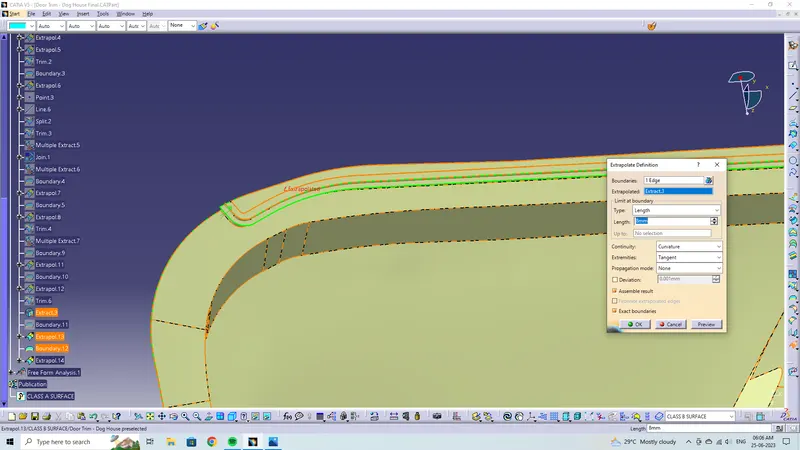

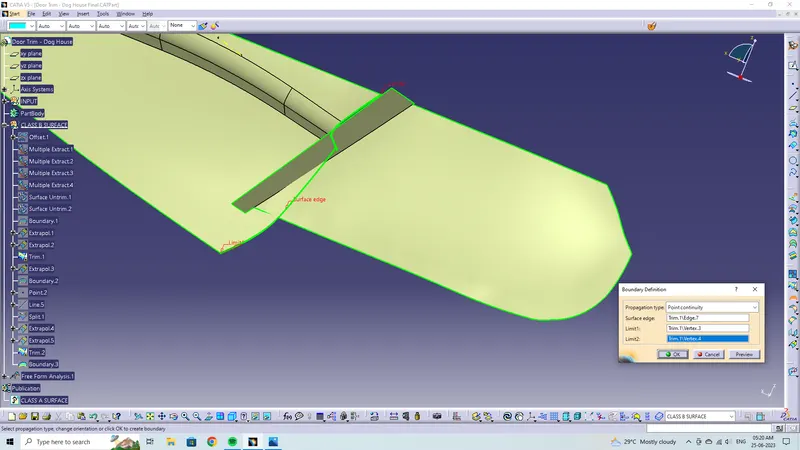

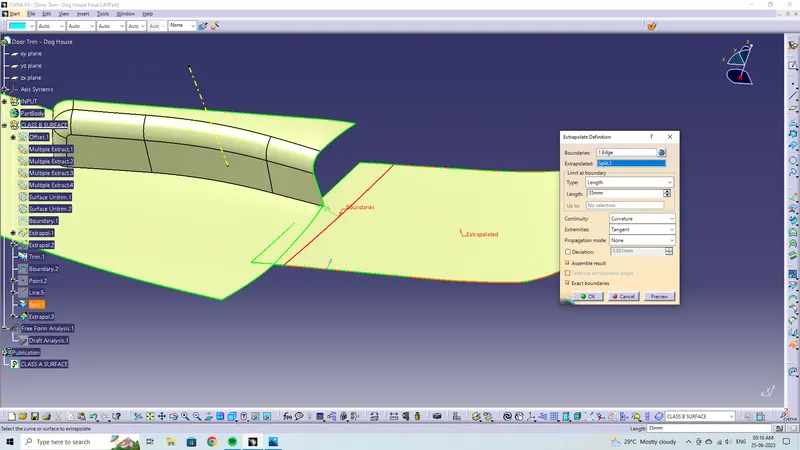

To generate a class-B surface, extract each wall, un-trim it, then extrapolate it to get the shape by trimming the excess surfaces and offsetting it to a particular distance based on the thickness of the model. The B-Surface will serve as the offset surface.

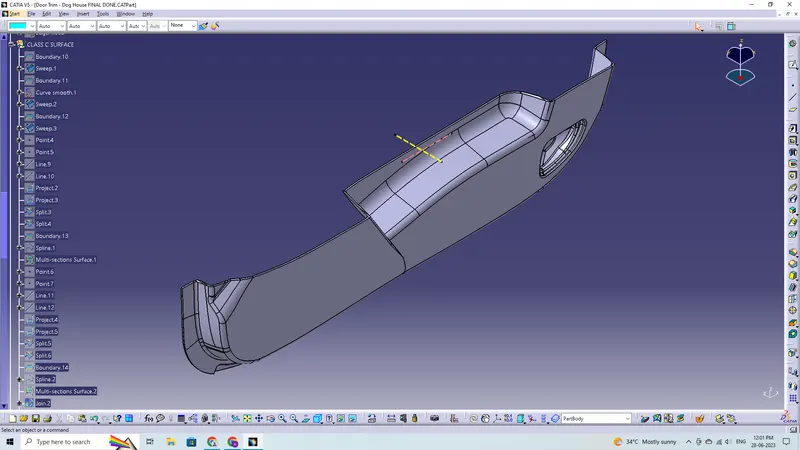

Class-C Surface:

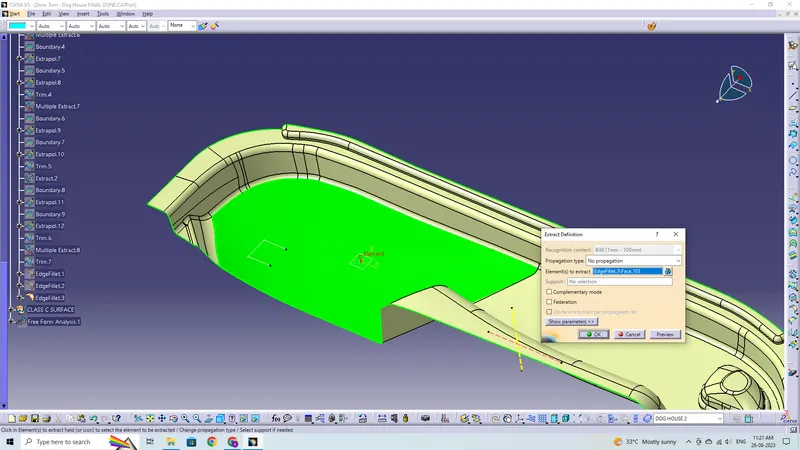

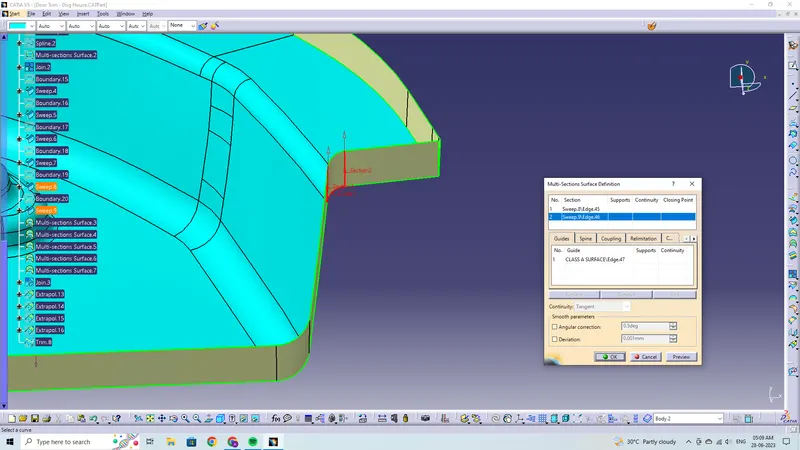

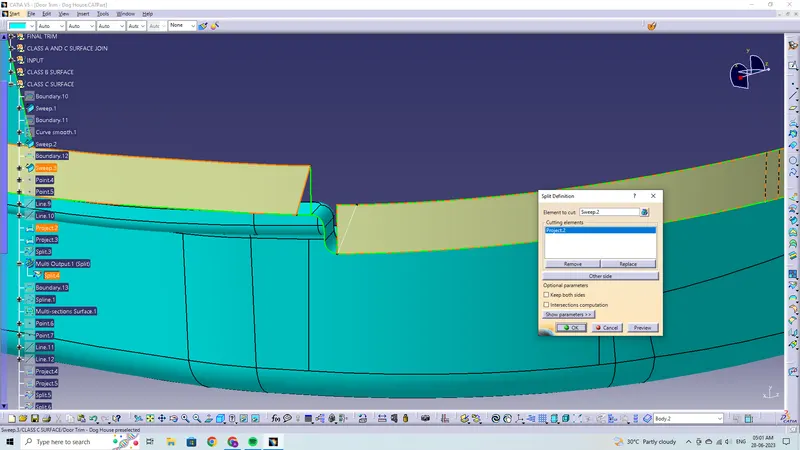

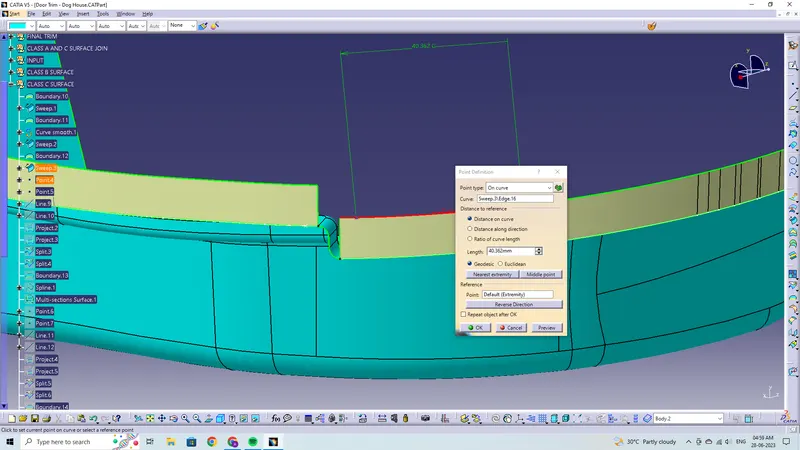

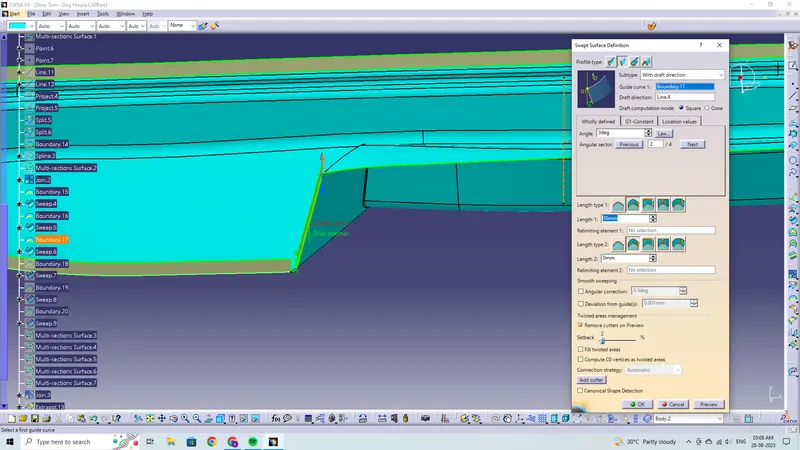

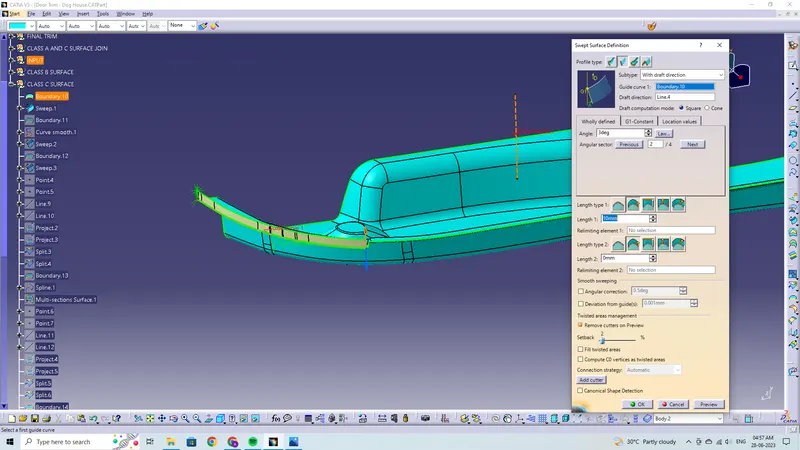

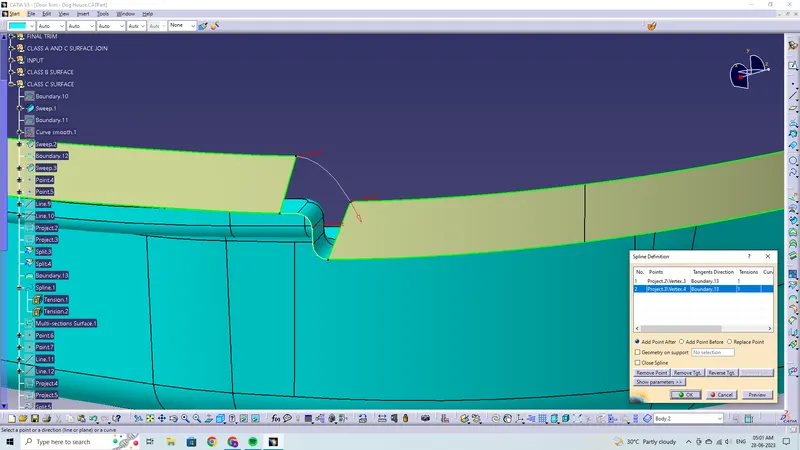

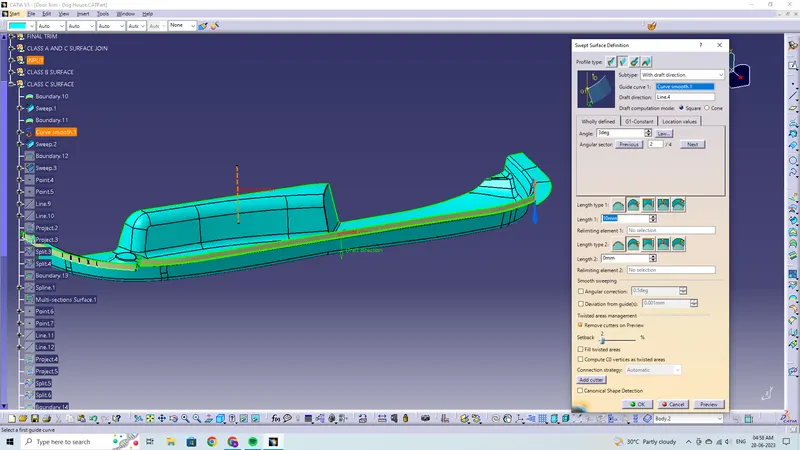

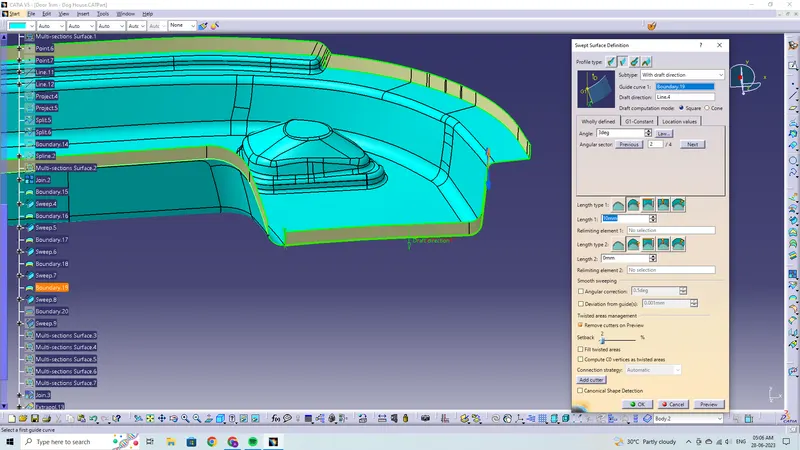

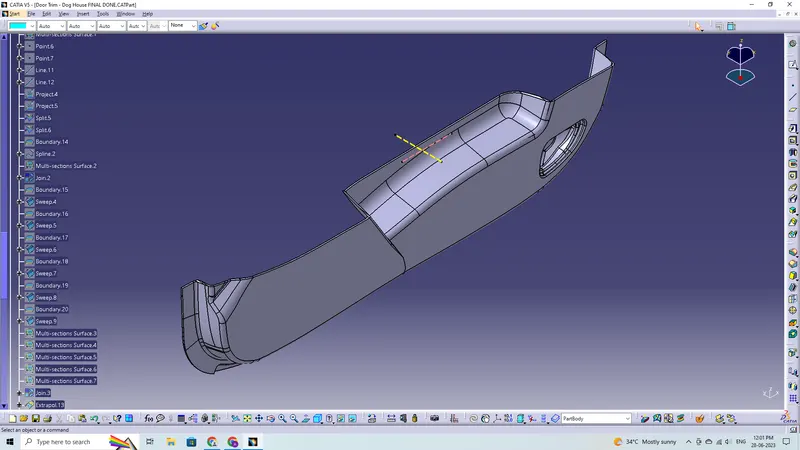

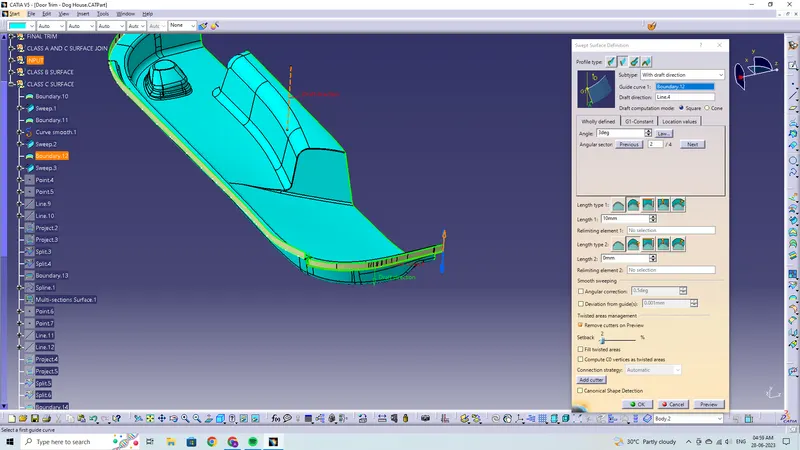

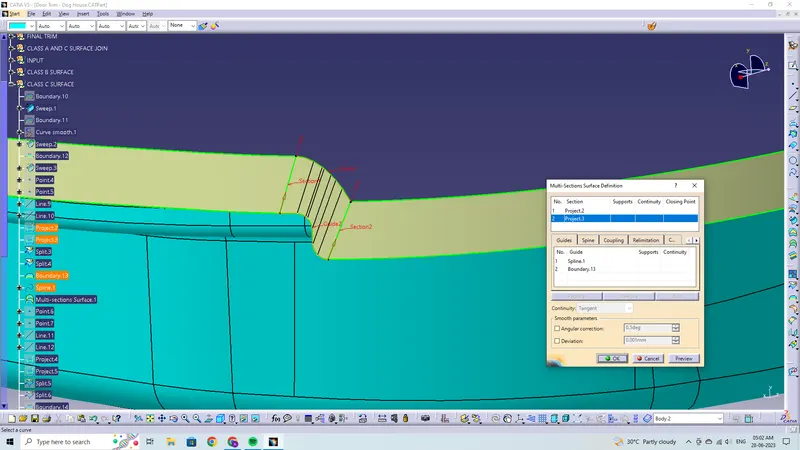

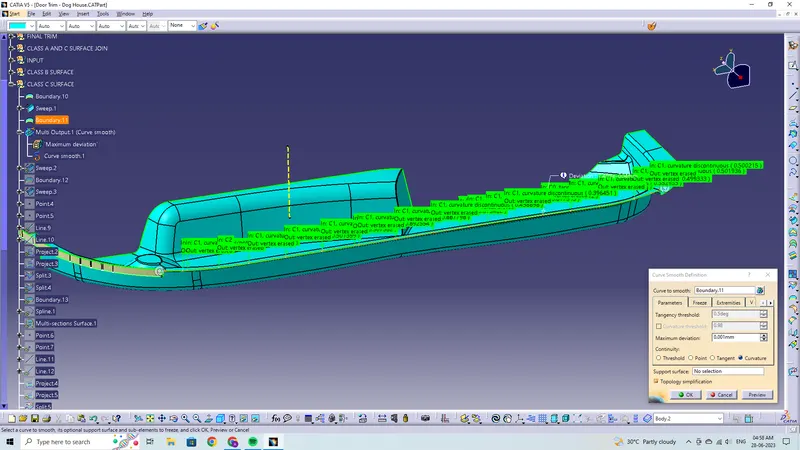

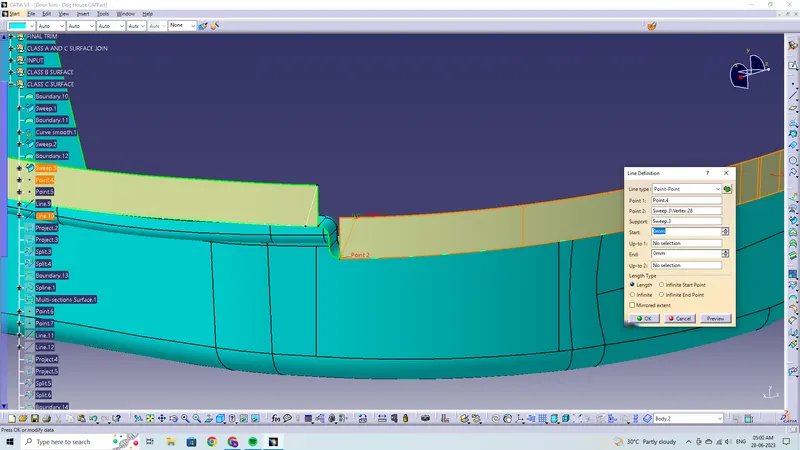

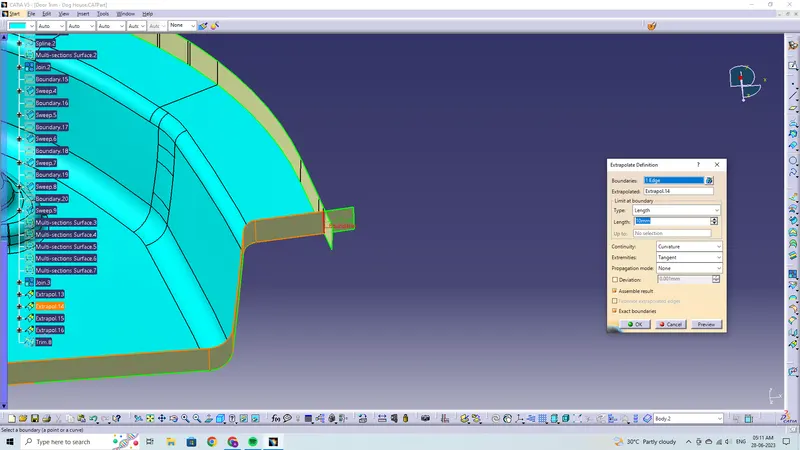

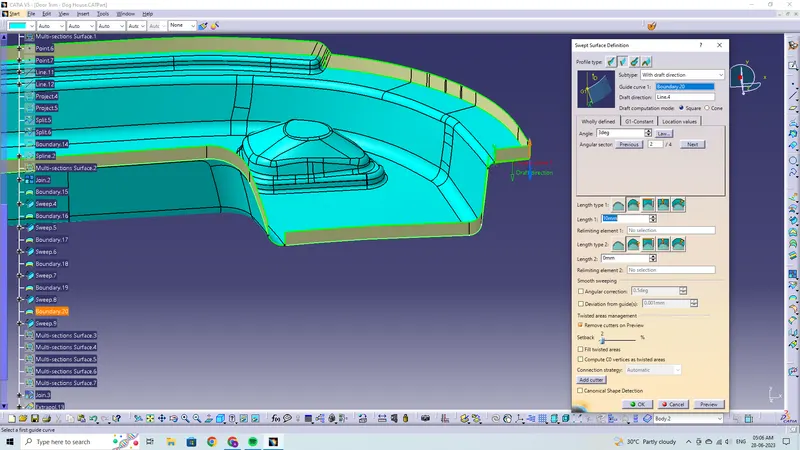

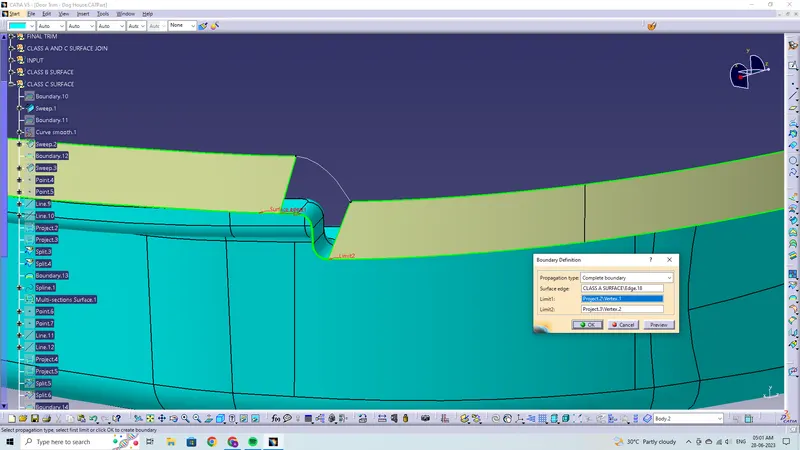

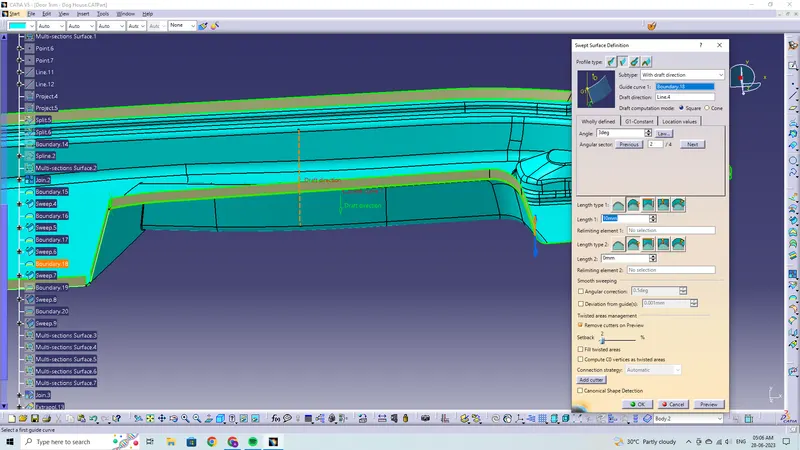

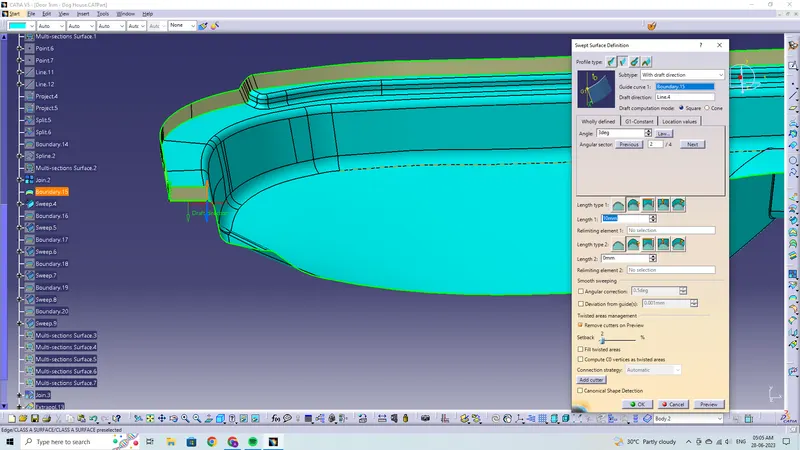

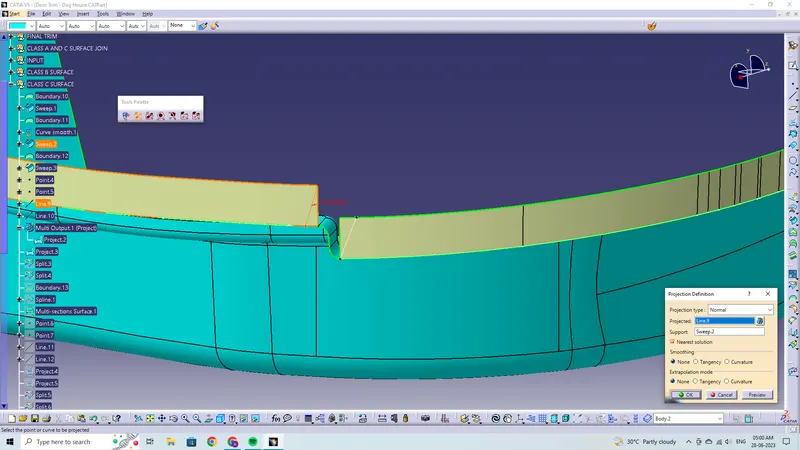

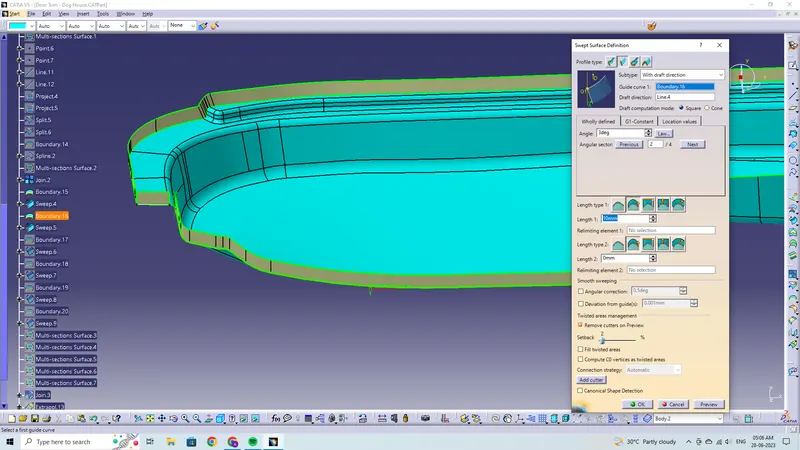

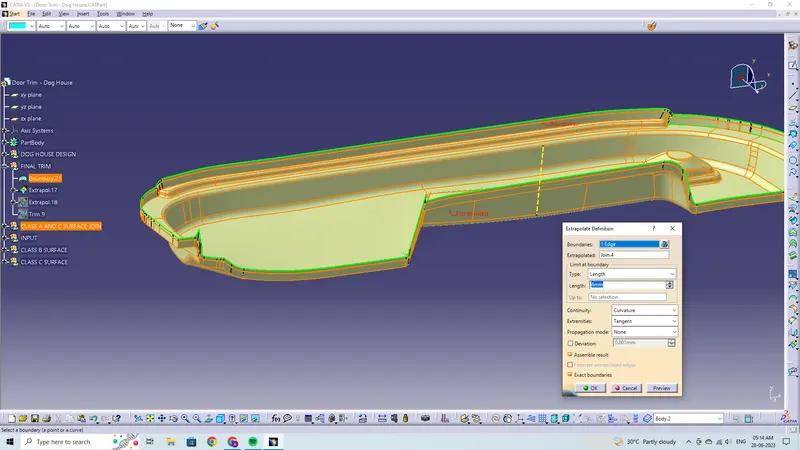

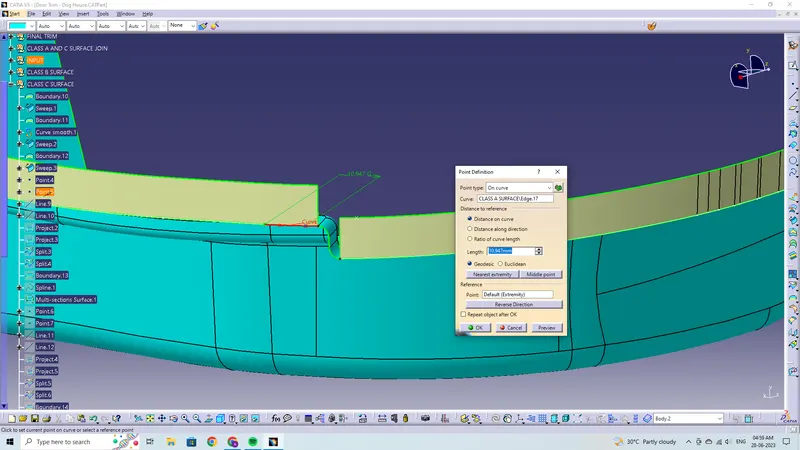

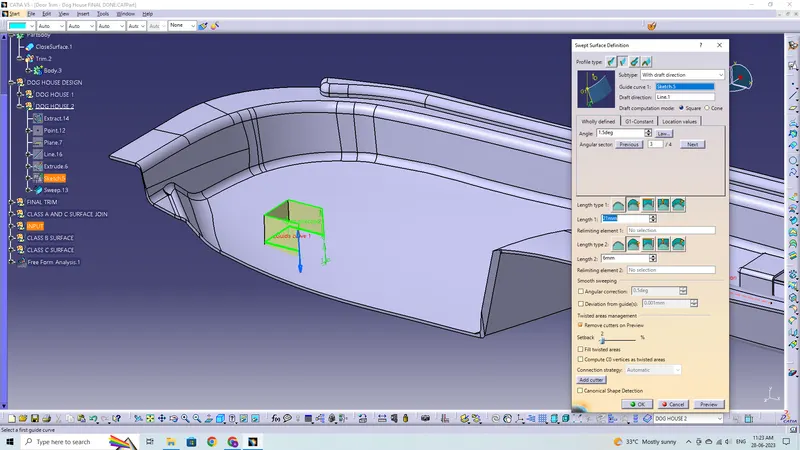

C-Surface is the surface that is produced when the borders of A-surface are swept along the tooling axis to link A to B-surface using the sweep option.

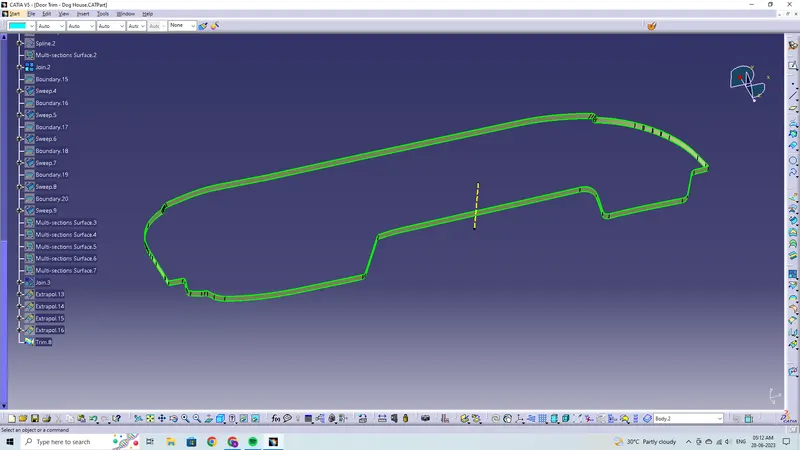

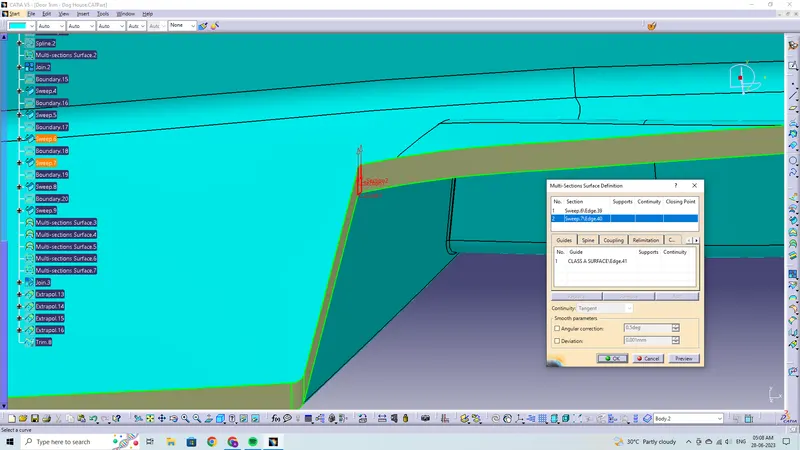

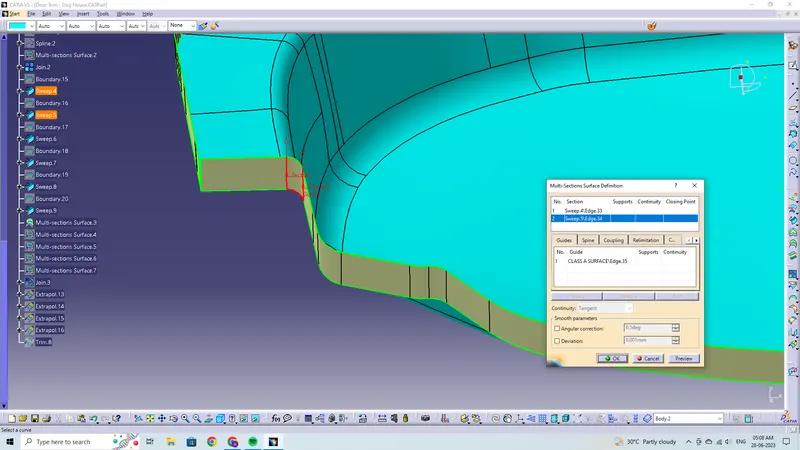

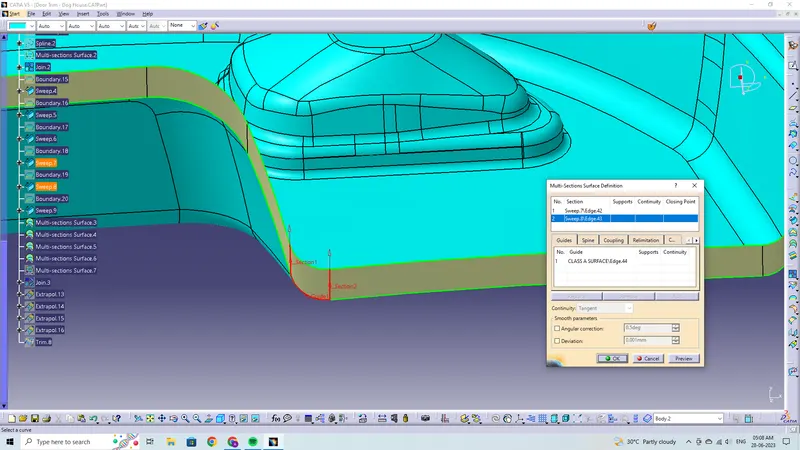

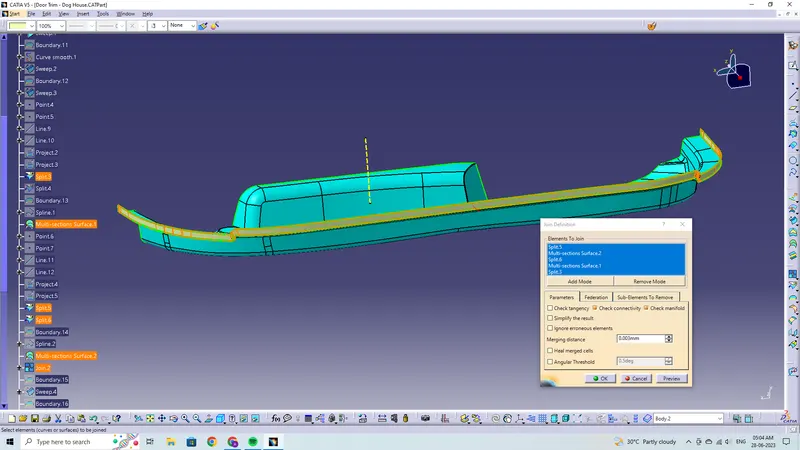

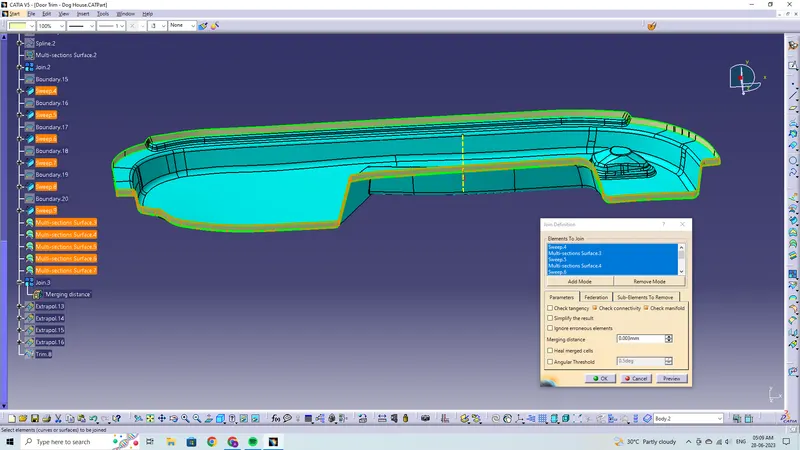

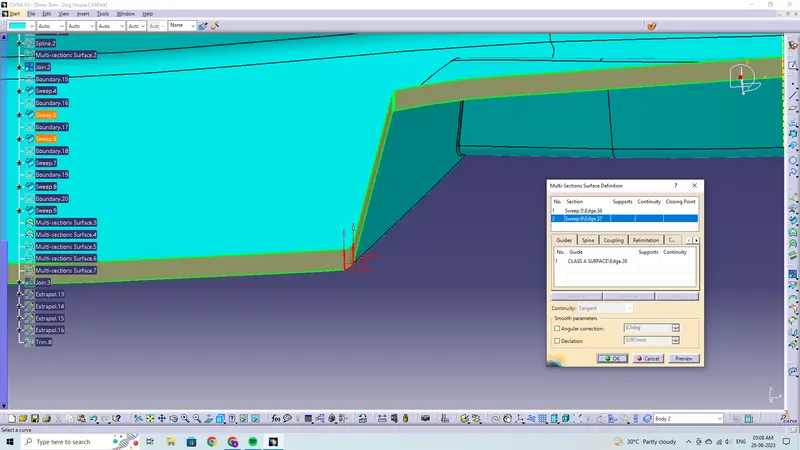

Likewise do the same on the other side and then join the patches.

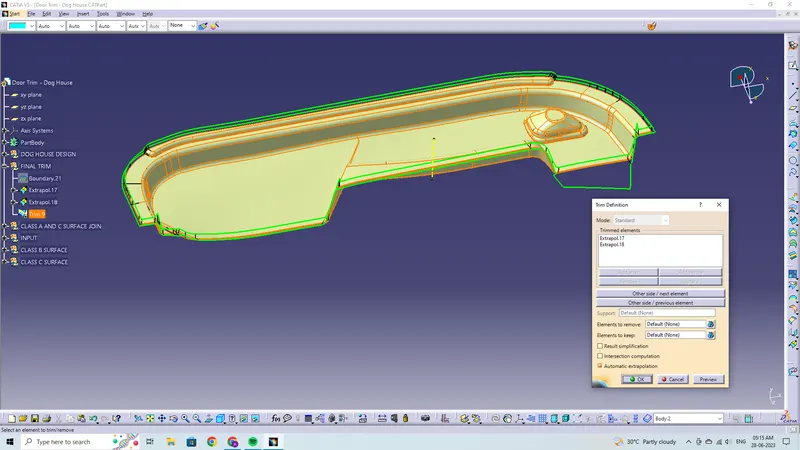

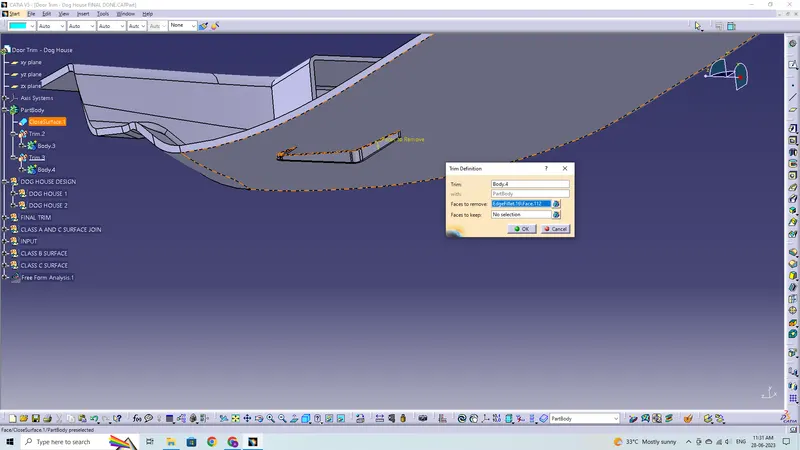

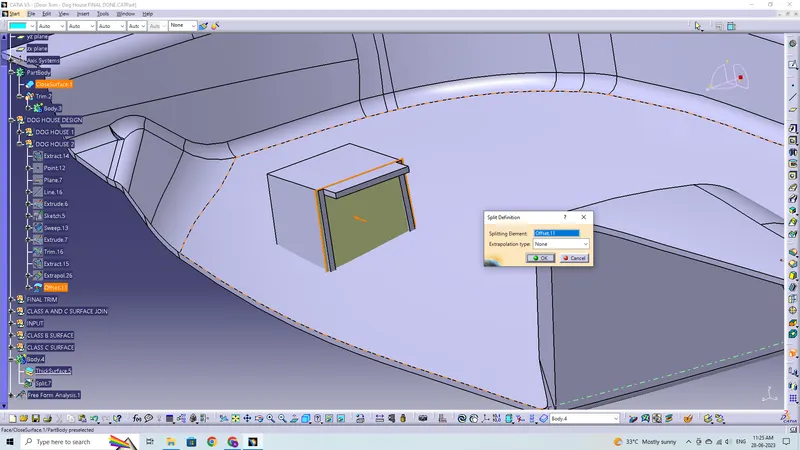

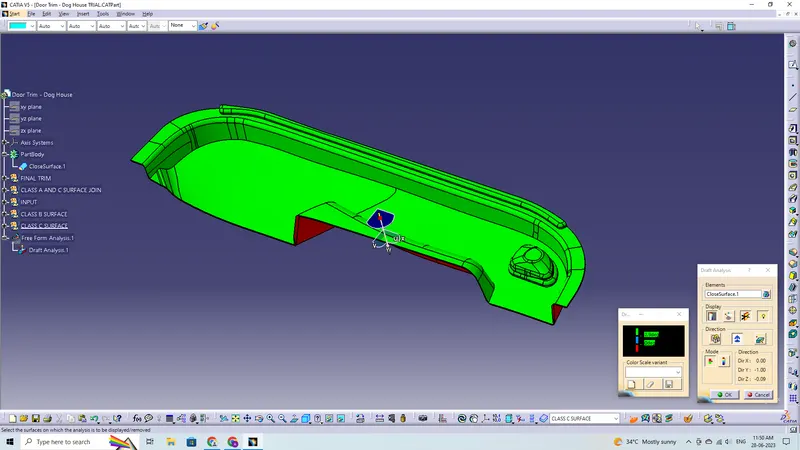

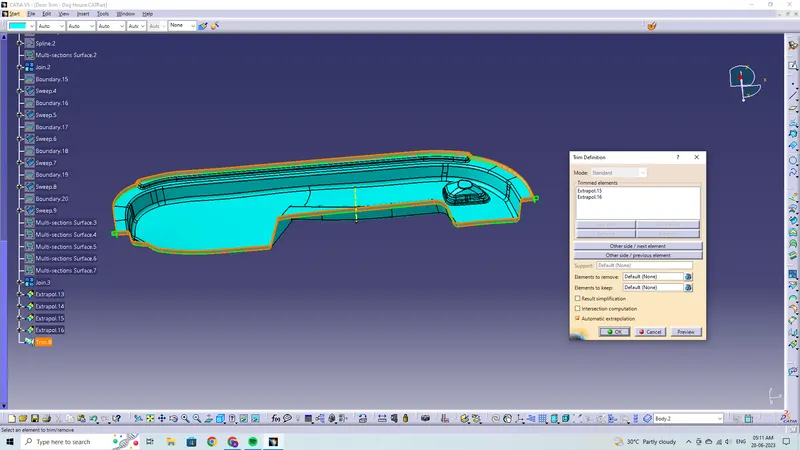

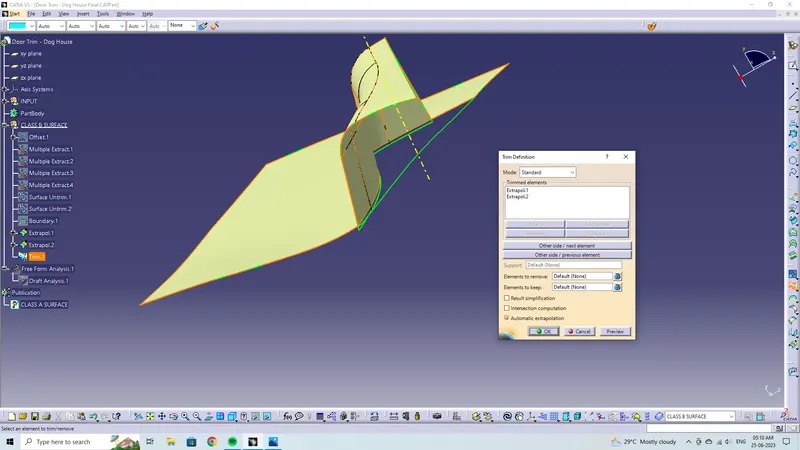

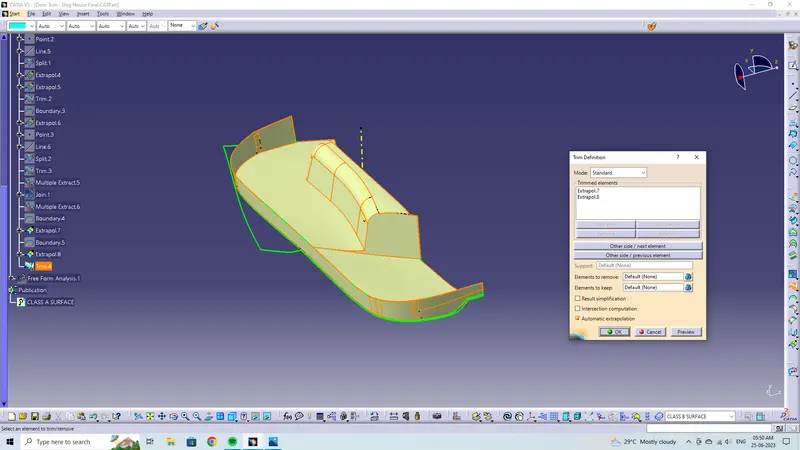

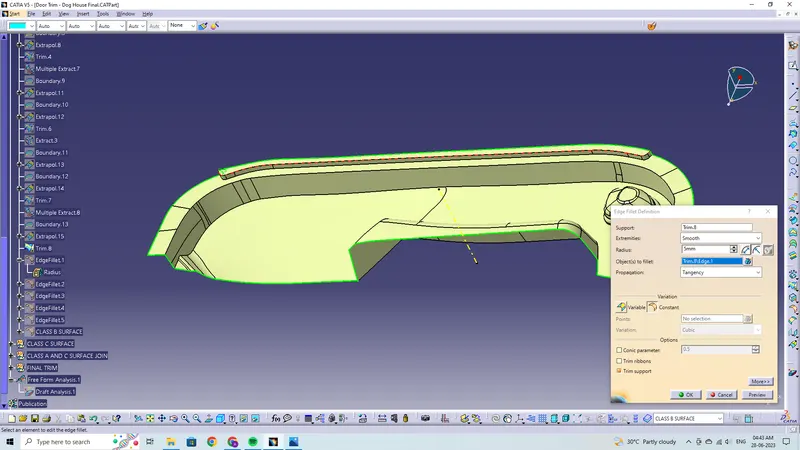

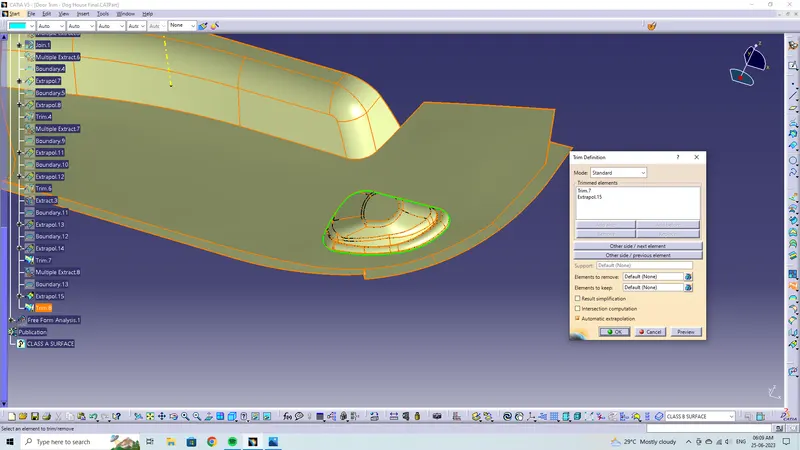

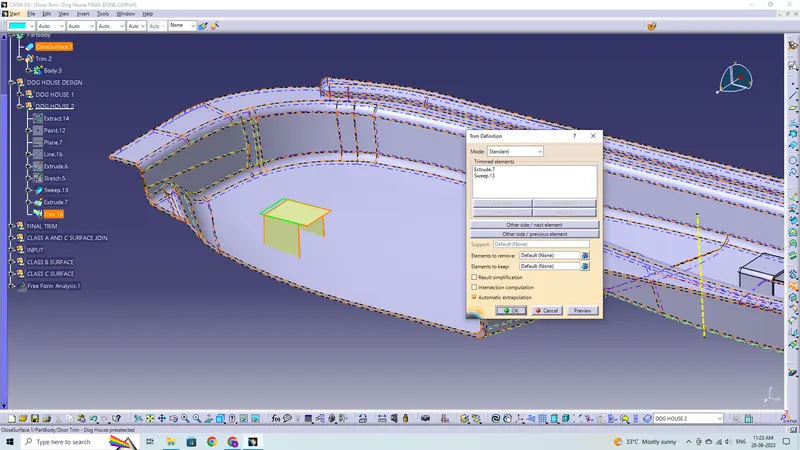

Trimming the extra surfaces from the B and 'A and C Surfaces Join' will generate a closed surface, which will then be used to make a solid model using the Closed surface option.

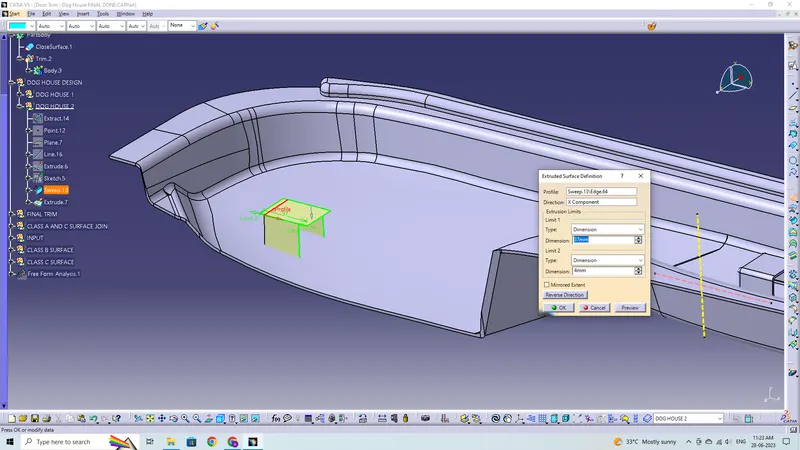

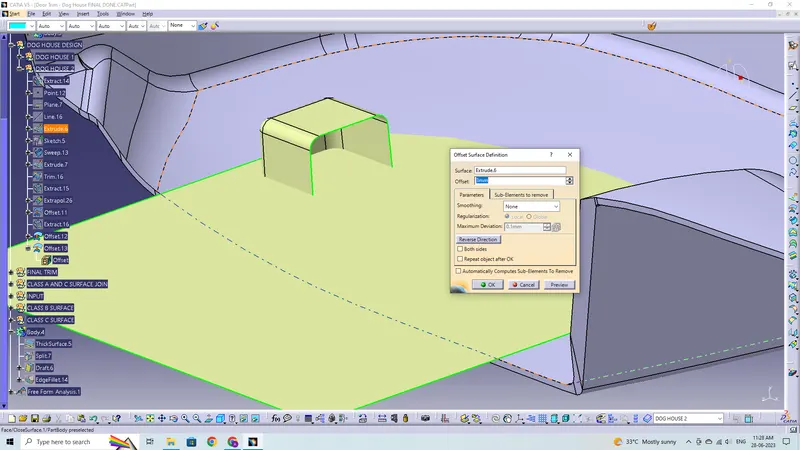

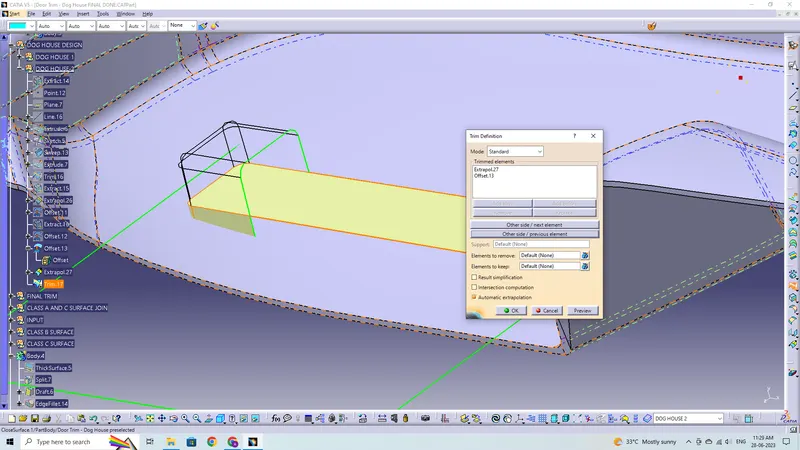

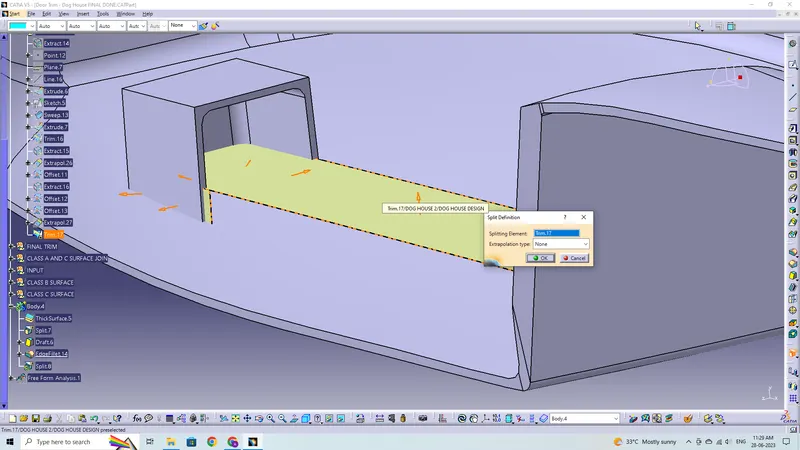

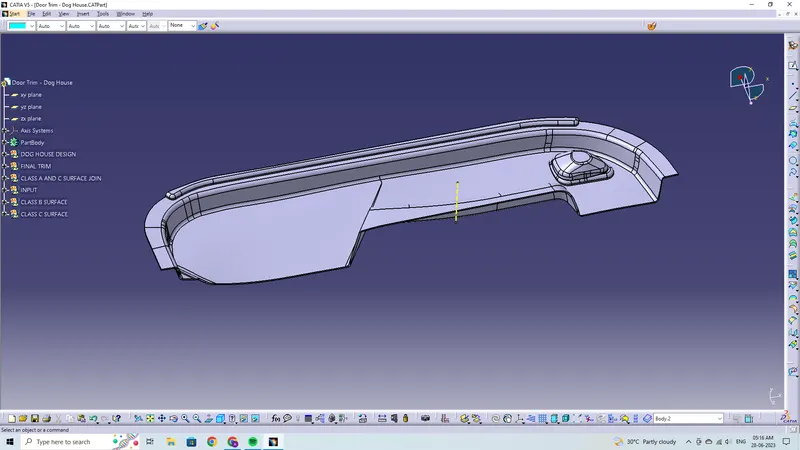

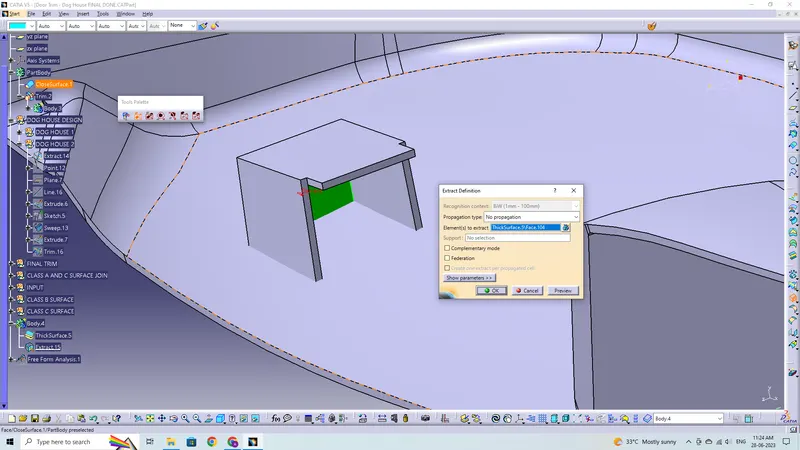

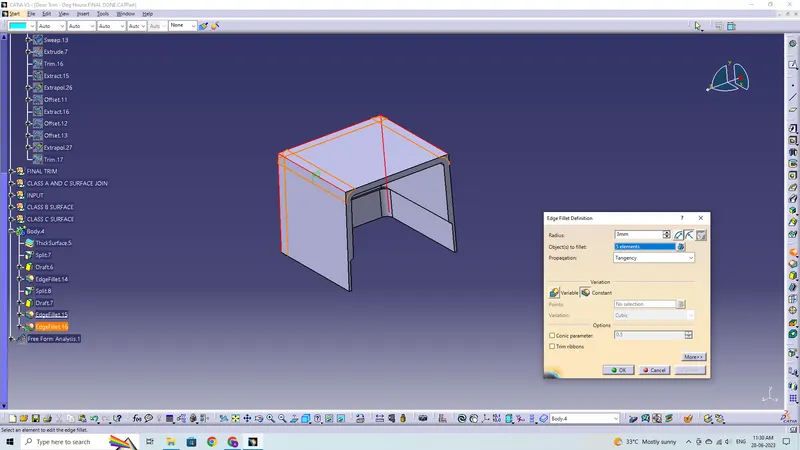

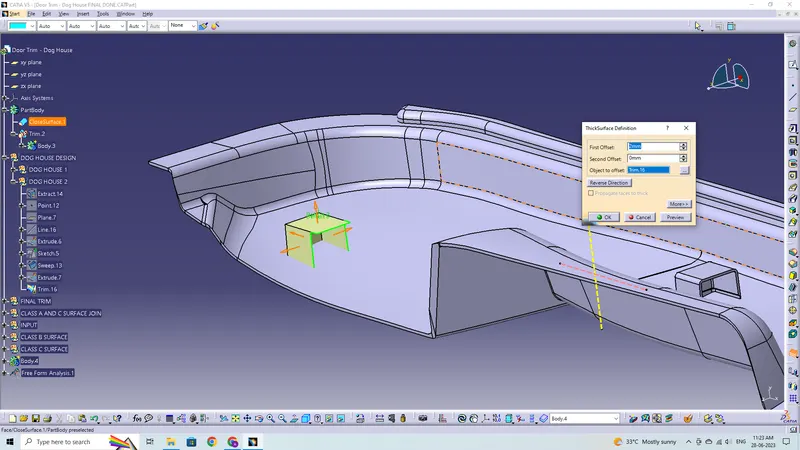

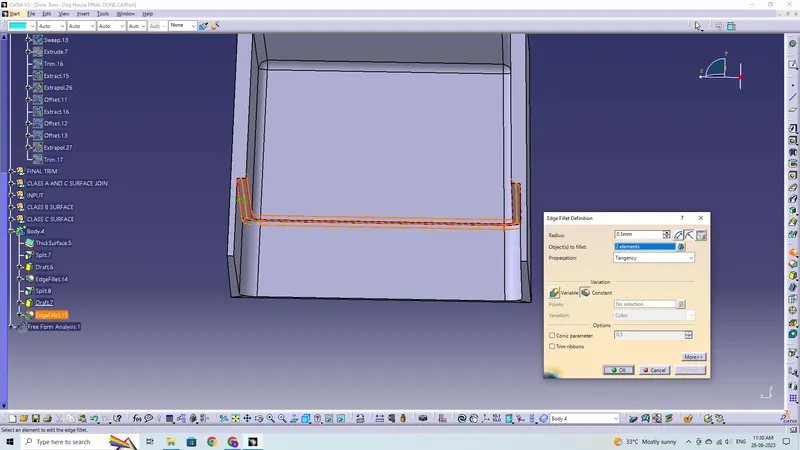

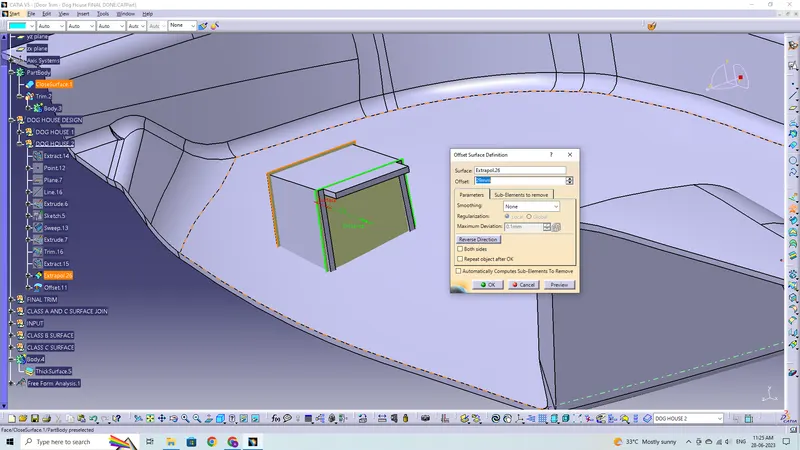

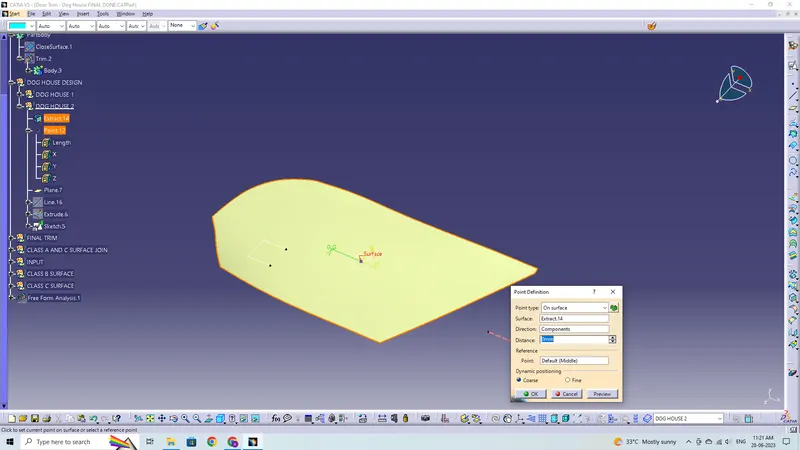

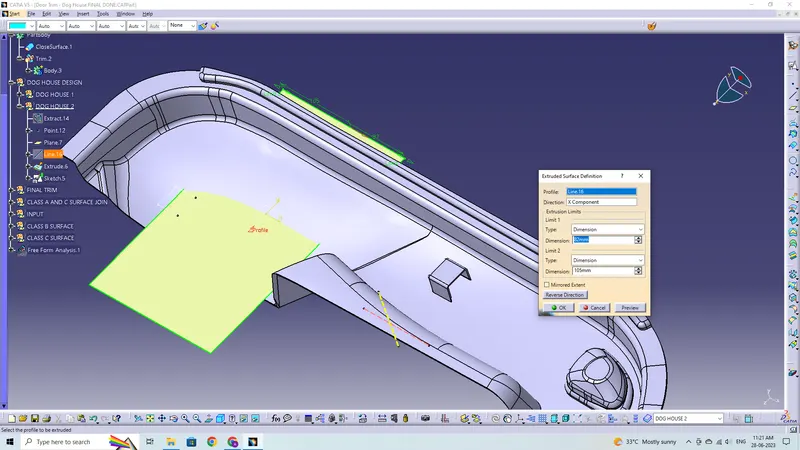

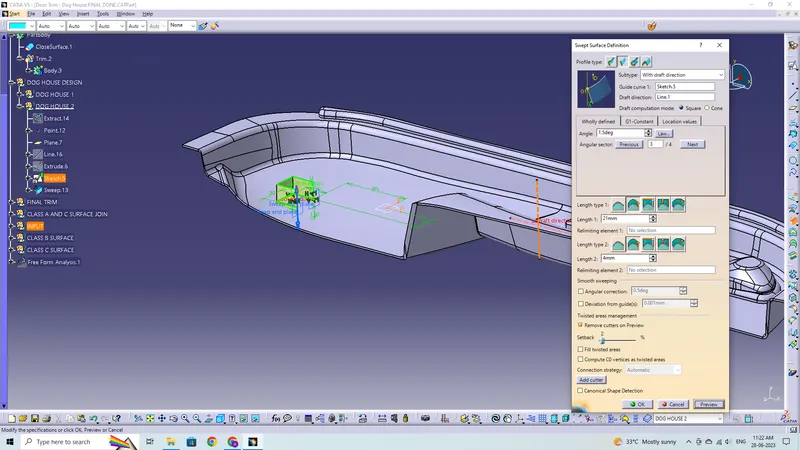

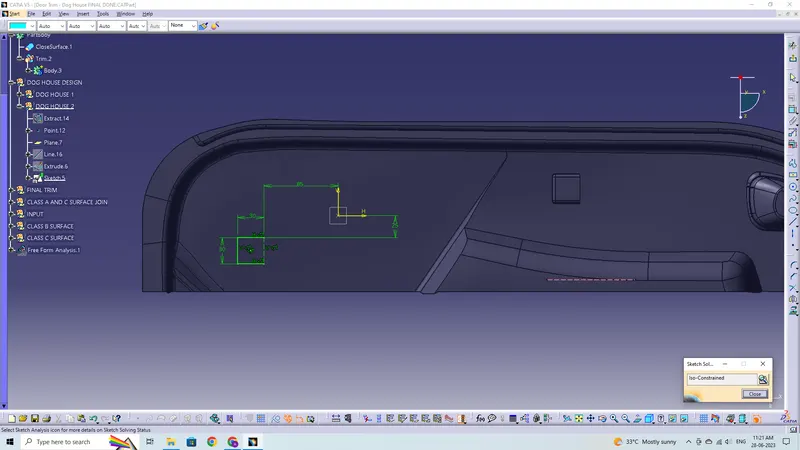

DOG HOUSE:

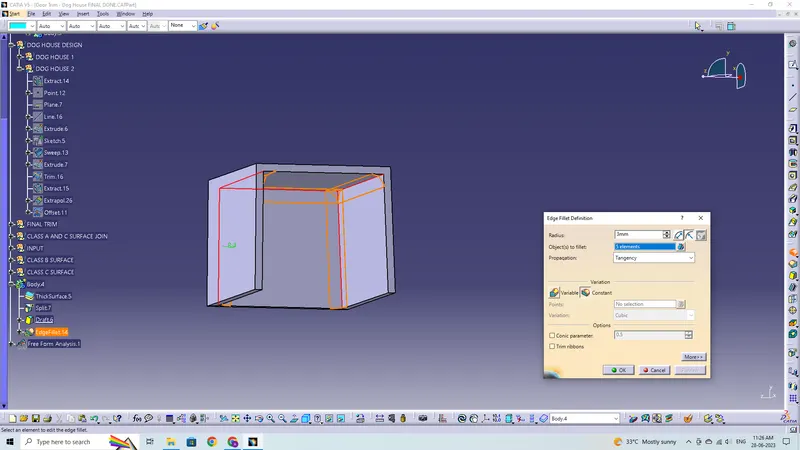

Likewise do the same for the other Dog House Design.
Draft Analysis for Plastic Component:

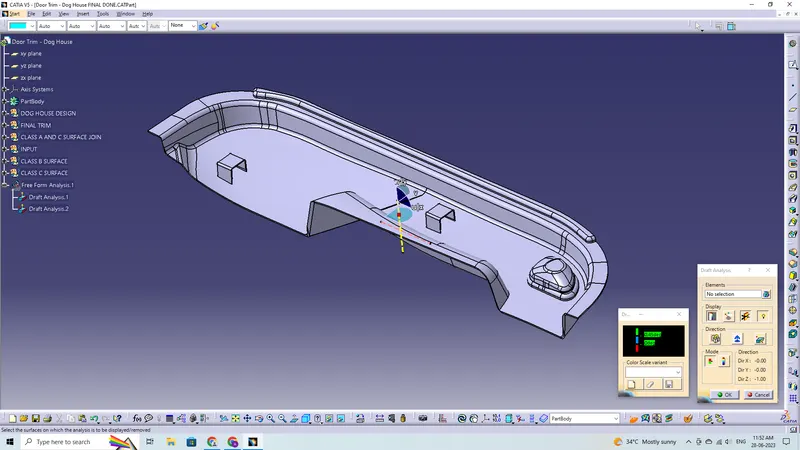

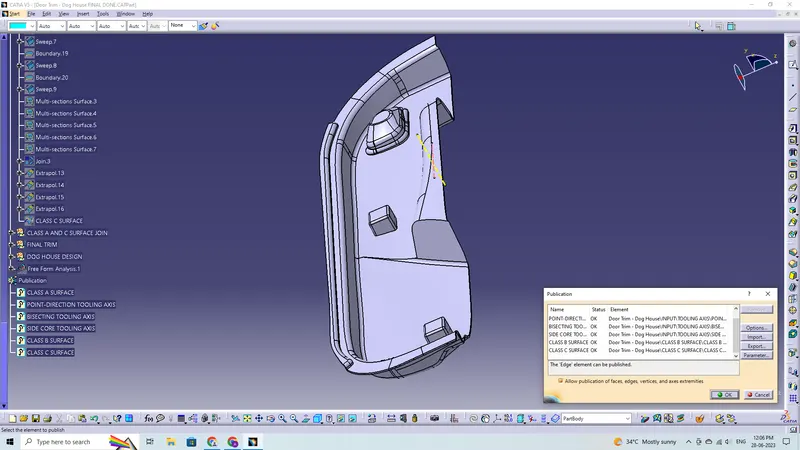

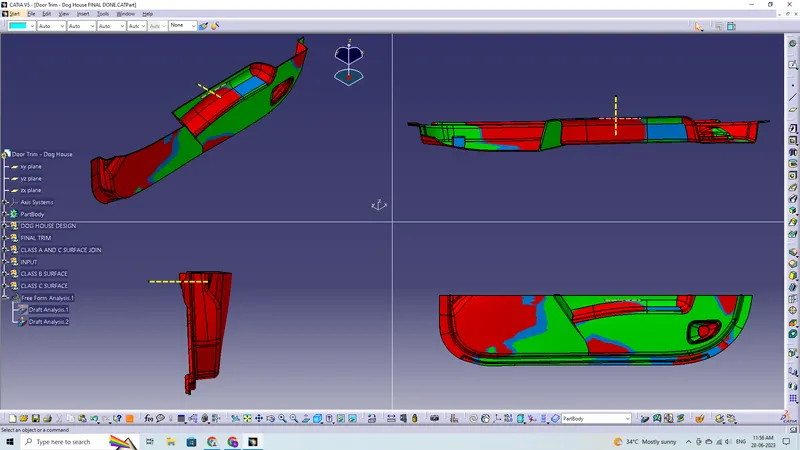

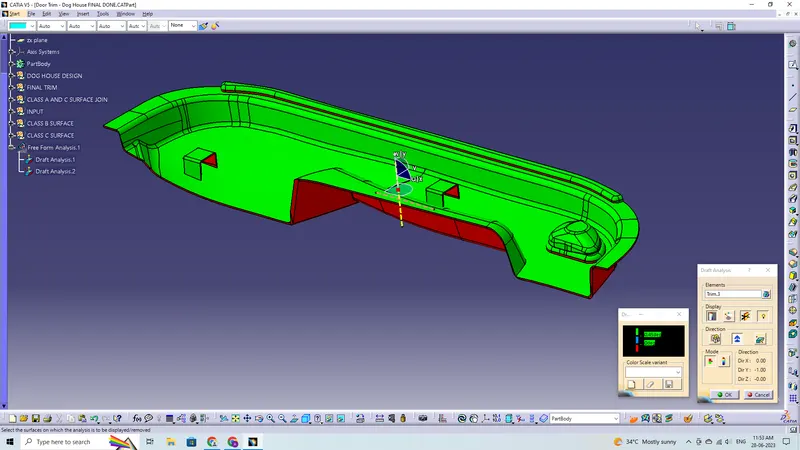

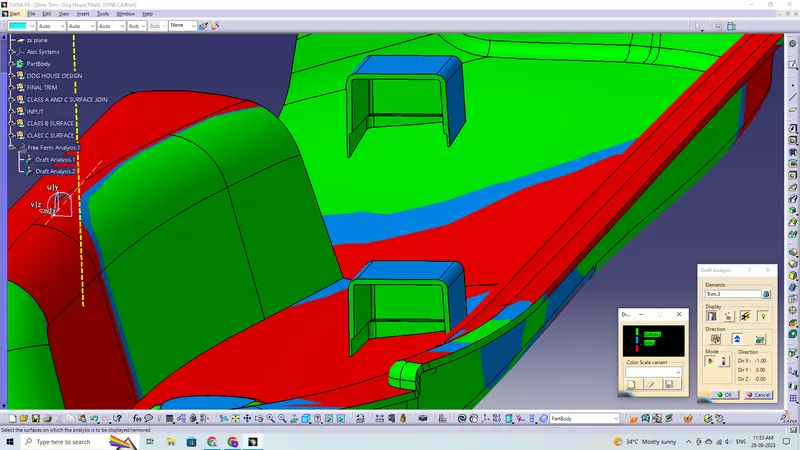

Draft Analysis for Plastic Component with Dog House:

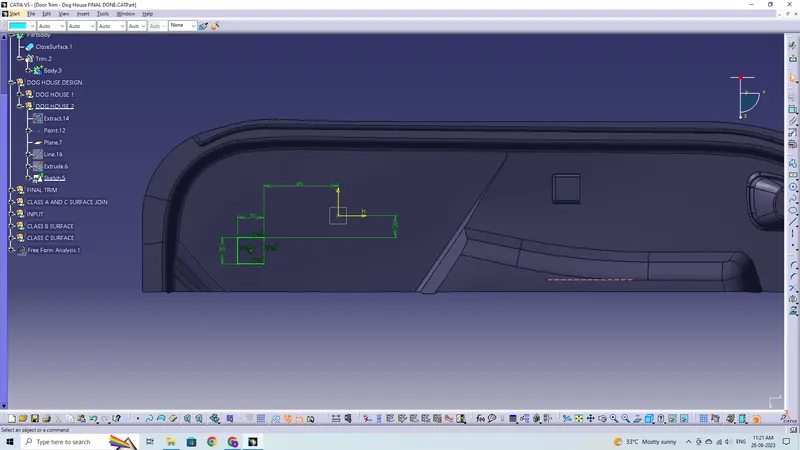

Tree Structure for the Geometrical Sets
Tree Structure for the Part Body
Publication:
Publication is used to easily access and view of the published components

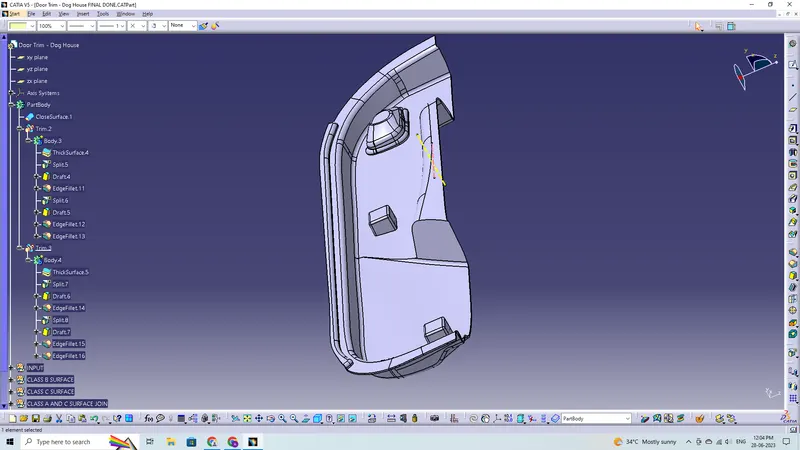

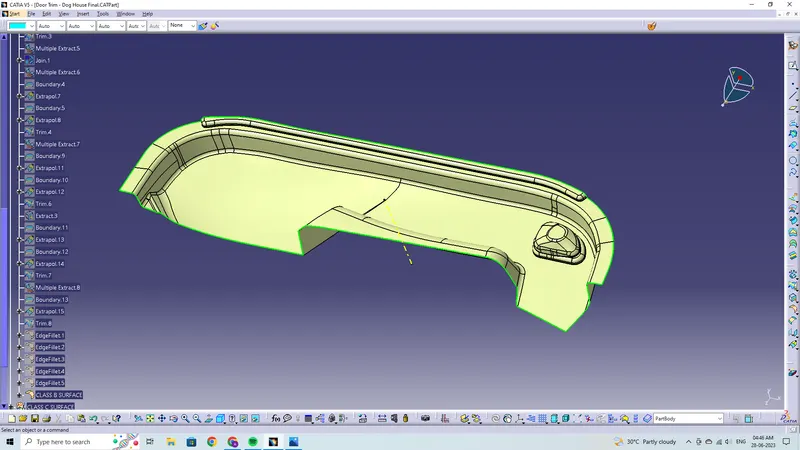

3D Part model in various orientations
