Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

Attachment Feature Creation (Dog House)

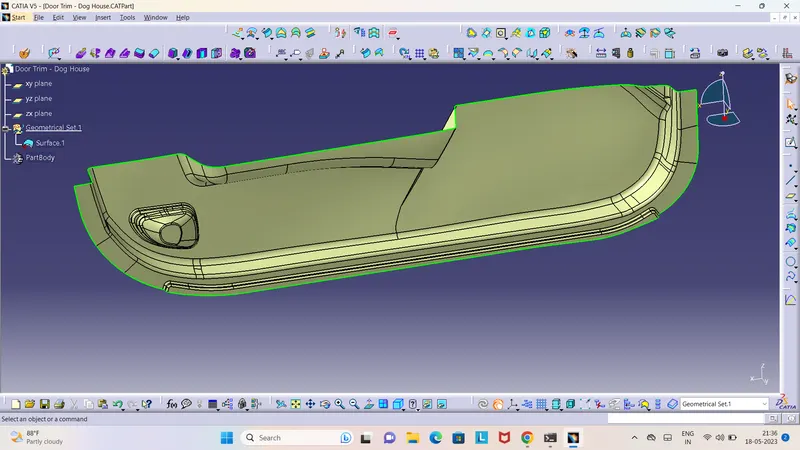

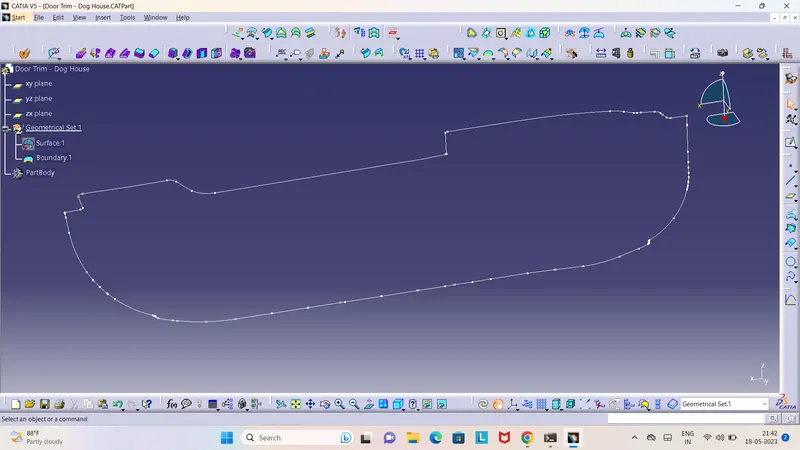

1. Given Class A Surface

Check for gaps between surfaces for that click on join and then preview.

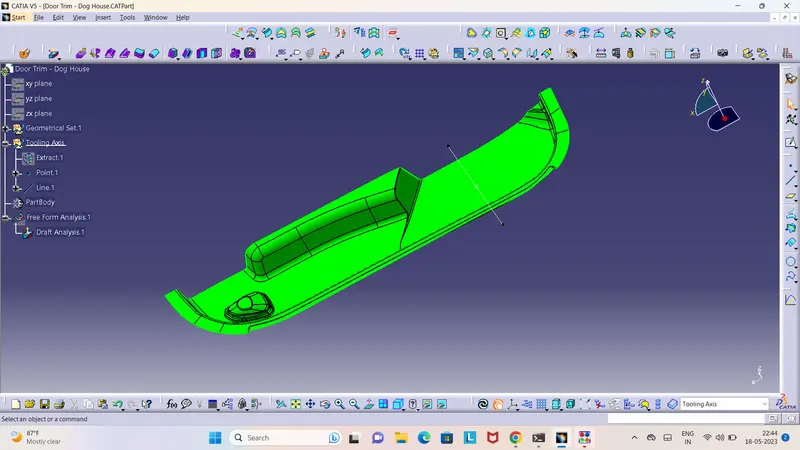

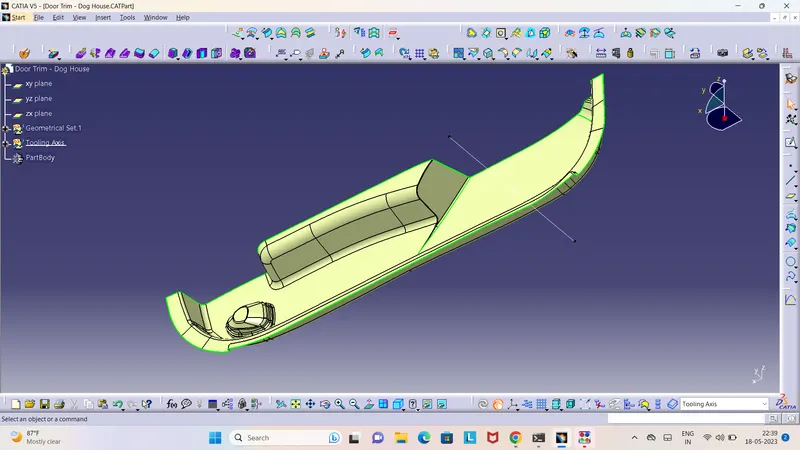

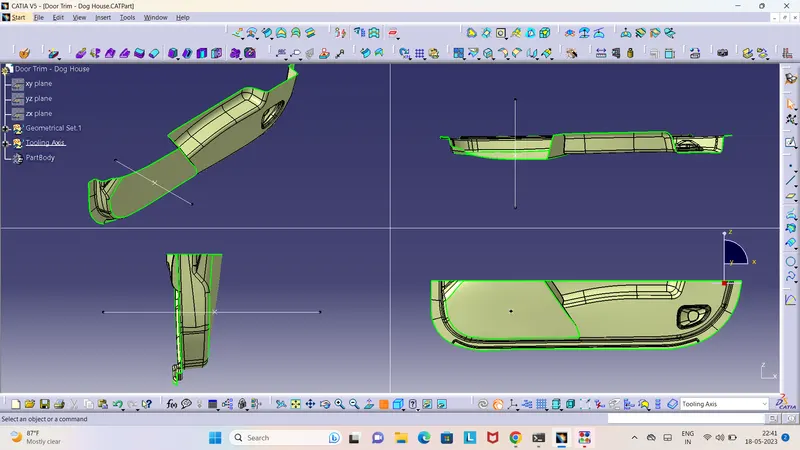

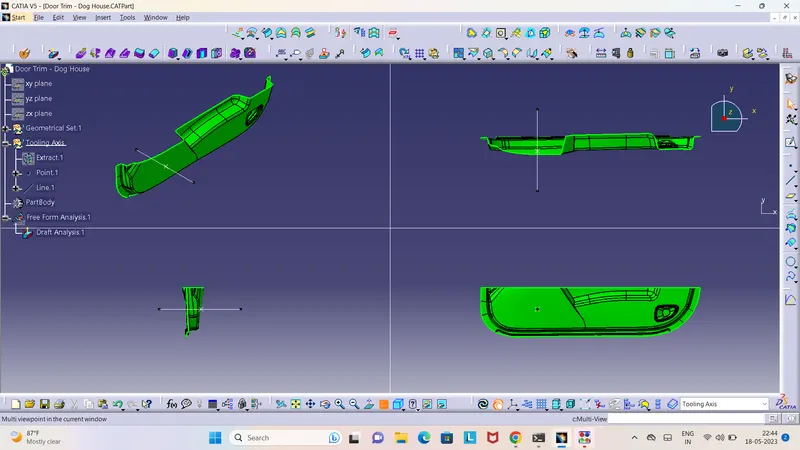

2. CREATING A TOOLING AXIS

The tooling axis is created for the component by bisecting two axis from the x and y planes.

3. DRAFT ANALYSIS

The draft analysis is complete.

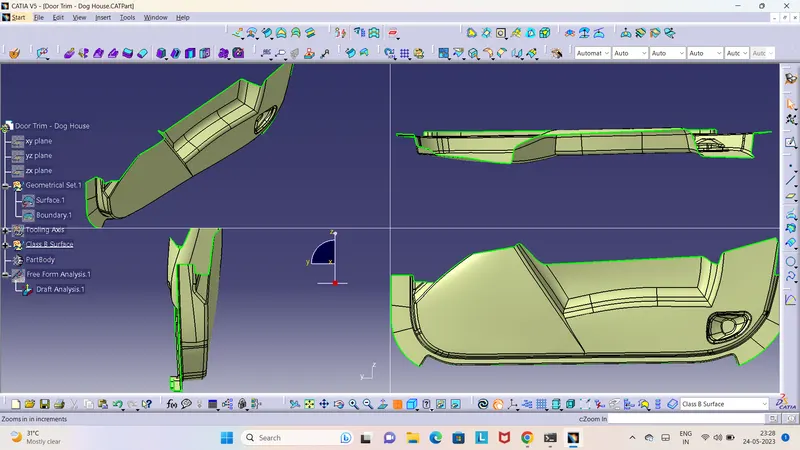

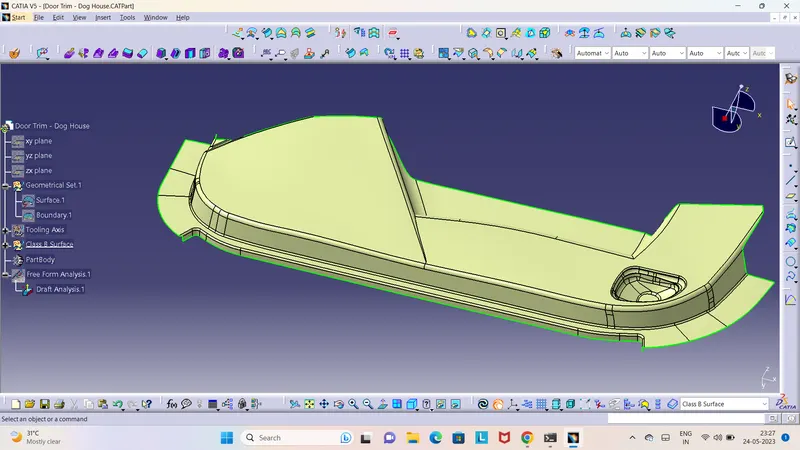

4. CREATING CLASS B SURFACE

By using the Class A surface Created the Class B surface

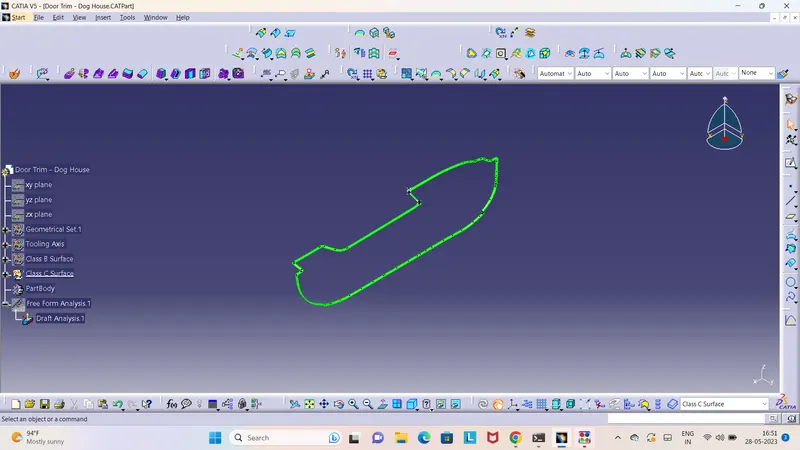

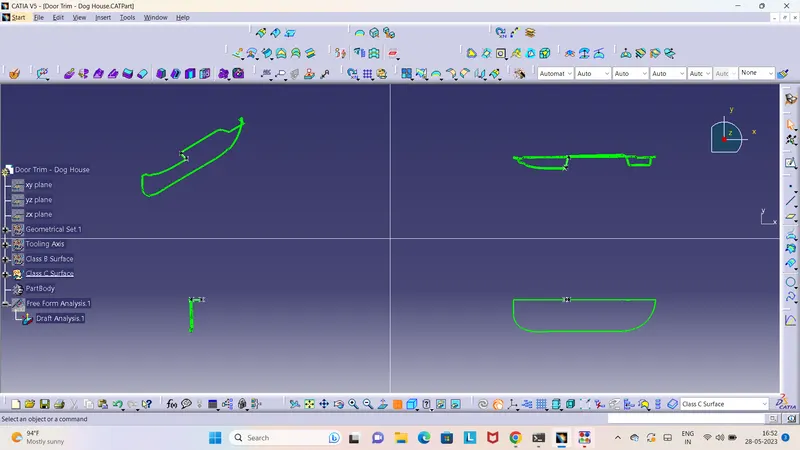

5. CREATING CLASS C SURFACE

By using the Class A surface Created the Class C surface Using the Tooling axis

6. Joining Class A Surface with CLASS C SURFACE

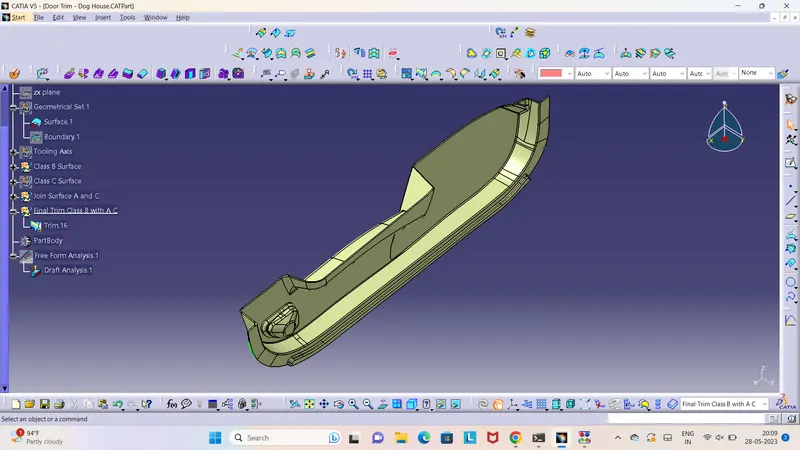

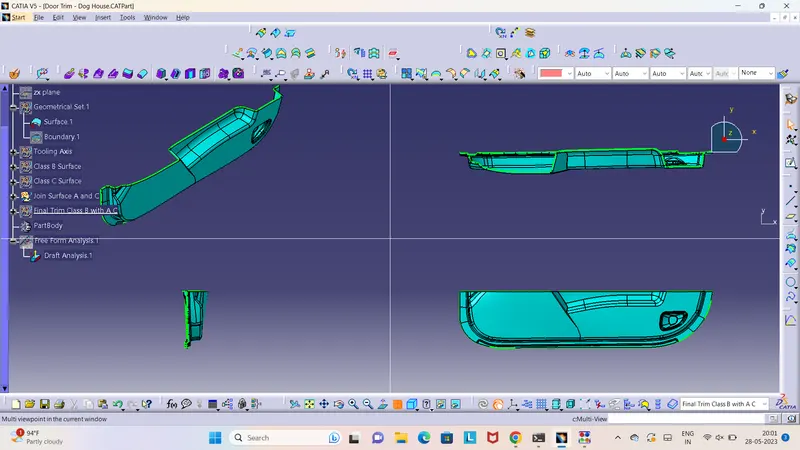

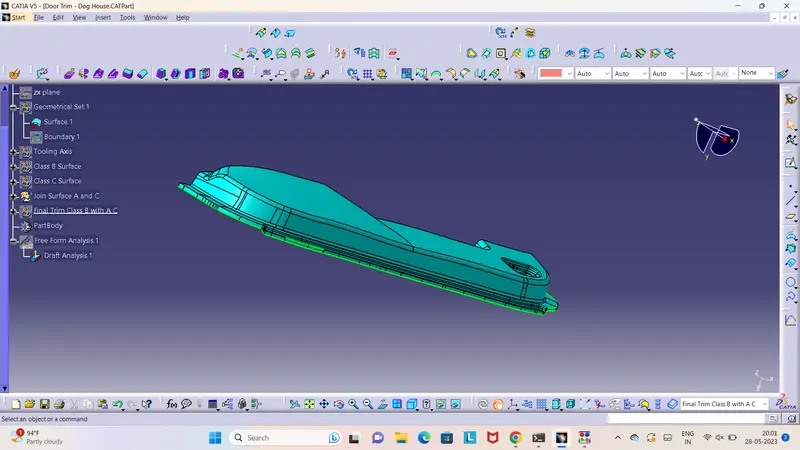

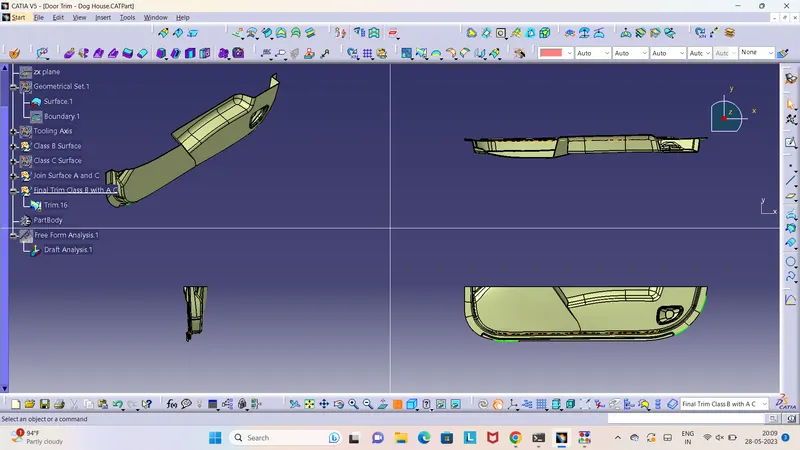

7. Final Trim of Class B with Class A and C

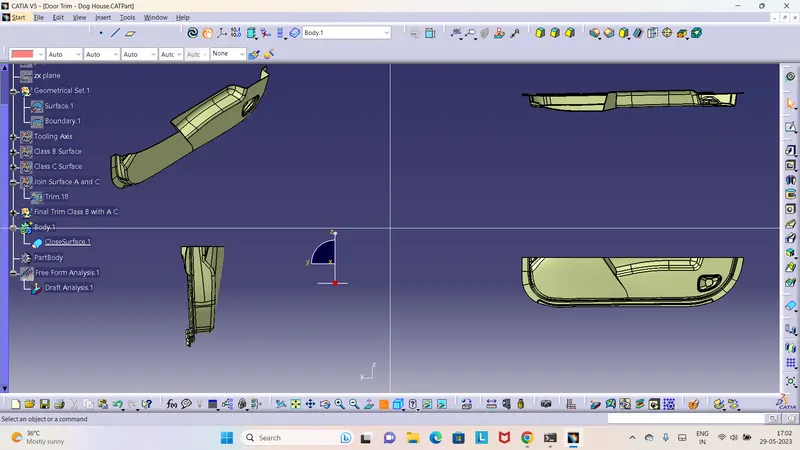

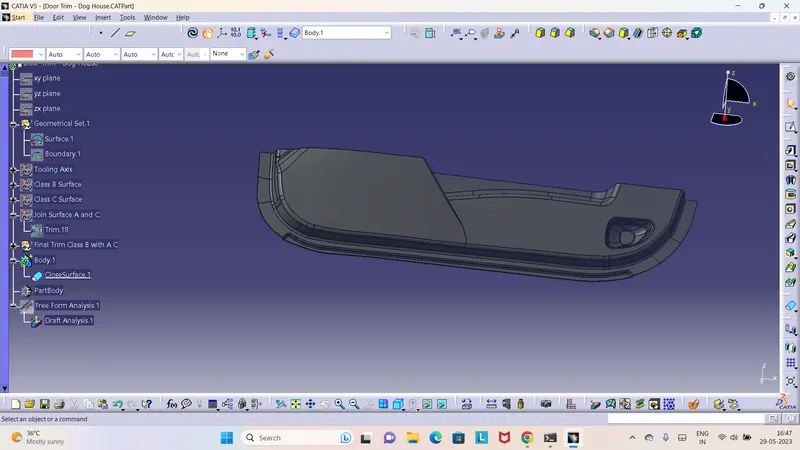

8. Given Closed Surface to the component door trim

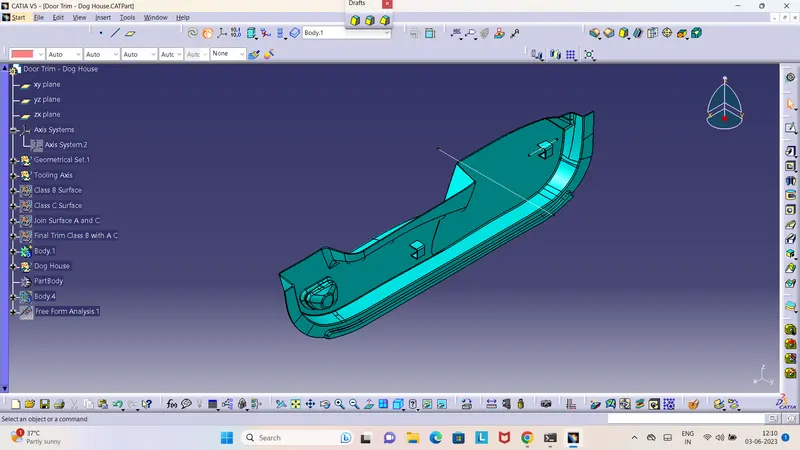

9. Creating a Dog House for the given door trim element

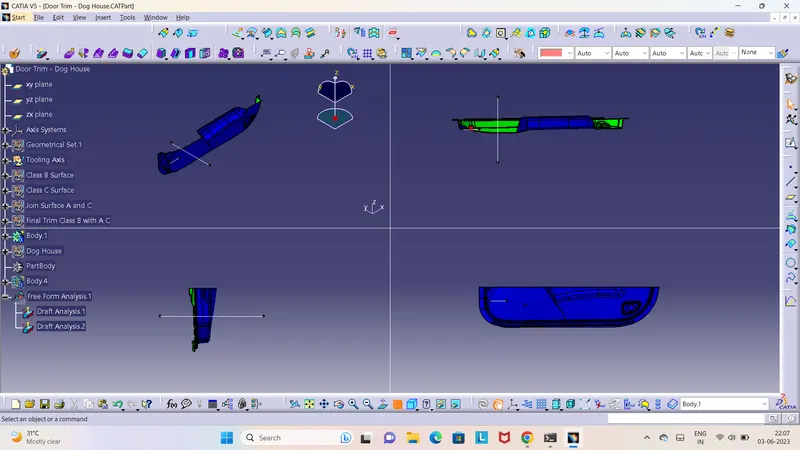

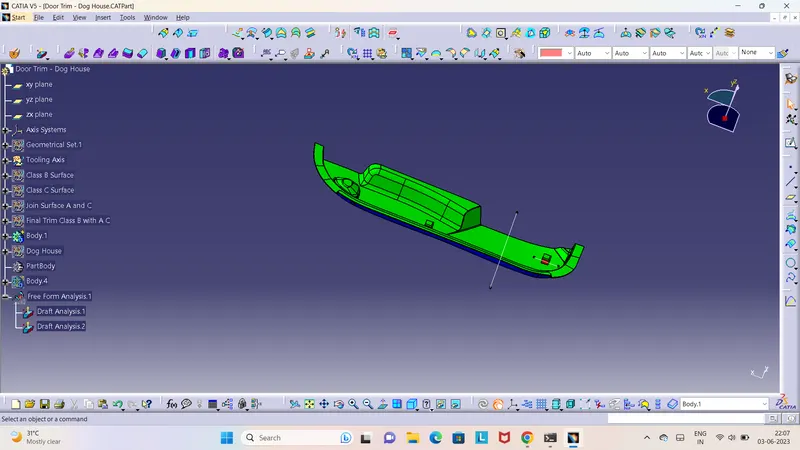

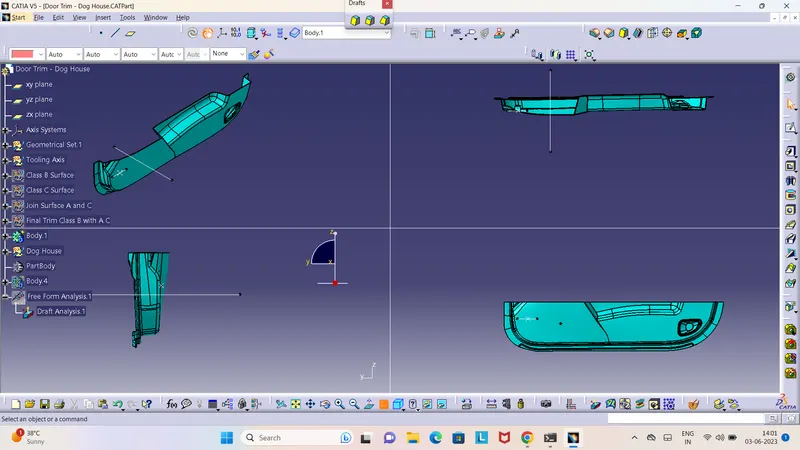

10. FINAL DRAFT ANALYSIS
