Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

STEPS:

• CREATE CLOSE BODY OF GIVEN DOOR TRIM PART
• BY OFFSETING A SURFACE WE GET B SURFACE
• BY USING SWEEP TOOL AFTER CREATING BOUNDARY WE GET C SURFACE
• TRIM A+C SURFACE
• TRIM A+C SURFACE WITH B SURFACE
• AND IN PART BODY WORK BENCH CREATE CLOSE BODY
• CREATE DOG HOUSE AFTER ANALYSING THE DATAS

• EXTRAXT THE SURFACE WHERE WE NEEDED TO CREATE DOG HOUSE

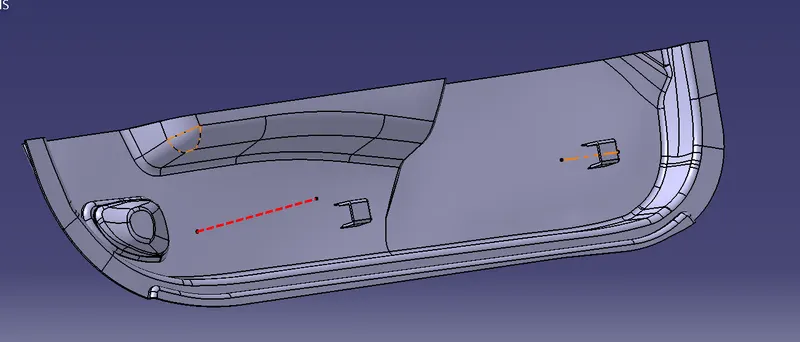

• CREATE A POINT & PLANE ON THE SURFACE
• FROM THAT POINT USE POSITIONED SKETCH AND DRAW A RECTANGLE
• EXTRUDE THE RECTANGLE AND DRAFT IT BY CREATING A DRAFT ANGLE PERPENDICULAT TO BEFORE TOOLING AXIS OR BY DRAWING A LINE FROM NEWELY CREATED POINT.

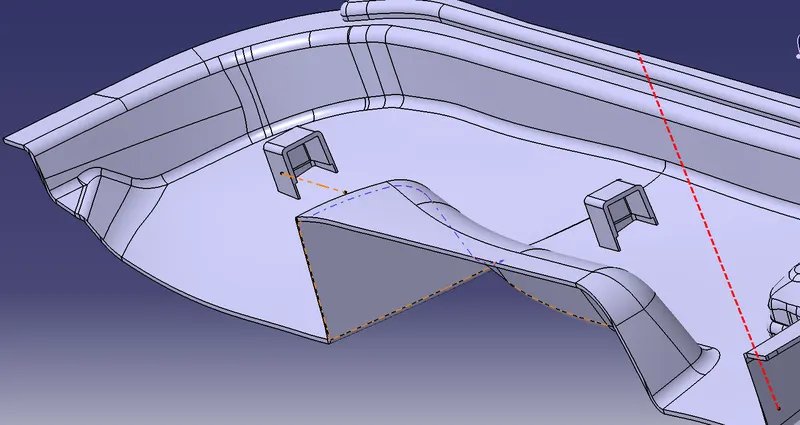

• AFTER DRAFTING USE SHELL TOOL AND REMOVE THE UNNESSORY PART.
• THEN EXTRACT AND OFFSET THE INNER WALL OF DOG HOUSE 1mm(40%).
• BY CREATING THE OFFSET OF BASE EXTRACTED SURFACE AND TRIM IT.

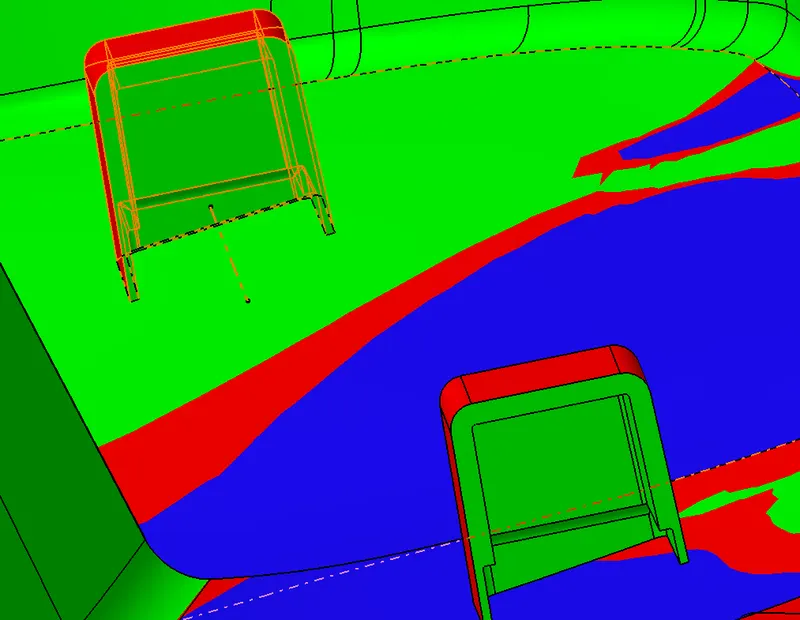

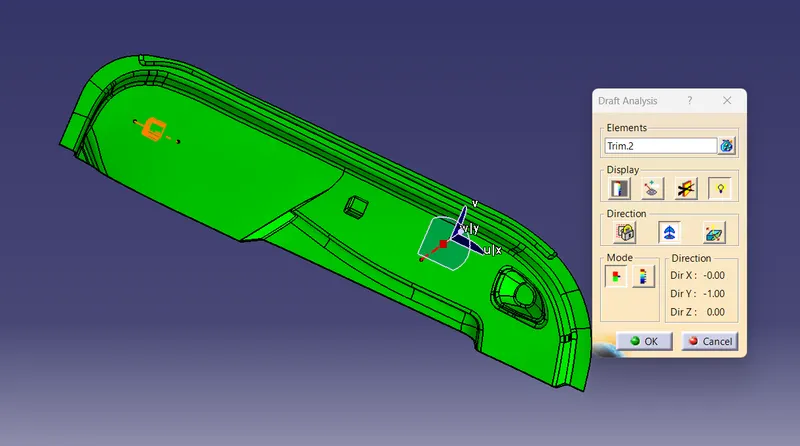

• GIVE DRAFT ANGLE BY ANALYSING DRAFT ANALYSIS.
• GIVE FILLET TO THE SHARPE EDGES.
• AFTER COMPLECTING THE DOG HOUSE USE POINT TO POINT TRANSLATE TO MOVE ANY WARE U NEED.
