Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

Tooling Axis Creation

Since entire door trim surface was completely visible while viewing it through Y axis so i have created tooling axis parallel to y axis. It is shown in yellow color in below images.

Side Core Axis Creation

Side Core axis is created perpendicular to tooling axis. It is shown in orange color in below images.

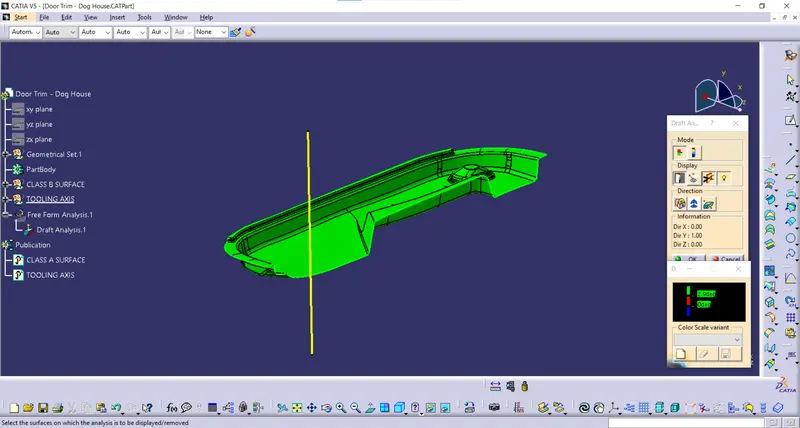

Draft Analysys on Class A Surface

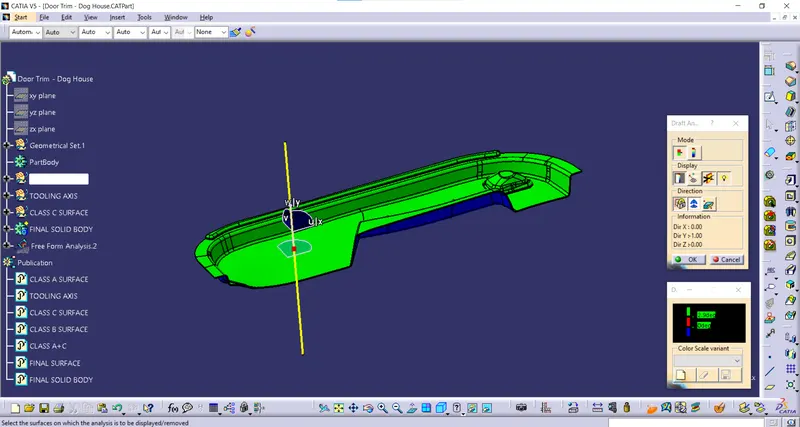

Draft analysys on final Body

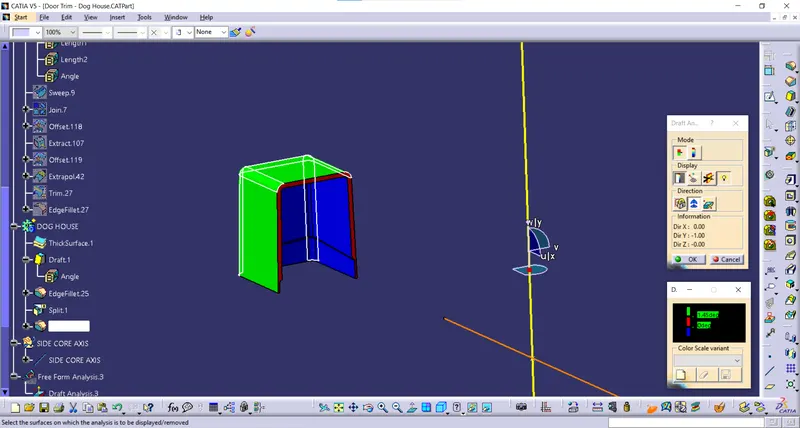

Draft Analysys on Dog House with tooling axis as reference

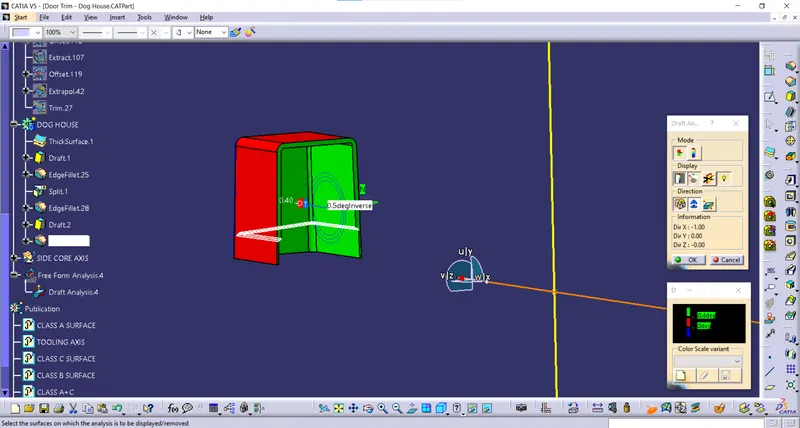

Draft Analysys on Dog House with side core axis as reference

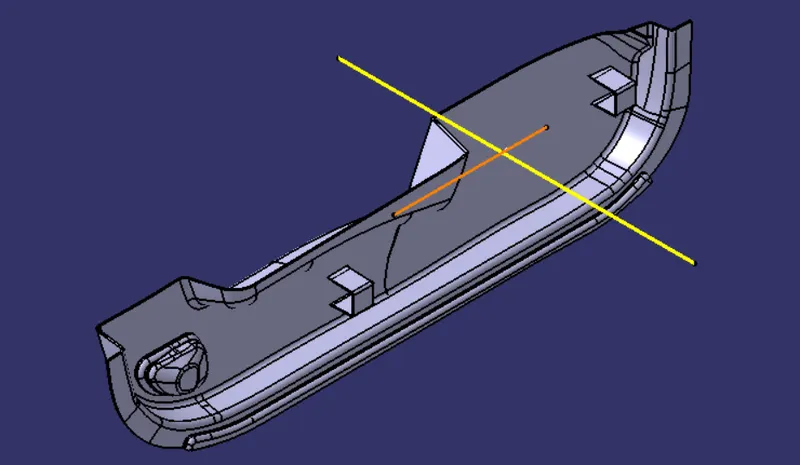

Isometric View

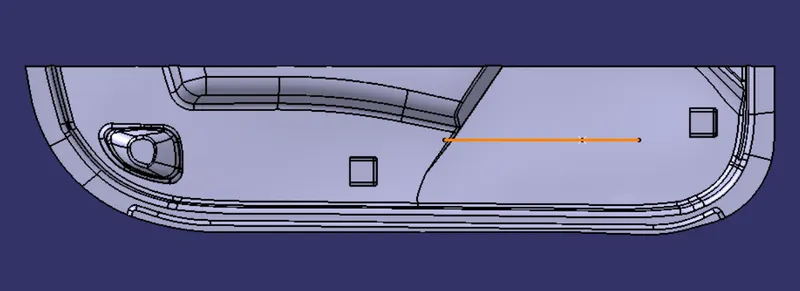

Front View

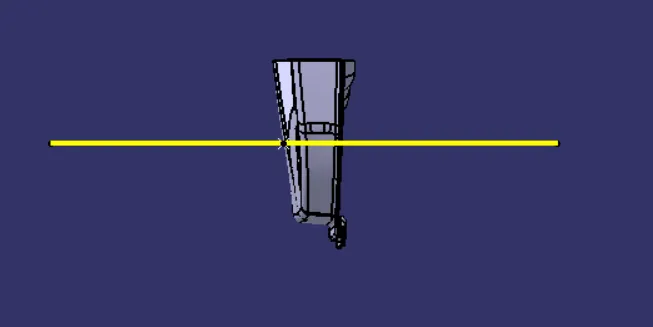

Top View

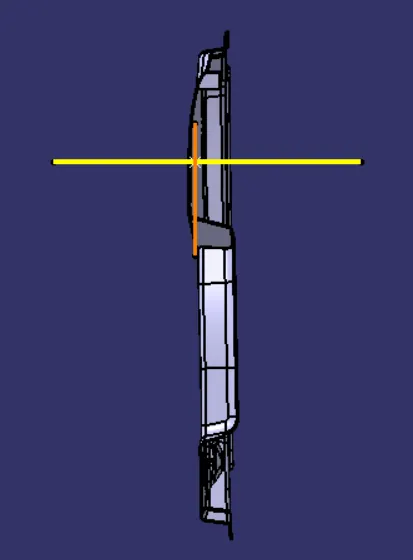

Side View
