Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

Tooling Axis Creation using Bisecting Method

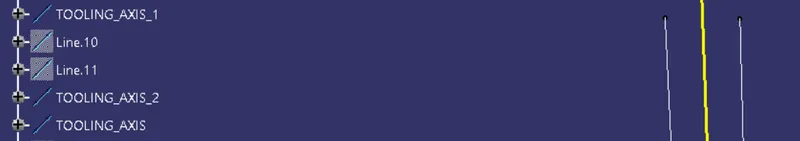

TOOLING_AXIS located on center is created by bisecting TOOLING_AXIS_1 and TOOLING_AXIS_2.

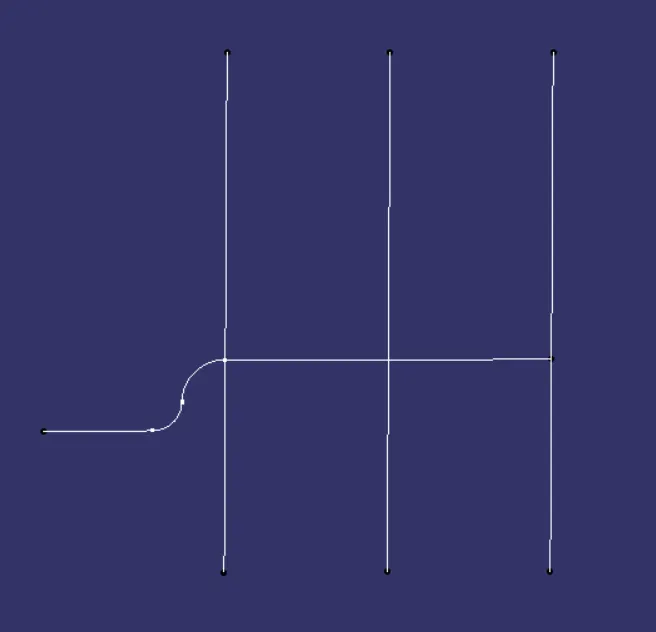

In the above image TOOLING_AXIS_1 located on left is generated by intersecting class A surface with XY plane

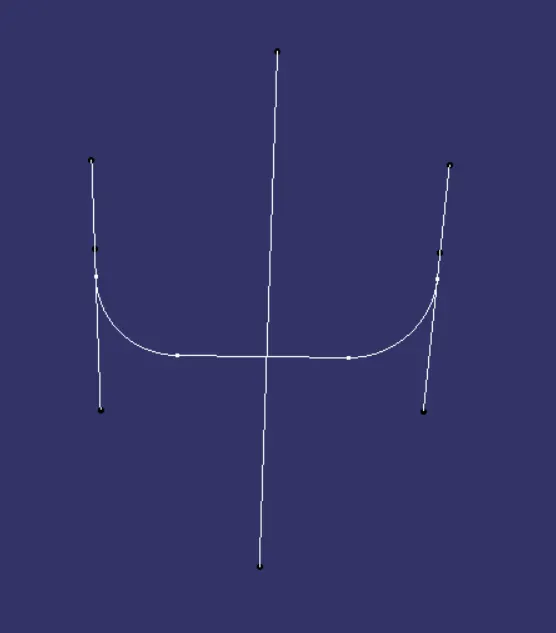

TOOLING_AXIS_2 located on right is generated by intersecting class A surface with YZ Plane.

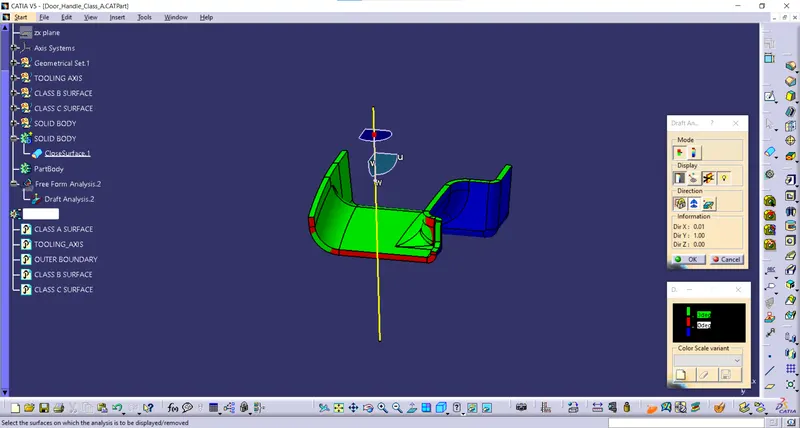

Draft Analysys on Class A Surface

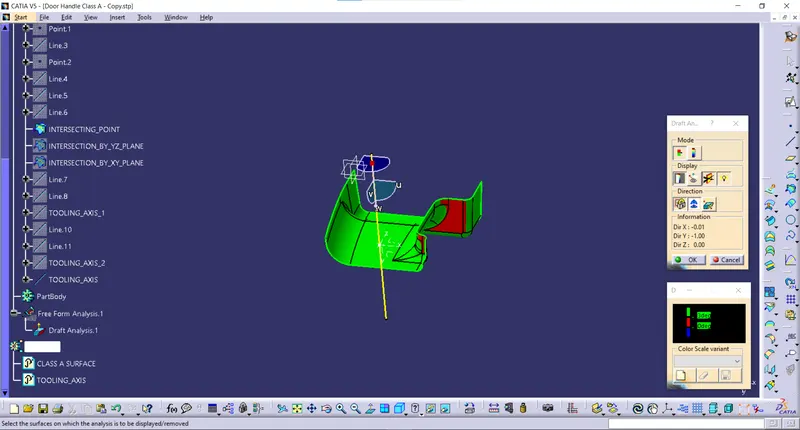

Draft Analsys on Final Body

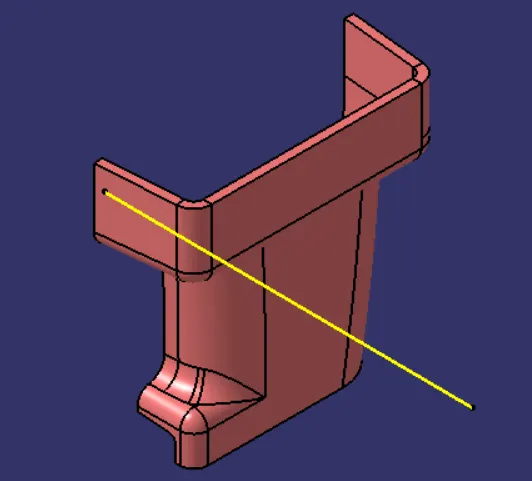

Isometric View

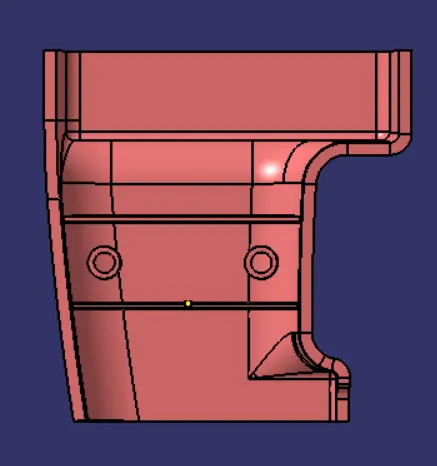

Front View

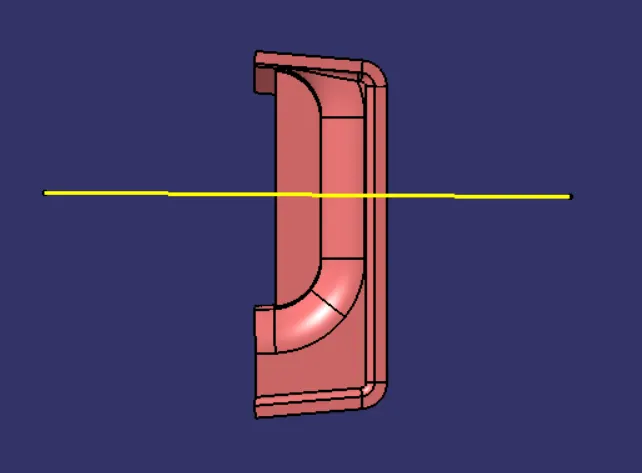

Top View

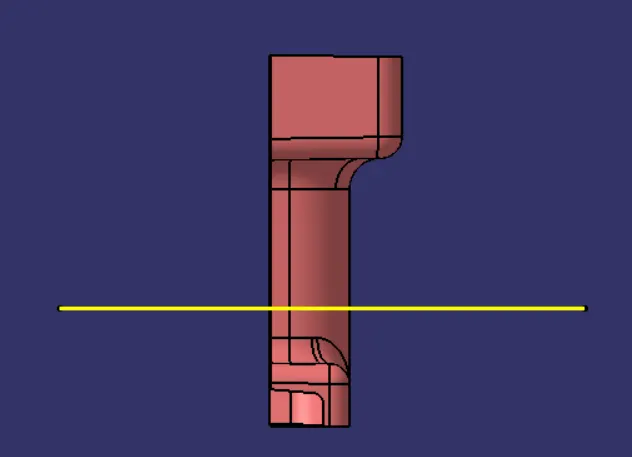

Side View
