Week 10 Challenge

Aim : Calculate the Snow Load for the proposed bridge using IS 875 part IV and Analysis using STAAD PRO

Introduction :

In this Challenge  I have to calculate the snow load using given data.
The span of bridge is 10m
Total width of Bridge is 18m

Calculation :

setteled snow load Weight = 200 - 300 kg/m3
Depth of snow = 1.25m
flat deck B < 30degree>

Snow load :  Density of snow x depth x span

                            = 3 x 1.25 x 10

                            = 37.5 kn/m

shape coefficient from IS 875 part IV

                                   u = 0.8

                     Design snow load = 0.8 x 37.5 = 30kn/m

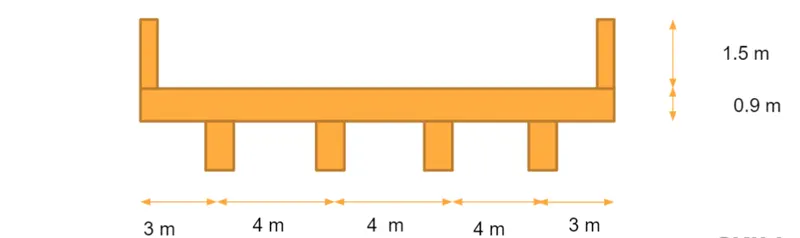

ASSUMPTIONS :

Height of pier = 5m
dia of pier = 1.5m
Girder size = 0.75m x 1.5m
Plate thickmess = 0.9m

       thickness of parapet wall= 0.050m

STAAD PRO WORK :

MODEL CREATION :

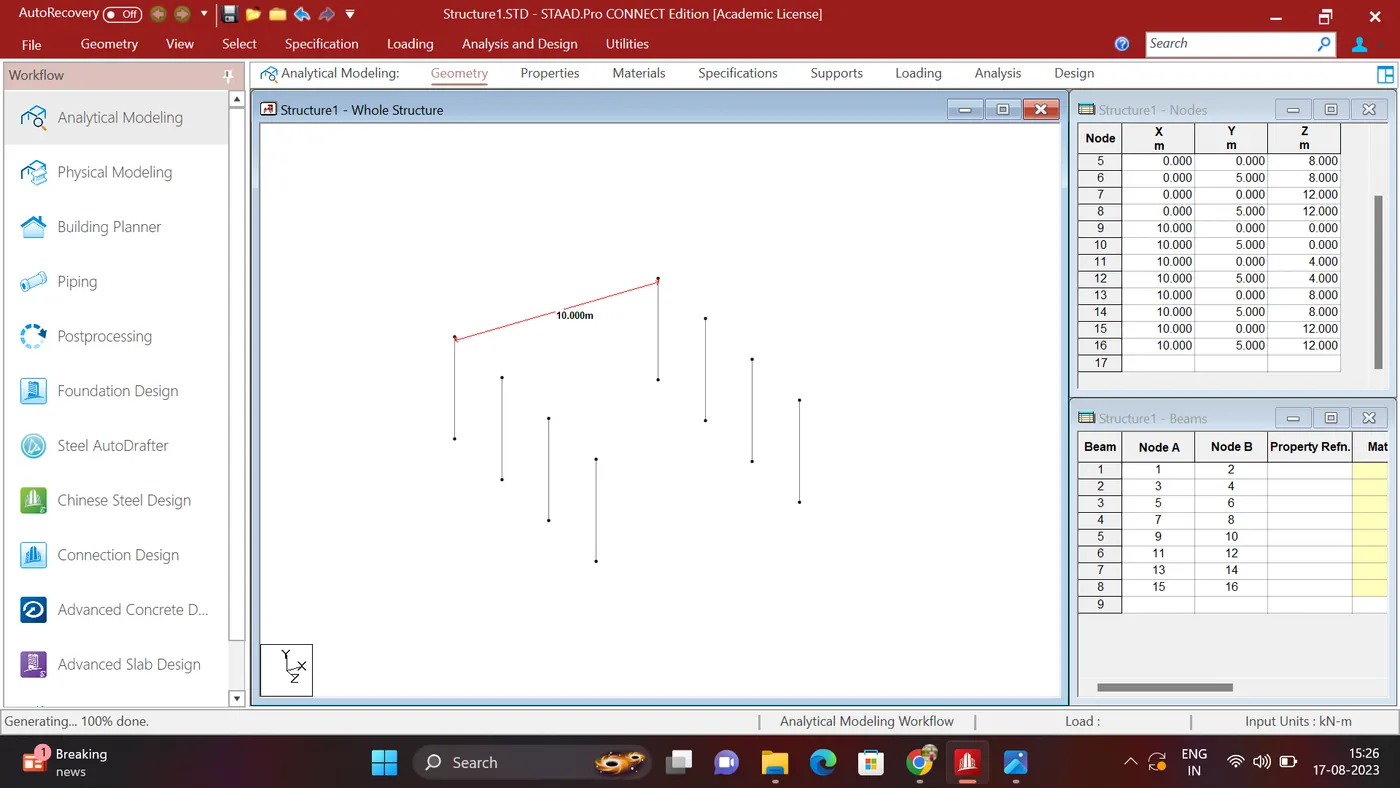

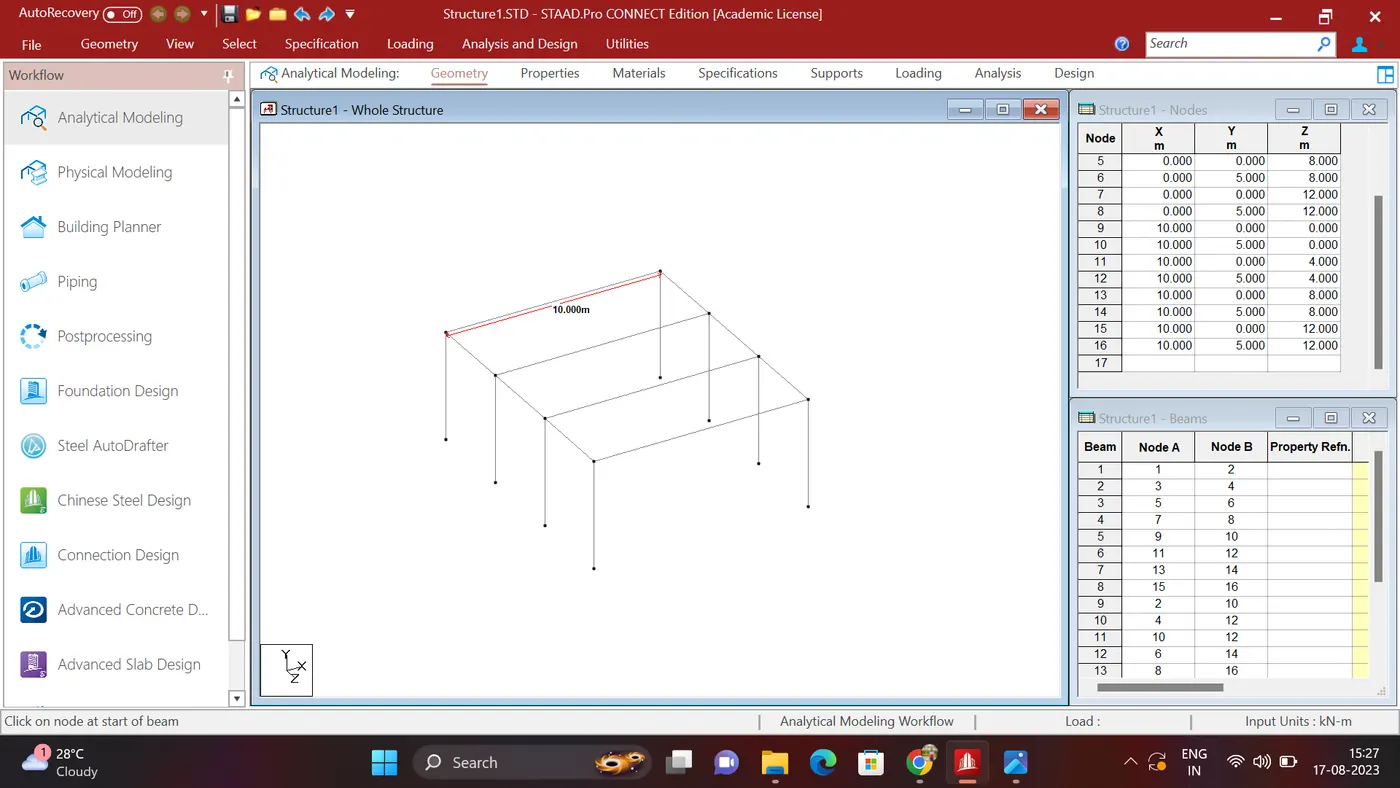

Create a node at 0,0 and the copy it at 5m below , add a beam between this two node as a column
select the beam and copy it in Z direction as a 3 steps we will get total 4no of piers
Select this 4pier and copy it in x direction at a distance of 10 m to get a span

Now we have to add a beam between those piers as amain girders and cross girders

Now we created all beam structure on staadpro

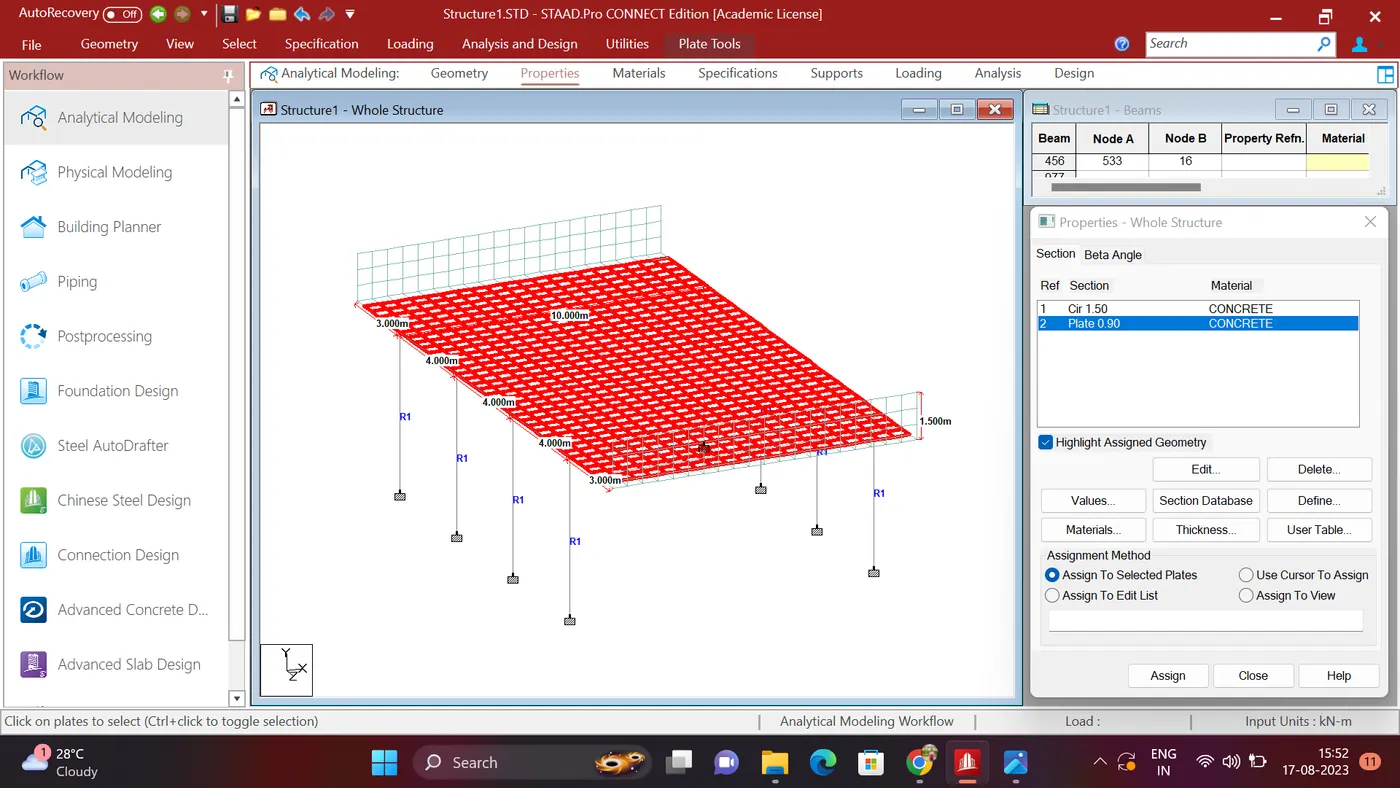

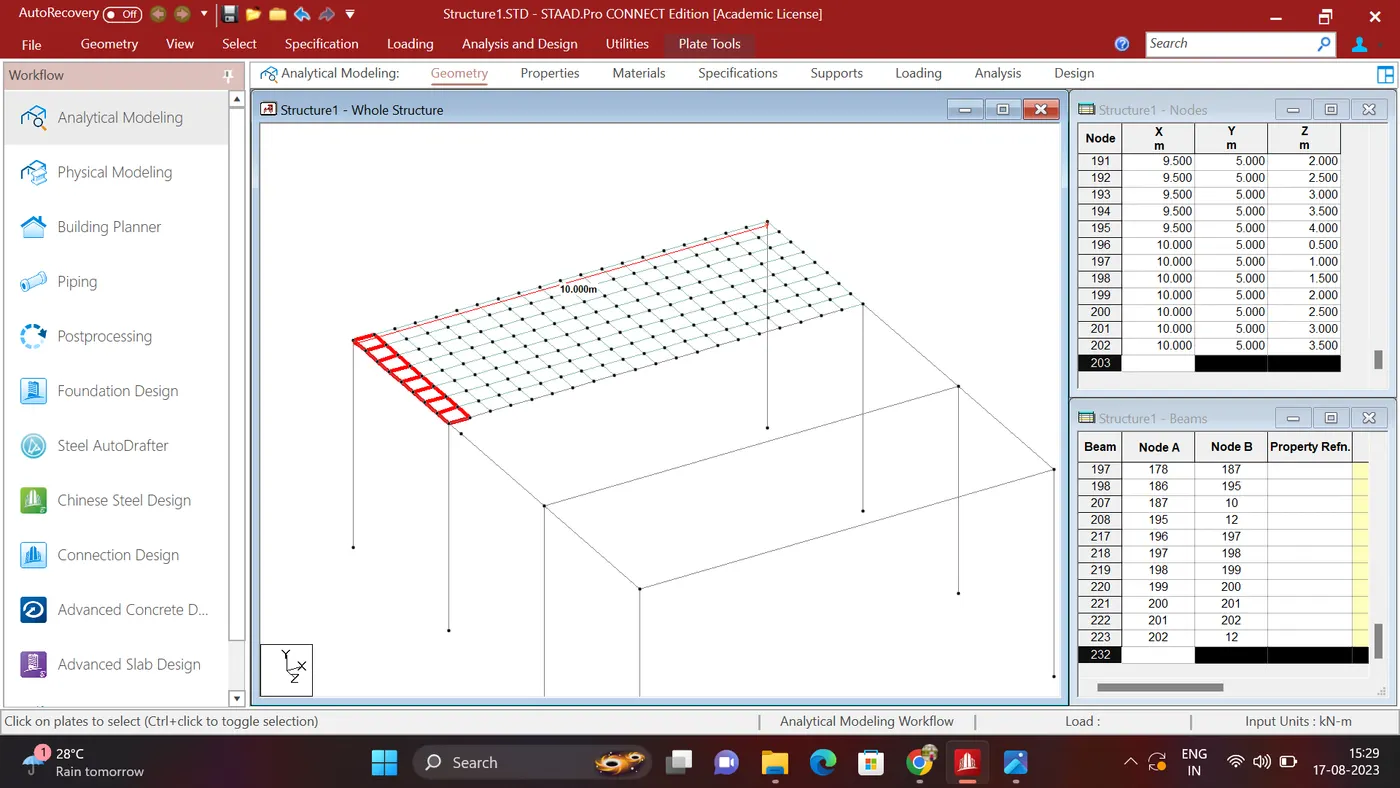

For deck slab we have to create a plate on top as a deckslab
Select the corner node and copy it in z direction and select that both and copy at x direction
add a plate between those 4 nodes and copy the plate on whole structure

Now i have to create a cantilever span of bridge and assign parapet wall on both sides
Select the corner line of plates and copy it in z direction
Create a vertical plate for the parapet wall

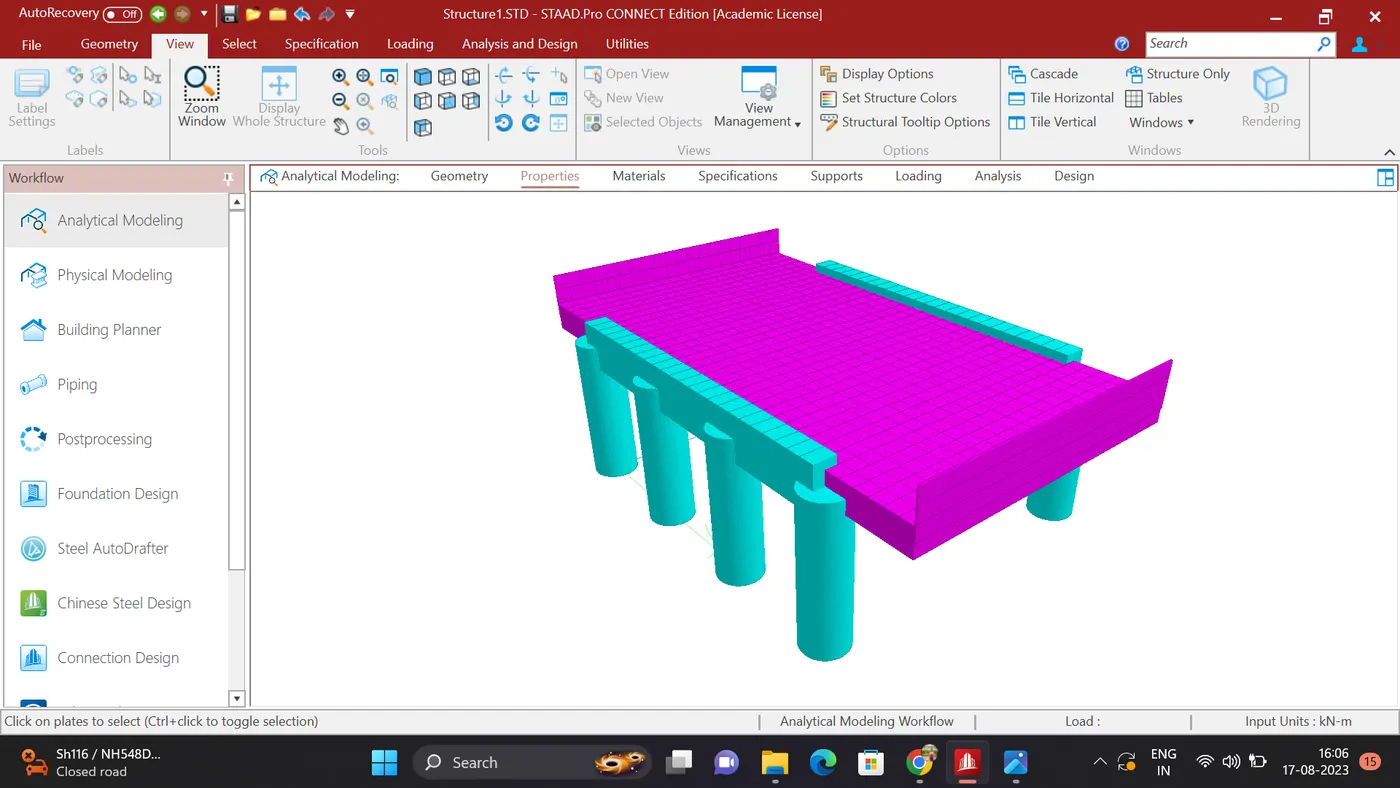

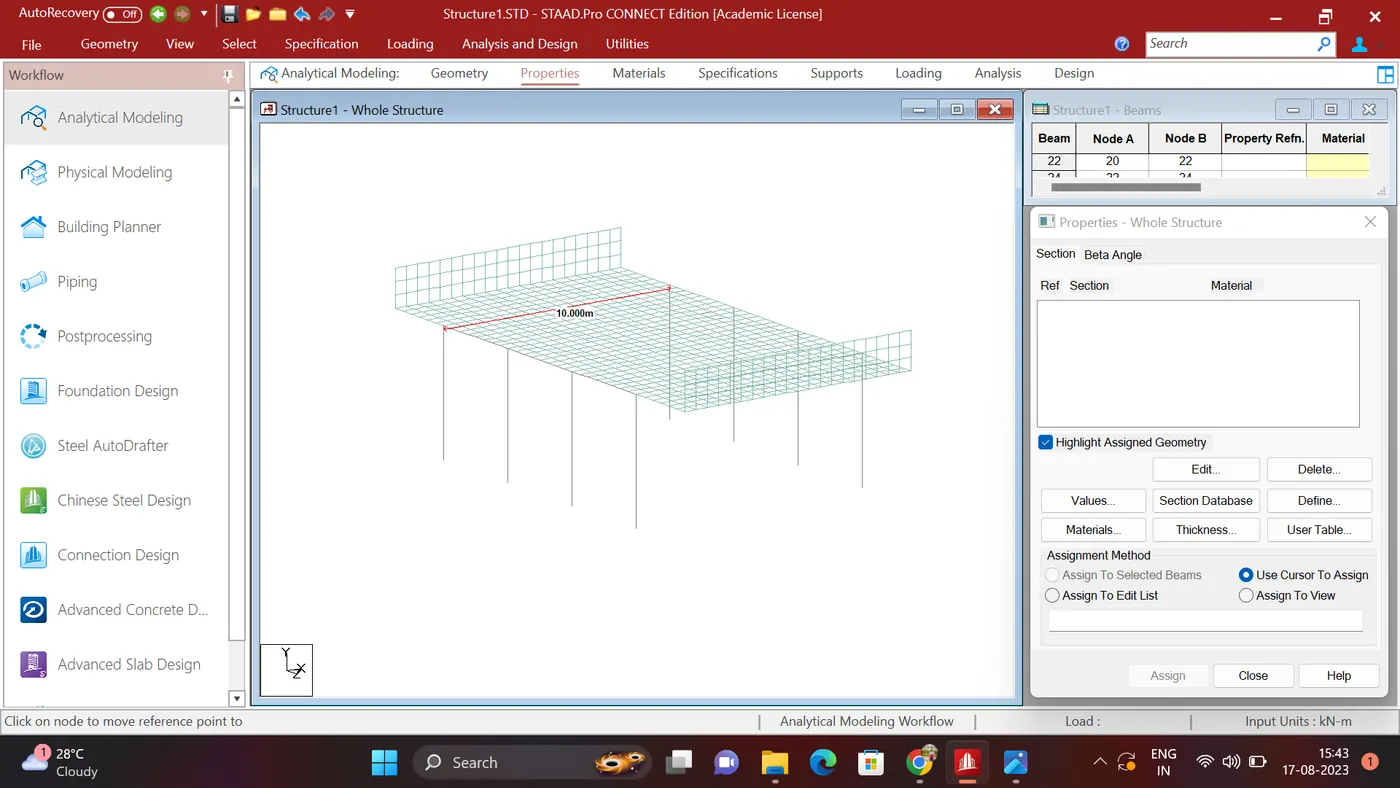

Our Staad pro model is ready .

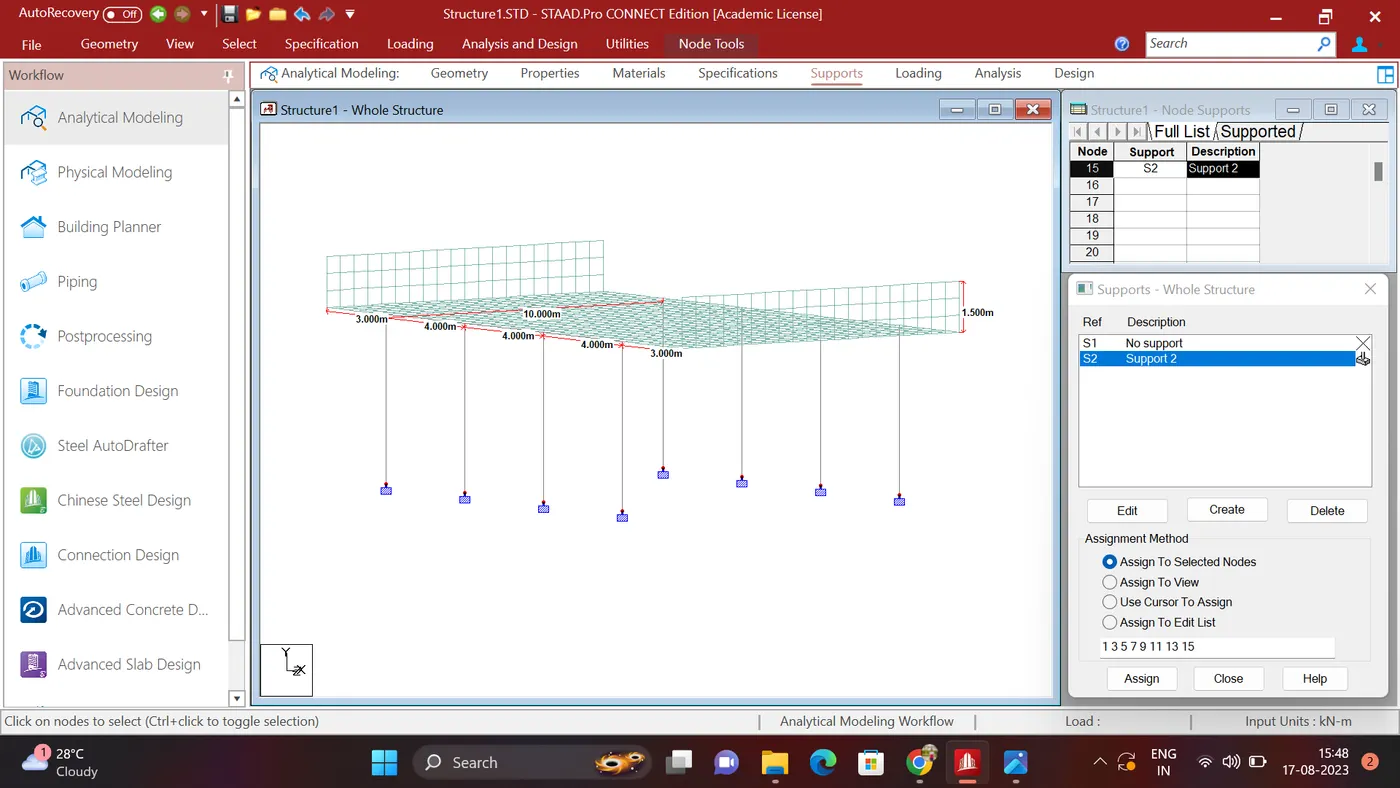

Assign the fixed supports at a lower nodes of pier

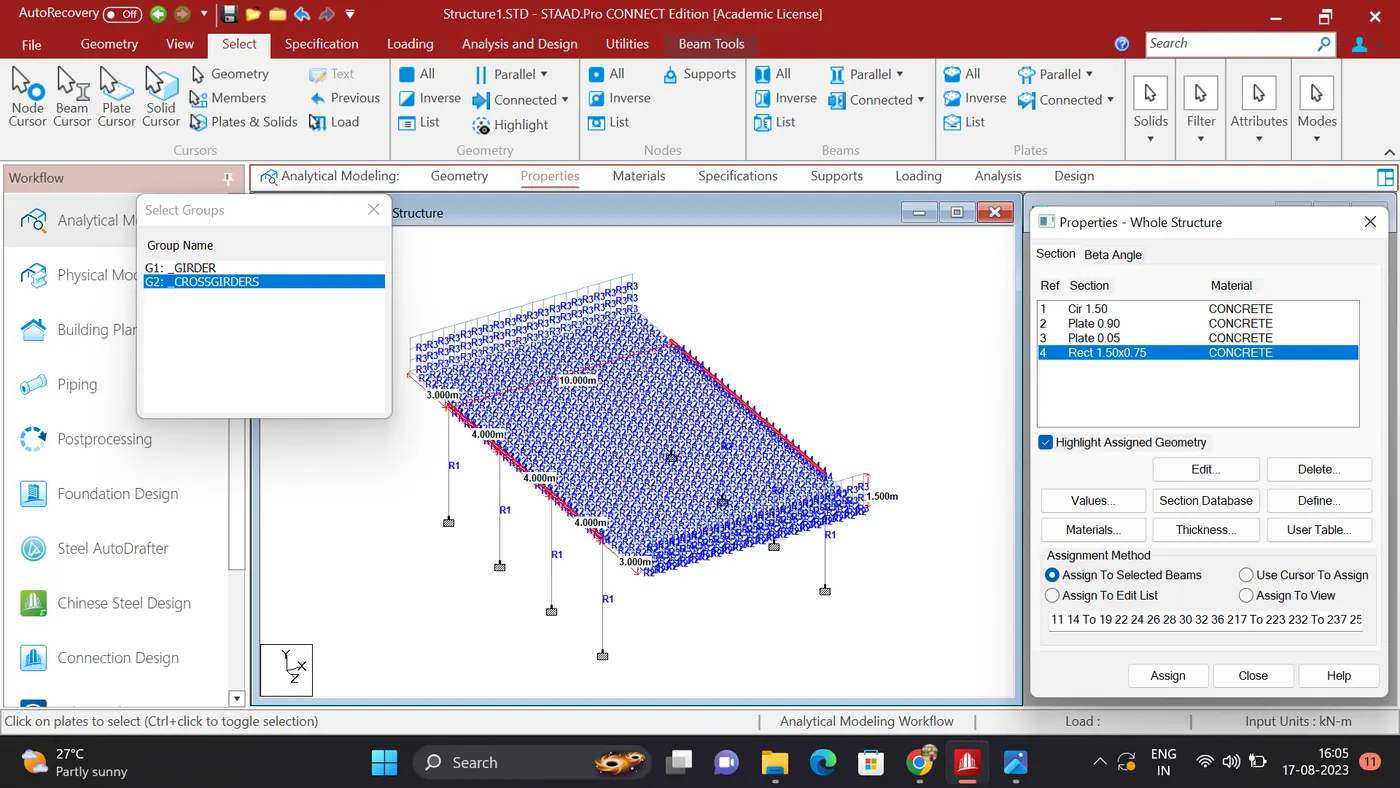

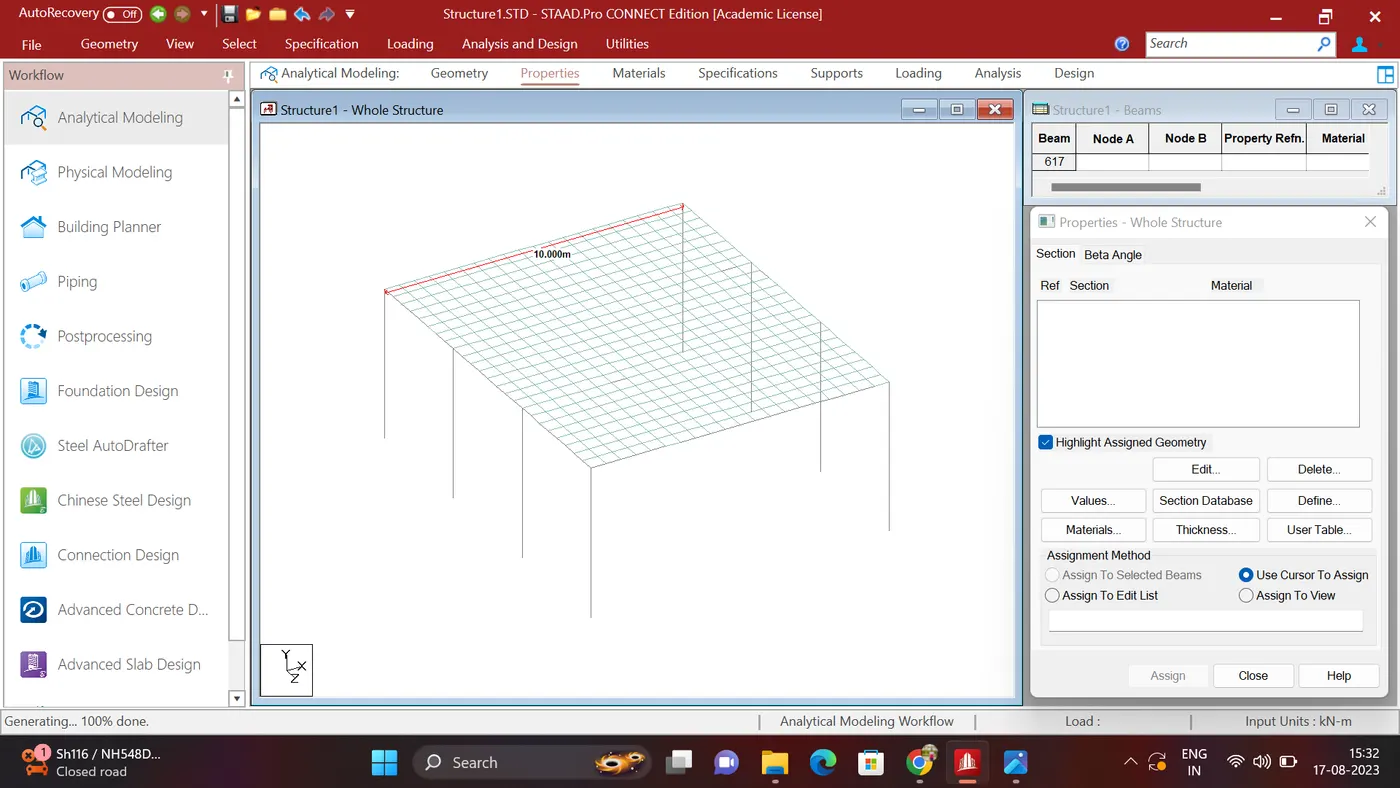

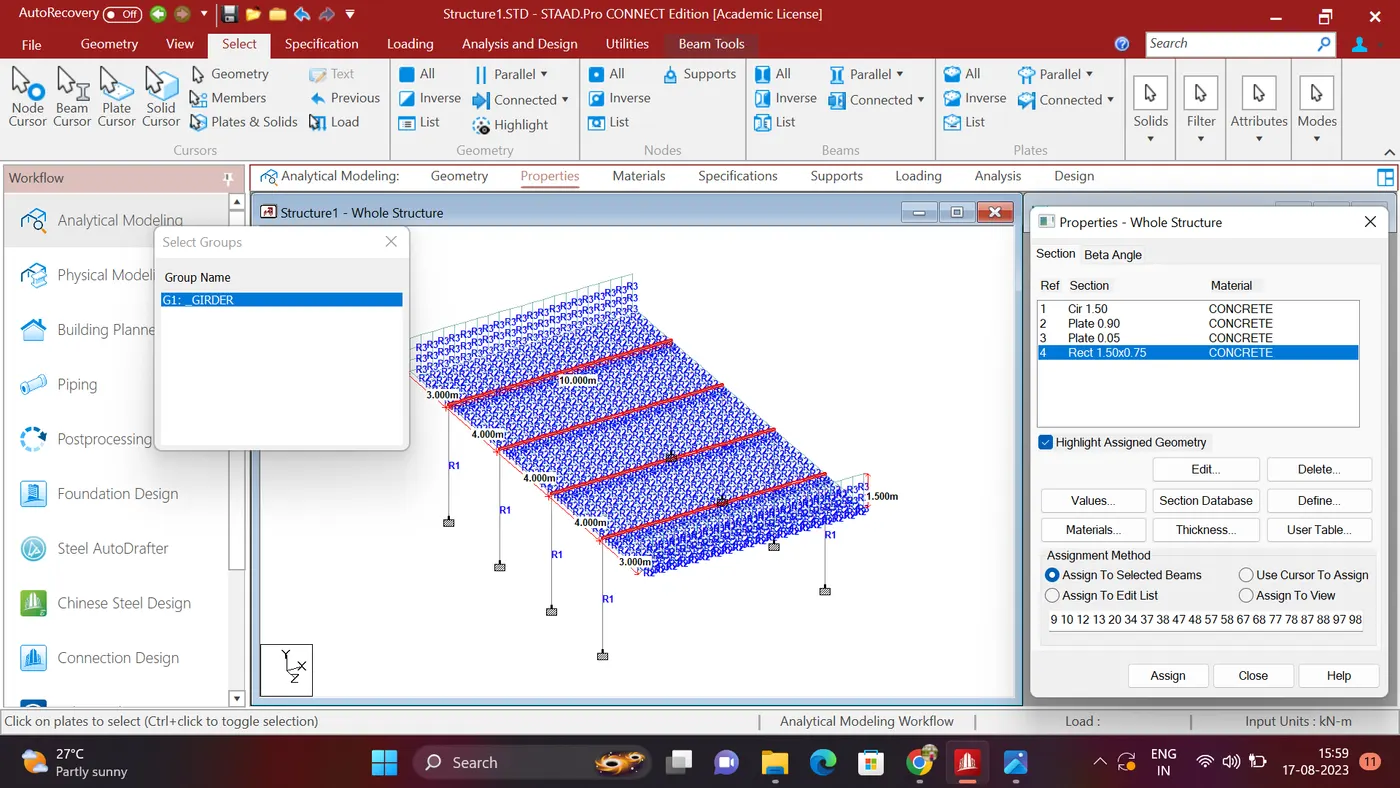

      2. PROPERTIES

After succesfully model making we have to give properties to the all the components of bridge
Click on properties and define the properties
for pier : Cir , concrete 1.5m diameter
for girder : rectangle , concrete 0.75m x  1.5m
for deck slab : Plate thickness of 0.9m
For parapet wall : plate thickness 0.050m

Now we successfully applied all the properties to the components

      3. LOAD APPLICATION

As per the load we calculated we have to apply load on deck slab
Click on load Create a load case name as Snow load

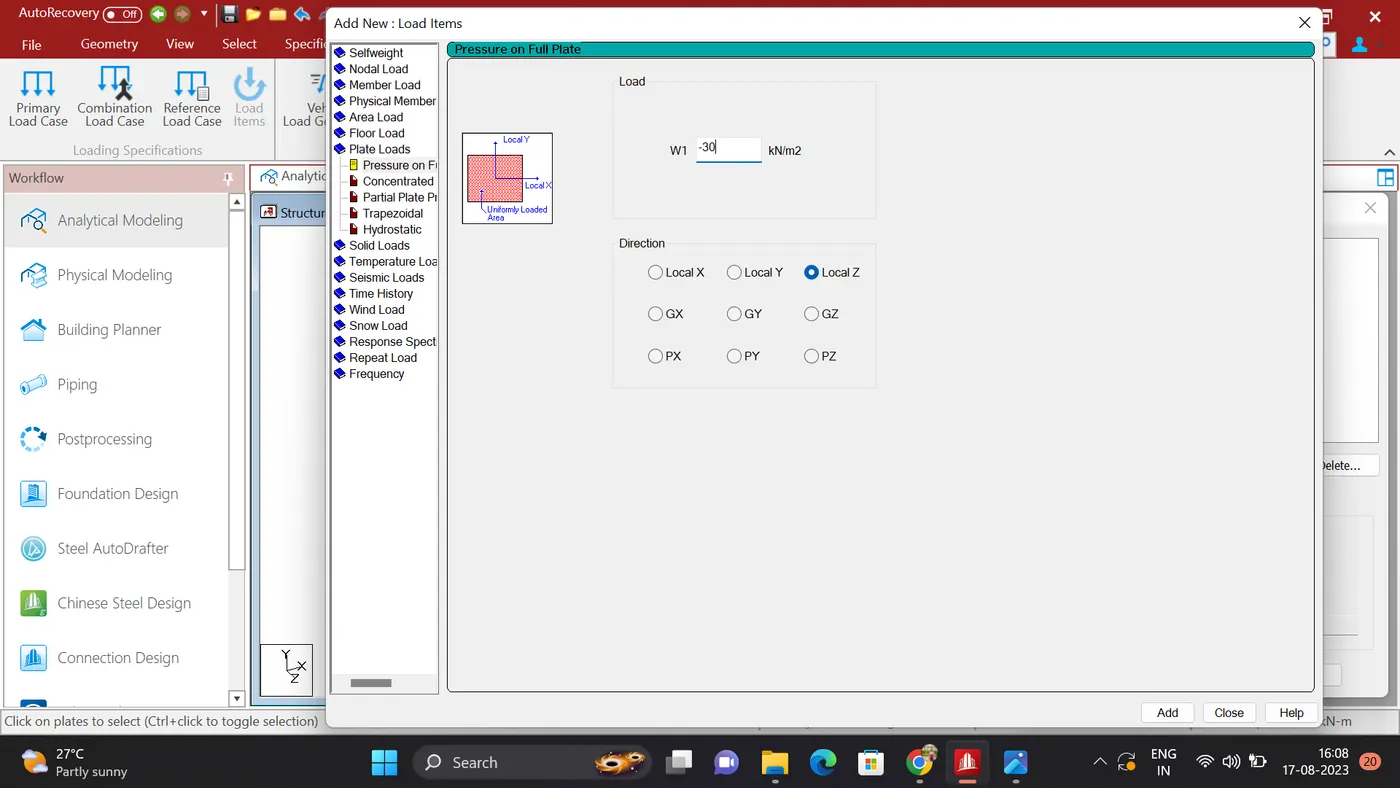

Click on load case add a Plate load as we calculated abobe 30kn/m

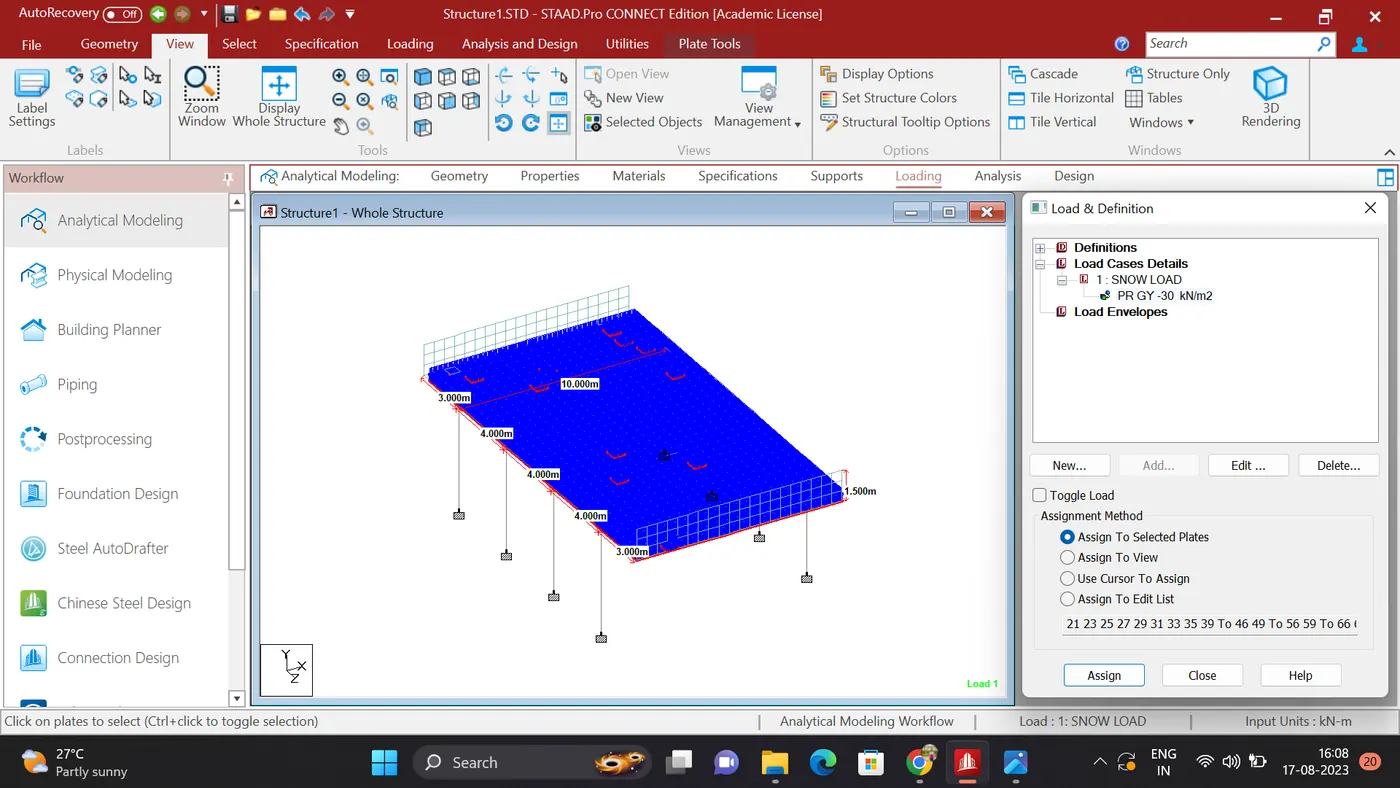

After adding load select the all plates of deck and assign the load to the deck slab
we have to apply load in Global Y direction

     4. ANALYSIS

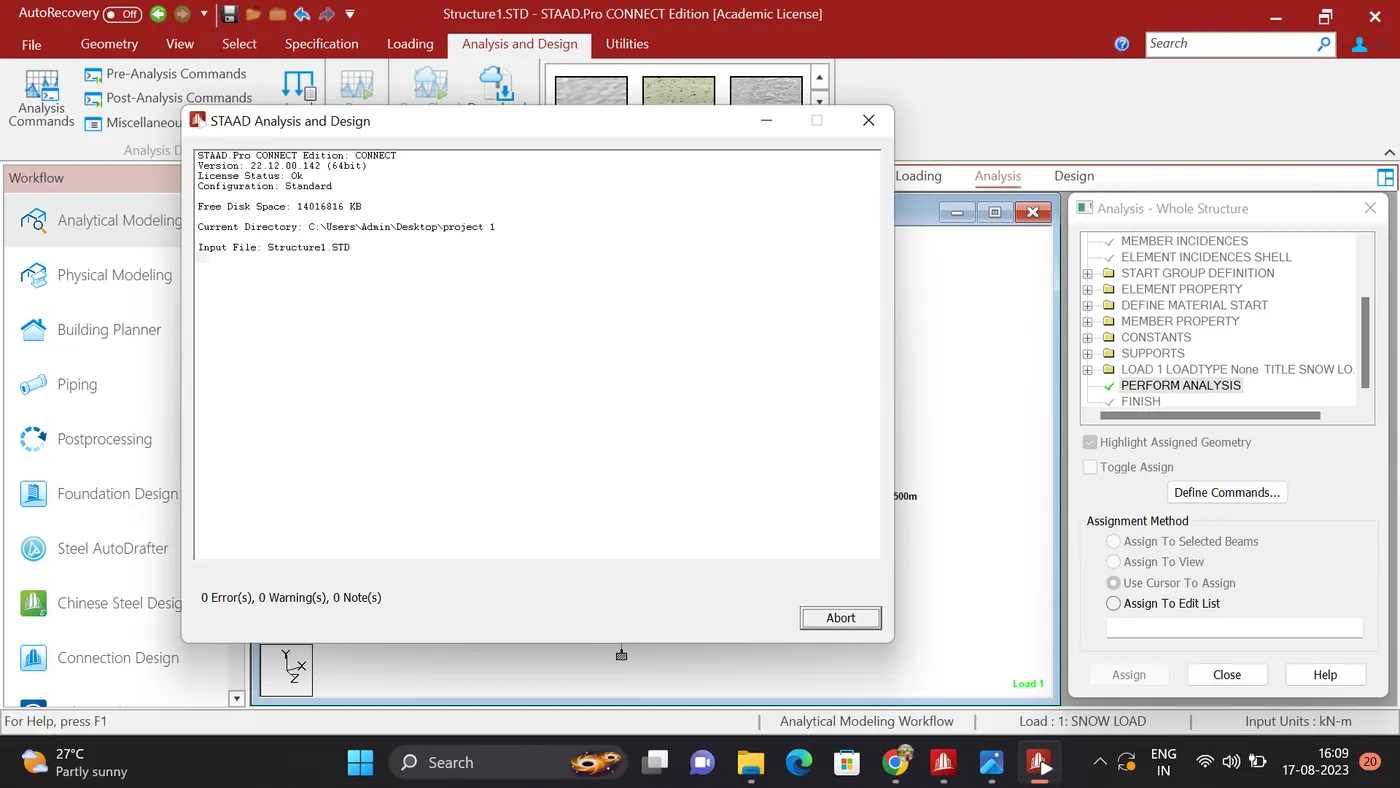

Click on Analysis and design add a command of perform analysis
Click on Run Analysis

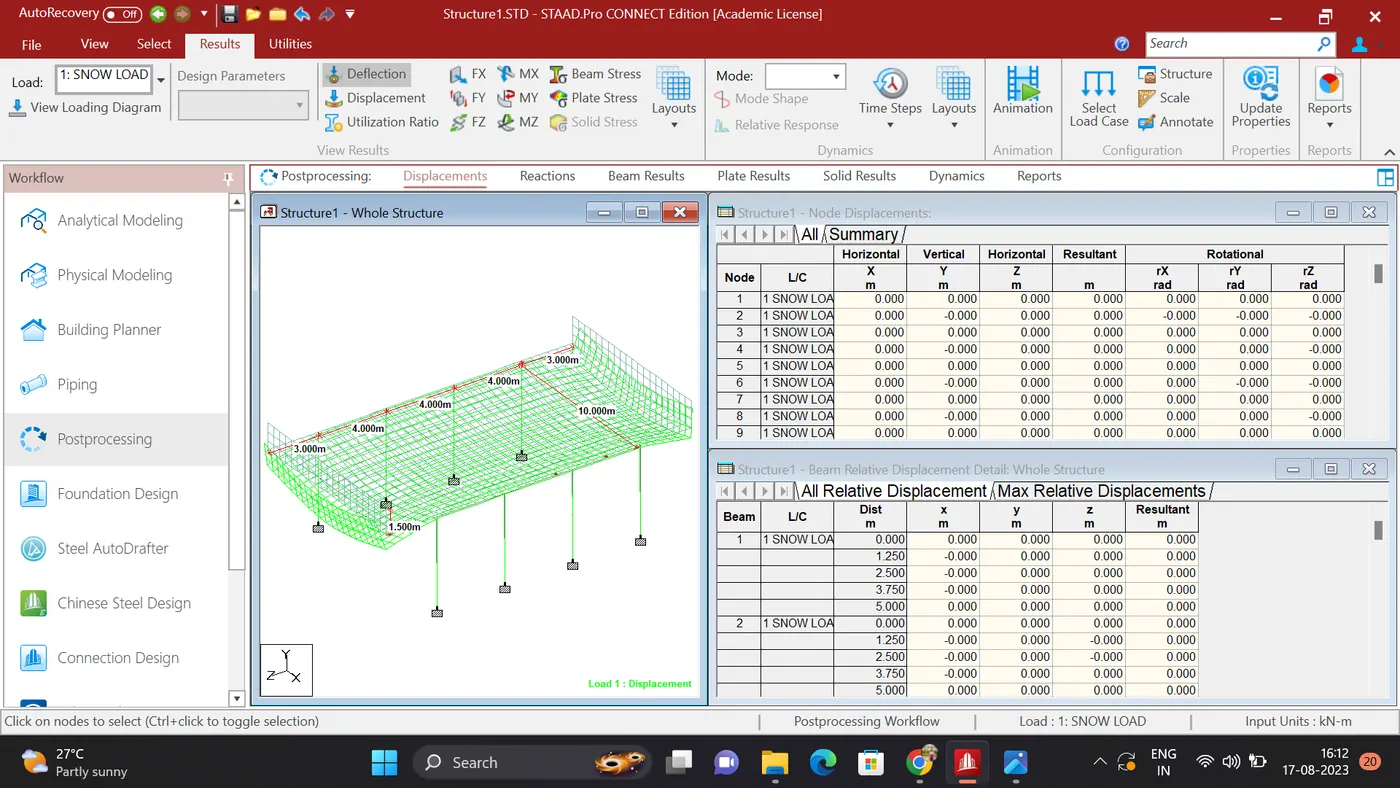

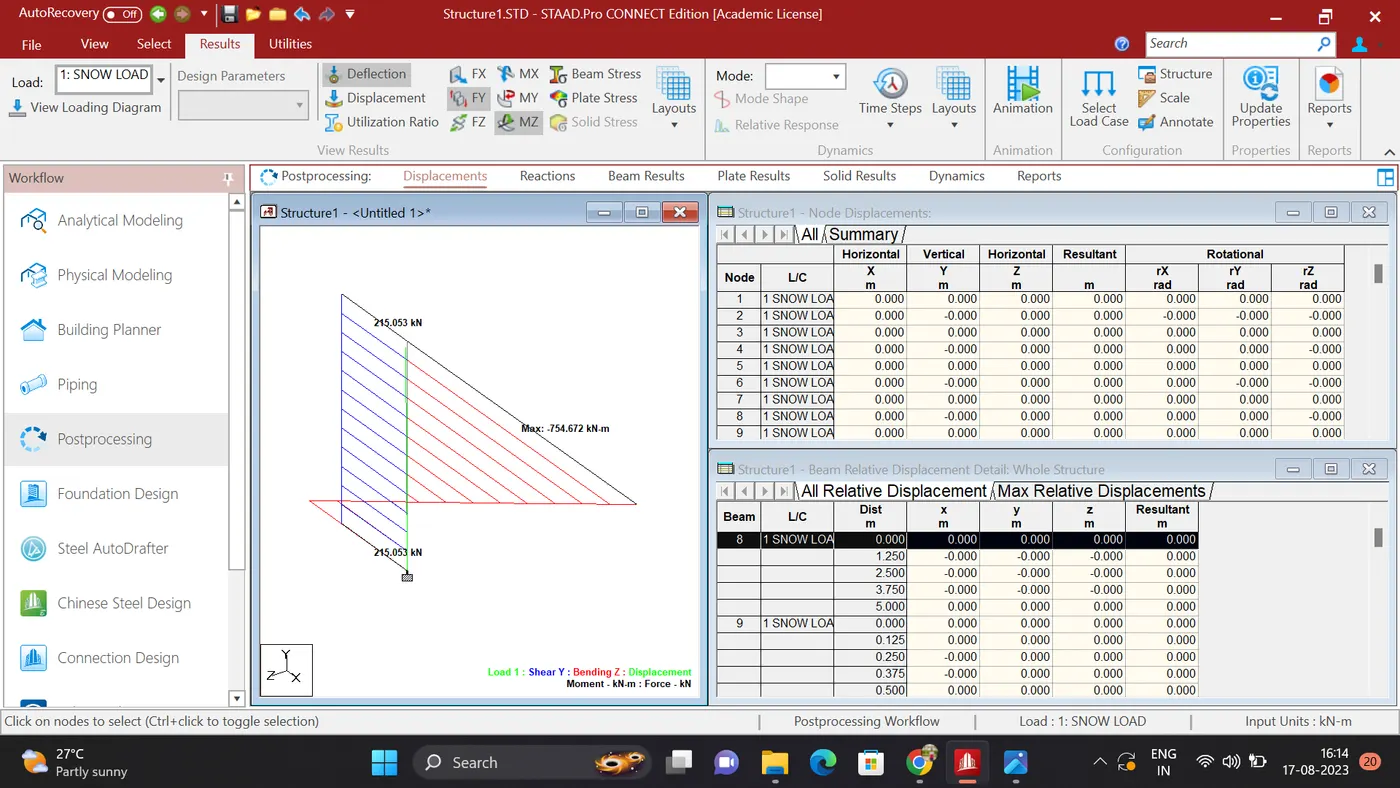

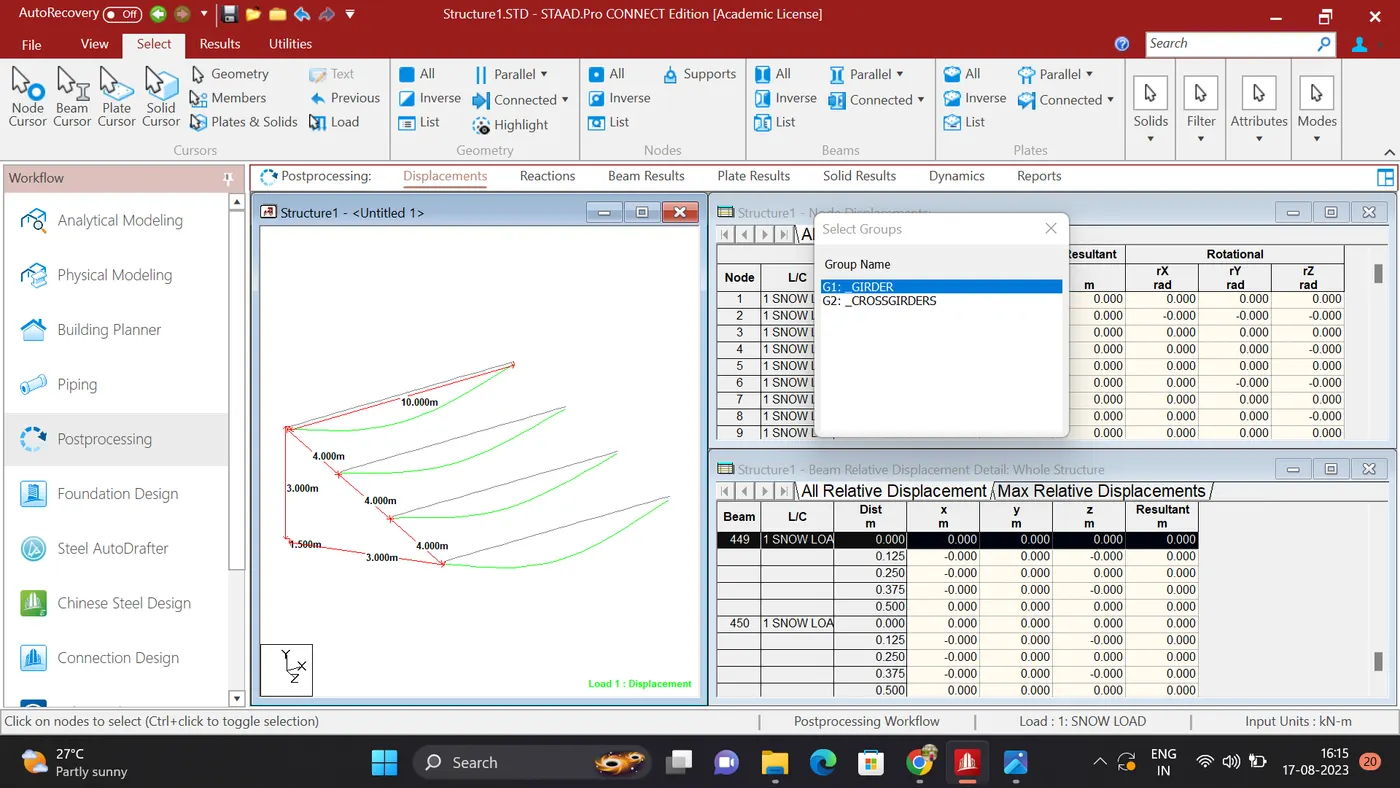

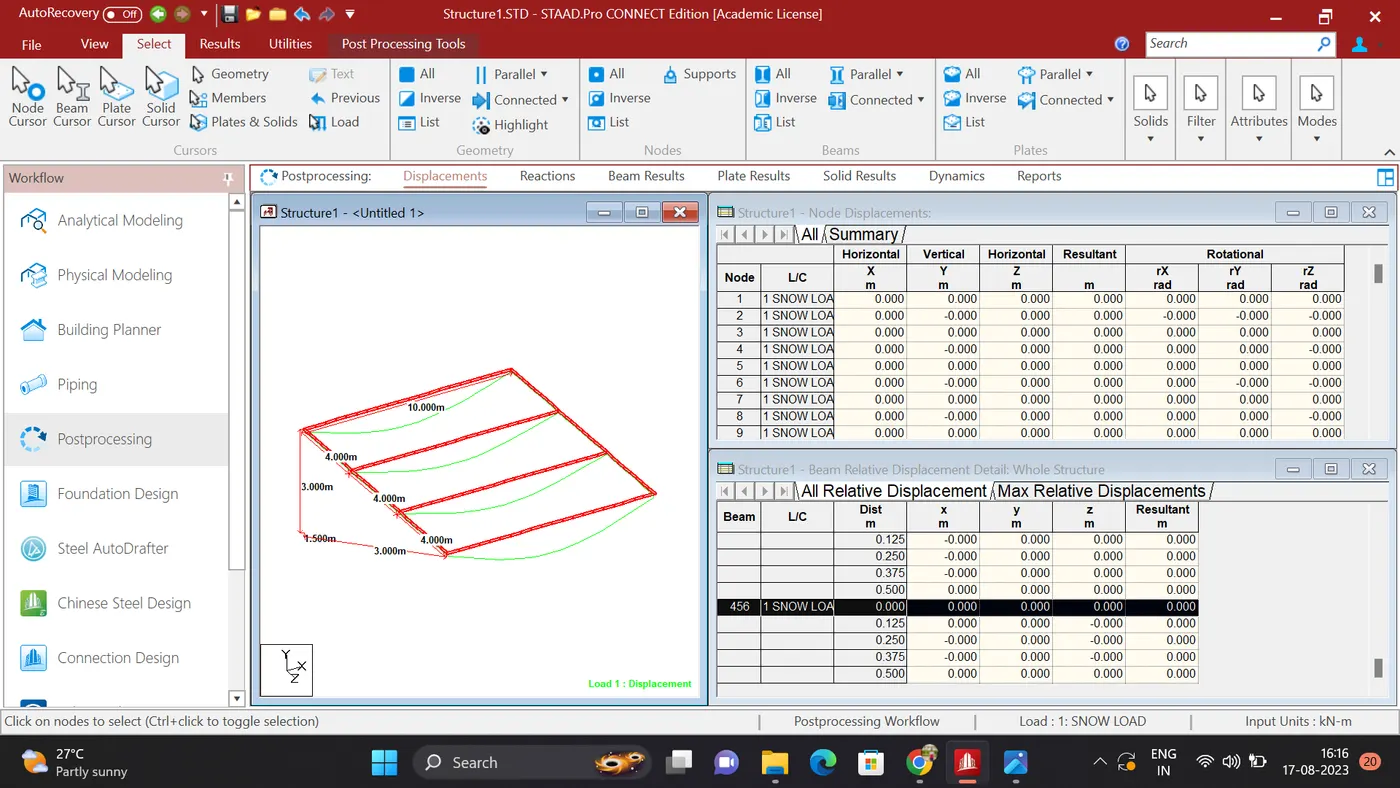

     5.RESULTS :
