Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)
Attachment Feature Creation (Ribs & Screw Boss)
Objective
1 - Learn how Create the Door Handle from the given Class-A surface.
2 - Learn how to create attachment feature (Rib & Screw Boss).
3 - Learn engineering Approach For create Door Handle And its attachment Feature.
Approach For Door Handle Creation
1 - Create Tooling Axis (For checking Mold opening and closing direction)
2 - Draft Analysis With respect to tooling Axis for Analyzing The part is manufacturable or not.
3 - Create B surface by using given Master section (Class A)
4 - Create C surface by using class A And tooling Axis.
5 - Create close surface by using Class A, Class B & class C surface.
6 - Create Solid Door Handle By using Close surface.
7 - Finaly doing draft analysis for checking the solid body manufacturability. And draft angle.
Assumption For Door Handle
A - Thickness – 3mm
B - Draft Angle – 3*
C - Material – Plastic
Steps to Follow
1 - Check the connectivity of the class A, ensuring that no gap between two surfaces.
A - Using Join command
B - Boundary command – to check the boundary of the A surface (there is not any opening consider)
2 - Find the tooling axis of the component
3 - Tooling axis is the direction at which the mold open & core & cavity opens.
4 - Analysis the component & find which is the best tooling direction (X, Y, Z)
5 - Draft analysis (Insert – Analysis – Feature Draft Analysis)

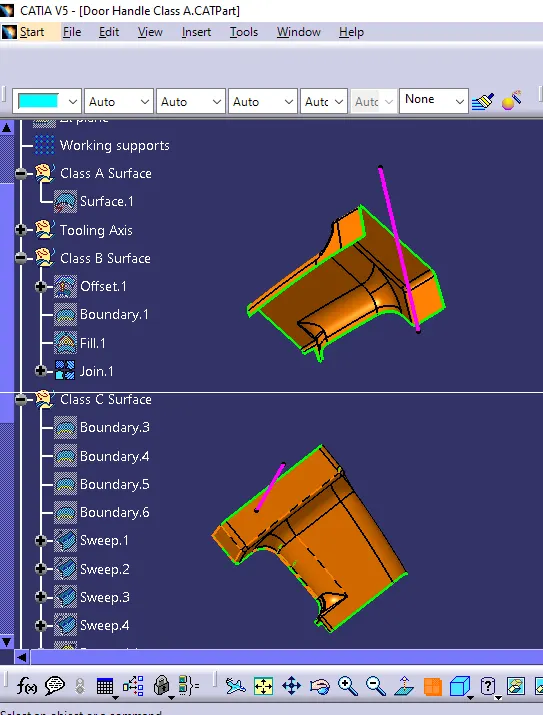

6 - Create B Surface
7 - Create C Surface
8 - Join A Surface with B, & C Surface & create a closed Surface.
9 - Using close surface command Create Solid Part.

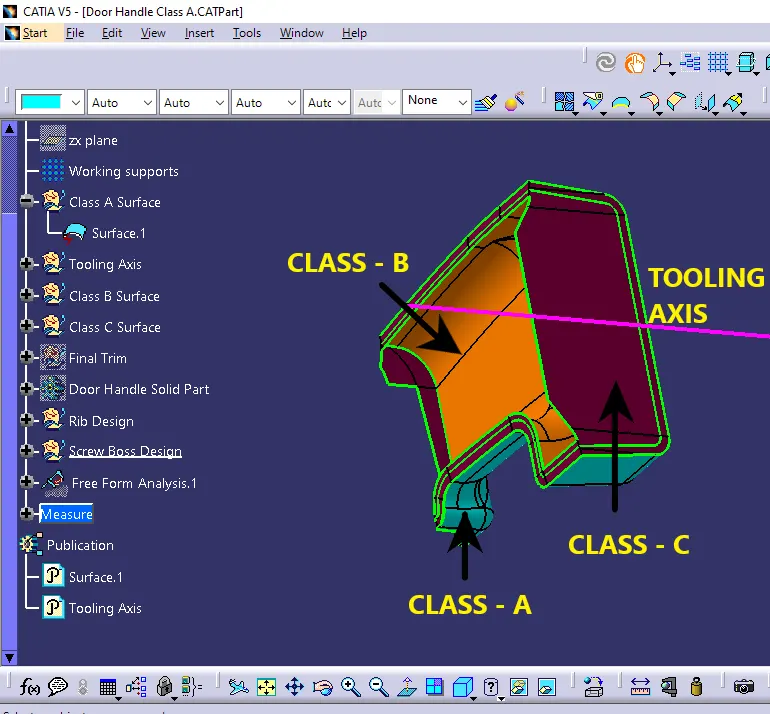

A Surface is the surface that is created by the concept sketches made by free hand sketchers. this computerized design is known as Class A surface.

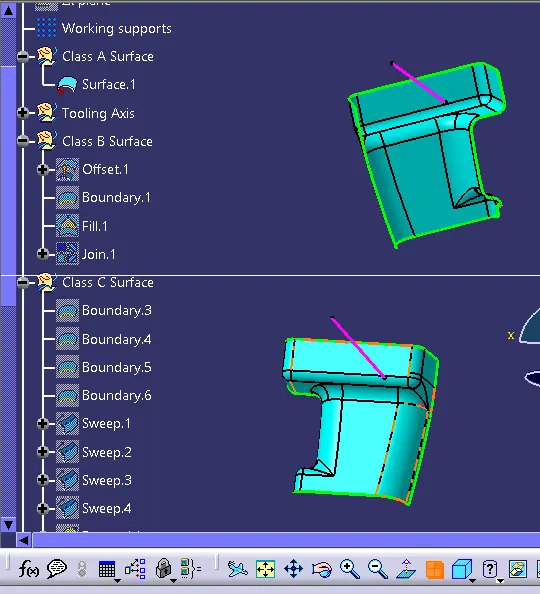

B Surface is created by using class A surface, and the distance between A surface and B surface is equal to the thickness of the part, it is also called engineering surface.

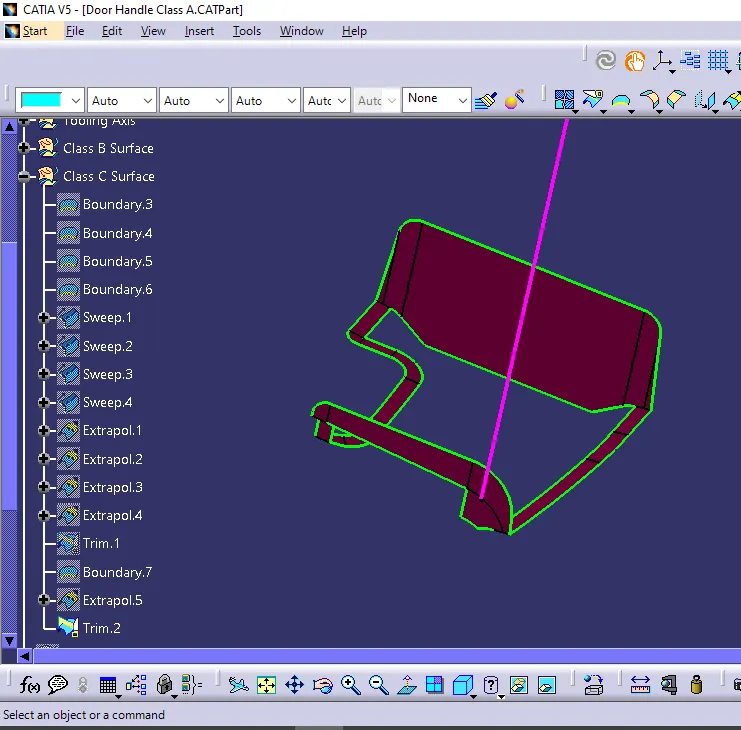

C Surface is created for connect Class A and Class B surface also known as the side wall of the surface.
Tooling axis
1 - Tooling axis is the direction at which the mold open & core & cavity opens.
2 - Analysis the component & find which is the best tooling direction (X, Y, Z)
Draft analysis
Draft analysis is done to see the manufacturability of a part, green color indicates that all parts are clearing when core is removed from cavity.
A - The part has fully constrained like.
B - It does not have any negative draft.
C - How does the part behave.
D - What is going to the constrain whether it is maintain the same radios.
E - You don’t have any undercut in part, you have maintained 3.0 plus thickness radius.
F - You have minimum hold requirement Gap.

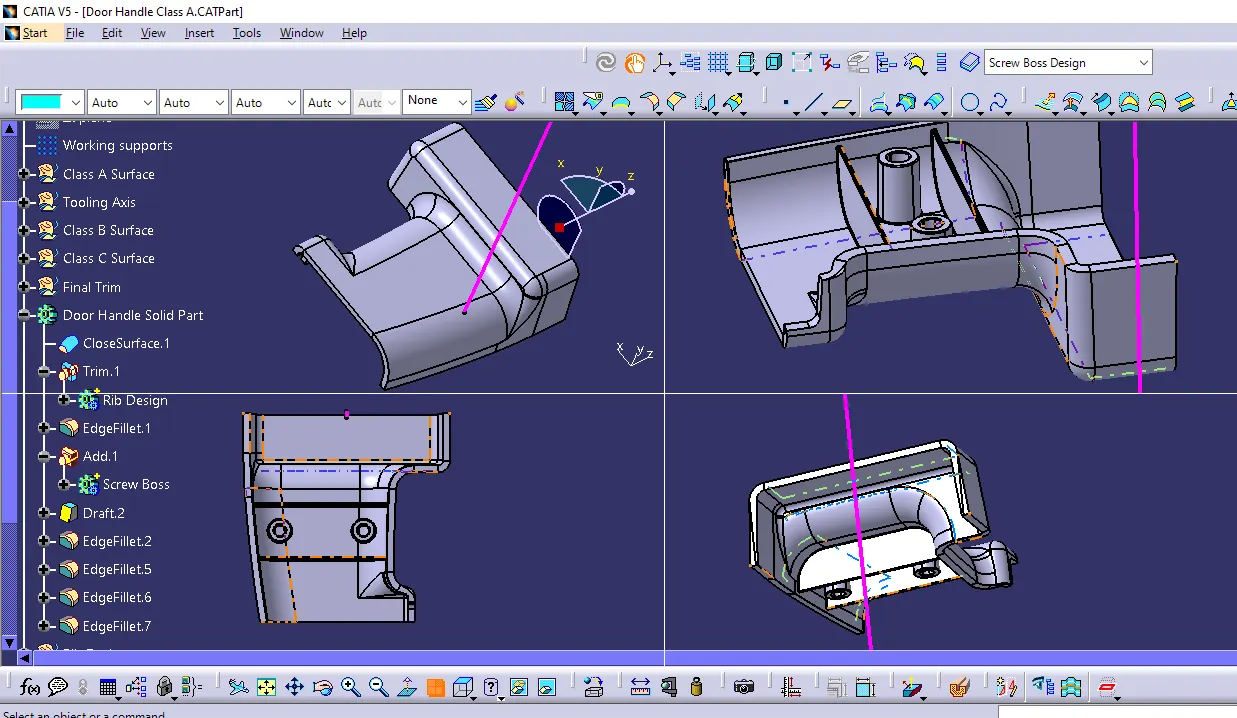

Attachment Feature Creation (Ribs & Screw Boss)
Design Principle for Rib Creation

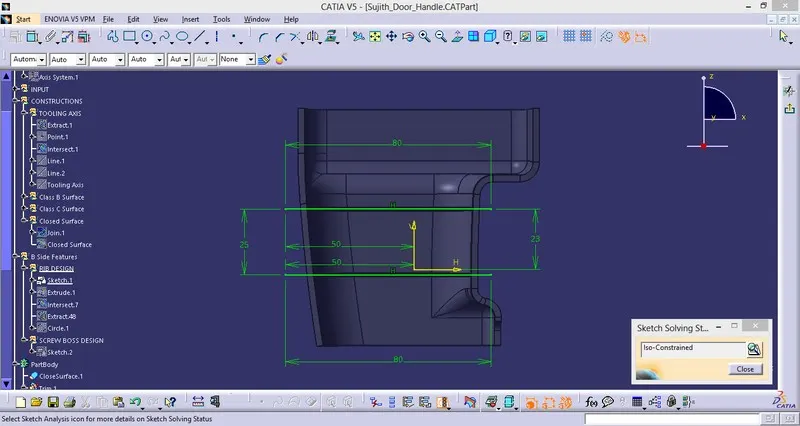

Sketch Used for Rib Creation

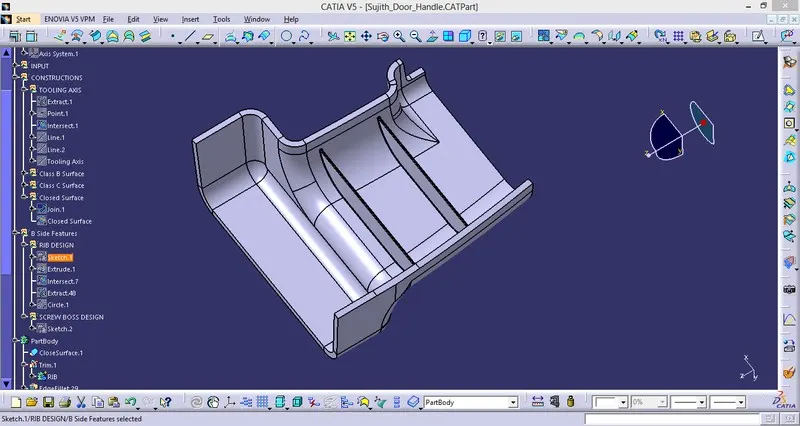

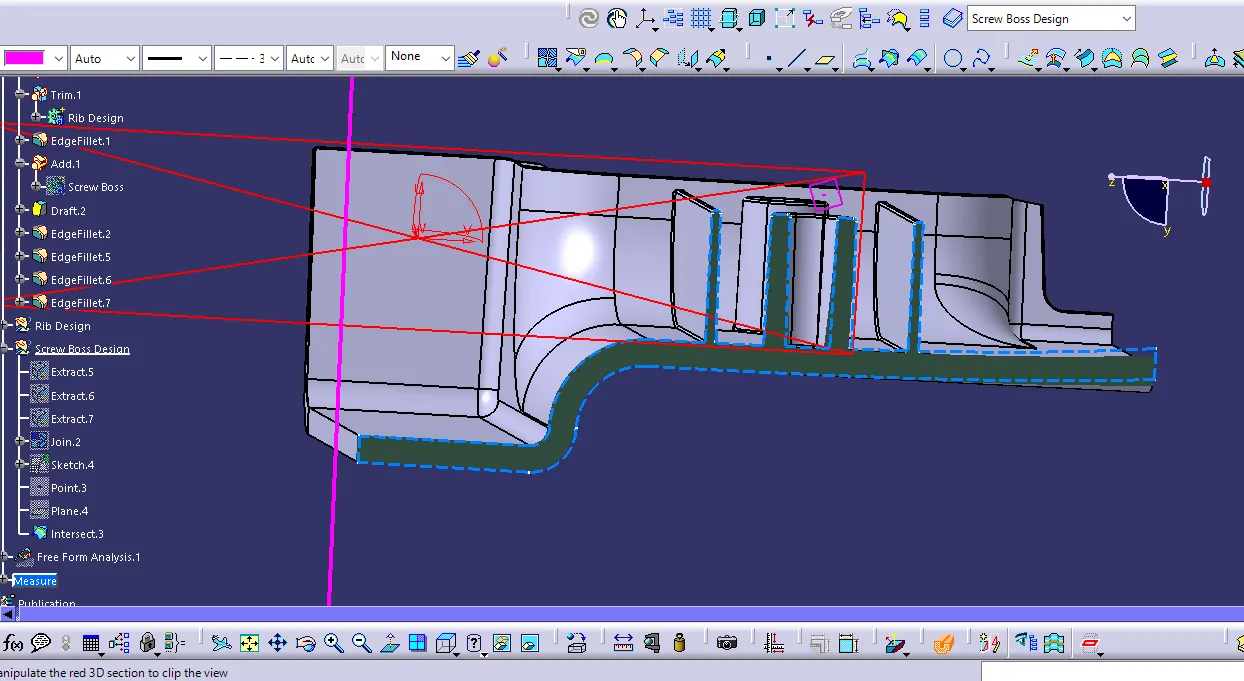

Rib

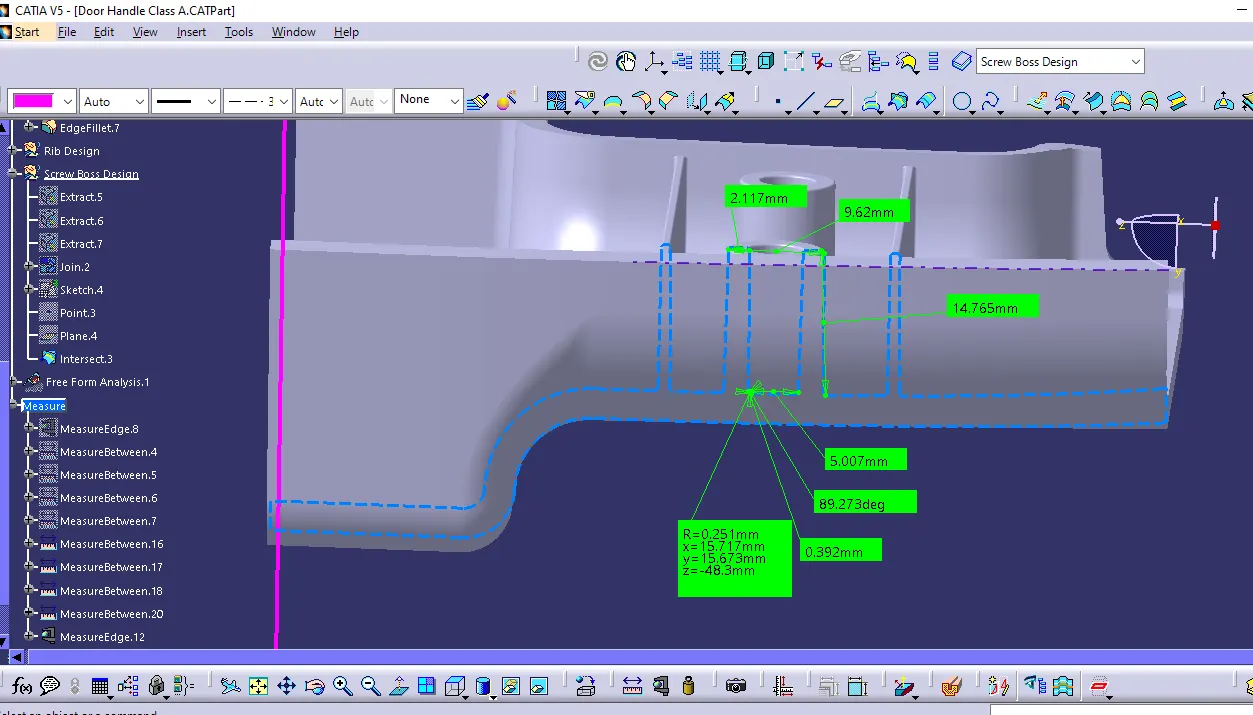

SCREW BOSS DESIGN
Design Principle for Screw Boss Creation
Sketch Used for Screw Boss Creation

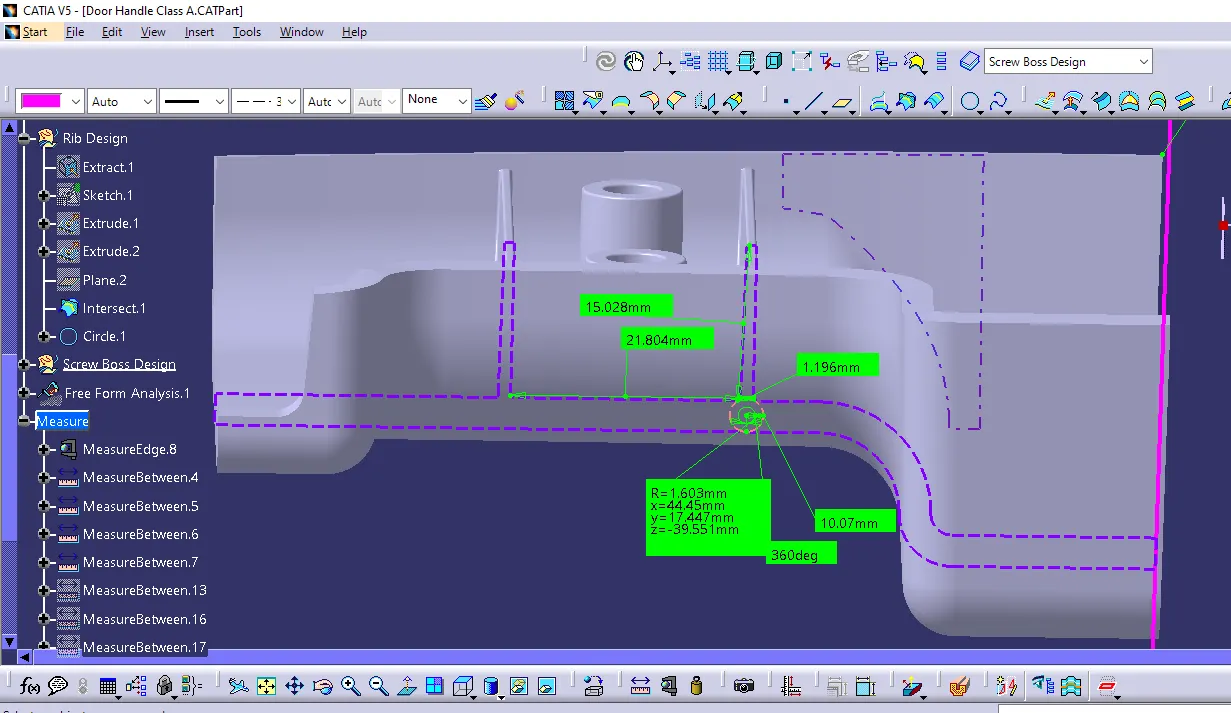

Screw Boss

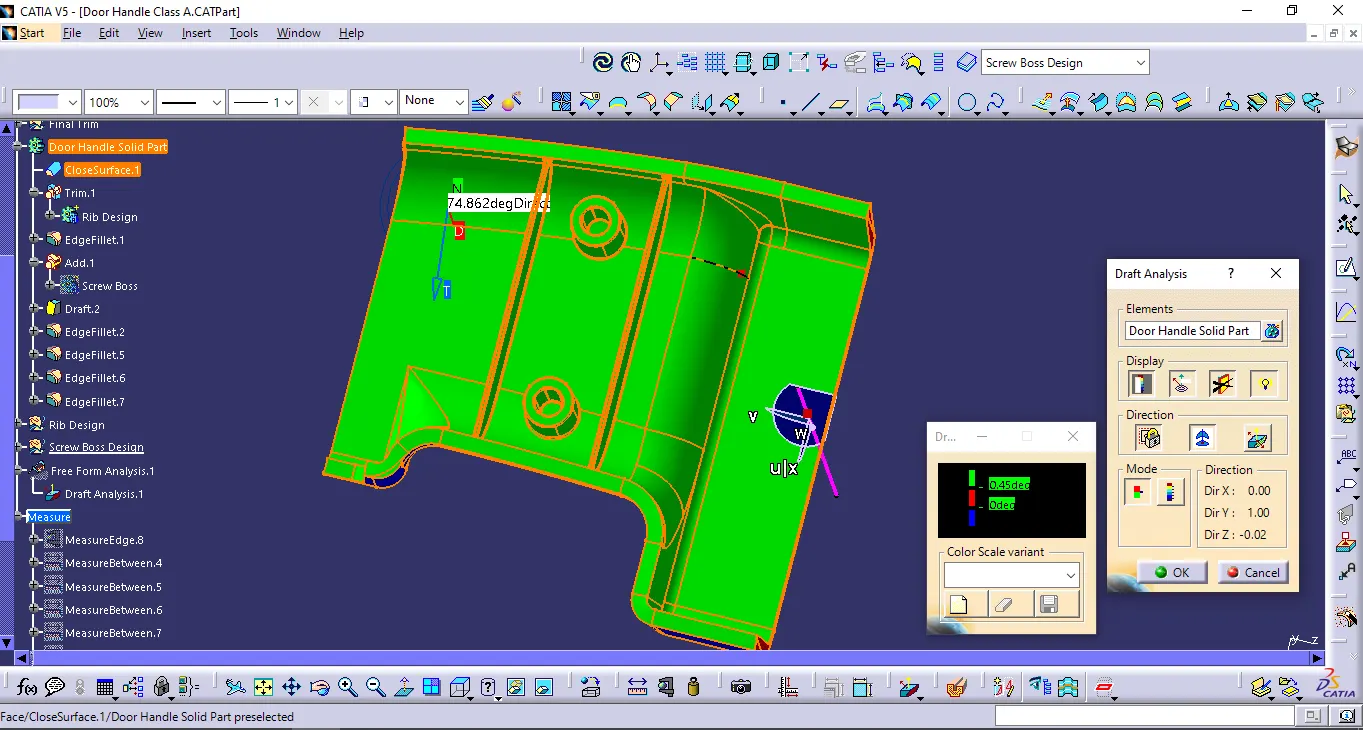

Draft analysis
