Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

Door Handdle: (Ribs & Screw Bosses)

Rib: its a feature which provide stiffness and strength to a moulded part without increasing overall wall thickness. it also helps for aligning mating parts.

Screw Boss: Its a point of attachments and an assembly.it is a feature which helps to screw 2 parts together.

Report: Draft analysis done and found ok(green).Created reference point & tooling axis & accordingly created class B & Class C surfaces with rspect to Class A surface. Final trim made for creation of ribs and screw bosses.

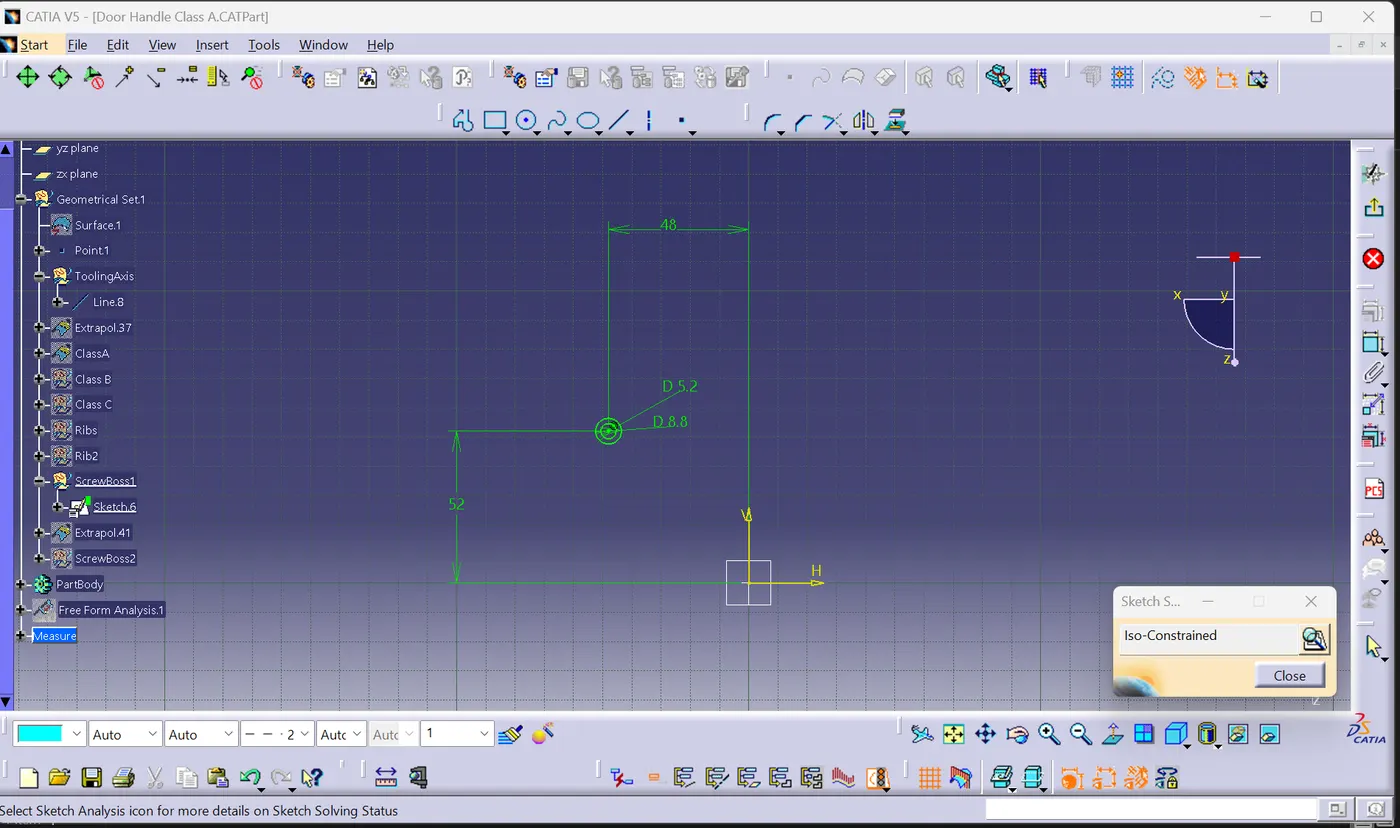

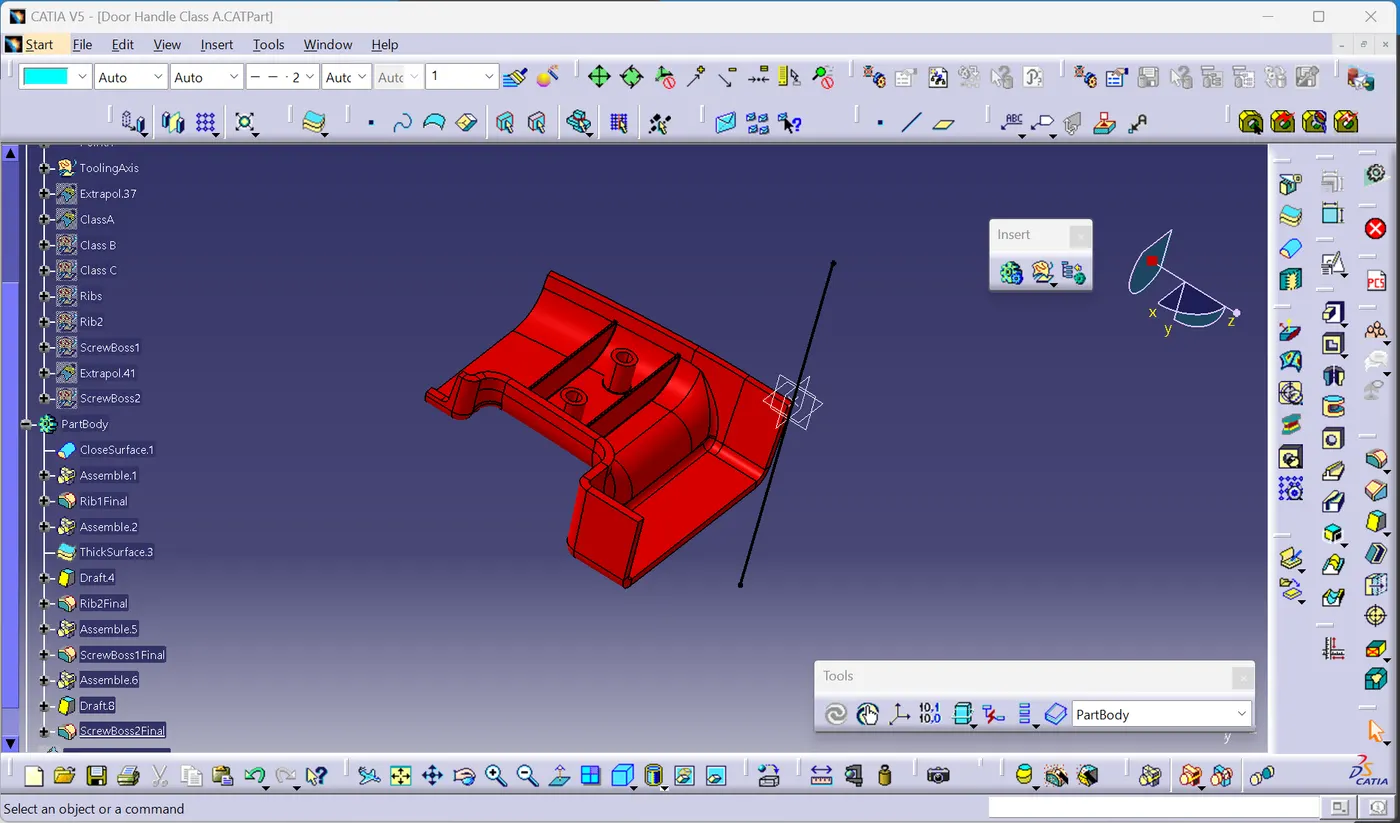

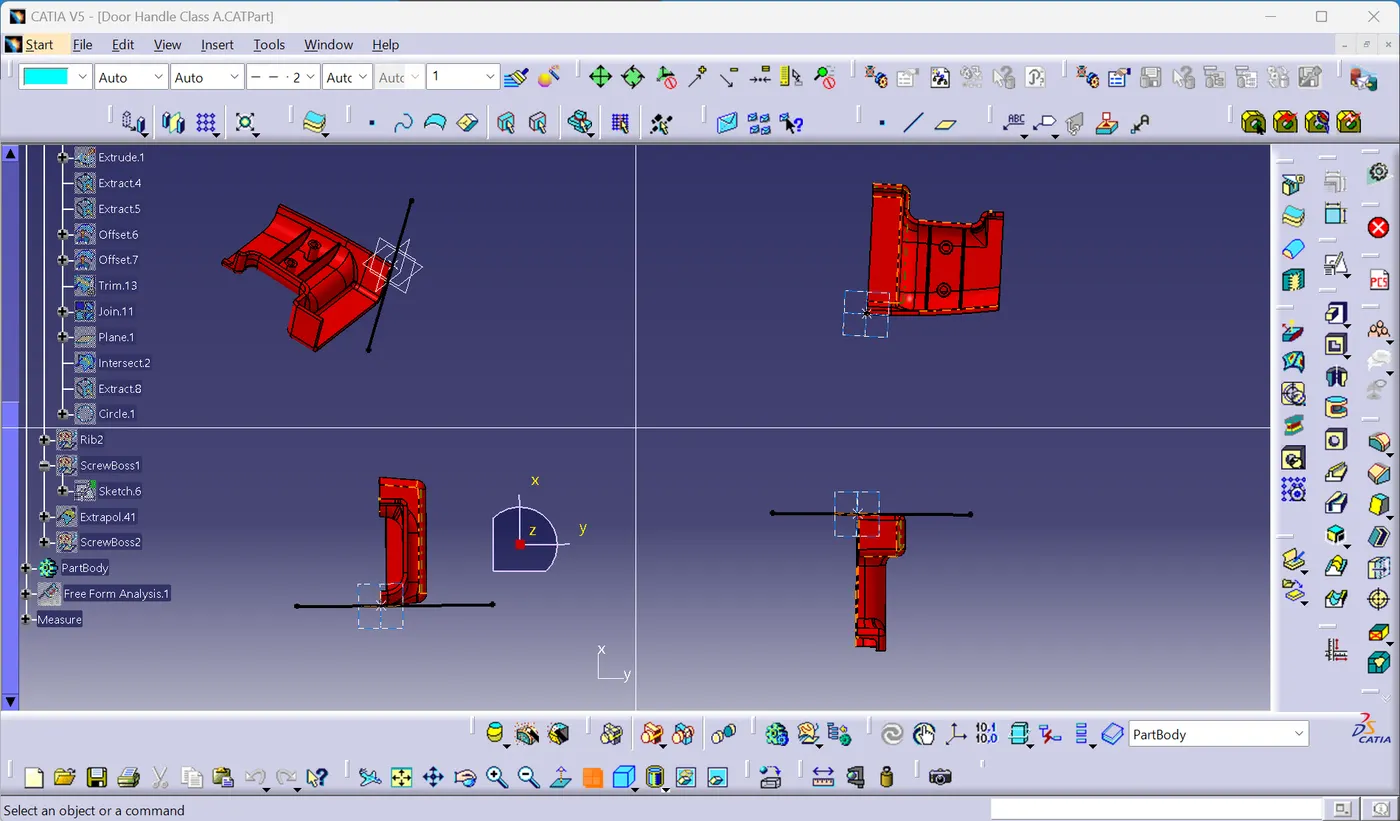

required screenshots attached above and .Cat part attached in attachment section.
