AIM:

• To Create the Door Handle Component from the given Class-A surface.
• To Create the tooling axis for the given Class-A Surface meeting the requirements of the draft angle.
• To Attach B side Features in the component.
• To perform the Draft analysis on the model.

PROCEDURE FOR THE PROJECT :

• Creating the tooling axis
• Draft analysis of Class A surface
• Creating Class B surface
• Creating Class C surface
• Surface and solid body
• Draft analysis of Solid body
• Engineering features Rib and Screw boss

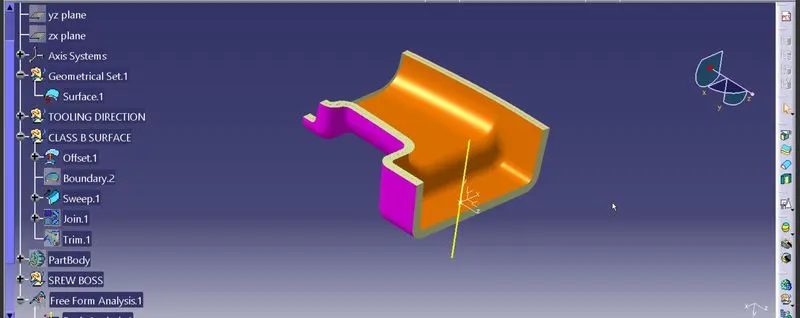

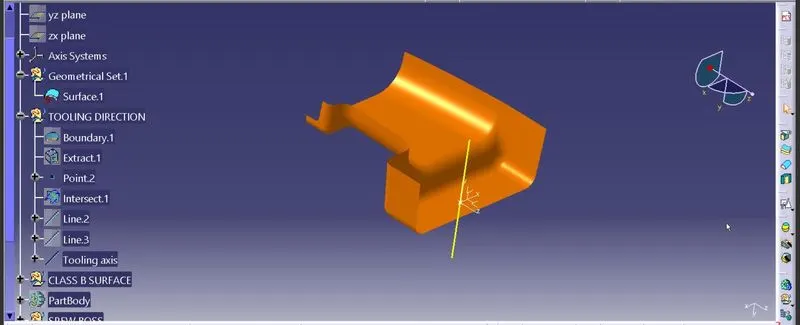

TOOLING AXIS :

The first step is to observe the given class-A surface deeply and we can say the larger flat area which is perpendicular to the Tooling axis. So, by considering this thing for this class-A surface tooling direction will be in the X-direction. so we create the point on the flat surface as shown in the figure.

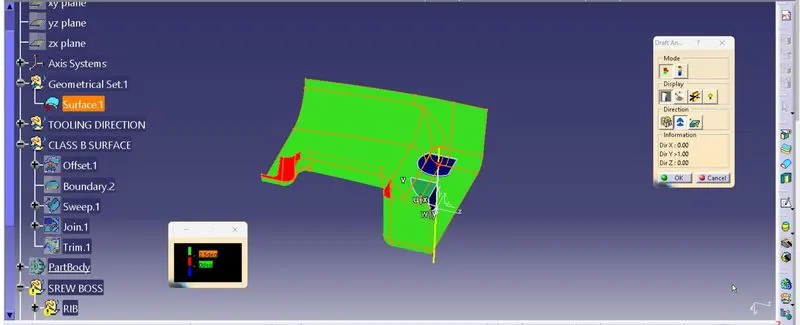

DRAFT ANALYSIS :

• Before going to drat analysis go to customized view parameter >under mesh >check material and then click ok.
• Now for draft analyses go to insert » analysis » feature draft analysis.
• Use the compasss to define the draft direction.
• In the colour scale change the draft angle to 3 degree.
• The component changes to green in indication of passing draft angle.
• Use running point to check the angle on the component.
• The draft analysis is complete.

CLASS B SURFACE :

Extract the surfaces from the class A using multiple extract and untrim them.Use Extrapolate to make sure that all the untrims are properly intersected to trim and offset the surfaces to 2.5 mm to create the thickness.Trim the extra surfaces using trim command.Insert them into new geometrical set and name it with respective part names.Apply fillets to the model after creating the entire surface.If the edges are outside the fillet value will be added to the thickness of the component and if the edges are inside, the fillet value will be subtracted from the thickness of the component, for instance the thickness of the component Is 2.5mm the fillet value is 15mm so the outside portion value should be 17.5mm and inner eges should be filleted 12.5mm to get uniform thickness.Perform trims one at a time so that it will be clear to understand.

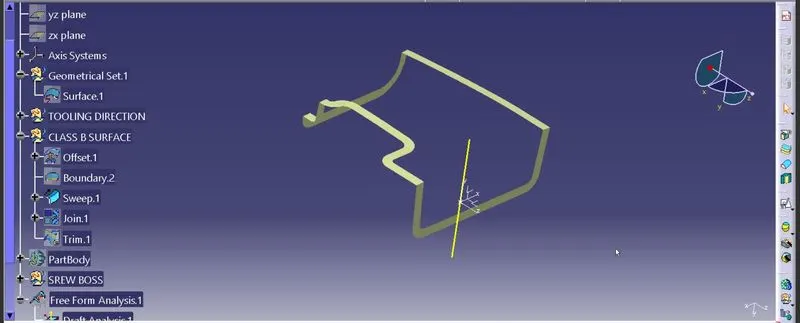

CREATING CLASS C SURFACE

• Extract the boundary from the class A surface using boundary command.
• Using disassemble tool to divide the boundary as the boundary contains domains.
• Use sweep command > choose profile type line > subtype as with draft direction > choose guide curve and draft direction > draft angle as 3 degree > preview.

• After getting sweep then trim the output with class B surface to get final output.

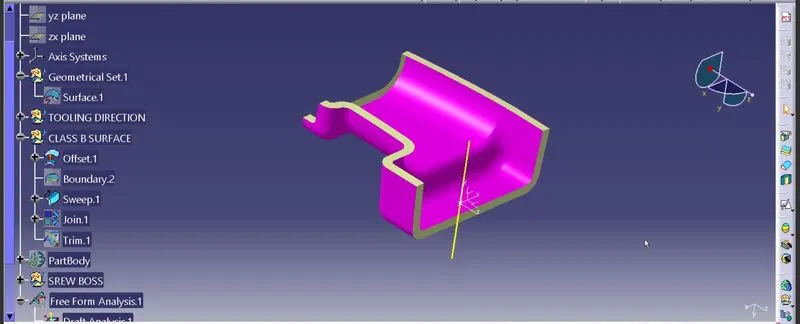

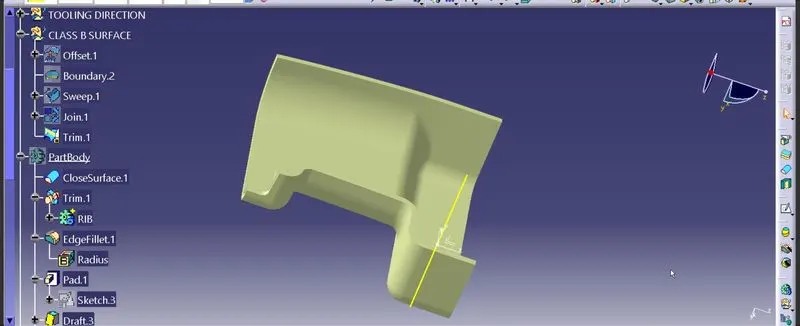

• Now open part design workbench and using close body surface create a solid of the component.

CREATION DF RIB AND SCREWS :

RIB :

Rib provides an economical way to increase stiffness and strength to the mould parts without increasing the overall thickness of the wall. It is thin protrusion that extended perpendicular from the wall.

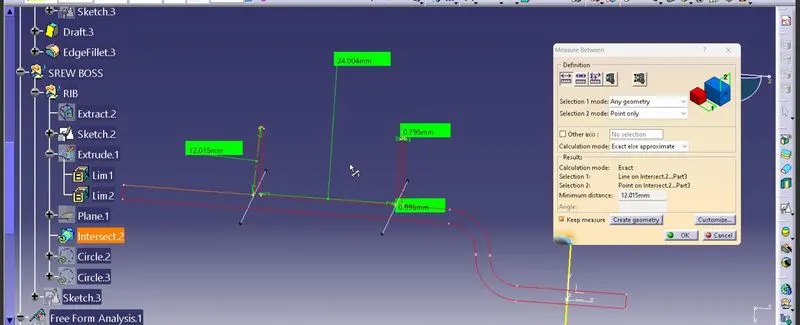

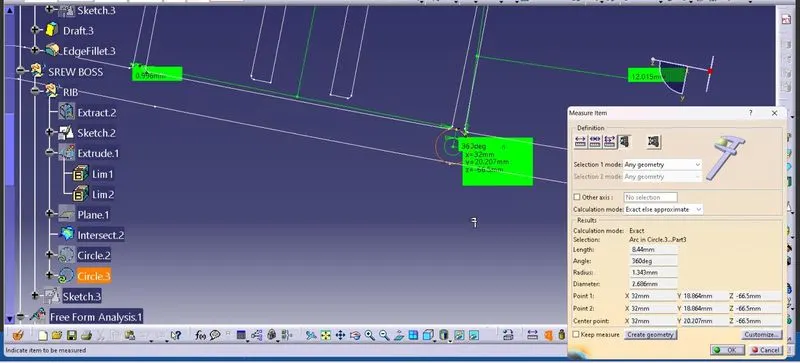

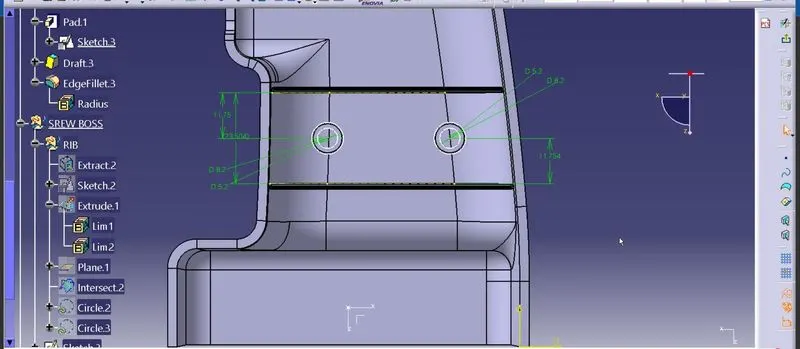

RIB ROOT THICKNESS :

To check the Rib root thickness, first take perpendicular intersection across the body and the Rib and then have to sketch a circle which tangent to the Rib base or root area by using tritangent type circle. The value must be within 30% greater of the wall thickness.

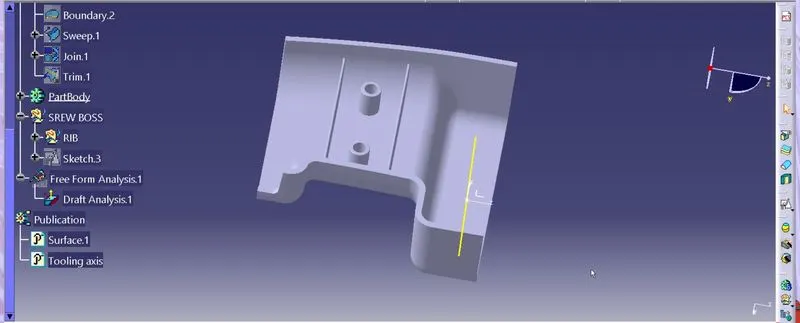

SCREW CREATION :

Screw boss are used as a point for attachment and assembly, most common in as cylindrical projection with hole design to receive screw or other types of fastening hardware.

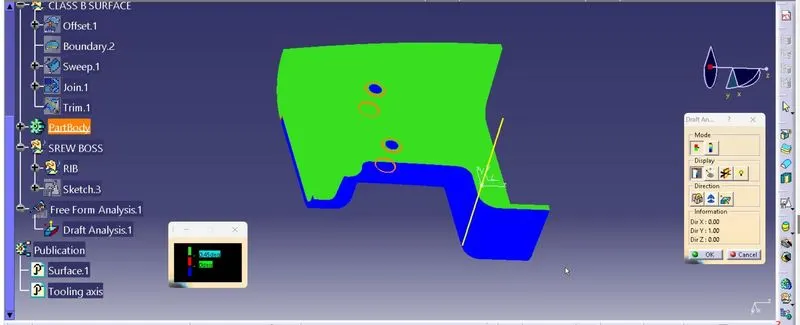

END DRAFT ANALYSIS :

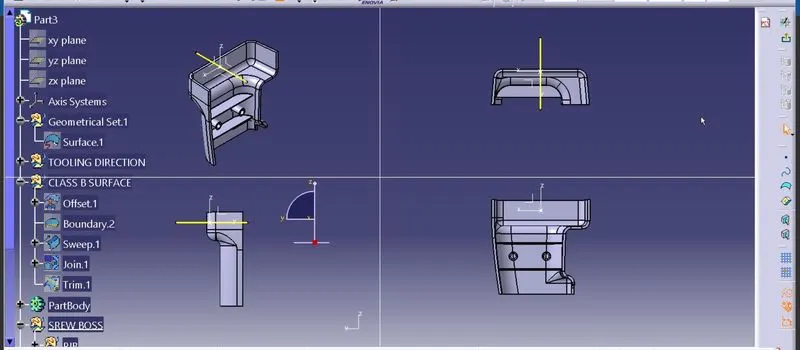

3D ANALYSIS :

CONCLUSION :

The Tooling axis and the SolidCAT part with B Side Features is created from the given Class A Surface and Draft Analysis is Performed.
