Week 3 - Solving second order ODEs

UUvaraj Kumar T6 Jul 2022

AIM;

To solve the 2nd order ode equation, with the help of matlab program. To find out the a simple pendulam motion.

OBJECTS;

ODE45, which is inbuilt matlab solver. A simple pendulam motion move forward and reversee.

It contains,

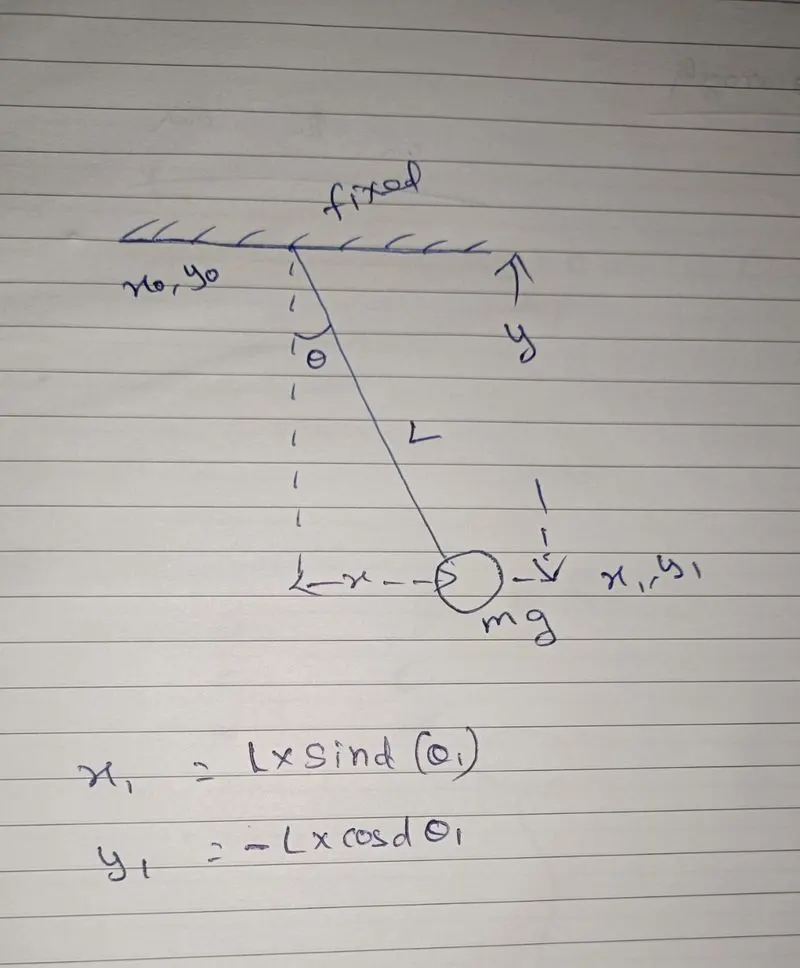

L = length of spring, m

G = gravity,

M = mass, kg

B = damping coefficient,

d^2θ/dt^2 + b/m*dθ/dt +g/lsinθ=0

θ=θ1.

transfering to, dθ/dt = dθ1/dt = θ2. -------------------- 1

d^2θ/dt^2 = d^2θ1/dt^2 = d/dt(dθ1/dt) = θ2--2

Now we go to orginal equation,

d^2θ/dt^2 + b/m*dθ/dt +g/l*sinθ=0

d^2θ1/dt^2 + b/m*dθ1/dt +g/l*sinθ1=0

dθ2/dt + b/m*dθ2 +g/l*sinθ=0

dθ2/dt = + b/m*θ2 + g/l*sinθ

Then, we create 2 ode

1------------- dθ1/dt = θ2

2---------------dθ2/dt = - b/m*θ2 - g/l*sinθ

we will brak the equation for matric formation,

d/dt(θ1 θ2), = (θ2 - b/m*θ2 - g/l*sinθ)

we will go to program,

clear all
close all
clc

% inputs
b=0.05
g=9.81 m/s^2
l=1 m
m=0.1 kg

% intial time for pendulam position
theta = [0;5] angular displacement, velocity

% time
t_span = linspace(0,20,500) time for intial condition 0 to 20 sec for 500 value.

we enter the ode equ
[t,results] = ode45(@(t,theta) ode_func(t,theta,b,g,l,m),t_span,theta)
ode45 inbuilt solver.
 we find the ode_func

function code

function [dtheta_dt] = ode_func(t,theta,b,g,l,m)
theta1=theta(1)
theta2=theta(2)
dtheta1-dt=theta2
dtheta2_dt=-(b/m)*theta2-(g/l)*sin(theta1)

then we make the plot for 2 outputs
figure(1)
plot(t,results(:,1),'linewidth',3,'color','r')
hold on
plot(t,results(:,2),'linewidth',3,'color','b')
grid on
xlabel('time')
ylabel('plot')
titile('angular displacement vs velocity')
lengend('displacement', 'velocity')

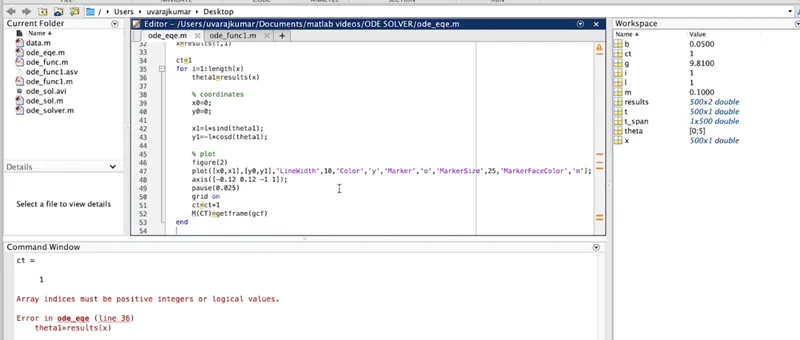

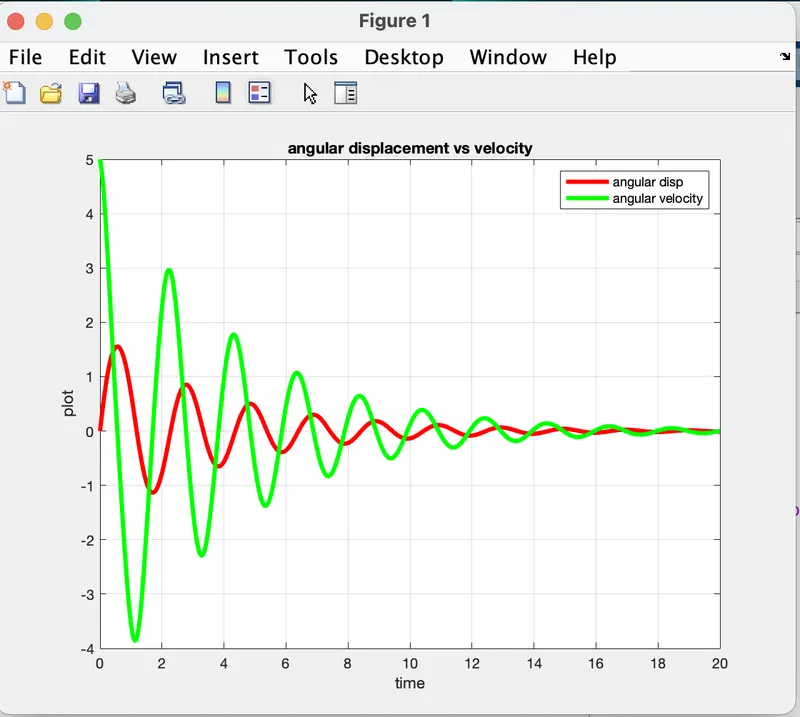

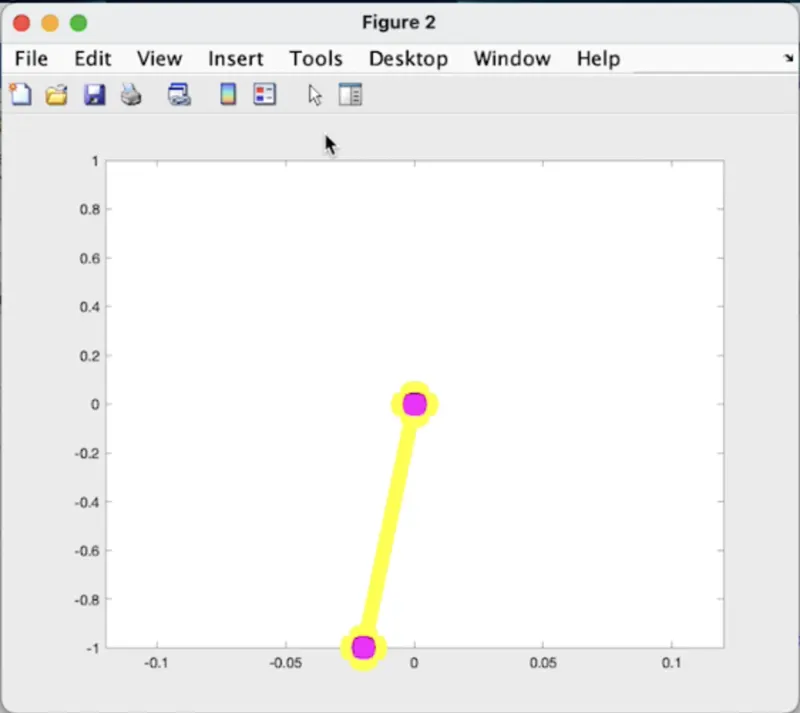

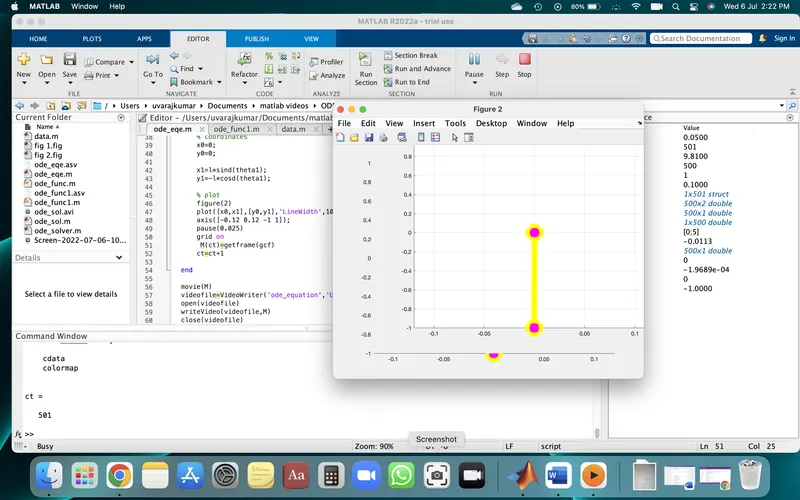

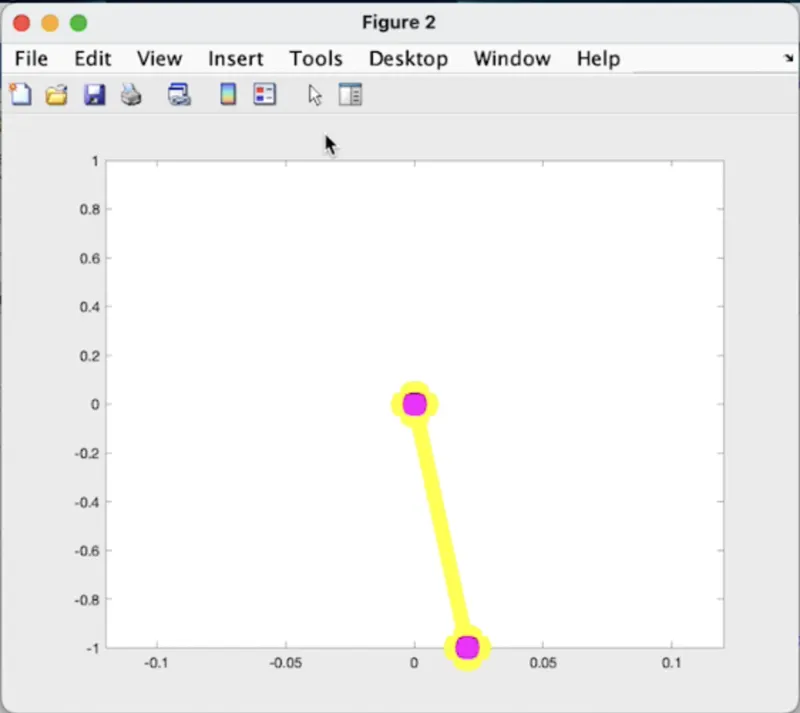

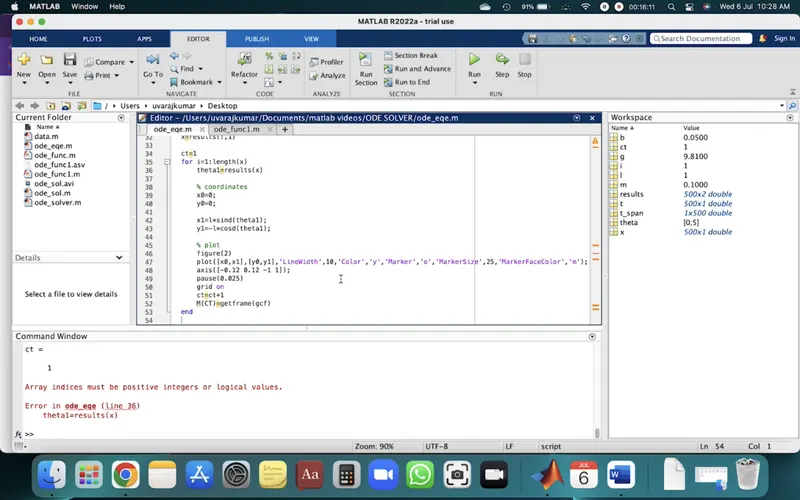

we got output for this function.
