Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

TOOLING AXIS:

• A geometrical set for Tooling Axis is created and base is extracted as referance surface.
• A point in created at the surface and in that a plane is created with reference xy plane.
• The intersection of the Class A surface is taken on that plane and from that a two lines are formed which is the referance lines for Tooling Axis.

• Then by bisecting the two lines we get the Tooling Axis.

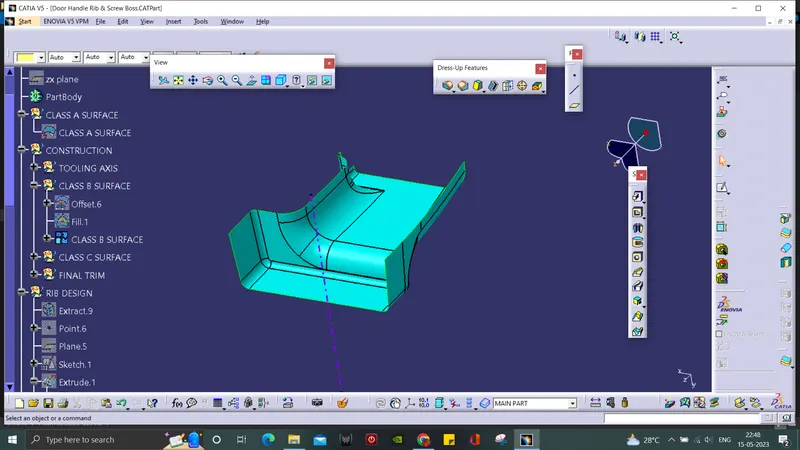

CLASS B SURFACE:

• Since we have different number of fillets, the offset method is the easy way for the B surface.
• The A surface is offsetted for 2.5mm and there will be discontinuity along the surface.
• They are repaired by using Fill, Multi-section and Join commands.

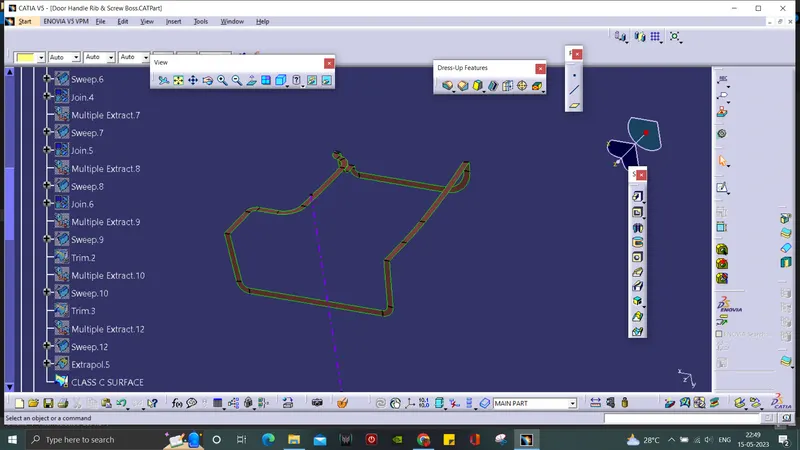

CLASS C SURFACE:

• Mutiple extract is used to form the boundary along the A surface.
• Then the boundary was made into surface by using sweep with respect to draft direction of the Tooling Axis.
• The swept surfaces were extrapolated and trimmed to form Class C surface.

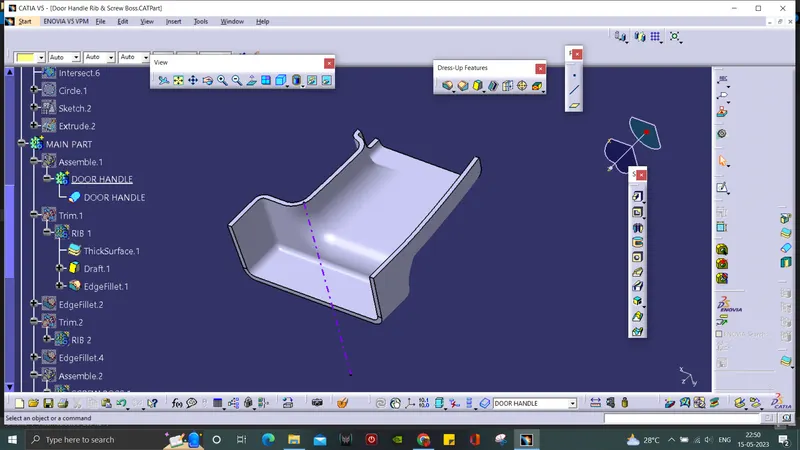

FINAL TRIM:

• At the final trim part, the A surface and C surface are joined together.
• The surface we get above is them trimmed with the B surface to form the Door Handle surface.
• Then at part design, the hollow part is converted into a solid Door Handle by using closed surface command.

RIB DESIGN:

• For Rib creation, a surface is extracted which is the base of the Rib.
• A line is drawn through the surface and it is extruded by 12.5mm.
• The extruded surface is then thicken by using thick surface.
• Then the Rib is drafted, trimmed and filleted with the Door Handle.
• Two Ribs are created as per the spacing in the Rib design rule.

SCREW BOSS DESIGN:

• For Screw boss, a screw sketch is created at the extracted surface.
• It is padded with a height to the diameter of 3:1 as per the design rule
• Then the Screw Boss is drafted and filleted with the Door Handle.
• Another Screw Boss is created using translation

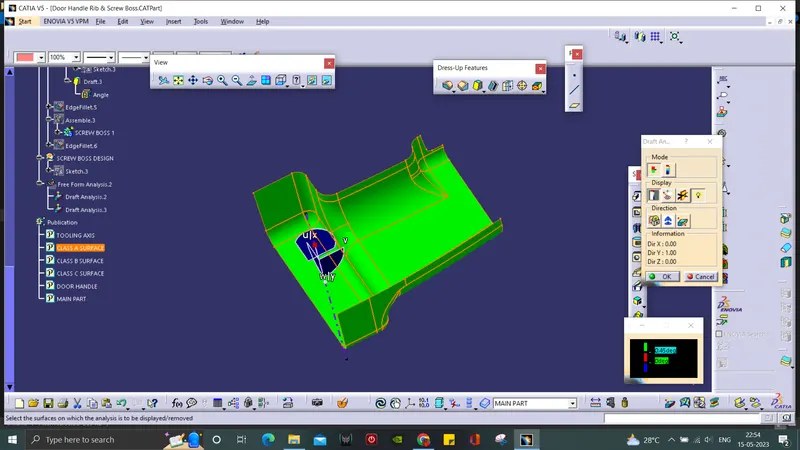

DRAFT ANALYSIS:

• In Draft Analysis tool bar, use the compass and drag it to set along the Tooling Axis of the surface.
• By clicking the surface, it will turn into green colour. if it is blue, the analysis was inversely done which is corrected just by flipping the direction.
• Draft Analysis on the solid part is in green and red regions.
• Individual Draft Analysis is done for both solid and surface.

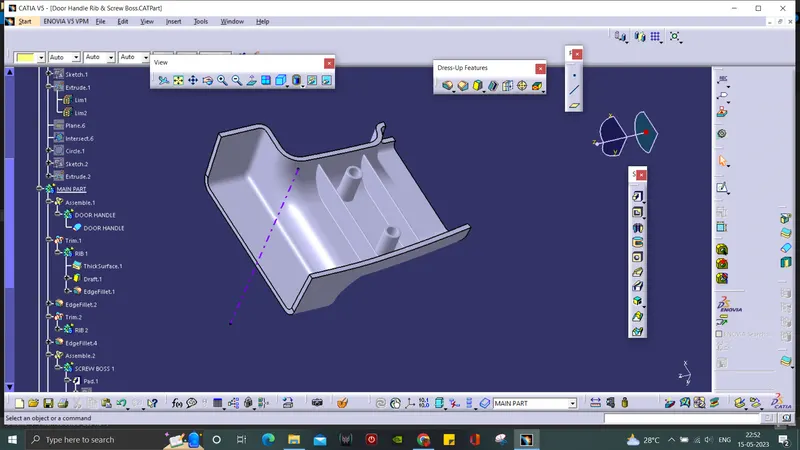

ISOMETRIC VIEW:

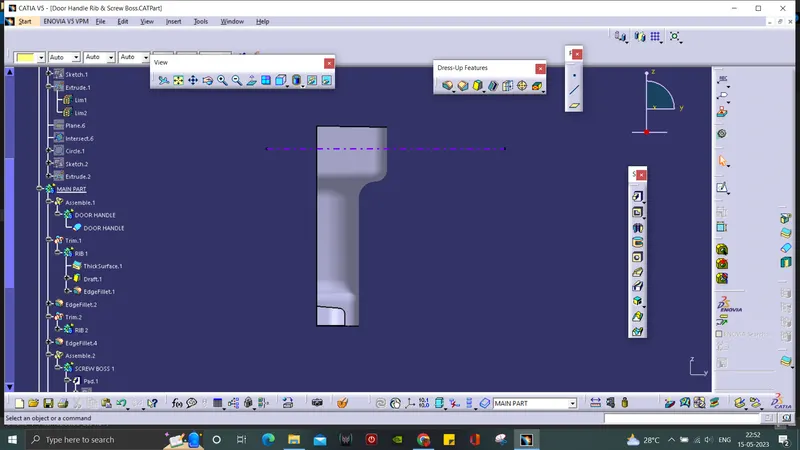

FRONT VIEW:

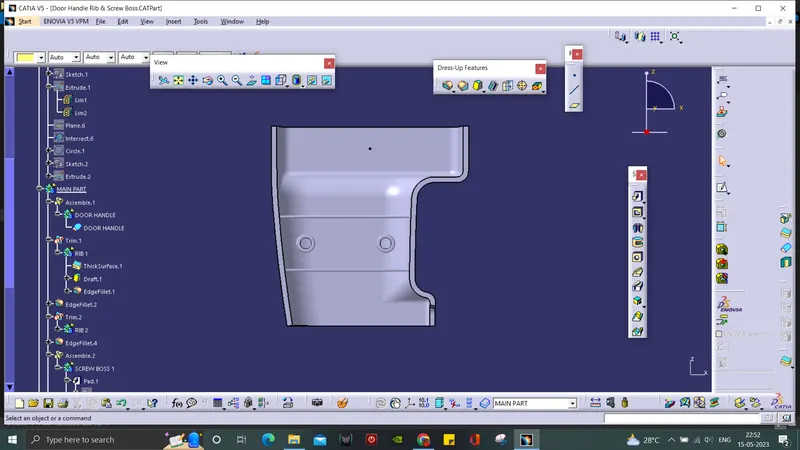

TOP VIEW:

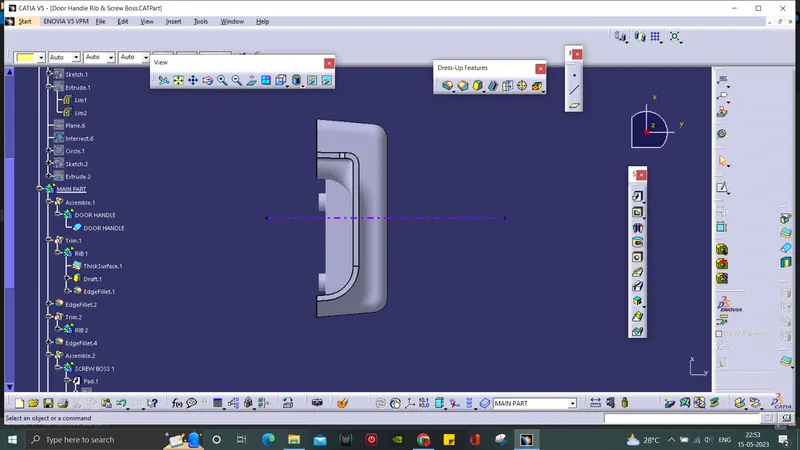

SIDE VIEW:
