Week 10 Bullet penetrating a Bucket Challenge
Simulation of Bullet Penetration into Bucket.
Aim: Simulation of bullet penetration into bucket made up of Copper Alloy NL,Magnesium Alloy NL and Aluminium Alloy NL.
Steps followed:
1) Material selection:
Bullet:

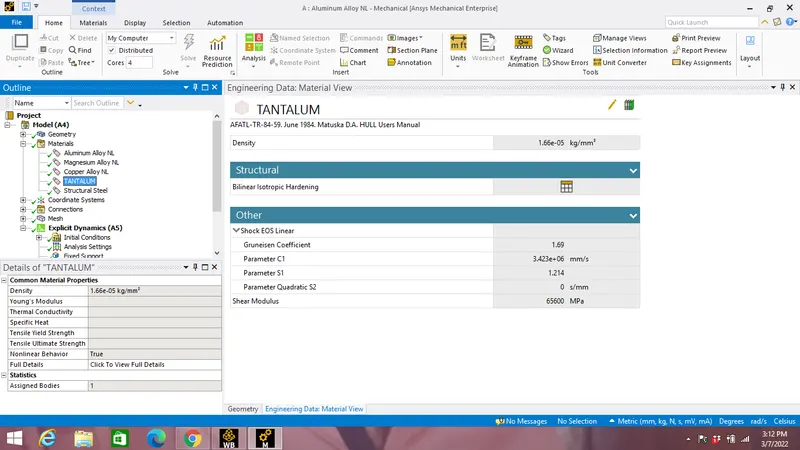

Material selected for Bullet is Tantalum with material specifications as shown in the image below:
Case 1:

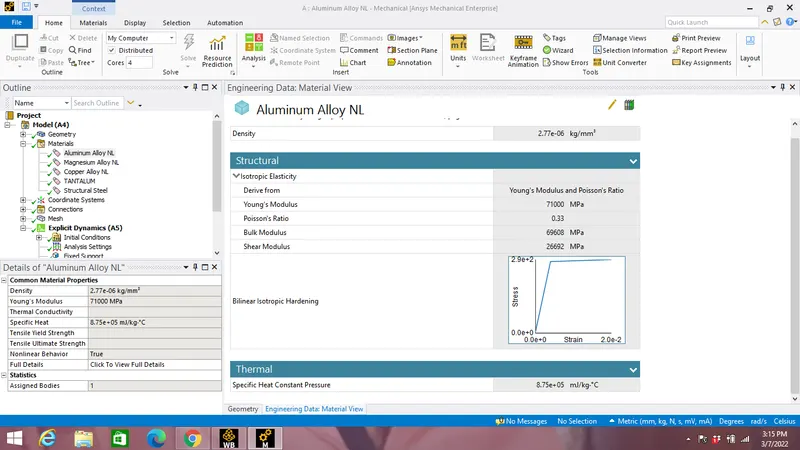

Material selected for Bucket is Aluminium Alloy NL with material specifications as shown in the image below:
Case 2:

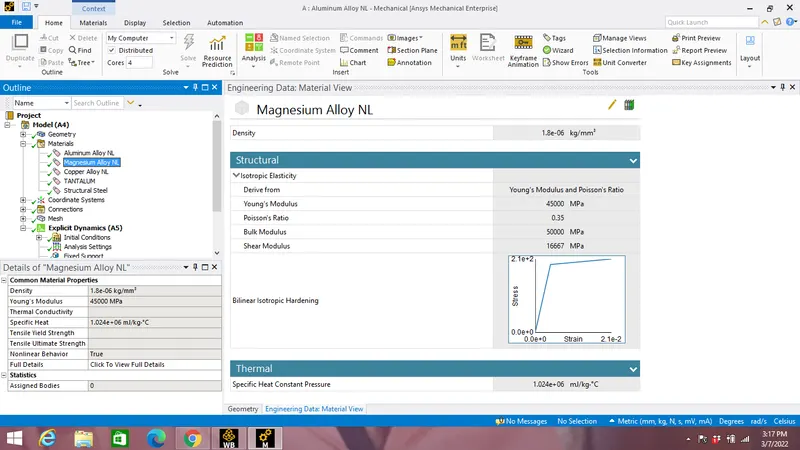

Material selected for Bucket is Magnesium Alloy NL with material specifications as shown in the image below:
Case 3:

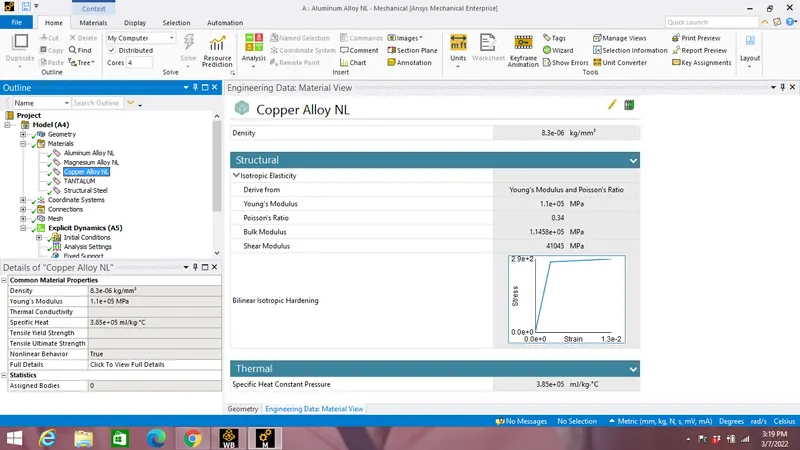

Material selected for Bucket is Copper Alloy NL with material specifications as shown in the image below:
2)Geometry:

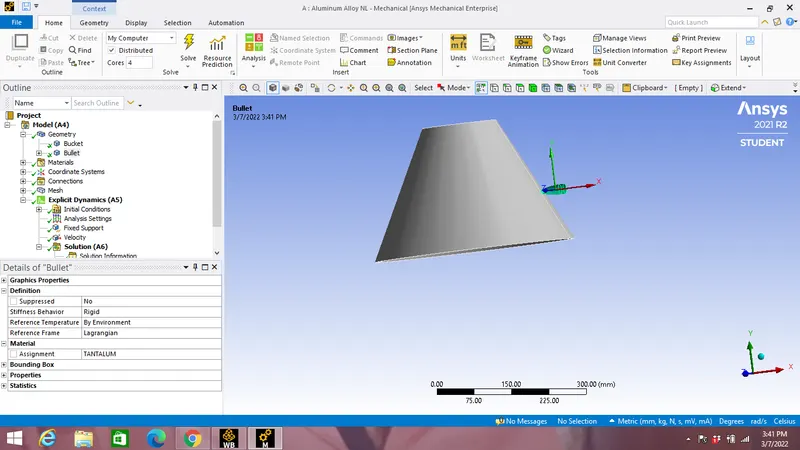

A CAD model of Bullet-Bucket assembly is imported and parts are renamed as Bullet & Bucket will proper material assingment and behaviour of Bullet is taken Rigid, since we only want to study deformation & stress on bucket alone:
Case 1:

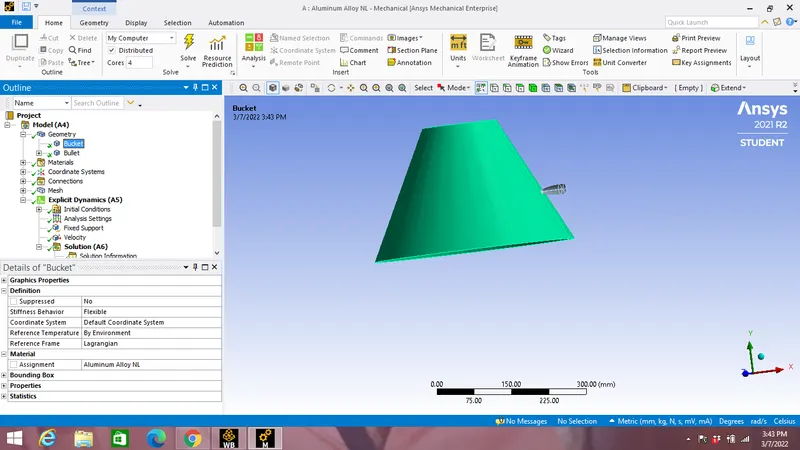

For bucket material assigned is Aluminium Alloy NL:
Case 2:

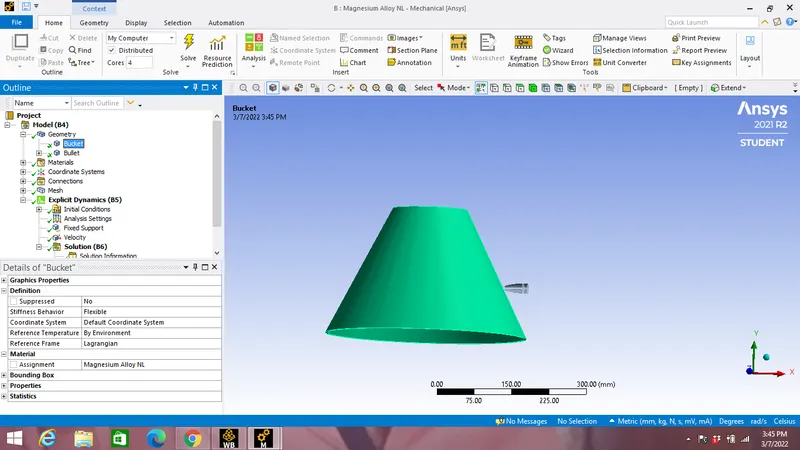

For bucket material assigned is Magnesium Alloy NL:
Case 3:

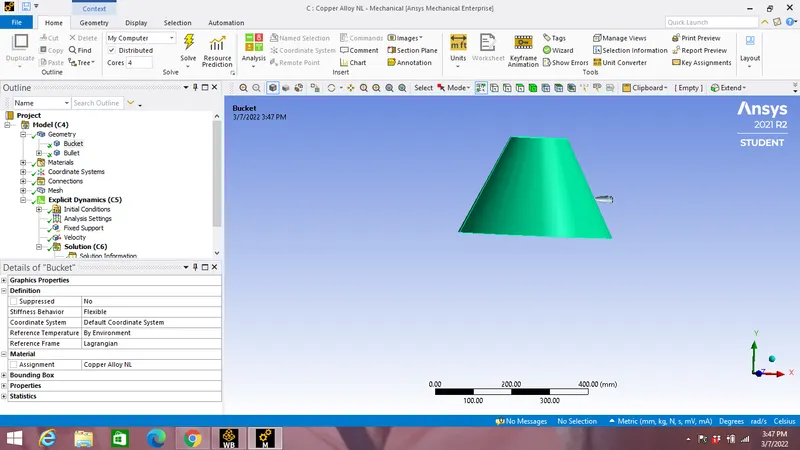

For bucket material assigned is Copper Alloy NL:
3)Contacts:
Delete all the contacts present in the Connections by default as we are interested in studying impact of bullet on bucket were contact is of not much importance.
4)Meshing:

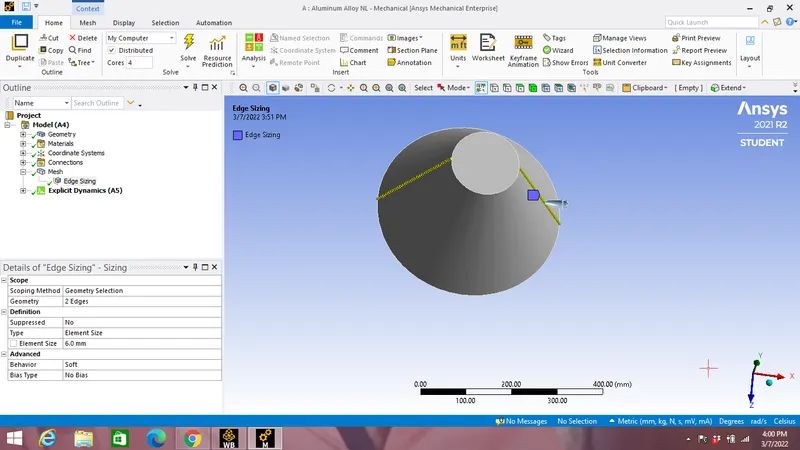

Edge sizing of 6mm is applied to the bucket were bullet hits for proper results at the target point as shown in the image below:

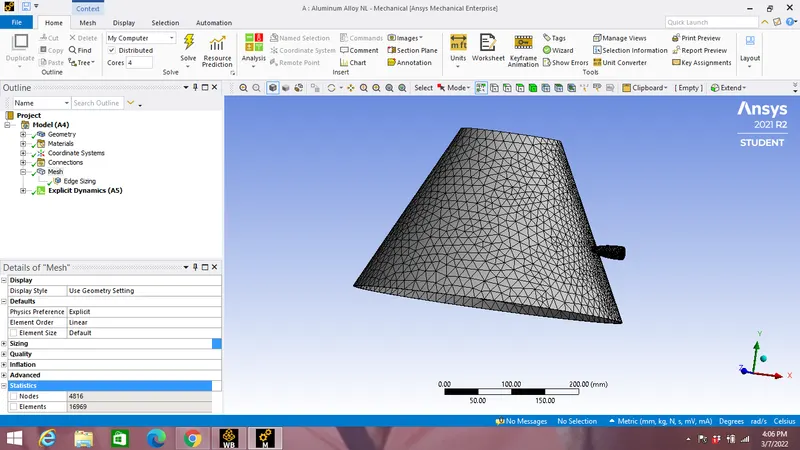

Meshing is shown in the image below:
For case 1,2&3 meshing is kept similar as above.
5)Boundary canditions:
a) Analysis Settings:

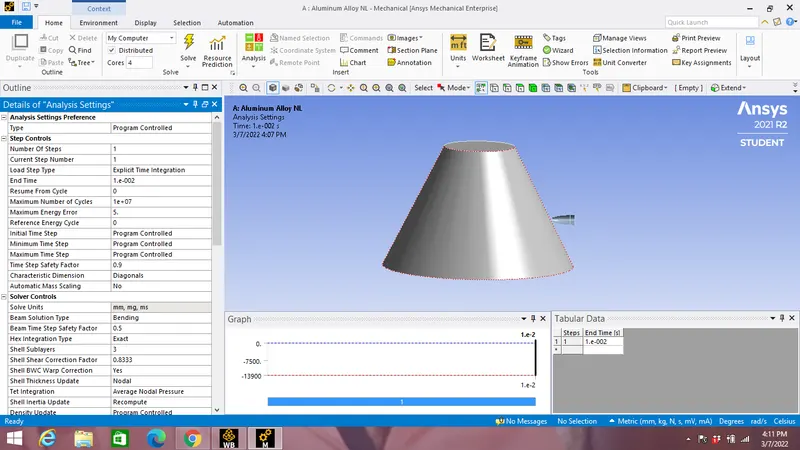

Number of steps taken for analysis is 1 with End time as 0.01 and Maximum Energy Error as 5. Intial time step,Minimum time step and Maximum time step all Programme Controlled as shown in the image below:
b)Fixed support:

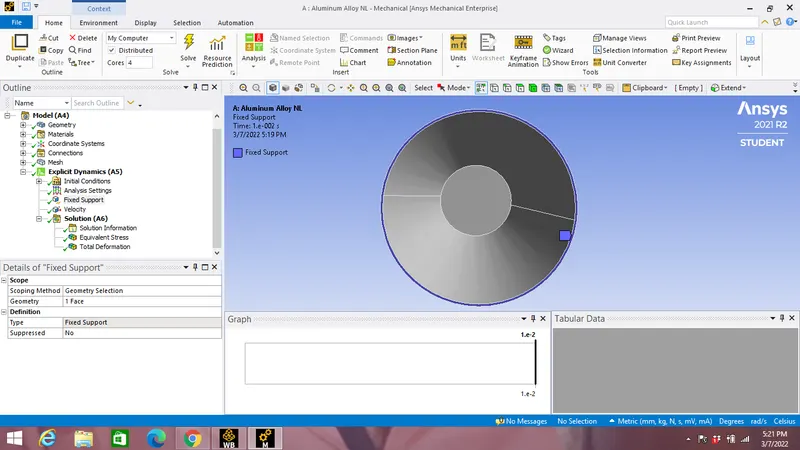

A fixed support is applied to the bucket in order to make it stationary after the impact of bullet on it as shown in the image below:
c)Velocity:

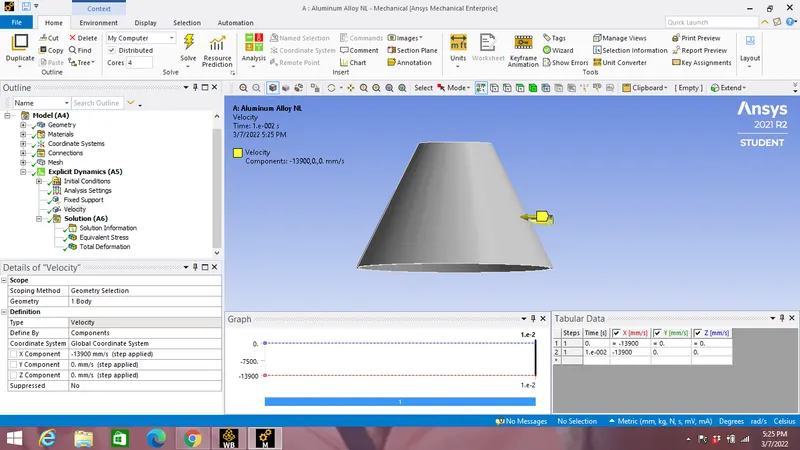

A velocity of 13900 mm/s is applied to the bullet along -ve X axis by selecting its entire body and keeping Y& Z axis velocity zero, as shown in the image below:
For case 1,2 & 3 boundary canditions are kept same as above.
Results:
Case 1: Bucket is made up of Aluminium alloy NL.

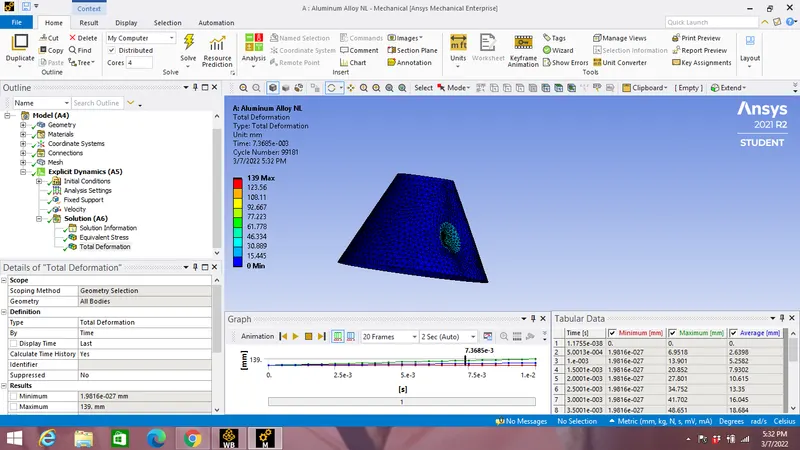

Total Deformation of bucket:

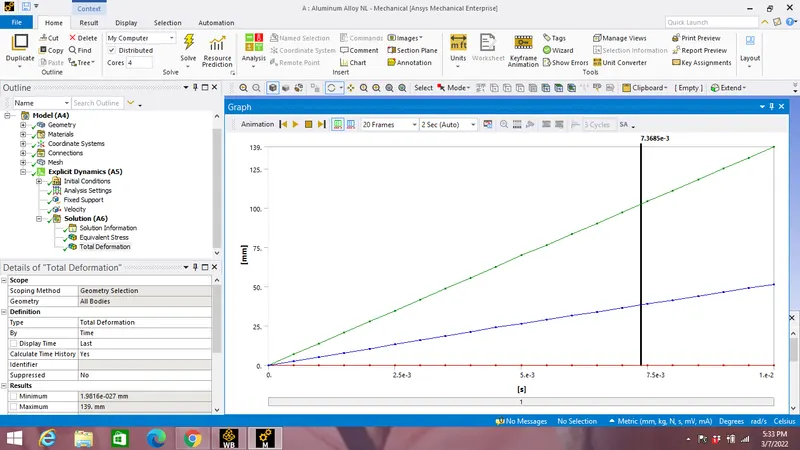

Total Deformation vs Time graph:
Maximum Total Deformation of the bucket after the impact of bullet:139mm.

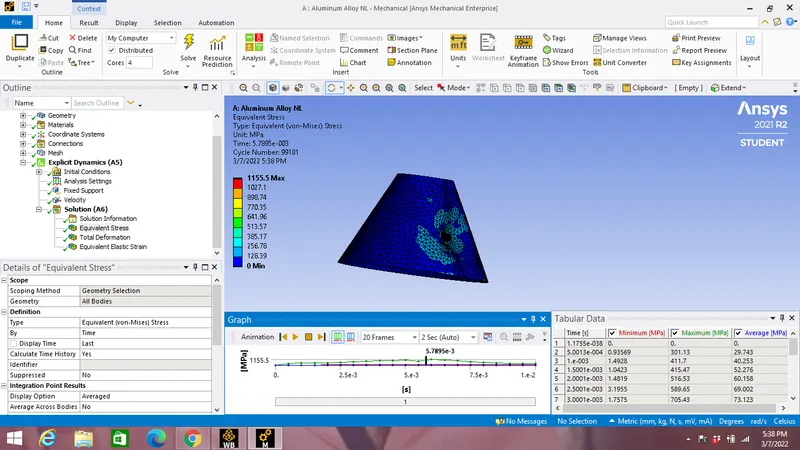

Equivalent Stress on bucket:

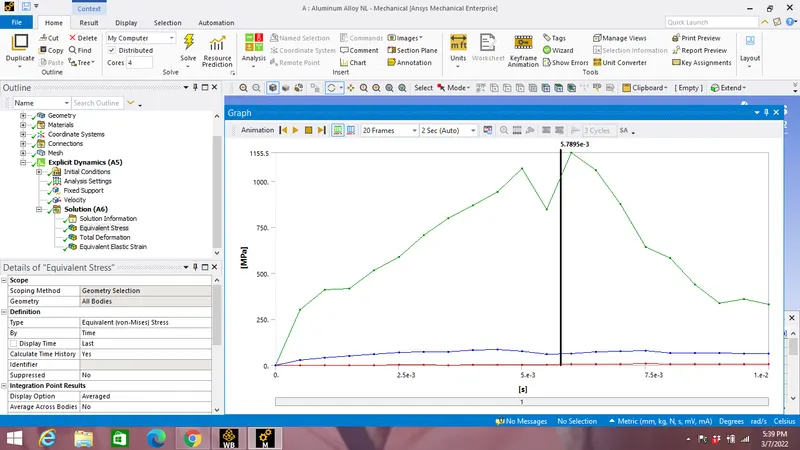

Equivalent Stress vs Time graph:
Maximum equivalent stress on bucket:1155.5 MPa

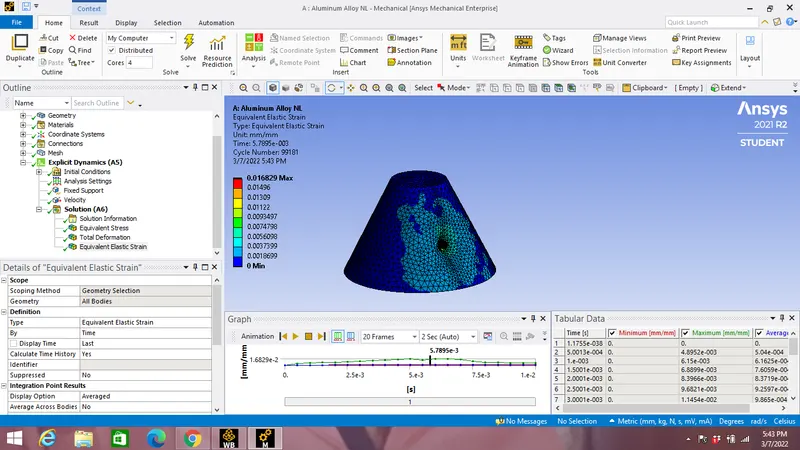

Equivalent Elastic Strain:

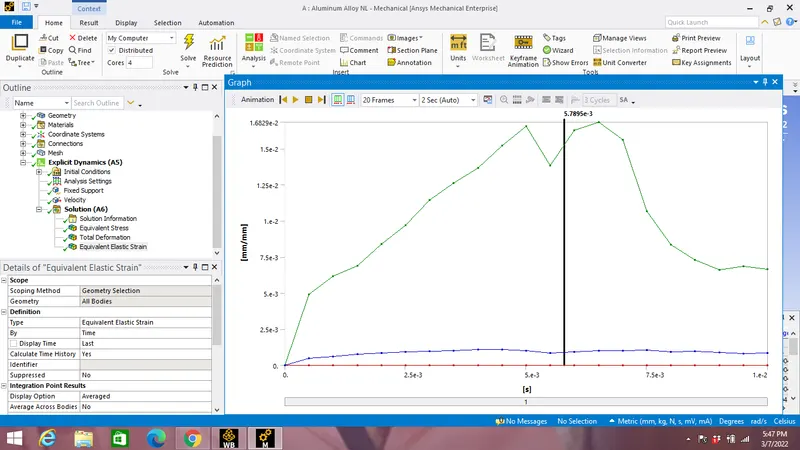

Equivalent Elastic Strain vs Time graph:
Maximum Equivalent Elastic Strain for bucket:0.016829
Case 2: Bucket is made up of Magnesium alloy NL.

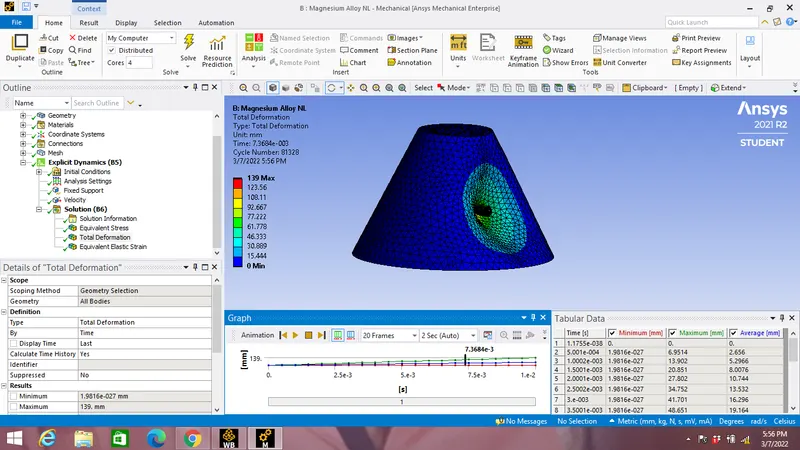

Total Deformation of bucket:

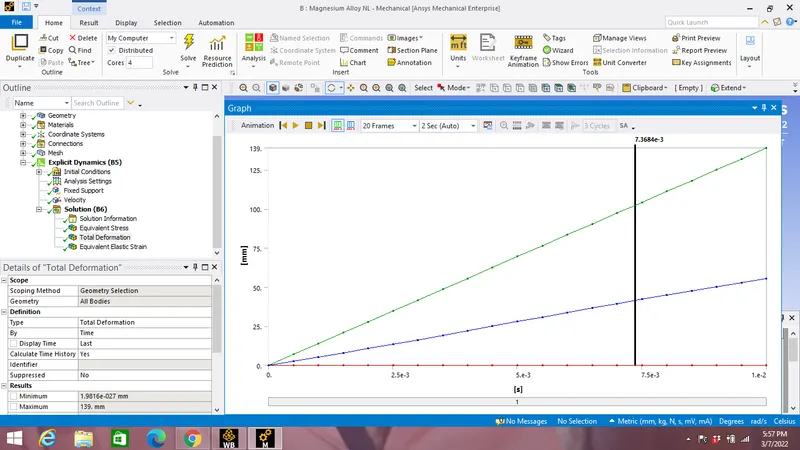

Total Deformation vs Time graph:
Maximum Total Deformation of the bucket after the impact of bullet:139mm.

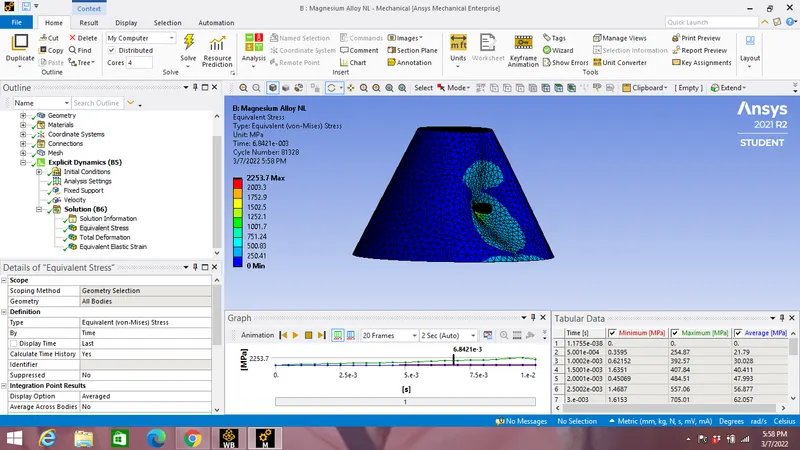

Equivalent Stress on bucket:

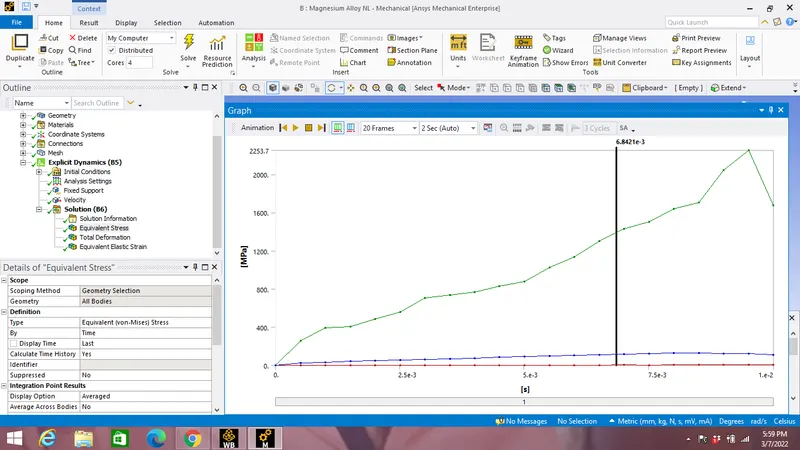

Equivalent Stress vs Time graph:
Maximum equivalent stress on bucket:2253.7 MPa

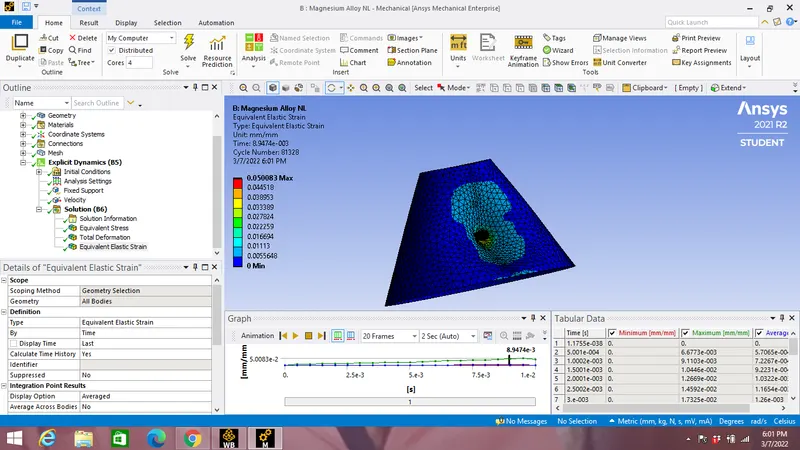

Equivalent Elastic Strain:

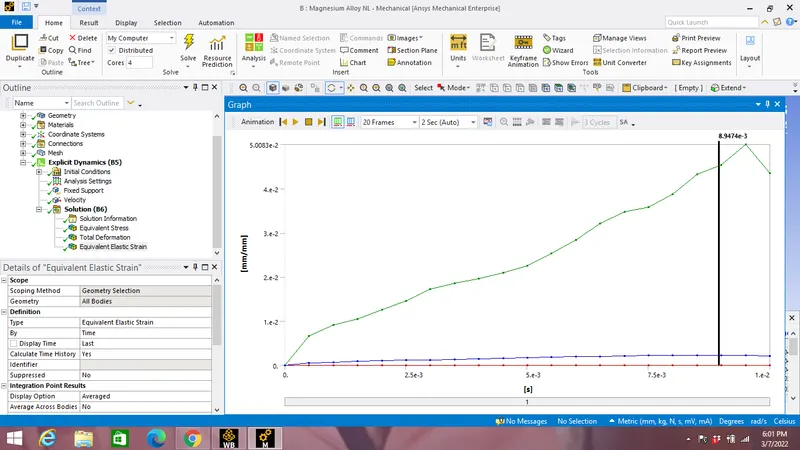

Equivalent Elastic Strain vs Time graph:
Maximum Equivalent Elastic Strain for bucket:0.050083
Case 3: Bucket is made up of Copper alloy NL.

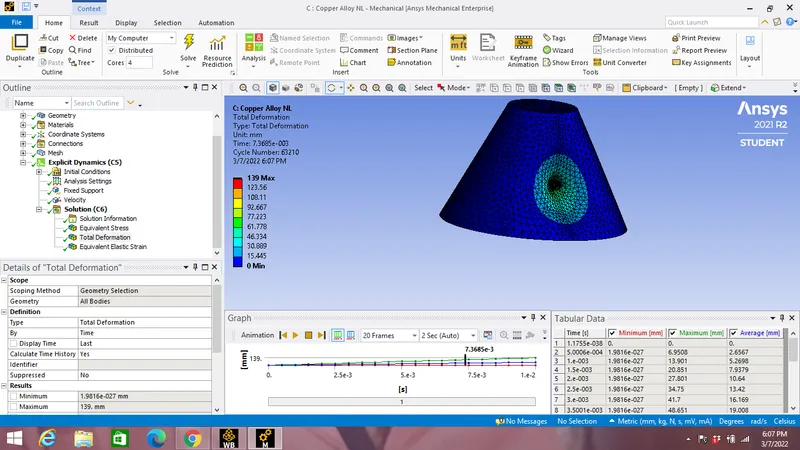

Total Deformation of bucket:

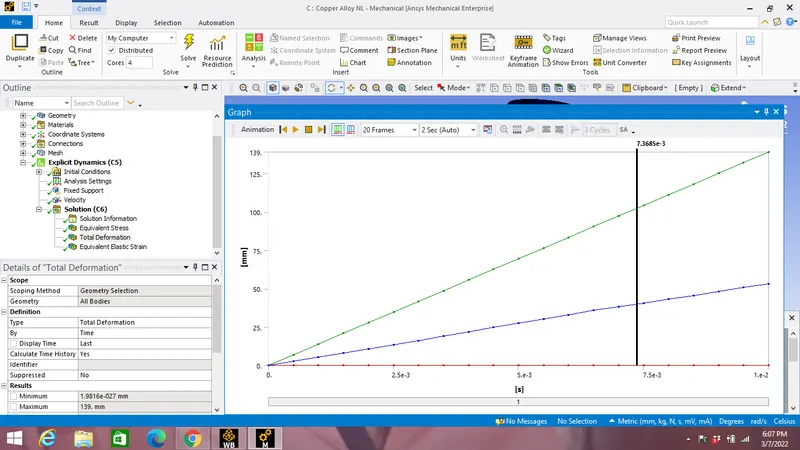

Total Deformation vs Time graph:
Maximum Total Deformation of the bucket after the impact of bullet:139mm.

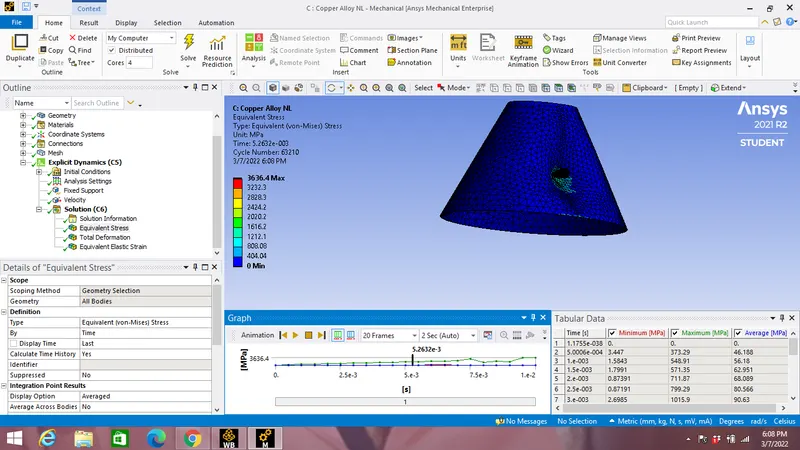

Equivalent Stress on bucket:

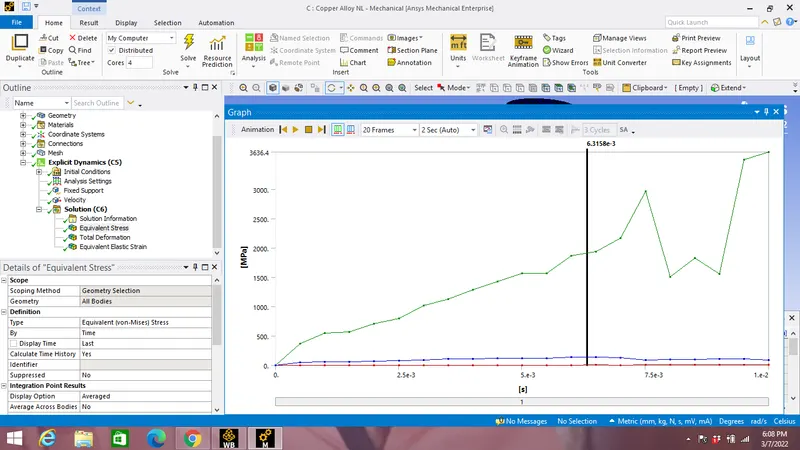

Equivalent Stress vs Time graph:
Maximum equivalent stress on bucket:3636.4 MPa

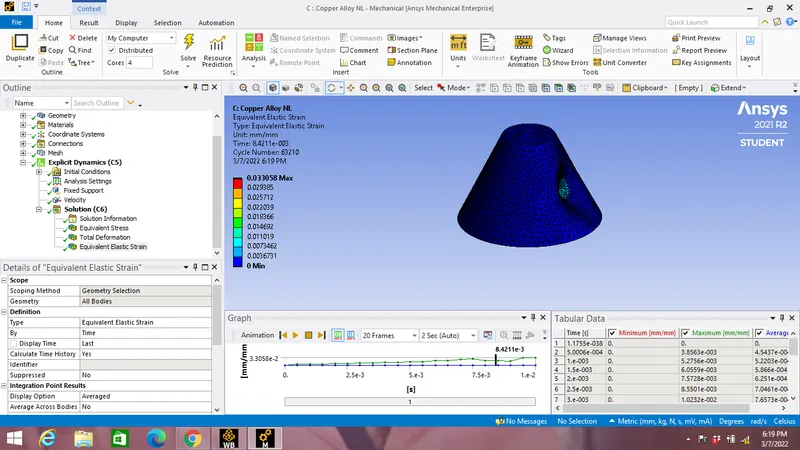

Equivalent Elastic Strain:

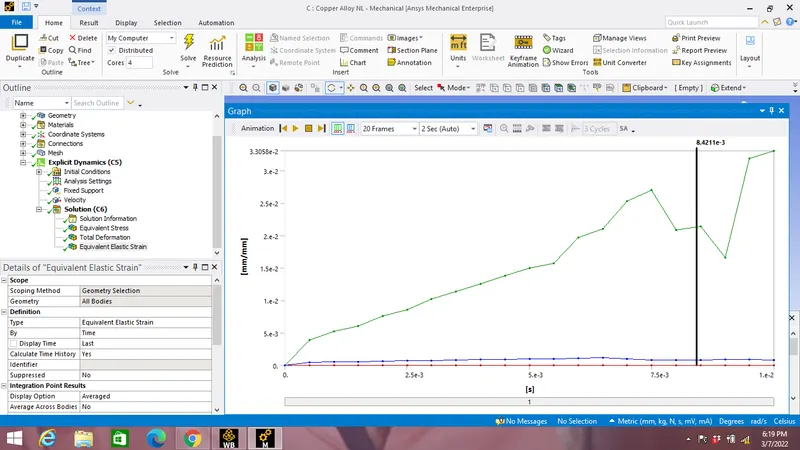

Equivalent Elastic Strain vs Time graph:
Maximum Equivalent Elastic Strain for bucket:0.033058
Comparision of Total deformation,Maximum equivalent stress & strain for case 1,2 & 3.
| Case | Total Deformation(mm) | Maximum Equivalent Stress(MPa) | Maximum Equivalent Strain |
| 1 | 139 | 1155.5 | 0.016829 |
| 2 | 139 | 2253.7 | 0.050083 |
| 3 | 139 | 3636.4 | 0.033058 |
Conclusion:
- Highest equivalent stress occurs for case 3 where bucket is made up of Copper Alloy NL as it has highest Young's modulus of 1.1e+005 MPa compared to Aluminium Alloy NL & Magnesium Alloy NL. So bucket of Copper NL is applying high resistance during penetration of bullet.
- Total Deformation is equal in all three cases.
- The material which offers high resistance to penetration can be used as bullet proof materials.
- Main objective of the analysis of bucket is to find which material is best for avoiding bullet penetration.
