Week 10 Bullet penetrating a Bucket Challenge

Aim - To simulate Bullet penetrating a Bucket

Procedure

1. Select Explicit solver.

2. Select relevant materials (use explicit materials).

3. import geometry.

4. assign the materials to the components. Rename the components if needed. Assign the bullet to rigid body

5. Remove any predefined contacts if any

6. Check out body interactions. set to frictionless.

7. Mesh the geometry. use face meshing on the curved surfaces with element size 6mm.

8. set velocity as initial condiction with bullet velocity as 139 m/s penetrating the bucket.

9. Analysis settings: end time = 0.01, maximum energy error = 5.

10. Set the required solutions.

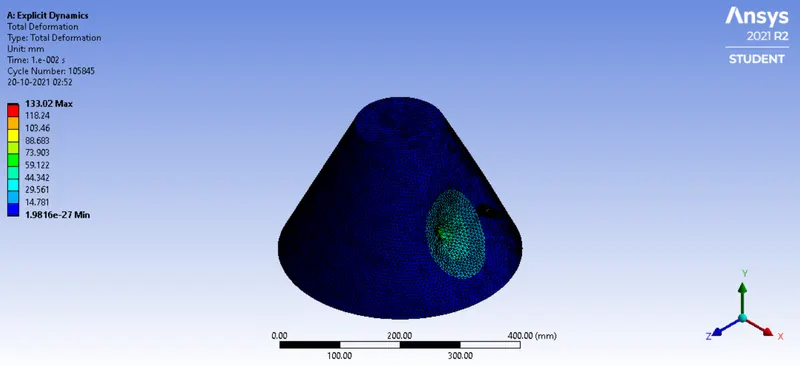

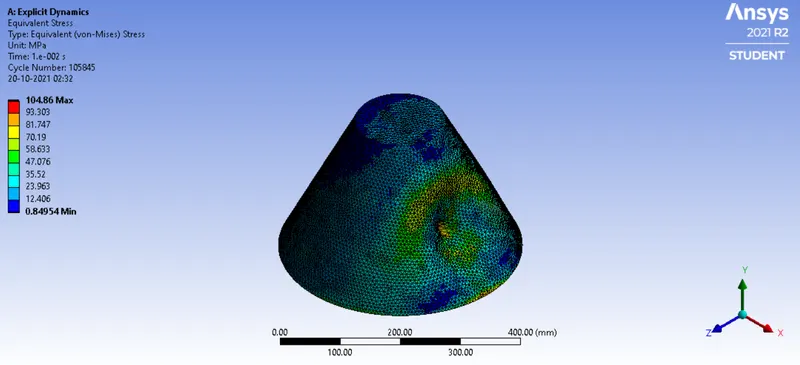

Results
