Week 10 Bullet penetrating a Bucket Challenge
Aim: To simulate a bullet penetrating into a bucket using 3 different non linear materials for the bucket and analyse their behaviour for the same velocity of bullet.
Setup: We begin by assigning the bucket with a material for each case:
- Al 1100-O
- MAGNESIUM
- Steel 1006
We proceed to deleting any pre-existing contacts and then we move onto meshing. Here we provide a face sizing of 50mm to the outer surface of the bucket and a body sizing of 35mm to the bullet.
We then assign the end time as 0.01s and establish a fixed support to the open edge of the bucket and a velocity of 139000 mm/s to the bullet.
Results:
|
Total Deformation(mm) |
Equivalent Stress (MPa) |
|
|

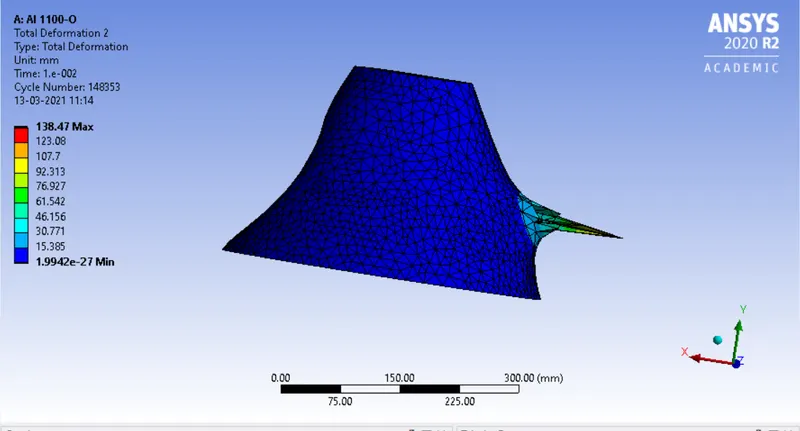

Al1100-O |
138.47 |
97.202 |
|

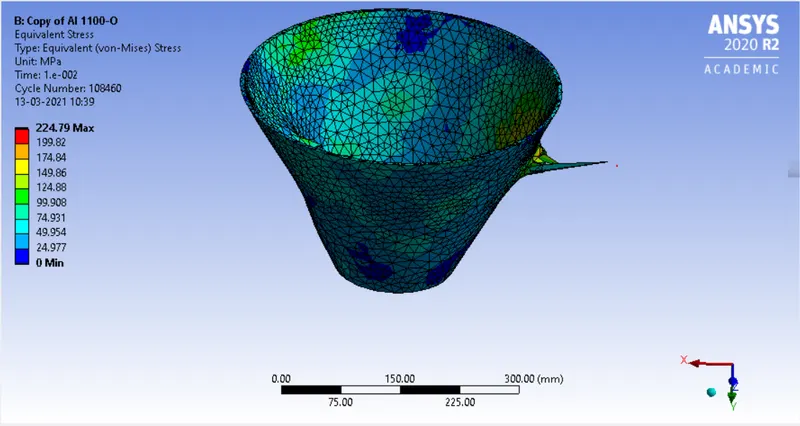

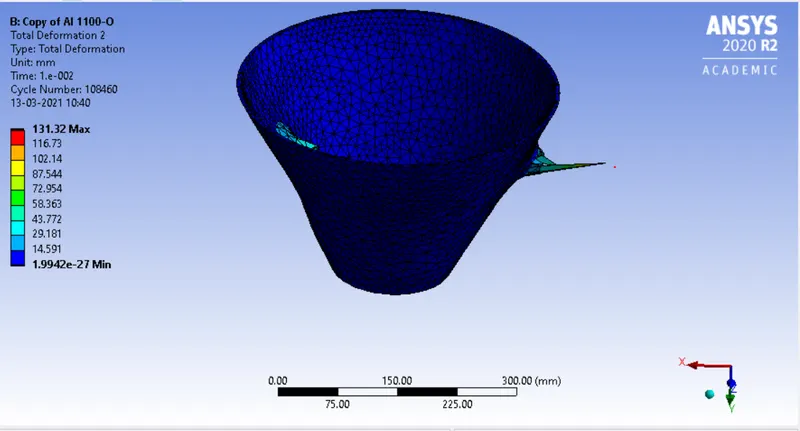

MAGNESIUM |
131.32 |
224.79 |
|

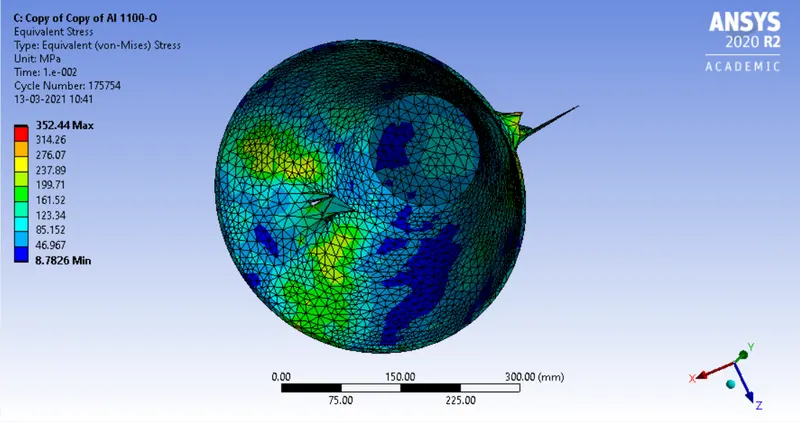

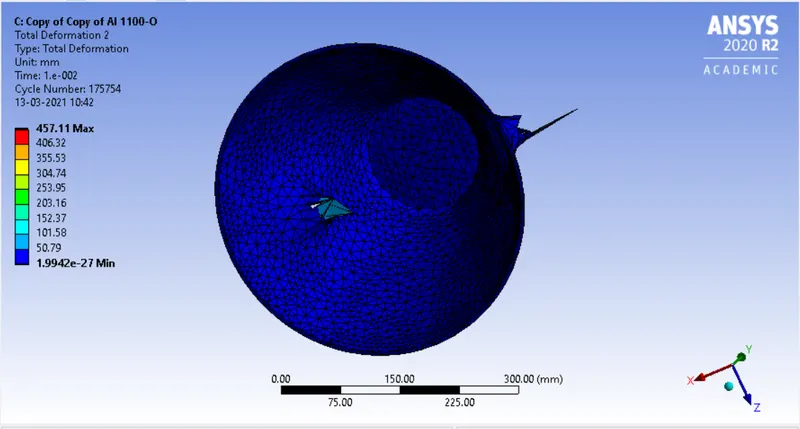

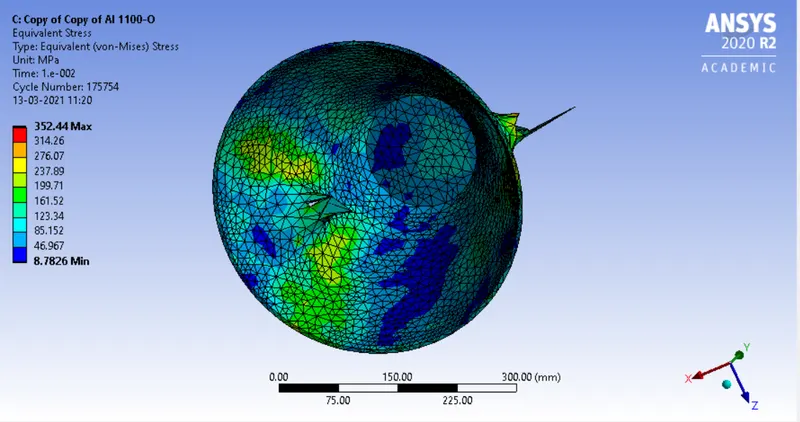

Steel 1006 |
457.11 |
352.44 |
