Week 10 Bullet penetrating a Bucket Challenge

OBJECTIVE

To simulate a bullet penetrating into bucket  using Explicit dynamics

Case 1  Stainless  Steel NL

Case 2 Alumimum Alloy NL

Case 3 Copper Alloy NL

PRODECURE

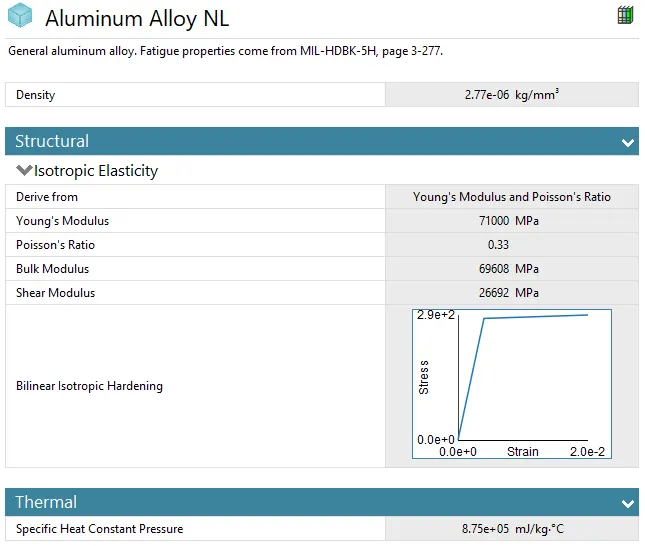

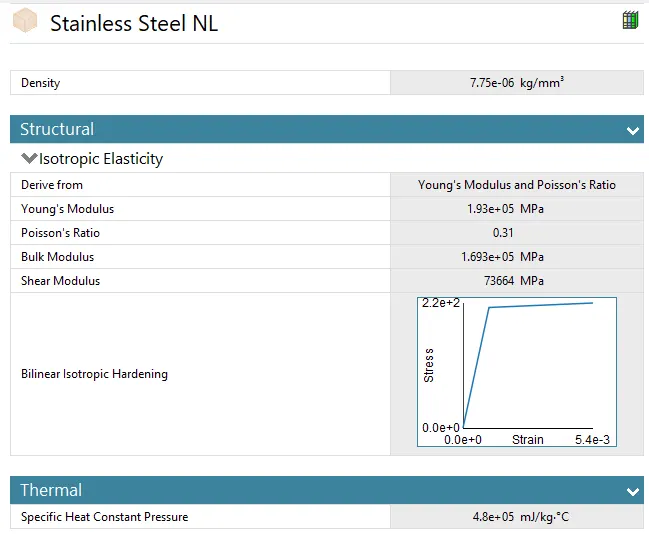

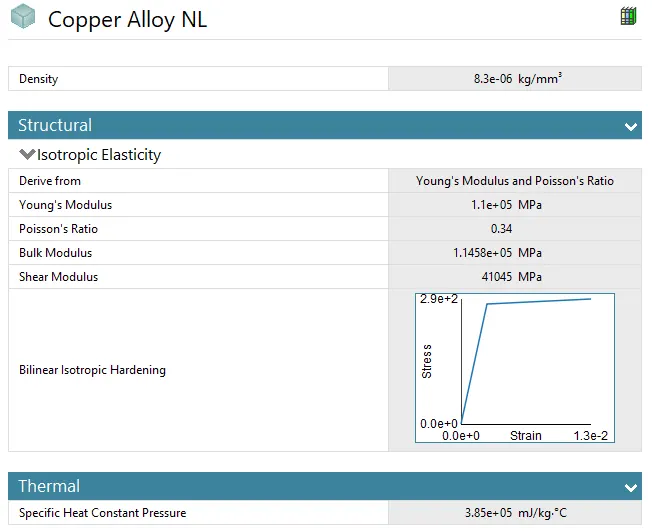

Create Explicit Dynamics in Ansys Workbench and in Engineering data select  the material Tantalum from explicit materials and Stainless Steel Nl , Aluminium Alloy NL and Copper Alloy NL according to the cases

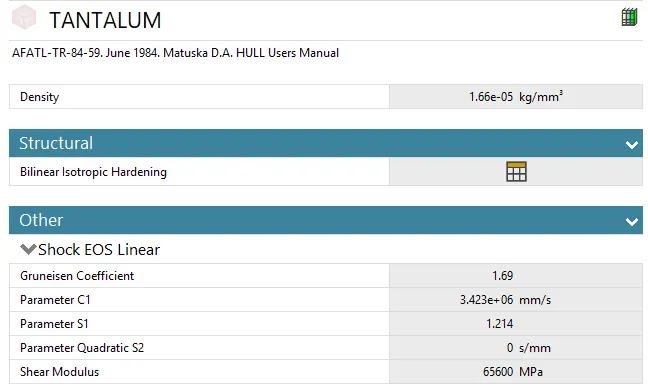

Tantalum

Import the geometry and check in Spaceclaim for any irregularties

Then open Ansys mechanical and rename the components as bucket and bullet then assign the Tantalum material to the bullet and Stainless Steel NL , Aluminium Alloy NL and copper Alloy NL material according to the cases to the bucket and change the stiffness behaviour of the bullet to rigid

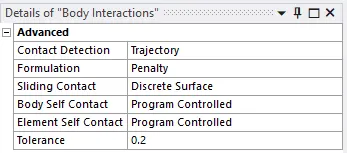

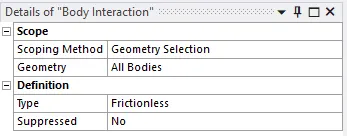

Body Interaction - No contacts are defined .Instead a body interaction is introduced the parameters of which are set as shown below

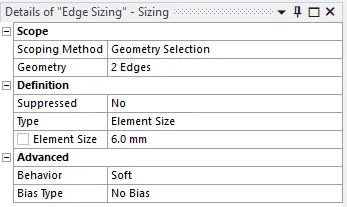

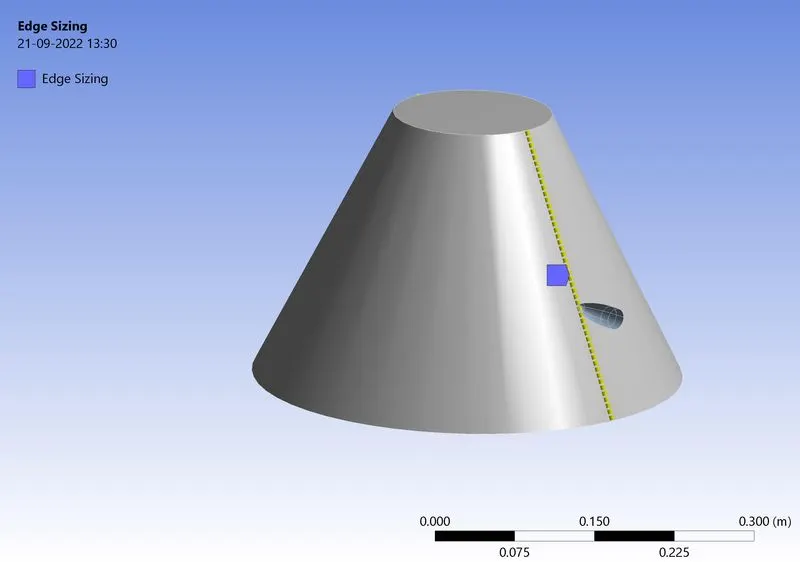

Mesh  Edge Sizing  The bucket is meshed by elements size of 6mm along its edges

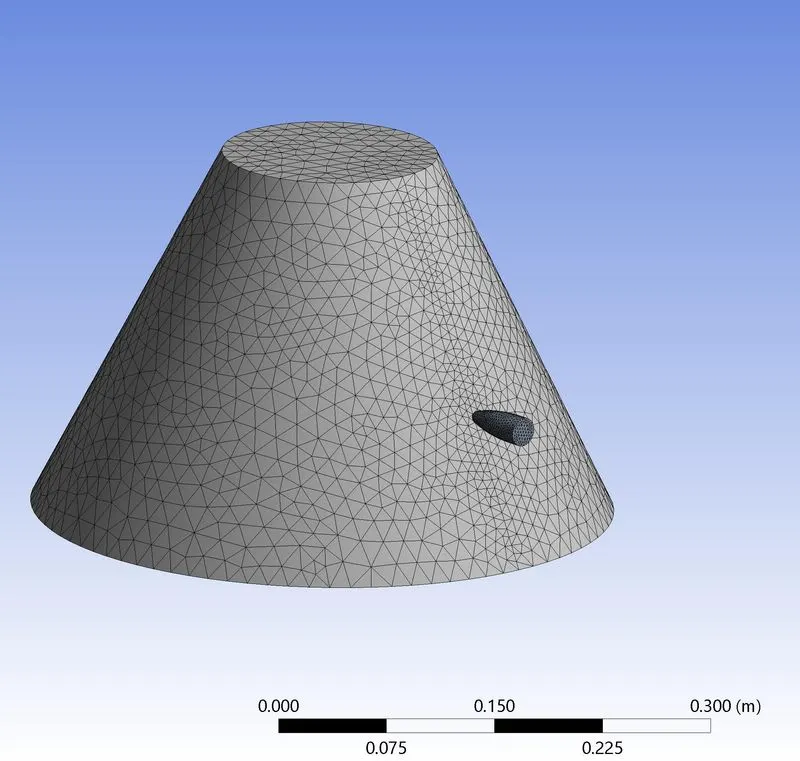

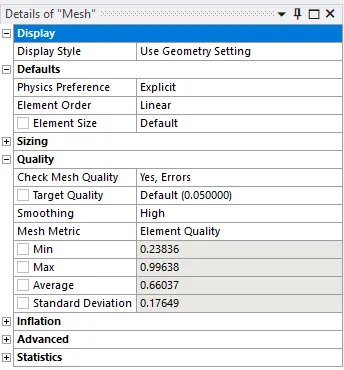

Mesh

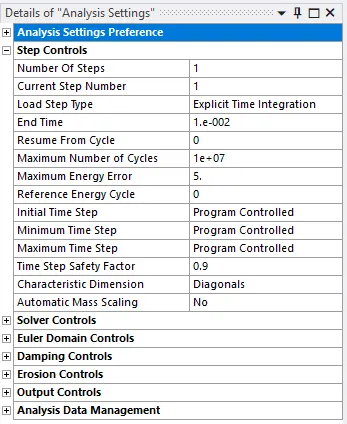

Analysis Settings   Set time as 1e-2 with maximum number of cycles as 1e+7 Maximum Error set to 5

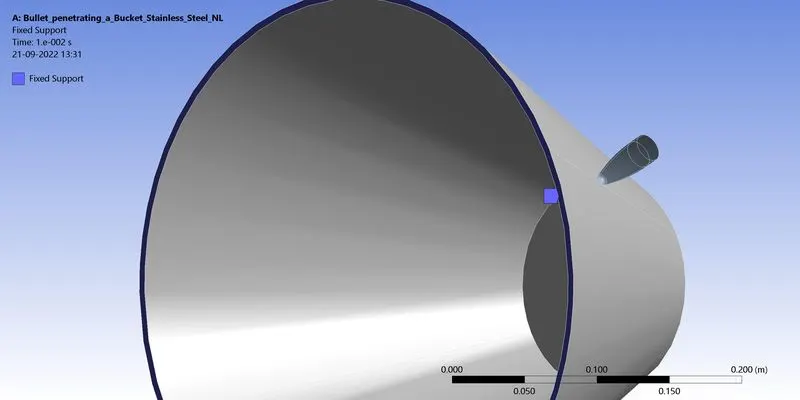

Fixed Support  Bucket is fixed

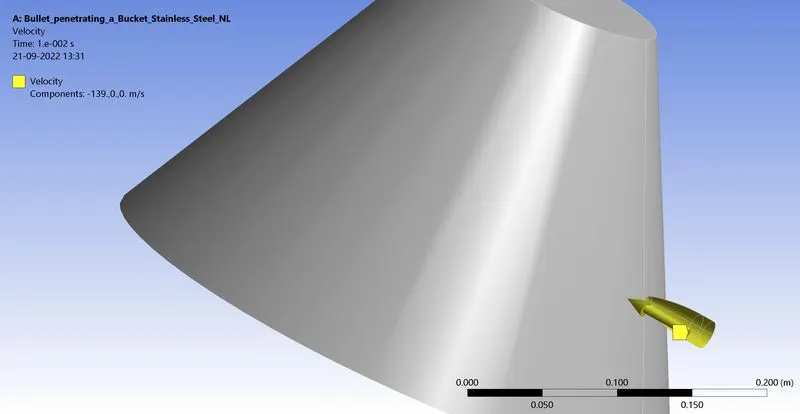

Velocity   Bullet provides the velocity of 139000mm/s in negative x direction



Run the simulation and results obtained

Result  The analysis  runs successfully and results obtained

Case 1 Stainless Steel NL

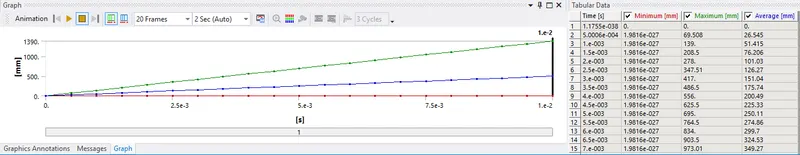

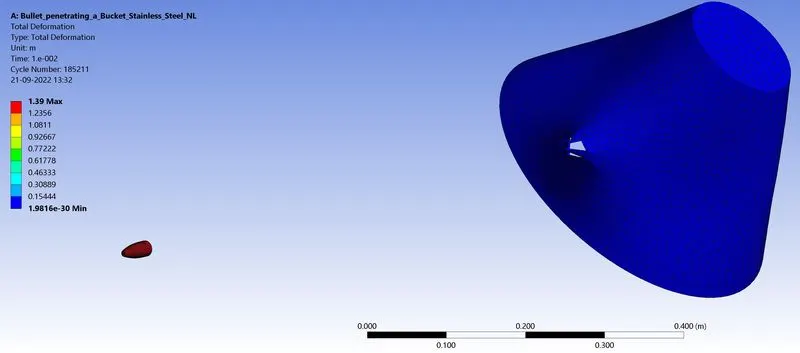

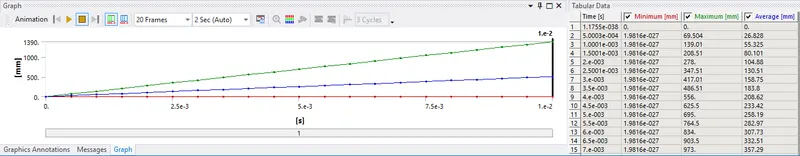

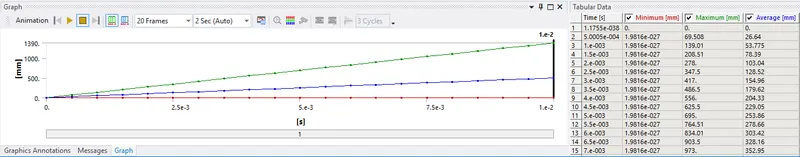

Total Deformation  Max - 1390mm

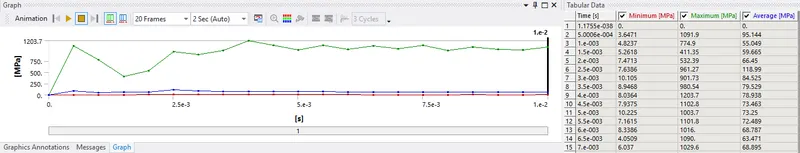

Equivalent Stress Max - 1286.4 Mpa

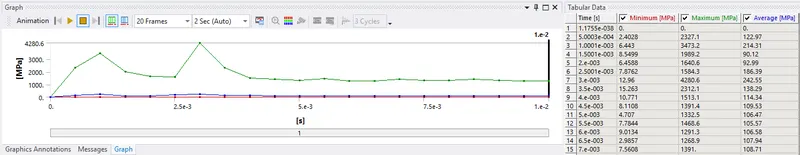

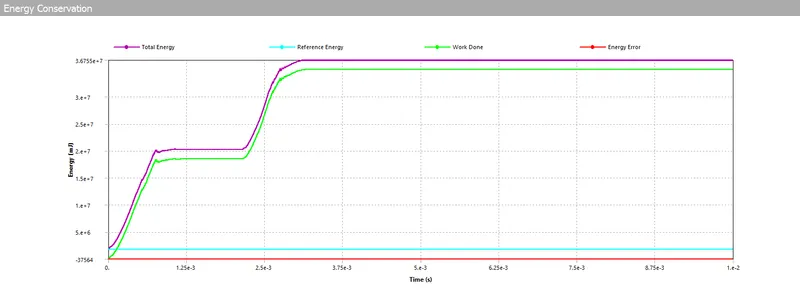

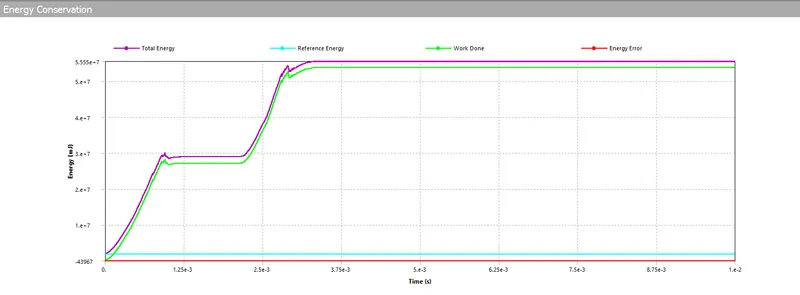

Energy Conservation Plot

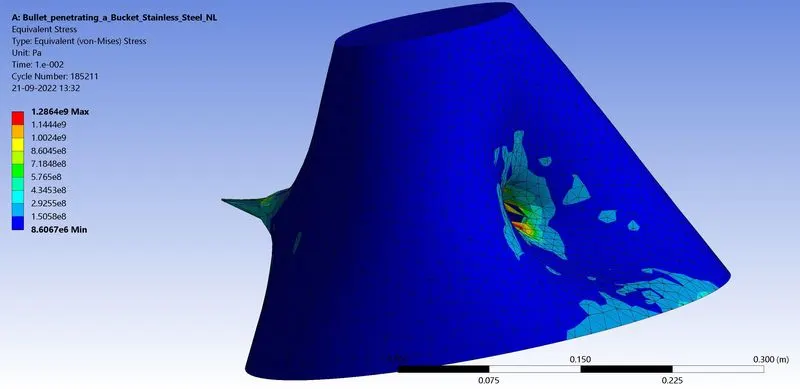

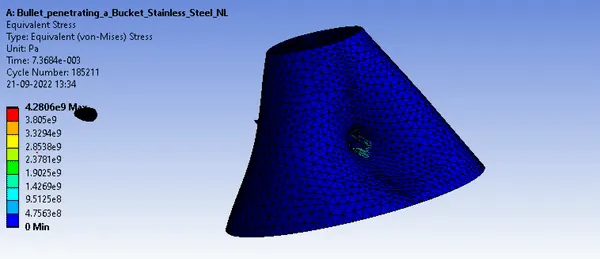

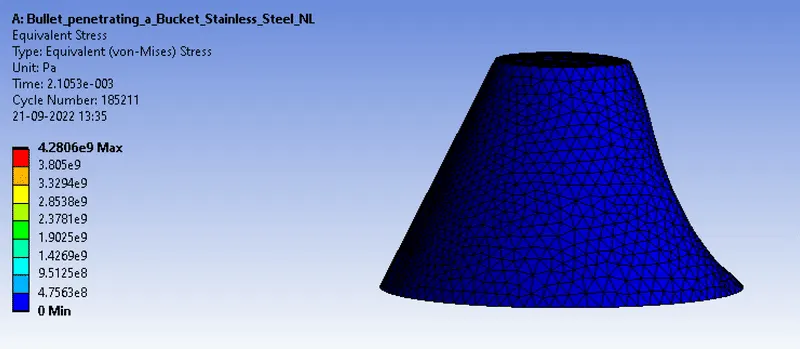

Equivalent Stress





Case 2 Aluminium Alloy NL

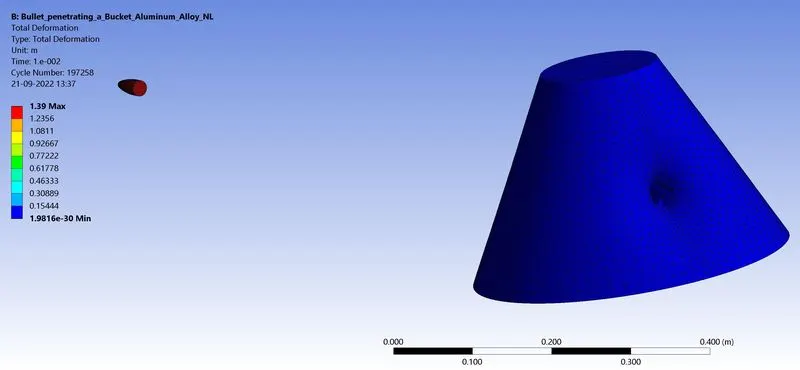

Total Deformation Max - 1390mm





Equivalent Stress Max - 1059.7 Mpa

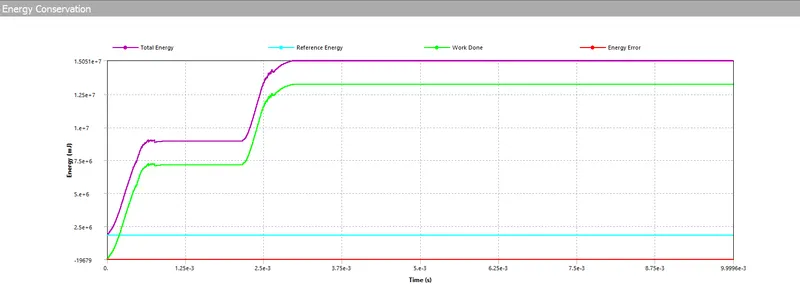

Energy Conversion Plot

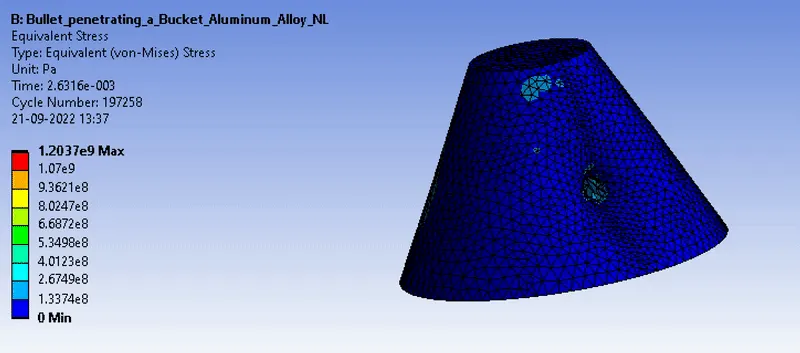

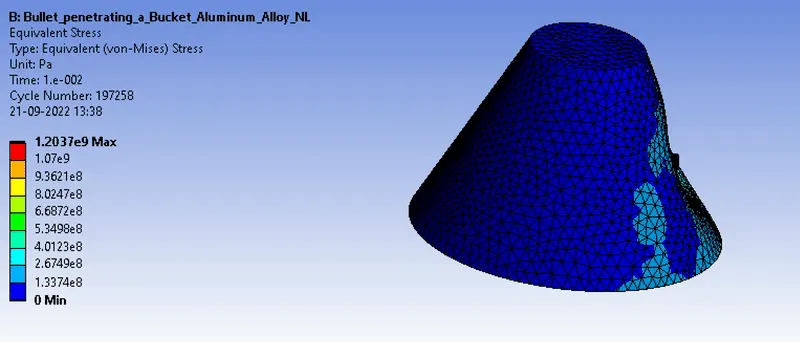

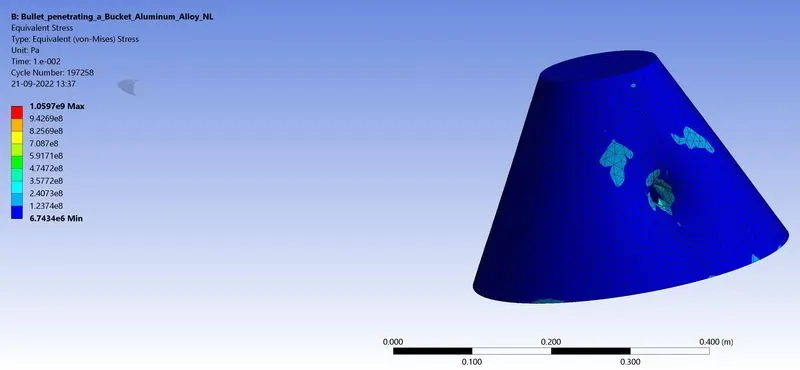

Equivalent Stress





Case 3 Copper Alloy NL

Total Deformation Max - 1390mm





Equivalent Stress Max - 2046.1Mpa

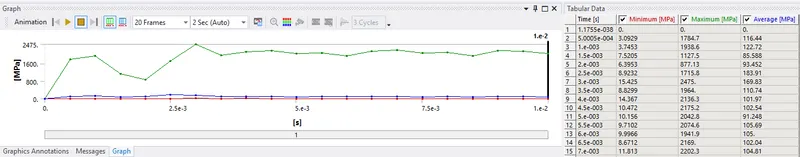

Energy Conversion Plot

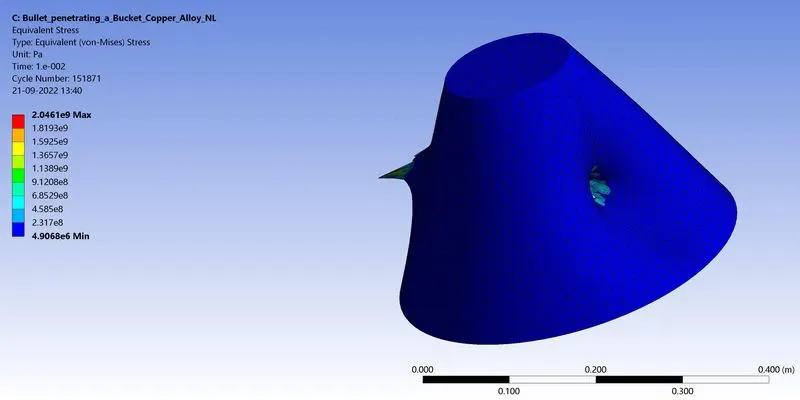

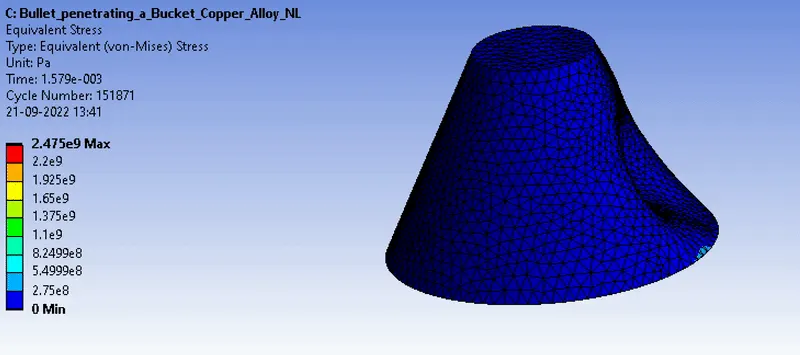

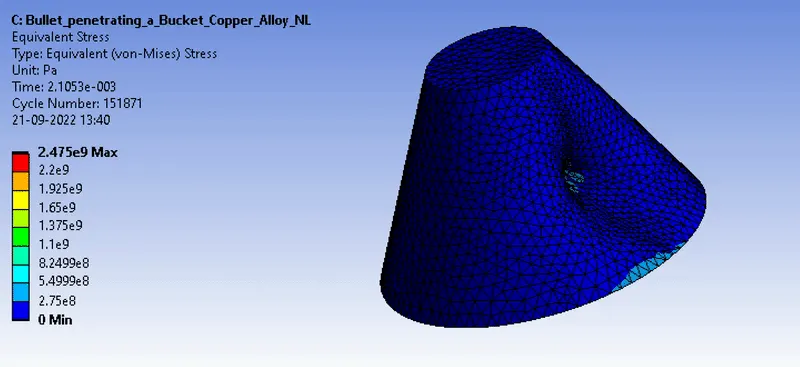

Equivalent Stress

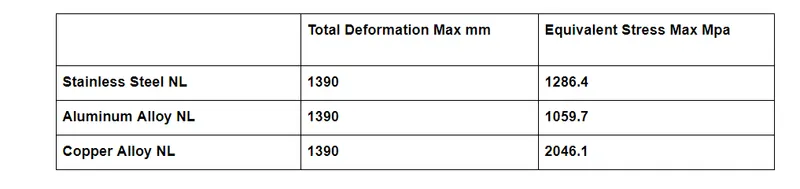

CONCLUSION

• Total Deformation in case 1 and case 2 and case 3 is the same as the distance that is transversed by thye bullet in 0.01s
• The  highest stress is observed in case of copper alloy nl indicating that copper alloy , offered the maximum resistance to the incoming bullet than the other two materials
