Week 10- Assembly Workbench

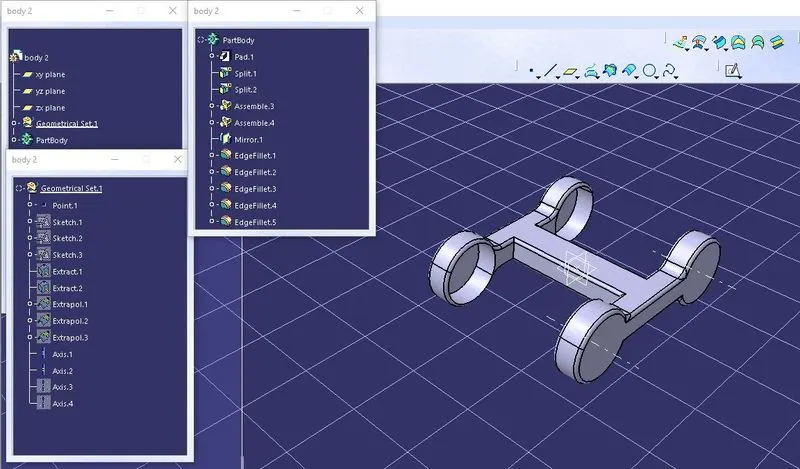

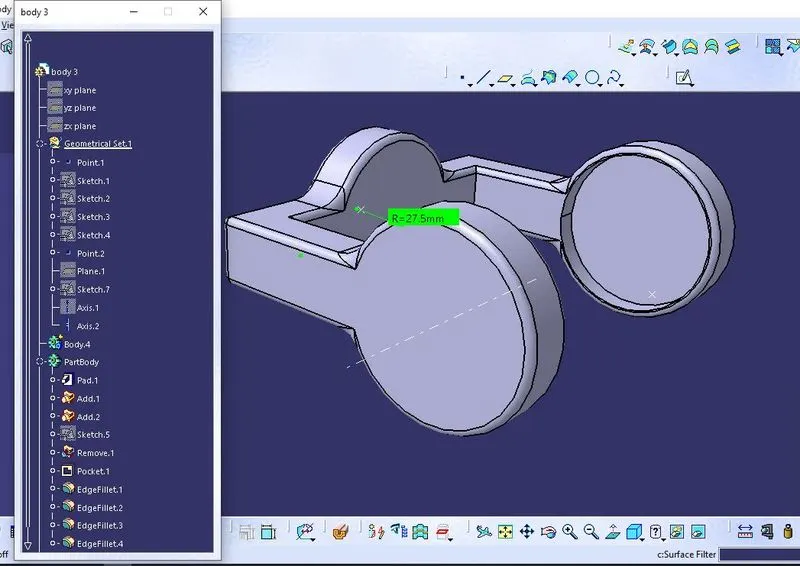

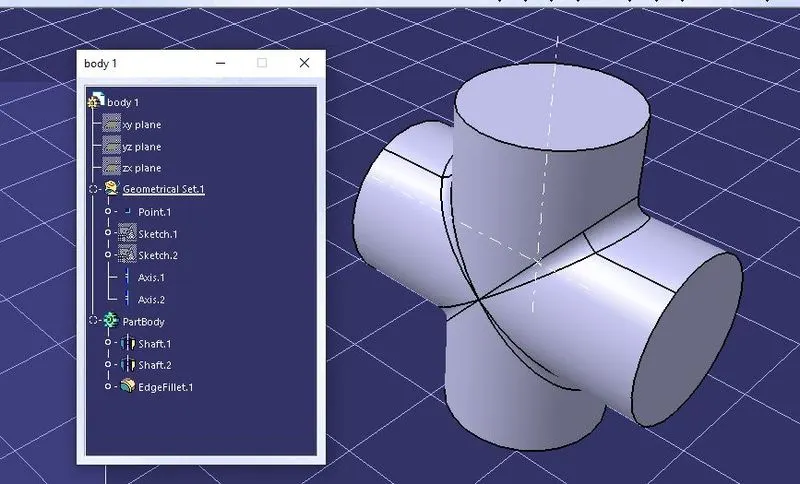

• Created solid bodies from the given 2d drawings in partbody workbench.
•
• •
• The solid bodies created are imported into a product workbench by using the command of insert existing components.
• Other than the imported bodies a new part body is created.
• Where the part is considered as the neutral element for the whole assembly and is fixed by using the constraint toolbar.

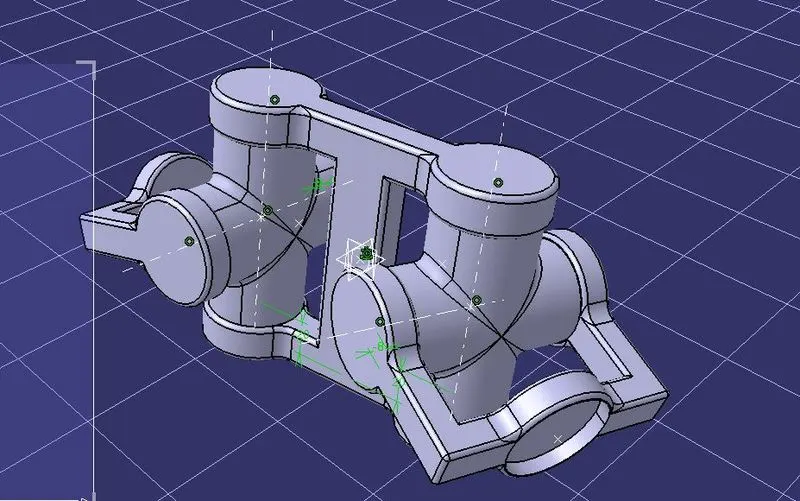

• The bodies are assembled as shown in the drawings.
•

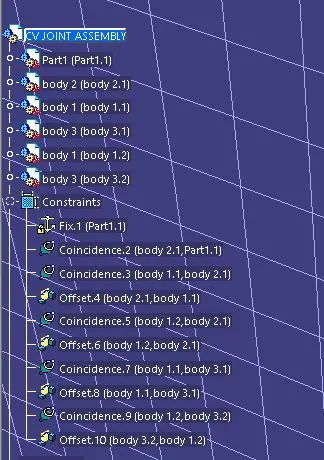

The following steps are used to align and lock the translation motion of the bodies.

• The axis of the mating bodies are coincides with each other.
• The bodies motion are arrested by offset constraints or contact constraints.
• These steps are repeated to assemble a bodies into a full product.
•

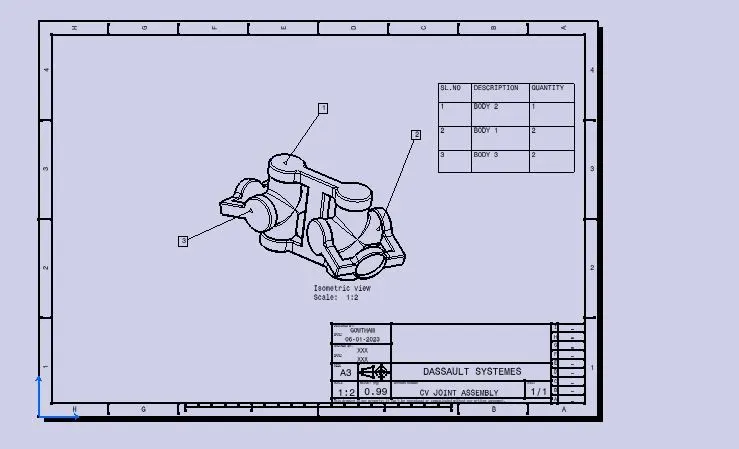

The bodies which are created are finally drafted into 2d drawing.
