Week 10- Assembly Workbench
Aim : To create solid parts with provided 2D diagram in part workbench and have to assemble it in product workbench and to 2D diagrams.
QUICK RETURN MECHANISM

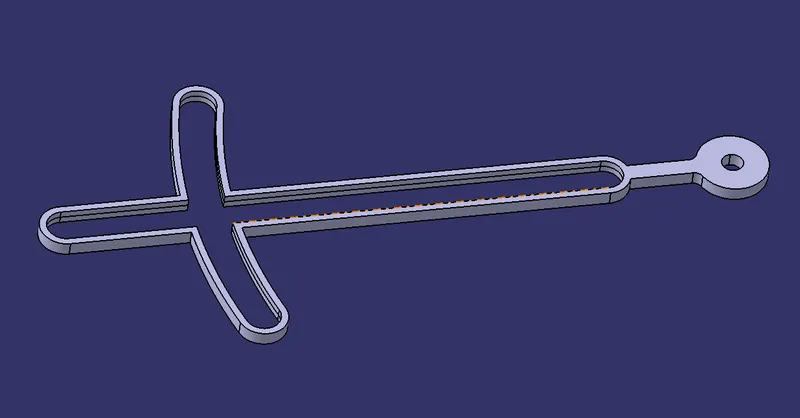

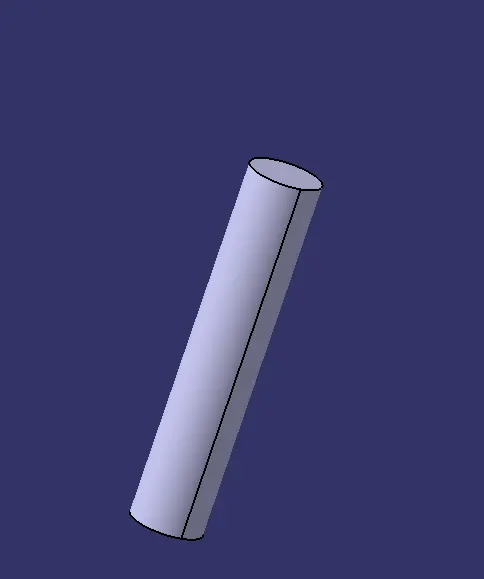

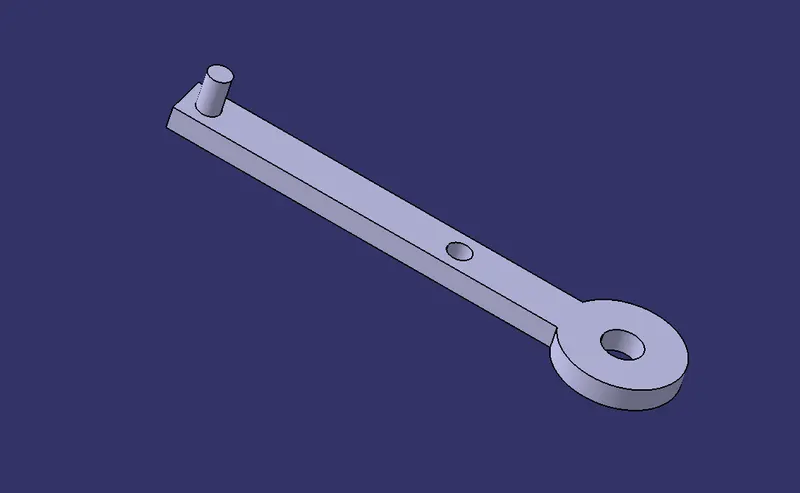

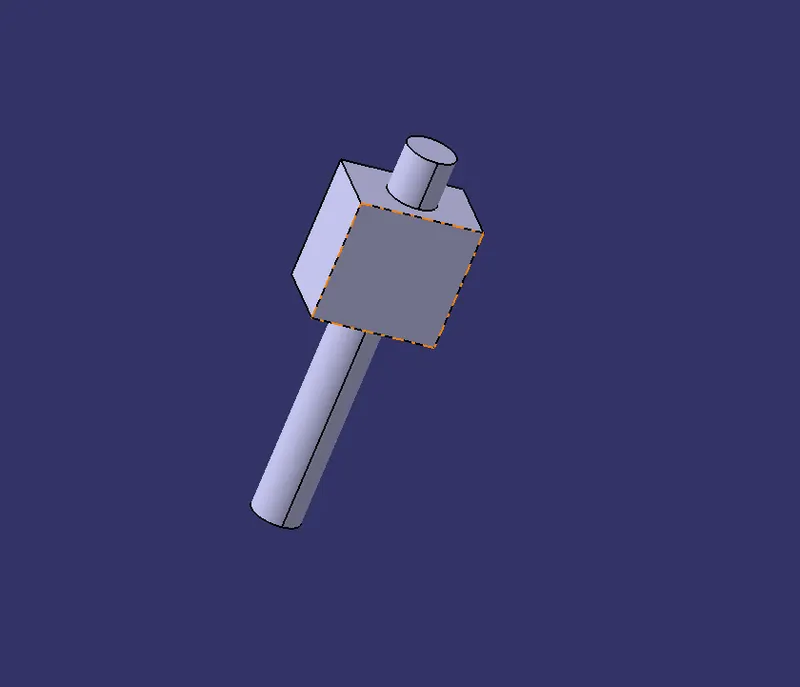

1. To create solid parts of quick returm mechnaism and assemble it. Quick return mechanism contains 5 parts. All the parts where created in part work bench. First all sketches where developed and made into solid part all sketches are ISO CONSTRAINED.
1st Part
2nd Part
3rd Part
4th Part
5th Part

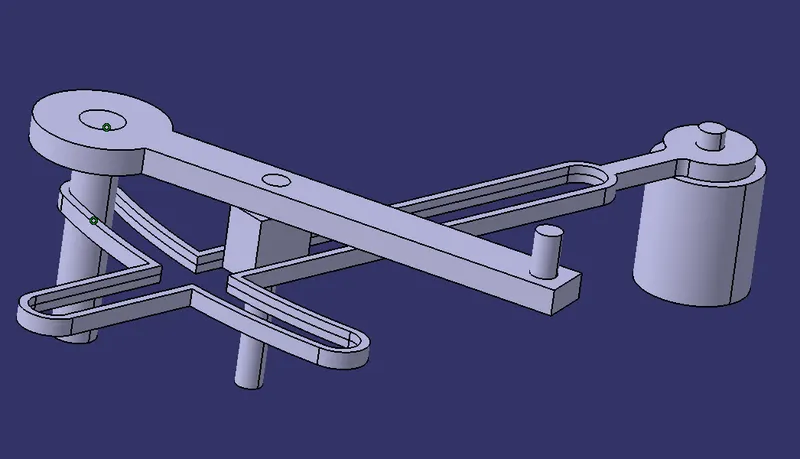

All the solid parts are imported into the product workbench and New part created into the product file and reference point in the new part was fixed.Coincidence constraint was given between Reference point of New part and Reference Axis of the 1st part .
Reference Axis of the 2nd part coincidence with the Reference axis of the 1st part. To fix the distance between first and Second part Offset constraint 30mm was given to the plane of two parts.
Another reference Axis created in the first part on where the third part comes and coincidence constraint was given to reference axis2 and reference Axis of third part and to lock the Y- Axis offset Constarint 16mm was given to the plane of two parts.
Coincidence constraint was given to reference axis of third part and reference axis of fourth part and to lock the Y-axis offse constraint22mm was given to plane of first part and plane of fourth part.
Refernce Axis 3 was created in first part coincidence with fiveth part and to lock Y-Axis offset constraint 5mm was given to plane of fiveth part and plane of first part.

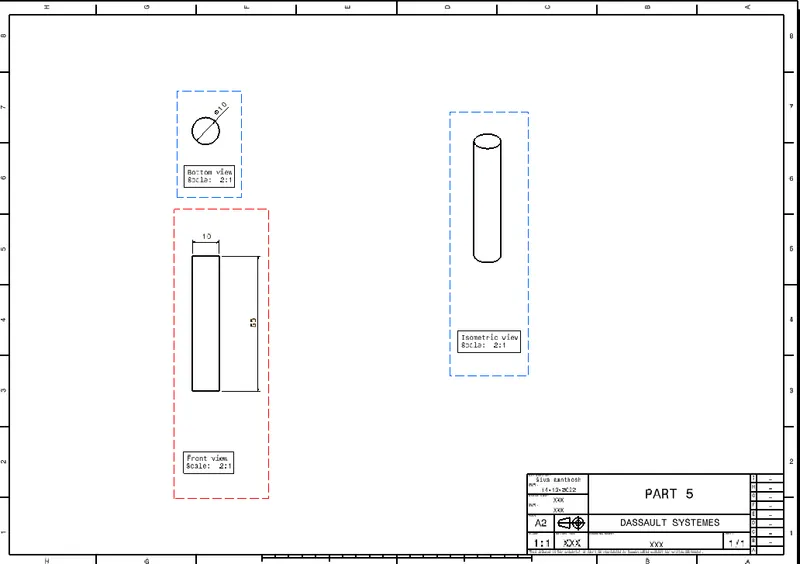

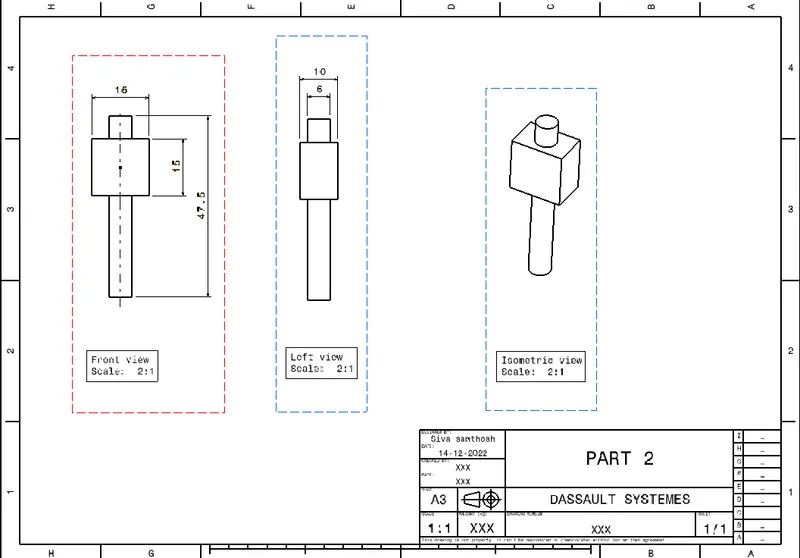

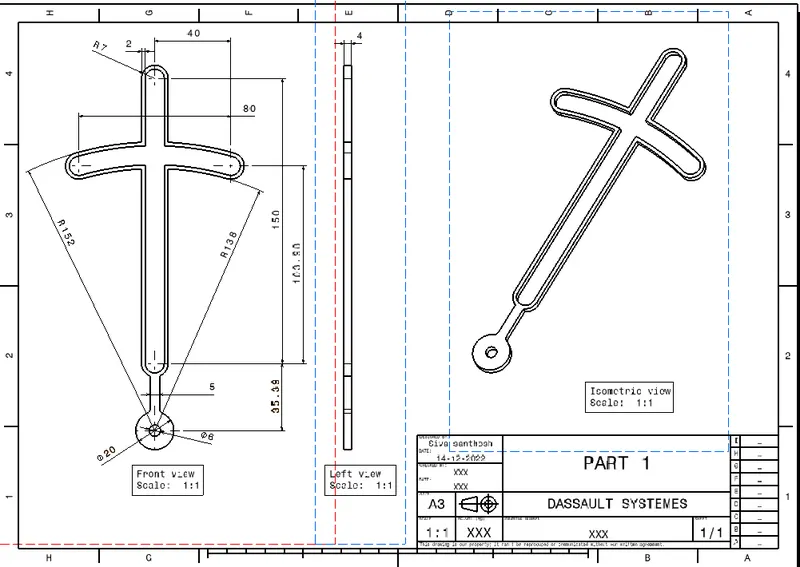

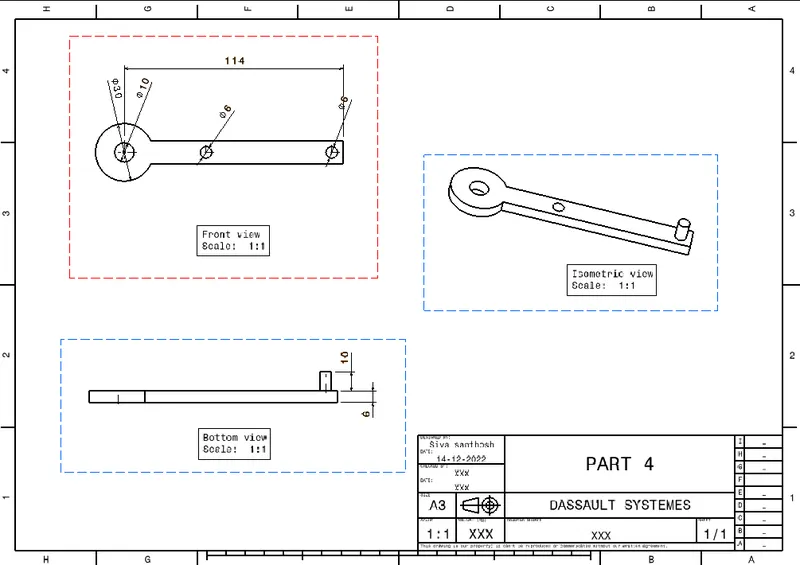

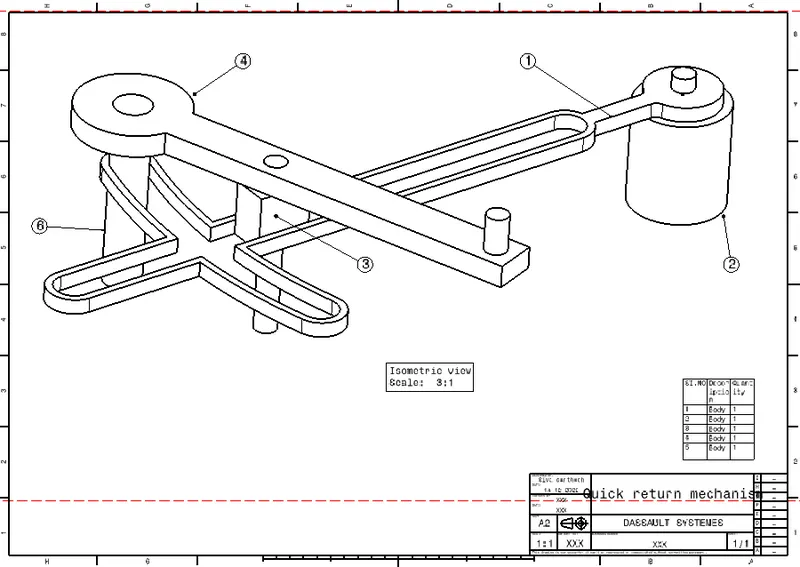

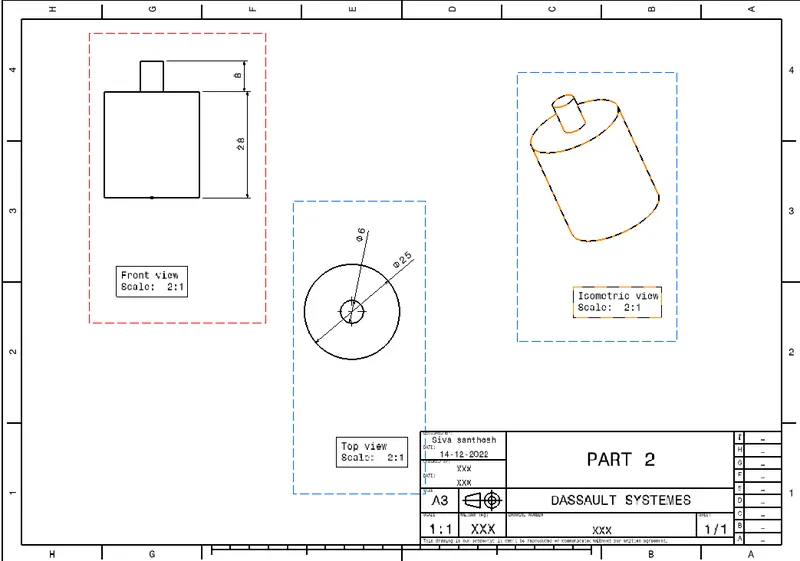

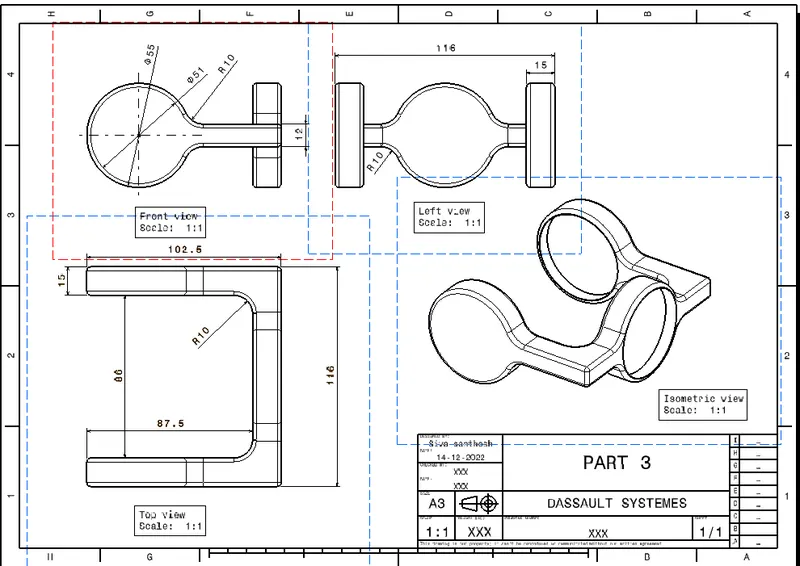

2D diagram was created for all parts and and assembly of Quick return mechanism.
CV JOINT
2. To create Solid parts of Cv joint in part work work bench and assemble in product workbench Cv joint consist of 3 parts. All sketches craeted for it is ISO CONSTRAINED.

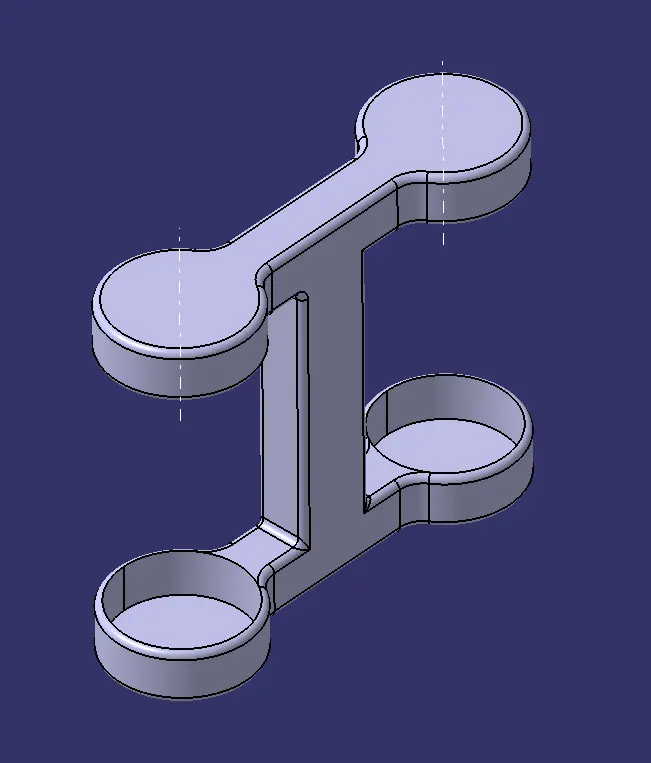

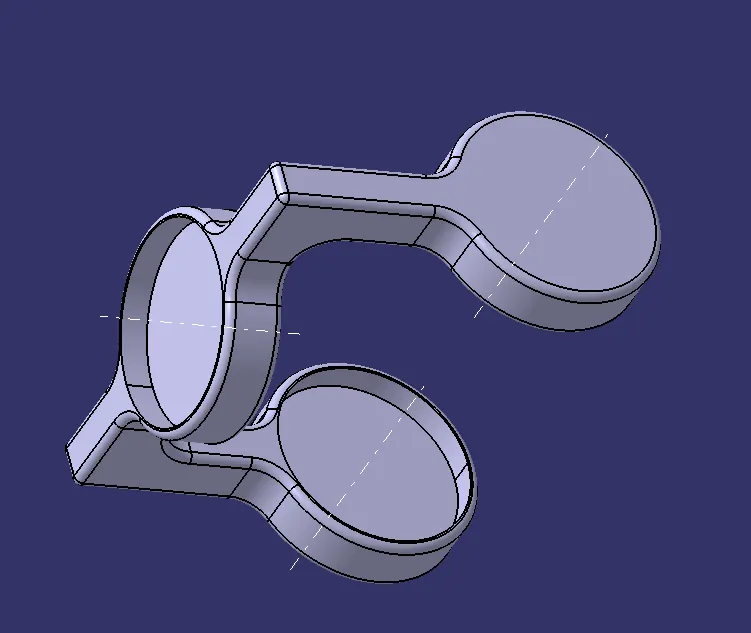

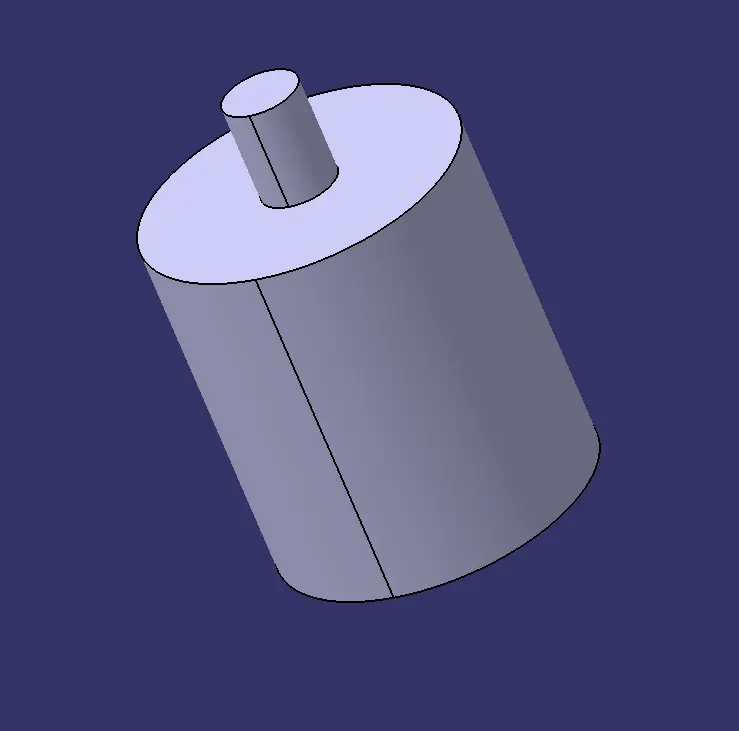

1st Part

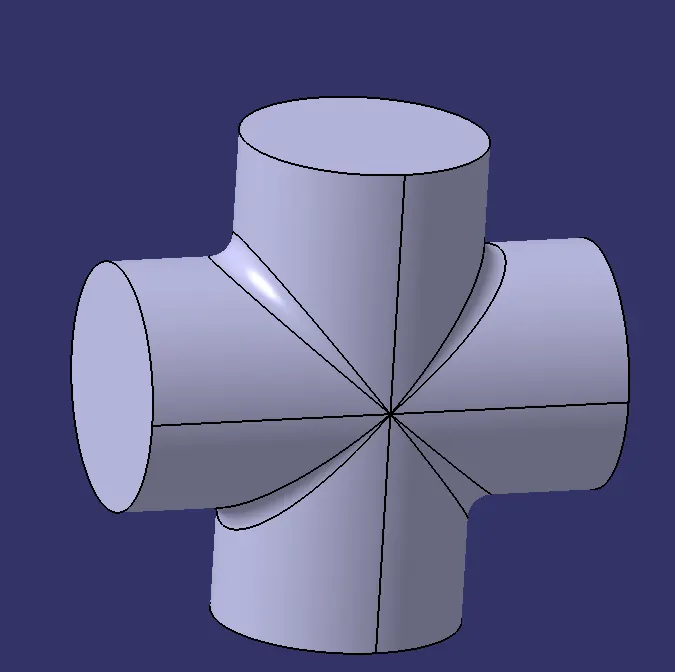

2nd Part
3rd Part

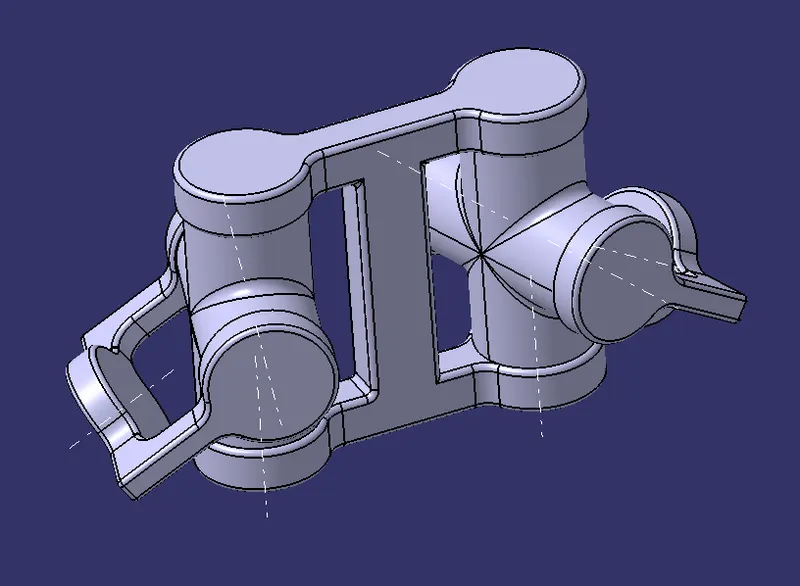

All parts are imported into product file and new part created in product. Reference point in new part is fixed. Reference axis in Sceond part coincidence with reference point of new part.
First part pasted into the product two times because we two of it. References axis of both the body coincidence with reference axis 2 and 3 of secend part .
Reference axis of third part coincidence with the second part. This part is also pasted two times into the product file. Angle constraints are used to fix the angle of first and third part.

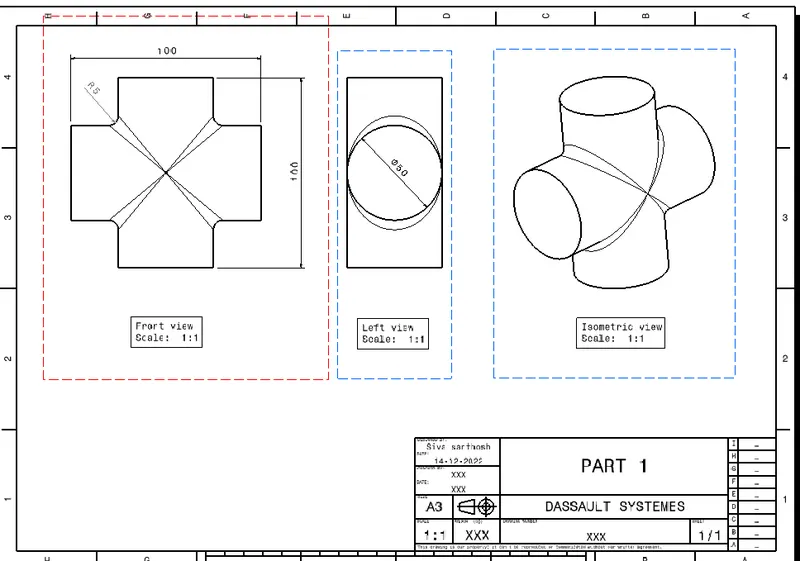

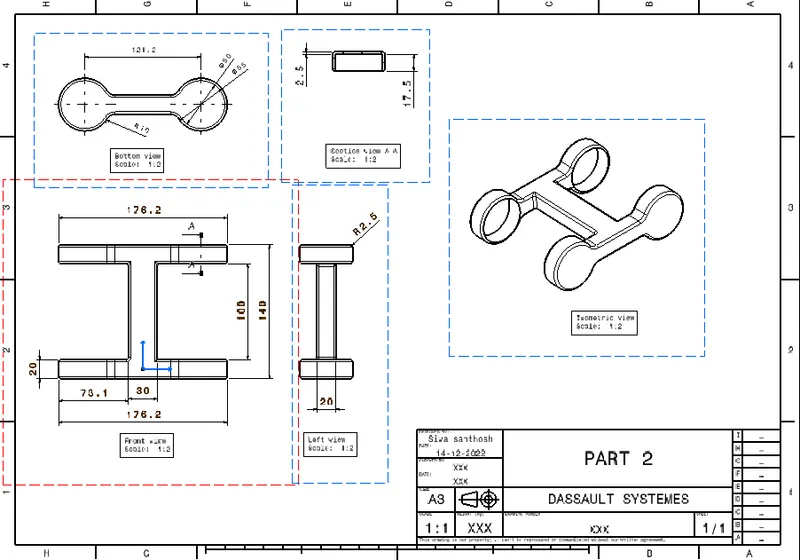

2D diagrams are created for all solid parts of CV JOINT and Assembly.
