Week 10- Assembly Workbench

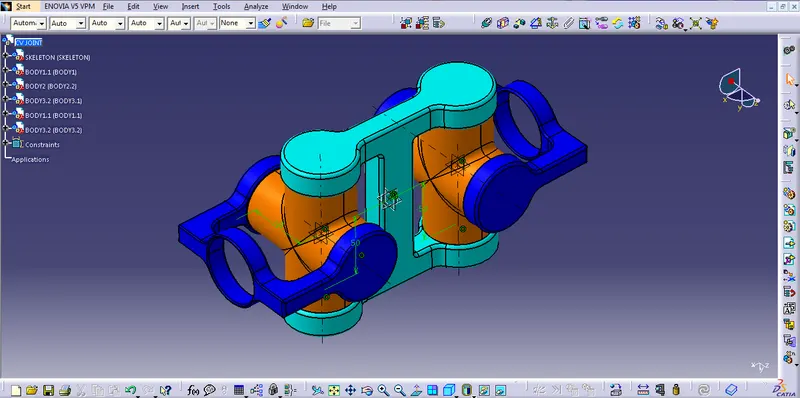

CV JOINT:
SCREENSHOT:-

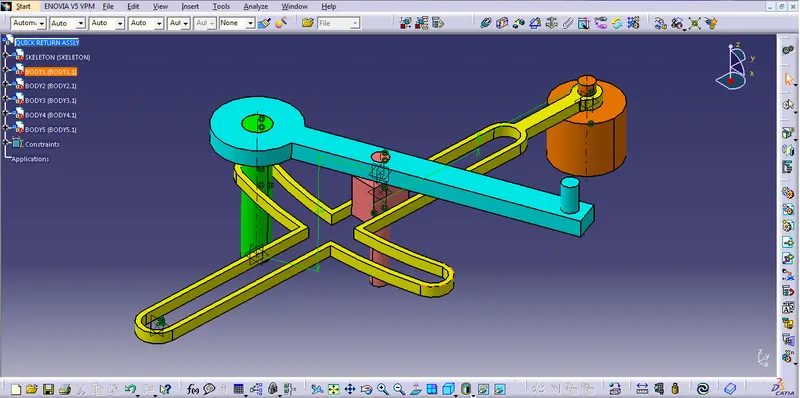

QUICK RETURN ASSLY:
SCREENSHOT:-
Submit a report explaining the procedure you followed while working on this assignment:-
- First of all we have created single parts in part workbench with proper dimensions and contraints.
- Then opened new assembly workbench and imported all single parts in it with the help of Existing component command.
- Then for assembly reference we have created one dummy part that is skeleton reference and made it as a fix point of assembly.
- After that created reference point and axis of all parts for constaints purpose and also published them seperately.
- At the end, with the help of constaints like coincidence, Contact, offset etc we have assembled all parts to form a proper assembly structure.
