Week 10- Assembly Workbench
OBJECTIVE: -
create assembly and draft for the drawings which provide and we are create every thing as individual part then bring them all into assembly.
TOOL: -
Catia v5
Given data: -
Model drawings for the cv joint and quick return mechanism.
quick return mechanism
A quick return mechanism is an apparatus that converts circular motion into reciprocating motion in presses and shaping machines, which are utilized to shape stocks of metal into flat surfaces. This mechanism is mostly used in shaping machines, slotting machines and in rotary internal combustion engines.
Cv joint:
Constant velocity joints, better known as cv joints, are found at the ends of the drive shafts. They are essential to connecting the drive shafts to the transmission and wheels.
So let’s drive into a concept in this case mostly I used sketch command then pad to create a solid parts.
MAKING THE ASSEMBLY OF QUICK RETURN MECHANISM: -

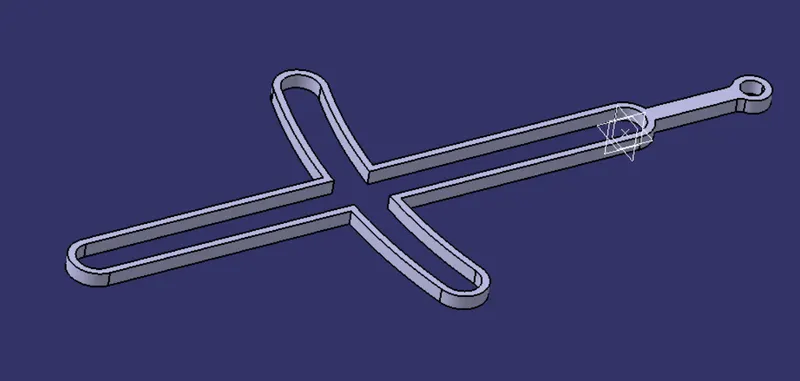

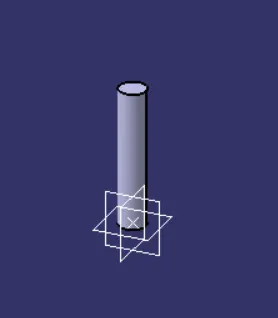

- SLIDER

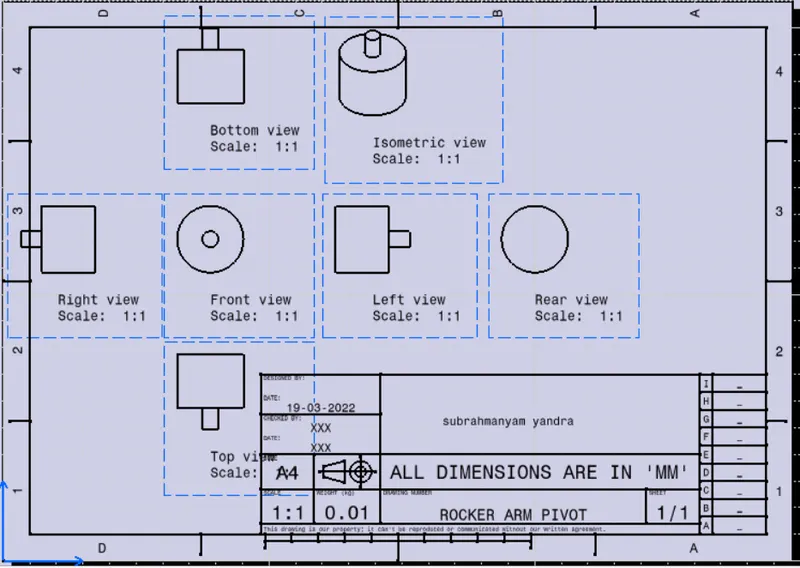

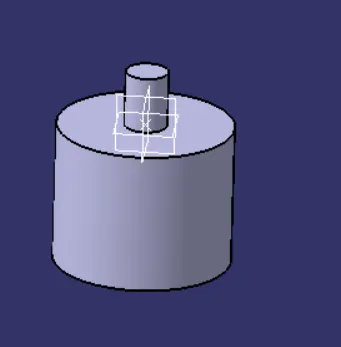

- ROCKER ARM PIVOT

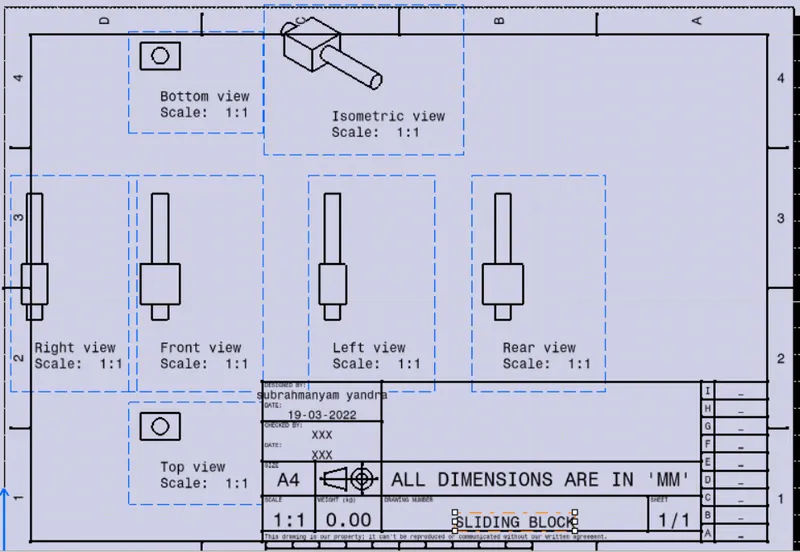

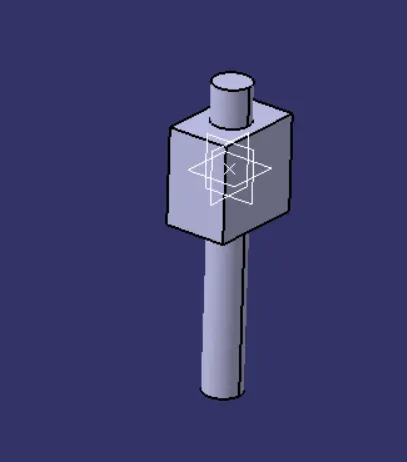

- SLIDING BLOCK

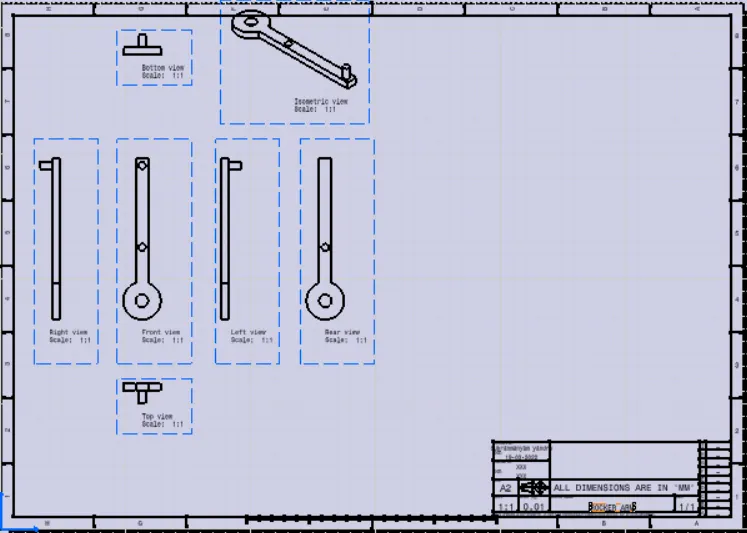

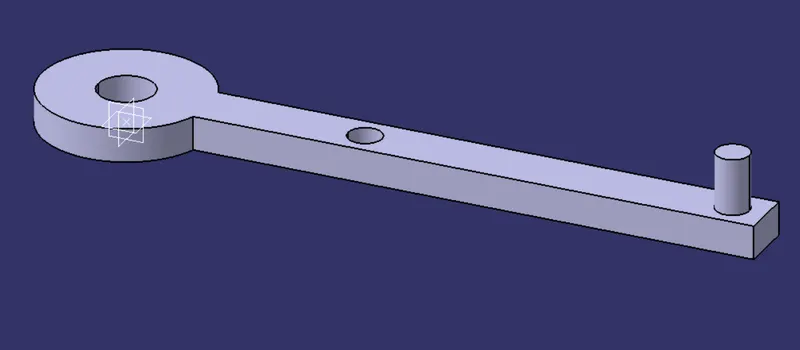

- ROCKER ARM
- ROCKER ARM PIVOT

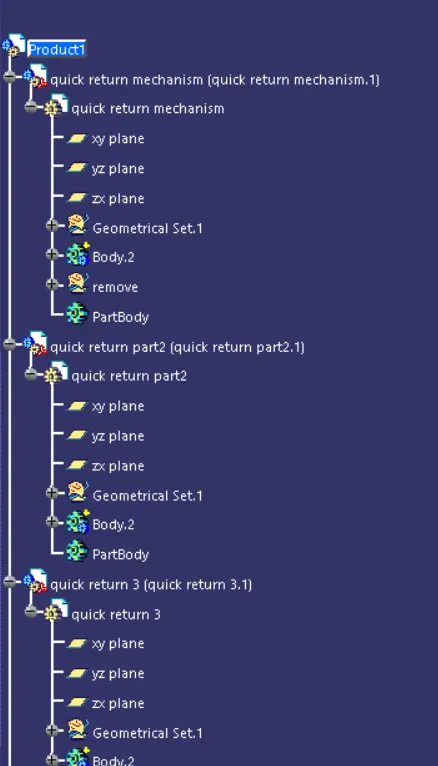

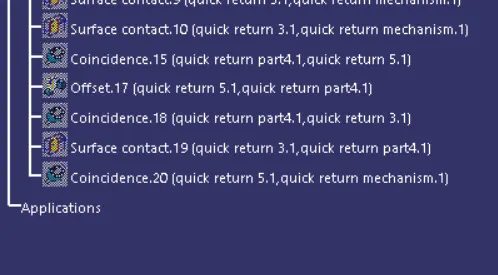

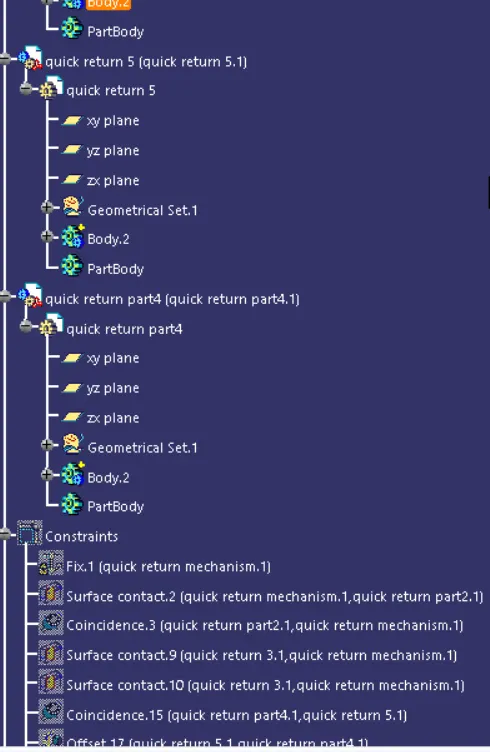

Making constraints are proper in assembly

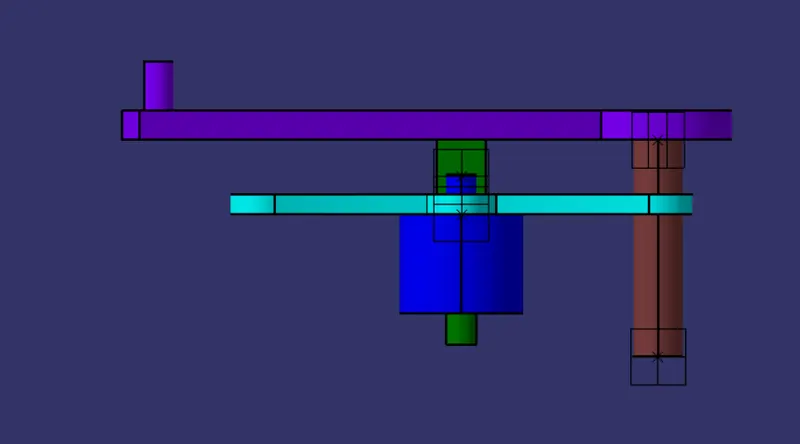

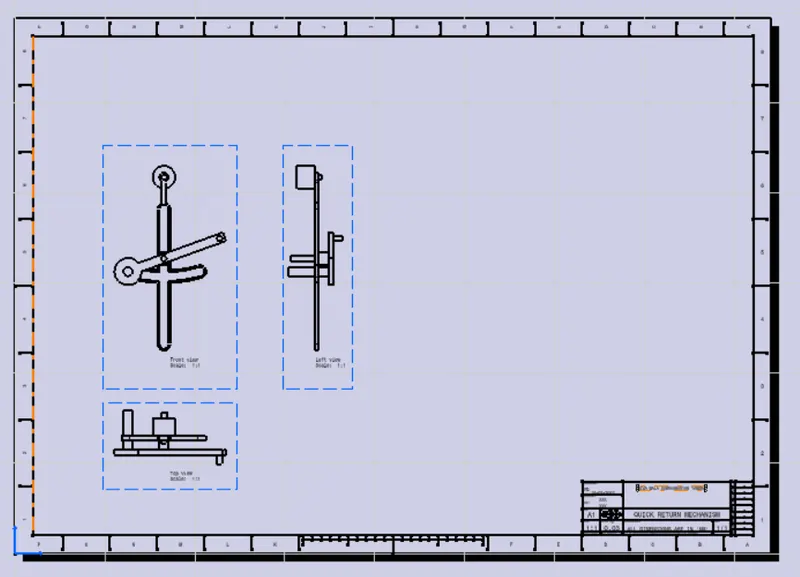

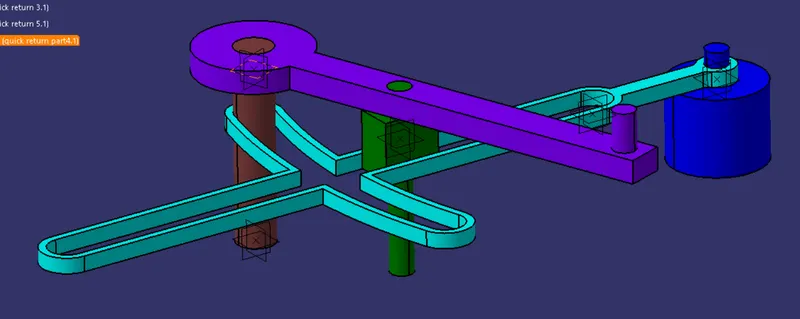

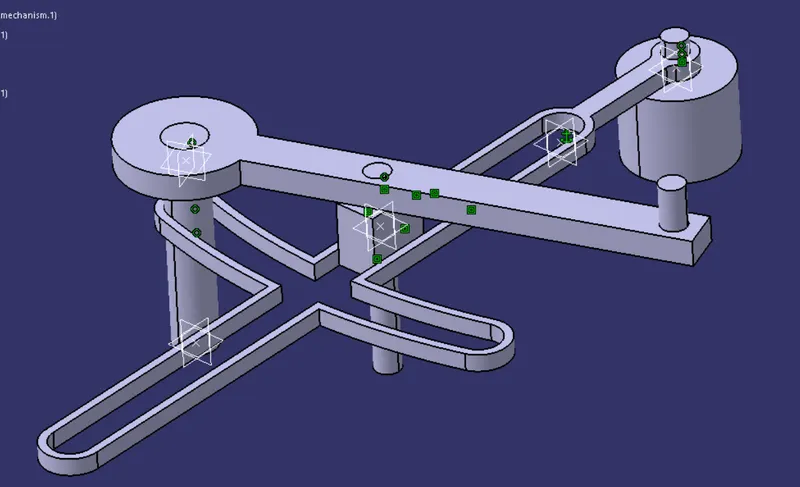

Assembly views of quick return mechanism.

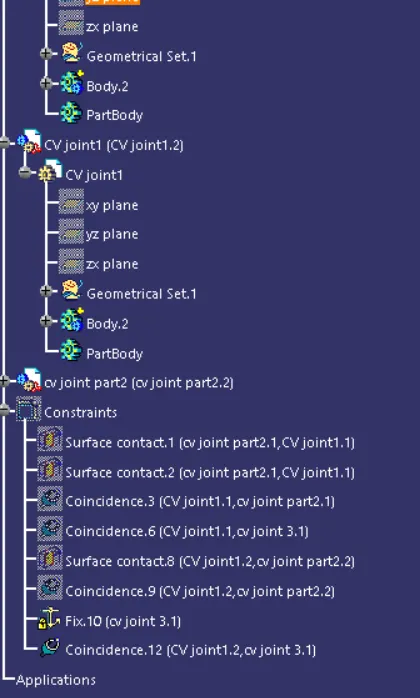

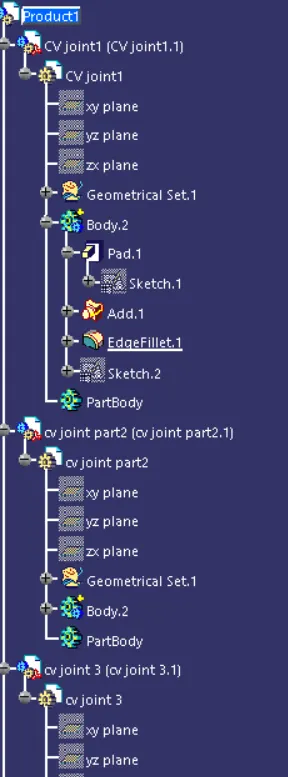

ASSEMBLY OF CONSTANT VELOCITY JOINT (CV JOINT): -

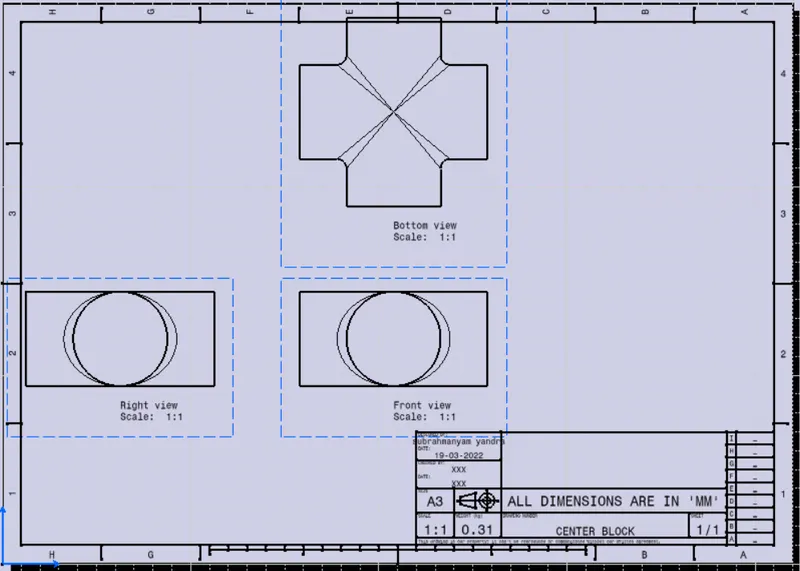

1)CENTER BLOCKS

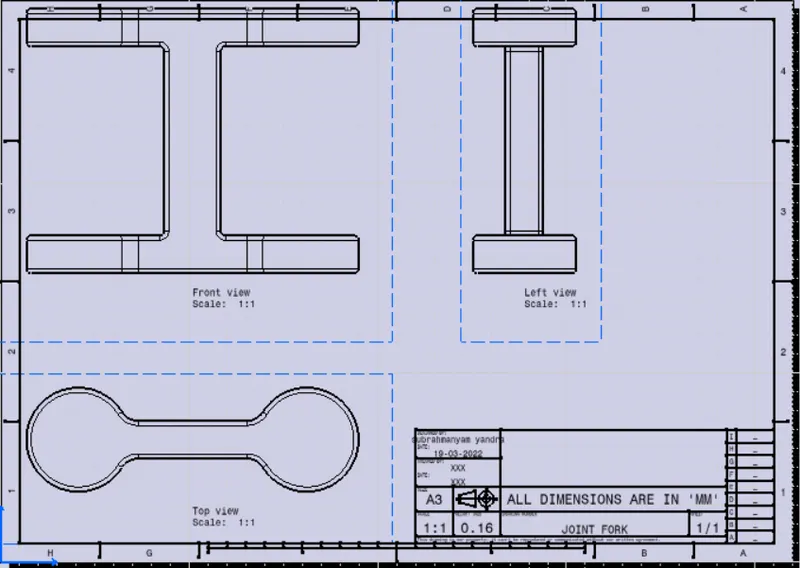

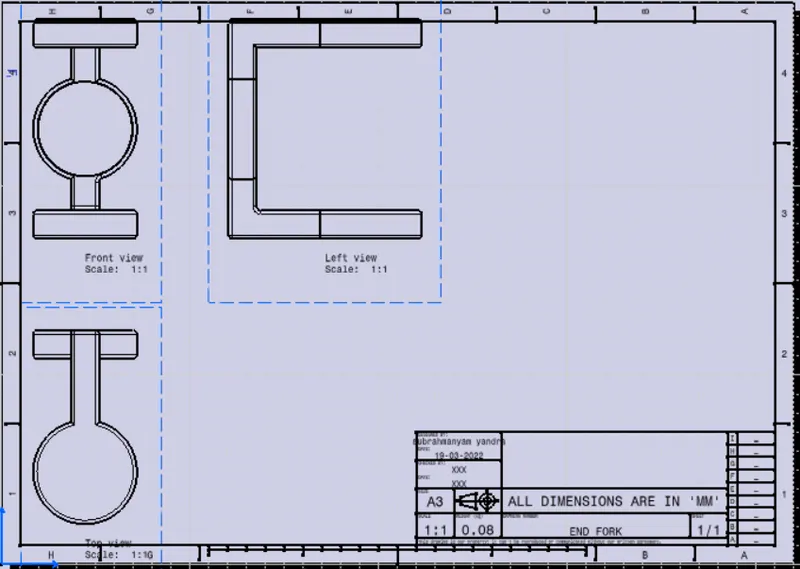

2)FORK

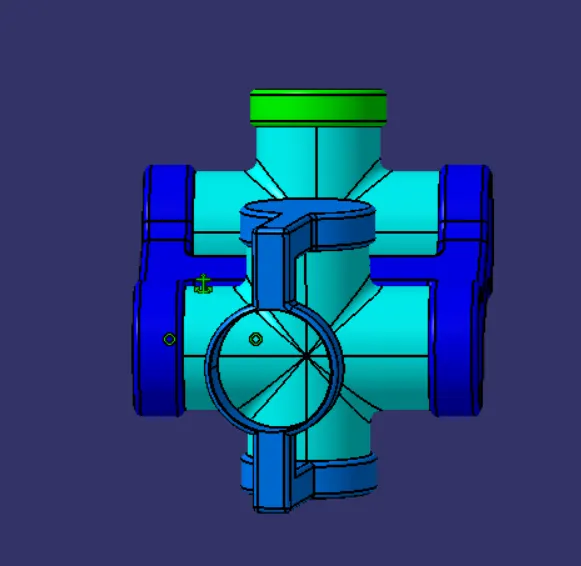

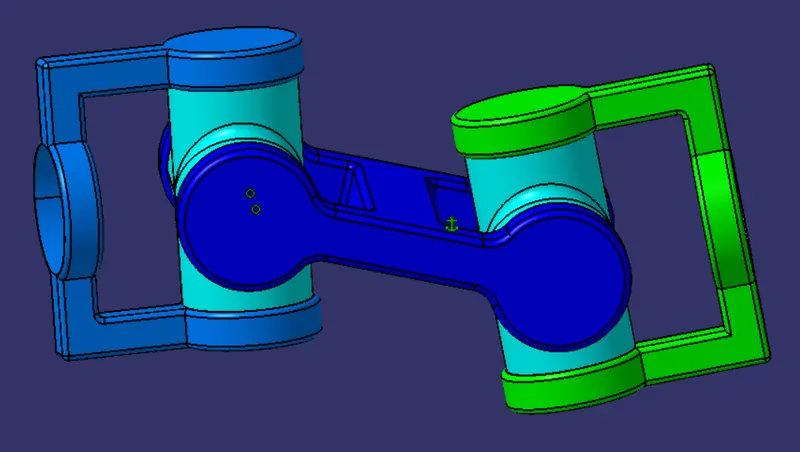

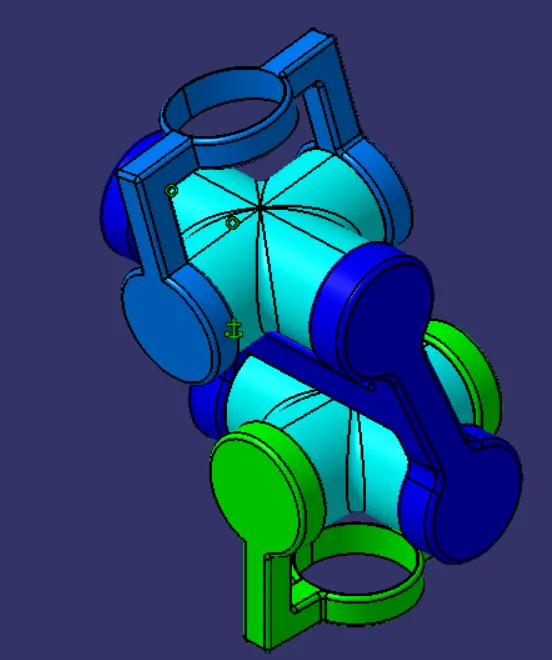

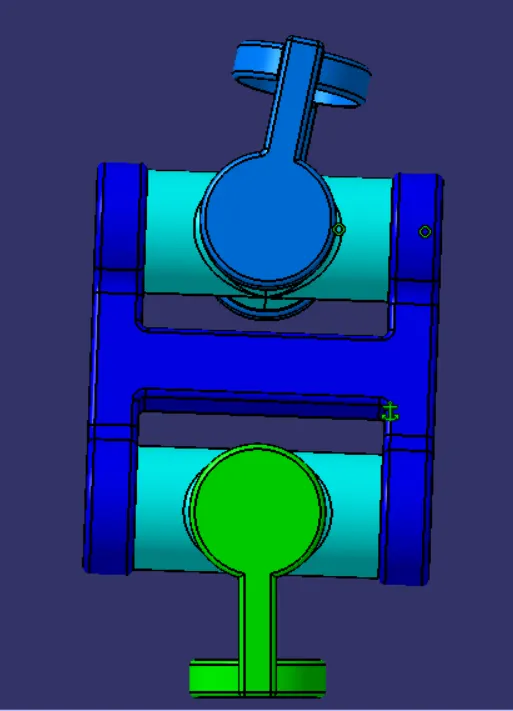

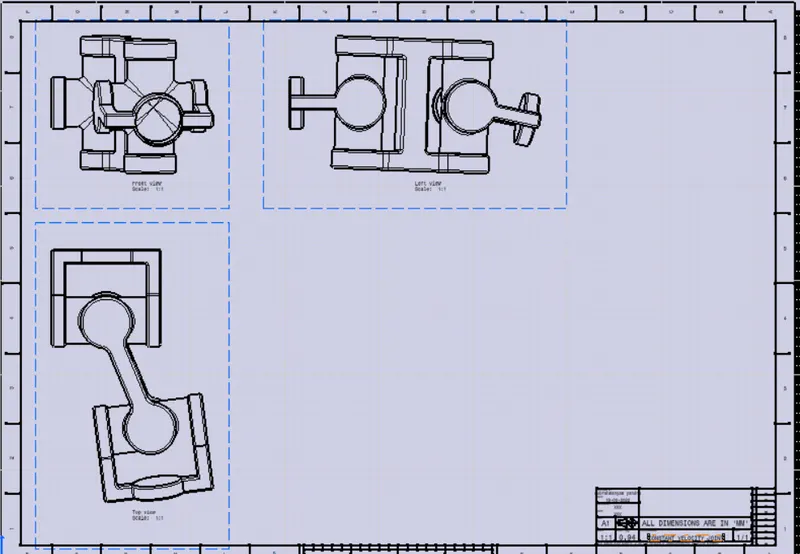

Assemble views of constant velocity joint.
