Week 10- Assembly Workbench

Model 1: Quick return mechanism

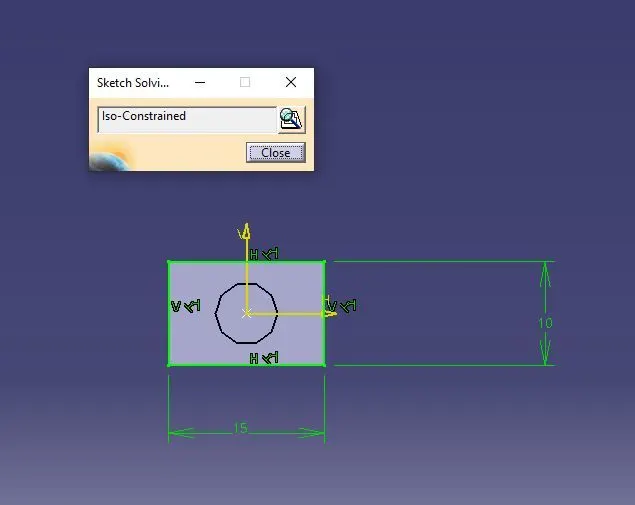

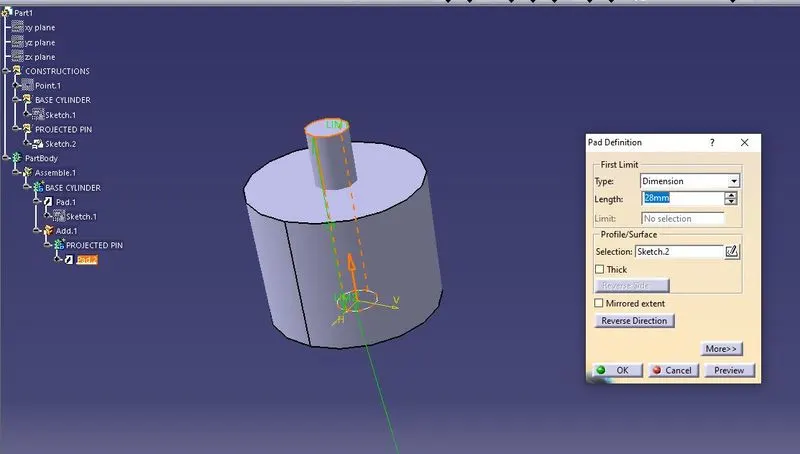

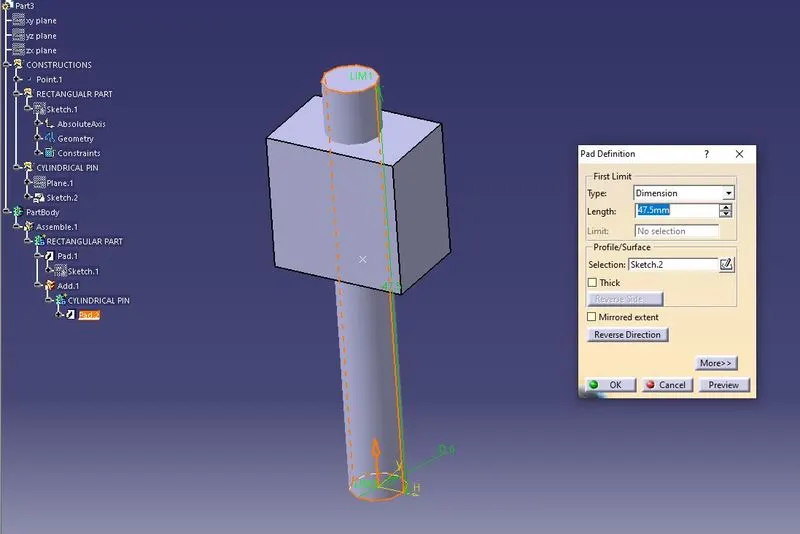

Body 1:

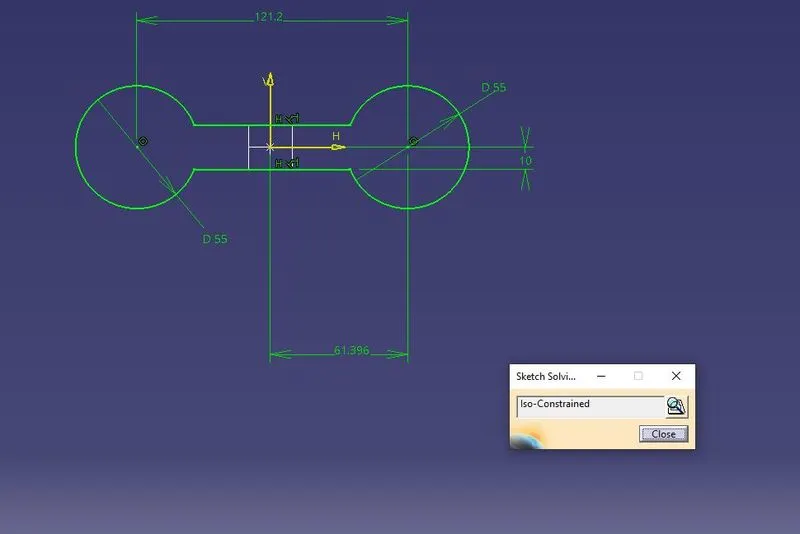

Body 2:

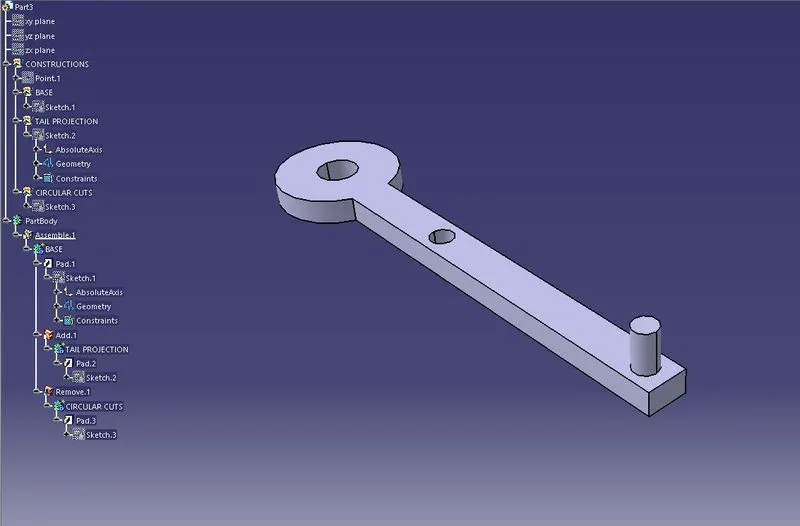

Body 3:

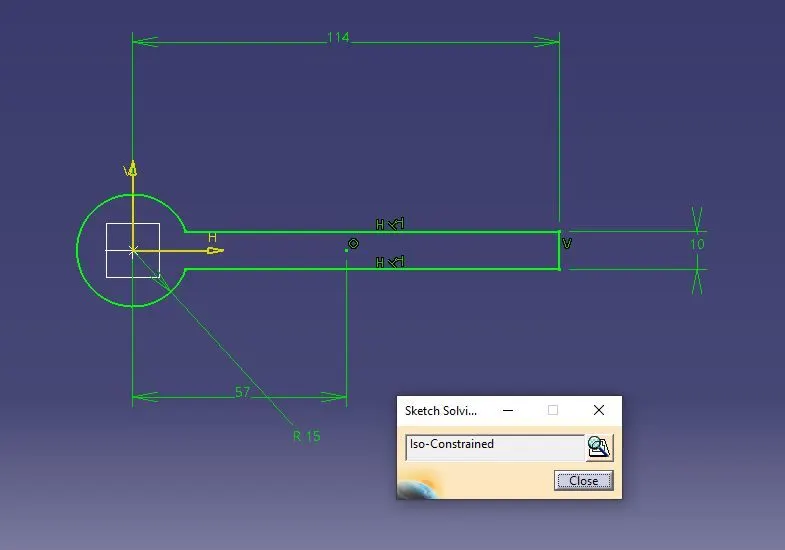

Body 4:

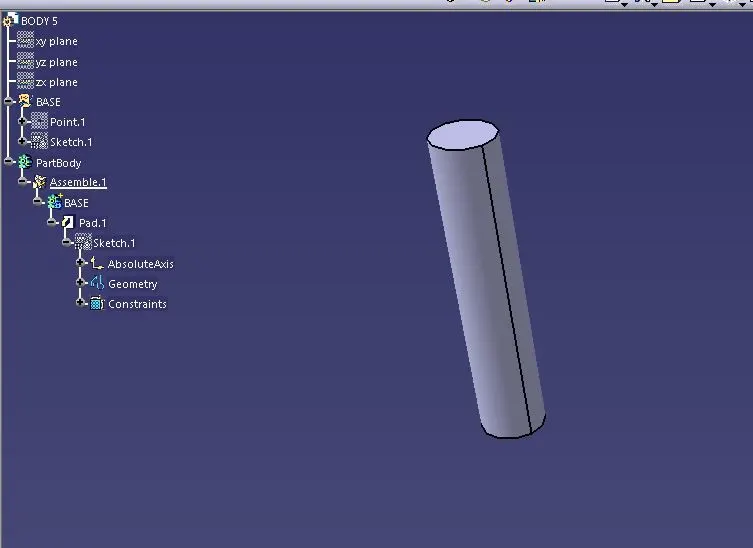

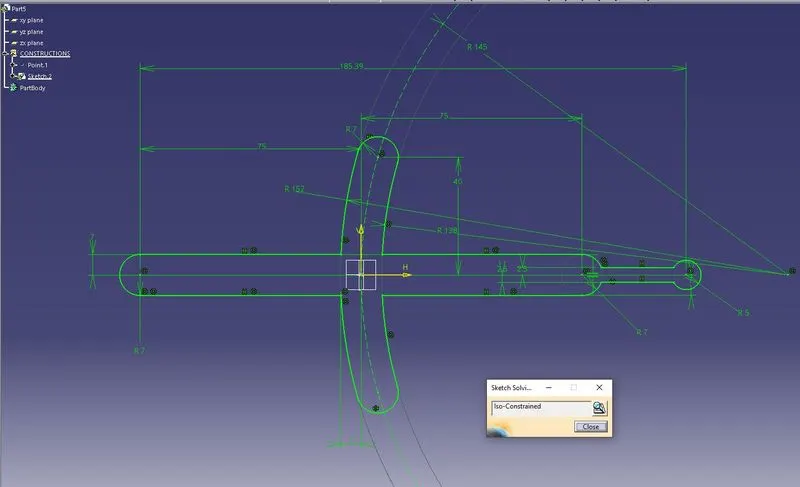

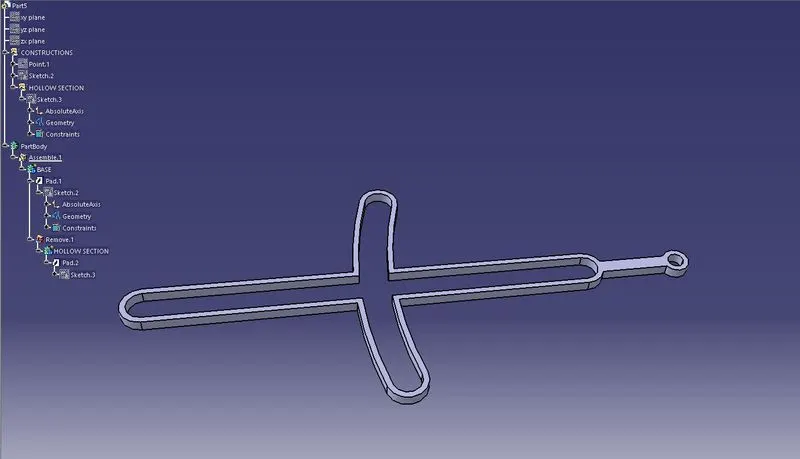

Body 5:

Assembly-

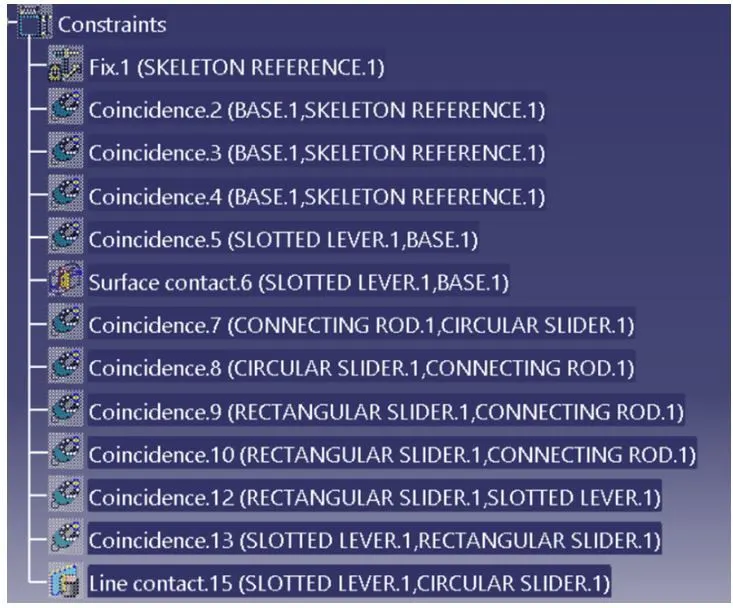

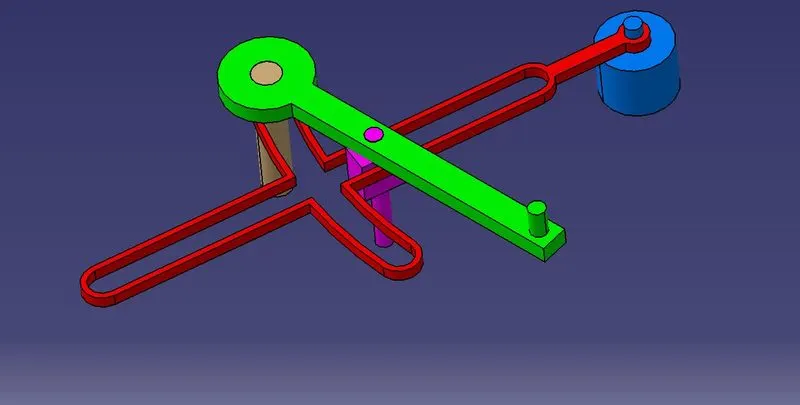

Constraints-

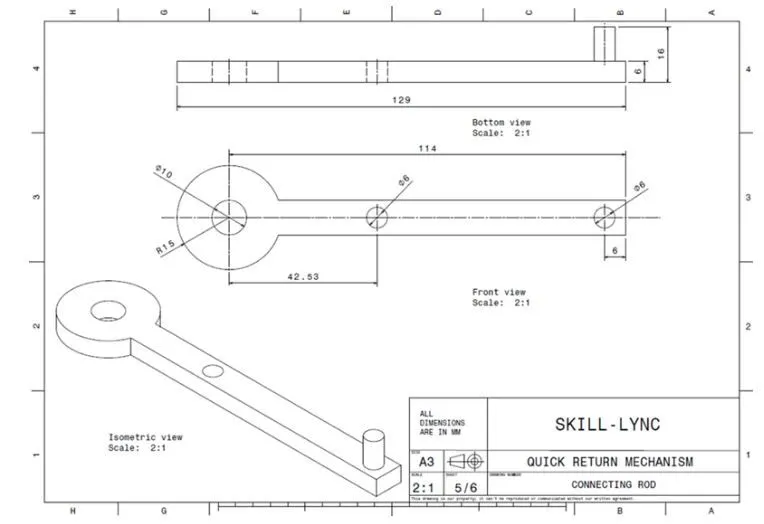

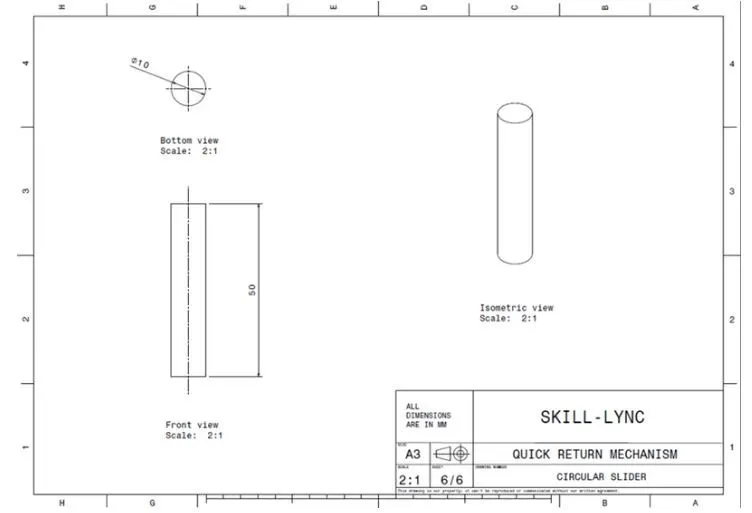

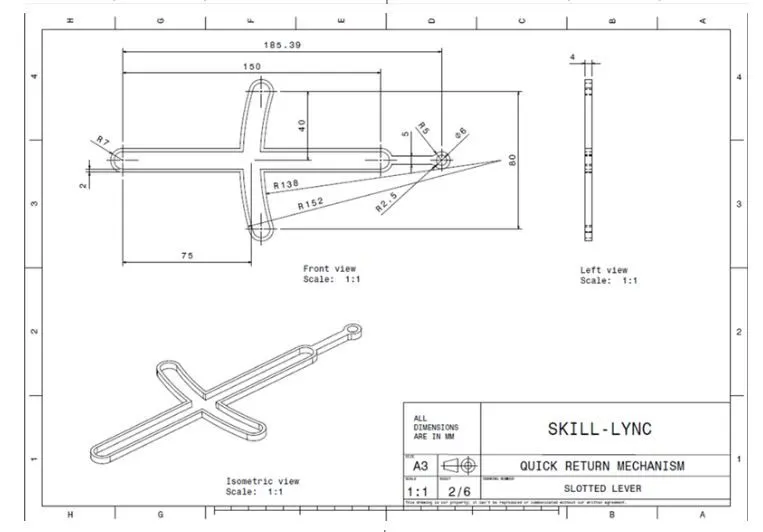

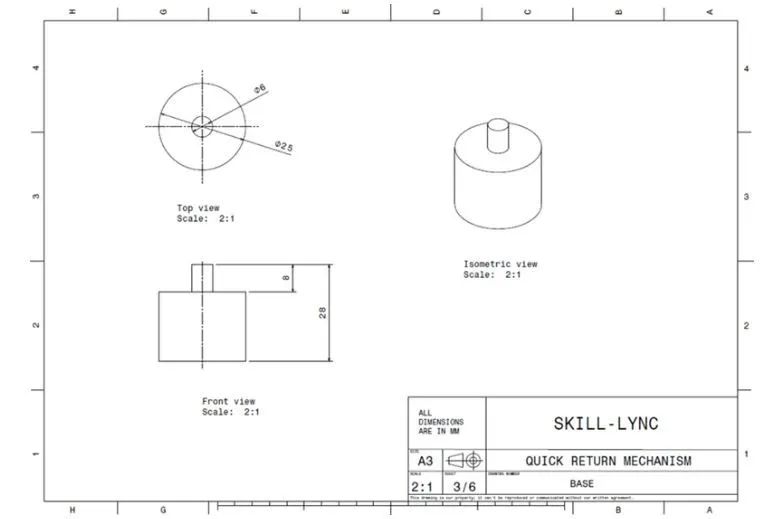

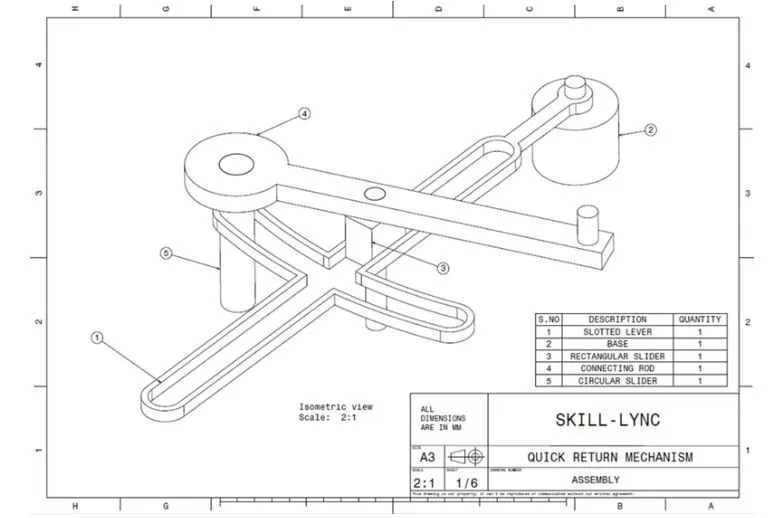

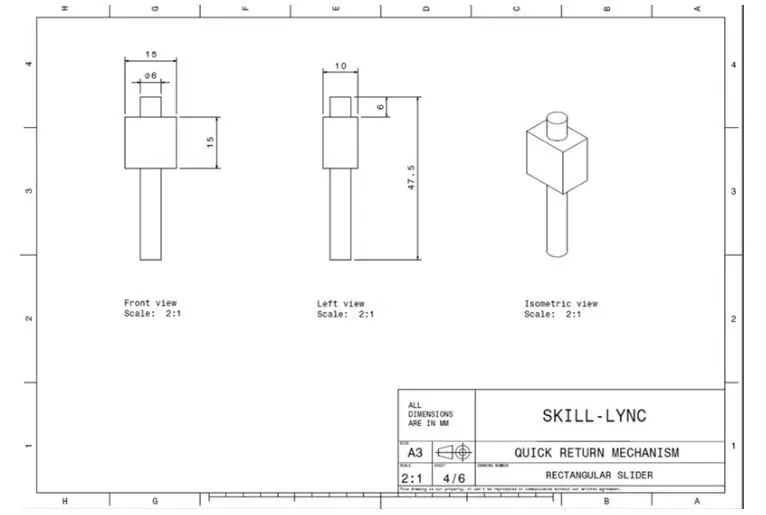

Drafting-

Model 2 : CV joint

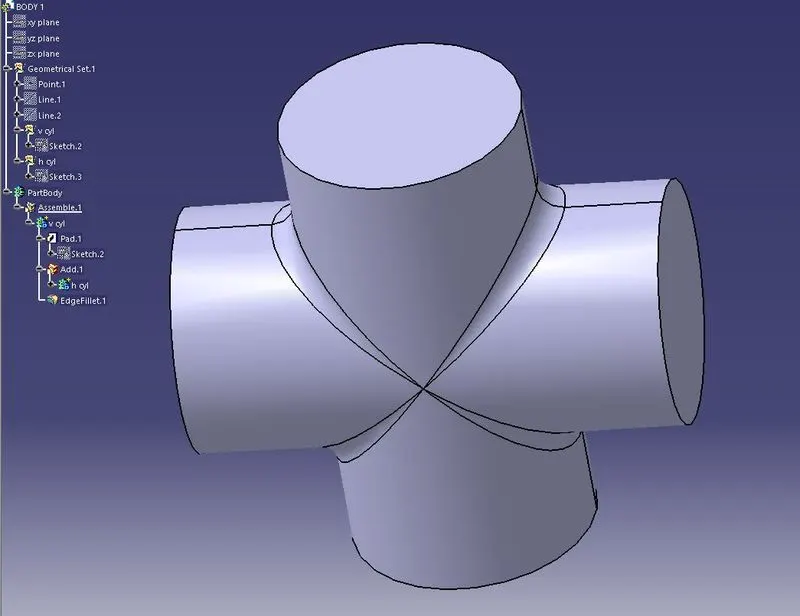

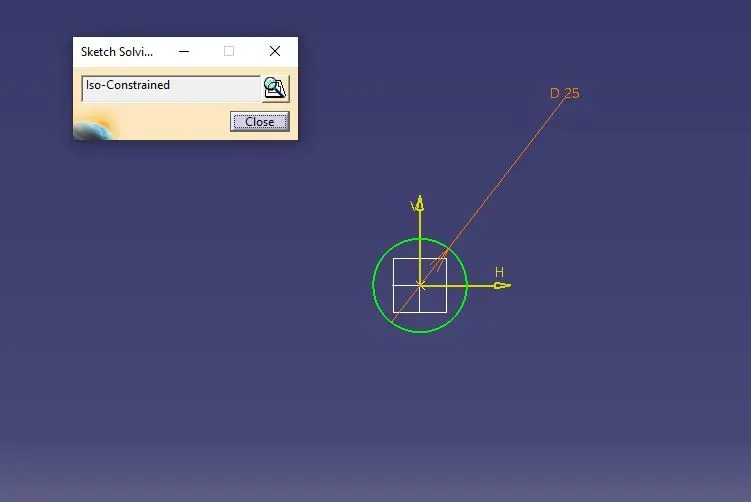

Body 1:

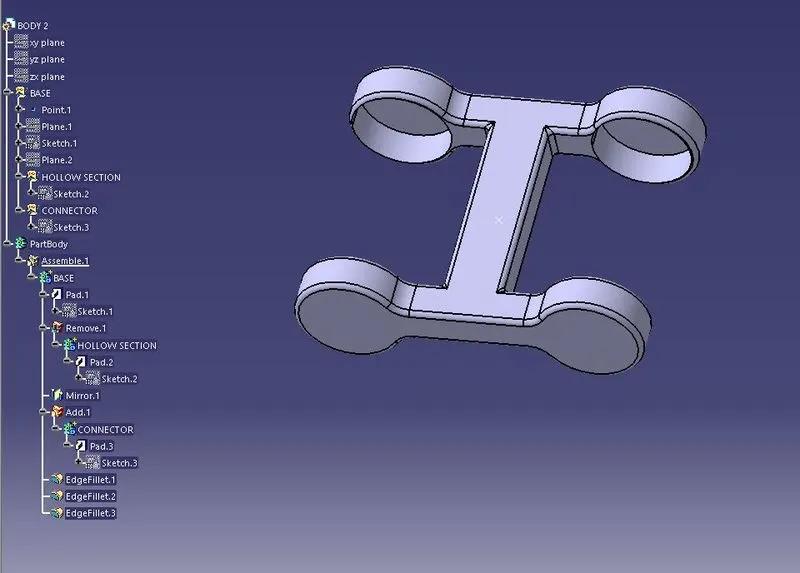

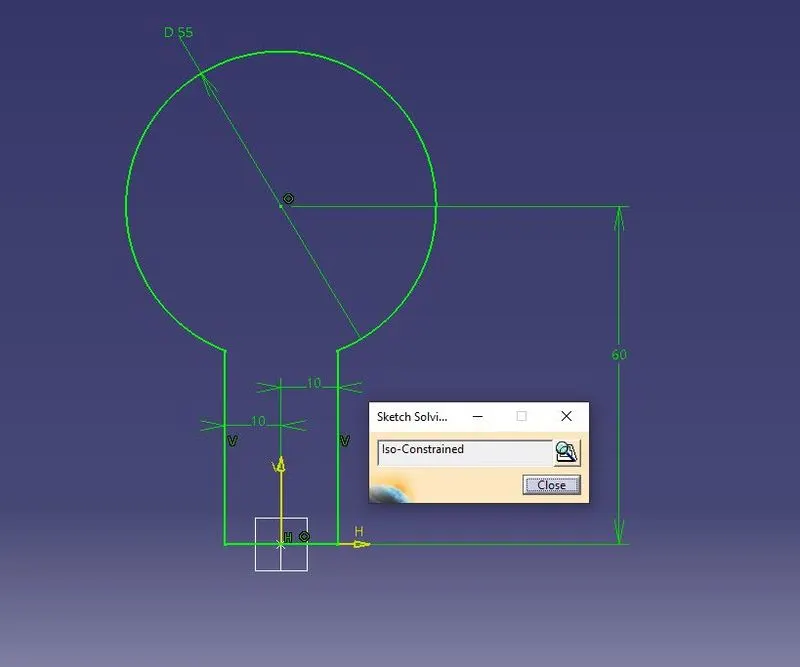

Body 2:

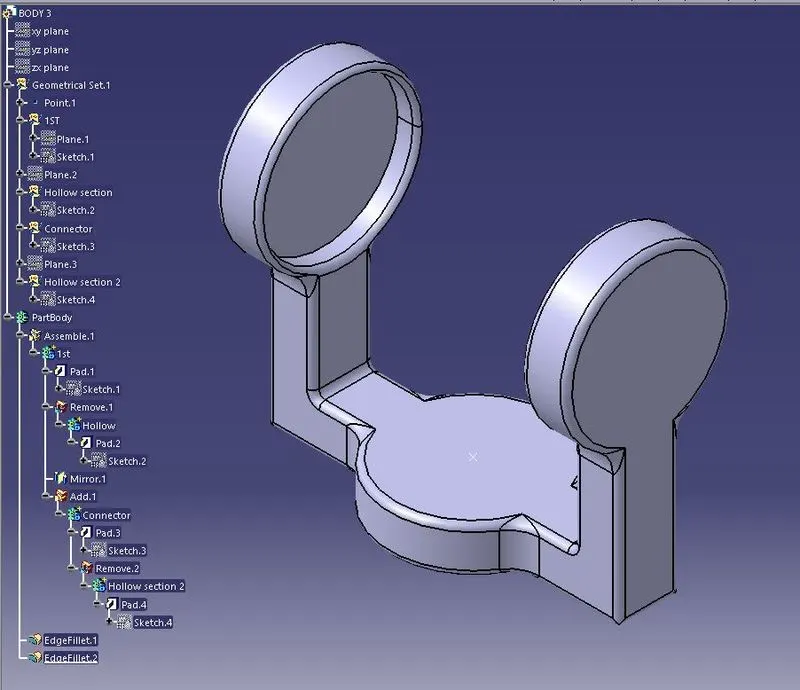

Body 3:

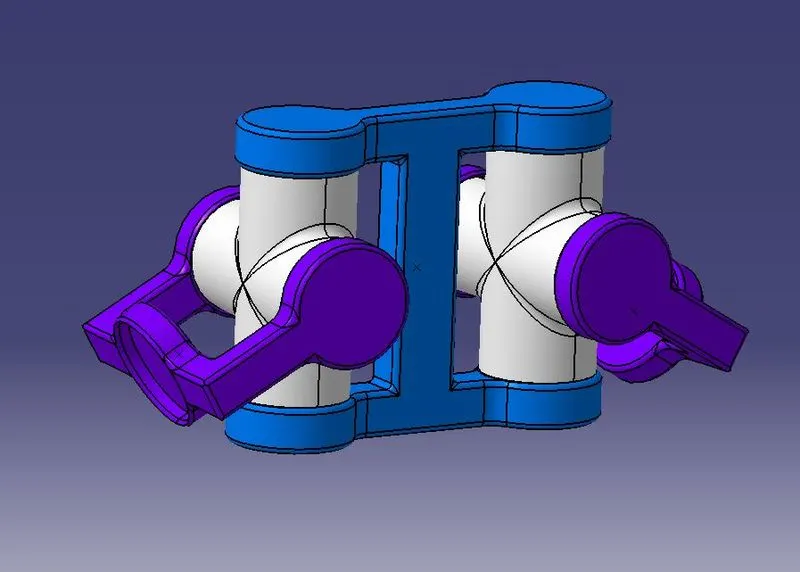

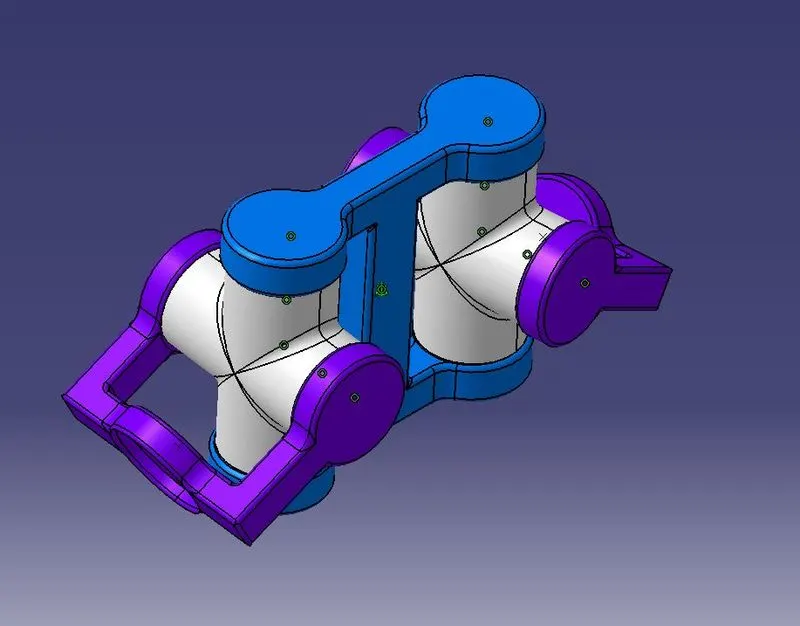

Assembly-

Constraints-

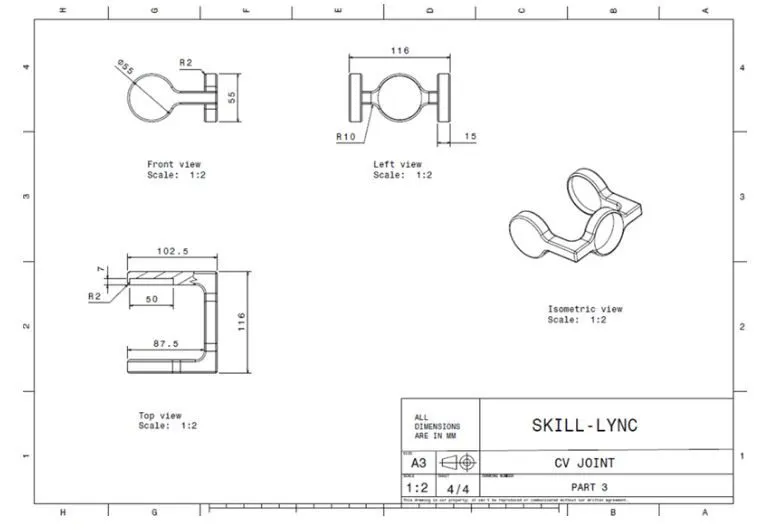

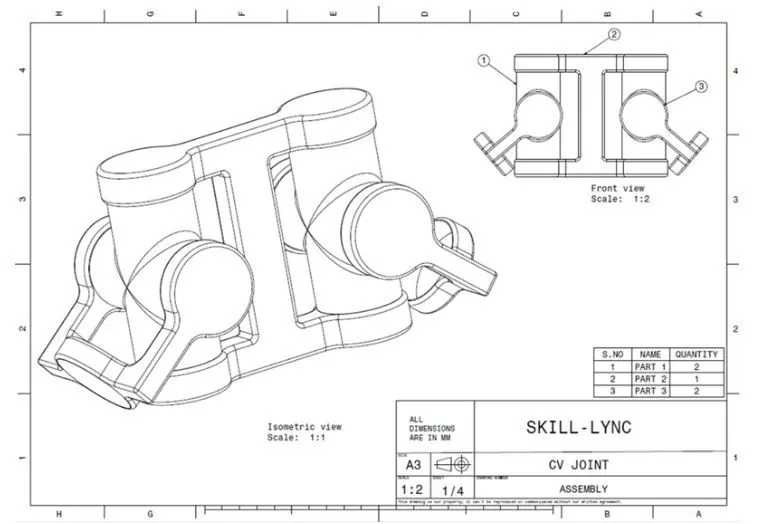

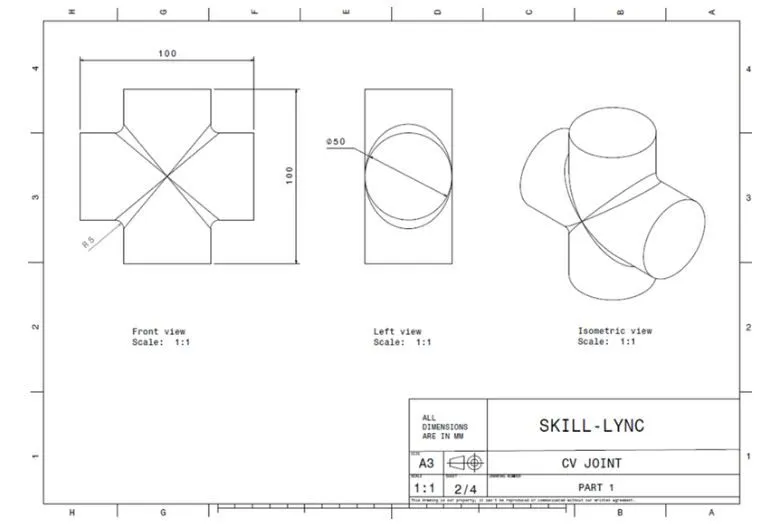

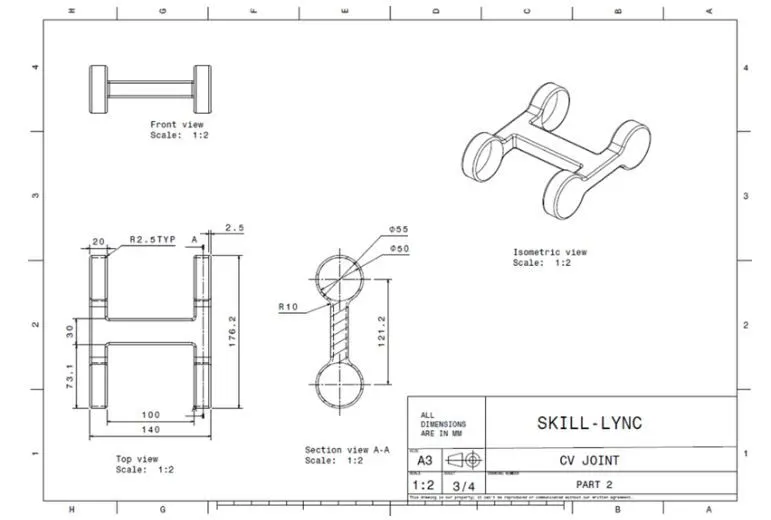

Drafting-

Conclusion- All the objectives have been achieved and CATpart files and assembly files are also attached in form of zip file.
