Week 10- Assembly Workbench

ASSEMBLY WORK BENCH:

• In this Assembly we joint various parts into one part assembly is the most important in the design where we can join the various parts to get the final out part as per the given data.

• While performing the drafting we need to understand the tools which is most important and we need to know the tools specification and we need to perform the tools as per the given given dimensions and we need to understand the section views in the drafting section views are most imporant and we need to give the section as per the given data.

• The components are brought together and assembled in Assembly Design workbench by applying suitable parametric assembly constraints to them.

• Assembly is the process of putting parts together to make a machine or other product. All the components were made and ready for assembly. The apparatus comes in kit form for ease of assembly. Assembly is the process of putting parts together to make a machine or other product.

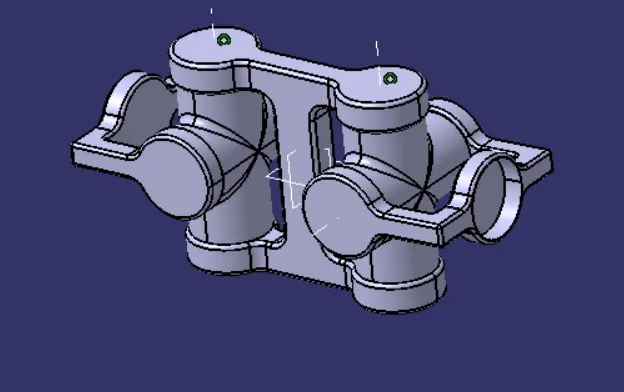

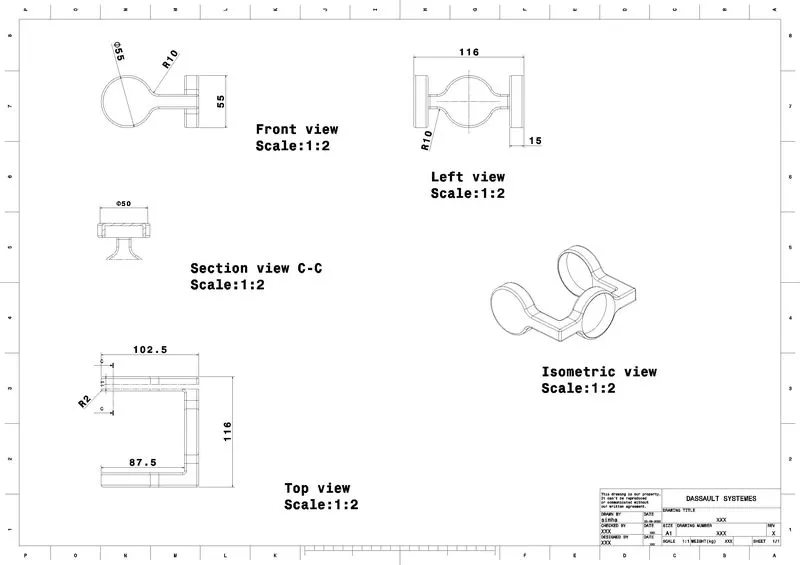

CV JOINT:

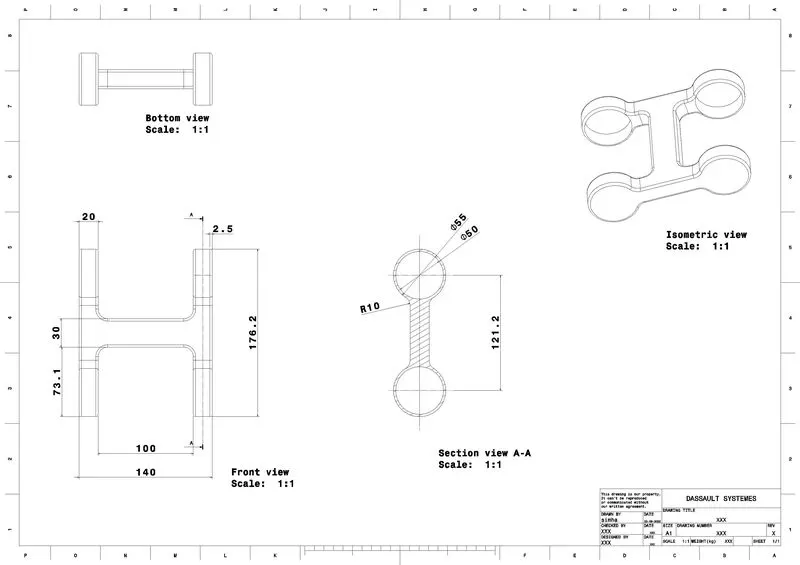

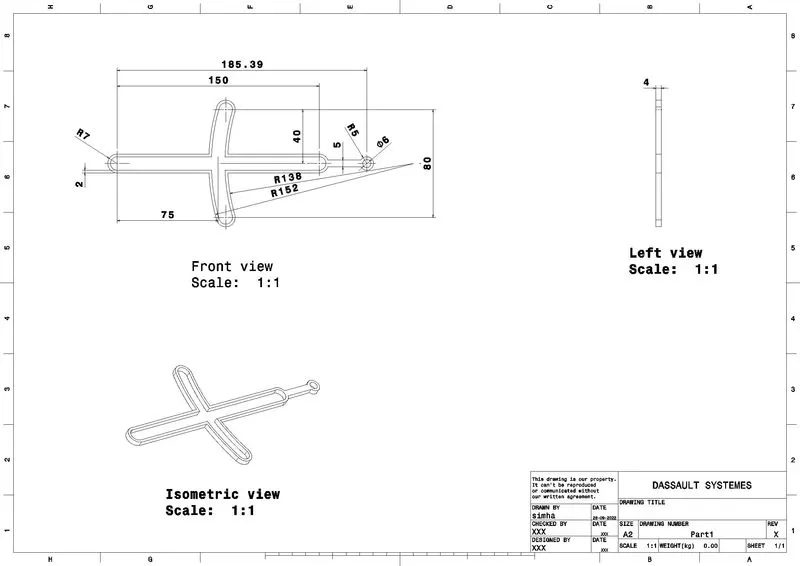

VIEWS:

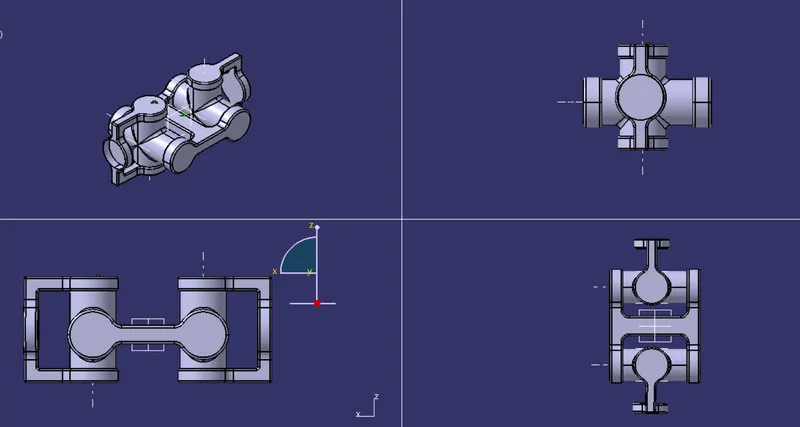

ASSEMBLY BODY

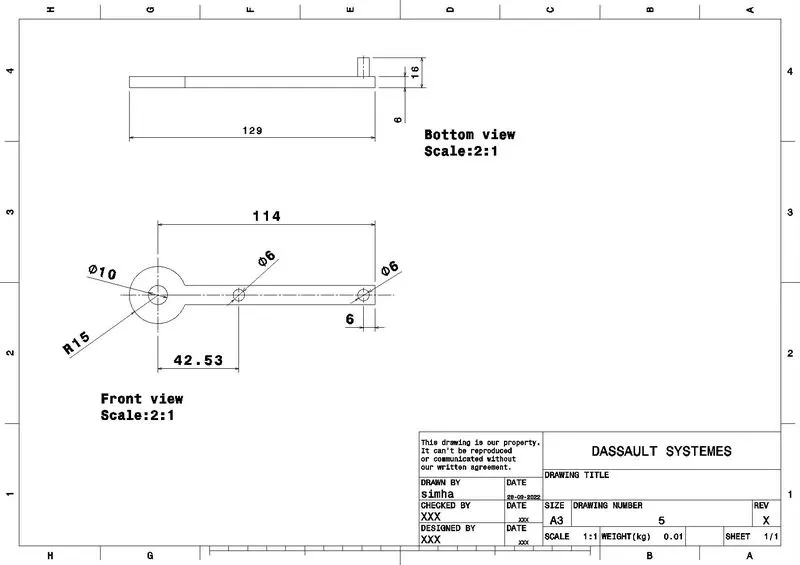

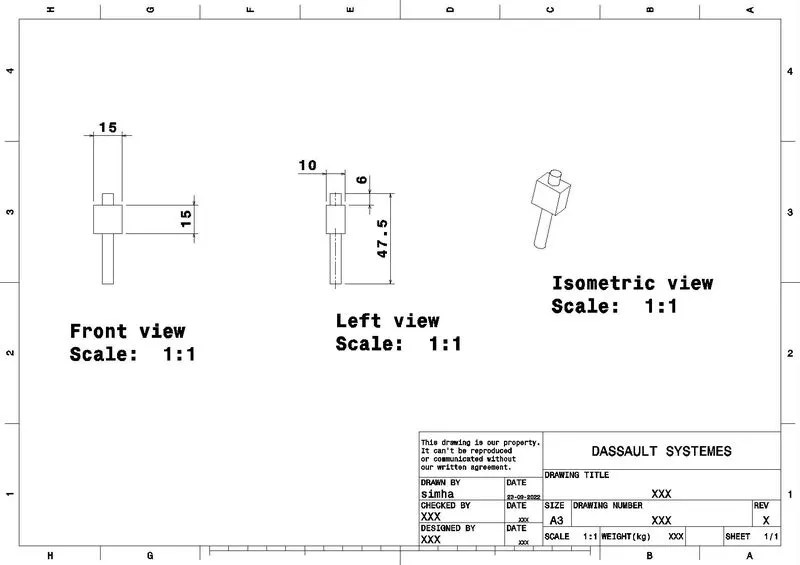

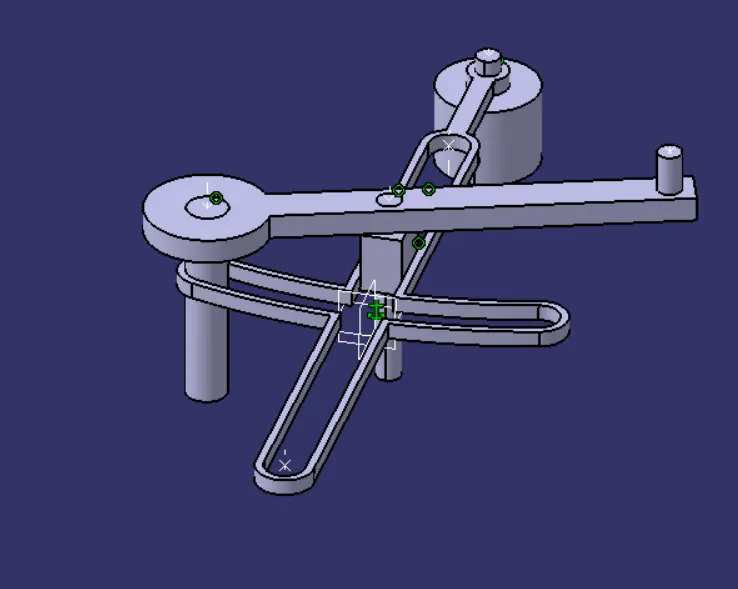

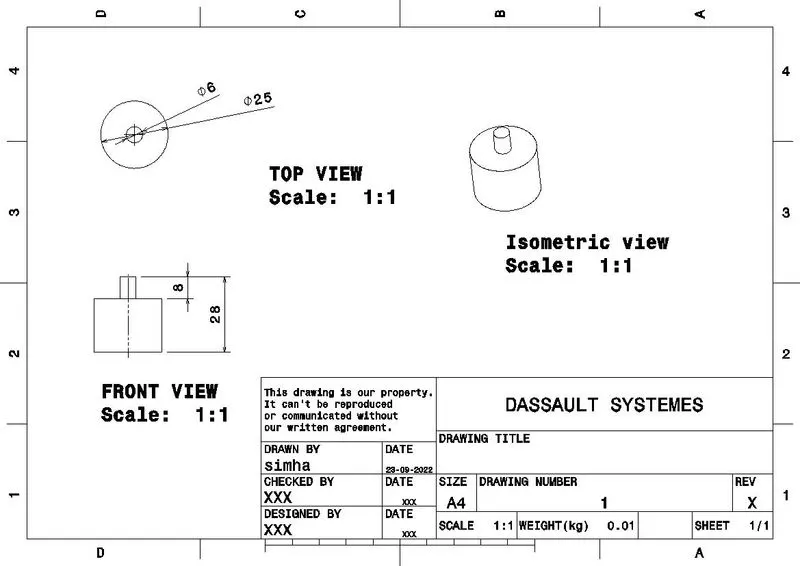

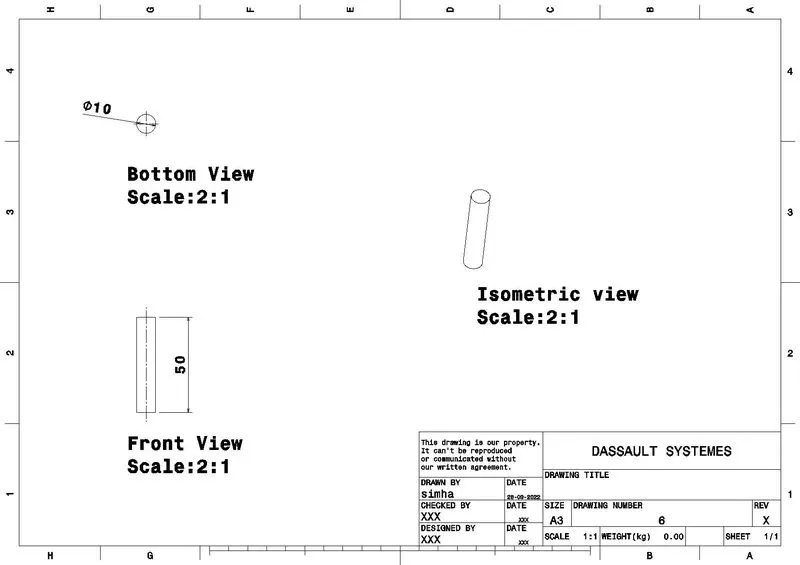

OUICK RETURN MOTION MECHANISM:

ASSEMBLY:

To assembly the parts we need to give the two coincendence for each part one is axis to aaxis and another is Face to Face.

So while giving the constrains we need to difine the 2 coincedence exactly to get the assembly perfectly.

In this Assembly work bench mostly we use COINCIDENCE tool to join the 2 parts.

After completion of Assembly we need to check the part by applying the EXPLODE option wheather it will disassembly it or not exactly.

These are steps we need to fallow the while doing an assembly to get the out put correctly.
