Week 10- Assembly Workbench

Screenshots for all the parts and the final assambly:

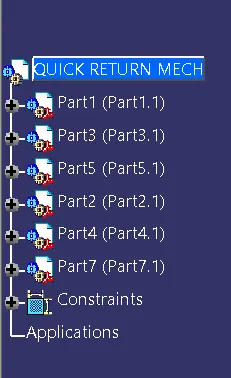

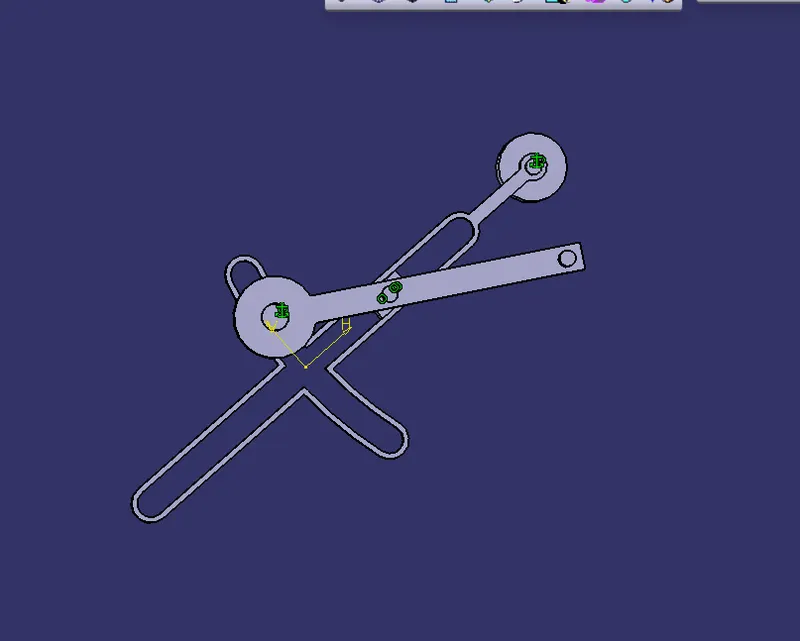

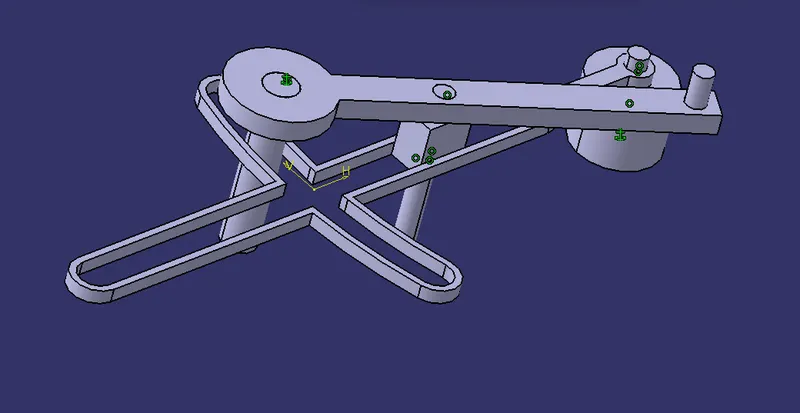

Quick Return Mechanism:

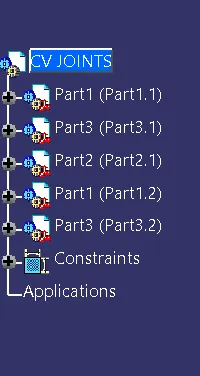

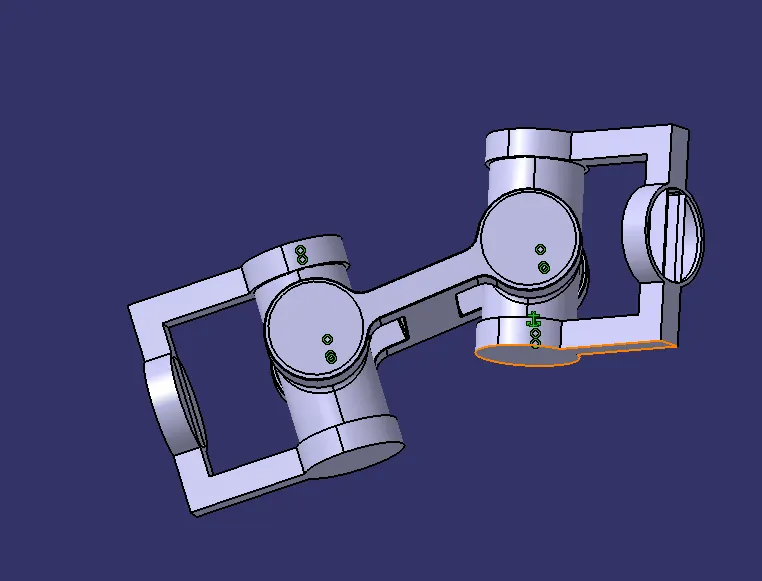

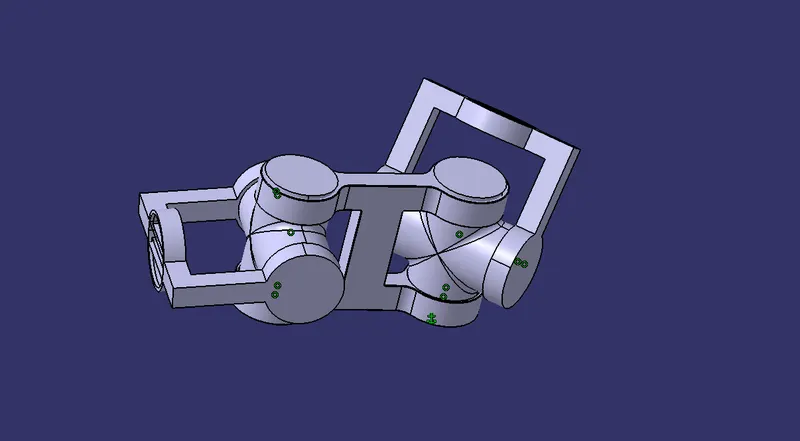

CV Joints:

Report:

As in the first product, there were five parts to assamble. Quick return mechanism is highly used in industries. All the dimensions of the different parts were given as an input. I just had to creat individual parts and once I was done creating them, I assambled them using the feature.

In assambly, the axis along with which the transition is going to be done is very important. So I had to choose them carefully. Transition axis decides the motion direction, along with the reference point.

CV joints were looking difficult at first, but it was very easy to design and assamble. It just had tree parts, that too symmetrical. So it did not take very much to design them. In assambly it was very easy to just copy the same parts which were repeated.
