Week 10- Assembly Workbench
QUICK RETURN MECHANISM
AIM; To create the solid body from the given 2D drawings and assembled to create the final body.
First created the solid body of all individual parts seperately and assembled them to create quick return mechanism.

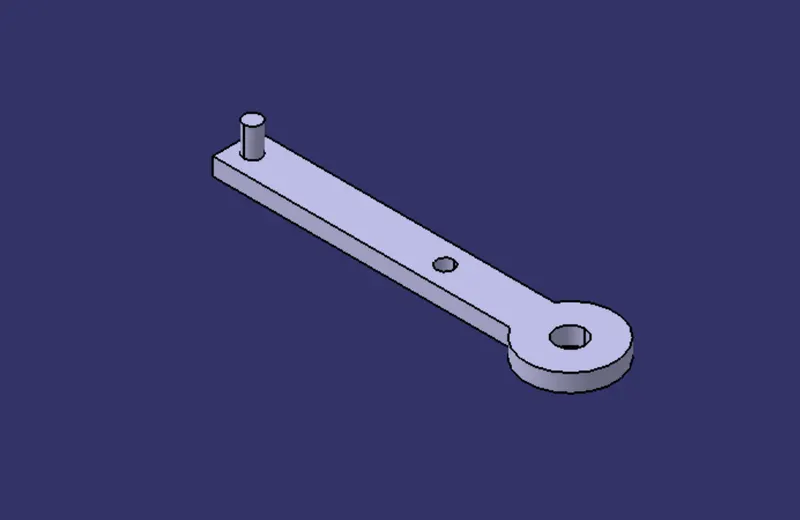

- SLIDER LINK

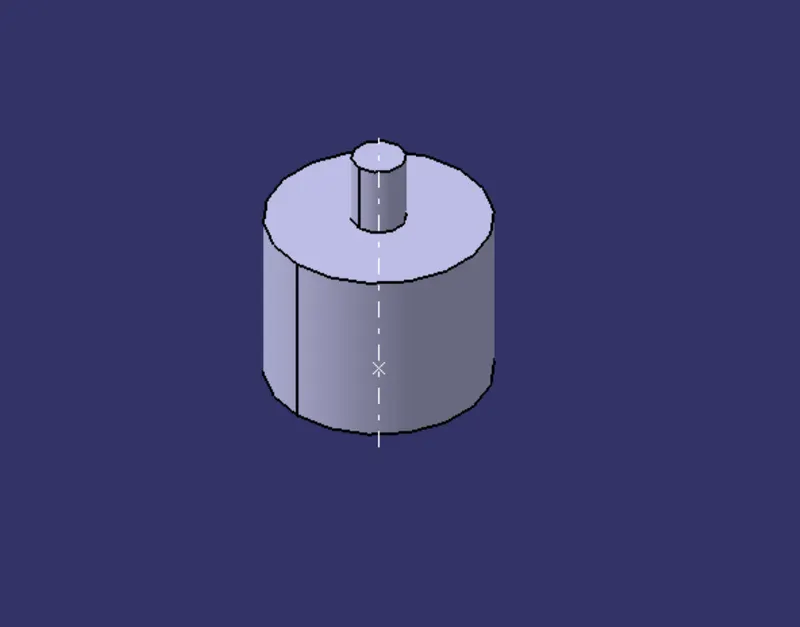

- FIXED SUPPORT
- SLIDING BLOCK

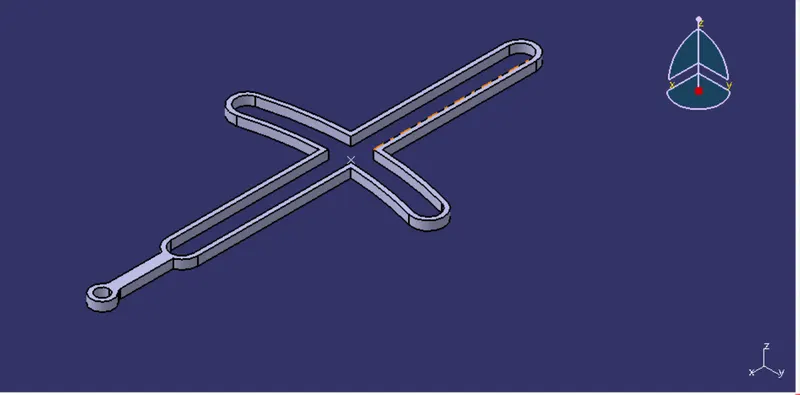

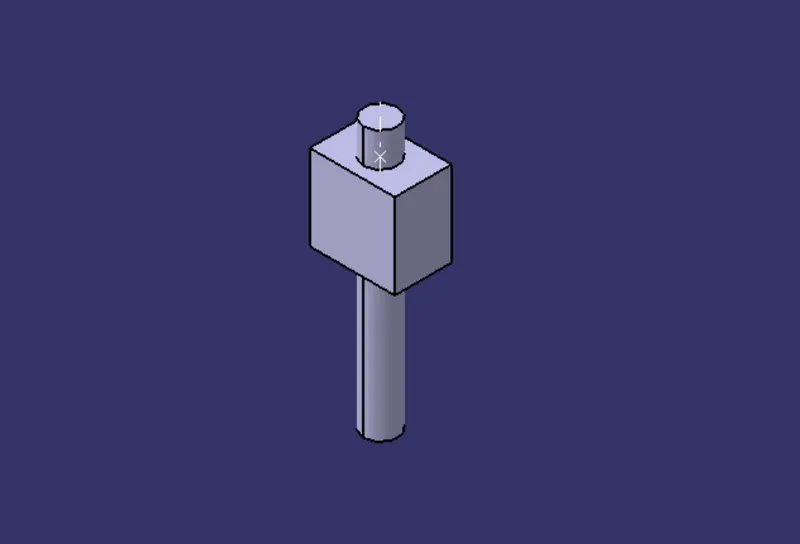

- SLIDER

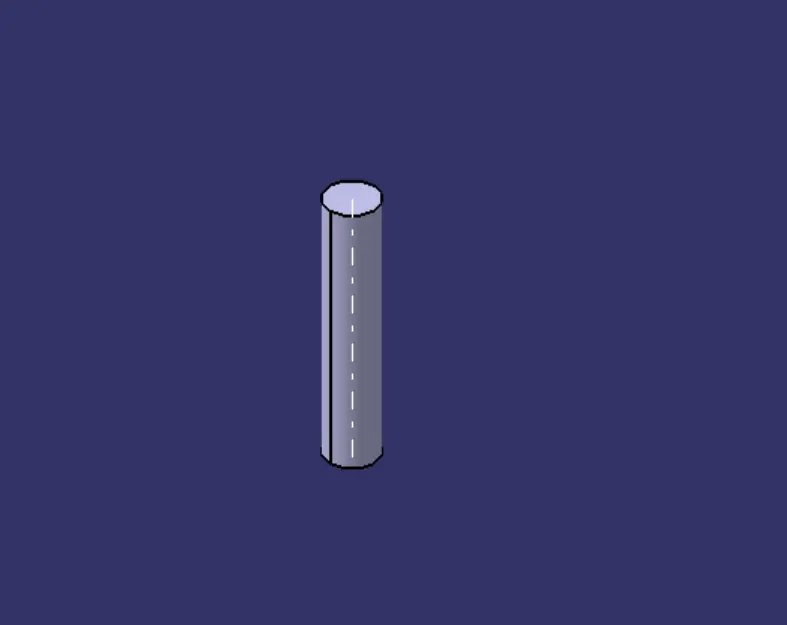

- PIN

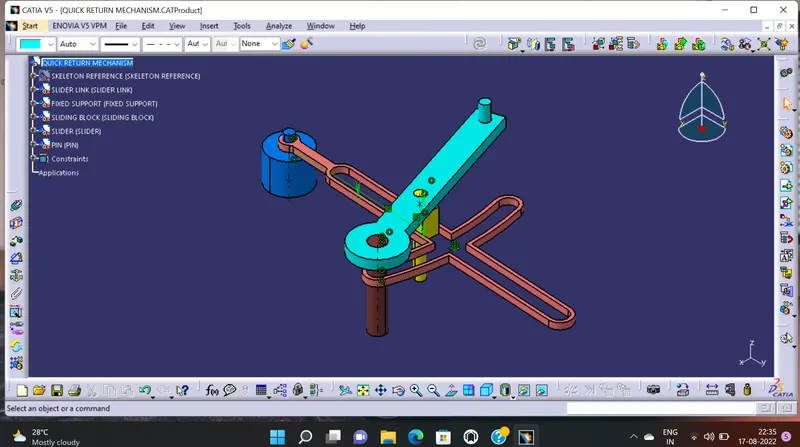

FINAL ASSEMBLED QUICK RETURN MECHANISM
CV JOINT
AIM;To create solid cv joint from the given 2D drawings of the parts .

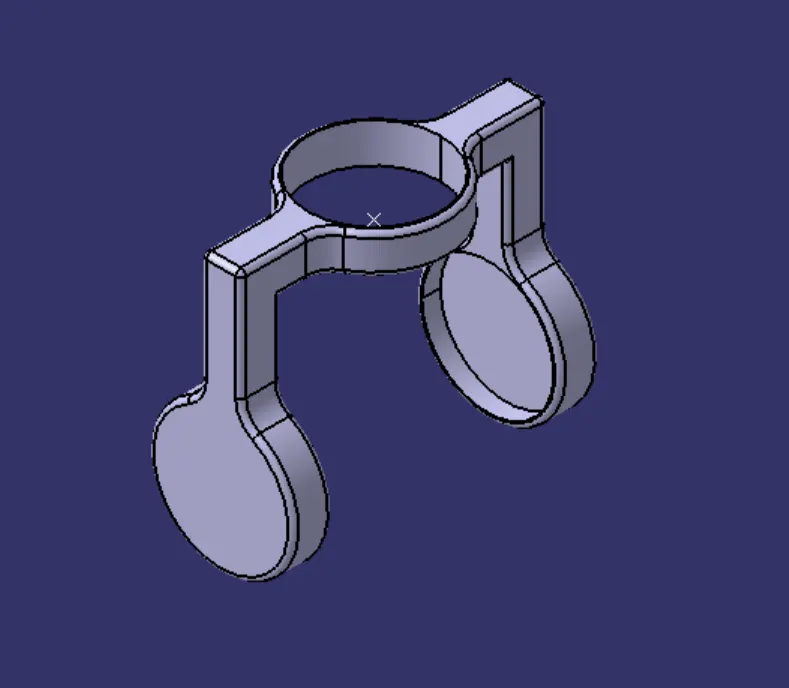

- PART 1

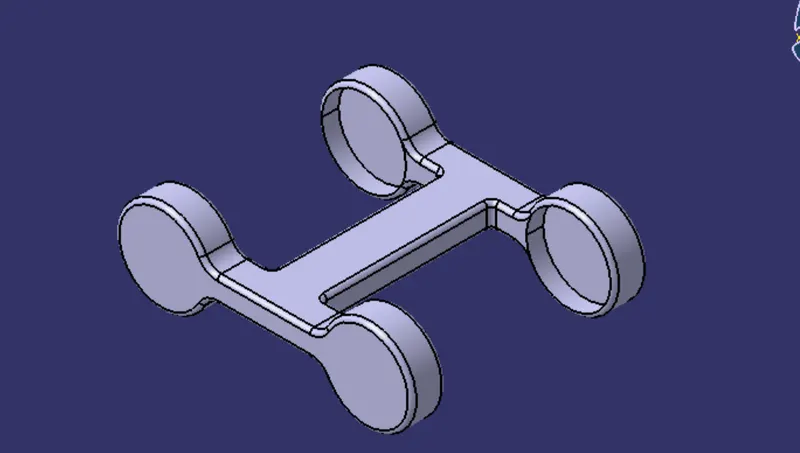

- PART 2

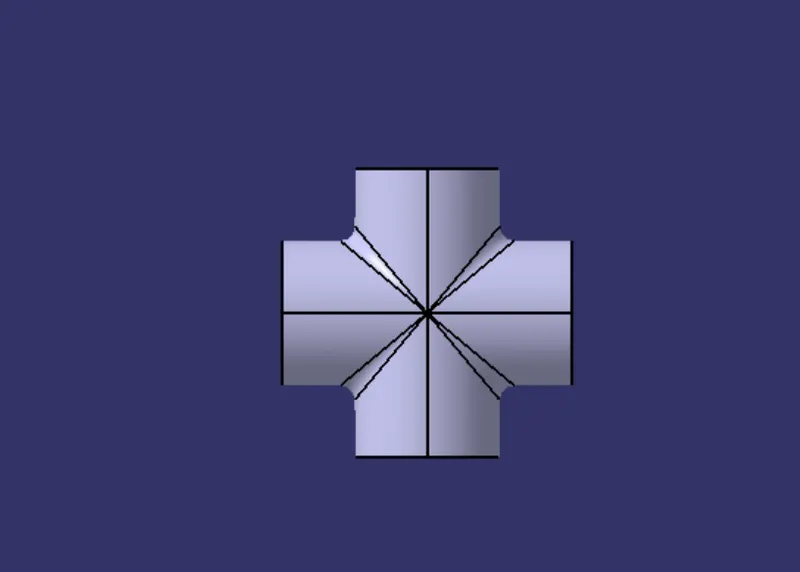

- PART 3

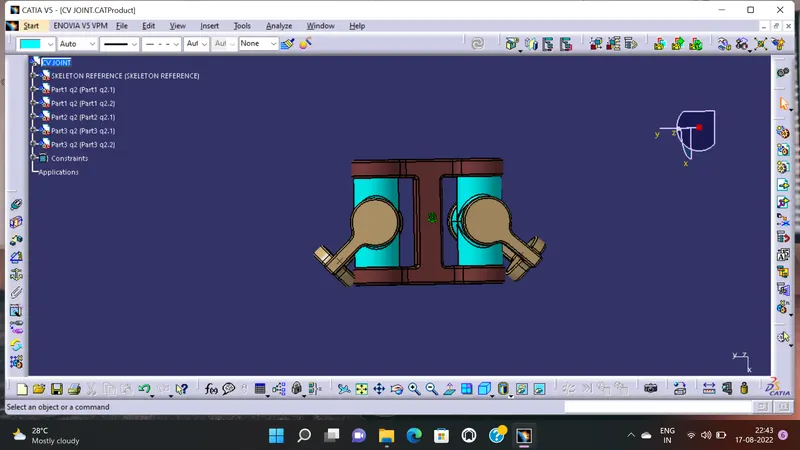

FINAL ASSEMBLED CV JOINT
ALL THE CAT PART ,ASSEMBLY PRODUCT FILE AND 2D DRAWINGS ARE SUBMITTED AS ZIP FILE IN BROWSE OPTION.
.
