Week 10- Assembly Workbench
Objective:
Create assembly and draft for the drawings which provided and we're gonna create everything as induvidual part then bring them all into assembly
Tool:
Catia v5
Given data:
Model drawings for the cv joint and quick return mechanism.
before we jump into the topic let's have a look at what quick return mechanism and cv joint is.

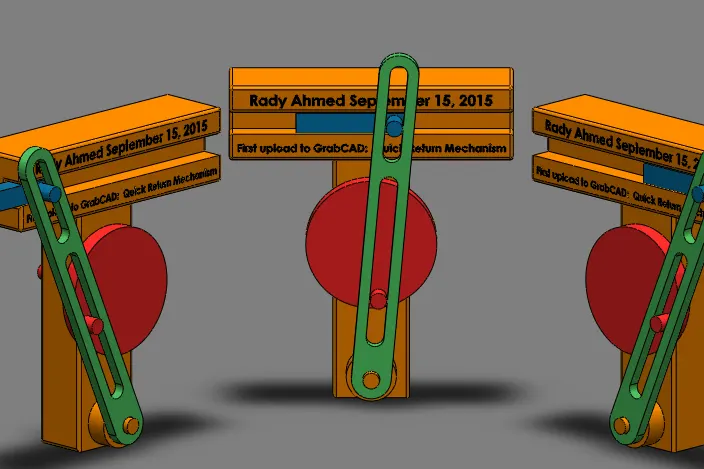

Quick return mechanism:
A quick return mechanism is an apparatus that converts circular motion into reciprocating motion in presses and shaping machines, which are utilized to shape stocks of metal into flat surfaces. This mechanism is mostly used in shaping machines, slotting machines and in rotary internal combustion engines.

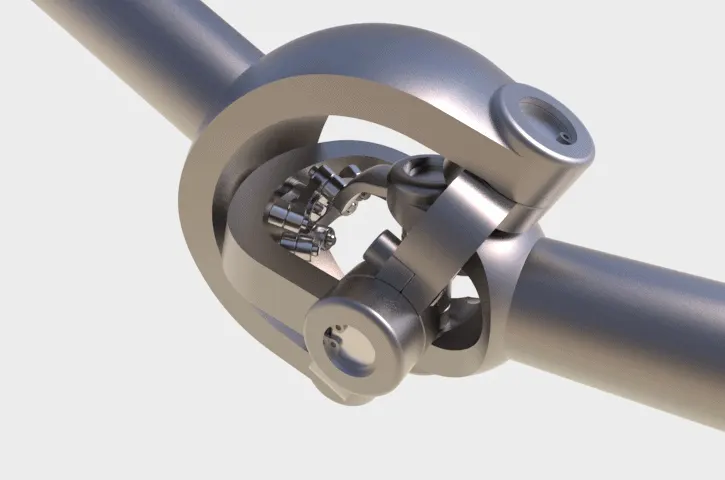

CV joint:
Constant velocity joints, better known as CV joints, are found at the ends of the drive shafts. They are essential to connecting the drive shafts to the transmission and wheels.

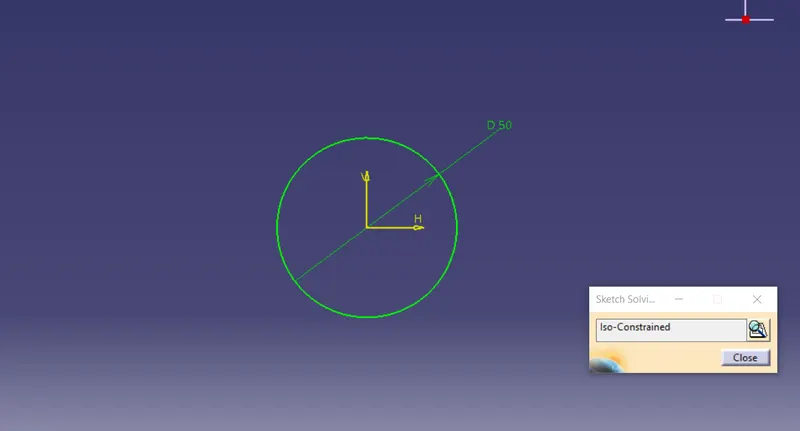

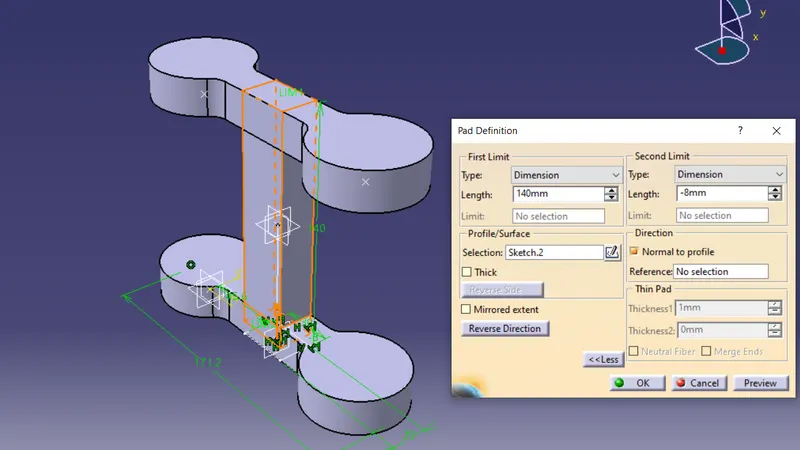

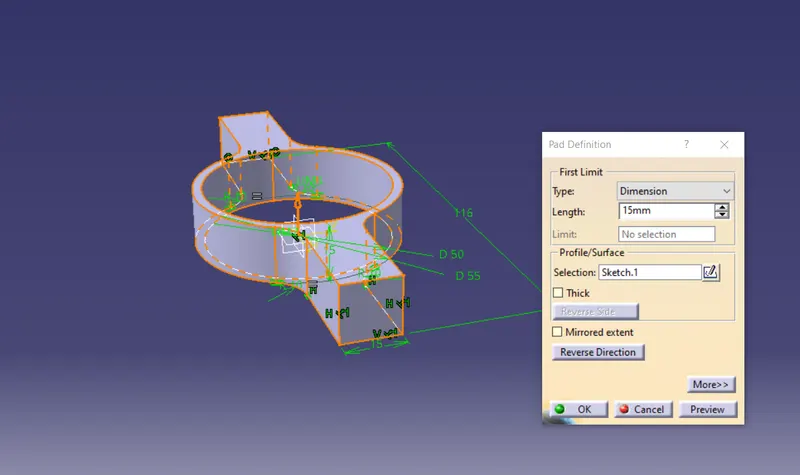

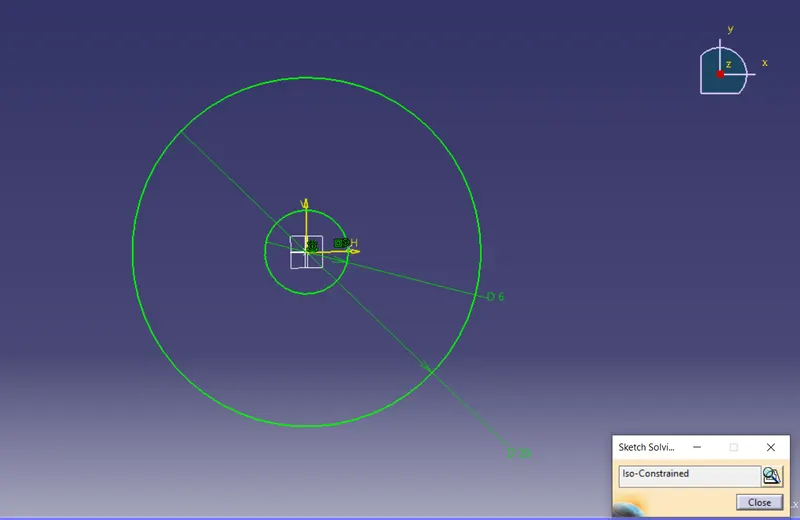

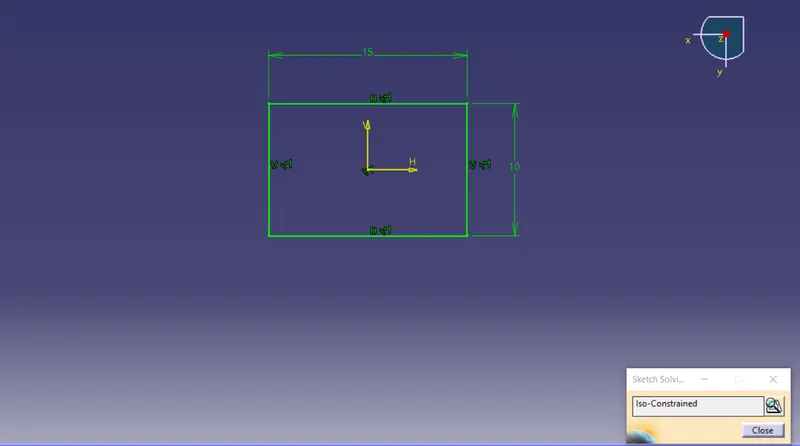

So let's dive into a concept in this case mostly i used sketch command then pad to create a solid parts.
Making the assembly of quick return mechanism:

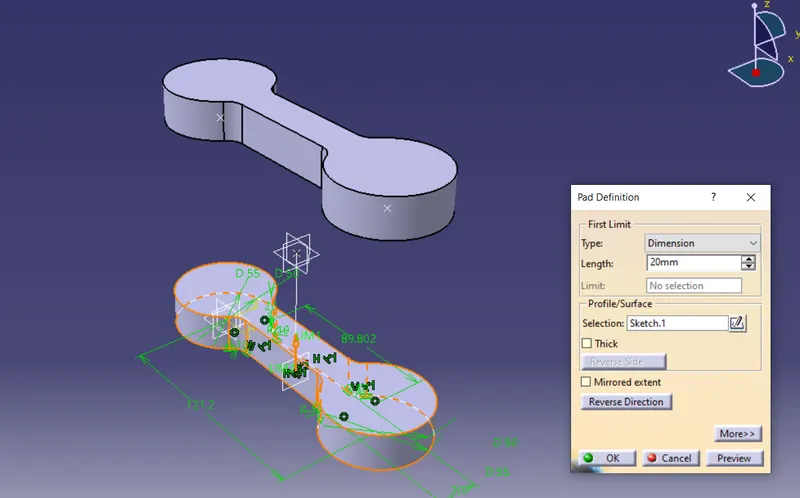

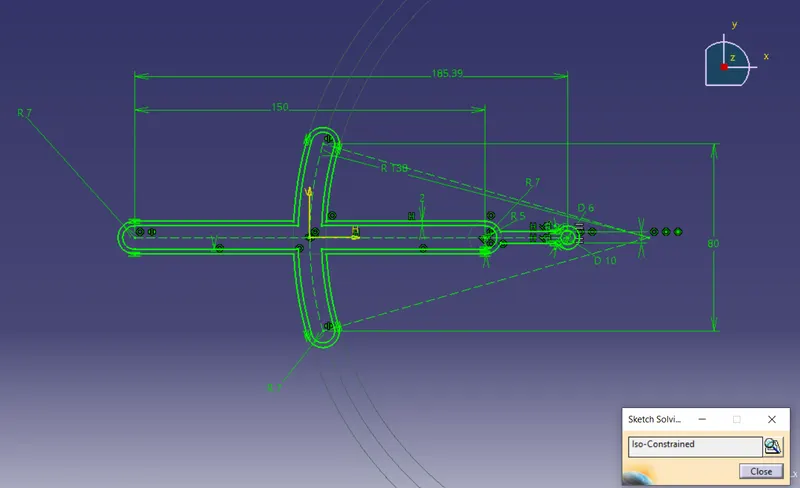

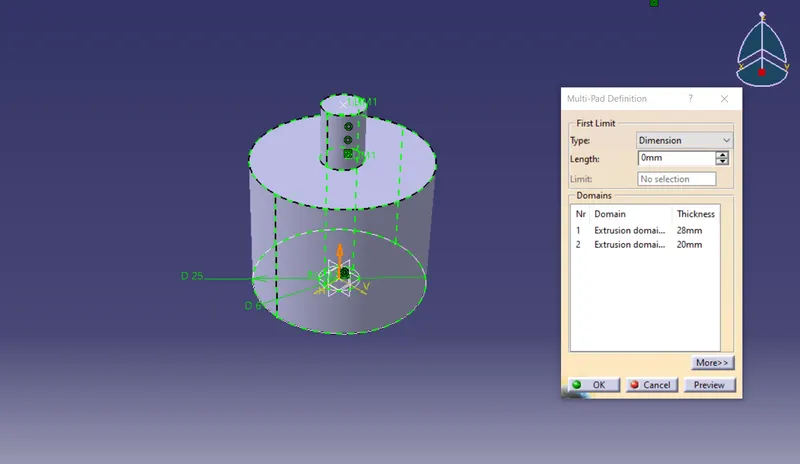

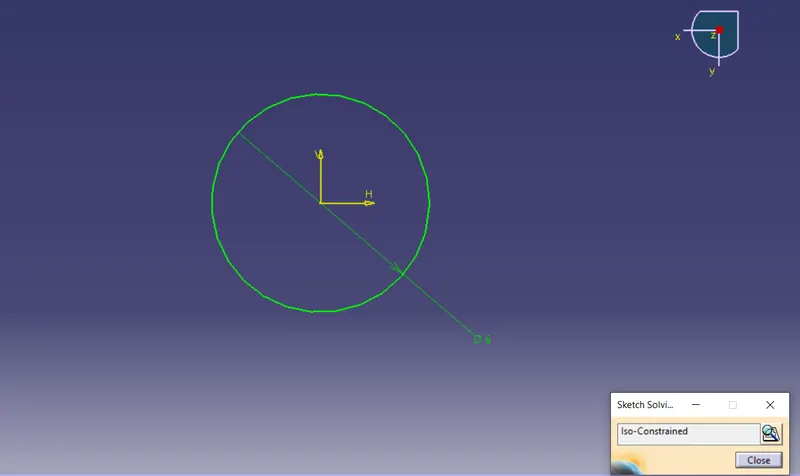

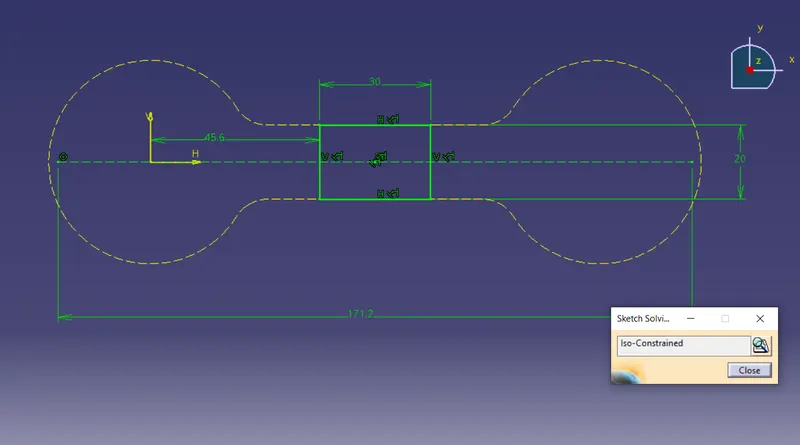

1) slider

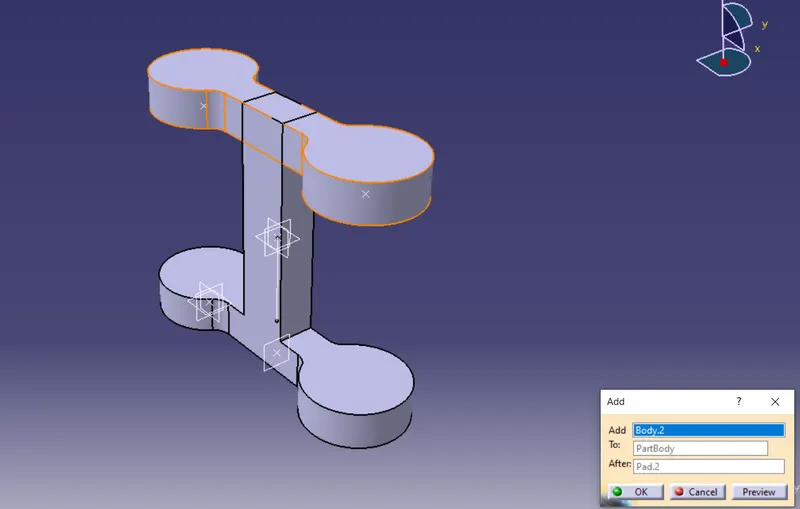

2) Rocker arm pivat

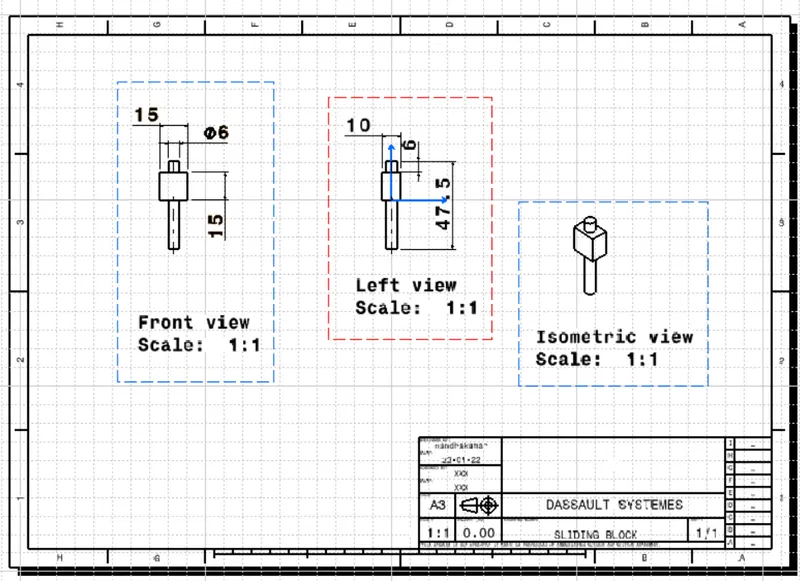

3)Sliding block

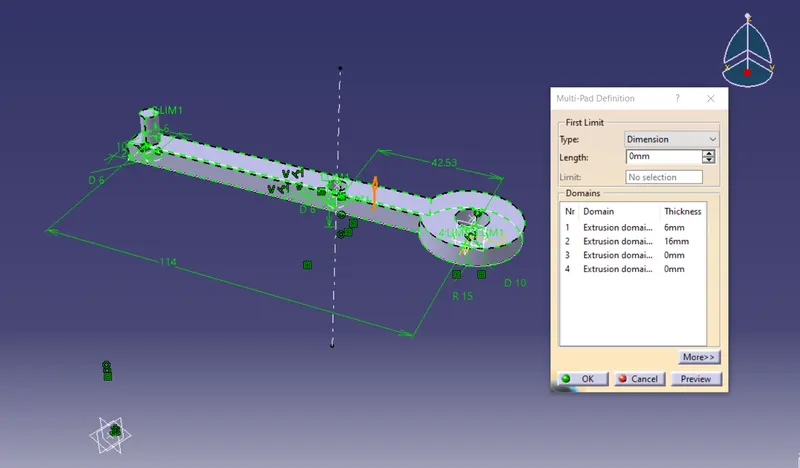

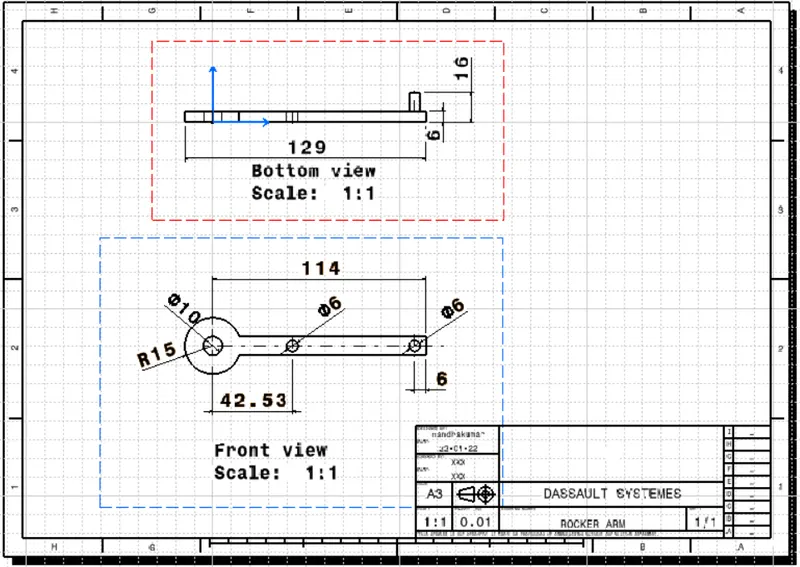

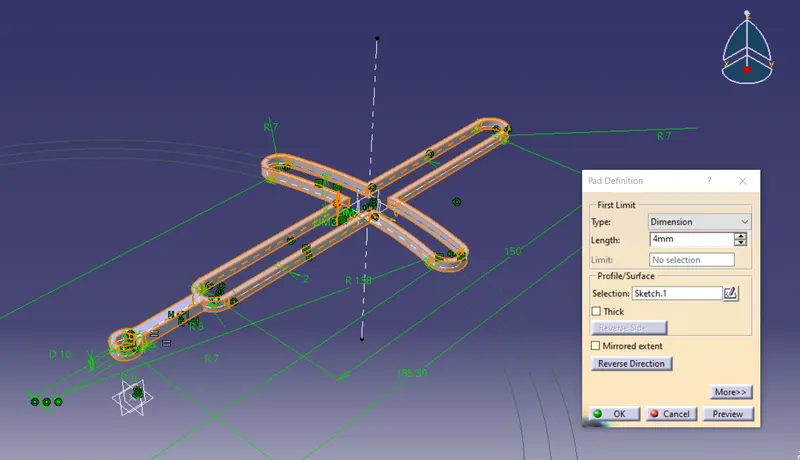

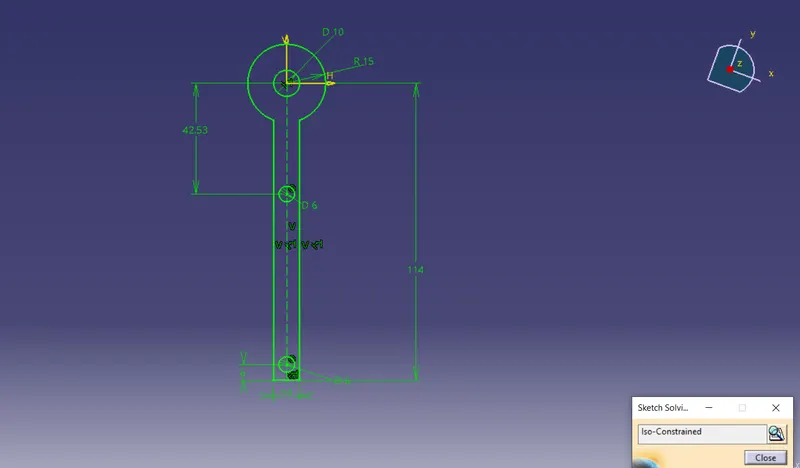

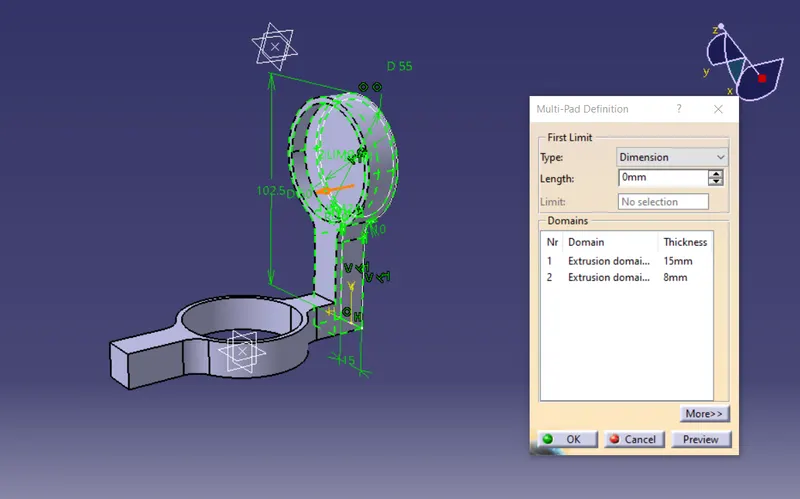

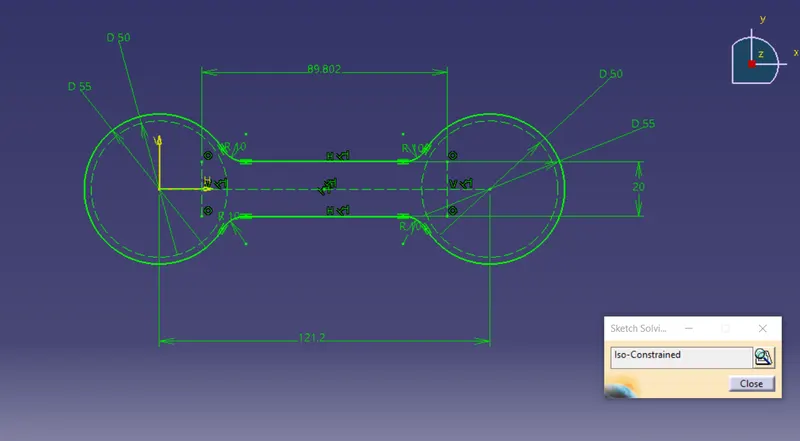

4)Rocker arm

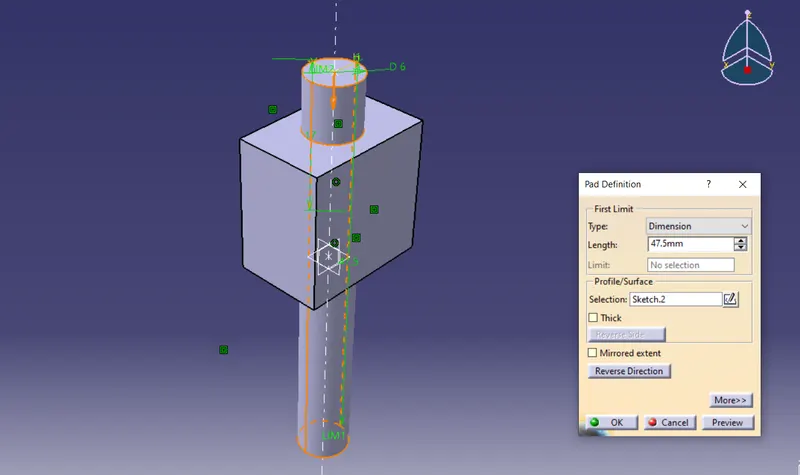

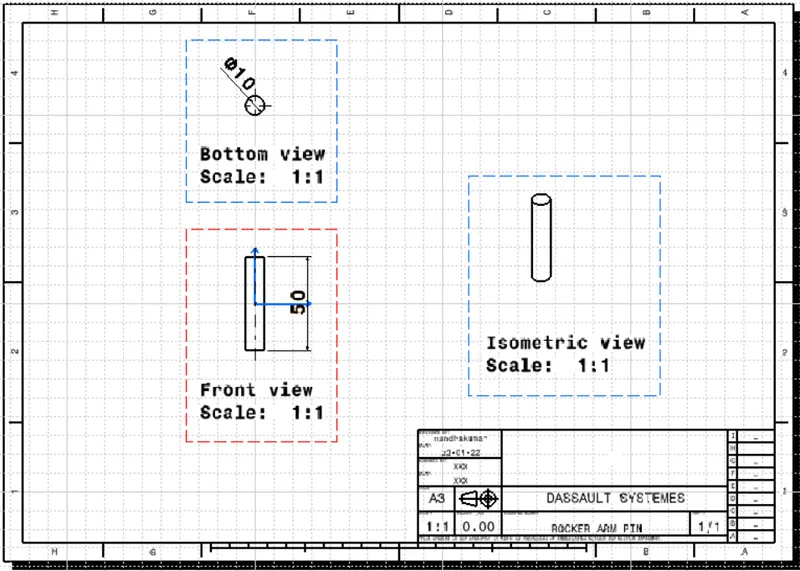

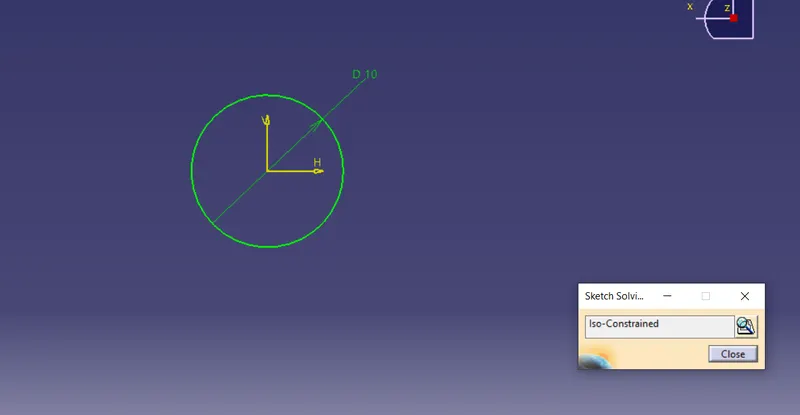

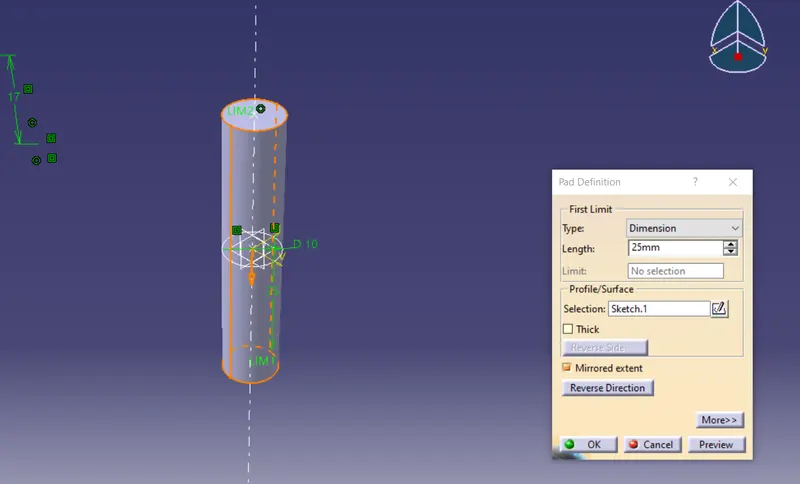

5)Rocker arm pin

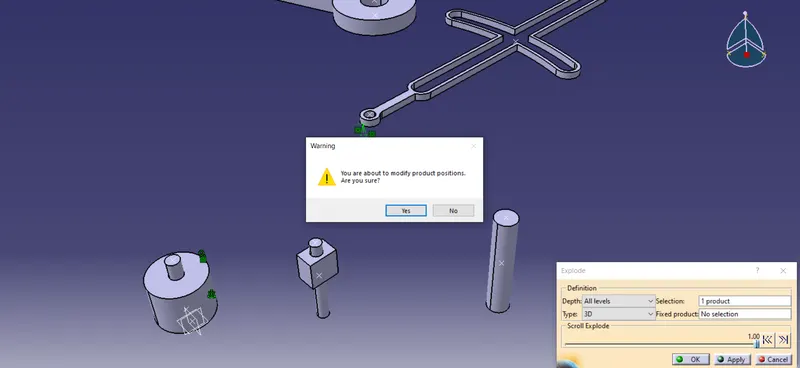

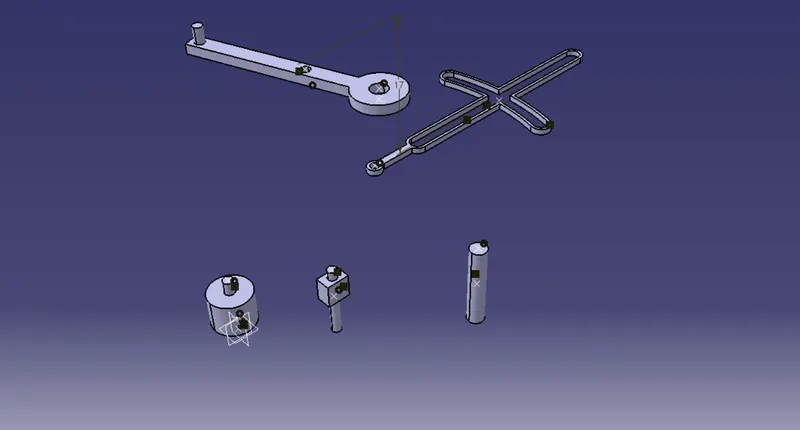

The way of how i created the assembly:

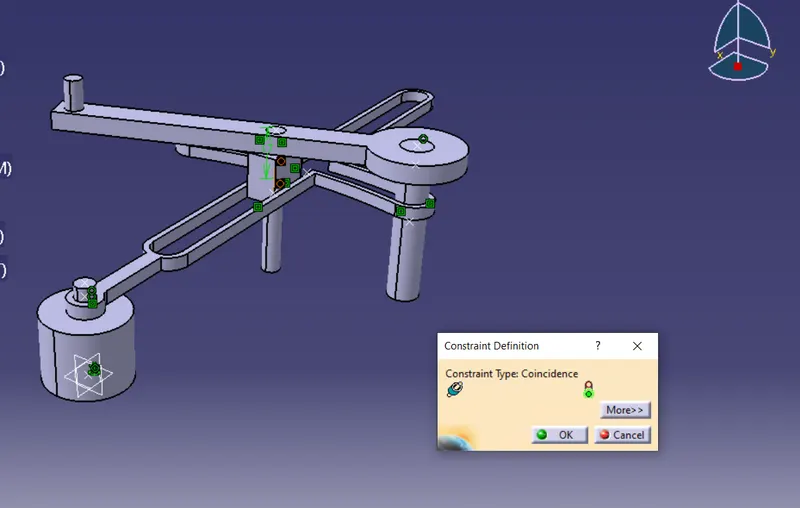

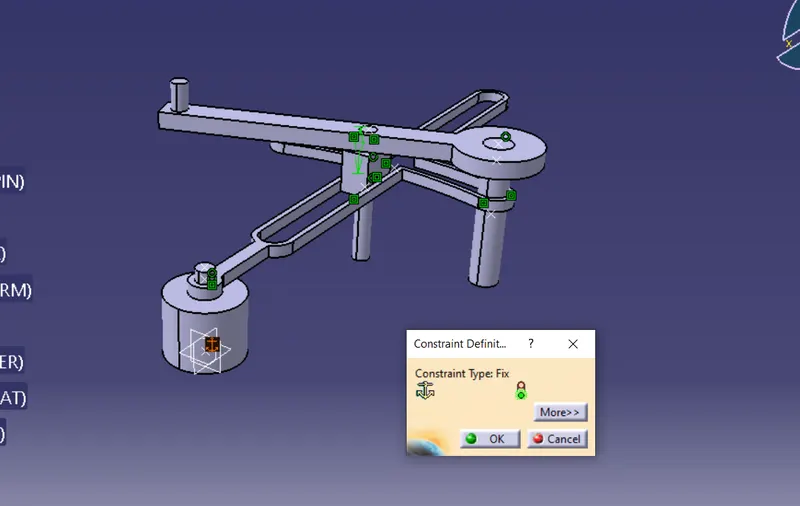

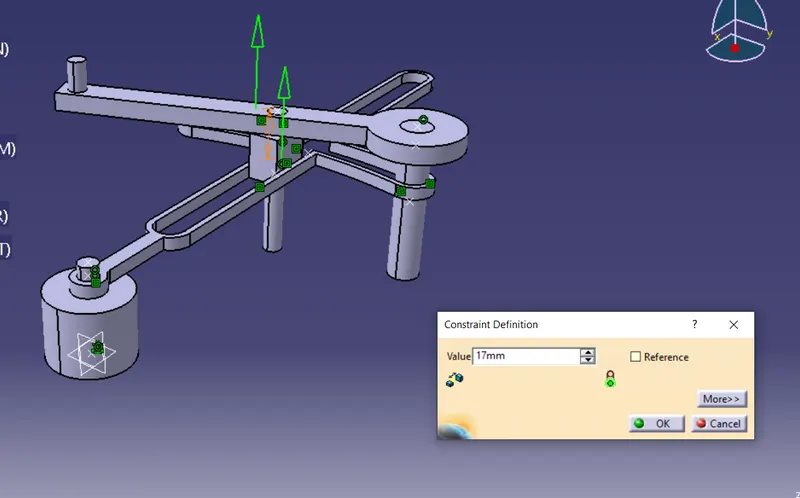

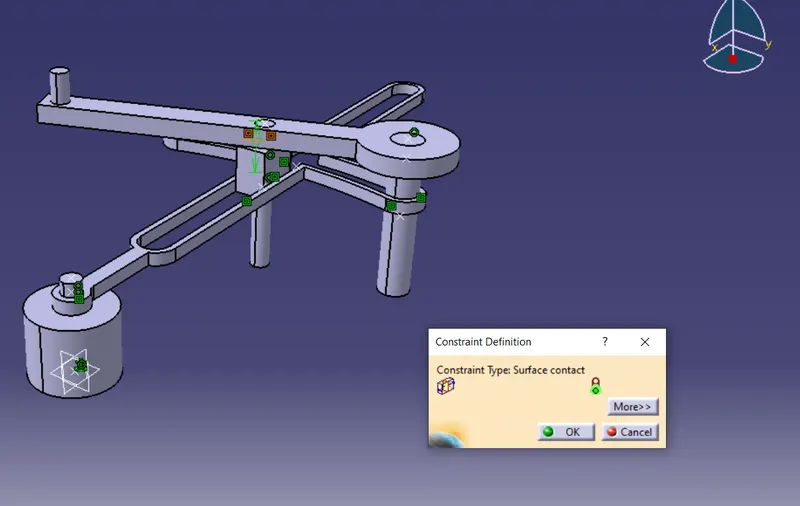

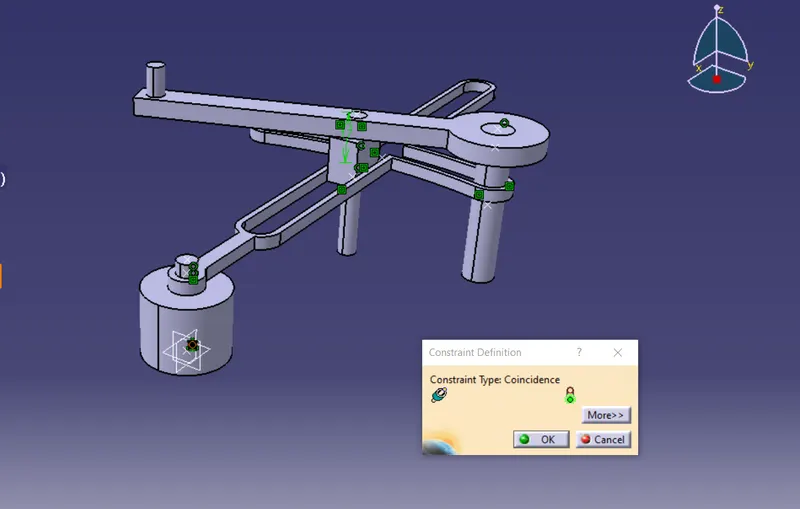

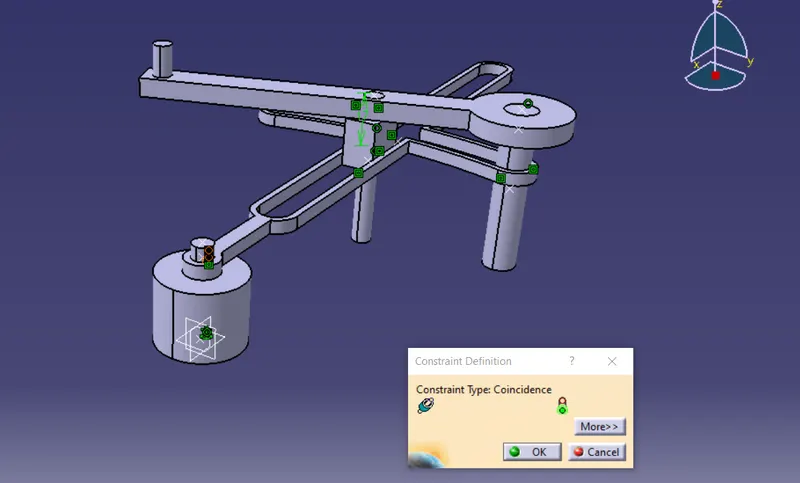

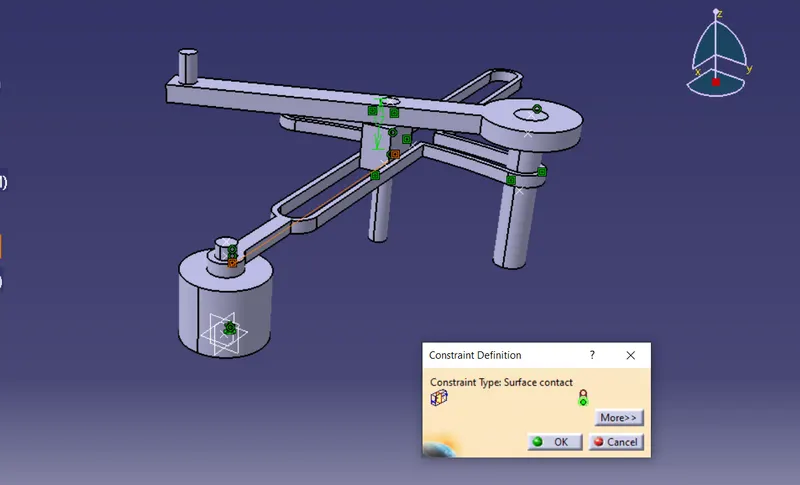

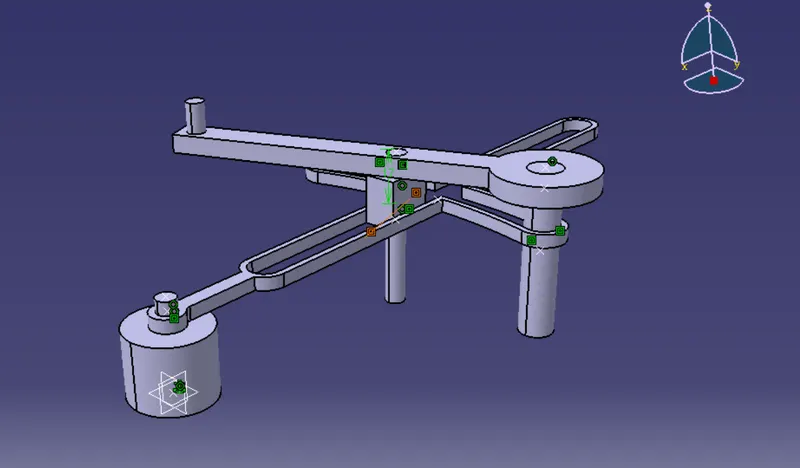

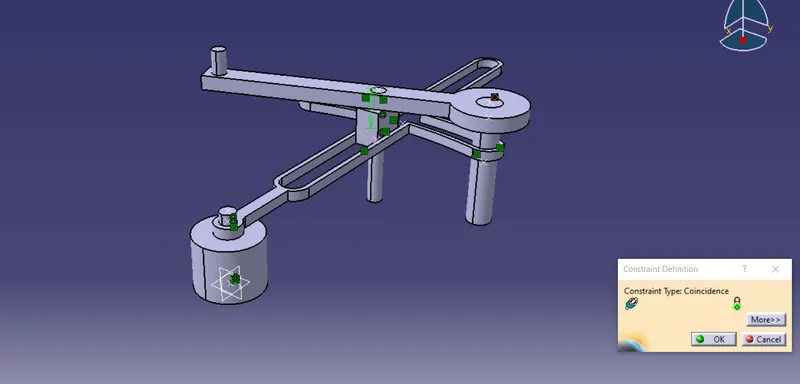

Making sure if the constrains are proper:

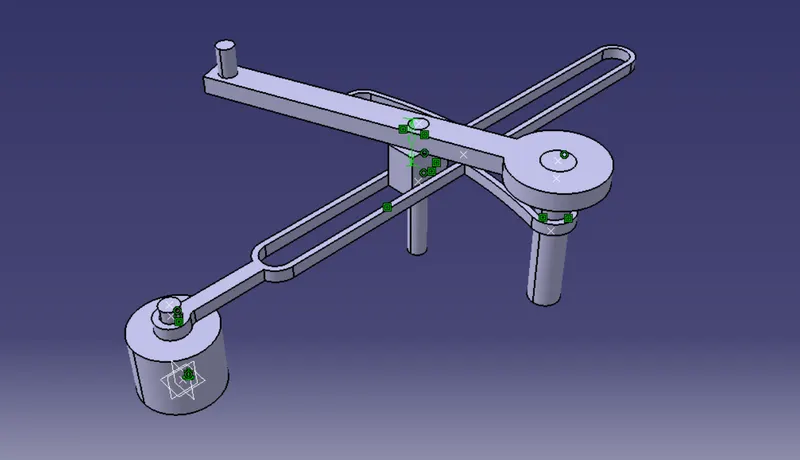

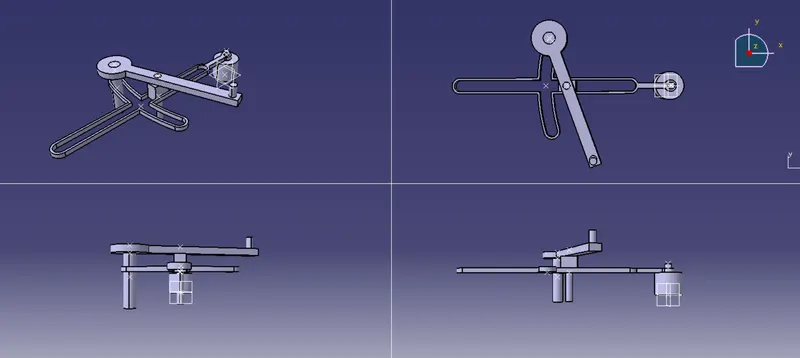

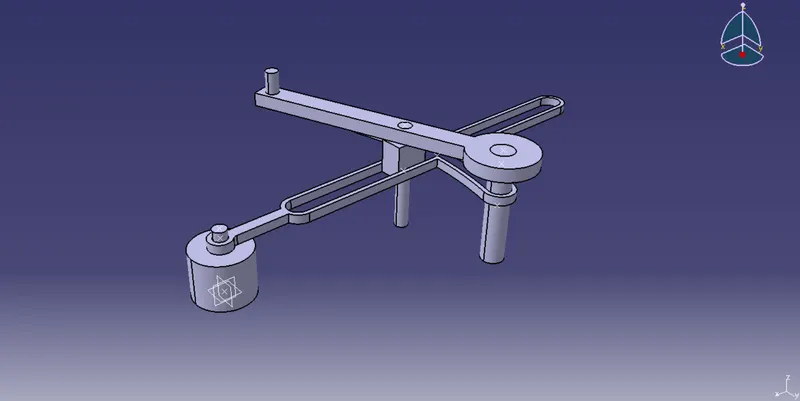

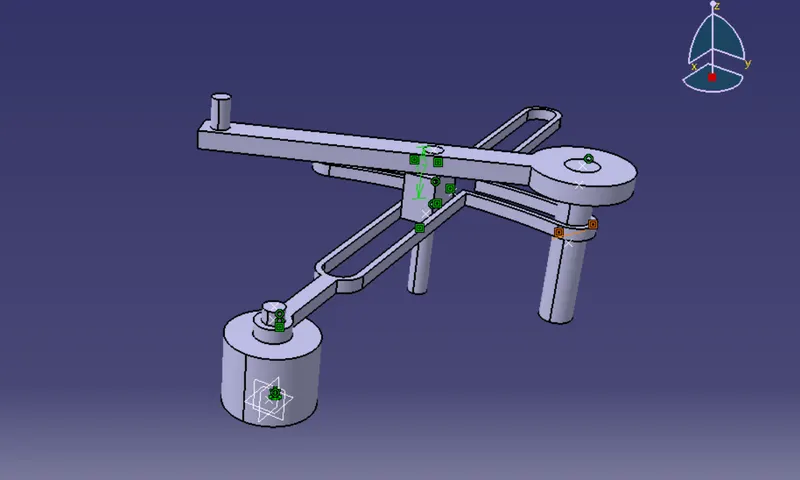

Assembled view:
Assembly of CV Joint:

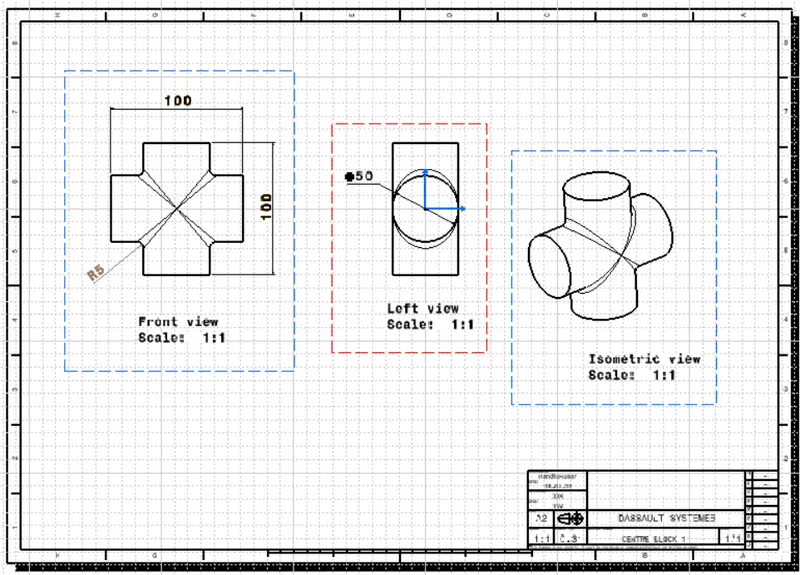

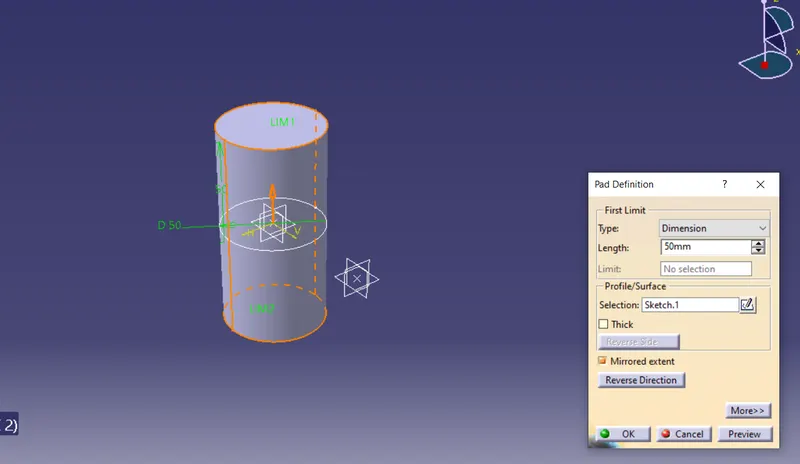

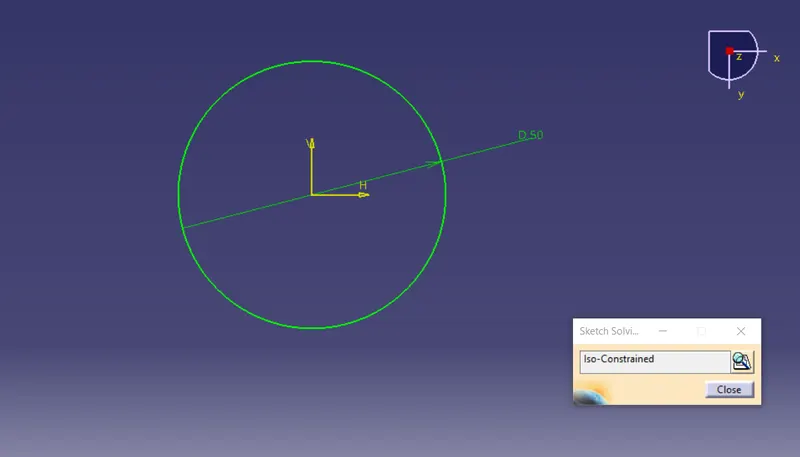

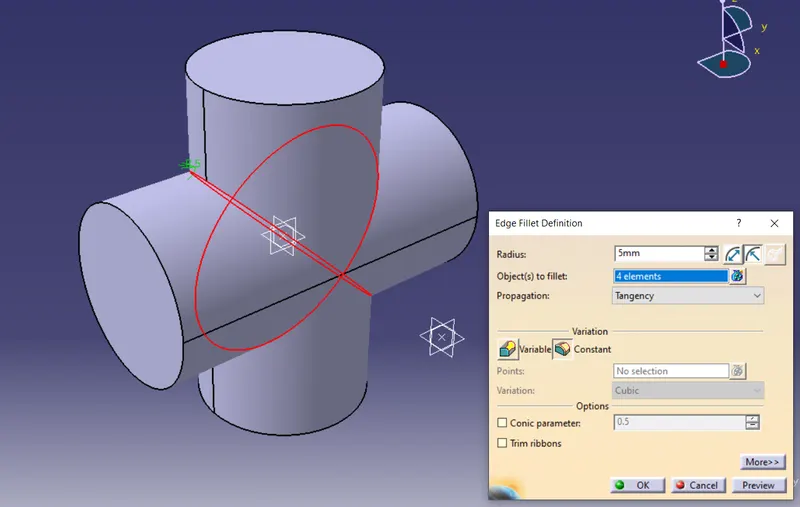

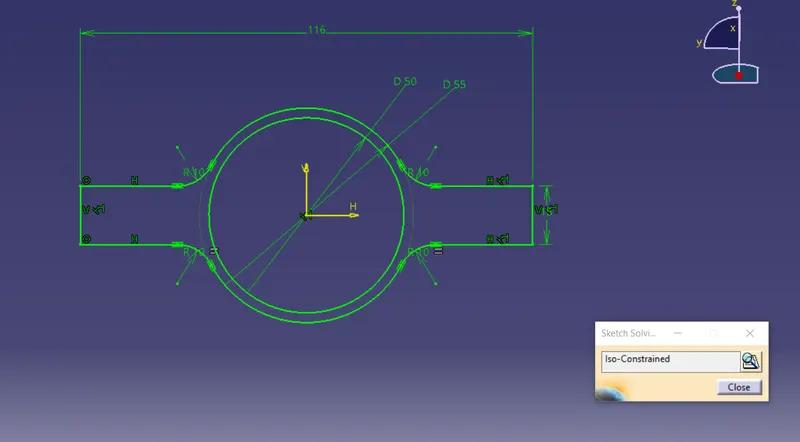

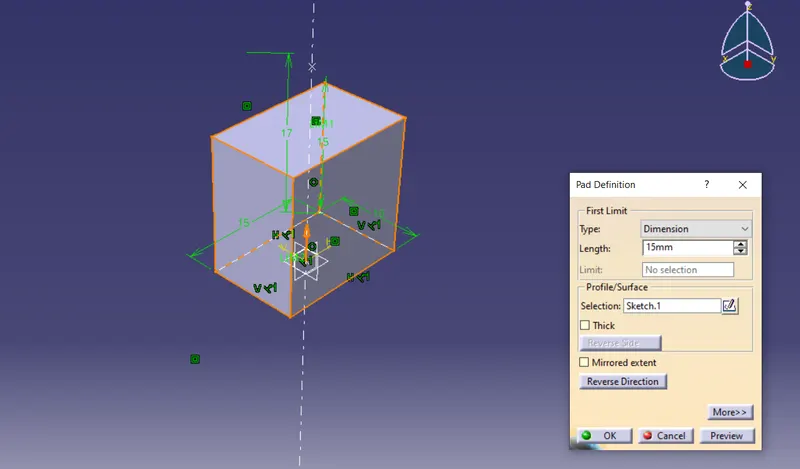

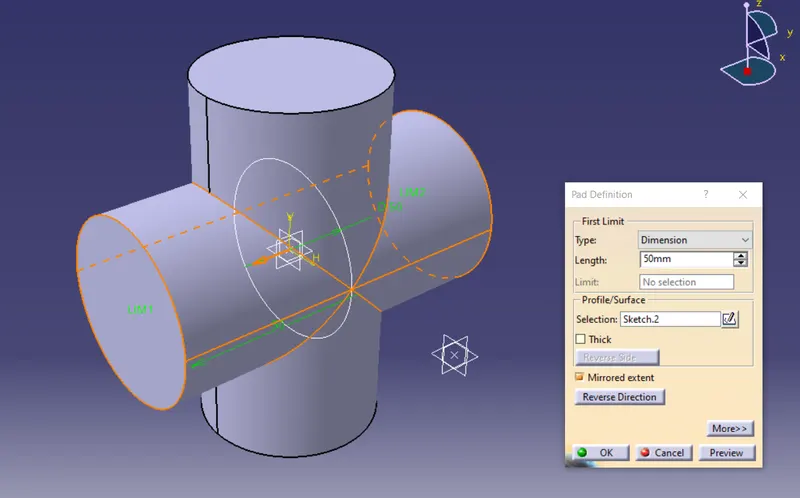

1)Centre blocks
And same steps i followed for the centre block 2 also

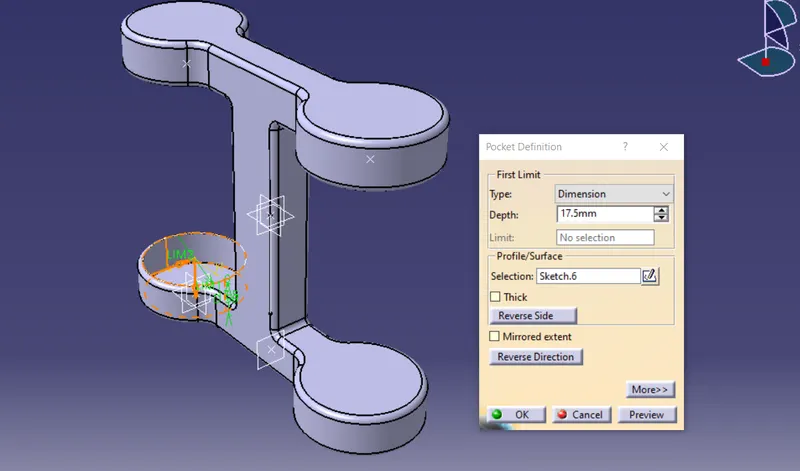

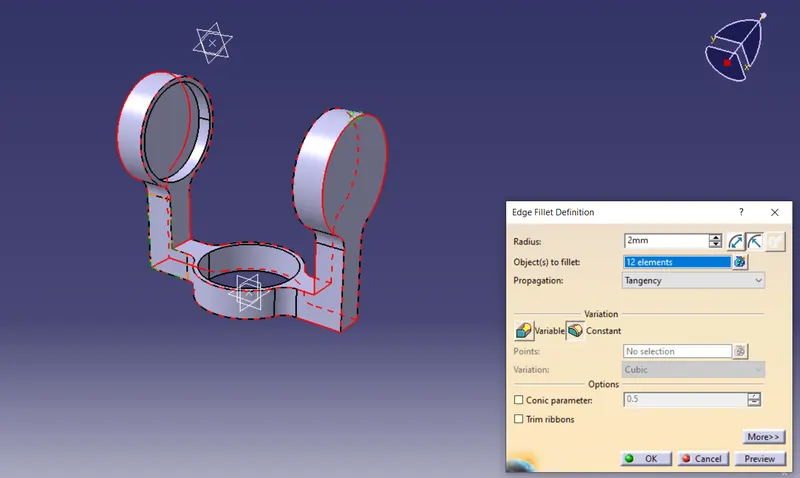

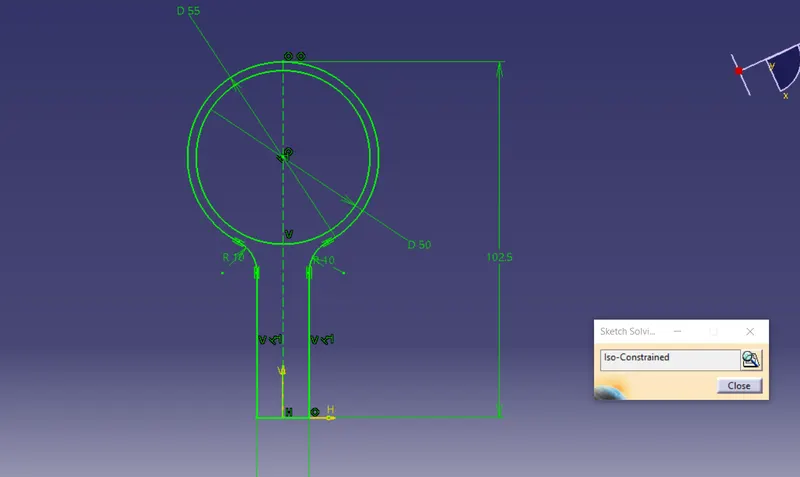

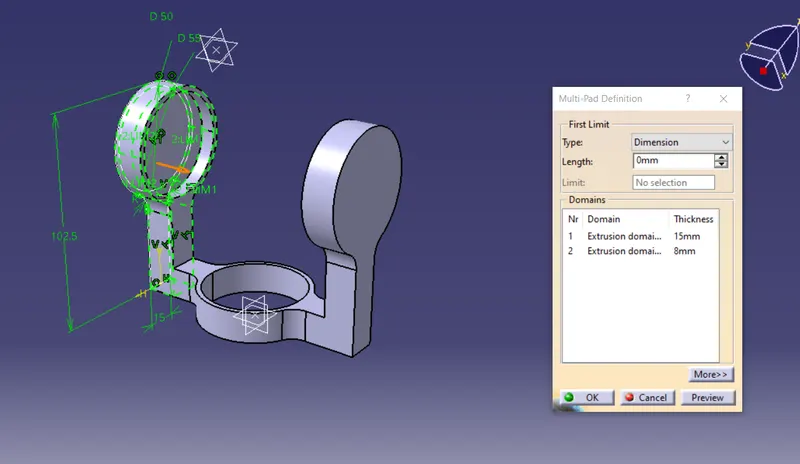

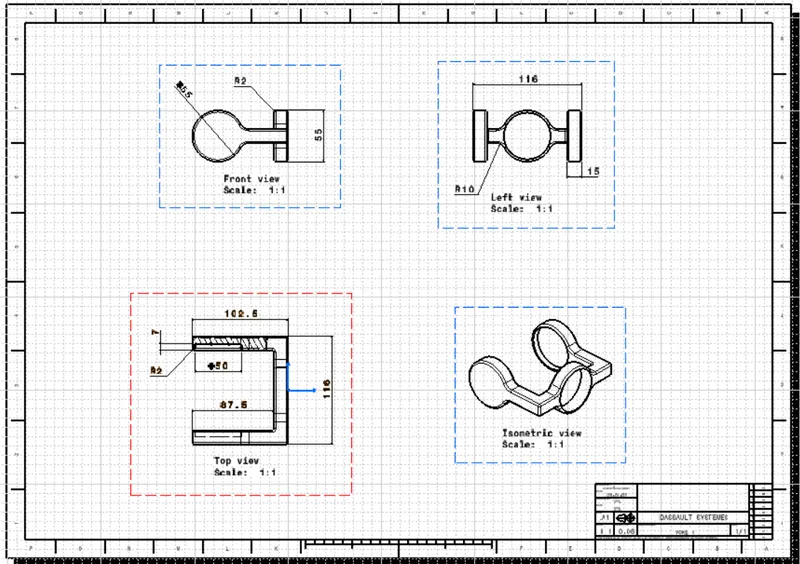

2)Fork

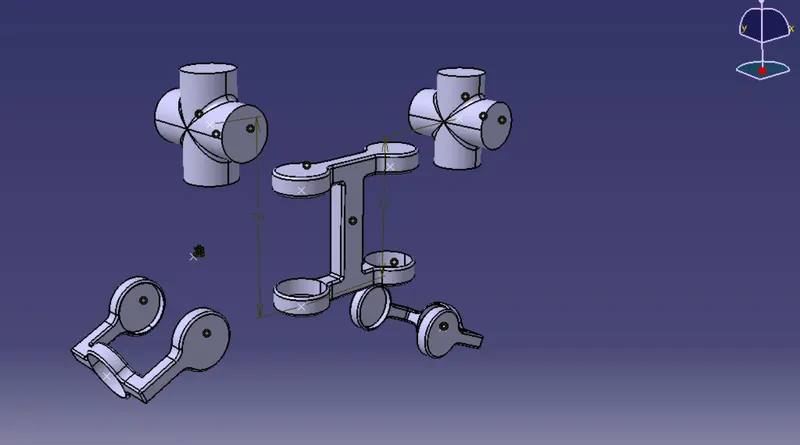

The way of how i created the assembly:

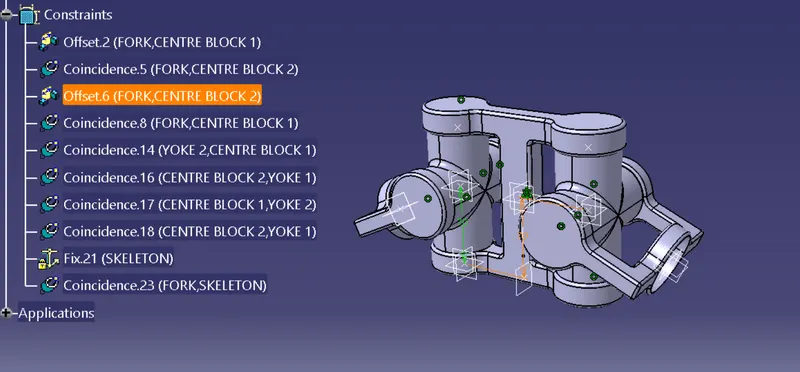

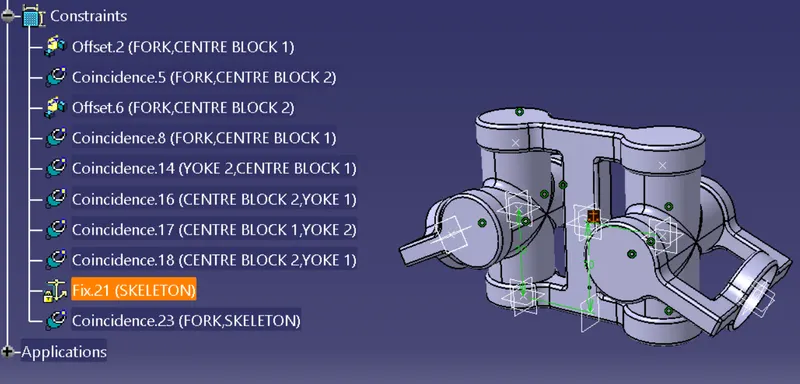

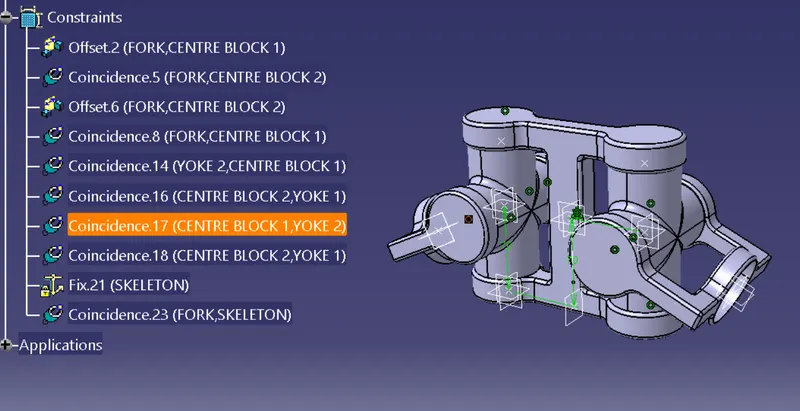

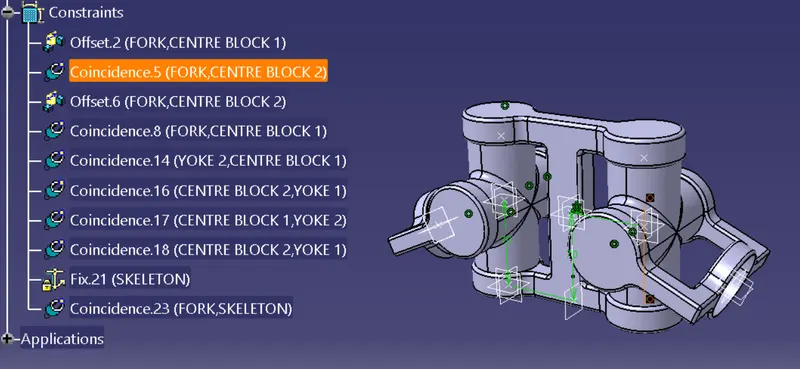

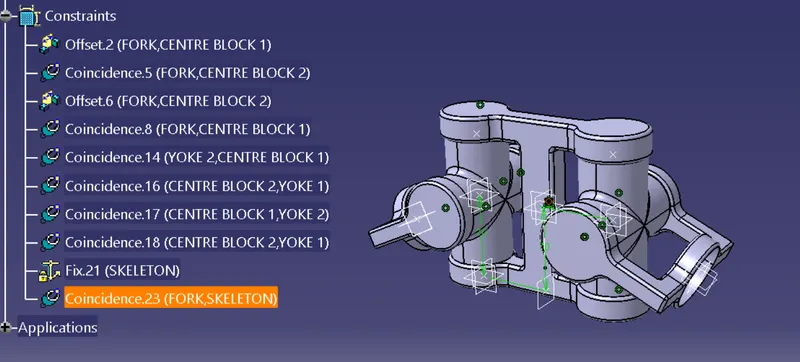

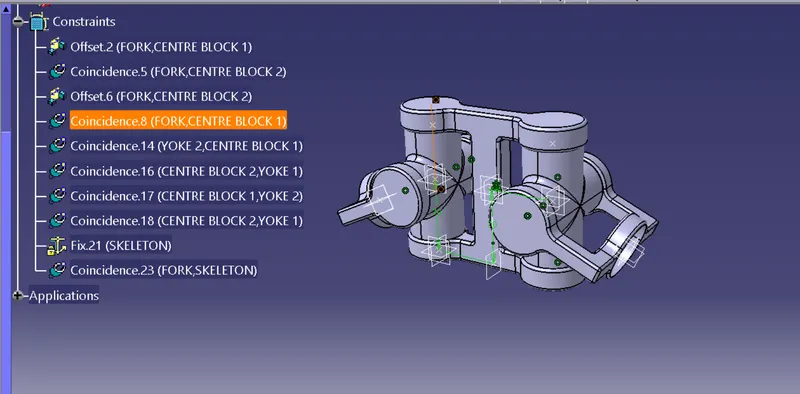

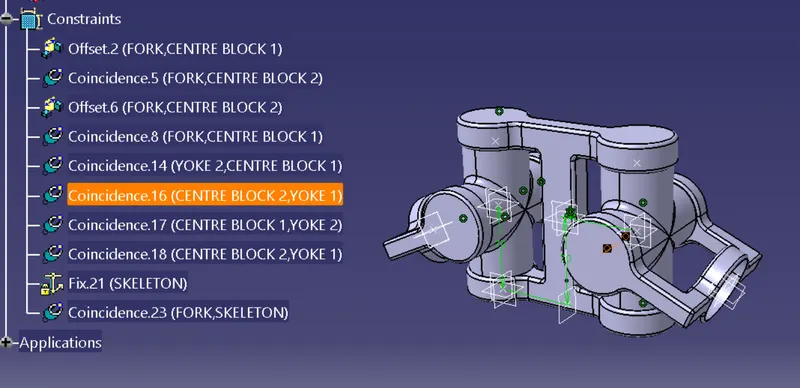

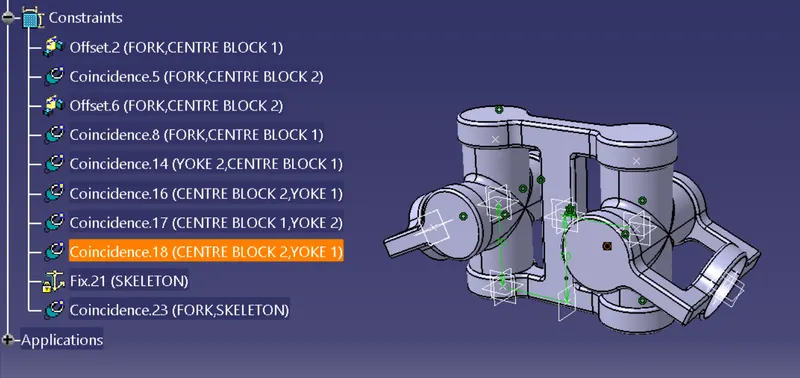

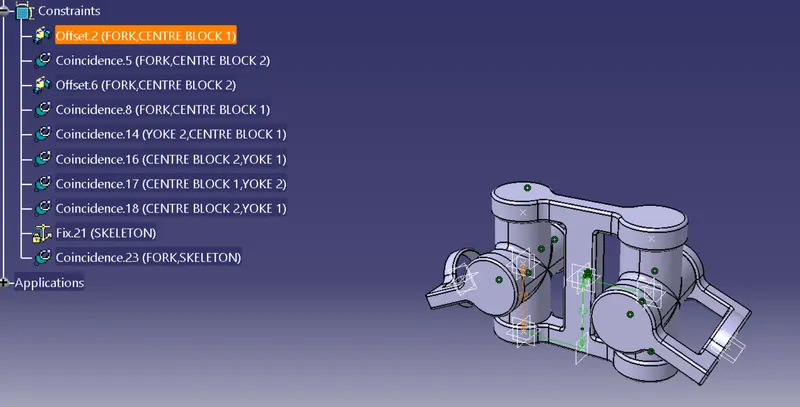

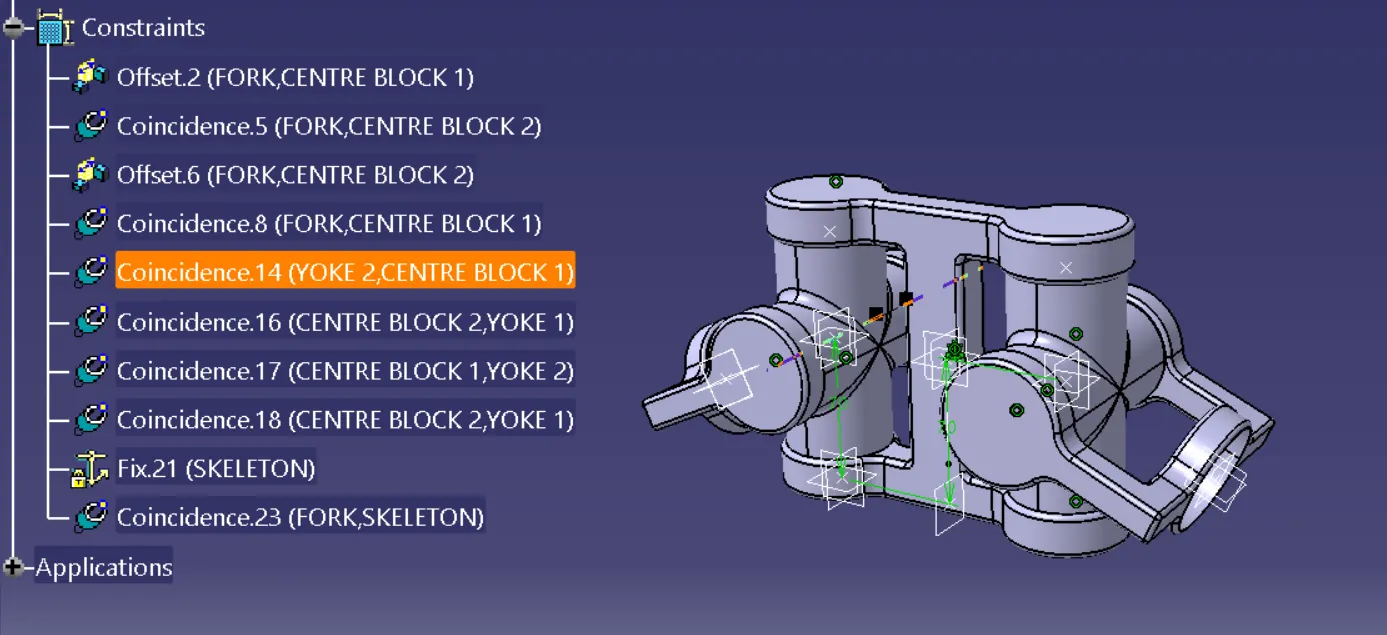

Makesuring if the constrains are proper:

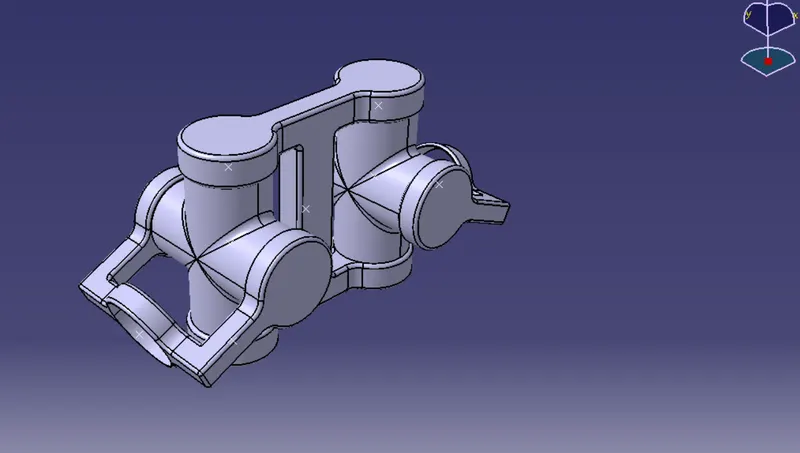

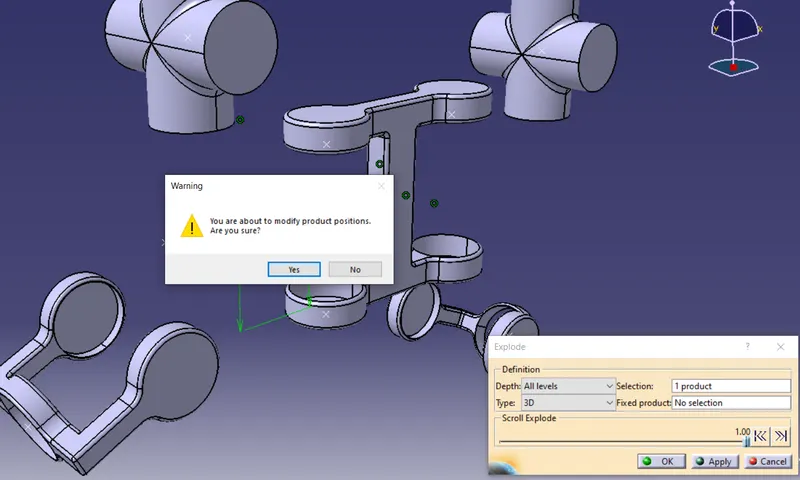

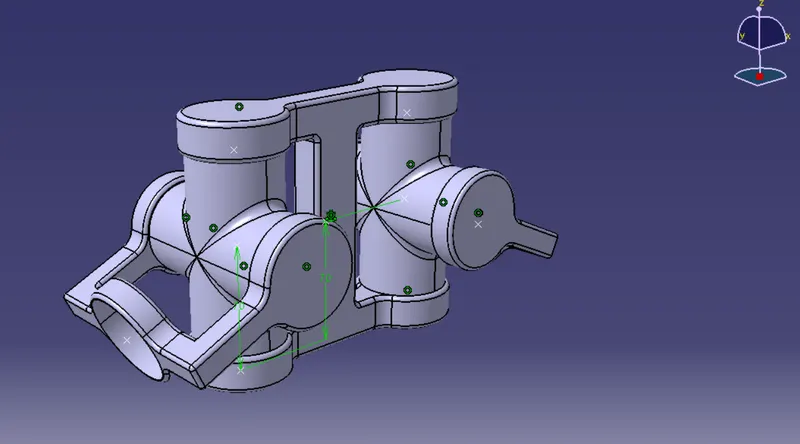

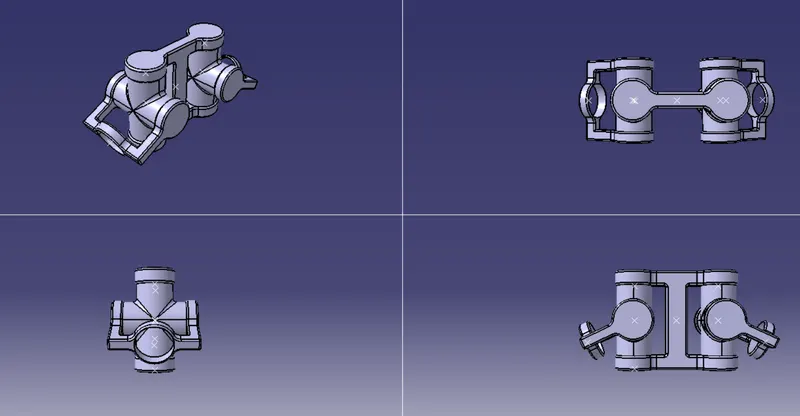

Assembled view:

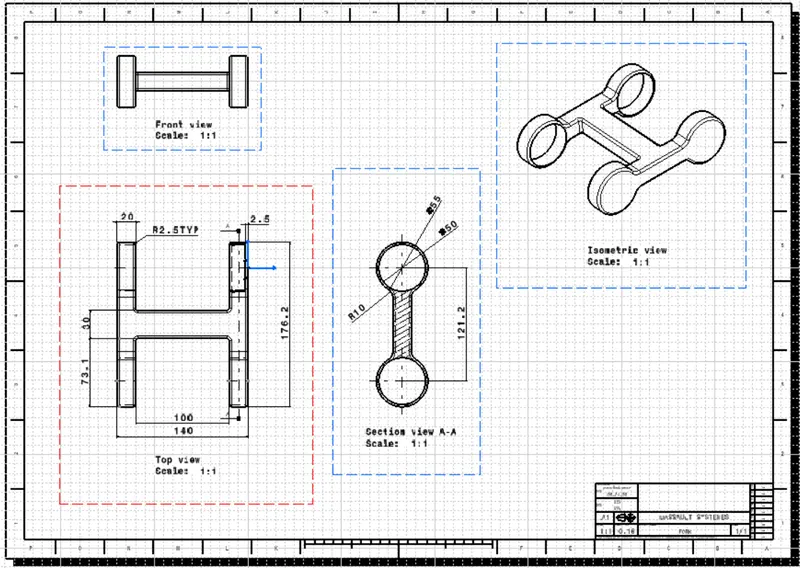

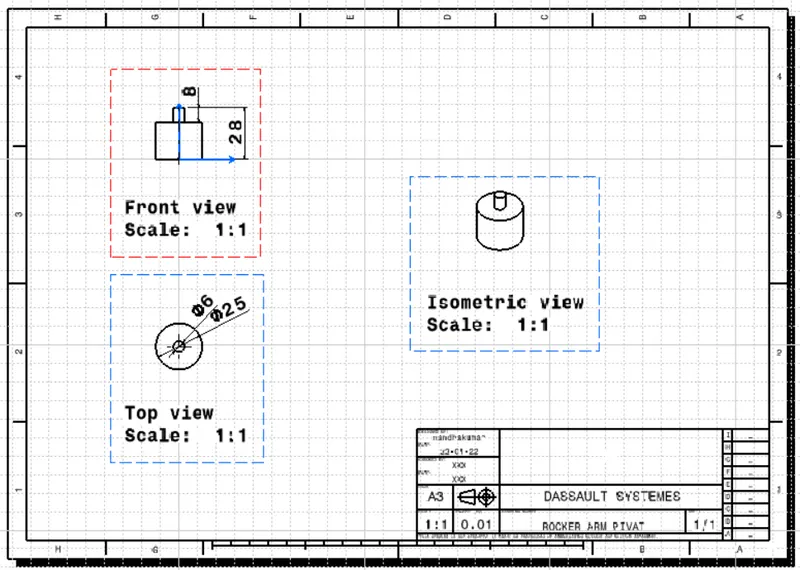

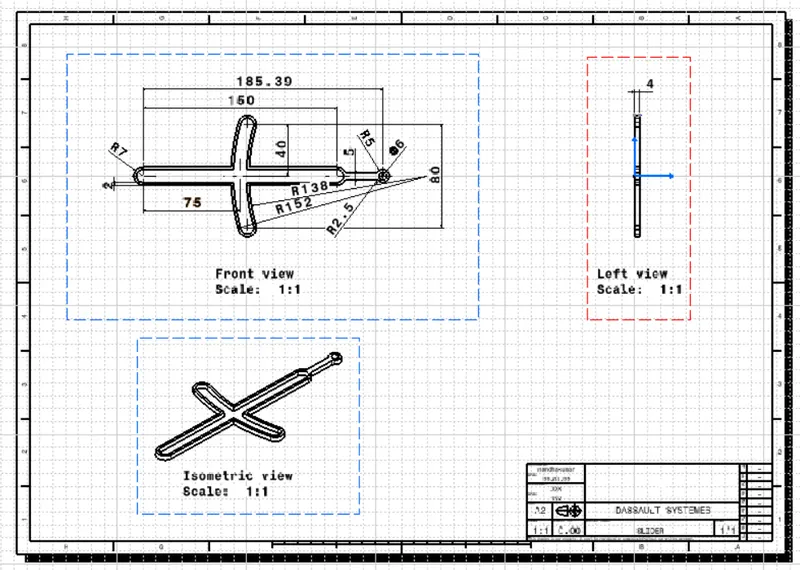

Drafting for the assembly:
Quick return mehanism:
CV joint:
