Week 10:- 2D Detailing Challenge

2D DETAILING OF FIXTURE UNITS

The fixture design before going to the manufacturing department needs to be detailed clearly and accurately. All the dimensions to fabricate the fixture units have to mention in the drawing sheets. There are different drawing sheets available as per the company requirements. As per the customer given data, all the details must be provided.

The 2D detailing must be as per the engineering drawing data. First or third angle projections are to be implemented. The top view, right side view, and front view must be given with all the dimensions. The isometric view must be provided with the part name and details.

GD &T must be applied where ever it is required to minimize the cost of the production. Tolerances must be provided.

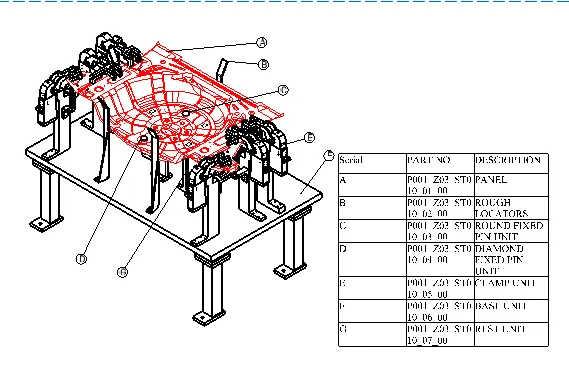

2D DETAILING OF FIXTURE UNIT- KEY SHEET

The fixture unit has to be detailed clearly with all the views in drawing sheets.

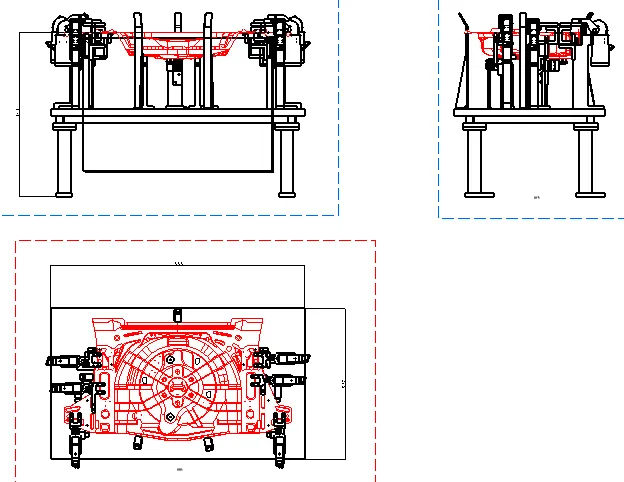

The top view, front view, and side views are to be detailed in another sheet. The overall lengths of the fixture are to be provided. The open condition must be marked as dotted lined. The panel can be shown in red colour so the manufacturer can easily understand the drawing

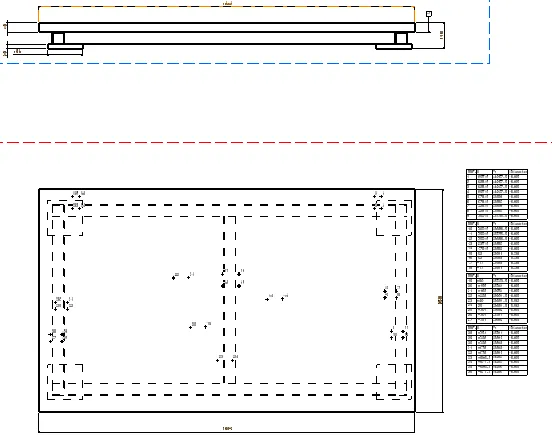

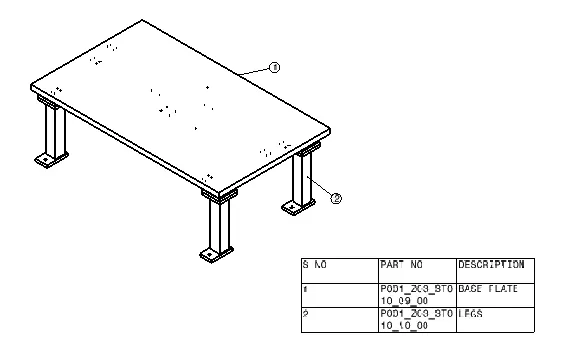

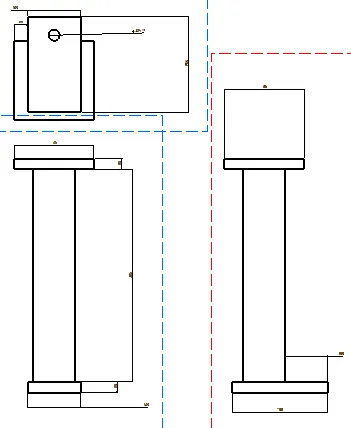

BASE UNIT:

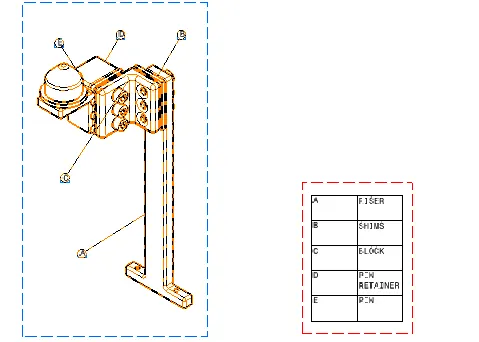

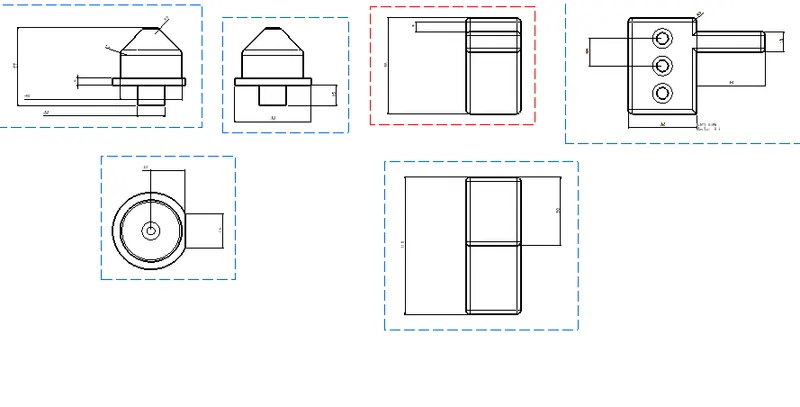

FIX PiN UNIT:
