Week 10:- 2D Detailing Challenge

1) Draft a Key Sheet for the Complete Fixture assembly

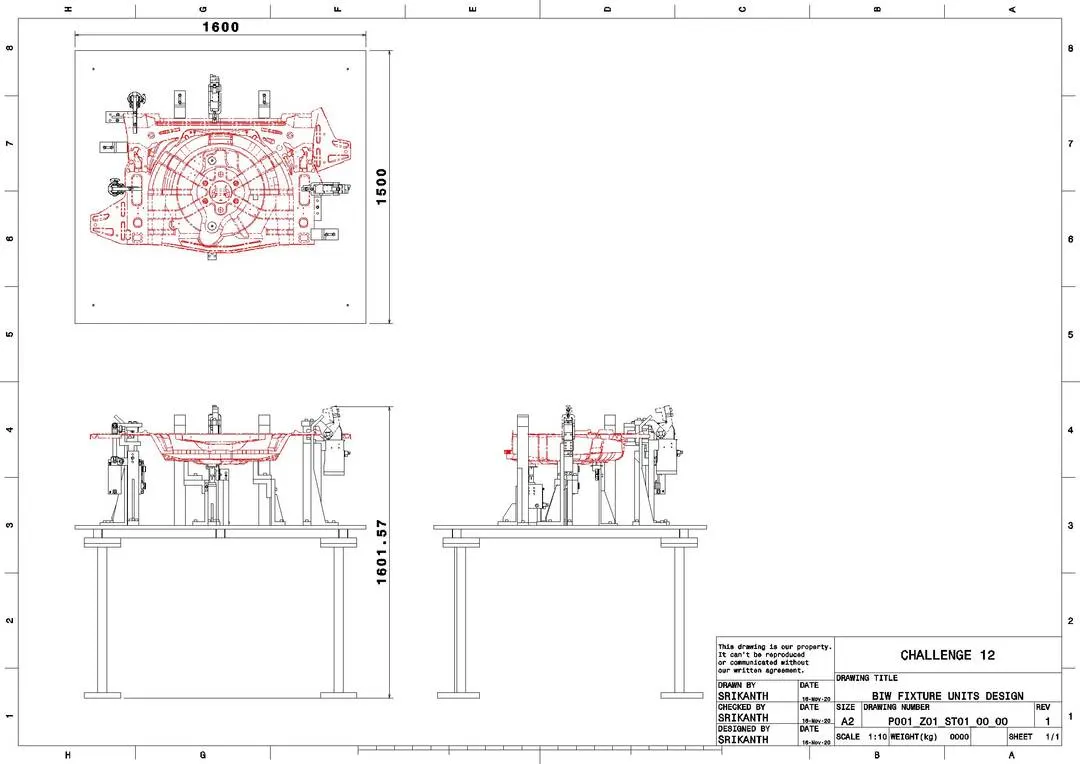

Key Sheet for the Complete Fixture assembly in orthogonal projections

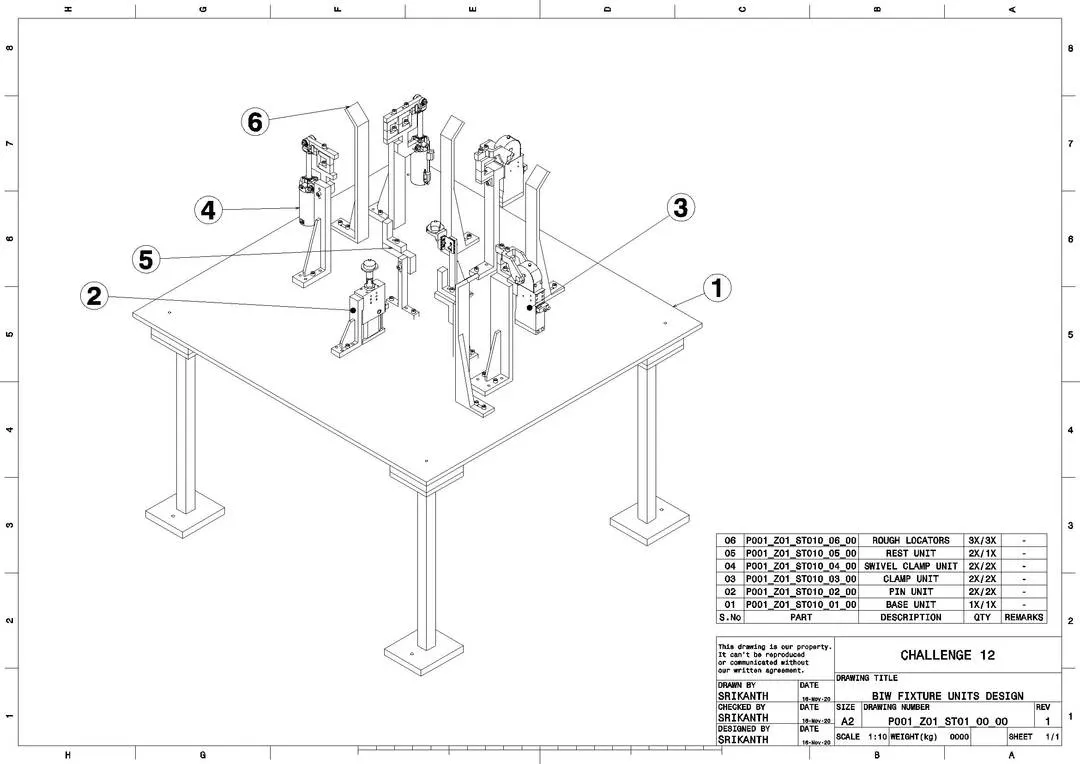

Key Sheet for the Complete Fixture assembly in isometric view

2) Draft a Base Unit and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly

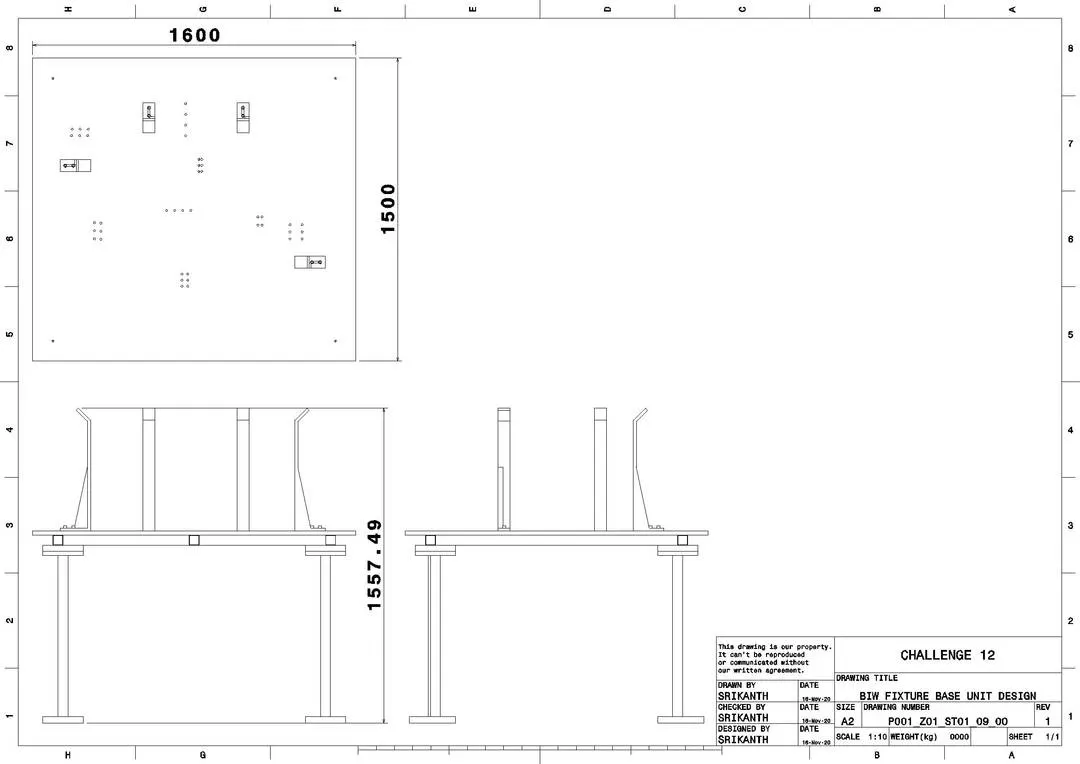

BIW Fixture base unit design in orthographic projection

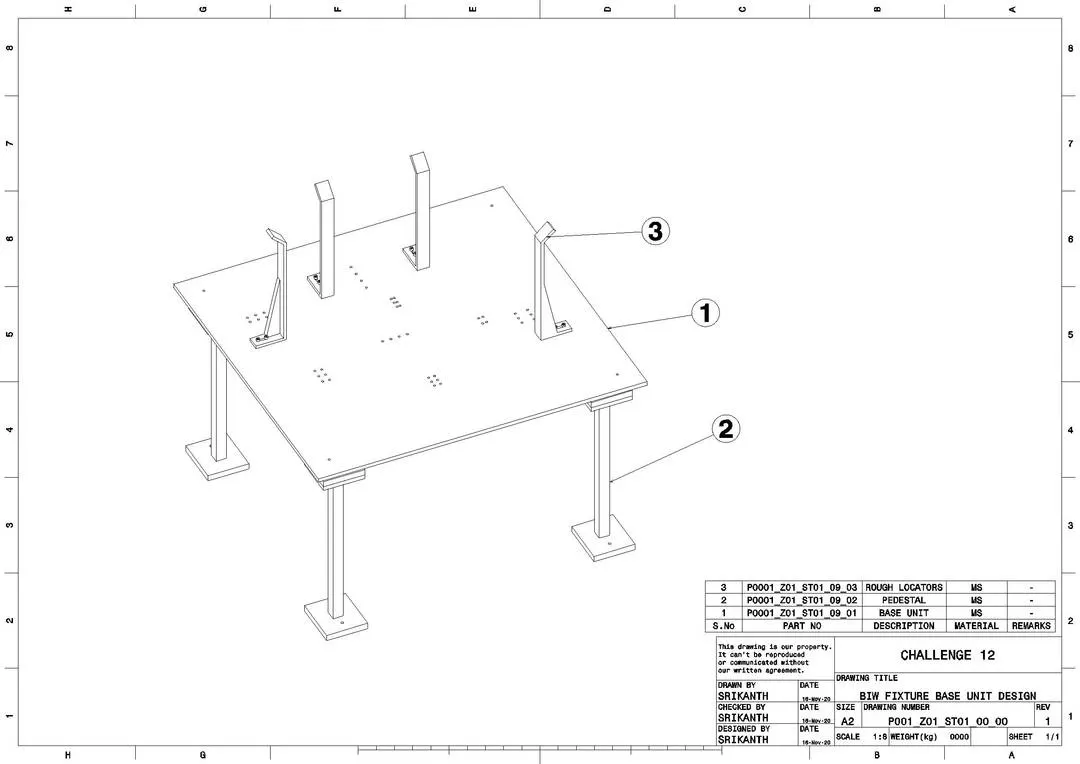

BIW Fixture base unit design in isometric view

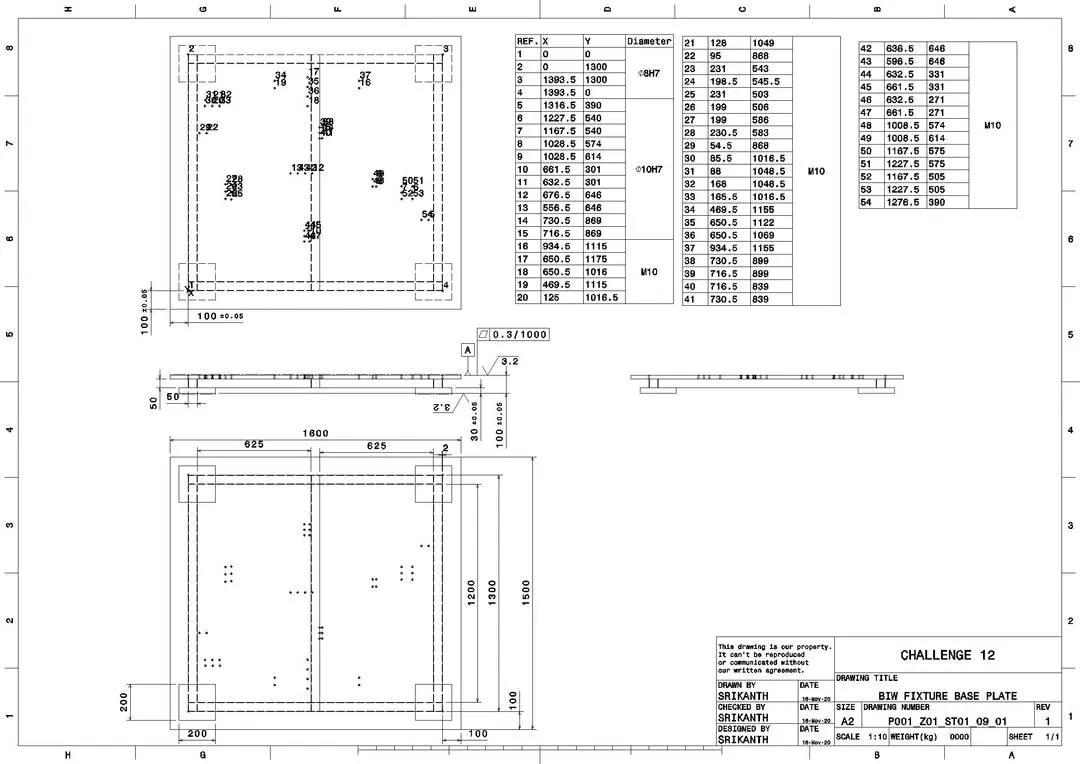

Base plate design in orthographic projection

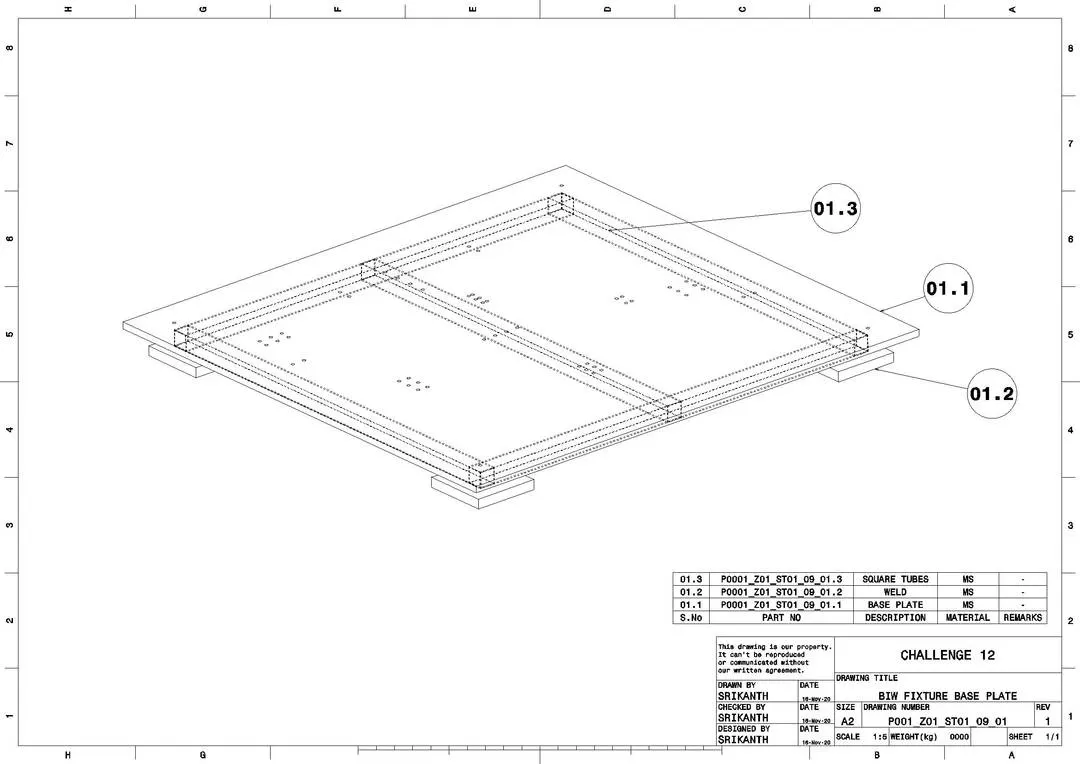

Base plate design in isometric view

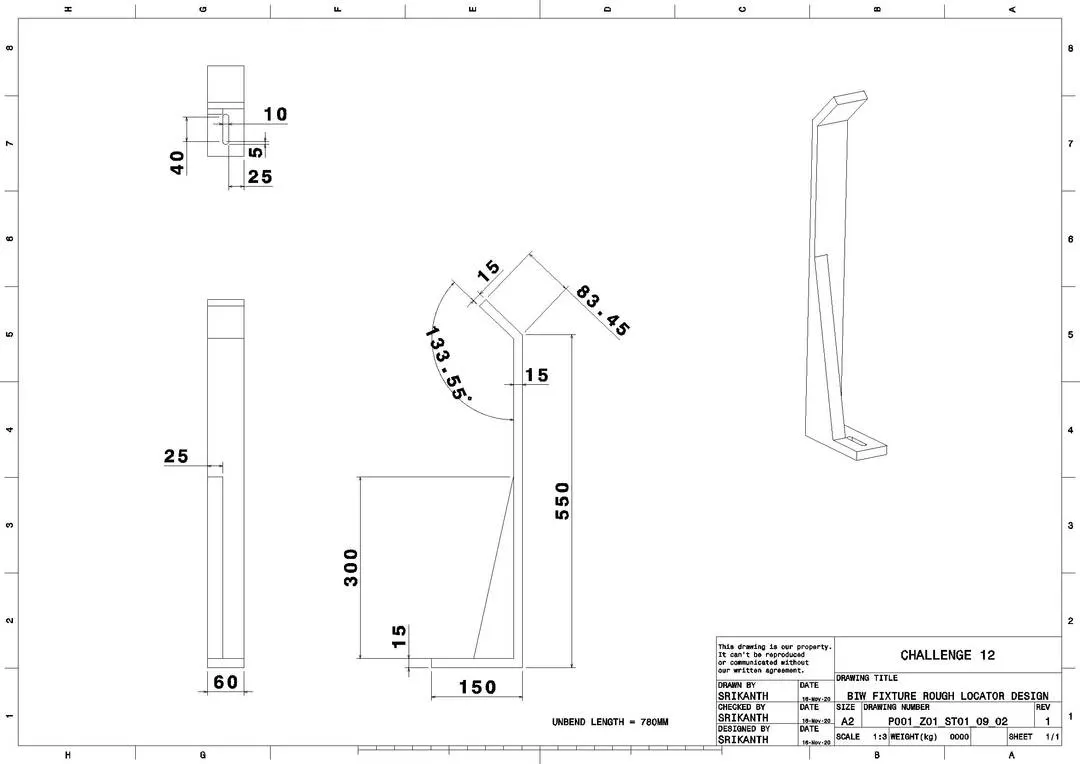

Rough locators

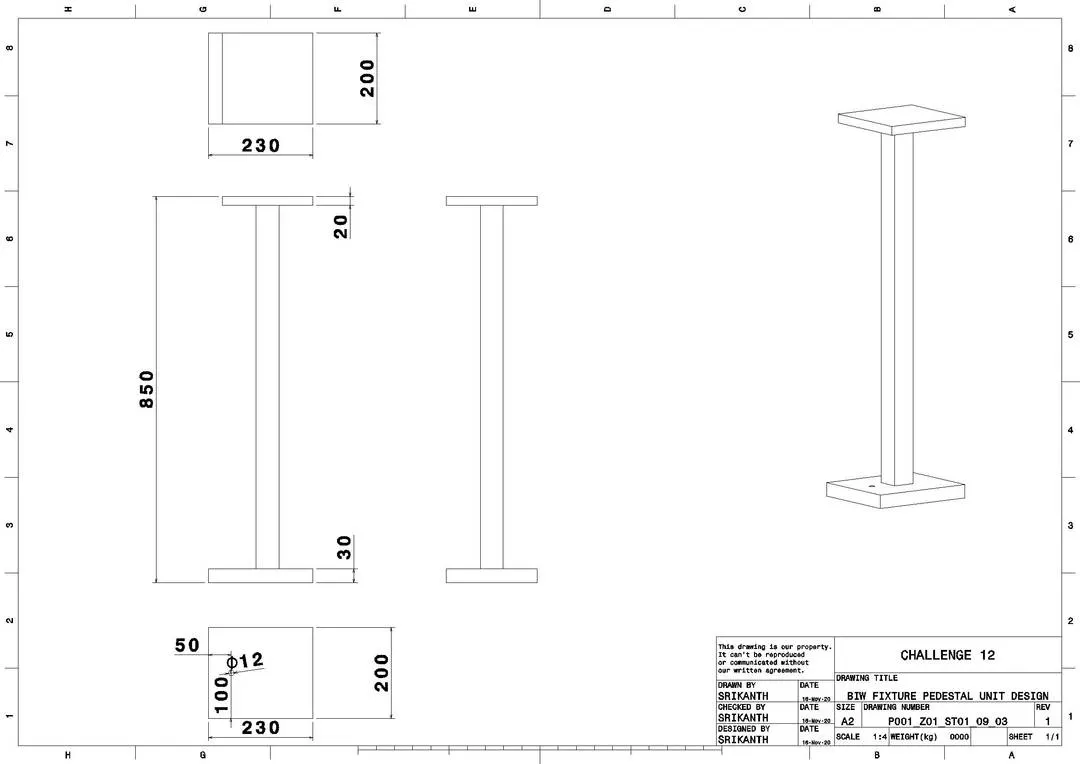

Pedestal

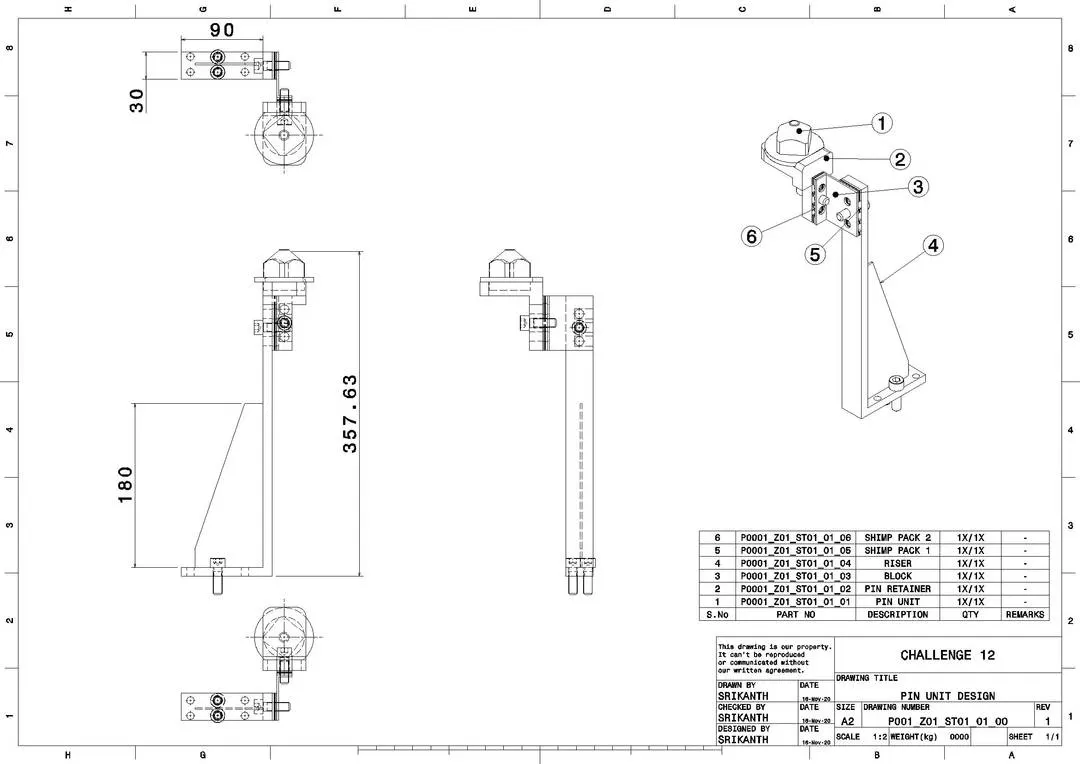

Fixed pin unit

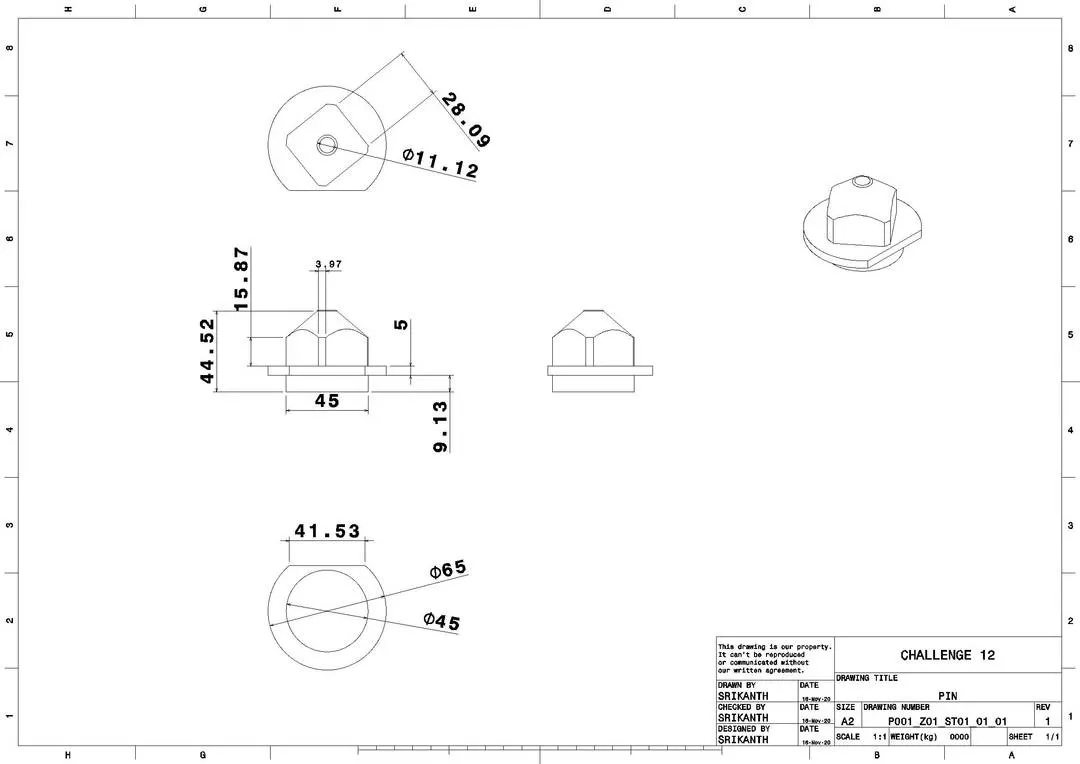

Pin

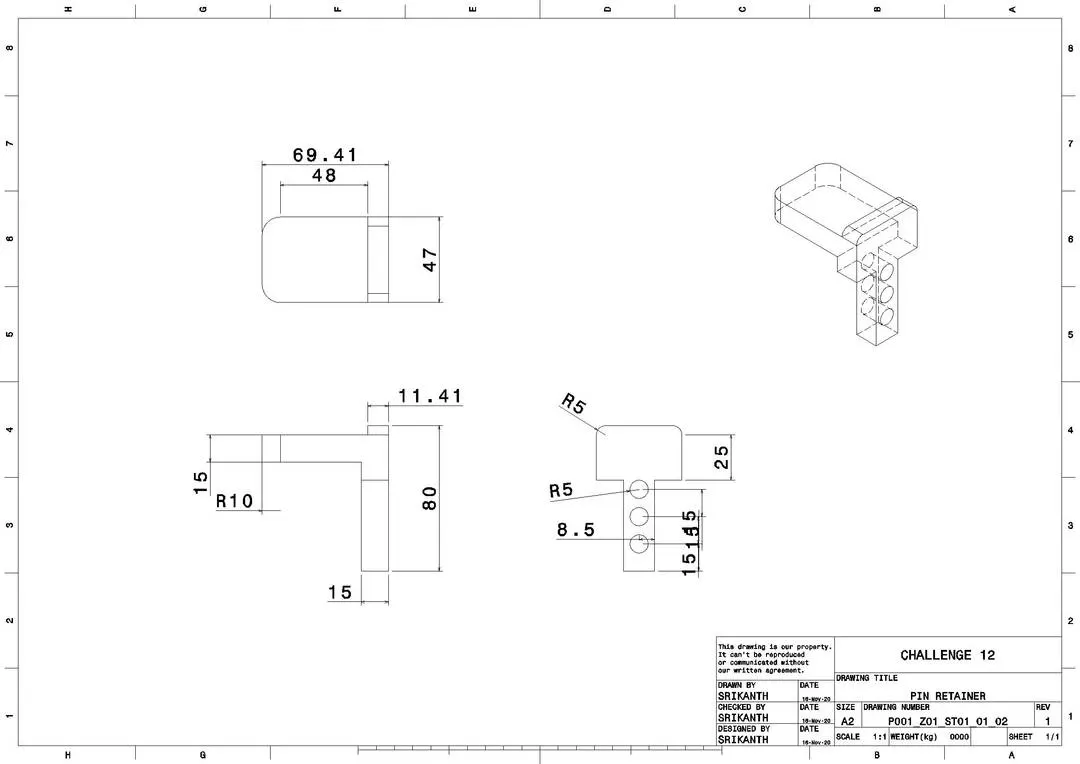

Pin retainer

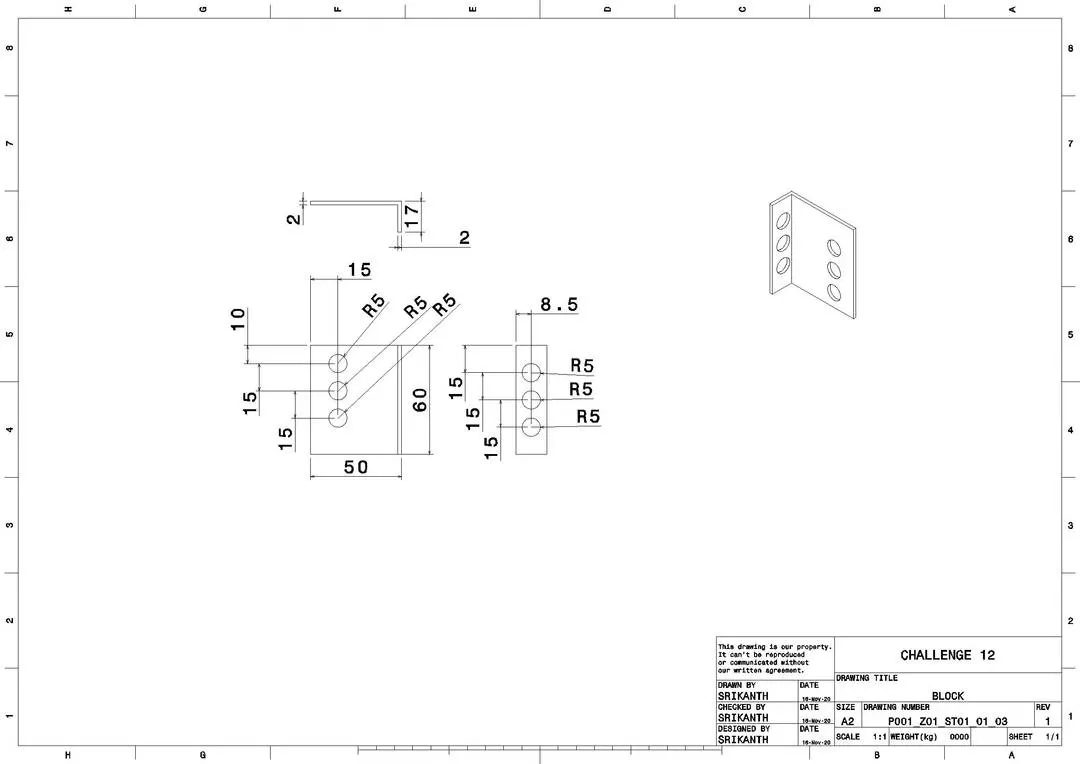

Block

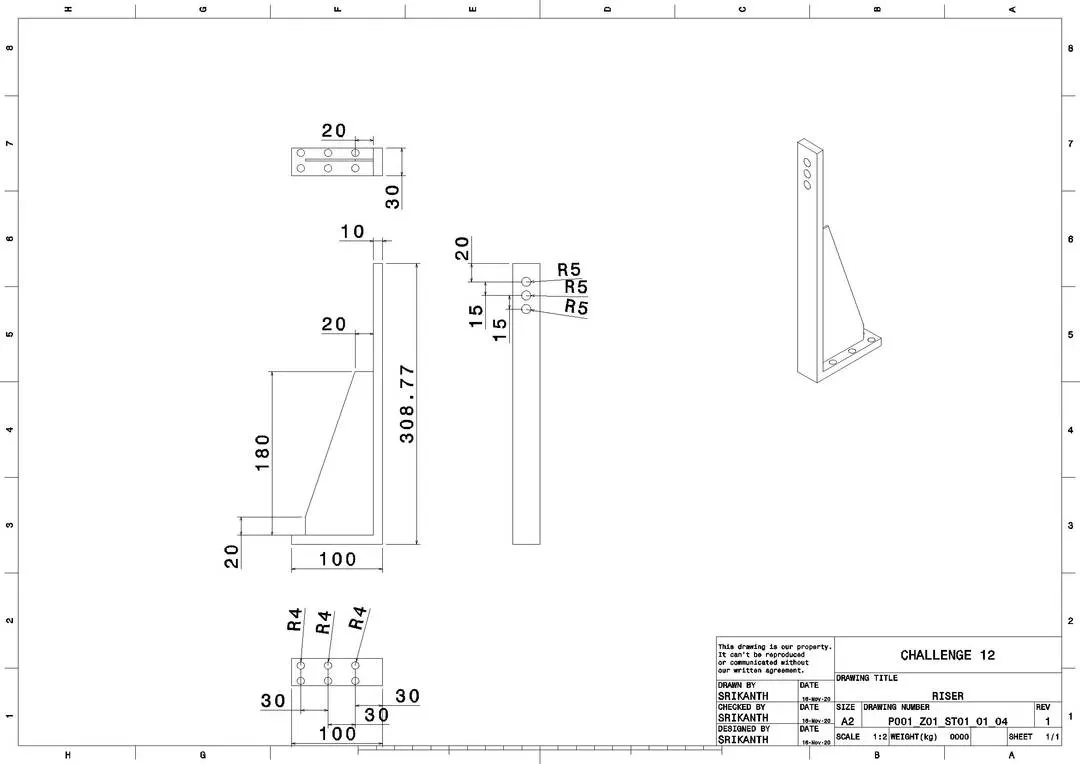

Riser

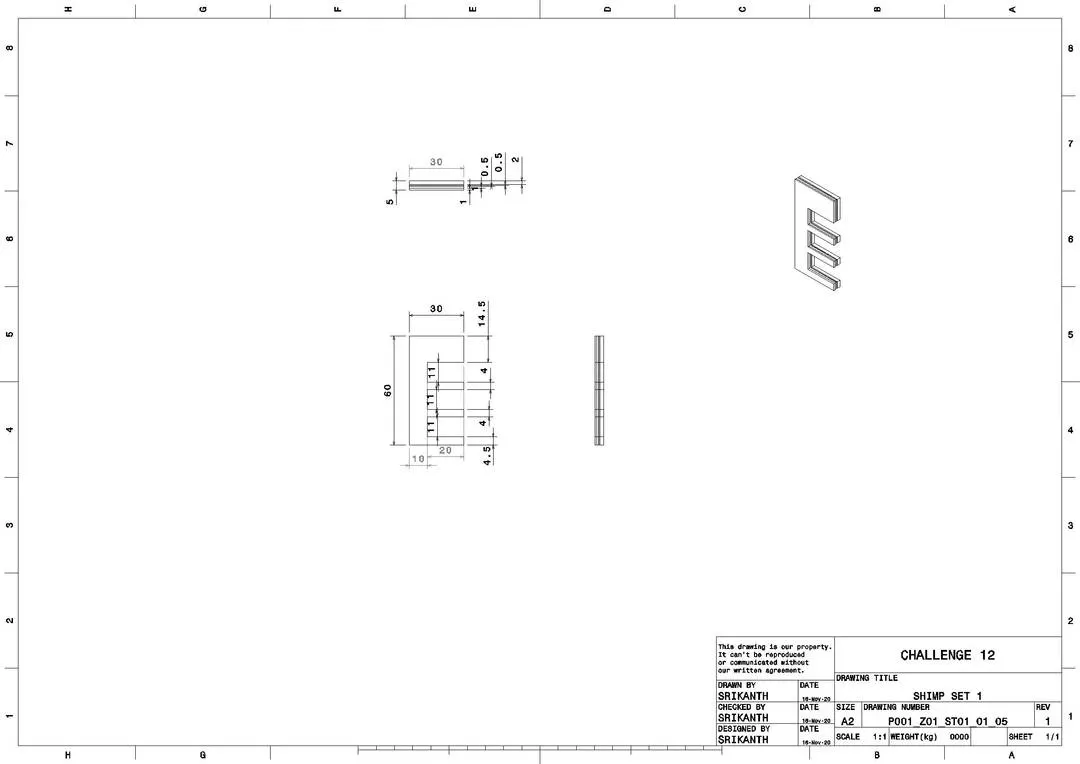

Shimp Set 1

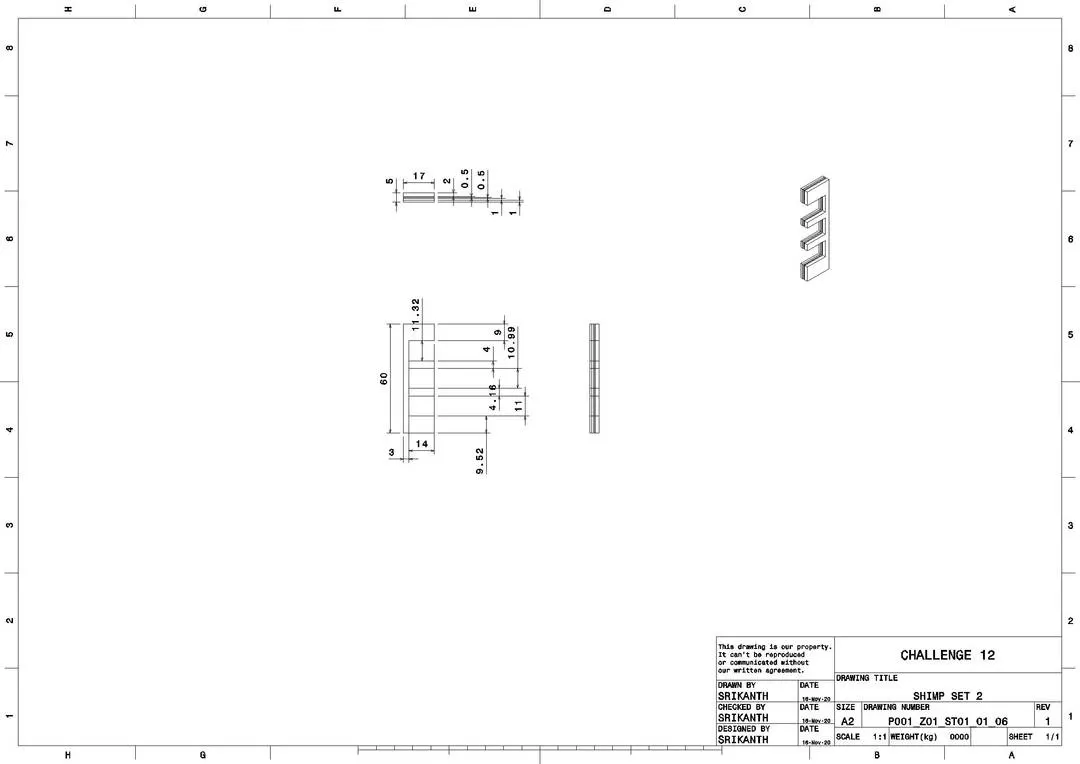

Shimp set 2
