Week 1 Understanding Different Battery Chemistry

Name	Anode	Cathode	Seperator	Electrolyte	Anode Reaction	Cathode Reaction	Total Reaction
Lithium Cobalt Oxide(LCO)	Graphite	Lithium Cobalt oxide	Polyolefin	Ethelyene Carbonate	LiC6 --> Li+C6- e-	CoO2+Li+e- --> LiCoO2	C6+LiCoO2 --> LiC6+CoO2
Lithium Manganese Oxide(LMO)	Graphite	Lithium Manganese Oxide	Polyolefin	Lithium Halilide	LiC6 --> Li+C6- e-	MnO2+Li+e- --> LiMnO2	C6+LiMnO2 --> LiC6+MnO2
Nickel Cobalt Aluminium Oxide(NCA)	Graphite	Nickel Cobalt Aluminium	Polyolefin	Ethelyene Carbonate	LiC6 --> Li+C6- e-	NiCoAlO2+Li+e- -->LiNiCoAlO2	C6+LiNiCoAlO2 -->LiC6+NiCoAlO2
Lithium Nickel Manganese Cobalt oxide(NMC)	Graphite	Nickel Manganese	Polyolefin	Lithium Salt	LiC6 --> Li+C6- e-	NiMnCoO2+Li+e- -->LiNiMnCoO2	C6+LiNiMnCoO2 -->LiC6+NiMnCoO2
Lithium Iron Phosphate(LFP)	Graphite	Iron Phosphate	Polyolefin	Ethelyene Carbonate	LiC6 --> Li+C6- e-	FePO4+Li+e- --> LiFePO4	C6+LiFePO4 --> LiC6+FePO4
Lithium Titanite Oxide(LTO)	Graphite	Titanate oxide	Polyolefin	Lithium Salt	Li4Ti5O12 -->Ti5O12+4Li+4e-	4Mn2O4 + 4Li+4e- -->4LiMn2O4	4Mn2O4+LiTi5O12-->4LiMn2O4+Ti5O12

Li-Ion:

It is type of rechargable battery which uses reversible reduction of lithium Ions.

It is used wide applications such as aircraft,military.

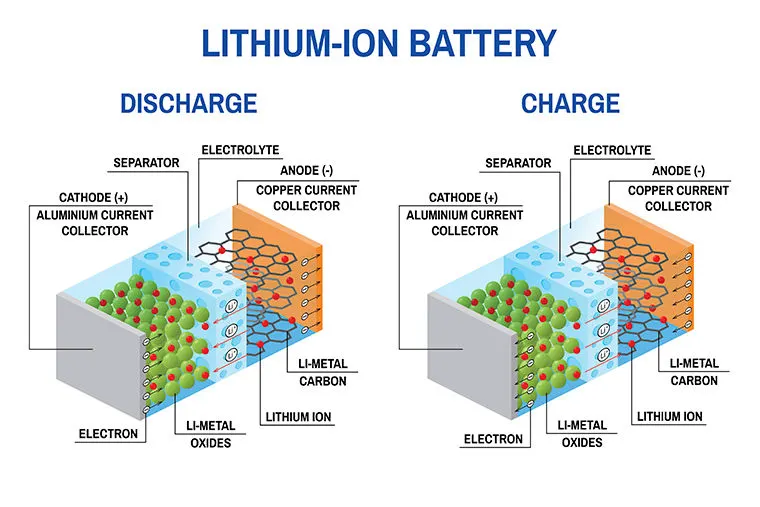

As shown in the above figure anode(-) and cathode(+) between seperator when discharging electrons will move from anode to cathode. when cahrging electrons move from cathode to anode.

Types of Li-ion:

Lithium Cobalt Oxide(LCO):

This type of cathode has stable capacities but lower capacites.Issues with thermal stability.If this battery is overcharging or

above 130 degree temperature which generates oxygen.

Lithium Manganese Oxide(LMO):

In this type anode as a graphite and cathode as a manganese oxide.

Its applications are memory backup devices.

Nickel Cobalt Aluminium Oxide(NCA):

This type is nomial voltage of 3.6 volts. It ranges from 3V to 4.2V.It can use as a fast cahrger.

Life cycle is 500. It can used in telsa Motors.

Lithium Iron Phosphate(LFP):

In this type of battery anode as graphite and cathode as a Iron phosphate. It is lower Energy density compare to other li-ion battries. Lower voltage

In this type cost to manufacture is low.better life cycles,alternative to lead-acid battery.
