Week 1 Stress Concentration on a Plate with hole
Aim - Simulate Stress Concentration on a Plate with hole
Procedure:
1. create static structural
2. import geometry
3. Create mesh tetrahedral element size = 5mm
4. give fixed support
5. give load
Results:

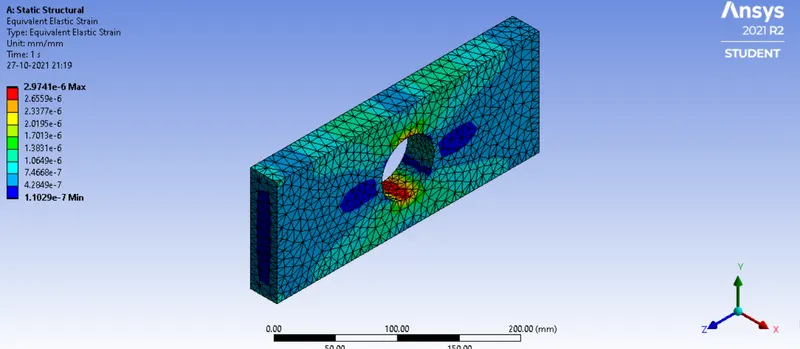

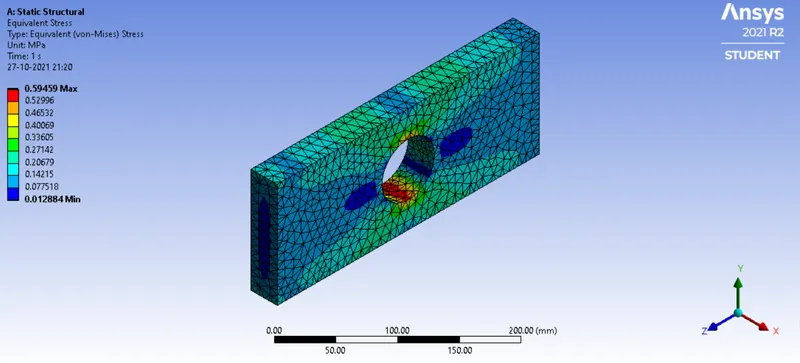

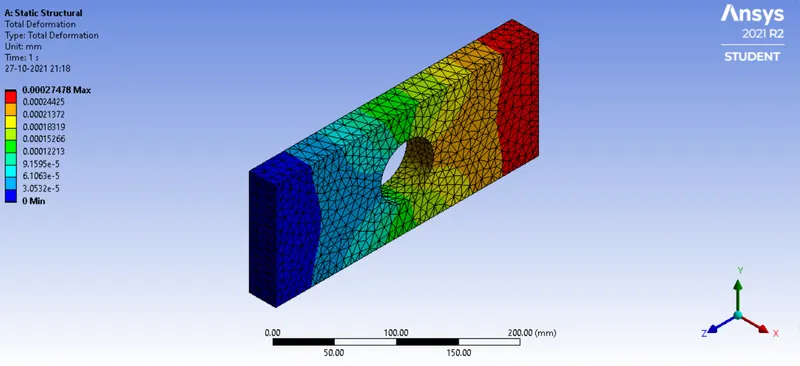

Case-1

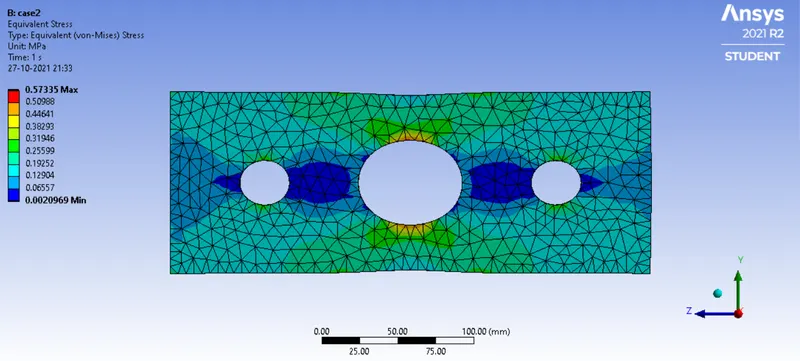

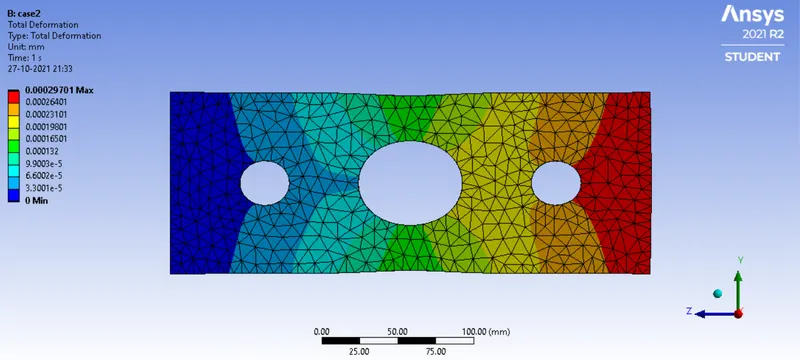

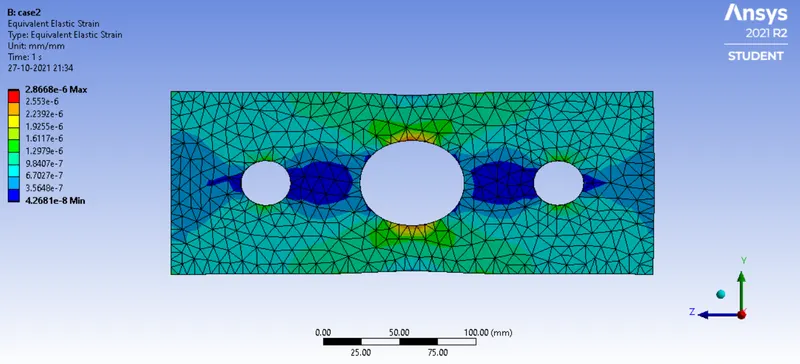

Case - 2
1.
|
Min Deformation |
Max Deformation | Min Stress | Max Stress | |
|
Case-1 |
0 | 0.00027478 | 0.012884 | 0.59459 |
|
Case-2 |
0 | 0.00029701 | 0.0020969 | 0.57335 |
2. Design 2 should be selected because better stress distribution and lower stress load affected compared to design 1.
3. Design 1 should be selected because it is easier to make and slightly cheaper than design 1
