Week 1 Spur Gear Challenge

OBJECTIVE

Static Structural analysis of spur gear to find out the equivalent stress , total deformation and Stress intensity by using below listed materials.

• Cast iron
• Cast steel
• Cast Bronze

Compare the results obtained by using 3 different materials for gears and find location for possible fracture.

PRODECURE

Static structural analysis is carried out on spur gear by using ansys workbench.

• Create static structural analysis and in engineering data select the material castiron , cast Steel and Cast Bronze.

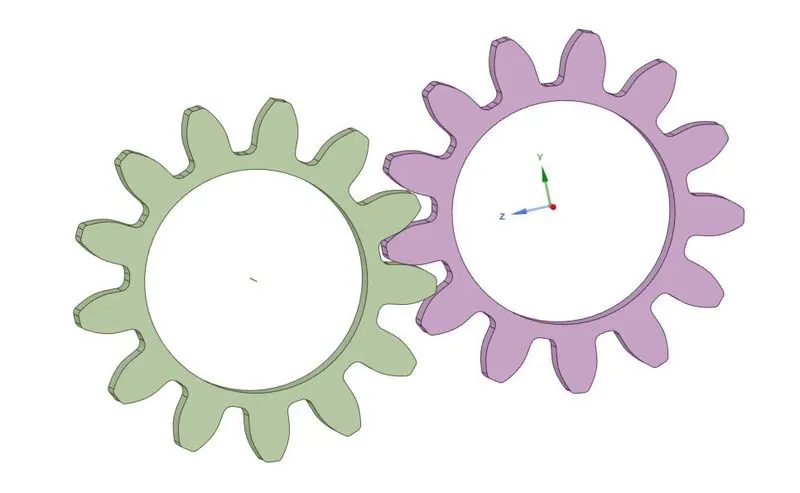

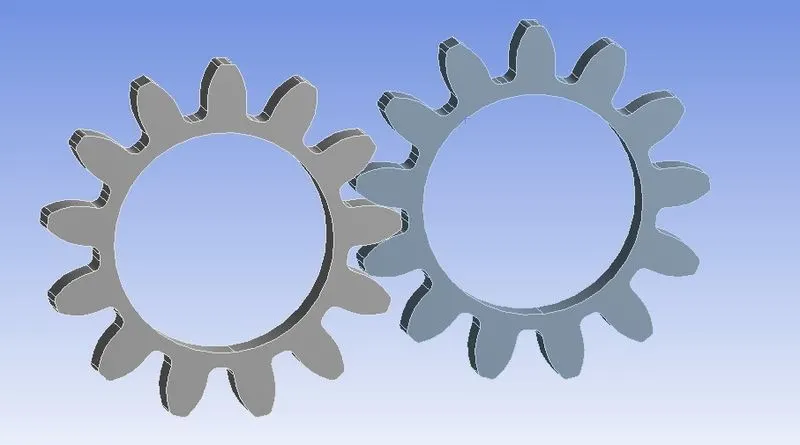

• Import the geometry and check in SpaceClaim for any irregularties.



• Then open Ansys mechanical and rename the geras and assign the material according to the cases.

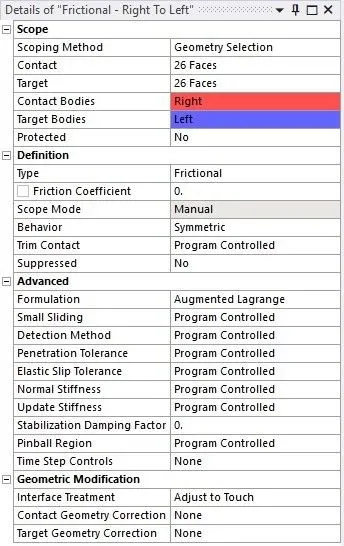

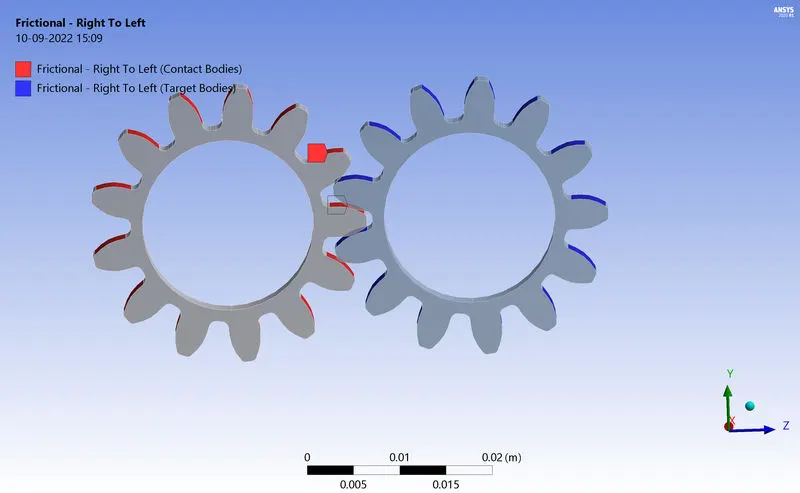

• Contacts     Contact created between the both spur gear .The contact type is frictional with the mating surface of gears selected as Contact and target .The behaviour is changed to Symetric and the formulation type used in Augmented lagrange .The interface treatment is set to adjust to touch.

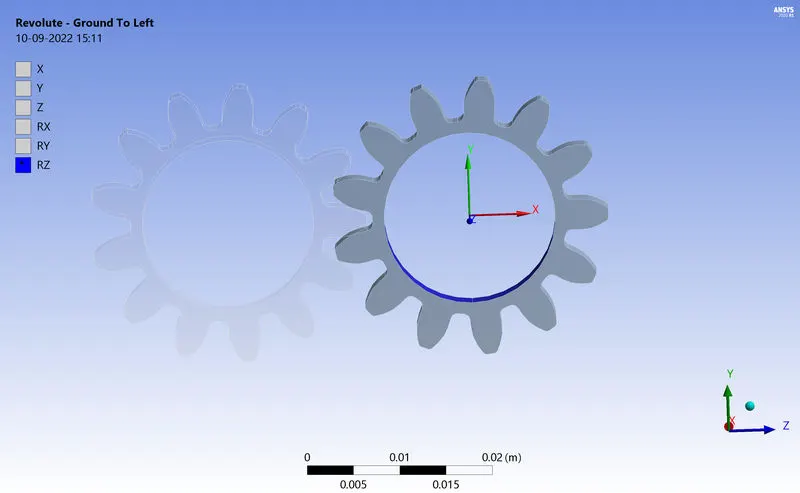

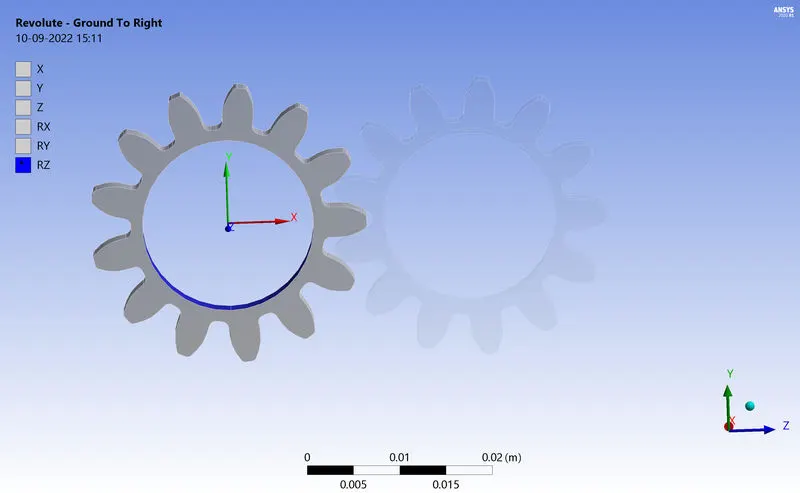

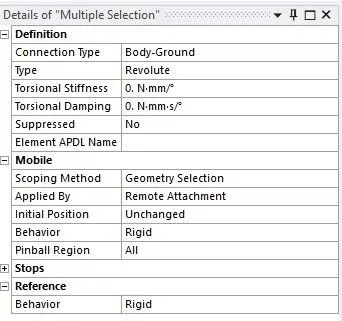

• Joints    Joint set for both the gears as the revolute and body  ground.

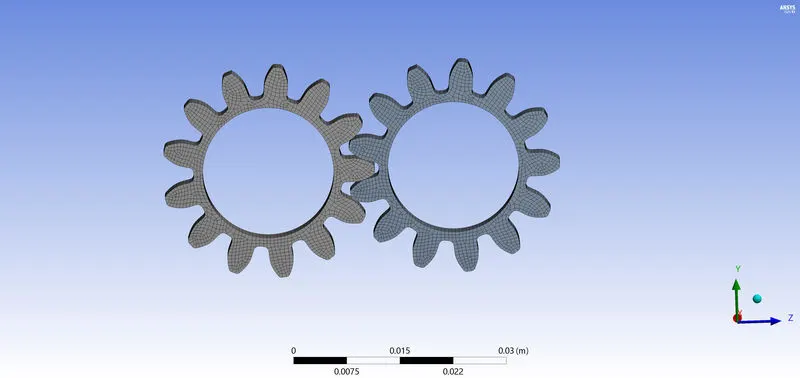

• Mesh        The gear is meshed with the size of 0.5mm .A mesh metric that identifies the element according to thier quality.

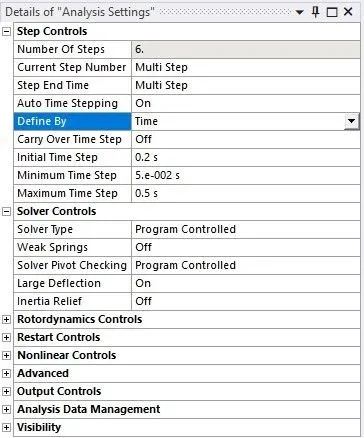

• Analysis Setting The simulation runs for 6Steps So that the number of steps is set as 6 Define by time and large deflection is set to on.

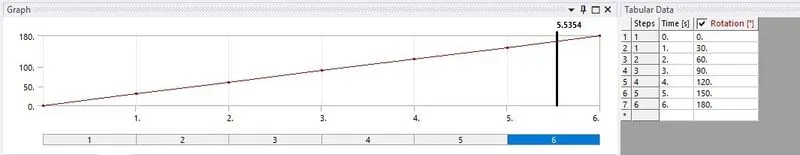

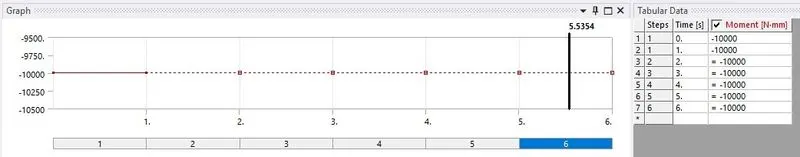

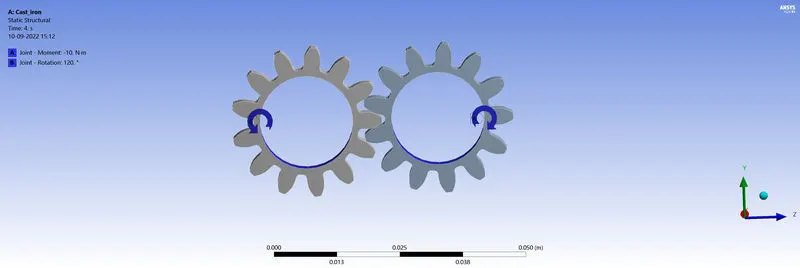

• JointLoad   One of the gears is given rotation for six time steps and the other is given a constant moment.







Now for different materials mentioned below the is selected one by one run the simulation to find out the equivalent stress Total deformation and stress intensity.

• Case 1 Cast iron
• Case 2 Cast Steel
• Case 3 Cast Bronze

Case 1 Cast Iron

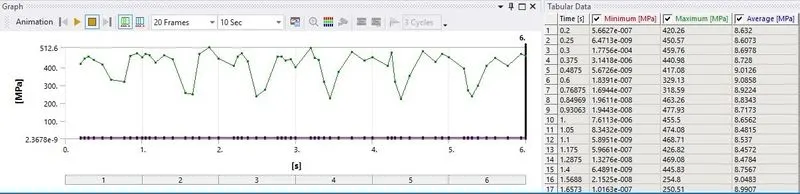

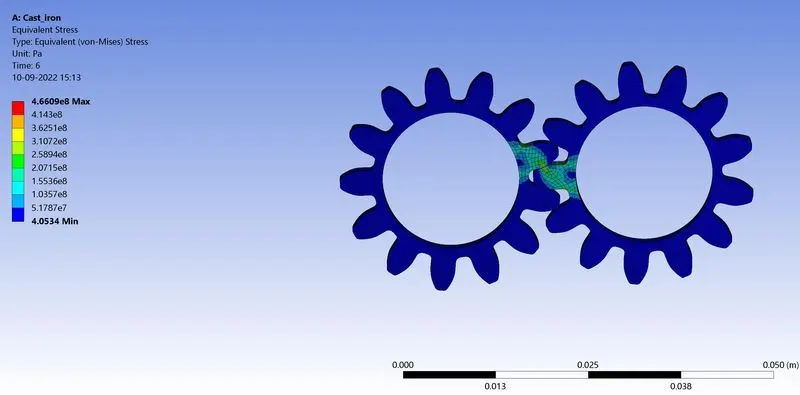

Equivalent Stress Max   466.09 Mpa

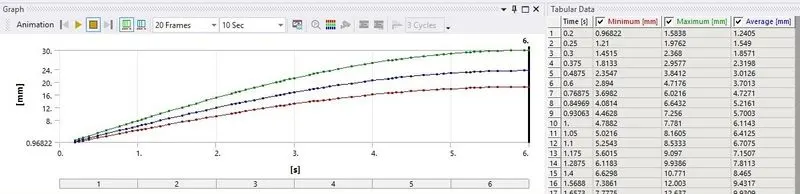

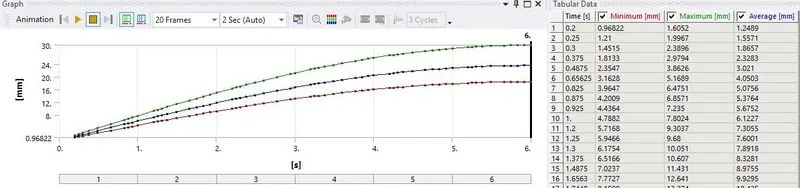

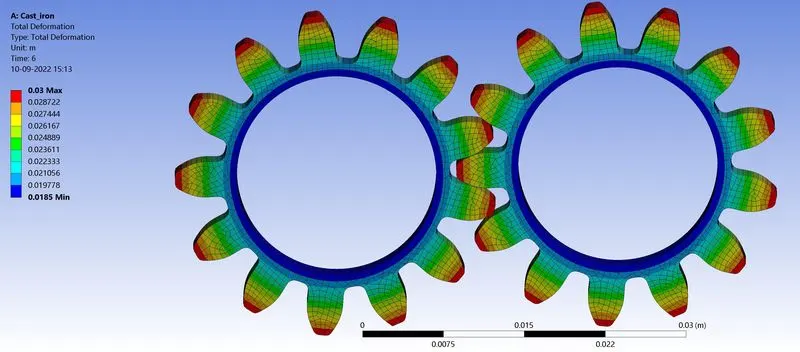

Total Deformation 30mm

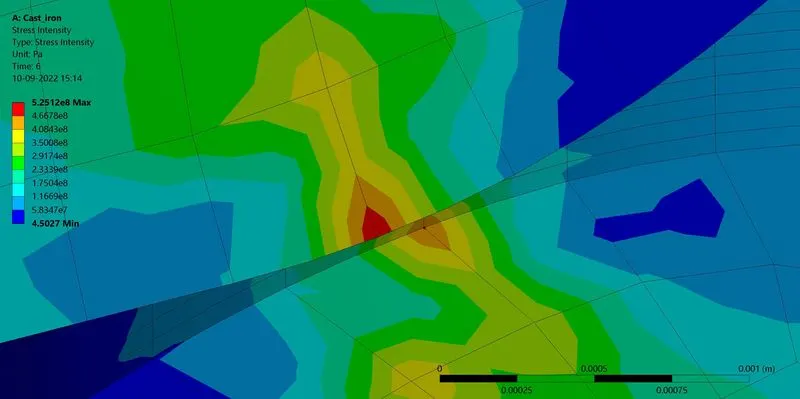

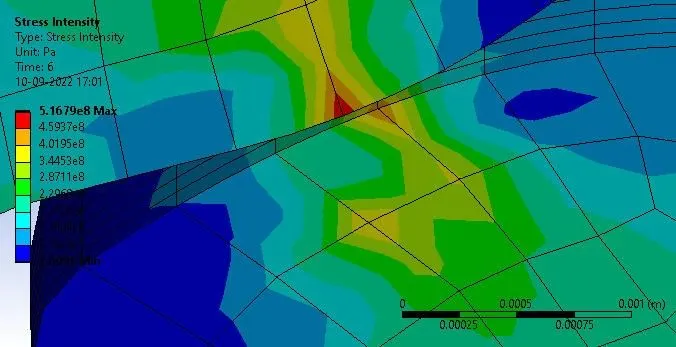

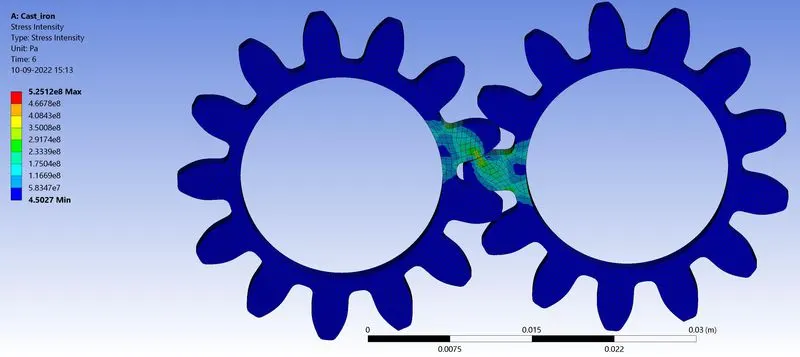

Stress Intensity 525.12 Mpa

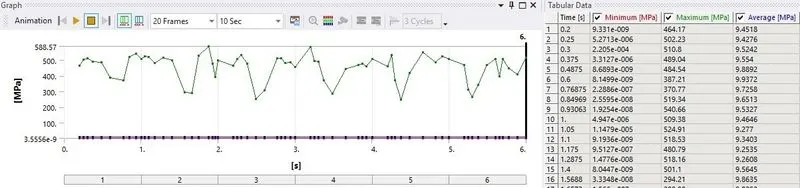

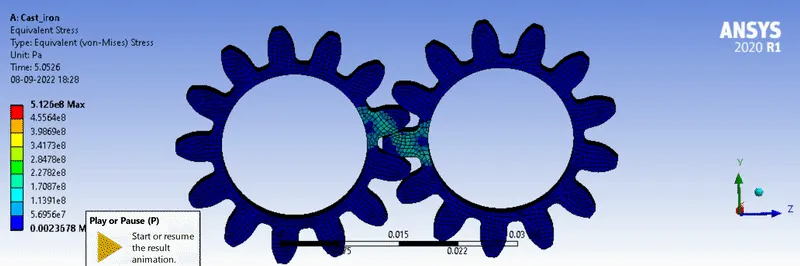

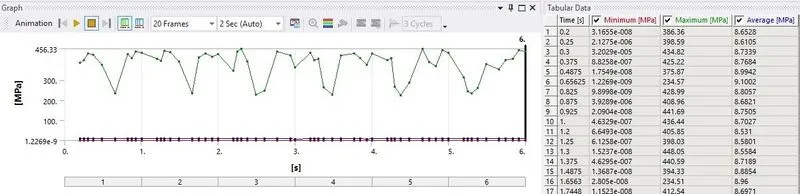

Equivalent Stress

Case 2 Cast Steel

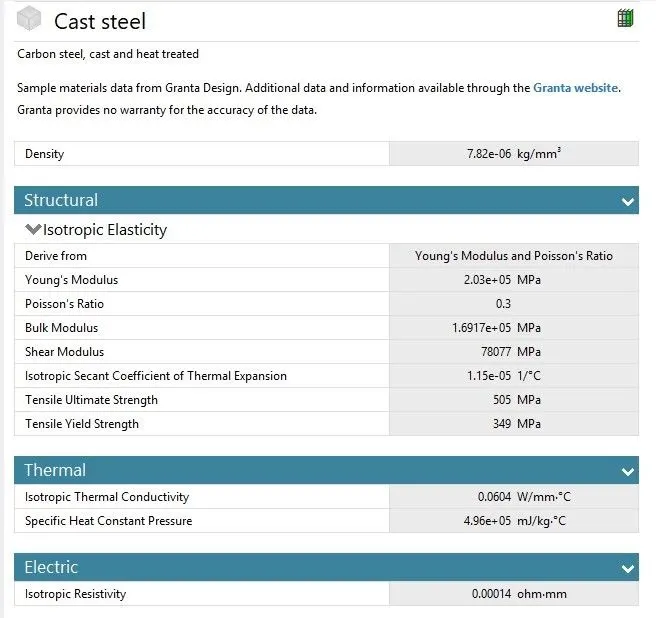

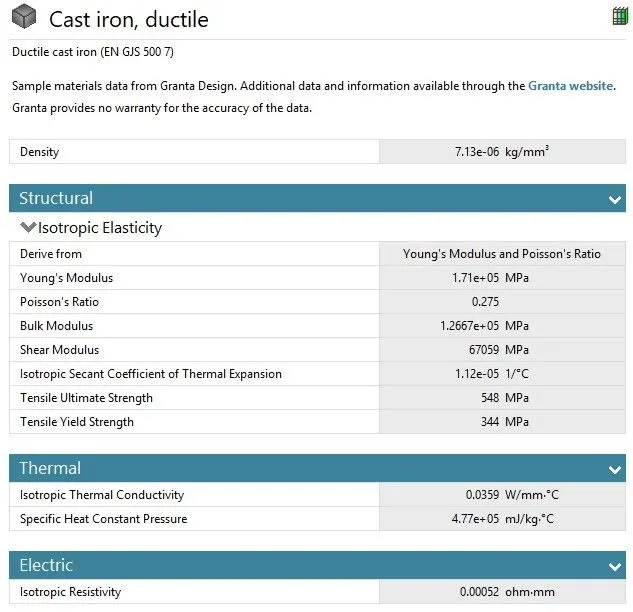

Material Data

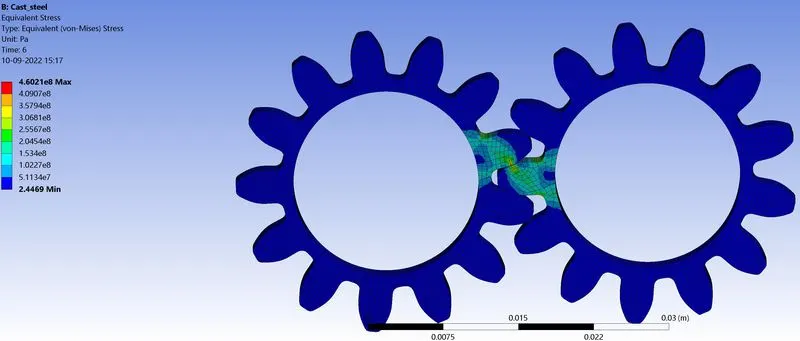

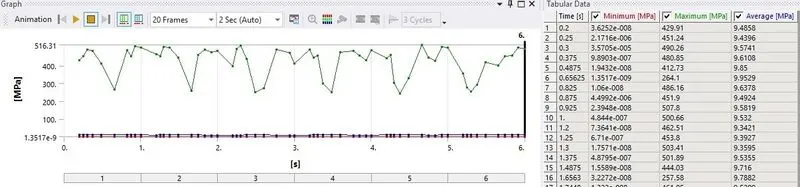

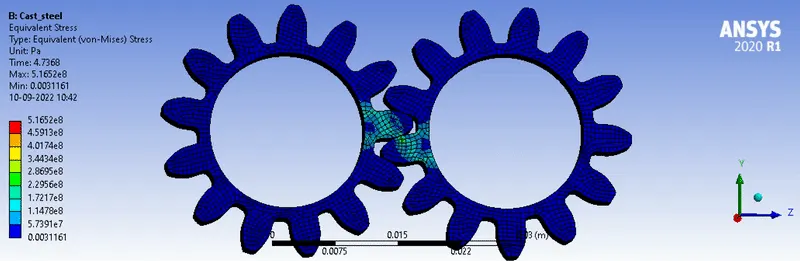

Equivalent Stress Max 460.21Mpa

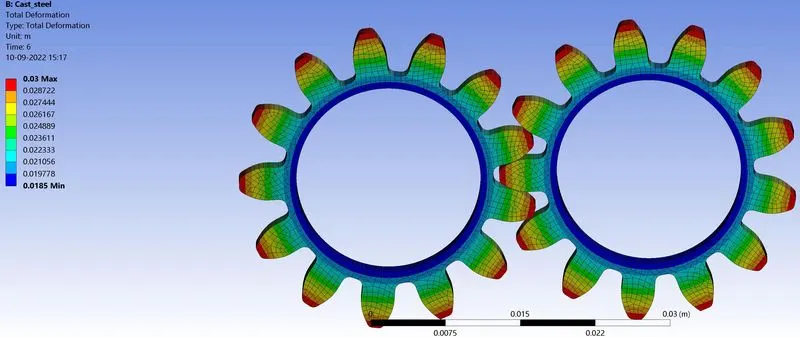

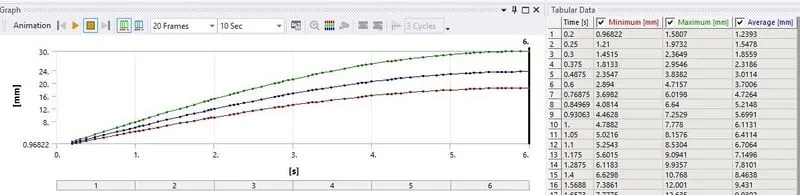

Total Deformation Max 30mm

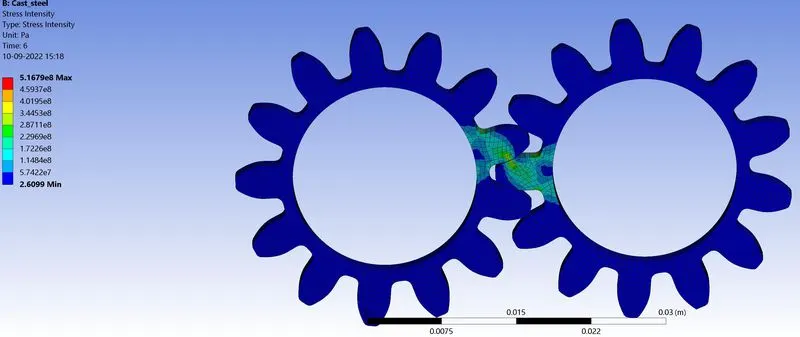

Stress Intensity Max 516.79 Mpa

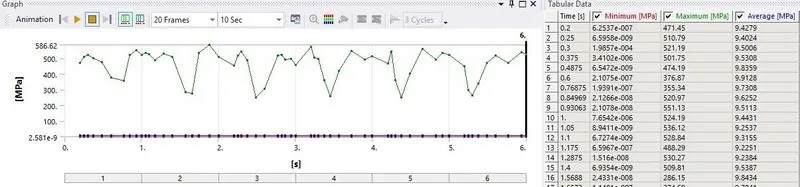

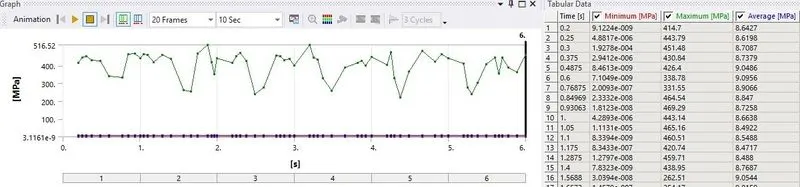

Equivalent Stress



Case 3 Cast Bronze

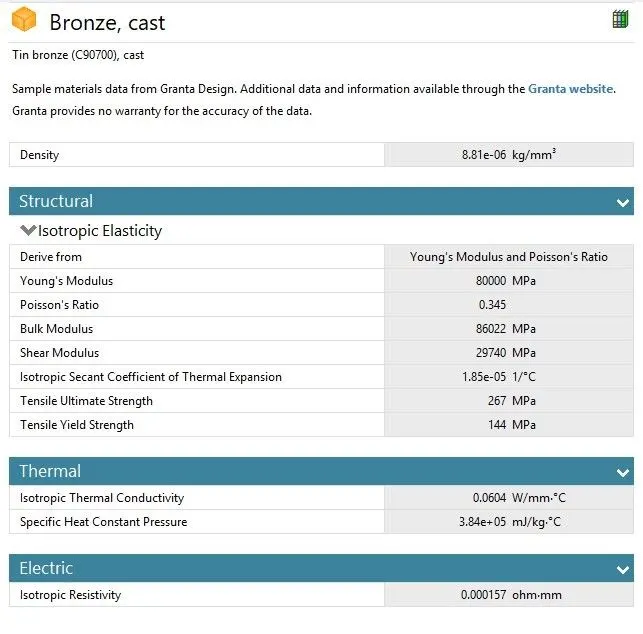

Material Data

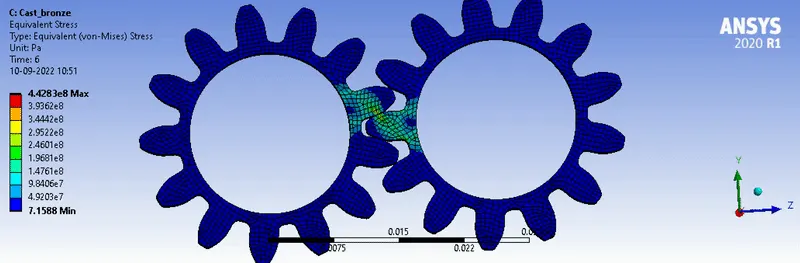

Equivalent Stress Max  422.83 Mpa

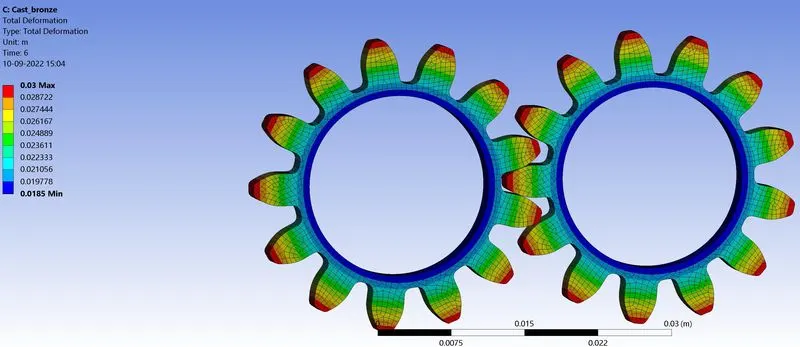

Total Deformation Max 30mm

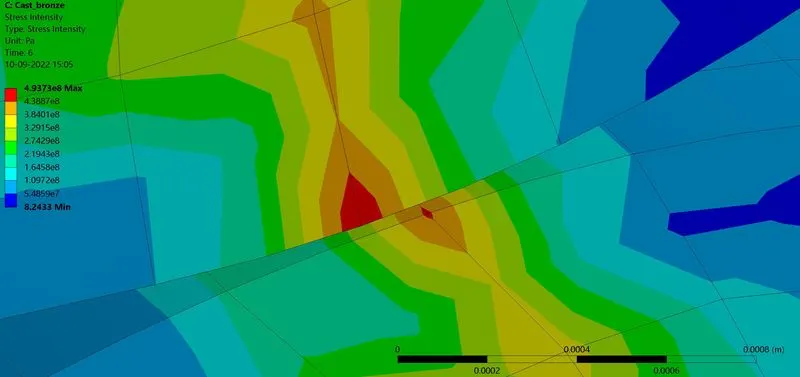

Stress Intensity Max 493.73 Mpa

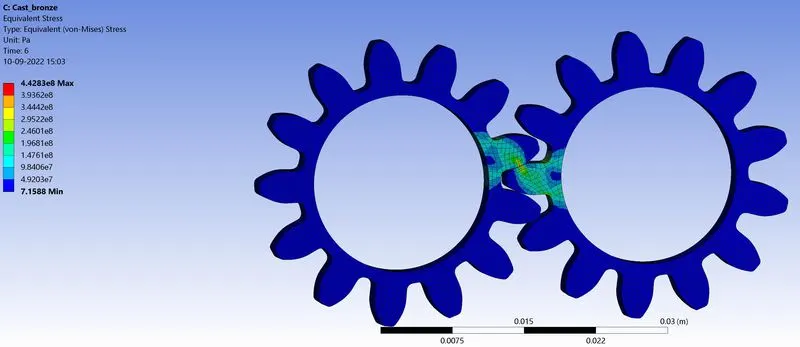

Equivalent Stress

Result and Conclusion

The analysis runs successfully and results are obtained for all the cases.

                                       Equivalent Stress Max Mpa          Total Deformation Max mm         Stress Intensity Max Mpa

Cast Iron                                 466.09                                           30                                              525.12

Cast Steel                               460.21                                            30                                              516.79

Cast Bronze                             442.83                                           30                                              493.73

• From the above comparsion cast bronze shows less impact compared to the others
• Equivalent stress and stress Intensity of cast steel is slightly below as compared to cast iron  the ltimate strength of cast iron is higher than cast steel and hence will run for a few more cycle .So that life will be good and also the cost of the material is less compared to remaining and every material having thier own advantages so based on customer requirement depending on
• Crack is most likely to occur near at the root of the tooth.
• Deformation for all three materials is the same.

LINK : https://drive.google.com/file/d/1-Aiv-uxW-C_3wlzd6RldtFLnfkauxth6/view?usp=sharing
