Week 1- Mixing Tee

AIM

To study the SteadyState simulation of mixing of two air streams with different temperature and compare their mixing effectiveness. We check the mixing effectiveness for two different lengths (short and long pipe).

Mixing tees are very much used in the HVAC industries. As we can see the above model is set up for the mixing of single or multiple phases to allow heat transfer and also mass transfer. In the above model, we have two inlets with fluids entering at different temperatures (For our case fluid is "air"). Hot air flows in the main pipe and cold air flows through a tee. To measure the mixing effectiveness, we calculate the standard deviation at the outlet. We also check for the mesh size and turbulence models used. Following are the two versions of the cases,

1. CASE 1

* Short mixing tee with a hot inlet velocity of 3 m/s.

* Momentum ratio of 2, 3.

2. CASE 2

* Long mixing tee with a hot inlet velocity of 3 m/s.

* Momentum ratio of 2, 3.

Pre-Processing:

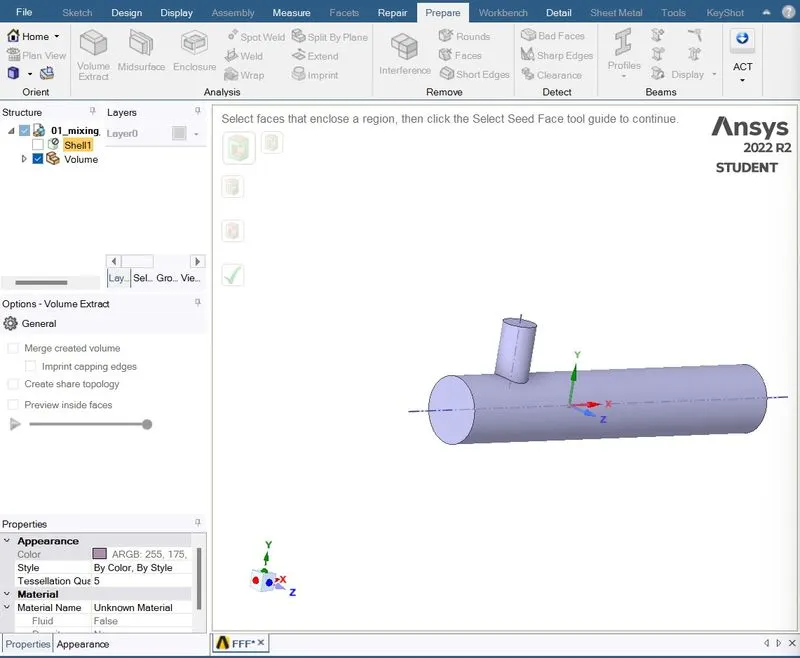

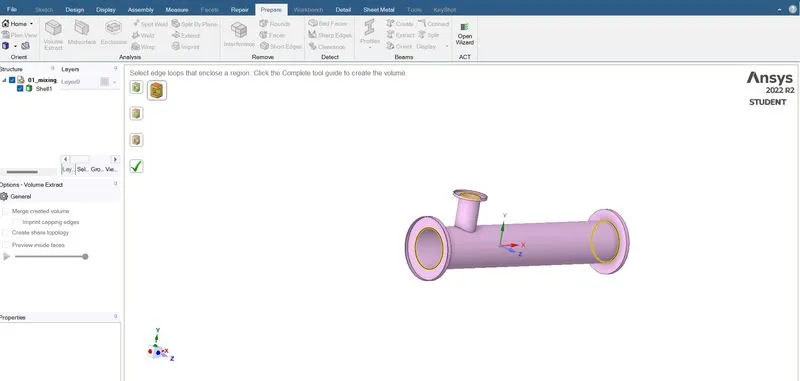

1. Geometry cleanup in Ansys Spaceclaim:

Our Model has may features that we do not need and therefore we only need the volume of flowing fluid. This is done by using the volume extract option on the prepare tab.

2. Generating Mesh and case setup in Ansys Fluent:

In Ansys mehsing we generate the mesh and we also give names to the boundaries. In Ansys fluent we setup the boundary condition, Steadystate solver, initialization and solving the equations. We also generate the report and plot files about the field variables for analysis.

Defining some Variables:

1. velocity of hot air – V-h
2. velocity of cold air – V-c
3. Temperature of hot air - T-h
4. Temperature of cold air - T-c

CASE 1

Momentum ratio of 2.

1. T_h = 36 degree celsius (inlet_x)
2. T_c = 19 degree celsius (inlet_y)
3. V_h = 3 m/s
4. V_c = 6 m/s (Momentum ratio=2)
5. Turbulence model = k-ε Relizable model.

Following are the mesh/setup/results plots:

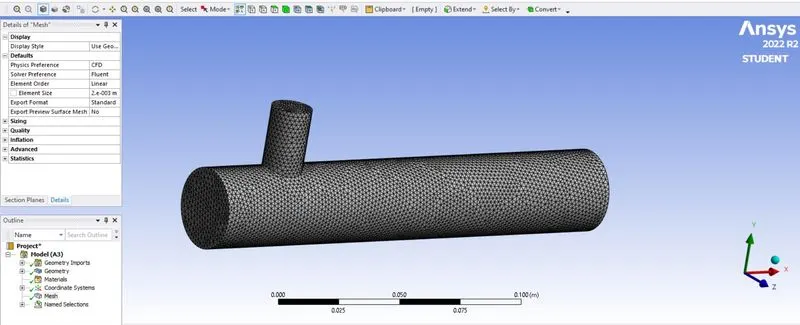

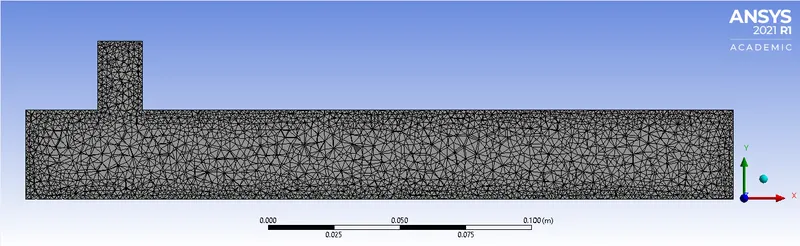

Mesh Size = 0.002 m

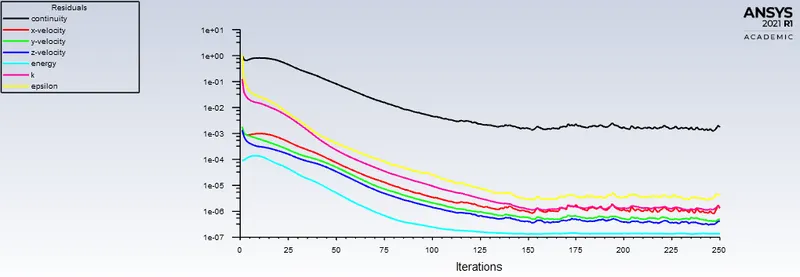

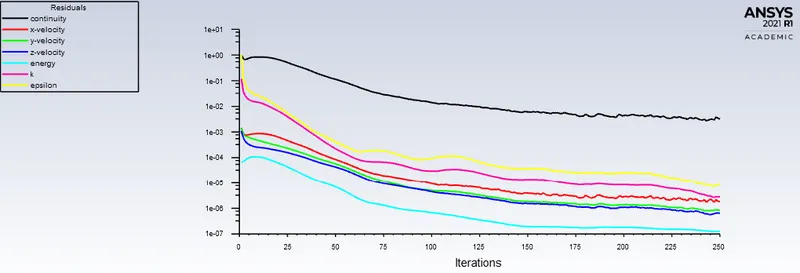

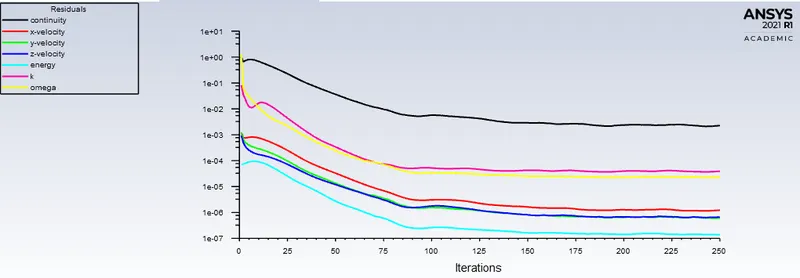

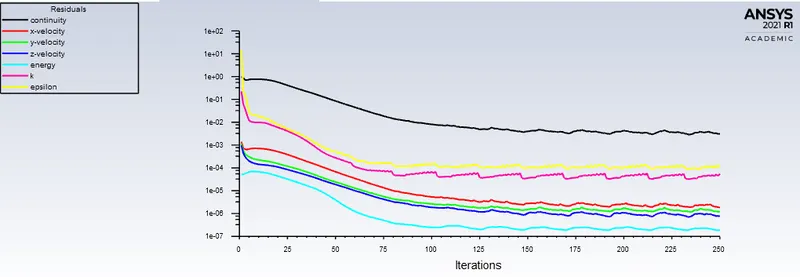

Residual plot.

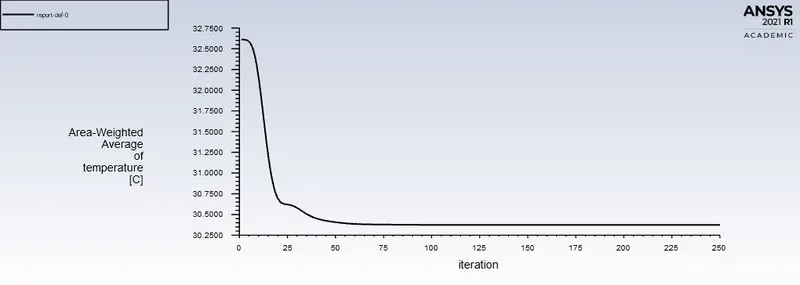

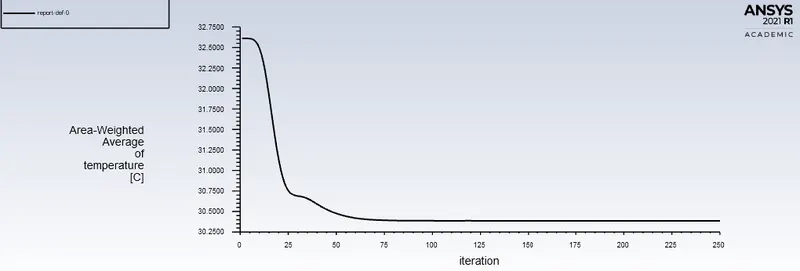

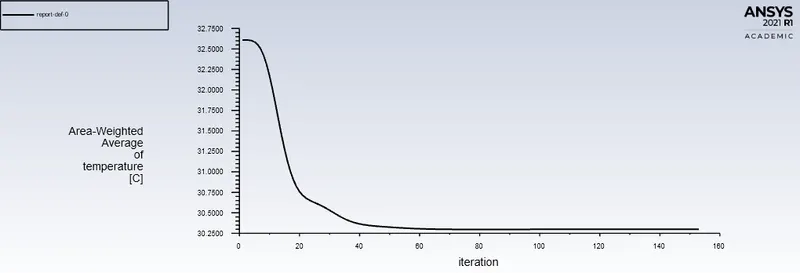

Average Temperature.

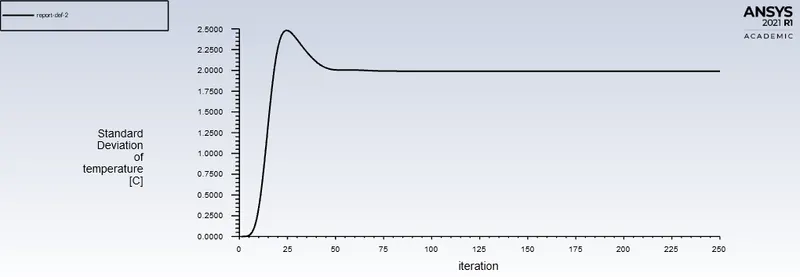

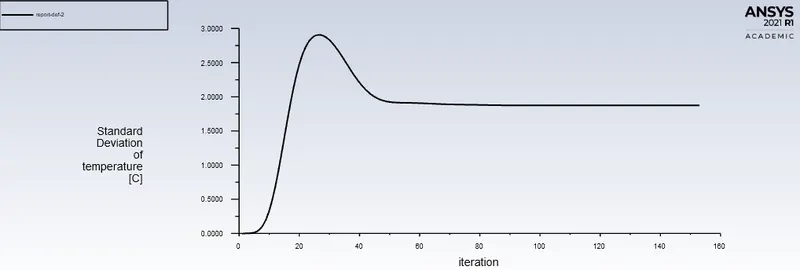

The standard deviation of temperature.

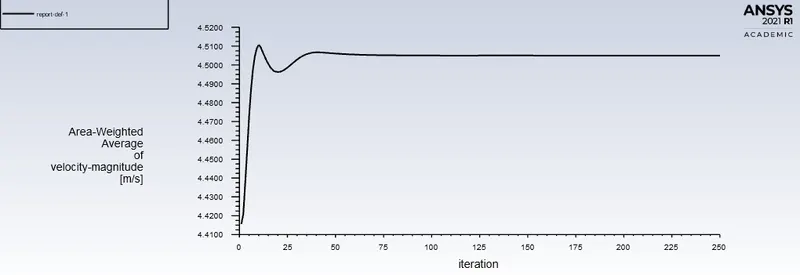

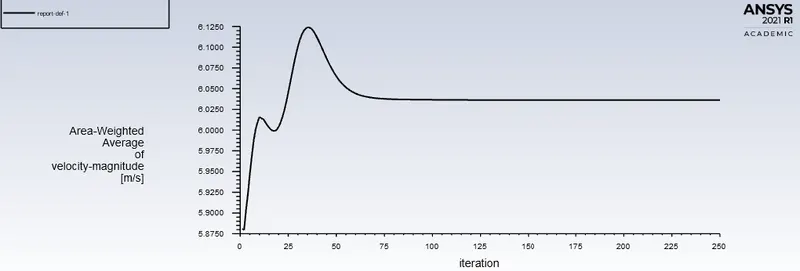

Average velocity.

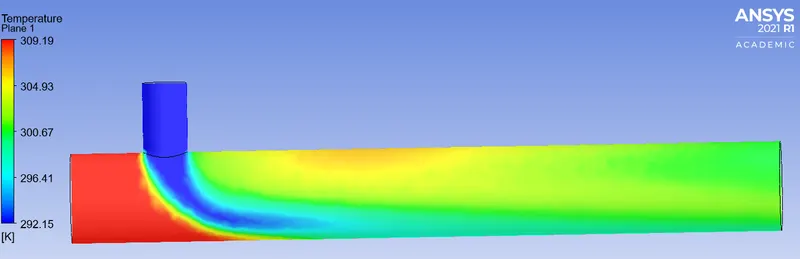

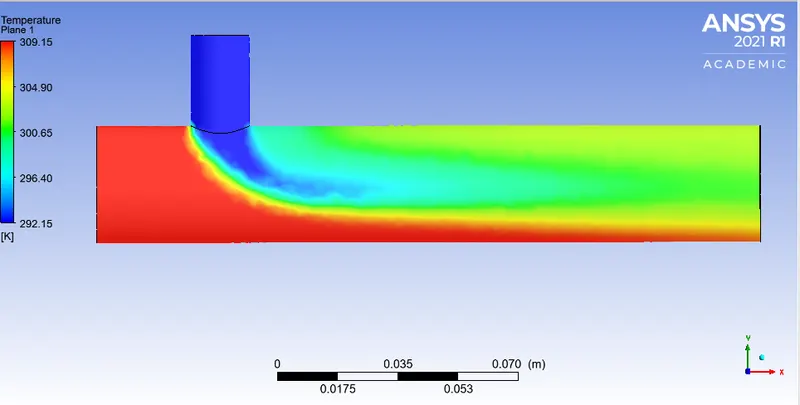

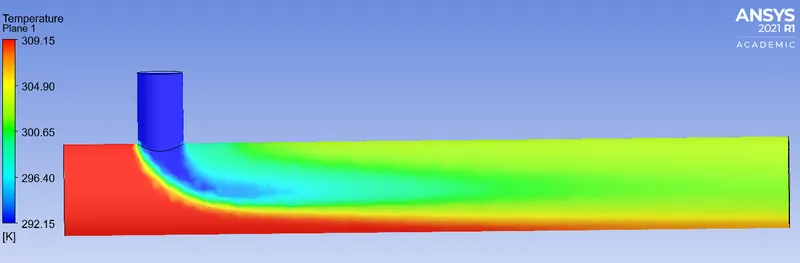

Temperature variation along the axial plane.

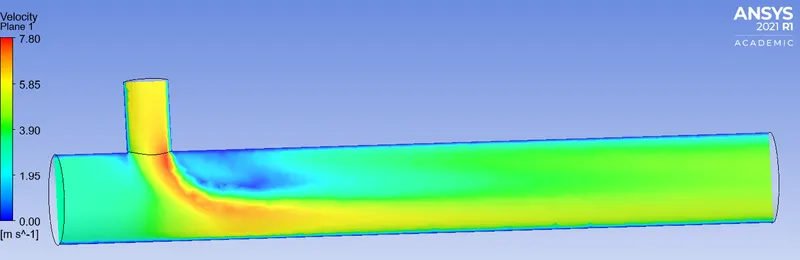

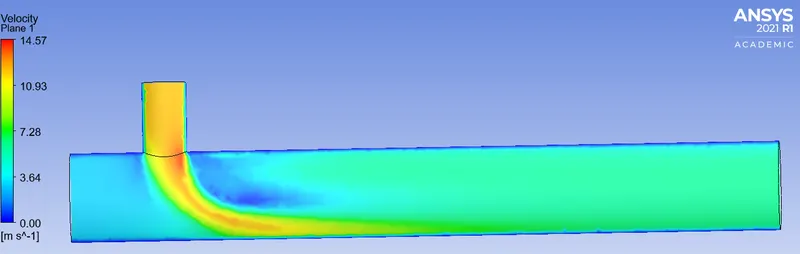

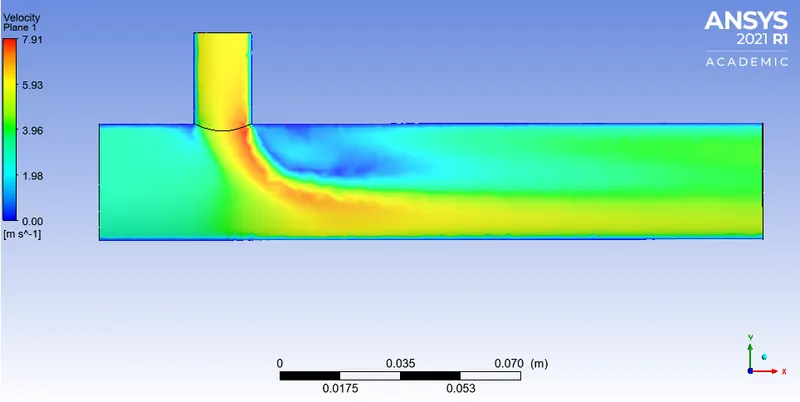

Velocity Variation along the axial plane.

Momentum ratio 2, Turbulence Model (k-ω SST)

1. T_h = 36 degree celsius (inlet_x)
2. T_c = 19 degree celsius (inlet_y)
3. V_h = 3 m/s
4. V_c = 6 m/s (Momentum ratio=2)
5. Turbulence model = k-ω SST model.

Following are the mesh/setup/results plot:

Mesh size = 0.002 m.(Mesh plots are the same as before)

Residual plot

Avg. Temperature

Standard deviation

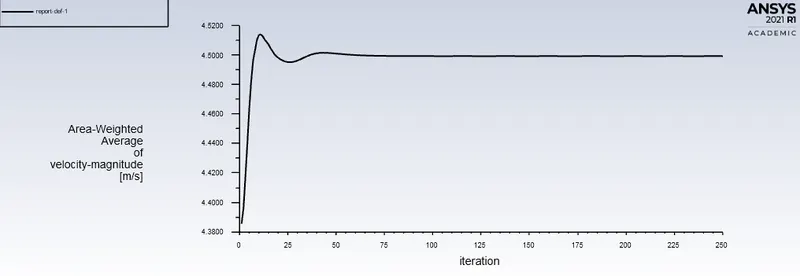

Avg. velocity

Momentum ratio of 4.

1. T_h = 36 degree celsius (inlet_x)
2. T_c = 19 degree celsius (inlet_y)
3. V_h = 3 m/s
4. V_c = 12 m/s (Momentum ratio=4)
5. Turbulence model = k-ε Relizable model.

Following are the mesh/setup/results plots:

Mesh size = 0.002 m.(Mesh plots are the same as before)

Residual plot

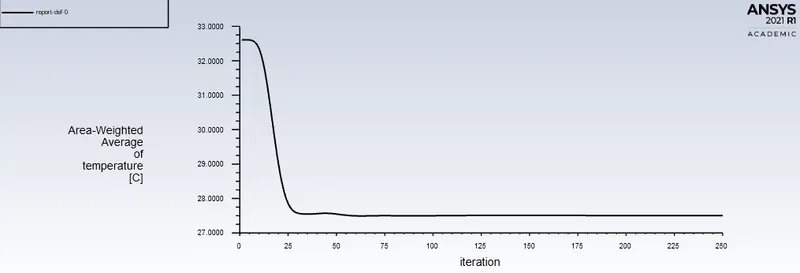

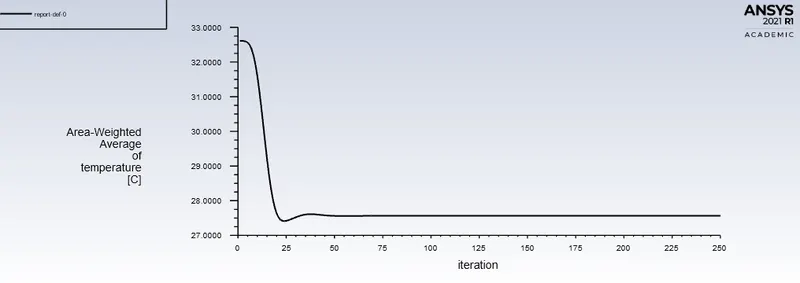

Avg. Temperature

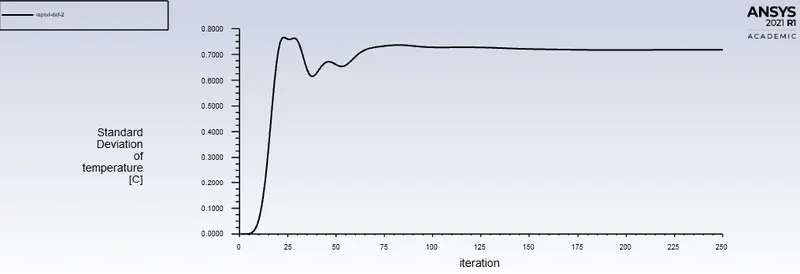

Standard deviation

Avg. velocity

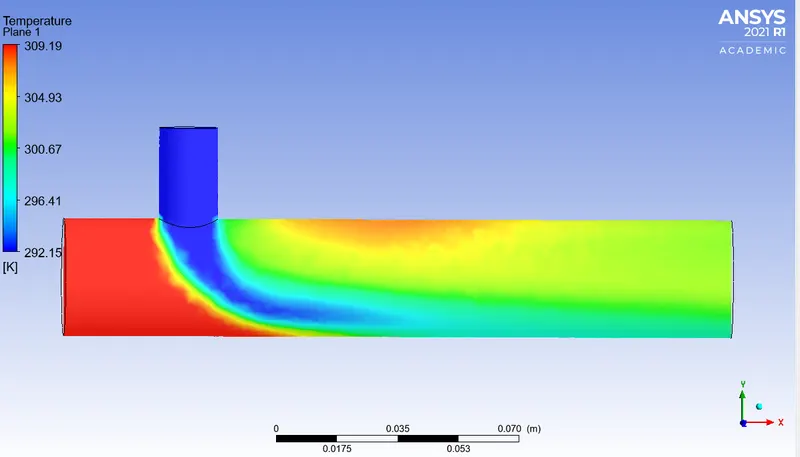

Temperature plot along the axial plane

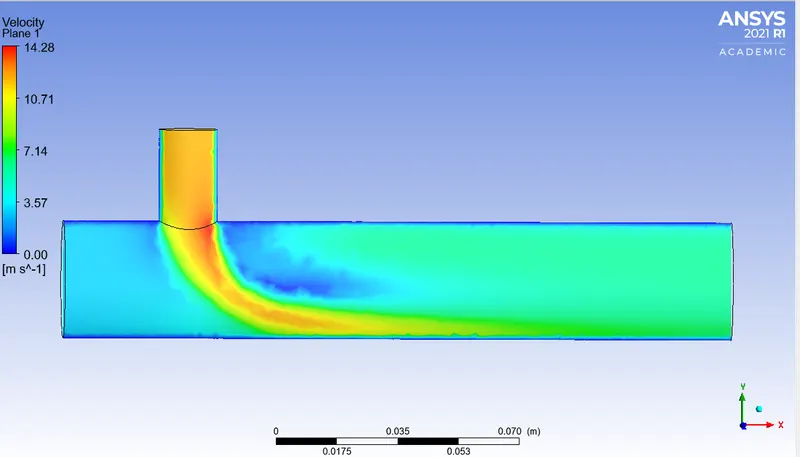

Velocity plot along the axial plane

CASE 2

Momentum ratio of 2.

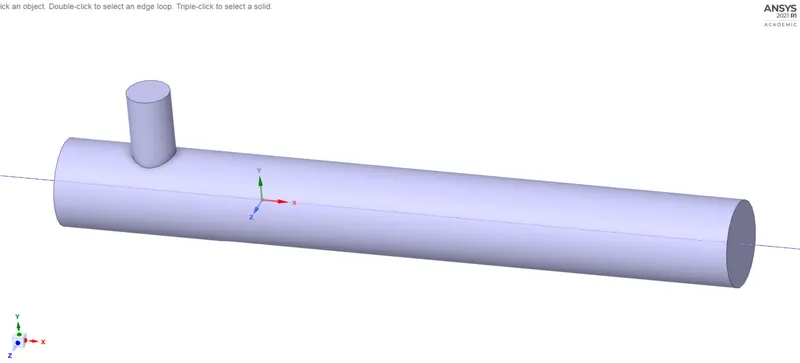

Cad for 2nd case

1. T_h = 36 degree celsius (inlet_x)
2. T_c = 19 degree celsius (inlet_y)
3. V_h = 3 m/s
4. V_c = 6 m/s (Momentum ratio=2)
5. Turbulence model = k-ε Relizable model.

Following are the mesh/setup/results plots -

Mesh size = 0.002 m.

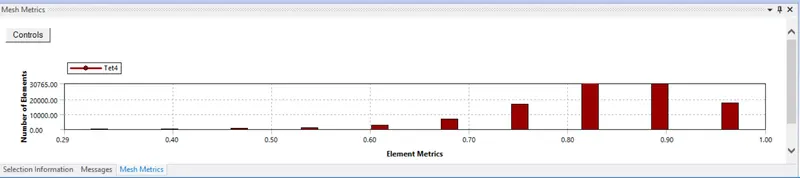

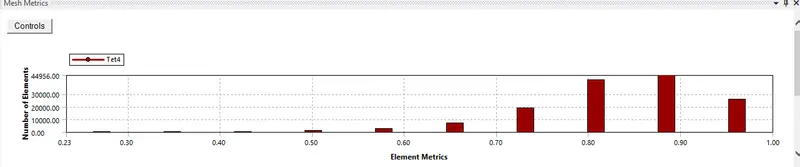

Mesh metric plot

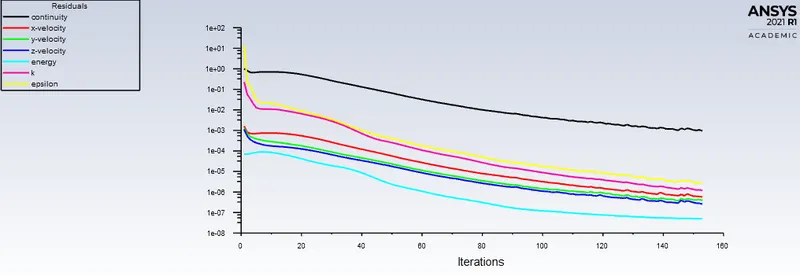

Scaled residual plot

Avg. Temperature

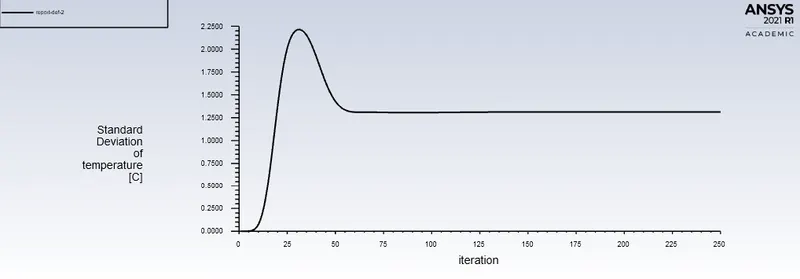

The standard deviation of Temperature

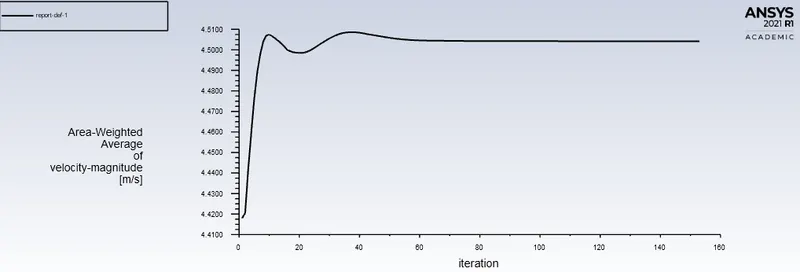

Avg. Velocity

Temperature plot along the axial plane

Velocity plot along the axial plane

Momentum ratio of 4.

1. T_h = 36 degree celsius (inlet_x)
2. T_c = 19 degree celsius (inlet_y)
3. V_h = 3 m/s
4. V_c = 12 m/s (Momentum ratio=4)
5. Turbulence model = k-ε Relizable model.

Following are the mesh/setup/results plots

Mesh size = 0.002 m.

(Mesh plots are similar as shown previously)

Scaled residuals plot

Avg. Temperature

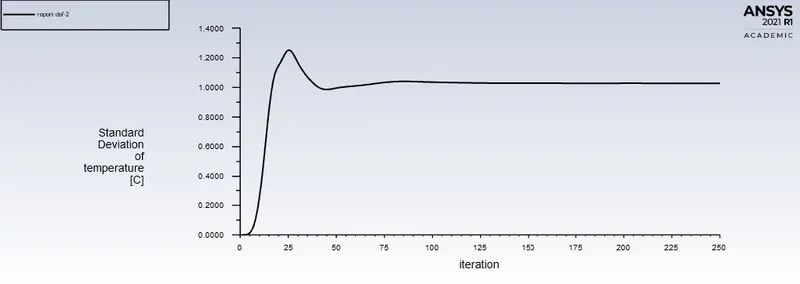

Standard deviation of Temperature

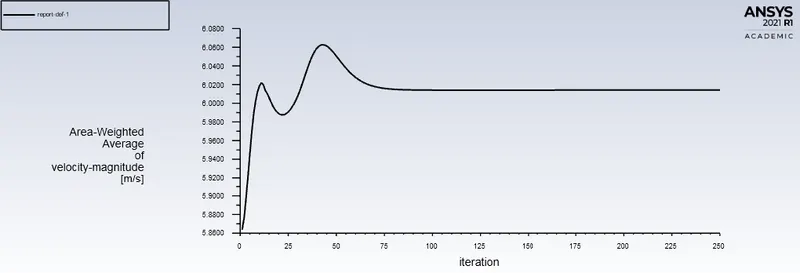

Avg. Velocity

Temperature plot along the axial plane

Velocity plot along the axial plane

Case I - Short Tee	Momentum Ratio	Turbulence Model	Cell count.	Avg. Temperature (degree Celsius)	Standard deviation	Iteration Number (Convergence)
	2	k-ε Relizable model	106152	30.298	1.87	50
	2	k-ω SST model	106152	30.374	1.98	50
	4	k-ε Relizable model	106152	27.562	1.02	70
Case II - Long Tee
	2	k-ε Relizable model	141712	30.3	1.25	70
	4	k-ε Relizable model	141712	27.4	0.7	75

Conclusion

1. The Average temperature at the outlet drops down due to the increase in the velocity of cold air. We also have a low value for standard deviation, which means mixing is more efficient (because of turbulent mixing). Therefore, high momentum ratio will ensure more mixing and temperature reduction.
