Week 1:- Introduction to BiW and Fixtures Challenge

1.What is BIW & define its parts?

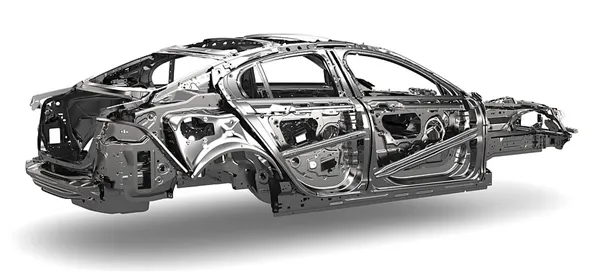

In Automotive industries, BIW (body in white) is the common terminology used to describe the sheet metal welded structure. This structure is married with other components like engine, Transmission system and trims are joined. The name is derived based on the appearance of the structure which has grayish-white color before it is painted.

In today’s situation, automotive BIW is made of various grades of steel, and a few high-end luxury cars are made up of aluminum alloy. The image below illustrates an automotive BIW.

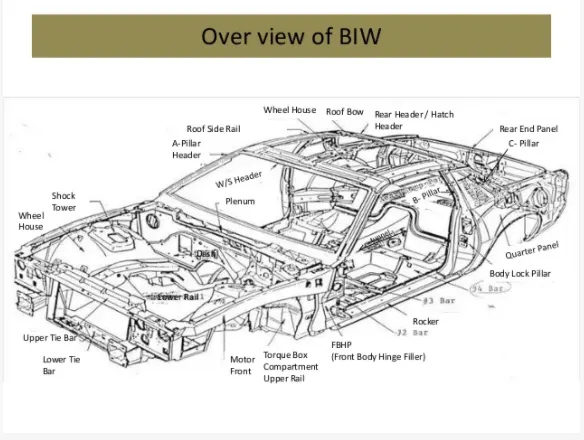

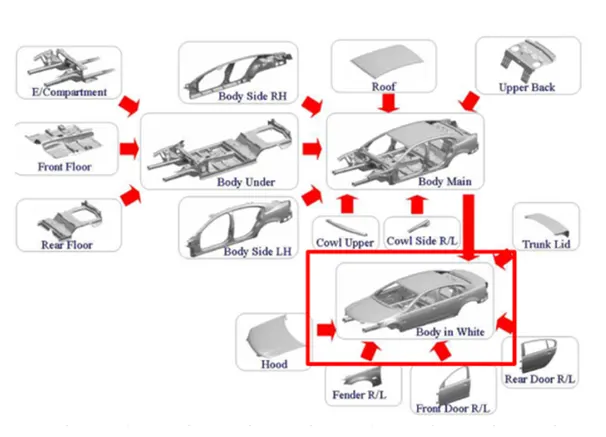

The parts of the BIW structure

1. Underbody Structure
2. Frontend Structure
3. Body side structure
4. Closures
5. Roof

These structures consist of major components as below

An underbody body structure has

• Dash panels- which acts as a partition between the engine compartment and driver cabin
• Front floor – it provides a base for the seats.
• Rear floor –it acts as a floor for the rear end of the car and a base for the rear seats.
• Raiser- Connects the front floor with the rear floor by providing the level difference.

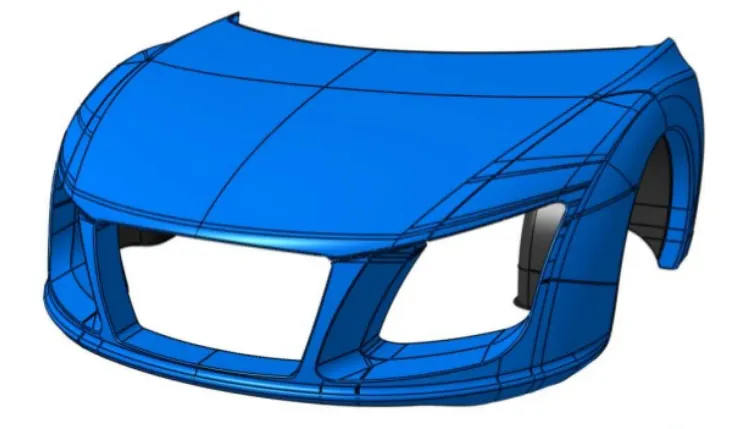

Front End Structure

• Front fender – it is the part that covers the wheels and protects the pedestrians from the stones and other particles from the rotating wheel.
• Plenum panel – a chamber located between the throttle body and the runners of the intake manifold.
• Cowl – it is located in the space between the hood and windshield. This is the space where your vehicle’s windshield wipers are located.
• Upper tie bar – it is an upper panel in the front that connects the two sides of the front structure.
• Lower tie bar - it is a lower panel in the front that connects the two sides of the front structure.
• Wing panel – Outermost side panel in the front.

Body Side Structure

• A-Pillar – it is the front most support to the roof.
• B - Pillar – it is the center support to the roof.
• C and D Pillar – C pillar is the rearmost support to the roof in case of small car-like hatchbacks, but in case of cars with three-row seating.
• Ring panel –a structure panel connecting the rear and front portion.
• Quarter panel – rearmost panel of the bodyside structure.
• Drip rails – an exposed channel applied to the roof over the side windows to direct the water away from the windows.

Closures

• All Doors and Tailgate – hinged panels which provide access to the cabin and the boot.
• Hood – it is a hinged panel that provides access to the engine compartment.

Roof Structure

• Roof Outer panel – it is the panel that adds aesthetic value to the car and is joined with the inner panel.
• Roof inner panel – it provides strength to the roof with the roof rails and bow roofs.

2.What do you understand by BIW nomenclature?

• BIW nomenclature is naming the different parts of the BIW structure like A-Pillar, Fender, etc.
• Each region has different names for the same part. For instance, the roof bow as known in the U.S is called a Roof Stiffener in the U.K.

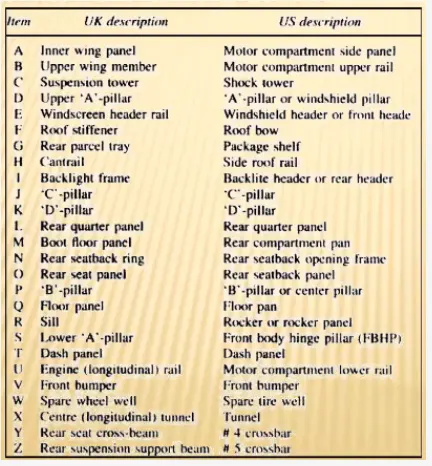

• The below images Show the Different BIW parts in two different regions.

3.What is a fixture & its types?

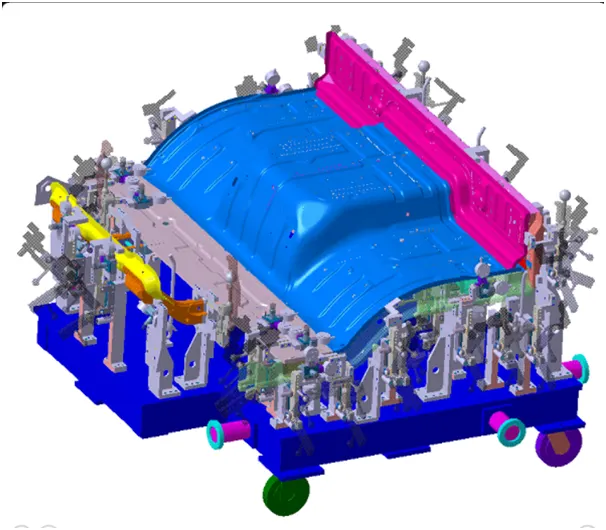

Fixtures are the work holding device, which holds, supports, and locates the workpiece.

Welding fixtures are generally used in the automotive industry to hold various BIW components together in order to be welded

It is necessary to ensure that there is minimum or negligible distortion in the workpiece during the welding process.

Locating elements are placed to ensure the repeatability of the assembly is the same.

The clamping of the workpiece should be lighter such that it does not damage the panels and the clamping areas must be clear of the welding area.

Below are the general types of fixtures:

1.Production Fixture- It is used for mass production purposes in the automotive industries, these are the fixtures where all the car panels are assembled together for the final outcome. The dimensional and tolerance are checked whether the quality is met or not. The maintenance of the fixture must be feasible for regular checks.

2.Preproduction Operation Fixture- It is used as a prototype fixture to study the feasibility of the initial batch production and to make any type of changes to the production fixture. The cycle time of the pre-production fixture is higher than that of the production fixture and there is a huge involvement of the manual operators and engineers during the process. Most of the automotive industries prefer production fixtures over the pre-production fixture in order to save more time and cost as this cost would have a direct impact on the final cost of the car.

3.Checking Fixture- it is the fixture used for checking and inspecting an assembly. These are similar to geo fixtures but no operations are done like welding and gluing. Instead, these fixtures use internal or external gauges to check for dimensional accuracy, Geometric accuracy, and tolerance with respect to the CAD data provided by the engineer.

4.What is the basic principle of fixture design?

The main purpose of the fixture design is to hold the workpiece such that it does not move or distort during the process. It is very important to properly locate the work piece in the fixture.

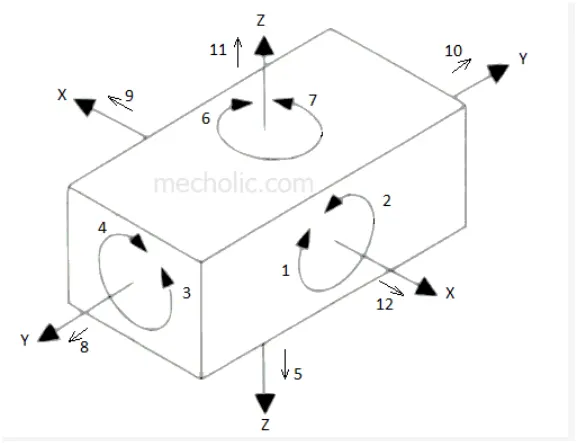

For any free body, there will be 12 degrees of freedom as shown in the image below

6 translational degrees of freedom: +X, -X, +Y, -Y, +Z, -Z

And 6 rotational degrees of freedom:

- Clockwise around X-axis (CROT-X)

-  Anticlockwise around X-axis (ACROT-X)

- Clockwise around the Y-axis (CROT-Y)

- Anticlockwise around the Y-axis (ACROT-Y)

- Clockwise around Z-axis (CROT-Z)

- Anticlockwise around Z-axis (ACROT-Z)

 It is required to fix all the 12 degrees of freedom except the three transitional degrees of freedom (-X, -Y, and -Z) in order to locate the workpiece in the fixture. So, 9 degrees of freedom of the workpiece need to be fixed by using the 3-2-1 method as shown below:

1. Rest the workpiece on three non-collinear points of the bottom surface (XY), and you will be able to fix the +Z, CROT-X, ACROT-X, CROT-Y, and ACROT-Y degrees of freedom
2. Now, rest the workpiece at two points of the side surface (XZ), and you will be able to fix the +Y and ACROT-Z degrees of freedom.
3. Now, rest the workpiece at one point of the adjacent surface (YZ), and you will be able to fix the +X and CROT-Z degrees of freedom.

In this way, the  9 required degrees of freedom are fixed by using the 3-2-1 principle of fixture design.

5.Elaborate types of BIW Stations?

The BIW assembly line is where different types of panels are joined together in each specified zone like Underbody zone, Hood zone Etc.

These zones are further subdivided into stations, where various processes like welding gluing and inspection are done to the part of that particular zone before they are being assembled together. For instance, in the roof zone, various reinforcement is to be added before they are married to the side zone.

BIW Stations are classified into four parts as below

• Tools
• Grippers
• Stands
• Miscellaneous

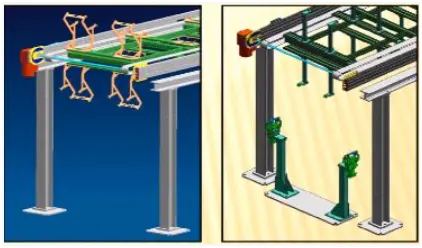

• TOOLS

A tool is a fixture that consists of a number of units to hold a car panel. there are four types of tools as follows

1. Geo Tool
2. Re spot Tool
3. Marriage Tool
4. Framer Tool
5. Checking Tool

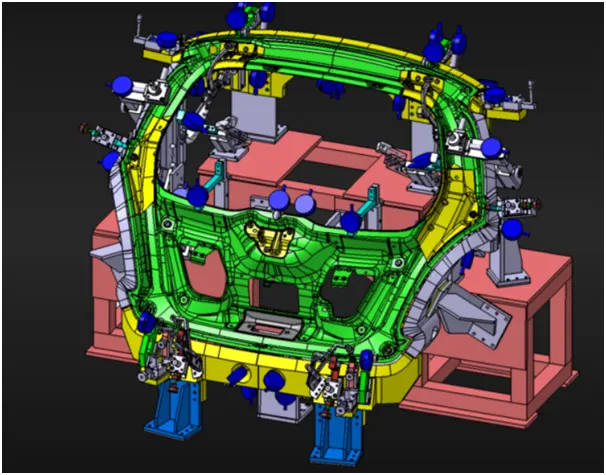

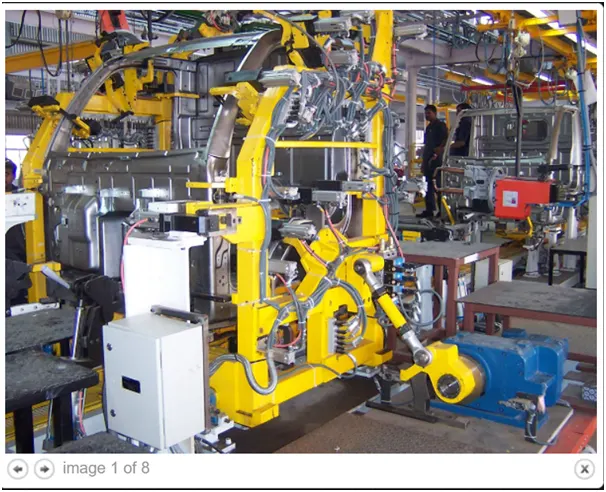

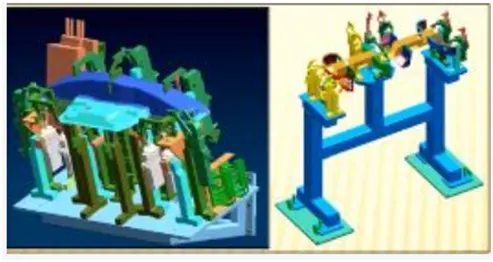

1.Geo Tool

• In Geo fixture, welding is done for all the parts to be assembled in that fixture.
• The geometry of the pattern is defined accurately in the geo fixture.
• These fixtures have a tight accuracy standard
• All the machine parts individually should be made with max tolerance of ± 0.02 mm. whereas the positional accuracy of the pin should be within ± 0.1.
• To maintain the cycle time of the assembly line the welding in the geo tool fixtures is done in such a way that there would not be any distortion in the accuracy of the assembly and the remaining welding is done in re spot tool.

2.Re spot tool

• A Re-spot tool is a fixture where remaining welding which is not done by the geo tool, is being completed.
• In case, of re-spot Fixture, the tolerance value can vary up to +_ 1.0 mm. In general,-0.28mm.
• These loose tolerances are due to the fact that they are not forming the geometry of the assembly. Which is already defined in the geo tool fixture.

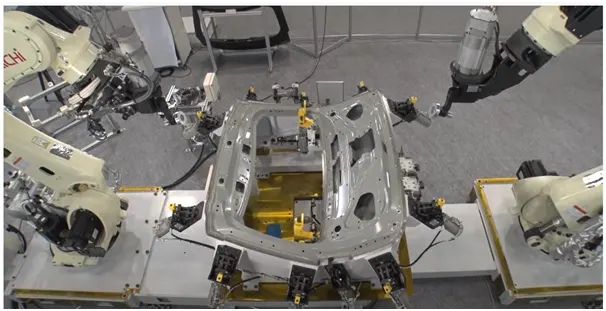

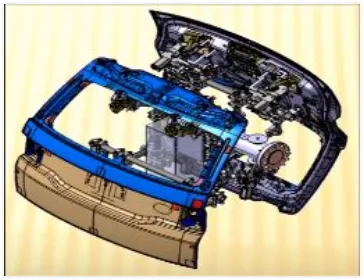

3.Marriage or Hemming Tool

• The marriage or hemming tool fixture is used to join the inner panel assembly and the outer panel assembly is joined together.
• This process is usually done by hemming and using mastic sealants such that it does not affect the aesthetics of the car.
• Hood, Side doors, and tailgate are assembled in this way.

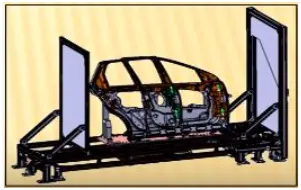

4.Framer Tool

• The framer tool is the next stage of the marriage tool.
• The part from the marriage tool is fixed with the roof panel.

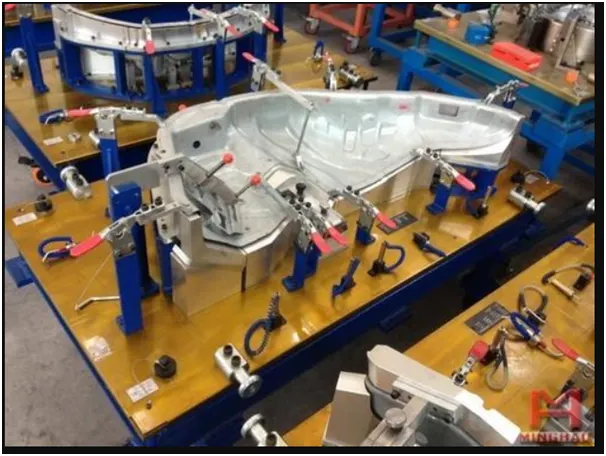

5.Checking Tool

• A Checking station is a fixture that is used for the checking of the assemblies of the components.
• The Checking fixture can be gauge type, fixed type, and automated checking fixture.
• It generally checks for the geometrical accuracy and tolerance of the assembled part coming out of the geo tool fixture. It does so by comparing the measured value with that of the data from the CAD.

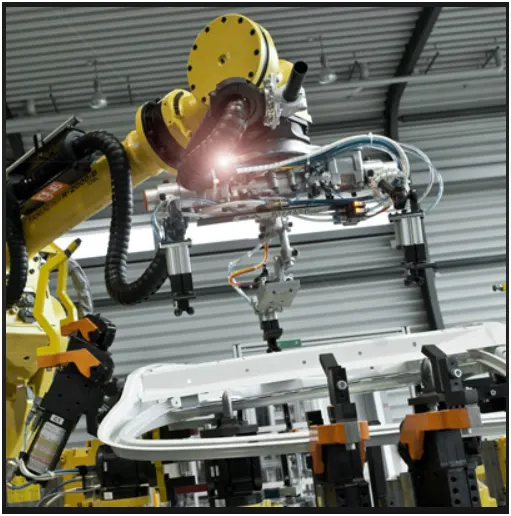

• GRIPPERS

A gripper is a fixture which holds the car panel, these fixtures are generally the end effectors of a robotic arm. It is important to keep the weight of the gripper as light as possible because they have to be mounted on a robot.The types of grippers are as follows

1. Material Handling Gripper
2. Process Gripper
3. Combo Gripper
4. Dual Gripper

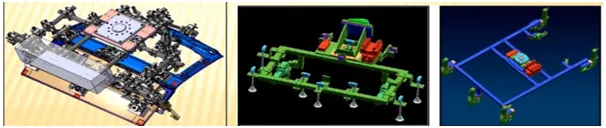

1.Material Handling Gripper

• The material handling grippers are generally used to move the car panels from one tool station to another.
• Most of the material handling grippers are vacuum grippers in the automotive industry.

2.Process Grippers

• This type of grippers is used to carry out a process like welding and gluing in the car panels. The grippers take the panel to the pedestal welding or gluing stands where these processes are carried out.
• After the processes are done the gripper takes the panel to another station and drops it there for further processes.

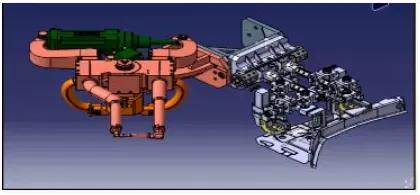

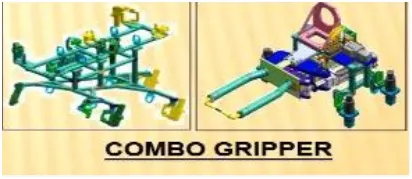

3.Combo Gripper

• Combo grippers are designed to handle the car panel from one station to another.
• Along with it, it has a welding gun at another side of the gripper in order to perform the welding operation.

4.Dual Gripper

• Dual grippers are also designed to handle the car panel from one working station to another working station.
• The grippers will be on both sides.
• It is capable of handling two panels at a time. These grippers are mostly used when symmetrical car panels are being married like the side doors.

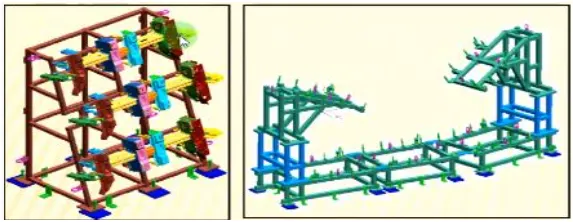

• STANDS

Stands are used to hold the panel when not in use like weld gun, glue gun. The Stands are fixed with the shop floor to maintain accuracy. The types of stands are as follows.

1. Pedestal Stands
2. Gluing and Sealer Stands
3. Docking stands
4. Date Stamp Stand

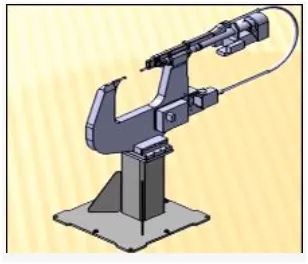

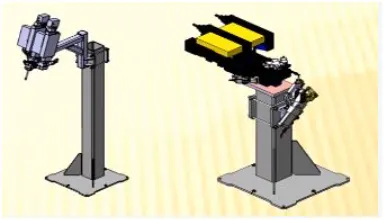

1. Pedestal Stand

• The weld gun will be mounted on the stand which is fixed with the shop floor. The process gripper will take the panel under this pedestal welding stand and perform the welding operation.

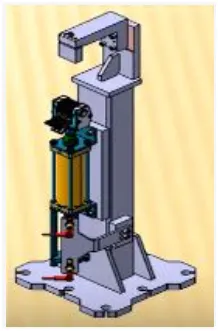

2.Gluing or Sealing Stand

Gluing or sealing gun is fixed to a welded or a standard stand that is grounded to the floor permanently.

3.Docking stand

• If the robots are assigned with multi-tasking like material handling and welding it cannot do the tasks simultaneously as the robots have restrictions to the payload and also for space constraints, it uses the docking stands.
• One process is done it drops the gripper in the docking stand and picks up the gun for another process.

4.Date Stamp Stand

The date stamping device will be mounted on this stand to emboss the date on the car panel.

• MISCELLANEOUS

1. Curing
2. Buffer Stand / Storage
3. Conveyors
4. Takeout Trolleys
5. Conveyors

1.Curing

Once the gluing process is done it needs to be cooled. Hence, the panels are put on the conveyor, so that it cools down until it reaches the next station.

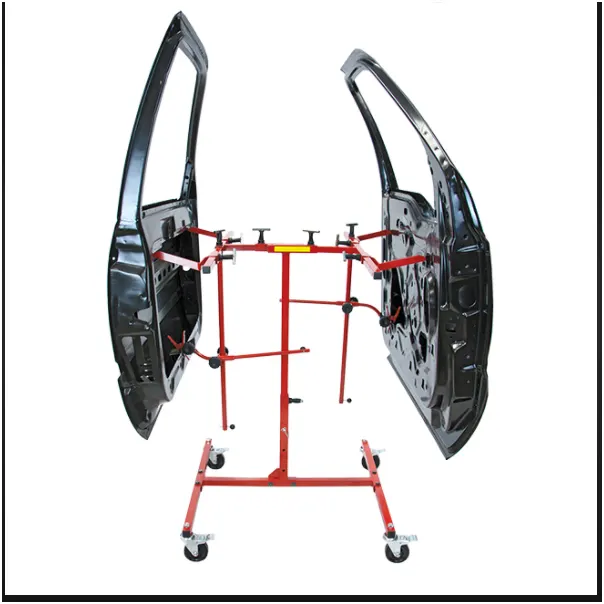

2.Buffer Stand

• The buffer stands are provided with the section so that number of assemblies can be
• These assemblies are then stored or moved from one station to another.
• The assemblies stored can be used when there is maintenance work going on any stations to avoid the stoppage of the whole assembly line.

3.Conveyor

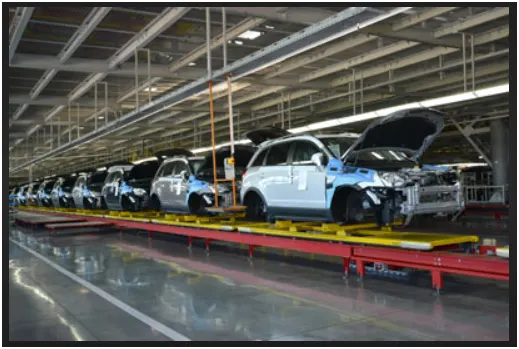

• The conveyor is used to move the panels from one station to another station
• They can be of belt type and chain drive.
• The panels are kept in the pallet or fixture fixed on a rotating belt and are moved

4.Take out Trolleys

• Take out trolley is used to take the car panel out of the robotic working station between the cycle for inspection purpose

6.What are the basic terminologies used in the BIW fixture?

The basic terminologies used in the BIW fixtures are

1. NC/mylars/Fingers
2. PLP( principle locating points)
3. Blade
4. Raiser
5. Shims
6. Rough Locators
7. Hard wares
8. CMM
9. Units
10. Number plates
11. Co-Ordinate plate
12. Nameplate
13. Clamp Arm
14. Pivot
15. Class A Surface or Skin Surface
16. Reed Switches
17. Sensors

1.Mylar/NC/Fingers

• Mylars are the part which holds the panel from above and below during the operation.
• The top side of Mylar is called the clamping Mylar. Whereas, the bottom side Mylar is known as resting Mylar.
• Every Clamping Mylar will have a resting Mylar.
• It holds the panel in such a way that it does not deform during the welding process.

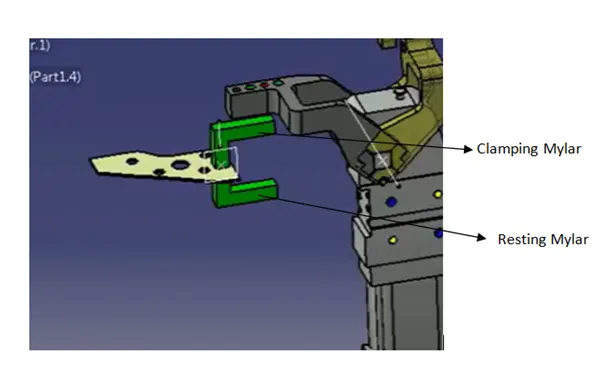

• The below image shows basic Clamping and Resting Mylar.

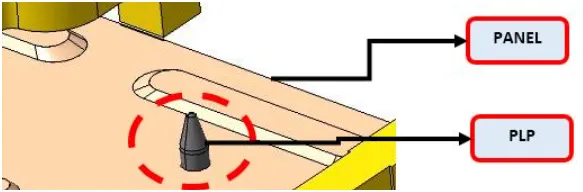

2.PLP(Principle Locating Points)

Principle locating points are those where we use pins for locating the panels. These points help in maintaining the geometrical accuracy of the panel.

3.Blade

• Blades are plates that are attached to the raiser.
• The cylinders and other additional arms are mounted on a Blade.

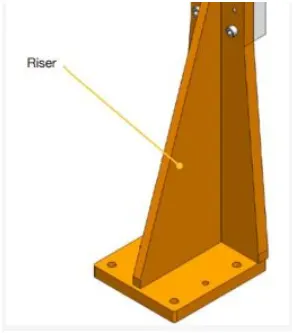

4.Raiser

• A raiser is a part that is used to raise the height of the fixture.
• The raiser is fixed to the base of the fixture and the blade is mounted on the raiser
• There are two types of raisers 1.L type raiser 2.Square Tube raisers.

5.Shims

Shims are small parts of the thickness of 0.1,0.2,0.3 mm. The shims are used to compensate for the difference due to the stack-up tolerance of the assembly, which eventually results in the improper holding of the panel if the Mylar holds it loosely. One the other hand if the Mylar holds the panel very tightly then it will form an impression in the panel. Shims play a major role by adjusting the Mylar to the defined position.

6.Rough locators

Rough locators are majorly used in manual fixtures. The rough locators will guide the operators to place the part in the correct position and orientation.

7. Hardware

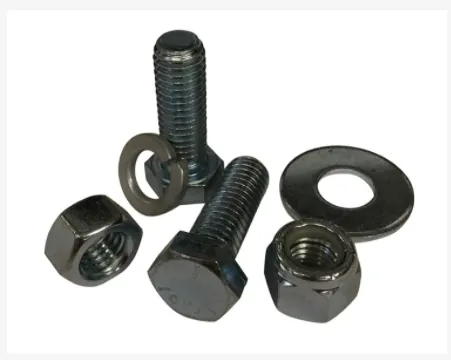

Hard wares are the fasteners that are used like the bolt, nuts, washers, Self-locking Nuts, etc.

8.CMM

CMM is known as a coordinate measuring machine.  CMM is used to check the coordinates of a fixture, measure the assembly, and compares the data with the CAD design.

9.Units

 The fixture is the assembly of different units. Some of the units used in fixture assembly are the Base unit, Pin unit, Clamp unit, etc.

10.Number Plate

The number plate is the aluminum embossing on each unit for the recognition of the units.

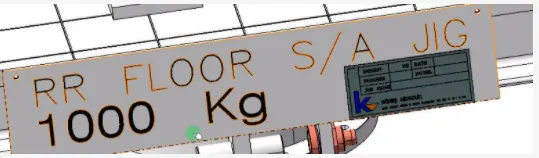

11.Name Plate

The details like manufacturing company name, fixture type, Fixture weight, etc are embossed on the plate and joined to the fixture.

12.Clamp Arm

The clamp arm is the part of the clamping unit which will hold clamping Mylar and will rotate over an axis.

13.Pivot

It is an axis about which the clamp arm will rotate.

14.Class A Surface or Skin Surface.

The outer panel of the BIW which adds styling and aesthetics to the car is known as the Class A surface or Skin Surface. It is important that while assembling these surfaces in the fixture there must not be any damage done to it. So , while designing we should make sure that the clamping material is soft which would not dent the surface. In this case, Nylon and PU material is used for Clamping.

15.Sensors are Reed Switches

These are the electrical components that are used in the automated fixtures for their smooth operation. Sensors are placed in a fixture to make sure that the operator has placed all the parts in the correct position. Reed Switches are used to determine the position of the piston inside the cylinder which would enable the operator to see whether the clamping is on or not.
