Week - 1 - Consistency of Units

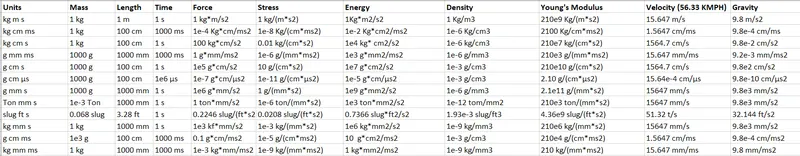

Aim: To get a consistent unit system across the given parameters

Mass 1kg - 1000g

Length 1m - 1000mm

Time 1s - 1000ms

Force 1N - 1kg*m/s2 - 1000*1000/1000^2 = 1 g*mm/ms2 : Conversion factor = 1

Stress 1Pa - 1N/m2 - 1kg(m/s2)/m2 - 1000/(1000*1000^2) - 1e-6 g/(mm*ms2) : Conversion factor = 1e-6

Energy 1Nm - 1 kg*m2/s2 - 1000*1000^2/1000^2 - 1e3 g*mm2/ms2 : Conversion factor = 1e3

Density 1 kg/m3 - 1000/1000^3 - 1e-6 g/mm3 : Conversion factor = 1e-6

Young's Modulus 210 GPa - 210e9 * 1e-6 g/mm*ms2 - 210e3 g/mm*ms2 : Conversion factor = 1e3

Velocity 56.33 kmph - 56.33*1e6/3600*1000 - 15.647 mm/ms : Conversion factor = 1

Gravity 9.8 m/s2 - 9.8*1000/1000^2 - 9.8e-3 mm/ms2 : Conversion factor = 1e-3
