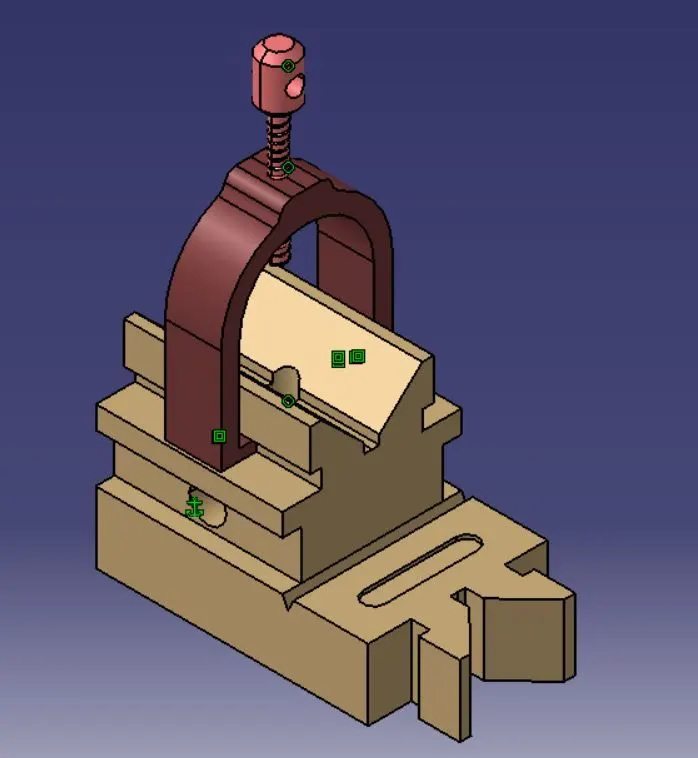

V-Block Assembly : Week 4 Challenge

                  Followed the formulas mentioned in the help video.   %% Set 2 week 3% Harsha Vardhanclearclc%% Giventotal_weight = 3750;wheel_base = 98;cg_height = 17;tire_radius = 15;throttle_acceleration = 16.25*12;g = 32.2*12; front_spring_rate…

Piston: - One side of the drawing given in section view A-A was drawn first and then revolved around the vertical axis to get the main piston body shape. Then created a plane at a distance of 25mm and made two circles on this plane and extruded it by 21.5 mm. Then created a pocket in this new cylinder as shown in the sketches…

Stock Support Base: - As shown in section view A-A, one side of the sketch was drawn and then revolved around vertical axis. To make handles shaped part, created a plane at an offset value given in the sketch, drew circle and padded it then another circle on this pad and extruded this up to main surface. This was mirrored…

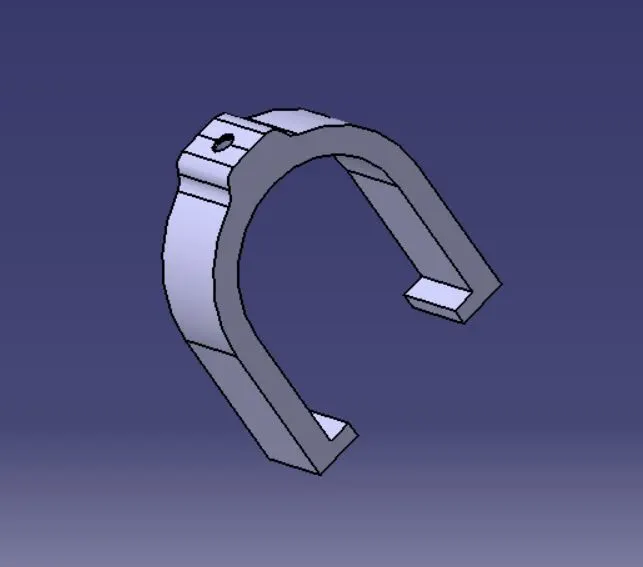

Upper Housing: -The semicircular part was made first by making padding its sketch.Provisions for bolts were provided by using the pocket command.Two planes were made as shown in the diagram. and corresponding sketches were made on these planes.Multi sections solid command was used to connect these two sketches by using…

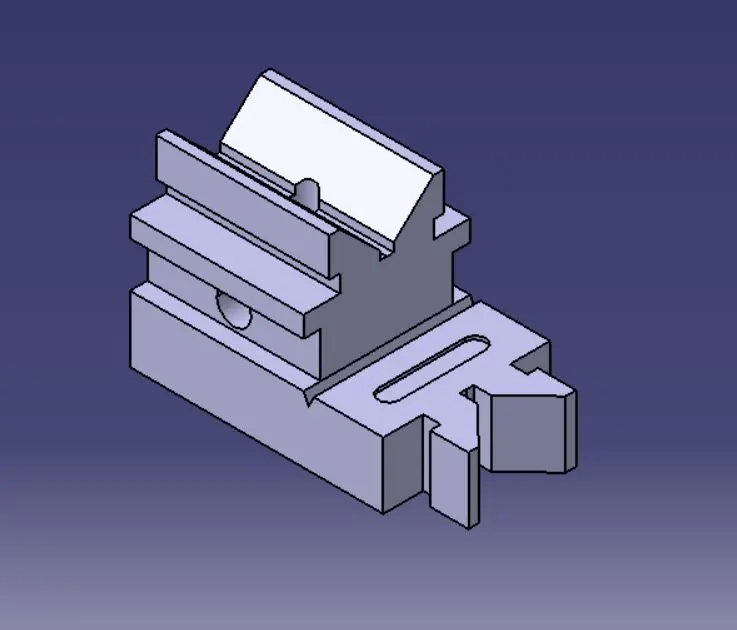

BODY: - The main body was divided into two parts i.e Lower Body and Upper Body. Each of them was made separately and then added using boolean ADD. First, the Lower body was made by drawing its base sketch and then padded it. Then on its top surface, an elongated hole was drawn and then used pocket command. Then 'V' cut…
