Stock Bracket Assembly : Week 4 Challenge

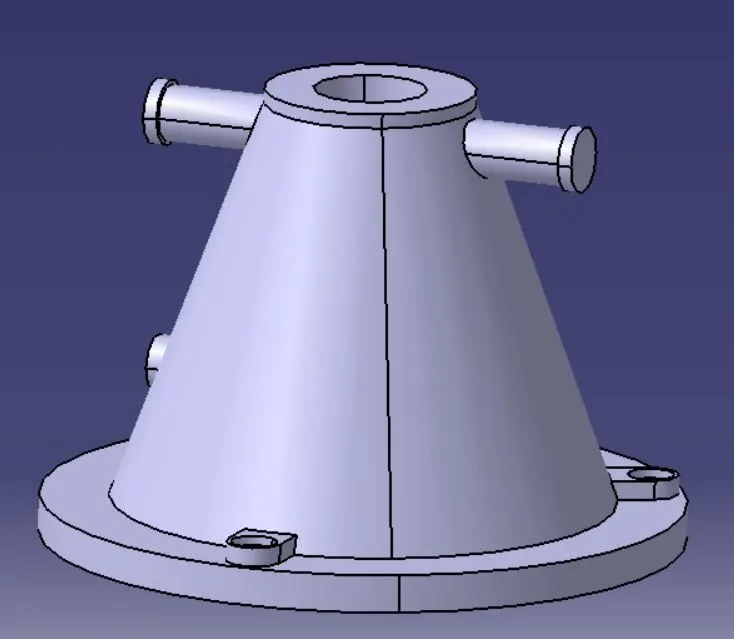

Stock Support Base: -

• As shown in section view A-A, one side of the sketch was drawn and then revolved around vertical axis.
• To make handles shaped part, created a plane at an offset value given in the sketch, drew circle and padded it then another circle on this pad and extruded this up to main surface.
• This was mirrored onto the other side
• Then gave the three nut provisions as shown in the sketch.
• Counterbored in Hole command was used to make counterbored hole.
• Created a new body part to make the hole for screw guide.
• Defined a plane and padded it. then used union trim command to delete the intersection.

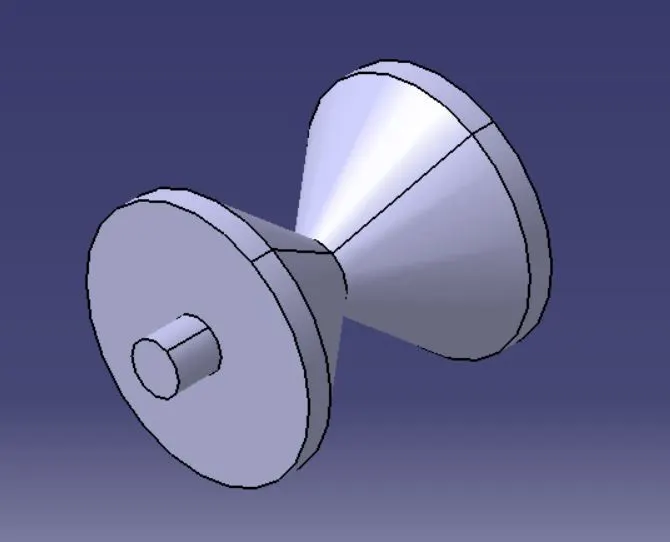

Stock support Roller: -

• Sketch was drawn and then revolved it around horizontal axis by using shaft command.

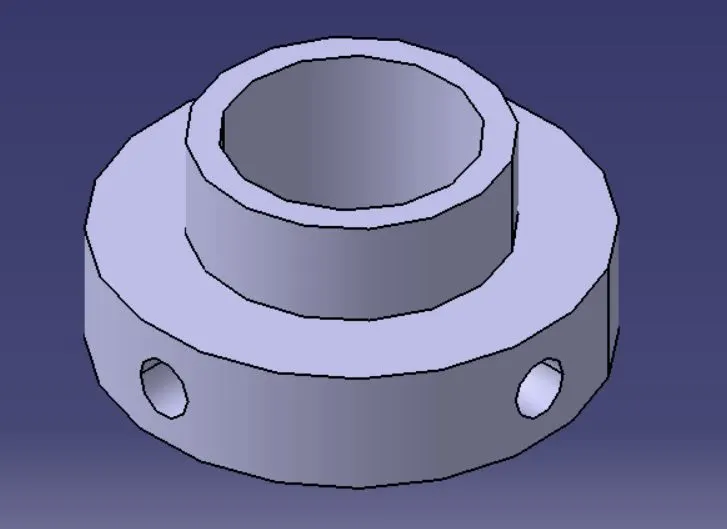

Adjusting screw: -

• First made the main body by making its sketch and revoving it.
• Then made the three holes by using pocket command and circular pattern command.

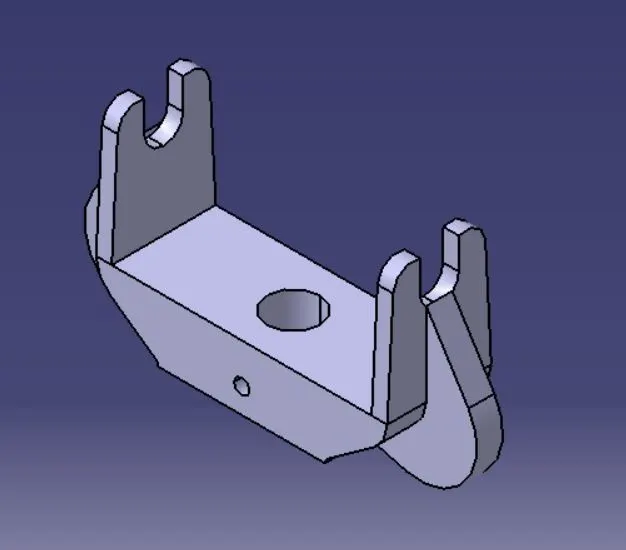

Support roller Bracket: -

• Main body was made first by making sketch and then padding it
• Then pocket was made on its top surface
• Hook shaped structure was made by making its sketch and padding it
• Support sturctures for roller was made in the end.
• The previous two pads were mirrored onto the other side

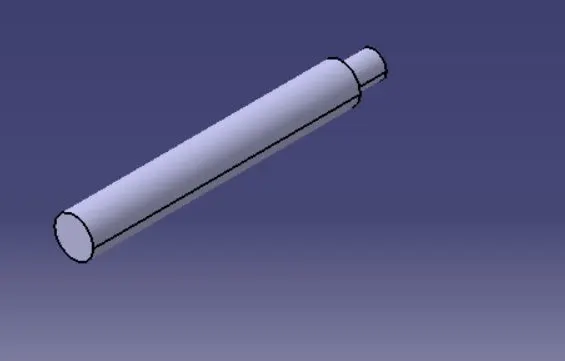

Adjusting Screw Guide: -

• Shaft command was used to make the part then chamfering was done at required edges.
• pocket command was used to make rectangular cut on the top face

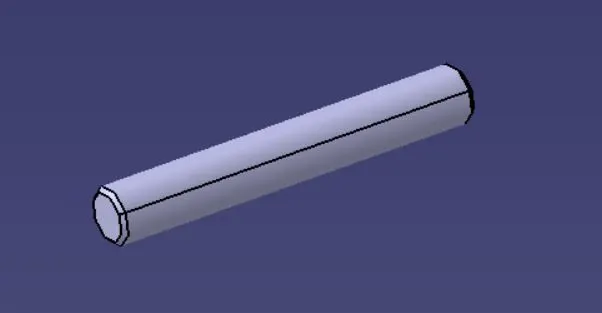

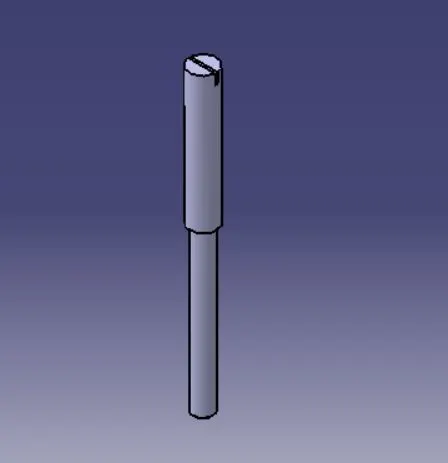

• Adjusting nut handle and support adjusting screw were made in the similar fashion

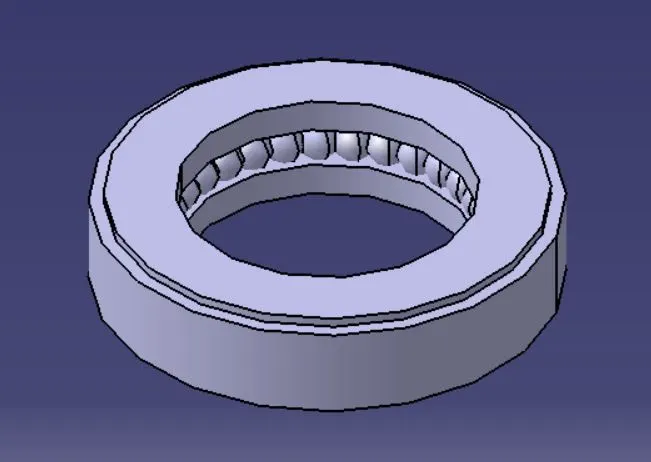

Thrust: -

• Sketch was made and then revolved it around vertical axis.
• Then a semi-circular sketch was made in the groove and shafted it around its diametrical axis to make a spere
• This sphere was circular patterned to make multiple number of balls.

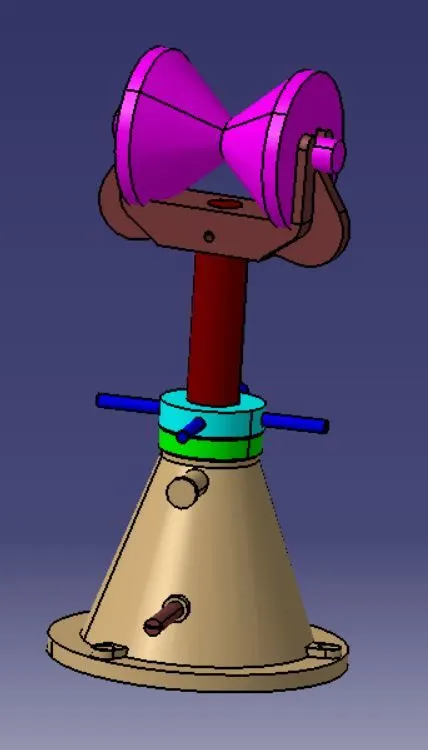

Assembly: -

• All the individual parts were assembled in assembly workbench by using offset, coincident, and surface contact constraint

Please find the attached zip file which contains all the part models and assembly.
