Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class

ANS:

AIM: Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class.

INTRODUCTION:Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to the Navisworks Cache file following the export settings discussed in class

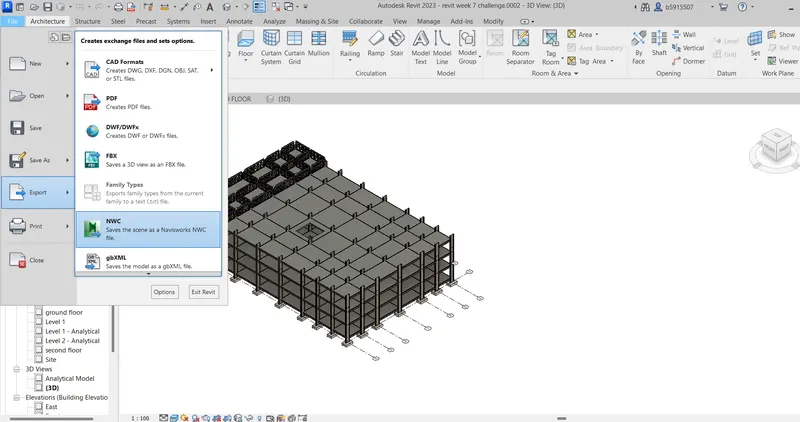

• open the revit software and open the architecture file go to file option choose the export option,

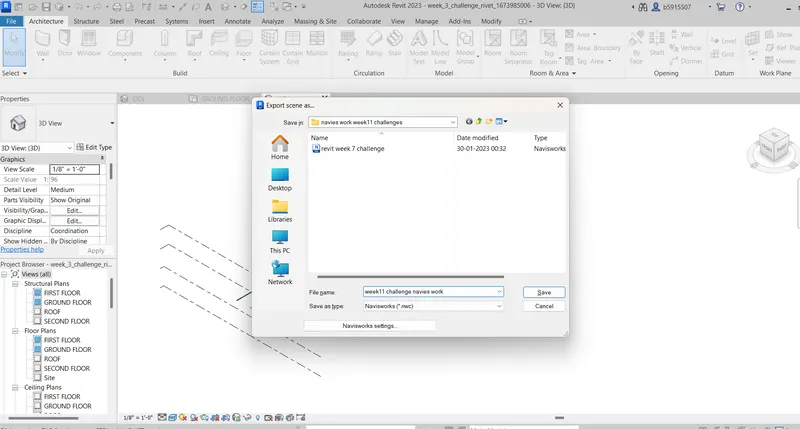

• choose the NWC option, create folder save it with Navies works architecture name.
• open the Revit software and open the strctural file go to the file option choose the export option,
• choose the NWC option, create a folder save it with Navies works strcture name. cilck on ok.

ANS:

RESULT:. Exported the Revit architecture and structure model to the Navisworks Cache file following the export settings discussed in class.

2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file.

ANS:

AIM: Use Navigate Tool to walk around the model and walk through .

Introduction: Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file.

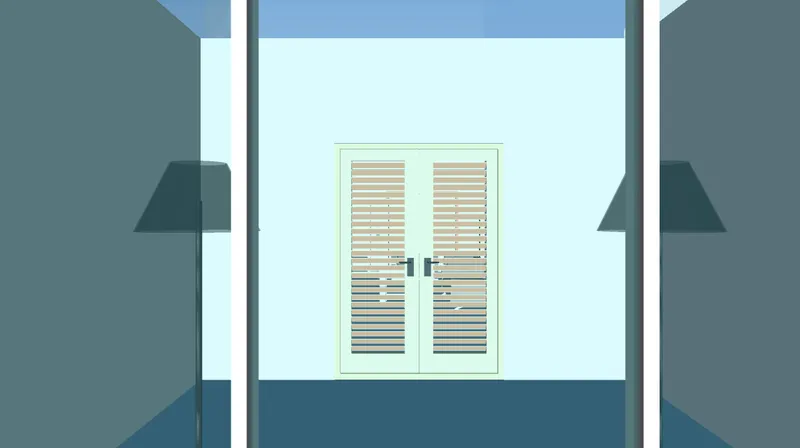

• choose the architecture file from the navies to work from the open option which is in NWC format,
• place the curser at door entrance,
• choose the viewpoint rename it,
• choose the walkthrough option from the viewpoint toolbar option,
• choose the record option at save viewpoint option,
• move the cursor appropriately to move the walk through,
• stop record when walking through the end, and export the video from the animation tool bar option.

,

RESULT:Used Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file.

3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file

ANS:

AIM: Use Navigate tool to use Realism feature to walk through.

INTRODUCTION: Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file.

• choose the architecture file from the navies to work from the open option which is in NWC format,

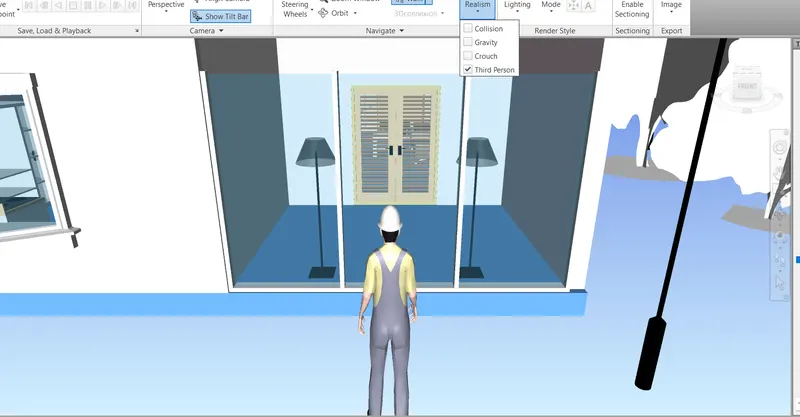

• place the cursor at door entrance, Choose the viewpoint next to realism and next is a third person
• choose the viewpoint rename it,
• choose the walkthrough option from the viewpoint toolbar option,
• choose the record option at the save viewpoint option,
• move the cursor appropriately to move the walk-through,
• stop record when walking through the end, and export the video from the animation toolbar option.

RESULT:Used Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file.

4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks.

ANS:

AIM: Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
INTRODUCTION: Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models by using the clash detection option.

• choose the structural file and insert it into the by append option,

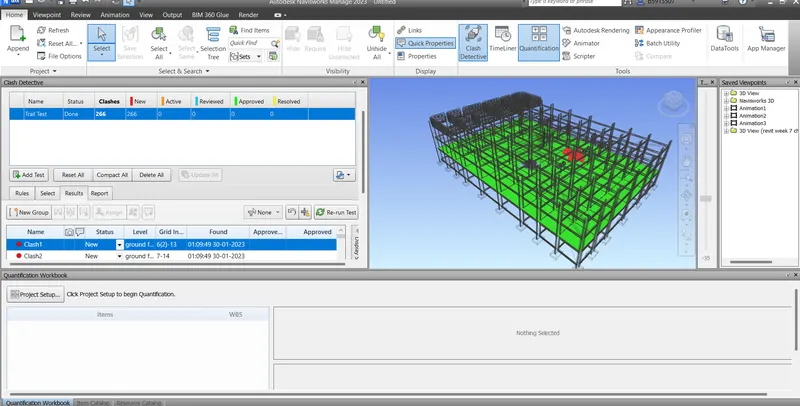

• already architecture file is inserted, go to the home click on the clash detection option,
• choose the add test option,
• next, choose the file different from section A to section B.

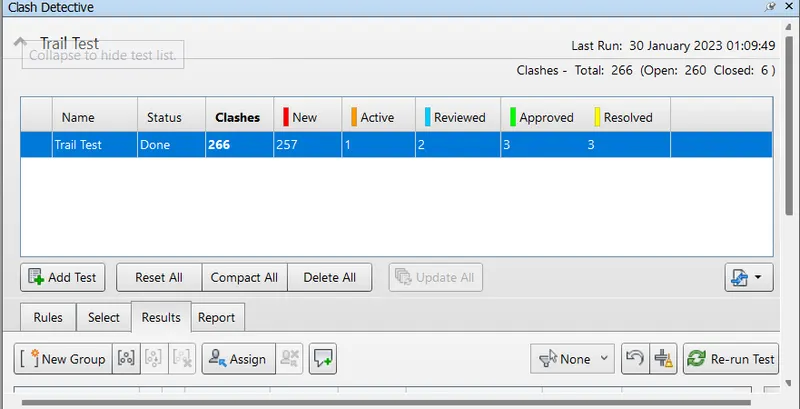

• click on the run test option, see the clashes on the model ,

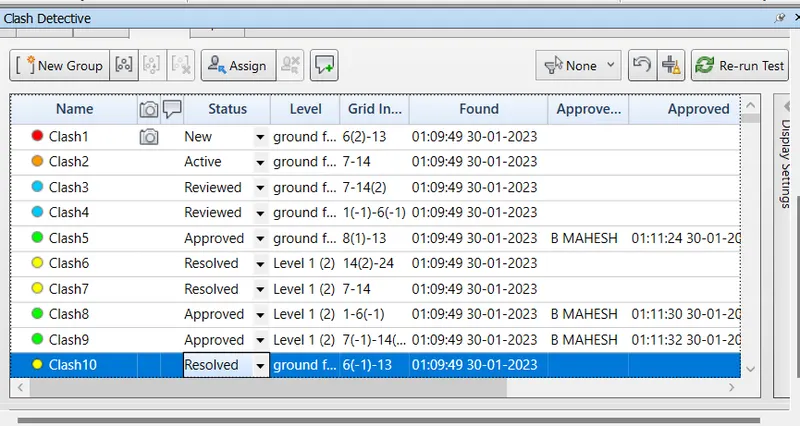

• rectify it by reviewed or active or resolved like that choose from the window click ok.

RESULT: Embeded both architecture and structure *.nwc file to your Navisworks file. Created a clash detection test between the two models.

5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file.

ANS:

AIM: Using the Timeliner feature in Navisworks prepare a schedule for the project developed.

INTRODUCTION: Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file

• alredy the both architecture and strcture files are inserted ,
• click the time liner from home tab,

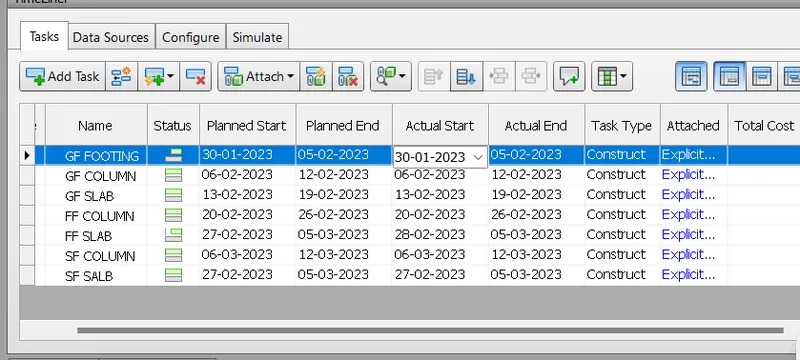

• choose the add task option,
• rename the name,allot the dates for planned start,planned end,actual start and actual end.
• by clicking properties pannel choose the elemant constrcted choose the attach the click ok,
• in the line if it shows attched potion is explicit it means file attached,
• later choose the simulate option to see the work progress in form of video,
• export video by using export option from the simulate tab itself choose the file in system save click as ok.

RESULT: Used the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file.
